Genie GS-3384 User manual

Operator's Manual
GS
-
3384 CE
GS
-
3390
GS
-
4390
GS
-
5390
with
Maintenance
Information
Original Instructions
Fifth Edition
First Printing
Part No. 1278050GT

Operator's Manual Fifth Edition • First Printing
GS-3384 • GS-3390 • GS-4390 • GS-5390 Part No. 1278050GT
Front Matter
Contents
Introduction ........................................................... 1
Symbol and Hazard Pictorials Definitions............. 5
General Safety ...................................................... 7
Personal Safety..................................................... 9
Work Area Safety................................................ 10
Legend ................................................................ 18
Controls............................................................... 19
Inspections.......................................................... 24
Operating Instructions......................................... 34
Transport and Lifting Instructions ....................... 40
Maintenance ....................................................... 43
Specifications...................................................... 46
Copyright © 2002 Terex Corporation
Fifth Edition: First Printing, December 2016
Genie is a registered trademark of Terex South Dakota, Inc. in
the U.S.A. and many other countries. “GS” is a trademark of
Terex South Dakota, Inc.
Complies with EC Directive 2006/42/EC
See EC Declaration of Conformity

Fifth Edition • First Printing Operator's Manual
Introduction
Part No. 1278050GT GS-3384 • GS-3390 • GS-4390 • GS-5390 1
Introducti on
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.
Product Identification
The machine serial number is located on the serial
label.
Serial number
stamped on chassis
Serial label location under
chassis cover
Intended Use
This machine is intended to be used only to lift
personnel, along with their tools and materials to
an aerial work site.
Bulletin Distribution and
Compliance
Safety of product users is of paramount
importance to Genie. Various bulletins are used by
Genie to communicate important safety and
product information to dealers and machine
owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their
associated dealer, so it is important to register your
machine and keep your contact information up to
date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.

Operator's Manual Fifth Edition • First Printing
Introduction
2 GS-3384 • GS-3390 • GS-4390 • GS-5390 Part No. 1278050GT
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.

Fifth Edition • First Printing Operator's Manual
Introduction
Part No. 1278050GT GS-3384 • GS-3390 • GS-4390 • GS-5390 3
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety
rules—safety and operator’s manuals and
machine decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may damage
the safety sign material.

Operator's Manual Fifth Edition • First Printing
Introduction
4 GS-3384 • GS-3390 • GS-4390 • GS-5390 Part No. 1278050GT
Hazard Classification
Decals on this machine use symbols, color coding
and signal words to identify the following:
Safety alert symbol—used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in minor or moderate injury.
Indicates a property damage
message.
DANGER
WARNING
CAUTION
NOTICE

Fifth Edition • First Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1278050GT GS-3384 • GS-3390 • GS-4390 • GS-5390 5
Symbol and Hazard P ictorials Definiti ons
Read the operator’s
manual
Read the service
manual
Crush hazard Crush hazard Collision hazard
Tip-over hazard Tip-over hazard Tip-over hazard Tip-over hazard Electrocution hazard
Electrocution hazard Explosion hazard Fire hazard Burn hazard Skin injection hazard
Engage safety arm Keep away from
moving parts
Keep clear of
outriggers and tires
Move machine to
level ground
Close chassis tray
Lower the platform Do not set up where it
cannot be leveled with
outriggers
Maintain required
clearance
Access by trained
and authorized
personnel only
Use a piece of
cardboard or paper to
search for leaks

Operator's Manual Fifth Edition • First Printing
Symbol and Hazard Pictorials Definitions
6 GS-3384 • GS-3390 • GS-4390 • GS-5390 Part No. 1278050GT
Chock the wheels Release brakes Tiedown Lanyard anchorage
points
No smoking
Wheel load Transport diagram Side force Wind speed Outrigger load
Voltage rating for
power to platform
Pressure rating for air
line to platform
Maximum capacity Crushing hazard
Hold rail while lowering

Fifth Edition • First Printing Operator's Manual
General Safety
Part No. 1278050GT GS-3384 • GS-3390 • GS-4390 • GS-5390 7
General Safety
82562
82476
82474
114251
97719
1263542
82487
114371114338
133537
82487 114371
114338
114337
133537
82474
82474
1263542
82562
82476
114251

Operator's Manual Fifth Edition • First Printing

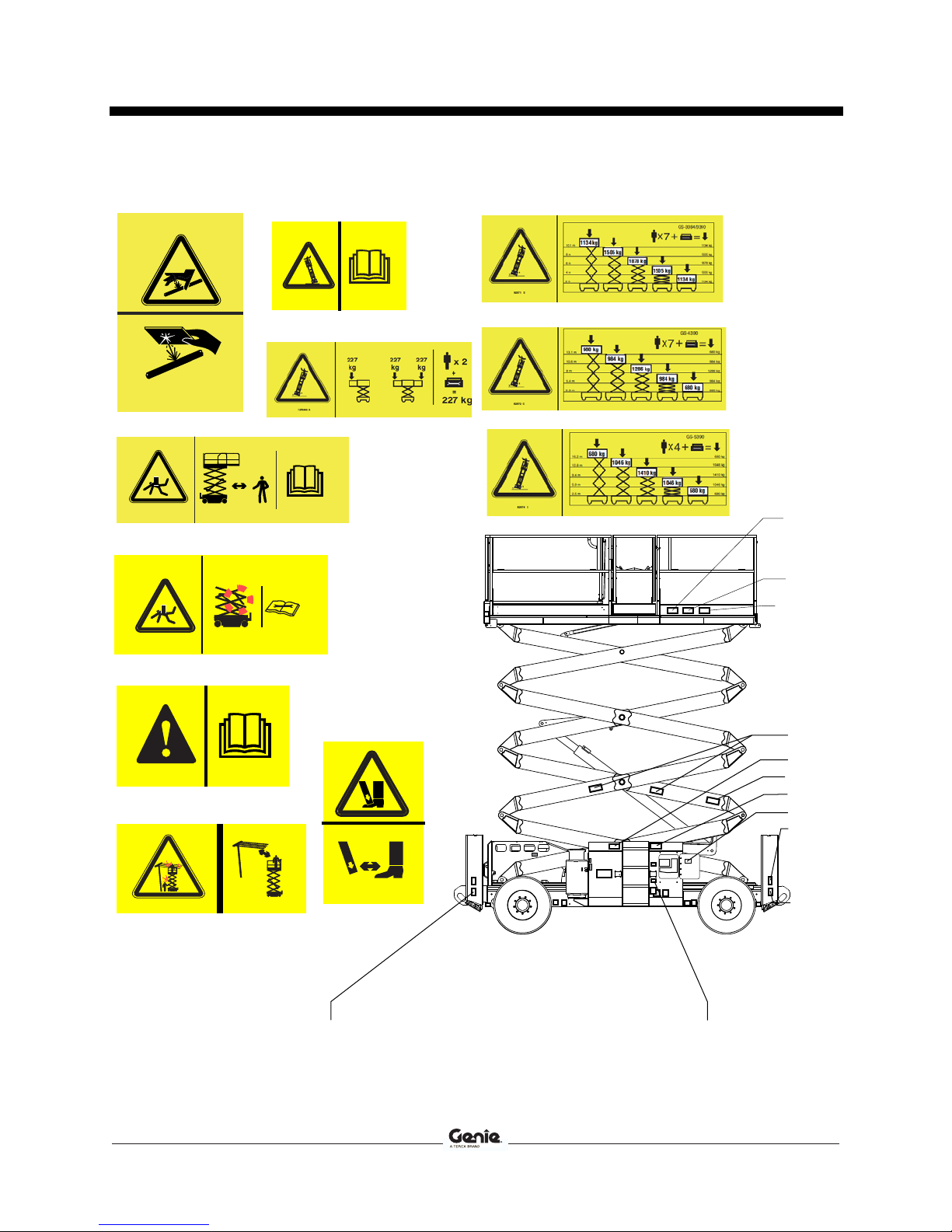

General Safety
8 GS-3384 • GS-3390 • GS-4390 • GS-5390 Part No. 1278050GT
82562
82474
82476
82487
82475
82475 82560
114337
82560
82562
82474
82487
82475
114337
82476
1278048
1278048
GS-3384/GS-3390 - 82971
82811
82871
*82872
*82874
GS-4390 - 82972
GS-5390 - 82974

Fifth Edition • First Printing Operator's Manual
Personal Safety
Part No. 1278050GT GS-3384 • GS-3390 • GS-4390 • GS-5390 9
Personal Safety
Personal Fall Protection
Personal fall protection equipment (PFPE) is not
required when operating this machine. If PFPE is
required by job site or employer rules, the following
shall apply:
All PFPE must comply with applicable
governmental regulations and must be inspected
and used in accordance with the manufacturer’s
instructions.

Operator's Manual Fifth Edition • First Printing
Work Area Safety
10 GS-3384 • GS-3390 • GS-4390 • GS-5390 Part No. 1278050GT
WorkArea Safety

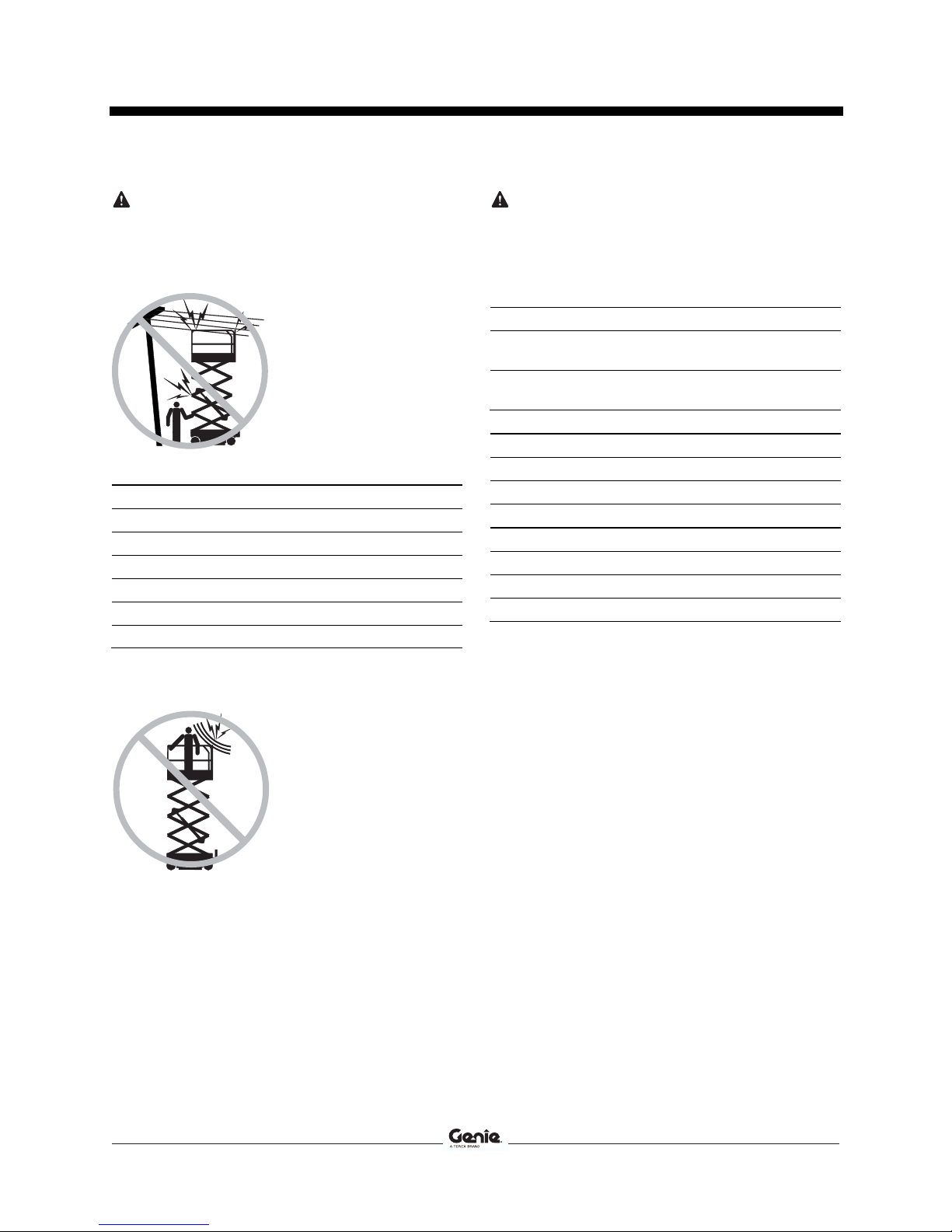

Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Obey all local and
governmental regulations
regarding required
clearance from electrical
power lines. At a
minimum, the required
clearance contained in the
chart below must be
followed.
Line Voltage Required Clearance
0 to 50KV 3.05 m
50 to 200KV 4.60 m
200 to 350KV 6.10 m
350 to 500KV 7.62 m
500 to 750KV 10.67 m
750 to 1000KV 13.72 m
Allow for platform movement, electrical line sway
or sag, and beware of strong or gusty winds.
Keep away from the
machine if it contacts
energized power lines.
Personnel on the ground
or in the platform must not
touch or operate the
machine until energized
power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.

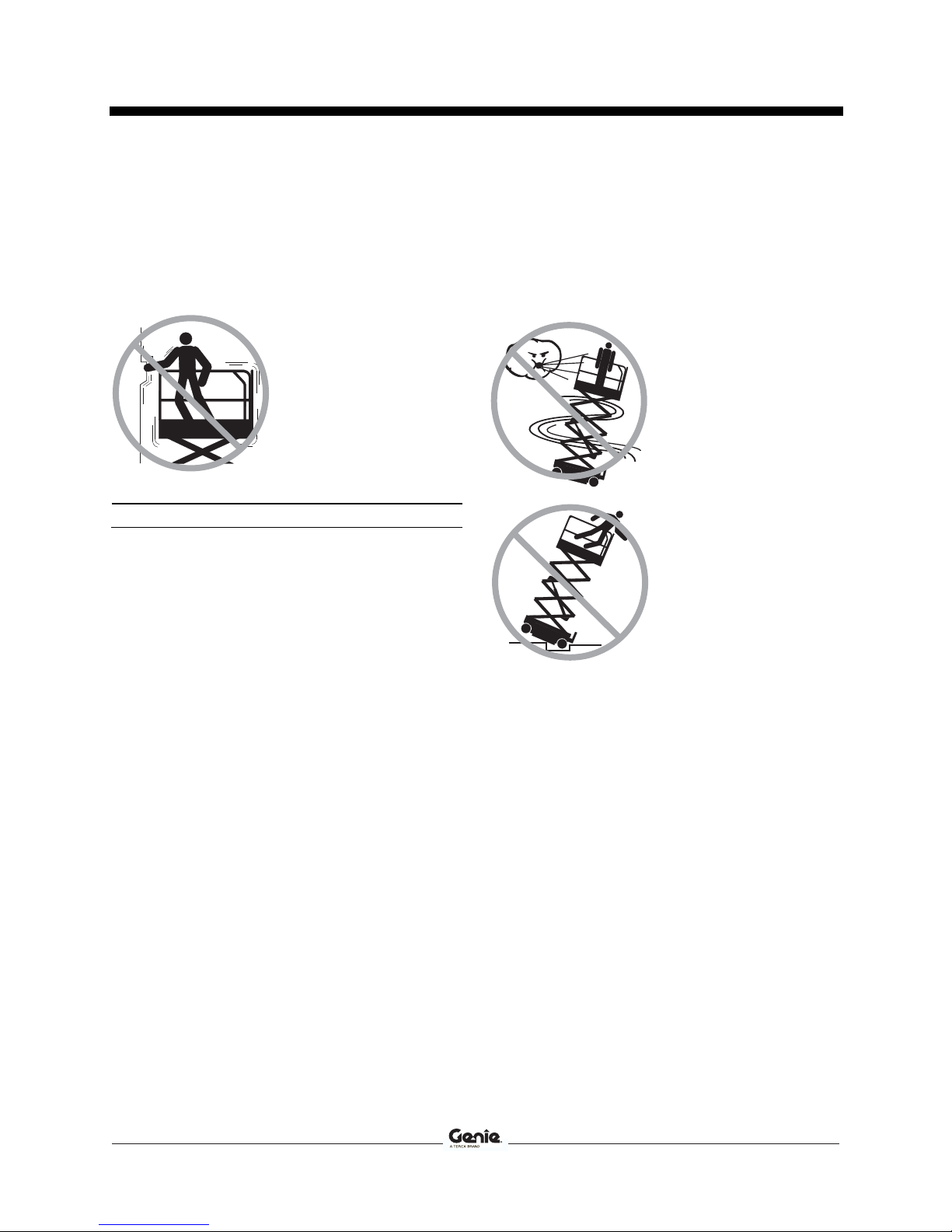

Tip-over Hazards
Occupants, equipment and materials shall not
exceed the maximum platform capacity or the
maximum platform capacity of the platform
extension.
Maximum extension deck capacity.
Maximum occupants 2 persons
(each extension deck)
Extension deck only 227 kg
(each extension deck)
Models without capacity indicator:
Maximum capacity
GS-3384 and GS-3390 1134 kg
GS-4390 680 kg
GS-5390 680 kg
Maximum occupants
GS-3384 and GS-3390 7
GS-4390 7
GS-5390 4

Fifth Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1278050GT GS-3384 • GS-3390 • GS-4390 • GS-5390 11
Models with capacity indicator:
The maximum capacity varies with the height of
the platform.
Maximum capacity - GS-3384 and GS-3390
Maximum occupants 7
Height of platform Maximum capacity
10.1 m 1134 kg
8.5 m 1683 kg
6.4 m 1878 kg
4.2 m 1683 kg
2 m 1134 kg
Maximum capacity - GS-4390
Maximum occupants 7
Height of platform Maximum capacity
13.1 m 680 kg
10.1 m 1170 kg
8 m 1286 kg
5.4 m 1170 kg
2.9 m 680 kg
Maximum capacity - GS-5390
Maximum occupants 4
Height of platform Maximum capacity
16.2 m 680 kg
13.6 m 1264 kg
11 m 1410 kg
8.2 m 1264 kg
2.5 m 680 kg
The weight of options and accessories, such as
panel carriers, will reduce the rated platform
capacity and must be subtracted from the platform
capacity. See the decals with the options and
accessories.
If using accessories, read, understand and obey
the decals, instructions and manuals with the
accessory.
Do not depend on the tilt
alarm as a level indicator.
The tilt alarm sounds on
the chassis only when the
machine is on a severe
slope.
If the tilt alarm sounds:
Lower the platform. Move
the machine to a firm,
level surface. If the tilt
alarm sounds when the
platform is raised, use
extreme caution to lower
the platform.
Do not alter or disable the limit switches.
Do not drive over 1.1 kmh with platform raised.
Use extreme care and slow speeds while driving
the machine in the stowed position across uneven
terrain, debris, unstable or slippery surfaces and
near holes and drop-offs.

Operator's Manual Fifth Edition • First Printing
Work Area Safety
12 GS-3384 • GS-3390 • GS-4390 • GS-5390 Part No. 1278050GT
Do not use the platform controls to free a platform
that is caught, snagged or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.
Do not push off or pull
toward any object outside
of the platform.
Maximum allowable side force 400 N
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter.
Do not alter or disable machine components that in
any way affect safety and stability.
Do not modify or alter an aerial work platform
without prior written permission from the
manufacturer. Mounting attachments for holding
tools or other materials onto the platform,
toeboards or guard rail system can increase the
weight in the platform and the surface area of the
platform or the load.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not raise the platform when wind speeds may
exceed 12.5 m/s. If wind speeds exceed 12.5 m/s
when the platform is raised, lower the platform and
do not continue to operate the machine.
Do not operate the
machine in strong or gusty
winds. Do not increase the
surface area of the
platform or the load.
Increasing the area
exposed to the wind will
decrease machine
stability.
Do not drive the machine
on or near uneven terrain,
unstable surfaces or other
hazardous conditions with
the platform raised.

Fifth Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1278050GT GS-3384 • GS-3390 • GS-4390 • GS-5390 13
Do not place or attach
fixed or overhanging loads
to any part of this
machine.
Do not place ladders or
scaffolds in the platform or
against any part of this
machine.
Do not transport tools and materials unless they
are evenly distributed and can be safely handled
by person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, air-filled
tires are properly inflated and lug nuts are properly
tightened.
Do not use the machine as a crane.
Do not push the machine or other objects with the
platform.
Do not contact adjacent structures with the
platform.
Operation on Slopes Hazards
Do not drive the machine on a slope that exceeds
the slope and side slope rating of the machine.
Slope rating applies to machines in the stowed
position.
Model Maximum slope
rating, stowed
position
Maximum side slope
rating, stowed
position
GS-3384
GS-3390
GS-4390
50% (26°) 50% (26°)
GS-5390 40% (22°) 40% (22°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating.See Driving on a Slope in the
Operating Instructions section.

Operator's Manual Fifth Edition • First Printing
Work Area Safety
14 GS-3384 • GS-3390 • GS-4390 • GS-5390 Part No. 1278050GT
Fall Hazards
The guard rail system provides fall protection. If
occupant(s) of the platform are required to wear
personal fall protection equipment (PFPE) due to
job site or employer rules, PFPE and its use shall
be in accordance with the PFPE manufacturer’s
instructions and applicable governmental
requirements. Attach the lanyard to the anchor
provided in the platform.
Do not sit, stand or climb
on the platform guard
rails. Maintain a firm
footing on the platform
floor at all times.
Do not climb down from
the platform when raised.
Keep the platform floor clear of debris.
Close the entry gate before operating.
Do not operate the machine unless the guard rails
are properly installed and the entry is secured for
operation.
Do not enter or exit the platform unless the
machine is in the stowed position.
Collision Hazards
Be aware of limited sight
distance and blind spots
when driving or operating.
Be aware of extended platform position when
moving the machine.
The machine must be on a level surface or
secured before releasing the brakes.
Operators must comply with employer, job site and
governmental rules regarding use of personal
protective equipment.
Check the work area for
overhead obstructions or
other possible hazards.
Be aware of crushing
hazards when grasping
the platform guard rail.

Fifth Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1278050GT GS-3384 • GS-3390 • GS-4390 • GS-5390 15
Observe and use color-coded direction arrows on
the platform controls and the platform decal plate
for drive and steer functions.
Do not lower the platform
unless the area below is
clear of personnel and
obstructions.
Limit travel speed
according to the condition
of the ground surface,
congestion, slope,
location of personnel, and
any other factors which
may cause collision.
Do not operate a machine in the path of any crane
or moving overhead machinery unless the controls
of the crane have been locked out and/or
precautions have been taken to prevent any
potential collision.
No stunt driving or horseplay while operating a
machine.
Bodily Injury Hazard
Always operate the machine in a well-ventilated
area to avoid carbon monoxide poisoning.
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/or burn skin.
Improper contact with components under any
cover will cause serious injury. Only trained
maintenance personnel should access
compartments. Access by the operator is only
advised when performing a pre-operation
inspection. All compartments must remain closed
and secured during operation.
Component Damage Hazards
Do not use any battery or charger greater than 12V
to jump-start the engine.
Do not use the machine as a ground for welding.
Do not operate the machine in locations where
extremely high magnetic fields may be present.

Operator's Manual Fifth Edition • First Printing
Work Area Safety
16 GS-3384 • GS-3390 • GS-4390 • GS-5390 Part No. 1278050GT
Explosion and Fire Hazards
Do not start the engine if you smell or detect liquid
petroleum gas (LPG), gasoline, diesel fuel or other
explosive substances.
Do not refuel the machine with the engine running.
Refuel the machine and charge the battery only in
an open, well-ventilated area away from sparks,
flames and lighted tobacco.
Do not operate the machine or charge the battery
in hazardous locations or locations where
potentially flammable or explosive gases or
particles may be present.
Do not spray ether into engines equipped with
glow plugs.
Damaged Machine Hazards
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection of the
machine and test all functions before each work
shift. Immediately tag and remove from service a
damaged or malfunctioning machine.
Be sure all maintenance has been performed as
specified in this manual and the appropriate Genie
service manual.
Be sure all decals are in place and legible.
Be sure the operator's, safety and responsibilities
manuals are complete, legible and in the storage
container located on the machine.
Crushing Hazard
Keep hands and limbs out of scissors.
Use common sense and planning when operating
the machine with the controller from the ground.
Maintain safe distances between the operator, the
machine and fixed objects.
Maintain a firm grasp on the platform rail when
pulling the rail pins. Do not allow the platform
guard rails to fall.
Outrigger Safety
Tip-over Hazards
Do not lower the outriggers unless the machine is
on a firm surface. Avoid drop-offs, holes, unstable
or slippery surfaces and other possible hazardous
conditions.
When the auto level function is not being used and
the outriggers are being lowered individually, the
steer-end outriggers must be lowered first.
Do not raise the platform unless the machine is
level. Do not set the machine up on a surface
where it cannot be leveled using only the
outriggers.
Do not raise the platform unless all four outriggers
are properly lowered, the footpads are in firm
contact with the ground and the machine is level.
Do not adjust the outriggers while the platform is
raised.
Do not drive while the outriggers are lowered.

Fifth Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1278050GT GS-3384 • GS-3390 • GS-4390 • GS-5390 17
Battery Safety
Burn Hazards
Batteries contain acid. Always
wear protective clothing and
eye wear when working with
batteries.
Avoid spilling or contacting
battery acid. Neutralize battery
acid spills with baking soda
and water.
Do not expose the batteries or the charger to water
or rain during charging.
Explosion Hazards
Keep sparks, flames and
lighted tobacco away from
batteries. Batteries emit
explosive gas.
The battery tray should
remain open during the entire
charging cycle.
Do not contact the battery
terminals or the cable clamps
with tools that may cause
sparks.
Component Damage Hazard
Do not use any battery charger greater than 24V to
charge the batteries.
After Each Use
1Select a safe parking location—firm level
surface, clear of obstruction and traffic.
2Lower the platform.
3Turn the key switch to the off position and
remove the key to secure from unauthorized
use.

Operator's Manual Fifth Edition • First Printing
Legend
18 GS-3384 • GS-3390 • GS-4390 • GS-5390 Part No. 1278050GT
Legend
1Lanyard anchorage points
2GFCI outlet
3Platform controls
4Platform entry gate
5Platform extension lock
handle
6Platform guard rails
7Manual storage container
8Platform extension
9Outrigger housing
(if equipped with outriggers)
10 Outrigger footpad
(if equipped with outriggers)
11 Ground controls with LCD
readout screen
12 Tilt alarm (behind ground
control panel)
13 Entry ladder
14 Steer tire
15 LPG tank
16 Hydraulic tank (behind cover)
17 Non-steer tire
18 Fuel tank (behind cover)
19 Power to platform
(hidden from view)
20 Safety arm (hidden from view)
21 Capacity indicator
(if equipped)
