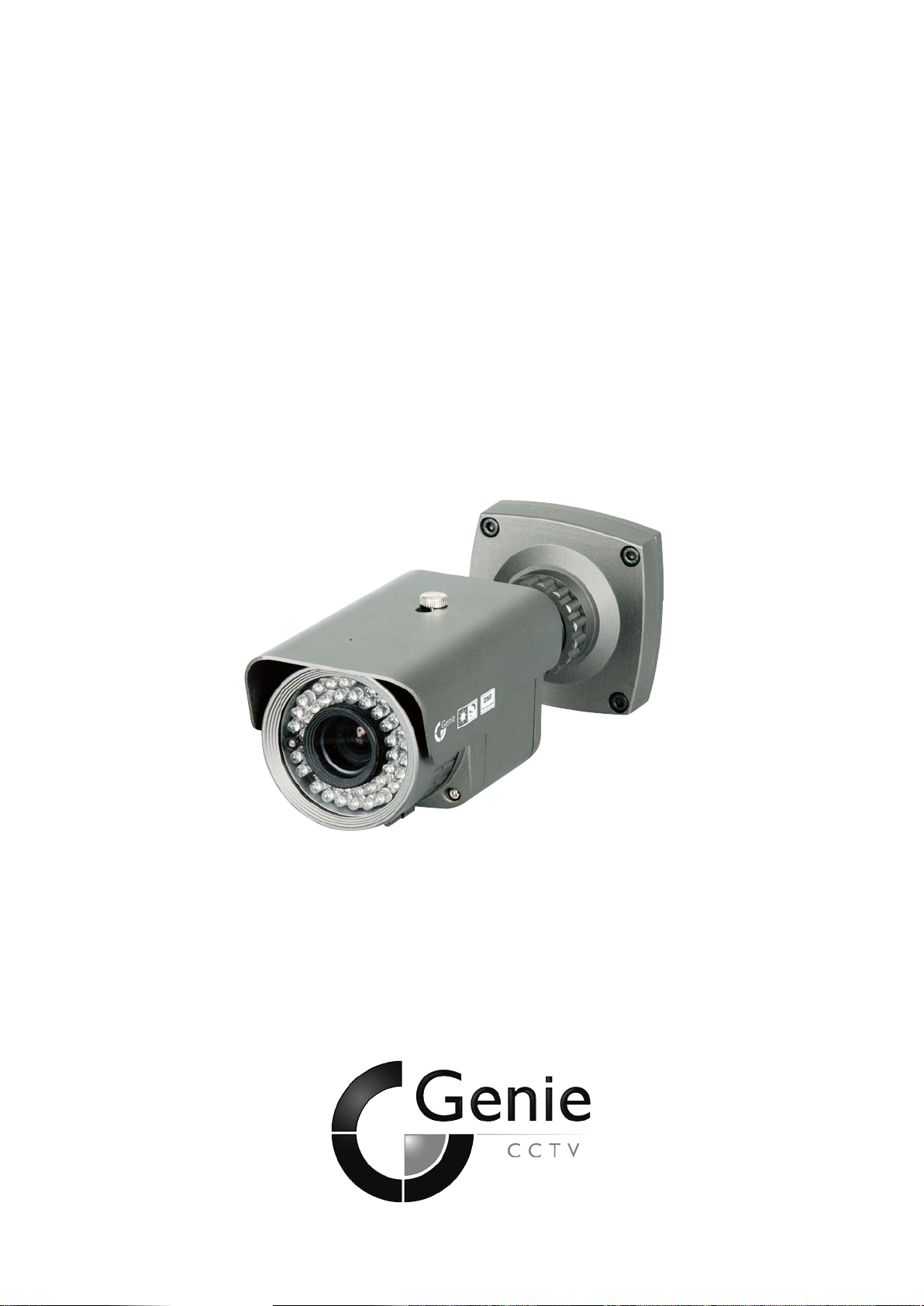

Genie ZW49IR User manual

USER MANUAL
WDR TRUE DAY&NIGHT CAMERA
ZW49IR

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-1-
About WDR/BLC/3D DNR
Contents
Specication
Safety Instruction
General Features
Set Up Menu
Special Menu
Menu Set Up
Exit
How to Install
Trouble Shooting
► Menu Set Up
► Lens Set Up
► Exposure
► White Bal.
► BLC
► SDNR
► Day & Night
► Image Adj.
► Special
► Camera Title
► Sync
► Motion Det.
► Privacy
► DIS
► COMM Adj.
► Language
2
1
3
4
5
6
7
8
8
9
10
13
14
16
17
19
21
22
24
24
26
26
27
28
28
29
30

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-2-

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-3-
0.00004Lux
560TV Lines
DC Auto Iris Varifocal
Lens(4mm-9mm)
Built-in 42pcs Infra-Red LEDs Assembly
True Day/Night Capability
ICR - IR Cut Filter Removable
Dual Voltage
IP66
Temperature Sensor/Heater
SPECIFICATIONS
1/3” SONY Vertical Double Density Interline CCD
NTSC=811(H) * 508/(V) / PAL=795(H) * 595(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
2:1 Interlace
Internal
Built-in (English, Japanese, Spanish)
52dB (x128)
WDR / BLC / OFF Selectable
560TV Lines
52dB (AGC OFF / Weight ON)
0.001 Lux (Sens-Up x128) →0.00004 Lux F1.2 (Sens-Up x256)
ATW / AWC / Manual / Outdoor / Indoor
AUTO (NTSC=1/50sec ~ 1/100,000sec / PAL=1/60sec ~ 1/120,000sec) / MANUAL / A.FLK
AUTO (Selectable limit x2 ~ x256) / OFF
HIGH / LOW / OFF Selectable
OFF/ON (1~32 Level Adjustable)
ON/OFF (8 Zone, ALARM Output)
ON/OFF (8 Zone)
ON/OFF
ON/OFF
ON/OFF
ON/OFF (Level Adjustable)
COLOUR / BLACK & WHITE / AUTO / EXT
ON/OFF
ON (x10) / OFF
256 Point (Even 128 Point, ODD 128 Point)
RS-485 (Pelco-D Protocol) - Option
DC 12V / AC 24V - Dual Voltage
CDS ON: 1.2A Max
DC Auto Iris Varifocal Lens(4mm-9mm)
-20 ~ +50 Deg C. RH 95% Max.
-20 ~ +60 Deg C. RH 95% Max.
88mm(W) * 115mm(H) * 245mm(D)
1600g
MODEL ZW49IR
Built-in 42pcs Infra-Red LEDs with CDS Sensor
Camera OSD Control / IR IIIumination Controller
C
C
D
E
L
E
C
T
R
I
C
A
L
Sensor
Total Pixels
Effective Pixels
Scanning System
Synchronisation
O.S.D
Dynamic Range
Backlight
Resolution
S/N (Y signal)
Min. Illumination
White Balance
Electronic Shutter Speed
Sens-Up
Gain Control
DNR
Motion Detection
PRIVACY
MIRROR(H-REV)
FLIP(V-REV)
Freeze
SHARPNESS
D&N Selection
DIS
Digital Zoom
Blemish Compensation
Communication
Power Supply
Power Consumption
Lens
Operating Temperature/Humidity
Storage Temperature/Humidity
Dimension
Weight

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-4-
Precautions for use
☞Please read this manual thoroughly before using the camera to become familiar with the correct
operational procedures.
Cautions When Using
☞Do not open the camera body and touch any electrical parts to avoid possible electric shocks.
☞Do not insert objects into the camera body to prevent fire hazards and electric shock.
☞Do not touch the camera with wet hands to avoid electric shock.
☞Do not disconnect the power cord from a power plug when still connected to the outlet.
☞Always disconnect the power by removing the plug from the power socket.
☞If the camera emits a burning smell, immediately disconnect it from the power source and report
the problem to your distributor.
Cautions When Install
☞Only apply power after installation of the product.
☞Do not install the camera in a position facing directly at a strong light source.
☞Do not install or use the camera in areas of high humidity.
☞Do not install near any cooling or heating equipment.
☞Do not install the camera in dusty environments.
☞Do not install the camera in places where the camera is subjected to physical shocks.
☞This products must be used with a regulated DC 12V or AC 24V adaptor for power.

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-5-
◈ WDR (Wide Dynamic Range)
The Genie INTUS range of camera uses very advanced WDR technology, which gives
clear images even where the scene is strongly backlit. Adjustable sensitivity.
◈ 560TV Lines
The combination of Sony Super HAD CCD image sensor and DNR DSP provides an
excellent resolution of 560 TV Lines.
◈ Day & Night
Depending on luminance levels the camera switches automatically between colour and
monochrome. The camera’s IR Cut-Filter gives perfect colour rendition during the day.
◈ Illumination
SDNR technology has solved the problem of ghosting and now displays clearer, superior
high resolution images even in extremely low light conditions.
◈ Disk Saving Effects
Advanced SDNR technology improves picture quality and saves hard drive space, as
less noise means much smaller le sizes - much smaller than standard CCTV camera
images.
◈ DNR DSP Chip
The DNR DSP chipset has various powerful functions that give superior high resolution
Day & Night images. It removes the camera noise and Sens-Up provides quality images
at very low luminance levels. The most advanced technology is combined on a single
DSP chipset, resulting in enhanced surveilance images.
◈ Additional Functions
OSD - On Screen Display menu with Multi-Language support - 8 Countries
Privacy Masking - 8 Zones
Sens-Up - x256 Magnication
Digital Zoom - x10

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-6-
SET UP MENU DEFAULT SET MENU
① LENS DC / MANUAL 4 - 9mm DC Auto IRIS Vari-Focal Lens
② EXPOSURE SHUTTER :-
AGC: LOW
SENS-UP: OFF
SHUTTER
A.FLK
MANUAL(x256-120K)
ESC(BRIGHTNESS: Level Selectable)
AGC: OFF / LOW / HIGH
SENS-UP: OFF / AUTO(2-256 Level Selectable)
RETURN

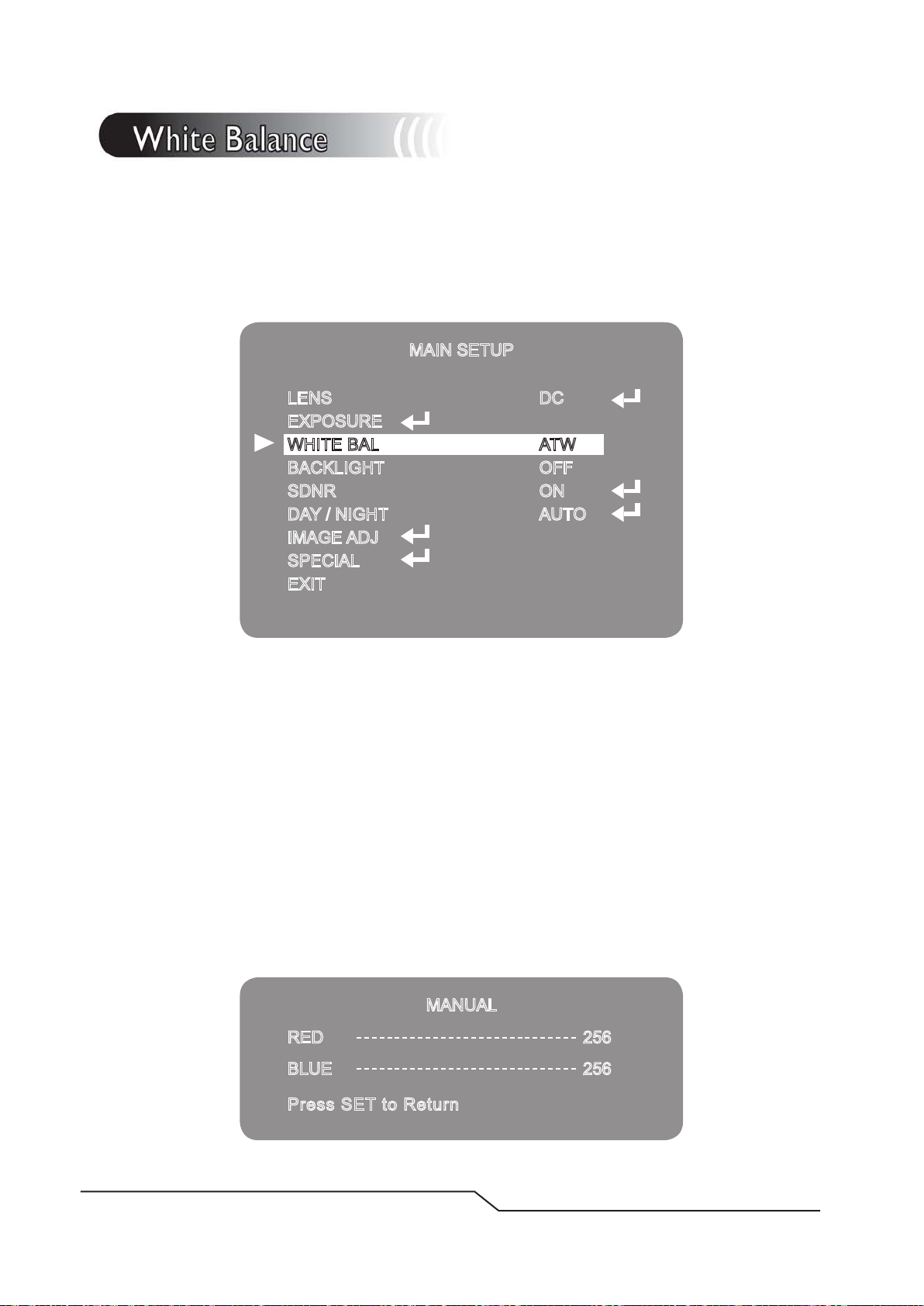

③WHITE BAL. ATW
INDOOR / OUTDOOR / AWC / ATW
MANUAL (RGAIN : Level Selectable,
BGain : Level Selectable)
④ BACKLIGHT OFF

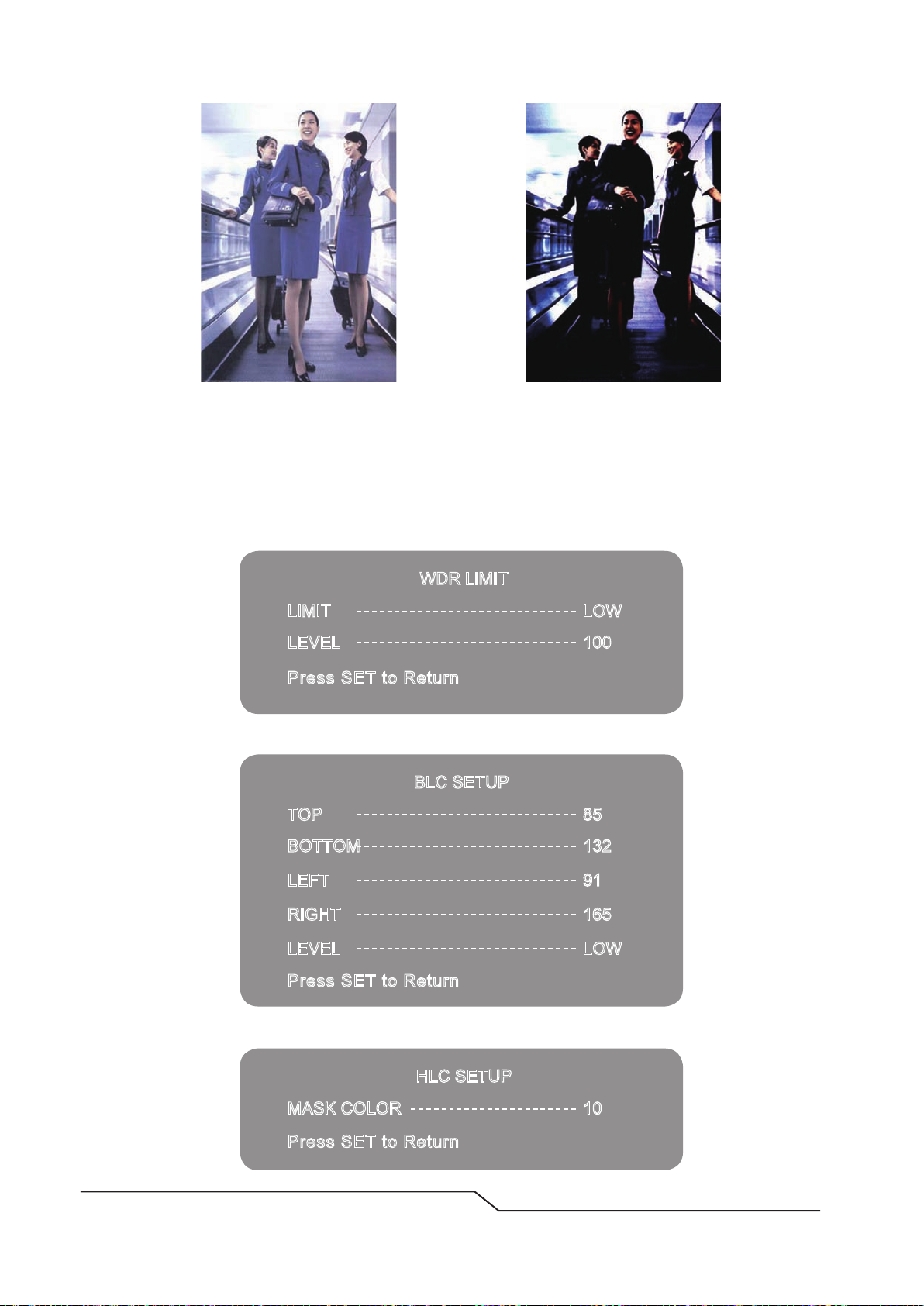

WDR: LOW / MIDDLE / HIGH (Level 0-100)
BLC: TOP / BOTTOM / LEFT / RIGHT
LEVEL: LOW / MIDDLE / HIGH

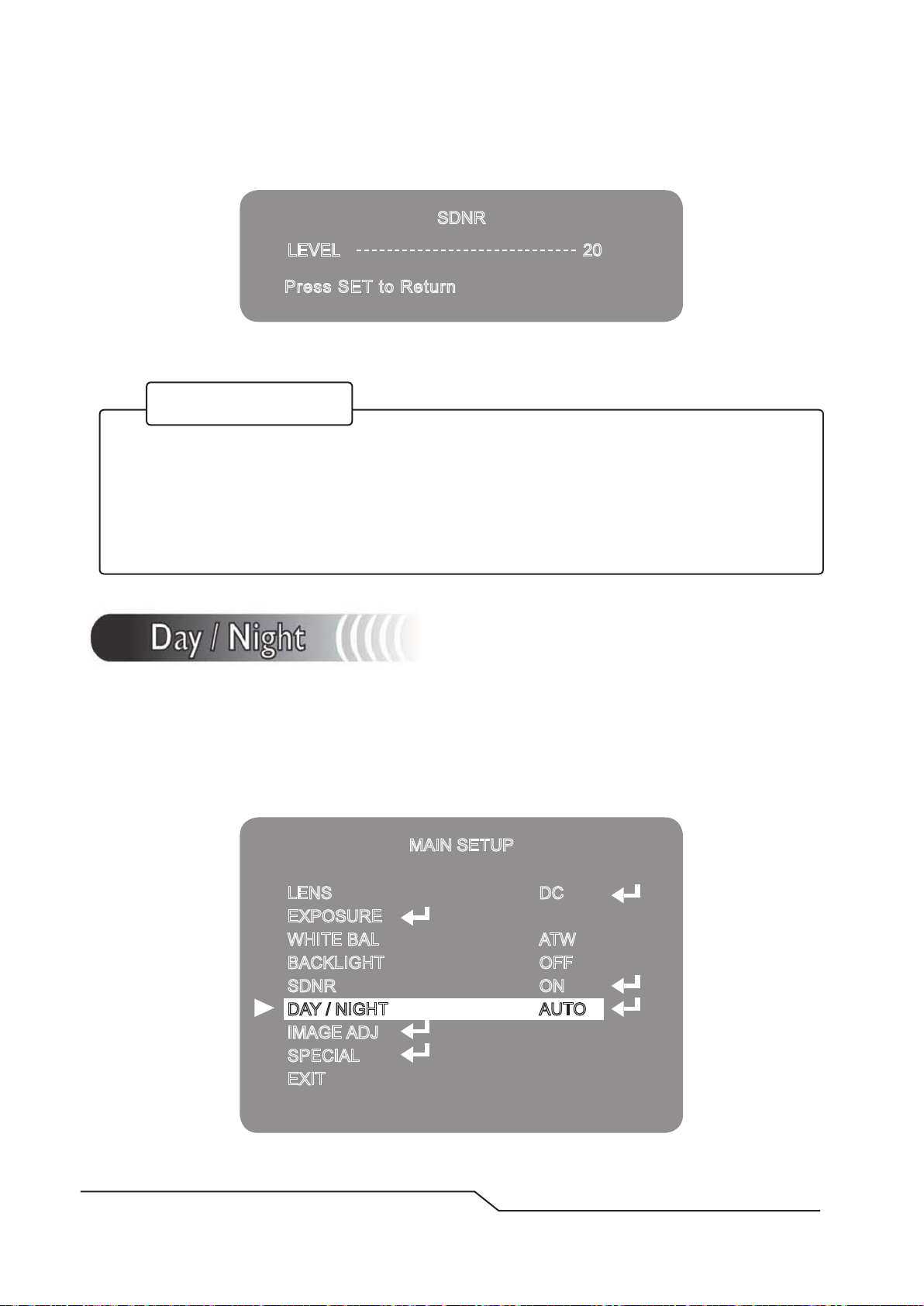

⑤ SDNR ON ON (RANGE: 0 ~ 32 Level Selectable) / OFF
⑥ DAY & NIGHT AUTO
COLOUR / B/W / AUTO / EXTERNAL

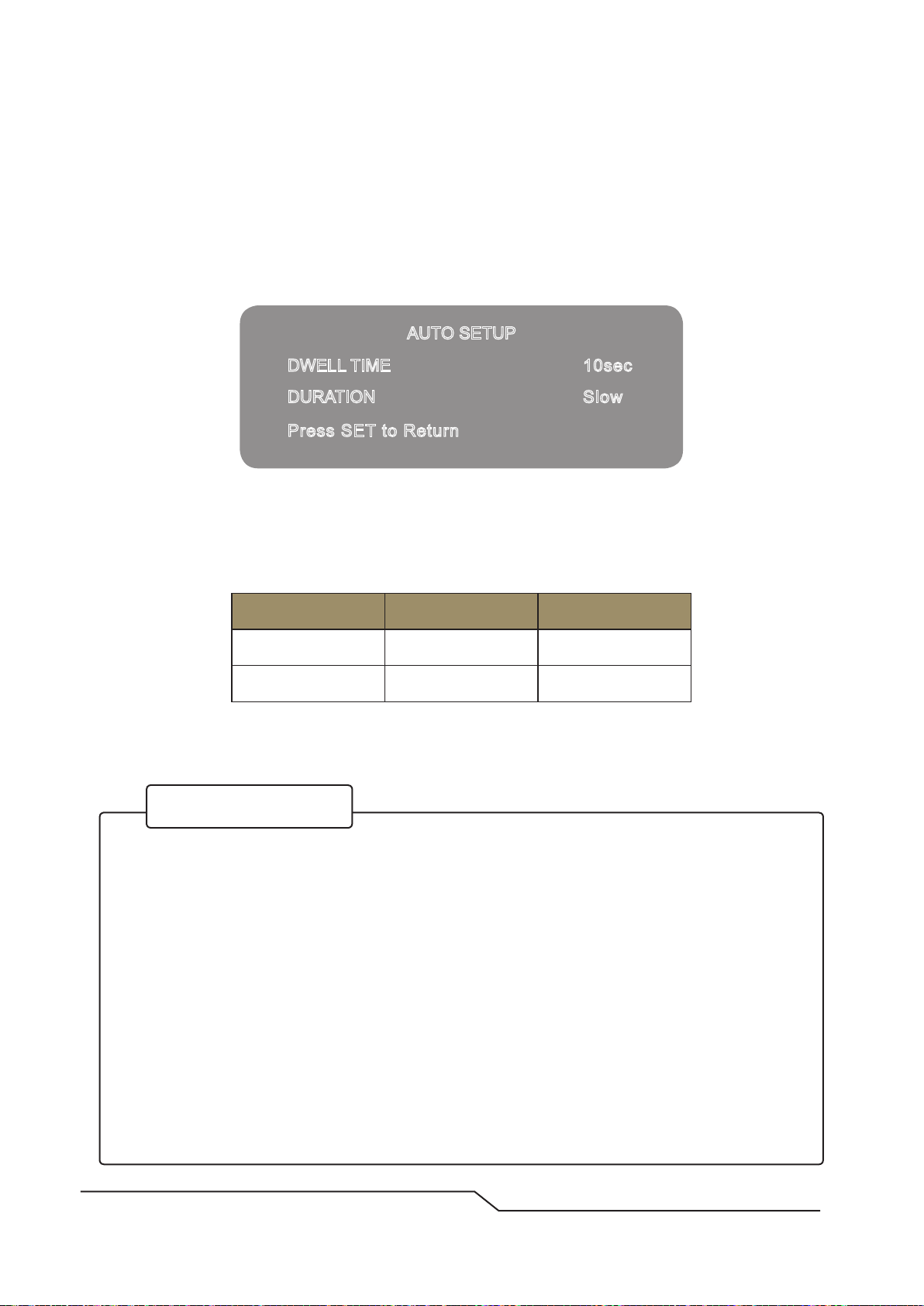

DWELLTIME: 5 ~ 60SEC
DURATION TIME: SLOW / FAST
⑦IMAGE ADJ.
FREEZE: OFF
V-REV: OFF
H-REV: OFF
DZOOM: OFF
SHARPNESS: ON
FREEZE: ON / OFF
V-REV: ON / OFF
H-REV :ON / OFF
DZOOM: ON / OFF(0 ~ 230 Level Selectable)
SHARPNESS: ON / OFF( I ~ 3 I Level Selectable)
RETURN
⑧ SPECIAL Refer to the next page
⑨ EXIT Save the SETUP Menu and exit
DC Auto Iris Varifocal Lens
(4mm-9mm)
The IR range shown below are maximum distances that can be achieved using this camera.
The environment and camera positioning both affect IR performance.
◈ SETTINGS
Settings can be made using the OSD buttons
Located on the bottom of the camera.
(Adjust the IR Control Volume, using a screw driver,
to increase or decrease the IR brightness level.) OSD
DC
SHUTTER SPEED
WHITE BAL
BLC
AGC
DNR
SENS-UP
SPECIAL
EXIT
DC
ELC
ATW
HIGH
OFF
LOW
OFF
OSD Control Board

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-7-
SET UP MENU DEFAULT SET MENU
①CAMERA TITLE OFF ON / OFF
② SYNC INT INT / ----
③ MOTION DET. OFF
SENSITIVITY: AREA I
AREA MODE: OFF
SEL POS: L - TOP
X POS: Level Selectable
Y POS: Level Selectable
FILL → SET
RETURN
④ PRIVACY OFF
AREA SEL: AREA I
AREA MODE: TOP / BOTTOM / LEFT / RIGHT
MASK COLOUR: GREEN / RED / BLUE
BLACK / WHITE / GREY
TRANSP. : Level Selectable
RETURN
⑤DIS OFF ON / OFF
⑥ COMM ADJ.
CAM ID: 0
BAUD RATE: 38400
PARITY: 8-N-1
RET PKT: ENABLE
DISP CAM ID: OFF
CAM ID: ID Selectable
BAUD RATE: 2400 / 4800 / 9600 / 19200
/ 38400 / 57600
PARITY: 8-N-1
RET PKT: ENABLE
DISP CAM ID: OFF
⑦ LANGUAGE ENGLISH
⑧ RESET - RETURNS TO FACTORY SETTINGS
⑨ RETURN - RETURNS TO THE SETUP MENU

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-8-
MAIN SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
SDNR
DAY / NIGHT
IMAGE ADJ
SPECIAL
EXIT
DC
ATW
OFF
ON
AUTO
MAIN SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
SDNR
DAY / NIGHT
IMAGE ADJ
SPECIAL
EXIT
DC
ATW
OFF
ON
AUTO

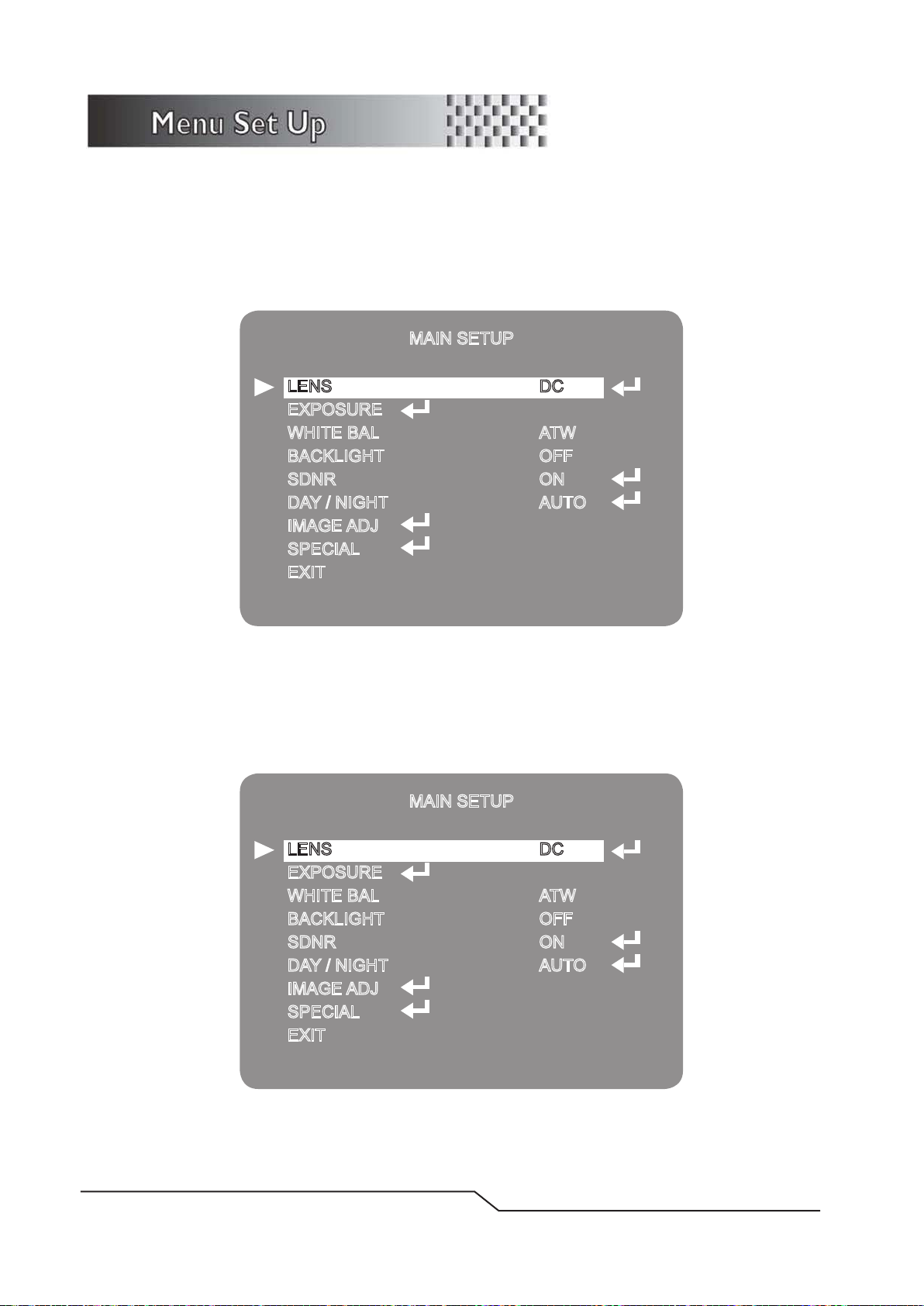

Menu items can be selected by using the OSD buttons of the camera.
I. Press the Set Up button.
● The Set Up menu will be displayed on the monitor.
2. Move and select the required function using the Up and Down button.
● Move the arrow indicator Up or Down to select the desired feature by pressing the Up or
Down button.

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-9-

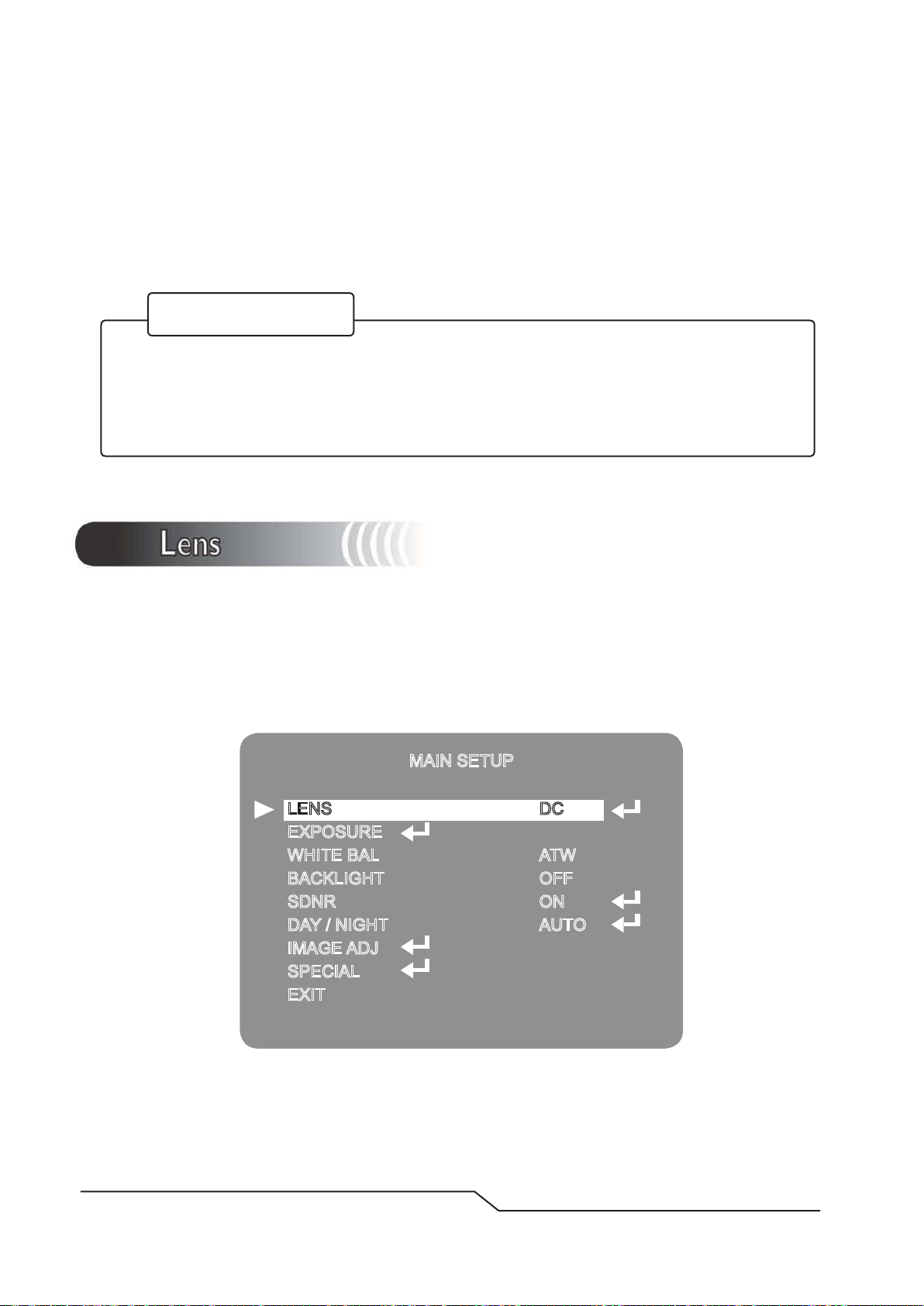

→DC : DC Auto IRIS Lens
This function controls the image brightness.
I. Move the arrow indicator to LENS using the Up and Down buttons on the Set Up menu screen.
2. Select the desired lens type by pressing the Left or Right button.
3. Changing menu settings using the Left or Right button.
●
Available values or Status are displayed by pressing the Left or Right buttons.
Press the button until desired value / status is displayed.
4. After completing the setting move the arrow indicator to EXIT and press the SET button to EXIT.
●
Move to available submenu by moving arrow to desired feature.
●
Submenu is not available when this symbol is displayed ” -----”.
NOTE
◄┛
MAIN SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
SDNR
DAY / NIGHT
IMAGE ADJ
SPECIAL
EXIT
DC
ATW
OFF
ON
AUTO

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-10-
●

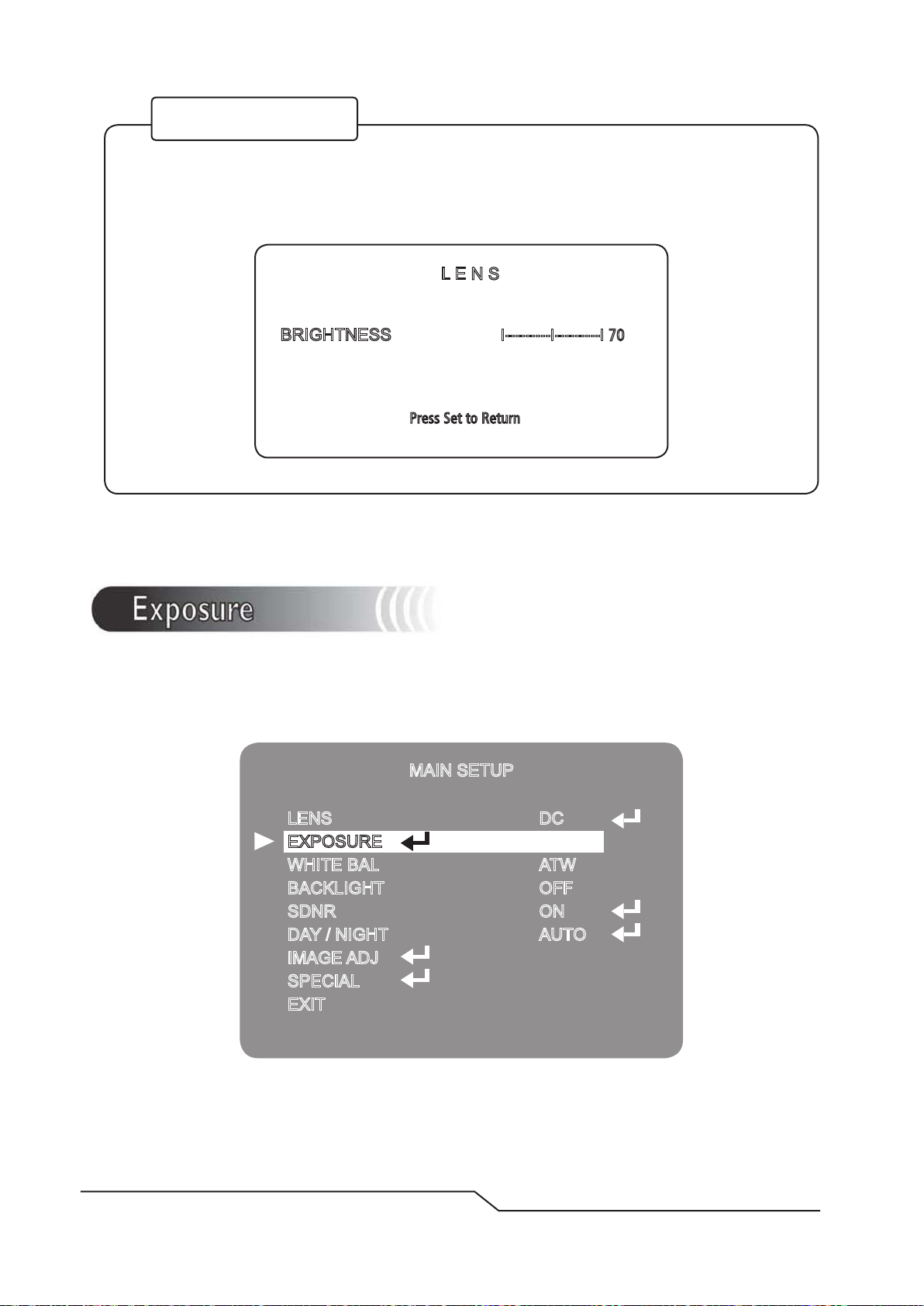

When DC is selected the brightness can be adjusted.
The brightness control range is 1 ~ 70.
NOTE
L E N S
BRIGHTNESS
Press Set to Return
I---------I---------I 70
3. Press the SETUP button to return to the previous menu.
This function is used to select Automatic or Manual shutter speed control.
I. On the Set Up menu screen select EXPOSURE by using the Up or Down button.
2. Select the desired shutter mode by pressing the Left or Right button.
◈ FLK: Select FLK mode when flickering occurs; caused by the unmatched frequency of electric lights.
◈ ESC: Automatic shutter speed control. The image brightness is automatically controlled when ESC
mode is selected.
◈ MANUAL: Shutter speed can be selected manually.
MAIN SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
SDNR
DAY / NIGHT
IMAGE ADJ
SPECIAL
EXIT
DC
ATW
OFF
ON
AUTO

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-11-
◈ AGC(AUTO GAIN CONTROL):
A higher gain increases brightness but also increases any noise.
OFF: Deactivates the AGC function.
LOW: Allows automatic gain control from 0 ~ 30dB.
HIGH: Allows automatic gain control from 0 ~ 42dB.
●
To produce better results with FLK, do not use it in conjunction with the WDR mode in the
BACKLIGHT menu.
●
When the SHUTTER is set to ESC and the CAMERA is using internal synchronisation, the picture
may become unstable if the camera is facing a bright fluorescent light.
So take special care when choosing the installation position.
●
When the SHUTTER is set to MANUAL or FLK mode, SENS-UP will be disabled.
●
ESC and MANUAL modes are only available together when the lens is set to MANUAL.
NOTE

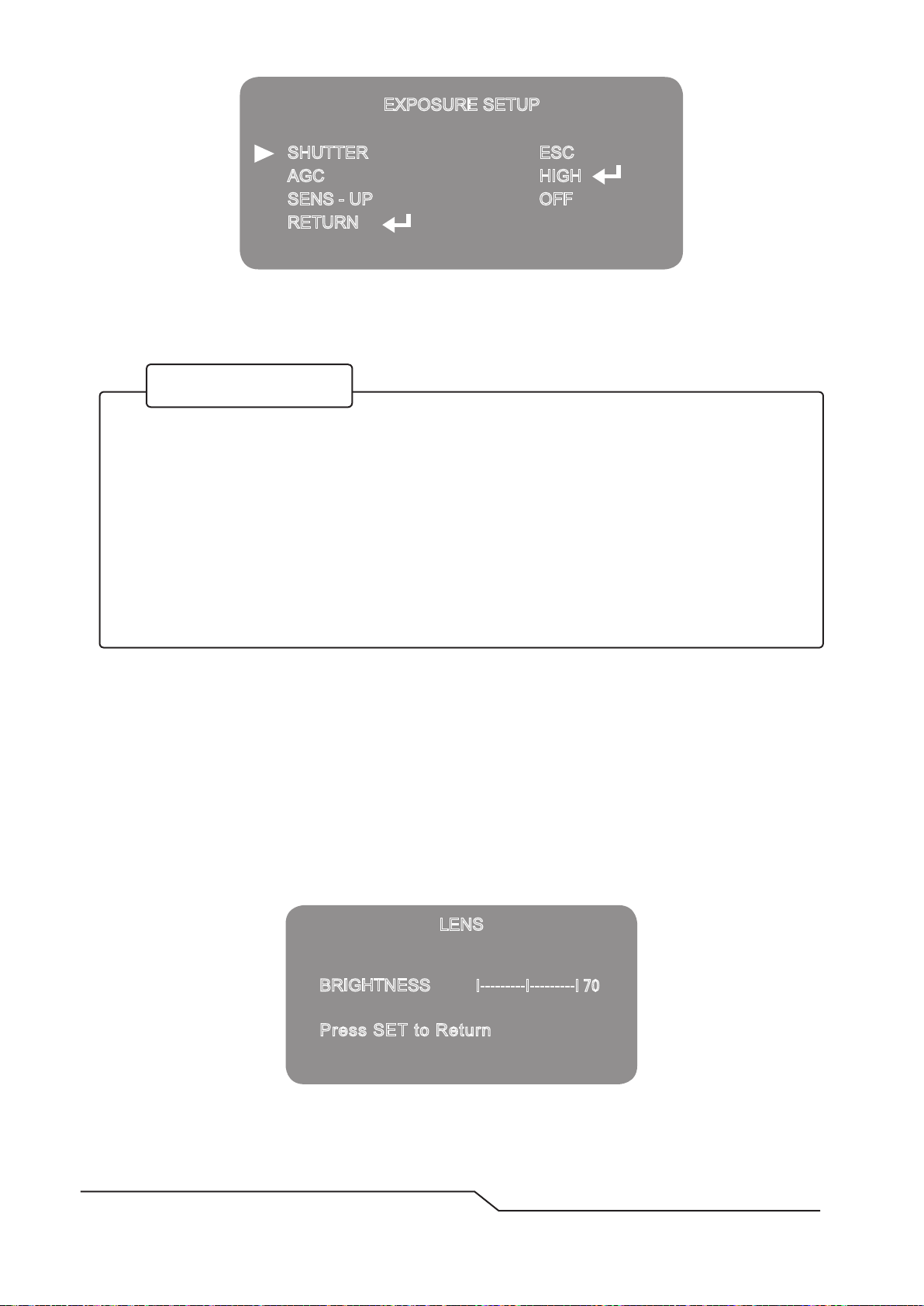

EXPOSURE SETUP
SHUTTER
AGC
SENS - UP
RETURN
ESC
HIGH
OFF
LENS
BRIGHTNESS
Press SET to Return
I---------I---------I 70

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-12-

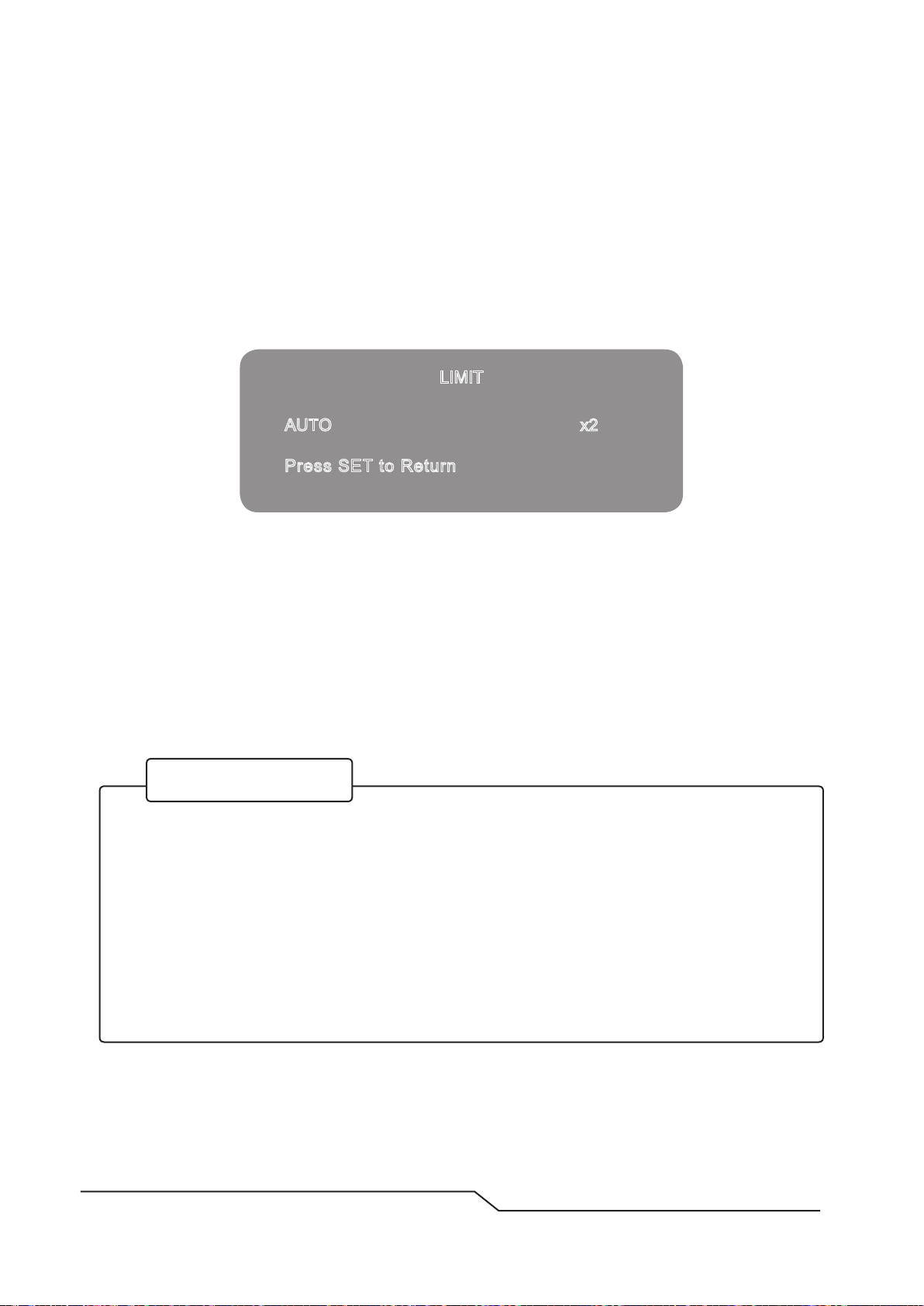

◈ SENS - UP:
At night and/or in dark conditions, the camera automatically detects the light level and
maintains a clear picture when this mode is activated.
OFF: Disables the SENS-UP function.
AUTO: Enables the SENS-UP function.
◈ RETURN:
Select Return to save the changes in the EXPOSURE menu and retun to the SETUP
menu.
LIMIT
●
Pressing the SET button in AUTO mode allows adjustment of image brightness by increasing or
decreasing the shutter speed (x2 ~ x256).
●
The higher the level, the brighter the image becomes, but it is possible that an after the image (ghosting)
could appear.
●
When SENS-UP is activated the increased magnification can induce noise and pixelation;
this is quite normal.
NOTE
AUTO x2
Press SET to Return

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-13-
The White Balance function is used to control the “on-screen” colours.
I. Move the arrow indicator to WHITE BAL on the SETUP menu screen using the Up and Down button.
2. Select the desired mode by using the Left or Right button.
* There are three user selectable White Balance settings available.
◈ ATW:
Normal setting; when the colour temperature range is from 1,800 • K to 10,500 • K.
INDOOR: Select this mode when the colour temperature range is between 4,500 • K to 8,500 • K.
OUTDOOR: Select this mode when the colour temperature range is between 1,800 • K to 10,500 • K.
◈ AWC → SET:
To obtain the best results press the SET button while the camera is focused onto white
paper. If the environment, and/or light source changes, the White Balance will require
re-adjustment.
◈ MANUAL:
Used for ne adjustment of White Balance. Set White Balance rst using ATW or AWC then
change to MANUAL and press SETUP button. Increase or decrease the value of R-Gain(Red)
and B-Gain(Blue) while monitoring the colour of the image.
MAIN SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
SDNR
DAY / NIGHT
IMAGE ADJ
SPECIAL
EXIT
DC
ATW
OFF
ON
AUTO
MANUAL
RED
BLUE
256
256
Press SET to Return

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-14-
●
Under the following conditions the White Balance function may not operate correctly.
In such case, please select the AWC mode.
●
When the scene has a very high colour temperature.(Ex: Blue Sky, Sunset, etc.)
●
When the scene and/or its surroundings are dark.
●
When the camera is installed in a place with considerable changes in illumination or is facing directly
into a fluorescent light source.
NOTE
This camera provides intelligent light level control to overcome even strong backlight conditions.
I. Move the arrow indicator to BACKLIGHT using the Up or Down button on the SETUP menu screen.
2. Select the desired level by using the Left or Right button.
◈ WDR :
When there are simultaneous brightness & dark image areas WDR makes both distinct.
◈ OFF:
WDR function does not operate.
◈ BLC:
Users can select and dene a specic area in a scene and view the area clearly.
◈ HLC:
If there is a high light installed in a limited environment such as an apartment parking garage or
gas station entrance,removing the high light makes it possible to view car license plates efciently.
MAIN SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
SDNR
DAY / NIGHT
IMAGE ADJ
SPECIAL
EXIT
DC
ATW
OFF
ON
AUTO

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-15-
WDR ON WDR OFF
3. Select a mode using the Left and Right buttons then press the SET button.
Select WDR to adjust the WDR LIMIT and LEVEL.
◈ LIMIT:
Adjust the WDR sensitivity by selecting LOW, MIDDLE or HIGH.
◈ LEVEL:
Adjust the WDR brightness between 0 ~ 100.
Select BLC to dene the backlight enhancement area and the enhancement level.
HLC : Enable a user to select a mask color of high light area from picture.
WDR LlMIT
LIMIT
LEVEL
LOW
100
Press SET to Return
HLC SETUP
MASK COLOR 10
Press SET to Return
BLC SETUP
TOP
BOTTOM
LEFT
RIGHT
LEVEL
85
132
91
165
LOW
Press SET to Return

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-16-
●
The WDR mode cannot be used when FLK mode is selected in the SHUTTER.
●
The following symptoms may occur, according to the ambient illumination, when WDR is selected,
if they do, set WDR to OFF.
Colour or screen changes unnaturally.
Noise appears within the brightest part of the screen.
●
The WDR performance can be affected if there is particularly bright area within the image
- always optimise the installation angle to avoid this.
●
If the LIMIT is increased the image may become distorted.
●
To achieve the best WDR performance use a DC Iris lens rather than a manual lens.
NOTE
SDNR is used to reduce the level of background noise in a low luminance environment.
I. When the SETUP menu screen is displayed select SDNR using the Up and Down button.
MAIN SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
SDNR
DAY / NIGHT
IMAGE ADJ
SPECIAL
EXIT
DC
ATW
OFF
ON
AUTO
2. Select whether or not to activate SDNR by using the Left and Right buttons.
◈ ON:
Activates SDNR - noise is reduced.
◈ OFF:
Deactivates SDNR - noise is not reduced.

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-17-
3. Select the SDNR mode to ON and press the SET button to adjust noise reduction level.
Picture can be displayed in either colour or black and white.
I. Select DAY / NIGHT using the Up or Down button on the MAIN SETUP menu screen.
●
SDNR cannot be set to ON or OFF when AGC is OFF, AGC mode is in the EXPOSURE menu .
●
When adjusting the SDNR noise reduction level, please remember that when higher SDNR levels
are set noise is greatly reduced, but this can cause ghosting to occur.
NOTE
MAIN SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
SDNR
DAY / NIGHT
IMAGE ADJ
SPECIAL
EXIT
DC
ATW
OFF
ON
AUTO
SDNR
LEVEL 20
Press SET to Return

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-18-
2. Select the desired mode using the Left and Right buttons.
COLOUR: The picture is always displayed in colour.
B/W: The picture is always displayed in black and white.
AUTO: The mode automatically switches to COLOUR in normal conditions and switches to B/W mode when
ambient illumination is low. To set the switching time or speed in AUTO mode, press the SET button.
DWELLTIME: Adjust the delay when changing between COLOUR and B/W.
→ 5s,7s,10s,20s,30s,40s,50s,60s.
DURATION: The illumination brightness can be used to control switchover.
* The environmental illumination is extremly changeable.
EXTERN :This mode allows the application of a lter to external signals.
Colour → B/W B/W → Colour
Fast 2.5 Lux 4 Lux
Slow 0.8 Lux 6 Lux
●
When using Video Drive lens with the lens level set to low, it automatic switching between colour and
monochrome may not occur.
●
The DAY/NIGHT menu cannot be controlled if AGC is set to OFF in the EXPOSURE menu.
In instance, where DAY/NIGHT is already selected and AGC is switched off the camera functions
as if in COLOUR mode.
●
The OSD key does not work for 3 seconds when switching between COLOUR and B/W, this is to ensure stable
camera operation.
●
The camera responds well to infra-Red as it equipped with an Infra-Red Cut-Filter.
●
Since the camera may not focus as well under infrared illumination at night as it does under normal illumination,
install an Extra-Low dispersion lens to obtain sharp pictures.
NOTE
AUTO SETUP
DWELL TIME
DURATION
10sec
Slow
Press SET to Return

WDR DAY & NIGHT COLOUR CAMERA WDR DAY & NIGHT COLOUR CAMERA
-19-
I. When the SETUP menu screen is displayed, select IMAGE Adj. using the Up and Down buttons.
2. Select the desired mode by using the Up or Down button.
MAIN SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
SDNR
DAY / NIGHT
IMAGE ADJ
SPECIAL
EXIT
DC
ATW
OFF
ON
AUTO
IMAGE SETUP
I. FREEZE
2. V - REV
3.H - REV
4.D -ZOOM
5. SHARPNESS
RETURN
OFF
OFF
OFF
OFF
ON
FREEZE: Image freezing or moving Image.
V - REV: Flip the image vertically on the screen.
H - REV: Flip the image horizontally on the screen.
D - ZOOM : Digital zoom available, range x1 ~ x I0.
