Genie WIPX4FD User manual

Quick Start Guide
Please read these instructions carefully before operating the unit
and keep for further reference.
4MP H.265 IP IR Flat Mini Dome
with 2.8mm Lens and Facial
Recognition
WIPX4FD

ii
Intro Section
Please read this instruction carefully before operating the product and keep it for further
reference. All examples and pictures used here are for reference only.
The contents of this manual are subject to change without notice.
CAUTION:
• If the product does not work properly, please contact your dealer or the nearest service
centre. Never attempt to disassemble the camera yourself. We shall not be responsible
for any problems caused by unauthorised repair or maintenance.
• Do not allow water or liquid into the camera while in use.
• When using the product, you must be in strict compliance with the electrical safety
regulations of the nation and region.
• When the product is mounted on wall or ceiling, the device needs to be firmly fixed.
• Make sure the power supply voltage is correct before using the camera.
• Do not drop the camera or subject it to any physical shock.
• If cleaning, please use a clean soft cloth with a little neutral detergent to wipe it gently.
• Do not aim the camera at the sun or in any area where there is bright lighting.
• The device may be burned out by a laser beam, so when any laser equipment is in use,
make sure that the surface of the device will not be exposed to the laser beam.
• Do not place the camera in extremely hot, cold , dusty or damp locations, and do not
expose it to high electromagnetic radiation.
• To avoid heat accumulation, good ventilation is required for operating environment.

Contents
iii
1.0 Introduction..........................................................................................................4
1.1 Product Features...........................................................................................4
1.2 Product Dimensions.....................................................................................4
1.3 Contents ......................................................................................................4
1.4 Specification ................................................................................................5
2.0 Overview..............................................................................................................7
3.0 Installation............................................................................................................8
4.0 Network Connection ...........................................................................................10
5.0 Camera Maintenance...........................................................................................11

4
The Genie WIPX4FD is a 4MP IP IR flat mini dome camera with a 2.8–12mm lens. The camera
features intelligent analytics as well as facial recognition when paired
1.1 Product Features
• 4MP (2592 × 1520 ) H.265 full real time coding
• Maximum resolution: 2592 × 1520
• ICR auto switch, true day / night vision
• 10 ~ 20m IR night view distance
• 3D DNR, true WDR, HLC, BLC, Defog, NIR, Smart IR and ROI coding
• Support image distortion correction
• Built-in micro SD card slot, up to 128GB
• DC12V/PoE power supply
• IP66 ingress protection
• Supports three streams
• Intelligent analytics
• Supports remote monitoring by smart phones & tablet PC’s with iOS and Android OS
• Onvif compliant
1.2 Product Dimensions
1.3 Contents
1.0 Introduction
Camera Quick Start Guide
CD
Drill Template
L-Wrench Plastic Plug x2
2 Tapping Screws
59.8mm
110mm

Quick Start Guide 4MP H.265 IP IR Flat Mini Dome with 2.8mm Lens and Facial Recognition
5
1.4 Specification
Camera
Image Sensor 1 / 3 “CMOS
Image Size 2592 × 1520
Electronic Shutter 1 / 30 s ~ 1 / 100000 s
Iris Type Fixed Iris
Minimum Illumination 0.005 Lux @ F1.6,AGC ON, 0 Lux with IR
0.0028 Lux @ F1.2,AGC ON, 0 Lux with IR
Lens 2.8 mm @ F1.6
Lens Mount M12
Focus Fixed
Field of View Horizontal: 100.4°, Vertical: 68°, Diagonal: 108
Day & Night ICR
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°, Tilt:0°~70°, Rotation: 0°~350°
Video Compression H.265 / H.264 / MJPEG
H.265 Compression
Standard Main Profile @ Level 4.1 High Tier
Resolution 1080p (1920 × 1080), 720p (1280 × 720), D1, CIF, 480 × 240
Main Stream 60Hz : 1080p / 720p (1~30fps), 50Hz : 1080p / 720p (1~25fps)
Sub Stream 60Hz : D1 / CIF / 480 × 240 (1~30fps), 50Hz: D1 / CIF / 480 × 240
(1~25fps)
Bit Rate 64 Kbps ~ 6 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen,
NR,etc. Adjustable through client software or web browser
ROI Each ROI to be configured separately
Functions
Remote Monitoring Web browsing, CMS remote control
Online Connection Supports simultaneous monitoring for up to 10 users. Supports multi-
stream real time transmission
Network Protocol UDP, IPv4, IPv6 DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP,
802.1x, UPnP, HTTPs, QoS
Intelligent Analytics
Line crossing
Region entrance / exiting /intrusion
(human / motor vehicle / non-motor
vehicle classification)
Line crossing human / motor vehicle
/ non-motor vehicle counting
Scene change, video blur and video
colour cast detection
Face recognition and face capture
Storage Network remote storage, Micro SD card storage
Smart Alarm Motion detection, SD card error, SD card full
General Function Watermark, IP address filtering, video mask, heartbeat, illegal login
lock
PoE Yes , IEEE802.3af
IR Distance 10 ~ 20 m

Quick Start Guide 4MP H.265 IP IR Flat Mini Dome with 2.8mm Lens and Facial Recognition
6
Interface
Network RJ45
Video Output No
Audio 1CH audio input, 1 CH built-in MIC
Alarm No
Storage Built-in Micro SD card slot, Up to 128GB
Hardware Reset Yes
Others
Ingress Protection IP66
Power Supply DC12V / PoE
Power Consumption < 6W
Operating Environment - 30 °C ~ 60°C (-22°F~140°F) Humidity: Less than 95% (Non-condensing)
Dimensions 110 × 59.8 mm
Weight Approximately 0.38Kg

7
2.0 Overview
Security Cap
DC12V
1. Micro SD card slot
2. Light sensor
3. Reset
4. Ethernet connector (PoE)
5. Audio input
6. Power connector
7. Lower Dome
8. Ground
9. Microphone
1. Loosen the nut from the main element.
2. Run the network cable (without RJ 45 connector) through both elements. Then crimp
the cable with RJ 45 connector.
3. Connect the cable to the hermetic connector. Then tighten the nut and the main
cover.
Connecting Network Cable
• It is recommended to install the security cap for outdoor installation.
• If the PoE switch is used to power the camera, DC12V power supply is not
required.

8
Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight
of the camera. Please install the camera in and under a dry environment.
1. Drill the screw holes and the cable hole on the wall according to the drill template.
2. Loosen the screws to remove the lower dome from the camera.
3. Route and connect the cables.
4. Secure the mounting base with camera to the wall with screws as shown below.
5. Three-axis adjustment. Before adjustment, preview the image of the camera on a
monitor and then adjust the camera according to the figure below to get an optimum
angle.
3.0 Installation
Lower Dome
0–360° Pan
0–70° Tilt
0–350° Rotation

Quick Start Guide 4MP H.265 IP IR Flat Mini Dome with 2.8mm Lens and Facial Recognition
9

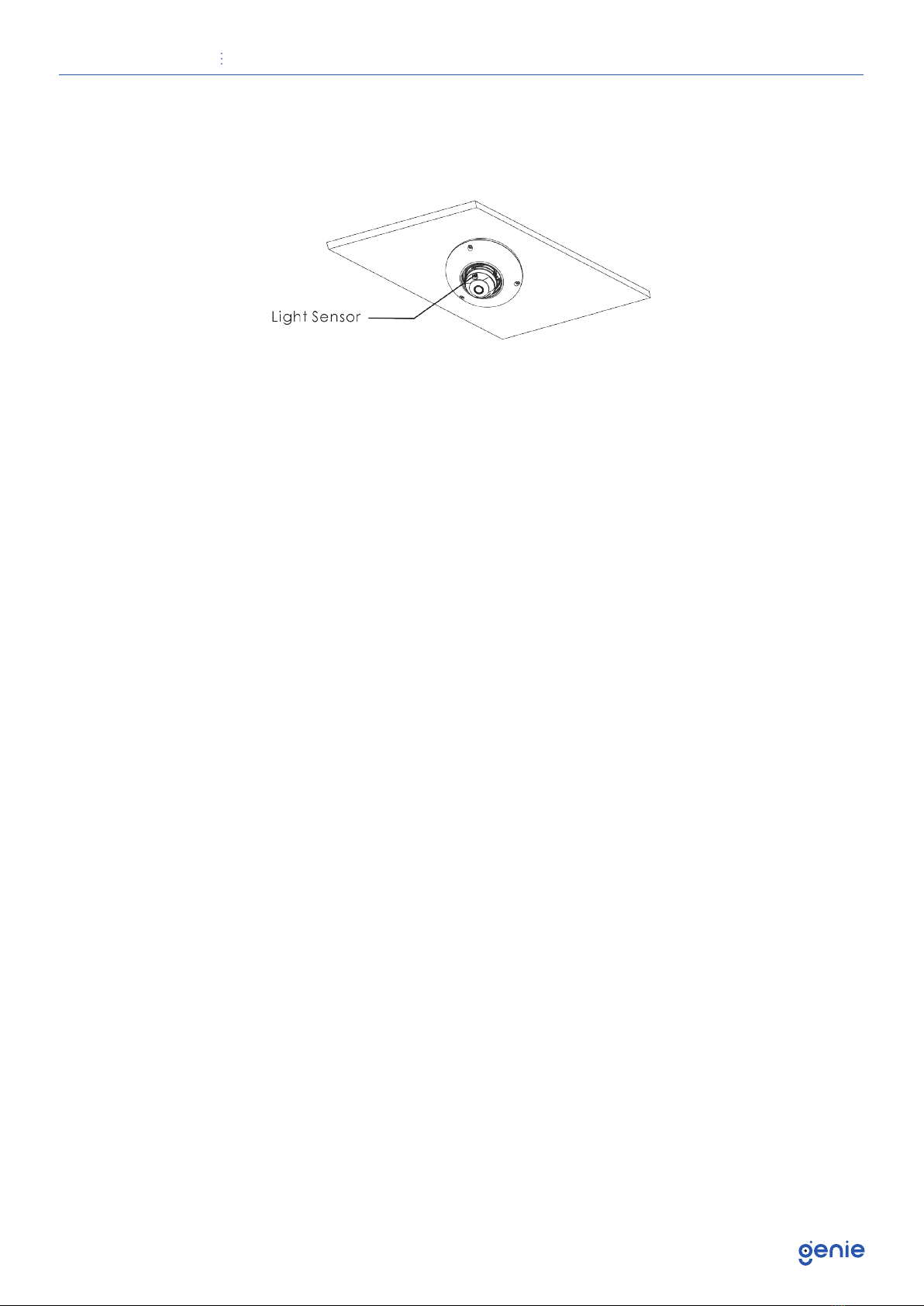

6. Replace the lower dome to the camera and make sure the light sensor can
be seen from the outside. If the light sensor is hidden, please re-adjust the
lens. After that, fix the lower dome with the screws.

10
Access the Camera through the IP Tool
1. Make sure that the camera and the PC are well connected via LAN.
2. Find the IP-Tool from the CD and then install it in the computer. After that, run the IP
Tool as shown below.
3. Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the
information of the camera listed in the above table to show the network information
on the right hand. Modify the IP address and gateway of the camera and make sure its
network address is in the same local network segment as that of the computer. Please
modify the IP address of your device according to the practical situation.
4. Double-click the camera listed in the IP-Tool or manually enter the IP address in
the address bar of the web browser to connect IP-CAM. Then follow directions to
download and install the plugin. Enter the username and password in the login
interface. The default username is admin; the default password is 123456.
4.0 Network Connection
For example, the IP address of your computer is 192.168.1.4. So the IP address of the
camera shall be changed to 192.168.1.X and the gateway shall be changed to 192.168.1.1.
After modification, please enter the password of the administrator and click “Modify”
button to modify the settings. The default password of the administrator is “123456”.

11
Transparent dome is an optical element. As dirt, dust or fingerprints on the dome will
reduce the clarity of the image, please don’t touch or wipe the cover surface directly
during installation and use. Please refer to the following cleaning tips to clean it.
• If there is dust on the dome, please use a dry soft brush to gently brush it
• If there is water or grease on the dome, please gently wipe off the water drop or
grease with a soft cloth and then use oil-free cotton cloth with the neutral detergent to
wipe it several times from the center to outward. Finally, change the cloth to dry it.
• If there are fingerprints on the dome, please use oil-free cotton cloth or paper soaked
with the neutral detergent to wipe it several times from the center to outward and then
dry it with a soft cloth.
5.0 Camera Maintenance
