Gentex PureFlo ESM+ Series User manual

ESM+ Instructions for Use (pn: 414681 Revision 2) Dec 2017
1
ESM+
Powered Air Purifying Respirator (PAPR)
Models 50ESM+ and 60ESM+
INSTRUCTIONS FOR USE
USA / Canada
Rev 2, December 2017
Gentex Corporation
324 Main Street
Simpson, PA 18407
USA
Telephone : [phone]
Fax : [phone]
Toll Free : 800 251 7377
Email : [email protected]
http://www.gentexcorp.com

11
TABLE OF CONTENTS
1. FOR YOUR SAFETY 5
1.1 GENERAL SAFETY STATEMENTS 5
1.2 DEFINITIONS OF ALERT ICONS 5
2. DESCRIPTION 6
2.1 SYSTEM OVERVIEW 6
2.2 COMPONENTS ERROR! BOOKMARK NOT DEFINED.
2.2.1 POWERED AIR PURIFYING RESPIRATOR (PAPR) 7
2.2.2 FILTER(S) AND CARTRIDGE(S) 7
2.2.3 RECHARGEABLE BATTERY PACK 7
2.2.4 BATTERY CHARGER 7
2.2.5 VISOR LOCK 7
2.2.6 STORAGE BAG 7
2.2.7 INSTRUCTIONS FOR USE USA/CANADA 7
2.2.8 PRODUCT LIMITED WARRANTY 7
2.3 FUNCTIONAL DESCRIPTION 8
42.4 INTENDED USE 9
2.5 LIMITATIONS ON USE 9
2.6 RESPIRATORY PROGRAM MANAGEMENT 10
2.7 APPROVALS 10

12
3.0 USE 11
3.1 PRECONDITIONS FOR USE 11
3.2 PREPARATIONS FOR USE 11
3.2.1 PERFORM A VISUAL INSPECTION 11
3.2.2 BATTERY CHARGING AND ISTALLATION 11

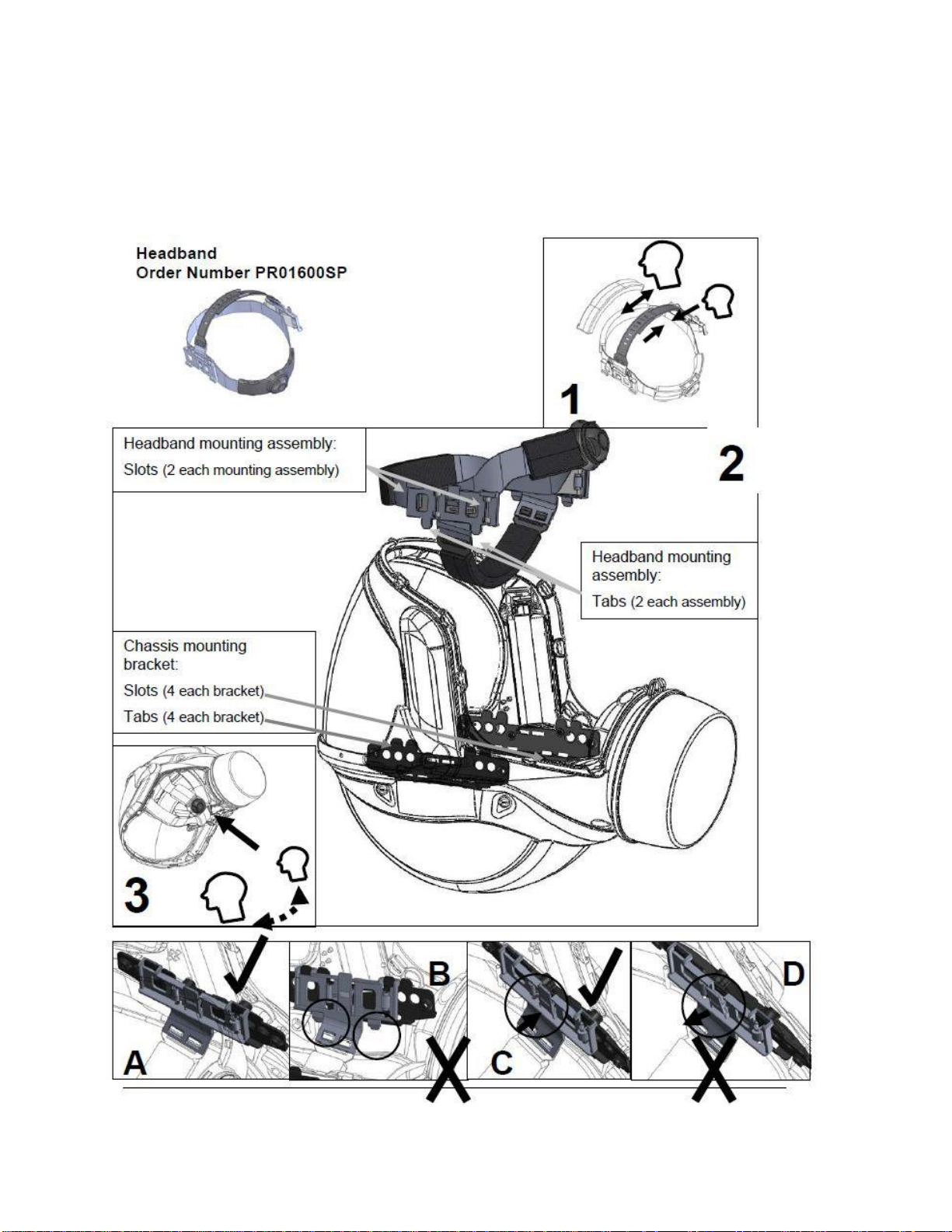

3.2.3 HEADBAND POSITION 13

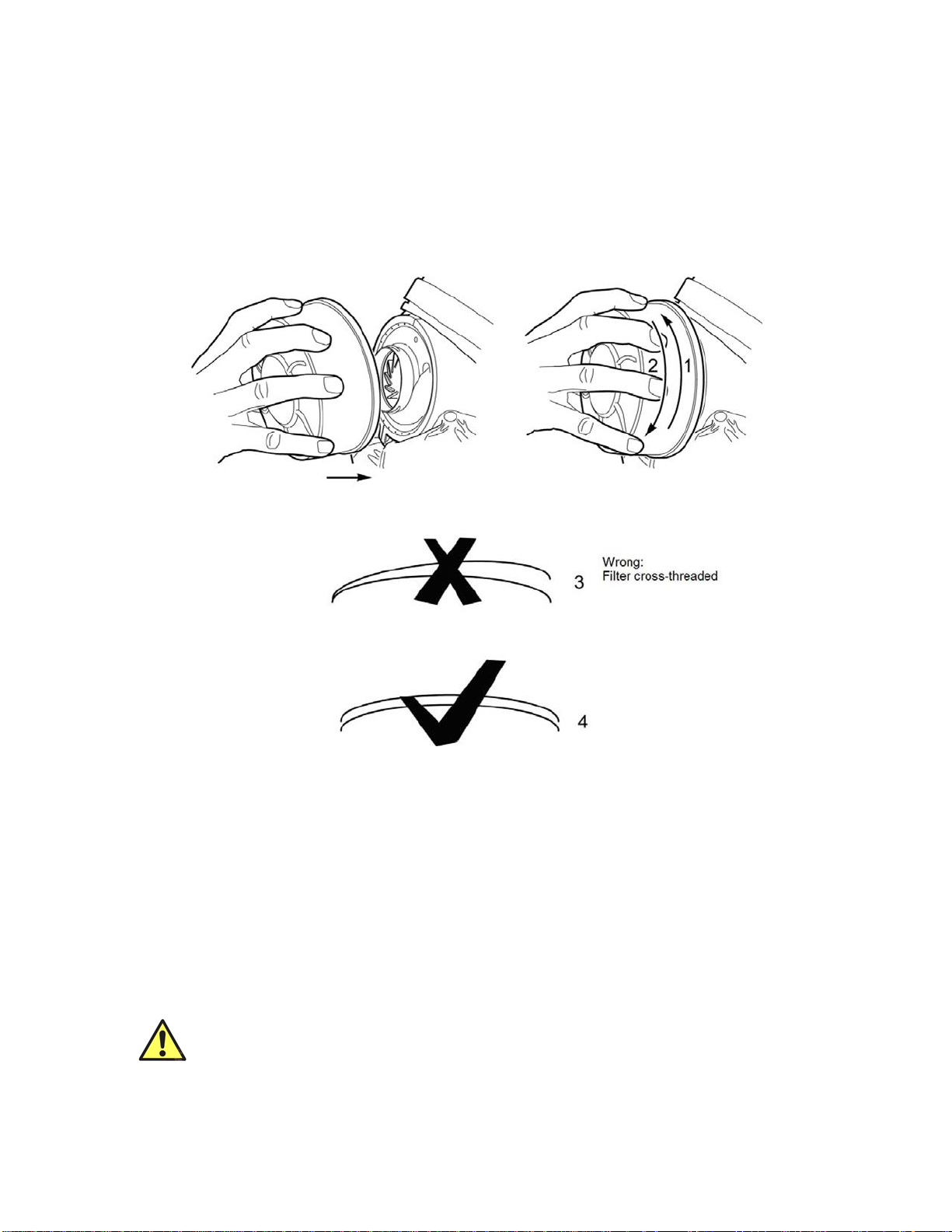

3.2.4 FILTER OR CARTRIDGE INSTALLATION 14
3.2.5 FILTER OR CARTRIDGE REMOVAL 15
3.3 DONNING THE DEVICE 16
3.4 SWITCHING ON THE DEVICE 18
3.5 USE WHEN THE FACESHIELD IS RAISED 20
3.6 DURING USE 21
3.6.1 WARNINGS 22
3.7 AFTER USE 22
4.0 TROUBLESHOOTING 23
4.1 WARNINGS 23
5. MAINTENANCE 24
5.1 MAINTENANCE INTERVALS 24
5.2 CLEANING AND DISINFECTING 24
5.2.1 CLEANING AND DISINFECTING THE DEVICE 25
5.3 MAINTENANCE WORK 25

13
5.3.1 VISUAL INSPECTION 34
5.3.2 CHECKING THE BATTERY PACK CAPACITY 34
5.3.3 REPLACING OR CHARGING THE BATTERY PACK 35
5.3.4 REPLACING THE FILTER OR CARTRIDGE 36
6. TRANSPORT 37
7. STORAGE 37
8. DISPOSAL 38
9. TECHNICAL DATA 39
10. RESPIRATORY APPROVAL LABEL 42
11. FILTER APPROVAL LABEL 43
12. COMPLETE UNITS 44
13. PUREFLO ESM+ ACCESSORIES 45
14. PUREFLO ESM+ SPARES/REPLACEMENT PARTS 46

14
1. For Your Safety
1.1 General safety statements
•Before using this product, carefully read and understand these Instructions for Use and those of
associated components.
•Strictly follow the Instructions for Use. The user must fully understand and strictly observe the
instructions. Use the product only for the purposes specified in the intended use section of this
document.
•Do not dispose of the Instructions for Use. Ensure that they are retained and appropriately used by
the product user.
•Only trained and competent users are permitted to use this product.
•Follow the local and national guidelines pertaining to this product.
•Only trained and competent personnel are permitted to inspect, repair and service the product.
•Use only genuine Pureflo spare parts and accessories, or the proper functioning of the product may
be impaired.
•Do not use a faulty or incomplete product. Do not modify the product.
•Materials that may come into contact with the wearer’s skin could cause allergic reactions to
susceptible individuals.
•Notify Gentex in the event of any product or component fault or failure.
1.2 Definitions of alert icons
The following warning symbols are used in this document to provide and highlight areas of the
associated text that require a greater level of awareness from the user. The meanings of the symbols
are as follows:
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could not
result in physical injury, or damage to the product or environment. It may also be used
to warn against unsafe practices.

15
NOTICE
Indicates additional information on how to use the product.
2. Description
2.1 System Overview
The Pureflo Models PF50ESM+ (bump cap and the P-Series or Pharmaceutical variant) and
PF60ESM+ (hardhat model) are self-contained powered air purifying respirator (PAPR).
2.2 Components
2.2.1 Powered Air Purifying Respirator unit (PAPR)
The Pureflo incorporates an Electronic Systems Management (ESM) which monitors both the filter
state and battery power assuring continuous airflow above 170 lpm for the entire period of use. Should
airflow or power drop, these units will alert the user.
2.2.2 Filter(s) and Cartridge(s)
The Pureflo Models PF50ESM+ and PF60ESM+ should only be used with original Pureflo ESM filters.
When equipped with a High Efficiency Particulate Air (HEPA) HE filter (order number PR02020SP), they
are effective against solid and liquid aerosols (particulates).
When equipped with an HE/HF/HC cartridge (order number PR02026SP), these respirators are effective
against Hydrogen Chloride (HC) and Hydrogen Fluoride in addition to particulates. This cartridge is
also effective for nuisance level removal of most organic vapors, inorganic vapors, acid gases and
ozone, where ‘nuisance level’ refers to concentrations not exceeding the OSHA PEL or other applicable
government occupational exposure limits, whichever is lower. NIOSH does not approve filters for
Nuisance level protection.
The use of any other filter(s) is prohibited.
2.2.3 Rechargeable Battery Pack
The Pureflo ESM+ is powered by rechargeable battery packs held inside the respirator
2.2.4 Battery Charger
The Pureflo ESM+ comes with two (2) battery chargers (part number PR02230).

16

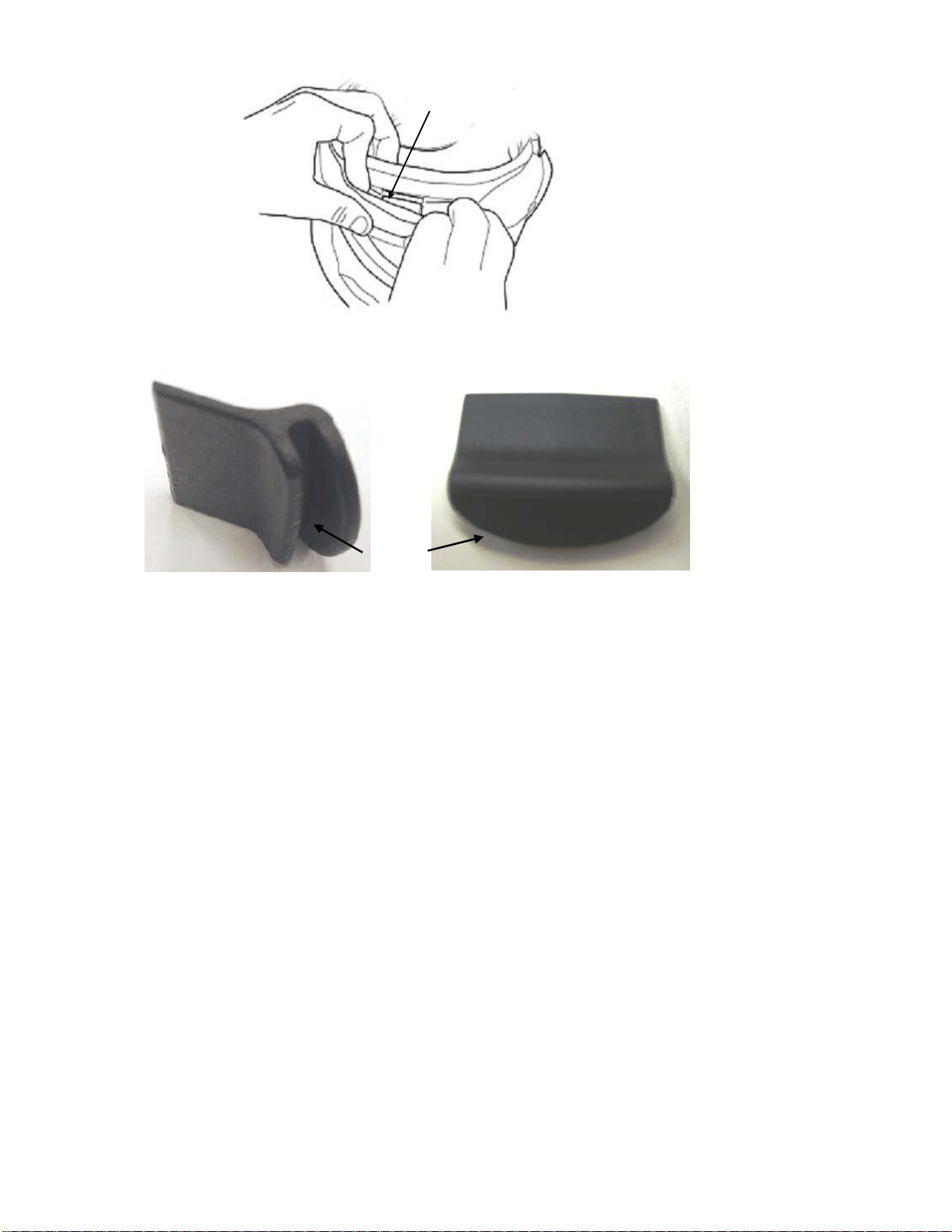

2.2.5 Visor Lock –Installation/Removal (except 50ESM+ P-Series)
Visor Lock
insertion
channel
Visor Lock –
side view
Visor Lock -
Topside, Tail End
Tail
Visor Lock -
Underside
Over
Visor
Locking
Channel
Visor Lock Installation
1. Refer to the pictures above and identify the top side, the Over-Visor locking channel, and the tail end of
the visor clip.
2. Ensure the visor is completely in the down position during the following steps.
3. Refer to drawing of figure above; locate the center of the rubber gasket attached to the primary
visor and using your fingers, pull outward and downward and hold. Identify the visor lock insertion
channel in the main chassis.
4. Ensure the visor locking channel is facing down toward the top of the visor and fully insert the tail
end of the visor clip into the slot of the unit’s frame.
5. With your fingers, simultaneously push the top of the visor downward and lift the locking clip
upwards. Pull outward on the visor to locate the visor into the visor locking channel of the clip.
Release the rubber gasket.
Visor Lock Removal
1. Repeat step 3 from above.
2. Using your fingers, push downward on the top of the visor and lift the locking clip upward. The visor
should release from the locking channel but may require inward pressure on the top of the visor
while lifting the locking clip upward.
3. Slide the locking clip out from the slot of the main frame.
4. Release the rubber gasket.

17
2.2.6 Storage Bag
The Pureflo ESM+ comes with one (1) Storage Bag (part number 838003).
2.2.7 Instructions for use USA/Canada
The Pureflo ESM+ comes with one (1) Instructions for Use- this document.
2.2.8 Product Limited Warranty
The Pureflo ESM+ comes with one (1) Product Limited Warranty card (part number QC057).
2.3 Functional Description
The powered air purifying respirator is a respiratory protective device depending on circulating air.
It filters the ambient air and makes it available as breathable air. The device continuously takes in
ambient air through the filter. The filter absorbs harmful particulates. In this way, the ambient air is
recycled and finally reaches the face/breathing zone. There it is available as breathable air.

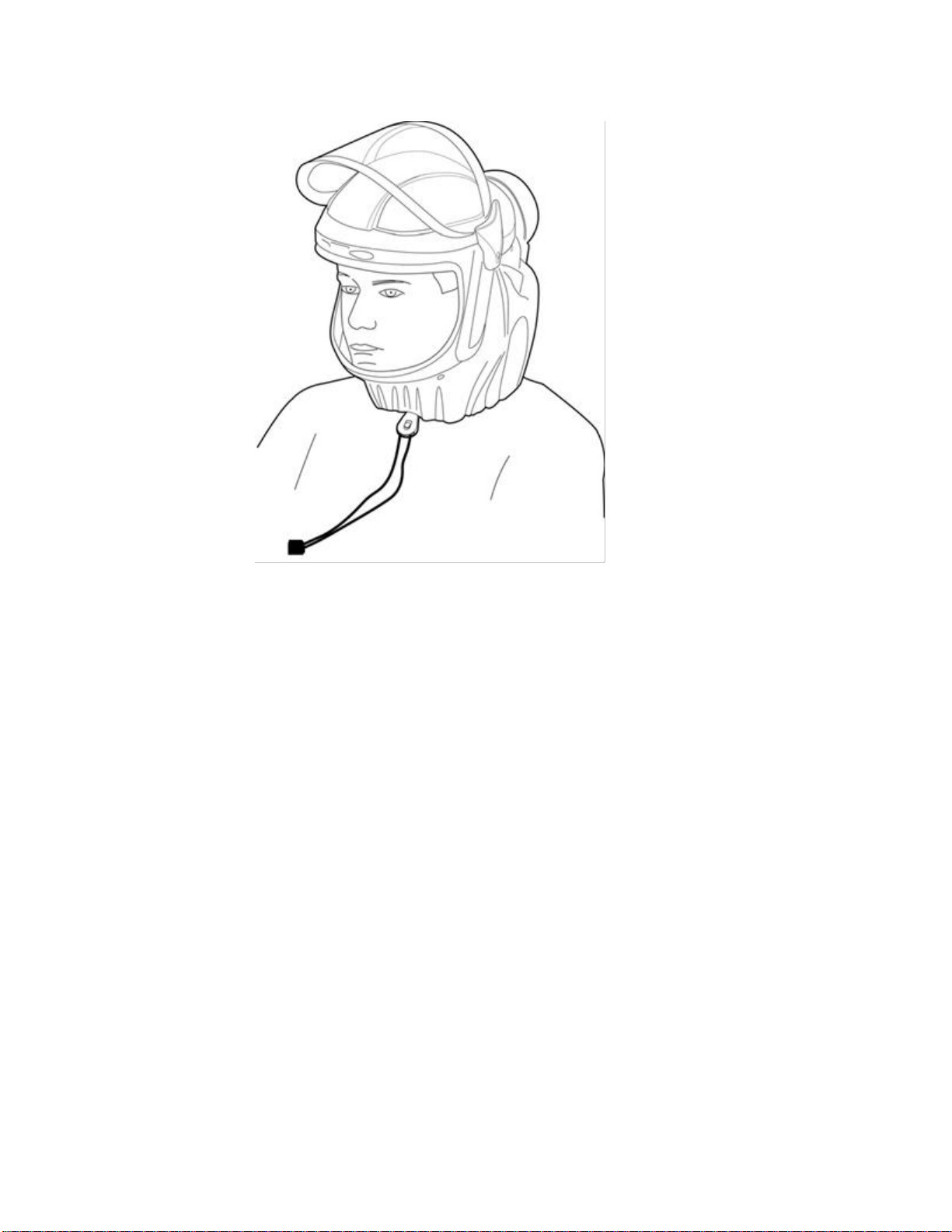

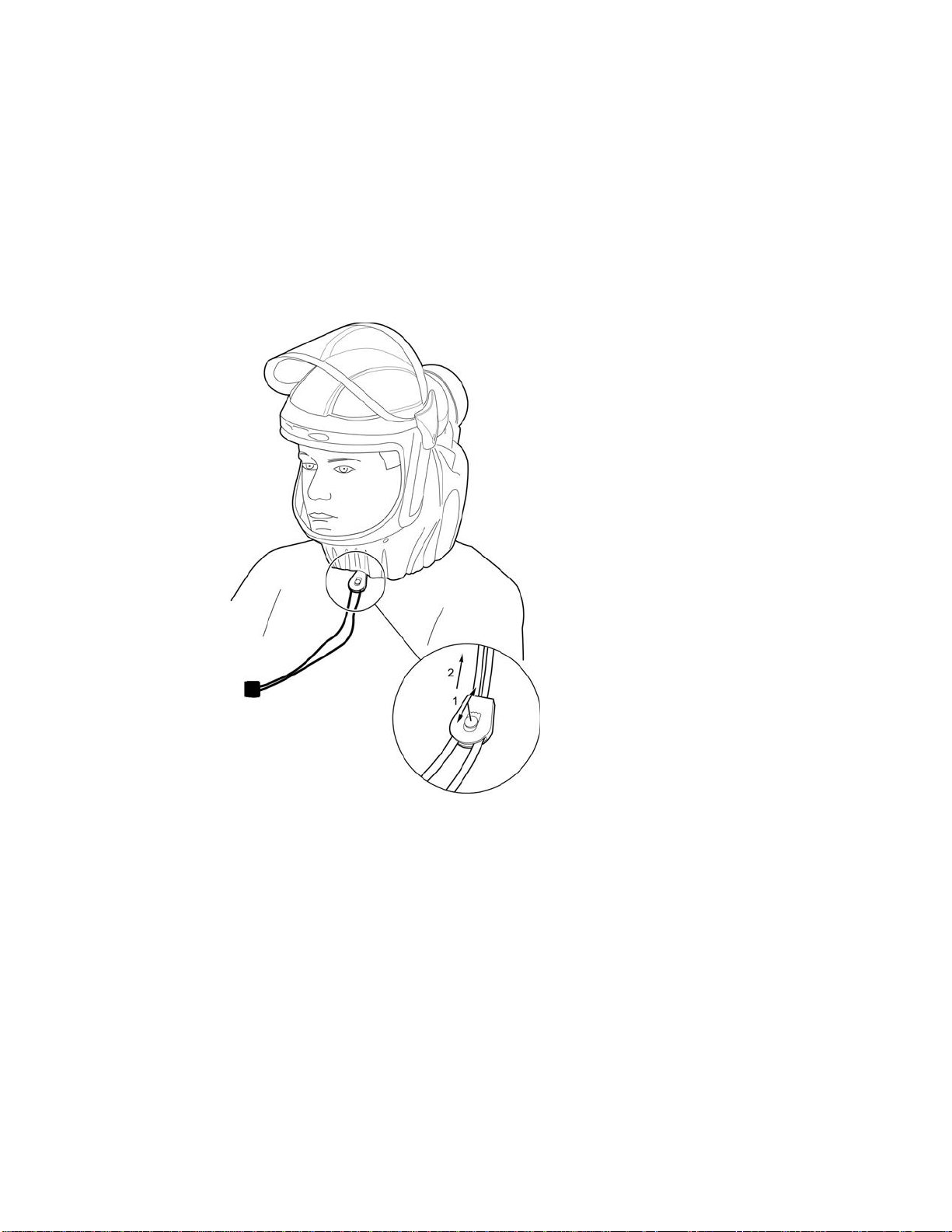

An adjustable neck cape ensures that continuous positive pressure is maintained within the respirator,
preventing ambient air from penetrating.
The Pureflo ESM+ provides head, face and eye protection. (Depending on the installed accessory
components)
The Pureflo ESM+ is powered by rechargeable battery packs held inside the respirator.
The Pureflo ESM+ contains an adjustable headband and crown strap ensuring a comfortable fit for most
head sizes from sizes.

18
2.3.1. Warning Devices
Malfunctions during operation are indicated by warning devices.
The warning devices include:
•optical warning (LED status indicator on the right inside of the helmet)
•acoustic warning (sounder)
If in the fan unit is no longer able to deliver the default flow rate (e.g. due to increasing saturation of the
particle filter), a warning is triggered.
2.4 Intended use
When equipped with a HE filter (Order number PR02020SP), they protect against solids and liquid
aerosols (particulates).
When equipped with an HE/HF/HC cartridge (Order number PR02026SP), these respirators are effective
against solid and liquid aerosols (articulates), Hydrogen Fluoride (HF) and Hydrogen Chloride (HC). This
filter is effective for nuisance level of most Organic Vapors, Inorganic Vapors, Acid Gases and Ozone,
where ‘nuisance level’ refers to concentrations not exceeding OSHA PEL or other applicable

19
government occupational exposure limits, whichever is lower. NIOSH does not approve filters for
Nuisance level protection.
Note that the Pureflo ESM+ does not monitor remaining service life for HF, HC, or other vapors or
gases. Users must determine an appropriate cartridge change out schedule.
2.5 Limitations on use
The device is not suitable for use:
•in atmospheres that are oxygen deficient;
•where contaminant concentrations are unknown;
•where contaminant concentrations are Immediately Dangerous to Life or Health (IDLH);
•where contaminant concentrations exceed the maximum use concentration (MUC) determined
by using the Assigned Protection Factor (APF) for the specific respirator system or the APF
mandated by specific government standards, whichever is lower;
•in unventilated areas;
•outside the intended temperature range of 40°F to 105°F (+5°C to +40°C);
WARNING
Immediately exit the contaminated area if any of the low battery or low airflow alarms activate.
The recommended altitude range of the PureFlo ESM+ is approximately sea level to 2600 feet (800
meters).
2.6 Respiratory Program Management
Occupational use of respirators must be in compliance with applicable health and safety standards. By
United States regulation employers must establish a written respirator protection program meeting the
requirements of the Occupational Safety and Health Administration (OSHA) Respiratory Protection
standard 29 CFR 1910.134 and any applicable OSHA substance specific standards. For additional
information on this standard contact OSHA at www.OSHA.gov. In Canada, CSA standard Z94.4
requirements must be met and/or requirements of the applicable jurisdiction as appropriate.
