USER INSTRUCTIONS
PF3000
Manual ref. number
PF3000-03-035
USER INSTRUCTIONS 3
PureFlo 3000
Contents
USER INSTRUCTIONS....................................................................................................... 5
CAUTIONS ....................................................................................................................... 5
WARNINGS...................................................................................................................... 5
PUREFLO 3000 Variants Overview.................................................................................. 7
GENERAL DESCRIPTION .................................................................................................. 8
APPROVAL FOR USE........................................................................................................ 9
Special conditions for safe use ................................................................................... 9
SUITABILITY FOR USE .................................................................................................... 10
TRANSPORTATION ........................................................................................................ 11
PREPARATION FOR USE ................................................................................................ 11
Battery charging........................................................................................................ 11

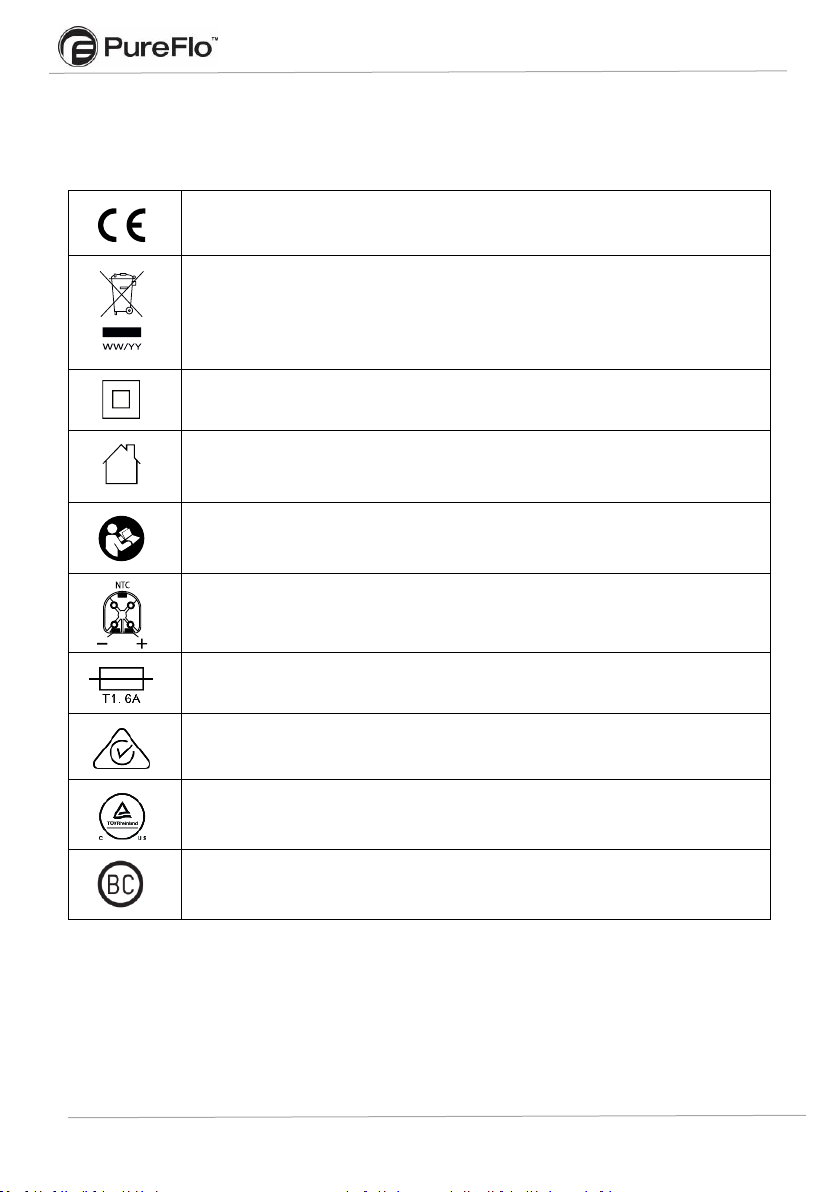

Battery charger advisory symbols’ legend................................................................ 14
Battery installation and removal .............................................................................. 15
Visual inspection of breathing zone.......................................................................... 15
HEPA filter fitting and checking the respirator ......................................................... 16
Low airflow indicator check...................................................................................... 18
WEARING AND USING................................................................................................... 19
Fitting the respirator................................................................................................. 19
Crown strap adjustment ....................................................................................... 19
Quick release headband adjustment.................................................................... 21
Face seal ............................................................................................................... 21
Hood ..................................................................................................................... 22
Activating respirator ................................................................................................. 22
Status indicator (LED) ............................................................................................... 23
Removing the respirator........................................................................................... 24
SERVICING..................................................................................................................... 25
Cleaning .................................................................................................................... 25
Annual Servicing ....................................................................................................... 27
Before disassembly................................................................................................... 27
Fitting the hood ........................................................................................................ 27
USER INSTRUCTIONS 4
PureFlo 3000
Replacing the face seal ............................................................................................. 29
Face shield replacement........................................................................................... 30
Helmet shells ............................................................................................................ 32
Head band assembly................................................................................................. 33
Replacing the comfort pads...................................................................................... 34
Brow infill removal and installation.............................................................................. 35
High efficiency particulate air filter replacement ........................................................ 37
DISPOSAL ...................................................................................................................... 39
Disposal of respirator................................................................................................ 39
Disposal of rechargeable battery.............................................................................. 39
Disposal of contaminated filter ................................................................................ 39
TROUBLESHOOTING ..................................................................................................... 40
STORAGE (excluding battery) ....................................................................................... 41
TECHNICAL SPECIFICATION........................................................................................... 41
Environmental range (storage and use, excluding battery)...................................... 41
Power supply ............................................................................................................ 42
Battery Charger......................................................................................................... 42
Filters ........................................................................................................................ 42
PureFlo® DECONTAMINATION RETURN PROCEDURE .................................................. 43
SPARE PARTS................................................................................................................. 44
ACCESSORIES ................................................................................................................ 45
USER INSTRUCTIONS 5
PureFlo 3000
USER INSTRUCTIONS
Please read these instructions and then store them in a safe place for future
reference.
The respirator must be fitted and used in accordance with these instructions to obtain
the approved level of performance.
CAUTIONS
•For adequate protection this respirator must fit or be adjusted to the size of the
user’s head.
•The respirator is made to absorb the energy of a blow by partial destruction or
damage to the shell and the harness, and even though such damage may not be
readily apparent, any respirator subjected to severe impact should be replaced.
•The attention of users is also drawn to the danger of modifying or removing any
of the original component parts of the respirator, other than as recommended
by the respirator manufacturer.
•Respirators should not be adapted for the purpose of fitting attachments in any
way not recommended by the respirator manufacturer.
•Do not apply paint, solvents, adhesives or self-adhesive labels, except in
accordance with instructions from the respirator manufacturer.
WARNINGS
•REPAIR IS BY REPLACEMENT OF DEFECTIVE PARTS ONLY.
•ONLY APPROVED PureFlo® PARTS SHOULD BE USED.
•ALTERATIONS AND AFTER-MARKET MODIFICATIONS TO HEADWEAR PRODUCTS
MIGHT COMPROMISE THE PROTECTIVE FEATURES OF THE HEADWEAR.
•RESPIRATORS MUST BE STORED IN ACCORDANCE WITH THESE INSTRUCTIONS.
(INCLUDING DURING BREAK TIMES etc.) RESPIRATORS MUST BE REGULARLY
CLEANED IN ACCORDANCE WITH THESE INSTRUCTIONS.
•RESPIRATORS MUST BE DECONTAMINATED IN ACCORDANCE WITH THESE
INSTRUCTIONS.
•THE HEADBAND, CONCUSSION STRAP (Hard Hat only), FIXINGS AND MOUNTING
POINTS FORM PART OF THE STRUCTURE OF THE RESPIRATOR. ENSURE THAT THE
NEW ASSEMBLY IS FITTED CORRECTLY, OR THE INTEGRITY OF THE RESPIRATOR
MAY BE COMPROMISED.
•PRIOR TO USE A FLOW CHECK MUST BE PERFORMED.
6
PureFlo 3000
•DO NOT HOLD OR SUSPEND THE RESPIRATOR BY THE HEADBAND OR FACE SEAL.
•DO NOT WEAR THE RESPIRATOR IF THE AIR FLOW IS SWITCHED OFF.
•AT VERY HIGH WORK RATES THE PRESSURE IN THE DEVICE MAY BECOME
NEGATIVE AT PEAK INHALATION FLOW.
•LONG HAIR MUST NOT BE TIED TO THE BACK OF THE USERS’ HEAD TO USE THIS
PRODUCT. TIED BACK HAIR MAY PROHIBIT THE NAPE RATCHET FROM WORKING
CORRECTLY AND CAUSING THE RESPIRATOR TO BE INSECURELY FITTED ON THE
USERS’ HEAD.
The PureFlo® 3000 is equipped with a High Efficiency Particulate Air Filter (P3/HEPA)
and is powered by a re-chargeable battery incorporated into the respirator.
The respirator filters the surrounding air providing a flow of clean air into the user’s
breathing zone.
Depending on the model chosen, an adjustable face seal or a hood is designed to help
to maintain a positive pressure within the respirator, preventing penetration of the
ambient air.
NOTE: To avoid the danger of choking or suffocation please keep the respirator and
associated components away from babies and children.
PureFlo® 3000 contains an adjustable quick release headband ensuring a comfortable
fit for head sizes between 53.5 cm and 63.5 cm.
PUREFLO 3000 Variants Overview 7
PureFlo 3000
PUREFLO 3000 Variants Overview
Hard Hat
PF3000H
Welding with Hard Hat
PF3000W
Hood with an inner visor
PF3000PV
Hood without inner visor
PF3000P
GENERAL DESCRIPTION 8
PureFlo 3000
GENERAL DESCRIPTION
The respirator must be fitted and used in accordance with these instructions to obtain
the approved level of performance.
APPROVED PUREFLO® 3000 PARTS MUST BE USED.
The PureFlo®3000 respirator box contains the following items:
Item
Description
Part Number
Powered Air
Purifying Respirator
Respirator module (TH3P).
Available versions:
Hard Hat
Welding with Hard Hat
Hood with an inner visor
Hood without inner visor
PF3000H
PF3000W
PF3000PV
PF3000P
Filter
High Efficiency Particulate Air Filter.
(THP3/HEPA)
PF3000-02-001
Rechargeable
battery
Rechargeable Lithium-Ion high capacity
battery.
PF3000-03-003
Battery charger
Mains and 12V inputs.
PF3000-03-004
Mains cable
Mains cable for the battery charger
See spare part
list
Cleaning plugs
3 cleaning plugs
PF3000-03-014
User instructions
Printed instructions for correct use of
respirator
PF3000-03-035
Storage Bag
Protective storage bag for respirator
PF3000-03-017
Table 1
APPROVAL FOR USE 9
PureFlo 3000
APPROVAL FOR USE
This product has been shown to meet the requirements of Annex V of the Personal
Protective Equipment Regulation (EU) 2016/425 and is manufactured in accordance
with Annex VIII Module D, and thus is CE marked.
Annex V and VIII assessments conducted by: British Standards Institution, Maylands
Avenue, Hemel Hempstead, Herts, HP2 4SQ, UK.
(Notified Body Number: 0086)
Product assessed against the requirements of the following standards:
Respiratory Protection
EN12941:1998+A2:2008
AS/NZ 1716: 2012
Eye / Face protection
EN 166:2002
AS/NZ 1337.1:2010
Head Protection
EN 397:2012+A1:2012
AS/NZ 1801-1997
Ingress Protection
IEC/EN 60529:1992+A2:2013
Table 2
Special conditions for safe use
1. The plastic helmet shell, transparent face shield or face seal could present a
potential electrostatic risk. Suitable precautions should be taken to minimise
this risk and the helmet should only be cleaned with a damp cloth.
2. Only battery Part No PF3000-03-003 should be fitted to the respirators.
3. The battery should only be recharged in a safe area.
4. PureFlo® 3000 respirators are only tested to be used within the limited ambient
temperature range (+5°C to +40°C).
SUITABILITY FOR USE 10
PureFlo 3000
SUITABILITY FOR USE
This respirator must be used strictly in accordance with these instructions.
When using the approved PureFlo® filter, the workplace concentrations of the vapour
must not exceed the O.E.L. (Occupational Exposure Limit). Intended for use against
dusts, mists and aerosols.
Available air filtration options:
- Pre-filter PF3000-04-005
- Odour pre-filter PF3000-04-004
Do not use this respirator for protection against unknown atmospheric contaminants.
Do not use this respirator when
•Concentrations of contaminants are unknown,
•Contaminants are immediately dangerous to life or health,
•Ambient atmosphere is likely to be deficient in oxygen.
Use this respirator only with the parts and accessories listed in these instructions.
The respirator is intended only for use by competent personnel.
Leave the contaminated area immediately if any of the following conditions apply:
•LED indicates red
•Any part of the respirator becomes damaged.
•Airflow into the respirator decreases or stops.
•Breathing becomes difficult.
•Dizziness or other physical distress or irritation occurs.
•The user tastes or smells contaminants.
Never modify or alter this product, except as directed in the service tasks contained in
these instructions.
Materials, which may come into contact with the wearer's skin could cause allergic
reactions to susceptible individuals.
TRANSPORTATION 11
PureFlo 3000
TRANSPORTATION
For transportation purposes use the carry bag provided and protect the respirator
from physical or chemical damage.
A protective durable bag is available as an accessory. (Part No. PF3000-03-017)
PREPARATION FOR USE
The following tasks must be performed prior to use:
Battery charging
Only charge the battery in a safe area free from sources of flame and sparks,
temperature between +5°C and +40°C.
NOTE: Do not use mains supply and 12V supply at the same time.

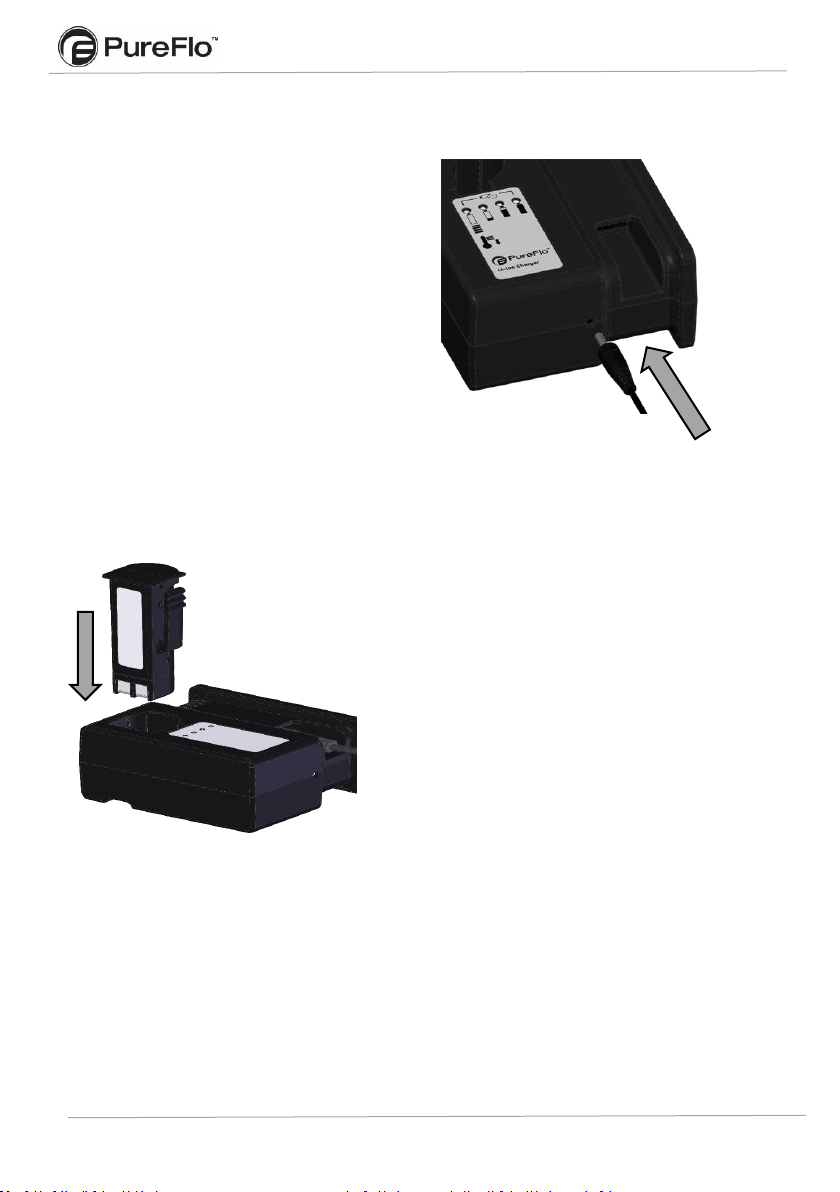

If using mains electricity to charge the
battery, use the appropriate power cable
relating to country of use.
Insert the power cable plug into the mains
supply and the charger, then switch on the
supply.
(Figure 1A)
Figure 1A
PREPARATION FOR USE 12
PureFlo 3000
If using a 12V supply (vehicle, site supply,
etc.) to charge the battery, use the
appropriate 12V power cable (PF3000-04-
008, SOLD SEPARATELY)
Insert the 12V power cable plug into the
charger and the power supply then switch
the power supply on, if applicable.
(Figure 1B)
NOTE: Centre positive power cable must
be used.
Insert the battery as shown in Figure 2.
Ensure the battery fully ‘clicks’ into
position.
For more information check
‘TROUBLESHOOTING’ section on page 40.
NOTE: It is normal for the battery and
charger to get warm during use.
Figure 2
Figure 1B
PREPARATION FOR USE 13
PureFlo 3000
Observe the status indicator LEDs. (Figure 3)
The following indications and warnings may be given during
charging:
Mode/Display
LED1
red
LED2
green
LED3
green
LED4
green
No battery
Off
Off
Off
On
Low/high temp.
Flashing
Off
Off
Off
Pre-charging
On
Off
Off
Off
Constant current
charging
On
Off
Off
Off
Constant current
charging after 25
min
Off
On
Off
Off
Constant voltage
charging
Off
On
On
Off
Battery full
Off
On
On
On
Battery failed
Flashing
Off
Off
Flashing
Table 3
The nominal recharge time for a battery is below 2 hours.
When to recharge
Do not force the PAPR/Unit to restart after auto-shut down following a low battery
alarm. Doing so may ‘deep discharge’ the battery, which will permanently reduce
available capacity. Recharging a battery at the end of each day’s use, even if the
battery is not fully discharged, will help prolong the life of the battery.
Figure 3
PREPARATION FOR USE 14
PureFlo 3000
Battery charger advisory symbols’legend
European Conformity –product meets the requirements of
applicable EU directives.
At the end of the service life, this product shall not be discarded with
the municipal waste but needs to be disposed of using separate
collection, treatment, recovery/recycling and environmentally sound
disposal.
Product is double insulated. (Insulation Class II).
Product is designed for indoor use.
Read Operator’s Manual
Battery charger terminal polarity.
Fuse link
RCM compliance.
TÜV Rheinland approved.
California Energy Commission compliant.
Table 4
PREPARATION FOR USE 15
PureFlo 3000
Battery installation and removal
Remove battery by pushing lightly on
the release area indicated.
(Figure 4)
Observing the orientation as shown in
Figure 5 install a fully charged battery
into the respirator until the battery fully
clicks into position.
Visual inspection of breathing zone
•Check the face seal for damage.
•Check the face seal engages properly into the frame. If the face seal cannot
be retained securely in the face shield frame, a new face seal must be fitted.
See section ‘Replacing the face seal’on page 29.
•Check the quick release headband is properly installed. Replace any
damaged parts including scratched or damaged face shield.
Figure 4
Figure 5
PREPARATION FOR USE 16
PureFlo 3000
HEPA filter fitting and checking the respirator
Ensure that the high efficiency
particulate (HEPA) filter is installed
correctly as shown in Figure 6
When fitting the filter element into
the filter housing, observe that the
filter label faces upwards as worn.
Then applying firm pressure, click to
engage the filter housing with the
two filter latches.
Figure 7
If used with a hood use the hood
anti-recirculation gasket fitted as
shown in Figure 7
1. Anti-recirculation gasket.
If a pre-filter (PF3000-04-004 or PF3000-04-005) is to be used, ensure this is positioned
inside the filter housing prior to fitting the HEPA filter.
More information in section ‘
High efficiency particulate air filter replacement’ on page 37.
Figure 6
1
PREPARATION FOR USE 17
PureFlo 3000
Correct positions of filters:
1. Housing
2. Odour / Pre-filter
3. HEPA filter
Check that the air inlet is clean and
free from any obstructions. (Figure 9)
Activate the respirator with the on/off
switch as shown in Figure 10, noting
the LED display. (Figure 11)
2
3
1
Figure 8
Figure 9
Figure 10
PREPARATION FOR USE 18
PureFlo 3000
If the respirator is working correctly,
status indicator LED (Figure 11)will
illuminate green.
The respirator is then ready to use.
If status indicator LED is RED proceed
to ‘Troubleshooting’ section on
page 40.
Low airflow indicator check
Before using the respirator perform a low airflow indicator check:
1. Ensure that the HEPA filter has been installed correctly as shown in Figure 8
on page 17.
2. Activate the respirator with the on/off switch as shown in Figure 10 and
perform the following test, noting the LED indicator.
3. Use your hand to block the airflow to the HEPA filter as shown in Figure 9.
If the respirator is working correctly the fan will increase in speed.
4. Within approximately 10 seconds the LED indicator will turn from GREEN to
RED.
5. The RED LED indicates low air flow.
6. Remove your hand from the air inlet.
7. Switch the respirator off using the on/off switch as shown in Figure 10 to
cancel the test.
8. Activate the respirator with the on/off switch once again before use.
Figure 11
WEARING AND USING 19
PureFlo 3000
WEARING AND USING
Fitting the respirator
To achieve an optimal level of respirator performance, follow the fitting instructions
below.
Crown strap adjustment
Before first use, adjust the crown height by adjusting the crown strap following Figure
12-Figure 16.

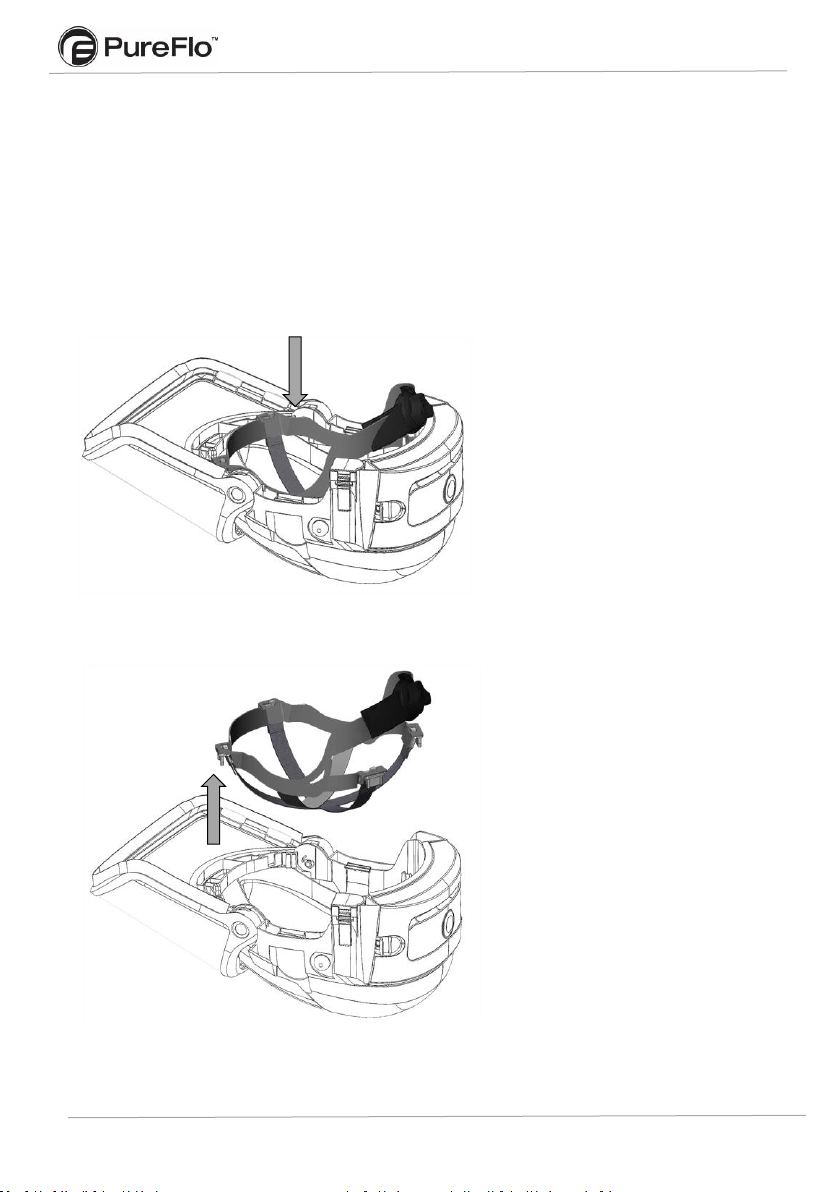

Release the headband mounts
from the 4 attachment posts in
the respirator frame (Figure 12)
by pressing the release clip. If
this is difficult to do it with a
finger, use a suitable aid.
Remove the headband from the
respirator. (Figure 13)
Figure 13
Figure 12
WEARING AND USING 20
PureFlo 3000

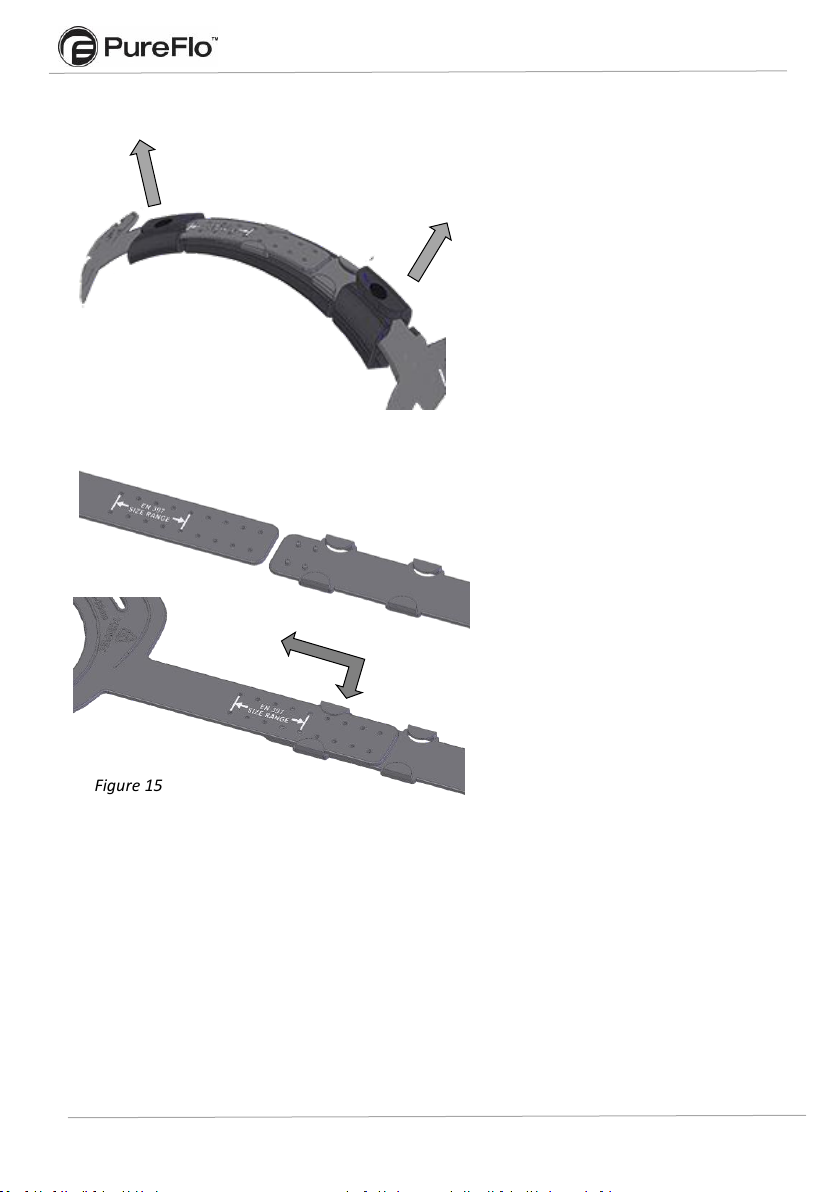

Unfasten and remove the crown
pad to access the adjustment
straps. (Figure 14)
Adjust the length of the strap as
required ensuring that the four
locations pegs are within the
highlighted EN397 range of
adjustment (Figure 15).
This position will ensure correct
head ventilation for the
product.
Reposition the crown pad on the headband strap.
Re-attach headband in reverse order.
Refer to ‘Brow infill removal and installation’section on page 35.
Re-attach face seal press fastener to the mating press fastener on the face seal.
Ensure the elastic strap is routed around the headband.
NOTE: Do not hold or suspend the respirator by the headband or face seal.
Figure 14
Figure 15
Table of contents
Other Gentex Respiratory Product manuals
