Geoslam Zeb horizon Installation manual

Hardware User Guide

Notes

The software and hardware described in this guide is furnished under licence and may only be used or copied

in accordance with the terms of the licence.

Revision: 1.3

Release date: 30 May 2022

All rights are reserved. No part of this publication or the components it describes may be reproduced, stored in

a retrieval system or transmitted, in any form, or by any means, electronic, mechanical, photocopying, recording,

or otherwise, without prior written consent from GeoSLAM Ltd.

GeoSLAM Ltd. provides this guide “as is”, without warranty of any kind and reserves the right to make

improvements and/or changes to the product described in this guide at any time and without notice.

GeoSLAM Ltd. equipment should not be used as a primary navigation device.

CLASS A COMPUTING DEVICE.This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial environment. The

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the user guide, may cause harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference, in which case the user will be required to correct the

interference at their own expense.

SOFTWARE IS PROVIDED AS IS. To the maximum extent permitted bylaw, the manufacturer(GeoSLAM Ltd.)

and its suppliers disclaim all warranties, either express or implied, including, but not limited to implied warranties

of merchantability and fitness for a particular purpose, with regard to the SOFTWARE, the accompanying written

materials, and any accompanying hardware. You may have other rights which vary from country to country.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES. To the maximum extent permitted by applicable law, in

no event shall the company or its suppliers be liable for any damages whatsoever (including without limitation,

direct or indirect damages for personal injury, loss of business profits, business interruption, loss of business

information, or any other pecuniary loss) arising out of the use of this product, even if the company has been

advised of the possibility of such damages. In any case, the company’s and its suppliers’ entire liability shall be

limited to the amount actually paid by the owner of the product for the product. Because some

states/jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages,

the above limitation may not apply to the user.


© 2022 GeoSLAM Ltd 2 ZEB Vision User Guide v1.3

Table of Contents

1.

Introduction.............................................................................................................3

2.

List of Parts.............................................................................................................3

3.

Data Capture...........................................................................................................4

3.1.

Firmware Update.....................................................................................................................................4

3.2.

Mounting and Installation ........................................................................................................................ 4

3.3.

Collecting Data ........................................................................................................................................6

3.4.

Downloading Images............................................................................................................................... 6
3.4.1.

Establishing a Connection..................................................................................................................................6

3.4.2.

Downloading Images..........................................................................................................................................7

4.

Appendix.................................................................................................................8

4.1.

APPENDIX A –Scan Head Firmware Update ........................................................................................ 8

4.1.1.

ZEB Horizon Generation 1 Datalogger ..............................................................................................................8

4.1.2.

ZEB Horizon Generation 2 Datalogger ..............................................................................................................8

1. Introduction

The ZEB Vision can be used with the ZEB Horizon system to capture 360° panoramic photography in 4K definition for

point cloud visualisation and colourisation. Data is captured as the user walks through the area of interest. The ZEB

Vision uses GeoSLAM’s leading SLAM algorithm to automatically and accurately position panoramic photos on a point

cloud for an interactive viewing experience.

Provided the simple guidelines set out in this manual are adhered to, accurate 3D point clouds can be generated in a

fraction of the time taken with traditional terrestrial laser scanning methods.

2. List of Parts

Along with the components in a standard ZEB Horizon system, the ZEB Vision also includes the items listed below.

Part no.

Description

K_GS_ZEB_VISION

ZEB Vision camera and mount

ZEB Vision ethernet cable

3mm HEX Key

ZEB Horizon Hard Case

Figure 2-1

3. Data Capture

3.1. Firmware Update

If you are retrofitting a ZEB Vision camera to an existing ZEB Horizon system, please ensure you have the latest

version of the firmware installed. Instructions for this process can be found in Appendix A.

3.2. Mounting and Installation

After unpacking your ZEB Vision kit, please follow these simple steps to ensure the system is set up correctly for use.

Step 1

. Remove the four rubber dampers from the back of the ZEB Horizon scanner.

Step 2

. Attach the ZEB Vision camera to the back of the ZEB Horizon scanner using the captive screws provided in

the mount. The 3mm HEX key found in the screw accessory kit can be used to tighten these screws and secure

the camera in place.

Step 3

. Insert the CAM and AUX cables into the relevant ports on the sides of the ZEB Horizon scanner head. Ensure

the red dots are aligned before insert the cables.

Step 4

. Insert one end of the main cable into the port on the side of the ZEB Horizon scanner head. Insert the other

end of the cable into the port on the ZEB Horizon datalogger. Ensure the red dots are aligned before inserting

the cables into the ports.

3.3. Collecting Data

The ZEB Vision camera will be powered by the ZEB Horizon system. Ensure the camera is fully connected before

powering on the Horizon system, otherwise it will not be detected and no images will be captured. Once the ZEB

Horizon initialisation process has been completed successfully, images will begin to be taken.

The LED on the camera will be illuminated green when powered on.

For best practices on capturing data for colourisation, please consult the guidance outlined on GeoSLAM Academy.

3.4. Downloading Images

Insert one end of the ZEB Vision ethernet cable into the back of the ZEB Vision camera and secure by tightening the

screw. Insert the other end of the cable into a PC.

3.4.1. Establishing a Connection

The Vision camera is set to Local Link IP address 169.254.0.206 which enables connection to a Windows

PC set

to default Ethernet setting - DHCP “Obtain IP address automatically” without the need to configure the IP settings.

To check the Ethernet settings on a Windows

PC go to:

Control Panel > Network and Internet > Network Connections

Right click on the Ethernet adapter to be checked and select:

Properties > Internet Protocol Version 4 (TCP/IPv4)

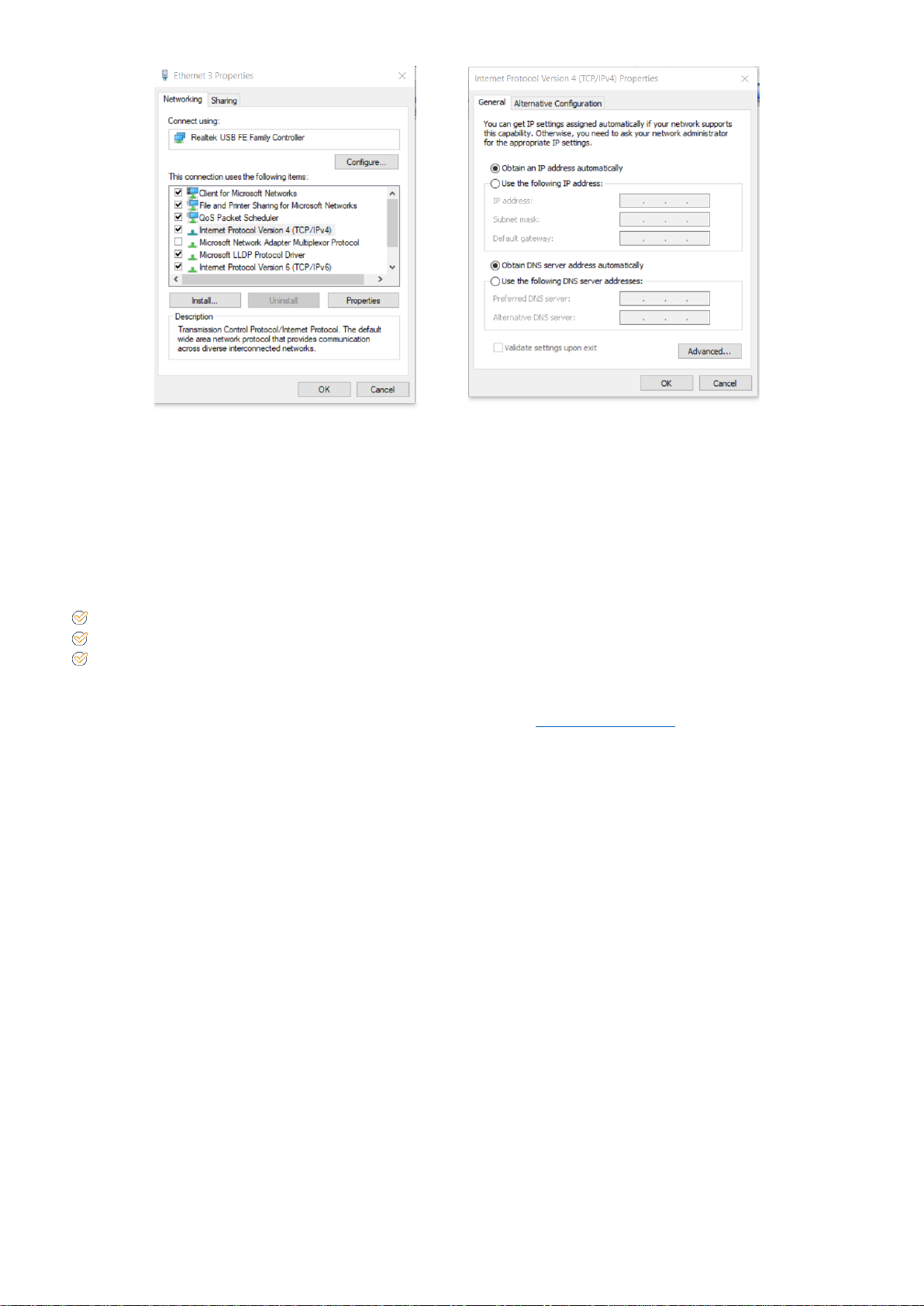

Select the

Obtain the IP address

automatically option button if not already set as shown in Figure 3.1 and

click

to close the Network Properties dialogue boxes.

Connect an Ethernet cable between the datalogger and the web enabled device and power the data logger ON

Figure 3-1

3.4.2. Downloading Images

Data from the ZEB Vision is stored on the internal data drive in the camera. Images are stored in the format -


and


, where:

nnn

is the image number

is the lens type (either front or rear lens)

xxxxxx

is the internal camera timestamp (PTS)

Open an instance of Windows

File Explorer and enter the address ftp://169.254.0.206/.

Images are saved in project folders named incrementally based on the order of scans (i.e. Project_1, Project_2 etc).

Copy and paste the image folders you require to an appropriate location on your host PC.

It is recommended to delete all project folders and images from the camera once they have been downloaded.

4. Appendix

4.1. APPENDIX A –Scan Head Firmware Update

When retrofitting a ZEB Vision to an existing ZEB Horizon, a new version of firmware is required to send the

necessary commands and timing information to the camera for synchronisation.

Once this version is installed, the ZEB Horizon will always assume a Vision camera is being used. Therefore a

ZEB Cam cannot be used unless the firmware is downgraded. A future update will allow for the detection of each

camera.

Please follow the steps relating to the appropriate iteration your ZEB Horizon datalogger. Information on how to

distinguish which generation of datalogger you have, please consult GeoSLAM Academy.

4.1.1. ZEB Horizon Generation 1 Datalogger

1. Ensure all data files have been removed from the datalogger

2. Download the firmware upgrade files to your machine

3. Insert the USB 3.0 drive into your machine

4. Transfer the firmware upgrade files onto the USB 3.0 drive, then remove the USB from your machine

5. Power on your ZEB Horizon datalogger and wait for the status LED light to pulse red

6. Insert the USB into the datalogger. The data LED will illuminate green to show the transfer of the

firmware upgrade files

7. Once the data LED light has switched off, remove the USB and power off the datalogger

8. Connect the ZEB Horizon scanner to the datalogger using the main cable and power on the system as

normal

9. After flashing blue, the datalogger status LED will flash red and the scanner LED will illuminate orange

during the update. Once complete the system automatically powers off.

10. Wait 10 seconds before powering on the system again. The system should now complete the

initialisation process and have the latest firmware installed

11. You may download system log file to check the firmware upgrade has been successful.

4.1.2. ZEB Horizon Generation 2 Datalogger

1. Make a network connection between the PC and the datalogger as outlined in the ZEB Horizon User Guide

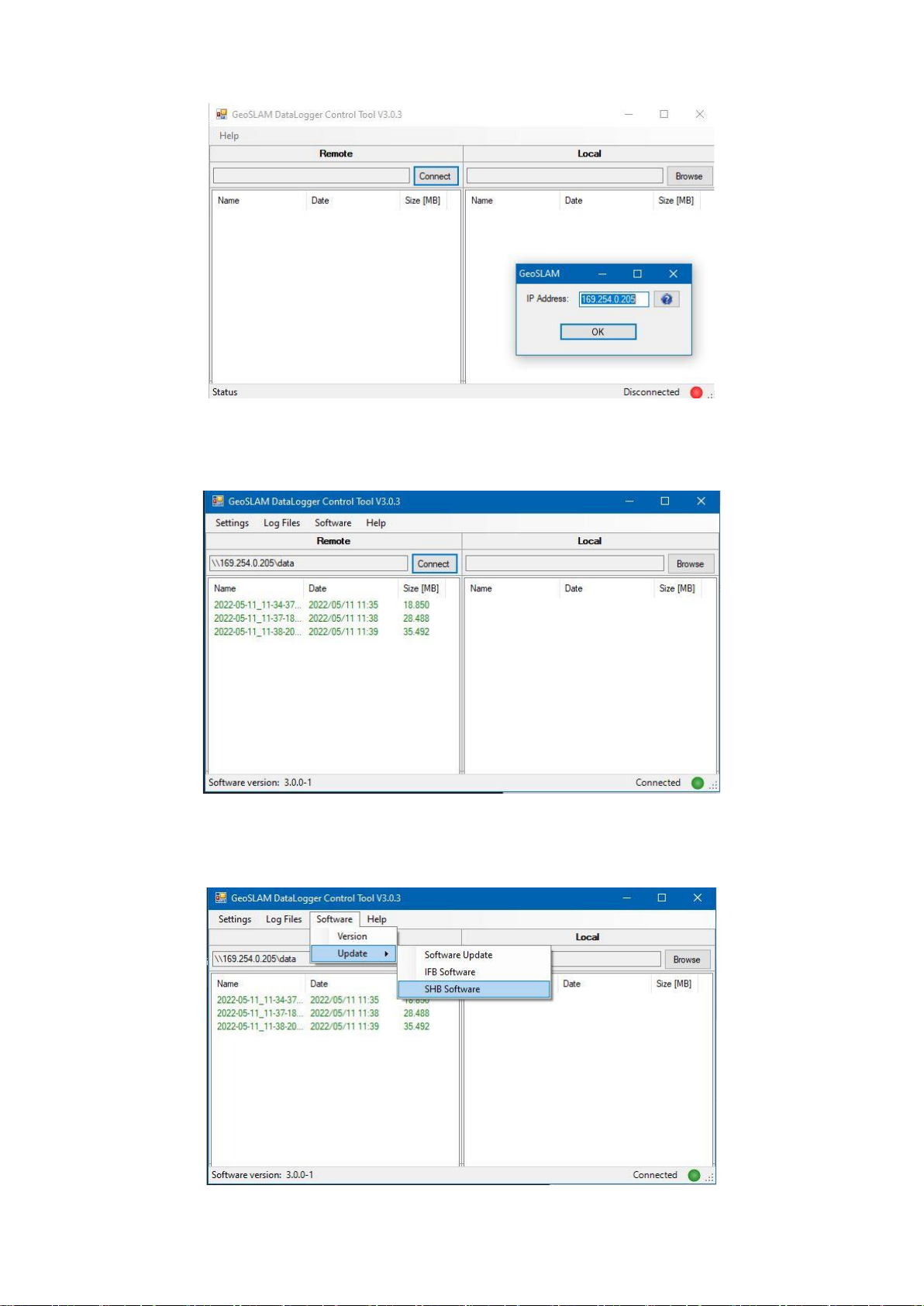

2. Download and open the Gen 2 Datalogger Control Tool from https://geoslam.com/getting-started-zeb-vision/. The

following screen will appear.

3. Click “Connect”, and then click on the “?” icon. The Datalogger’s IP address will be detected.

4. Click “OK”. The Datalogger is now connected.

5. Click on “Software, Update, SHB”

6. Choose the relevant update file.

7. Click “Yes” to continue.

8. Click OK to begin the update process. After the update has finished, restart the Datalogger, and the process is

complete.
