1. Introduction
Product Overview

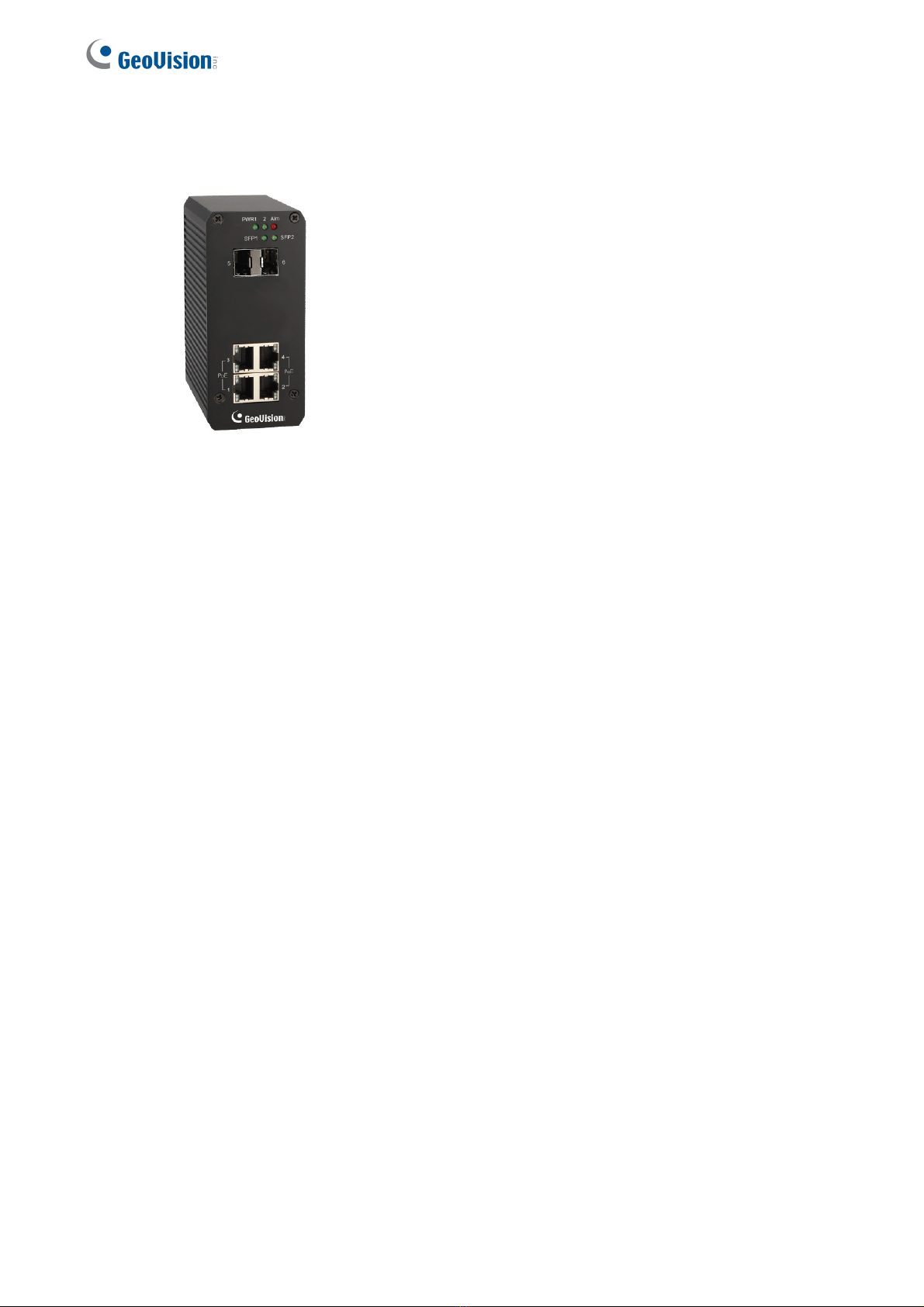

GV-POE0410-E-V2 is a 4-port PoE Switch with 4 PoE+ 10/100/1000 BaseT(X) port
and 2 Gigabit SFP. The switch supports IEEE 802.3at Power over Ethernet
standard with up to 30 W per port, with a maximum power consumption of 127 W.
No special network cable is required for connecting to powered devices (PD), such
as IP cameras. GV-POE0410-E-V2 is featured with a redundant power supply for
automatic power backup and supports alarms alerting for power and connection
failure. The switch is designed for small network environments in strengthening
network connection stability and efficiency.
Redundant Power Inputs
This switch provides two power inputs that can be connected simultaneously as its
power supply. One of the power supplies provides backup to be automatically
switched to when the other fails.
Auto-Negotiation
Every port can automatically detect for and adjust accordingly if the connected
network devices are running at 10Mbps, 100M, 1000Mbps and Half/Full-Duplex
mode.
Auto-MDI/MDI-X
Every port can automatically detect for the type of cable connected and avoid the
need for crossover cables for connecting to another switch or to a computer.
1


Rugged Design
This switch is designed for harsh environmental conditions. With its rigid aluminum
enclosure and 6kV surge protection design, the switch not only protects the surge
from the DC-in port, but also the RJ-45 ports. By using this switch, it will make your
network more reliable regardless of the weather conditions.
Storm Control
Equipped with an intelligent switch engine, the switch prevents Head-of-Line
blocking problems on per-CoS basis for each port, thereby preventing transmitting
packets from flooding into other parts of the network.
Energy Efficient Ethernet
Energy Efficient Ethernet (EEE) provides a mechanism and standard for reducing
energy consumption from redundant network traffic while maintaining the vital
functions for keeping optimal network interface performance.
1.1. Key Features
•4-port PoE+ 10/100/1000 BaseT(X), 2 Gigabit SFP
•IEEE 802.3at Compliant (4 Ports at Full 30W)
•Max. 127 W power consumption
•Extreme temperature tolerance (-40 °C ~ 75 °C / -40 °F ~ 167 °F)
•Auto-MDI/MDI-X
•Auto-Negotiation
•Alarm control
•DIN-Rail Installation
•Redundant DC power
•6 kV surge protection
•Up to 4 GV-IP Cameras support
1.2. Packing List
1. GV-POE0410-E-V2
2. GV-POE0410-E-V2 Quick Installation Guide
2


1.3. Options
Optional devices can expand the capability and versatility of GV-POE0410-E-V2.
Contact your dealer for more information.
GV-LC and GV-LC10
The SFP Transceiver is designed to plug into the SFP
port of the GV-POE Switch and is the interface between
the switch and optical fiber cables. This product complies
with IEEE 802.3z 1000Base SX/LX standards. The SFP
Transceiver is a hot swappable device; you can add or
remove the device while maintaining power.

























3


2. Hardware Description
This section mainly describes the hardware of this switch and provides its physical
and functional overview.
Dimensions

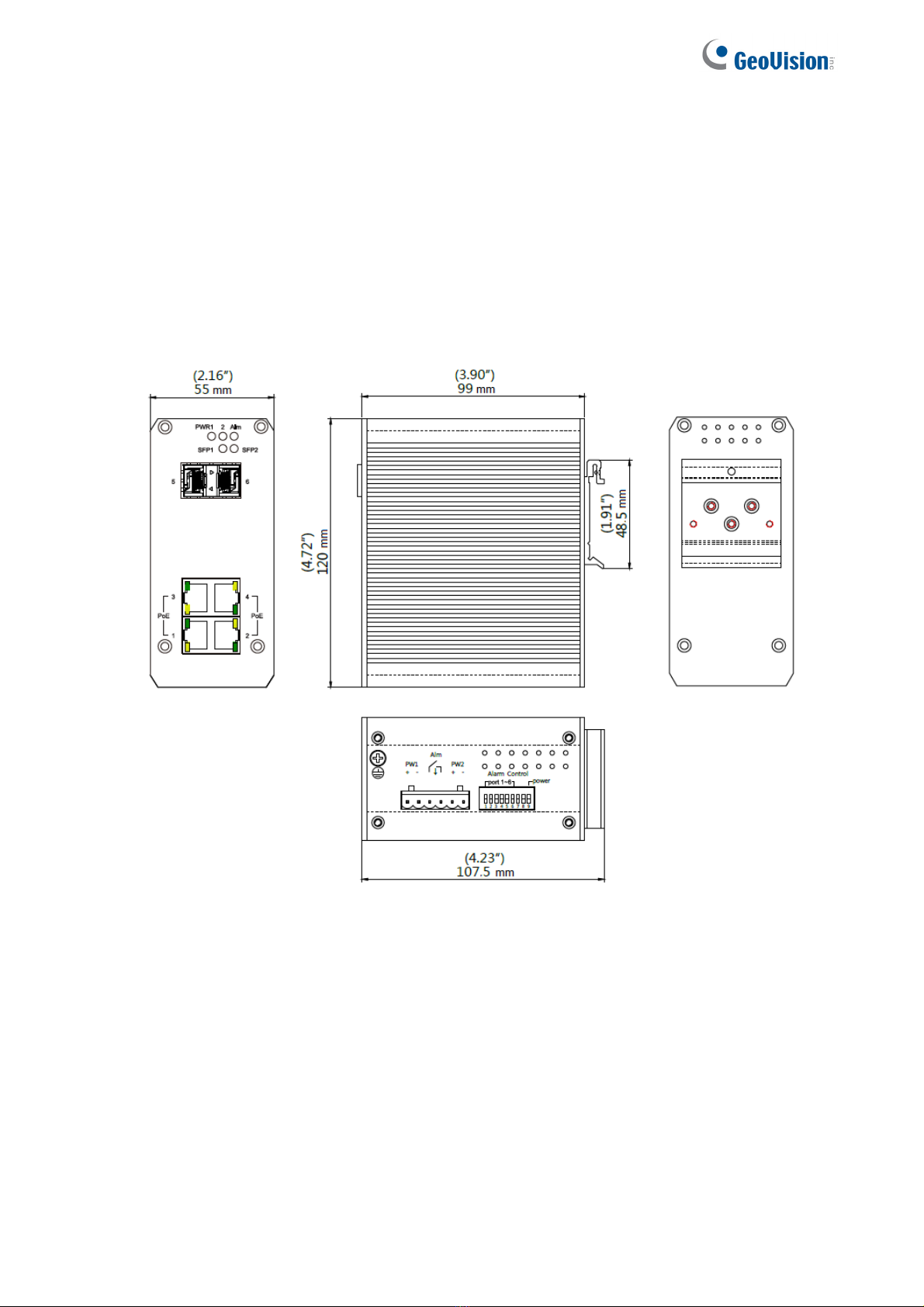

The dimensions of this switch are 120 x 55 x 108 mm (4.72” x 2.16” x 4.23”).
4



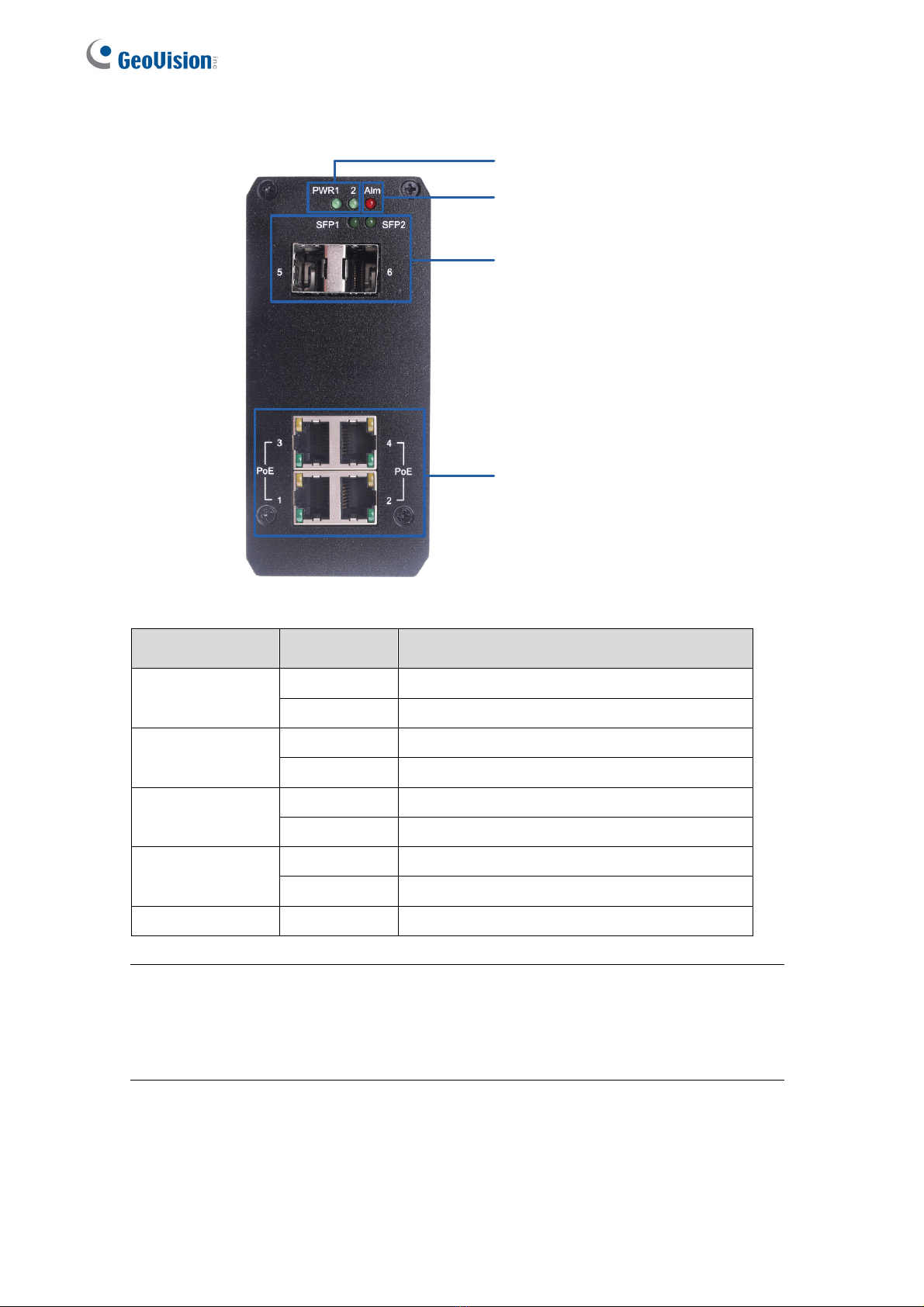

Front Panel
2 Gigabit SFP ports / LED
4 PoE ports / LED
Alarm Control LED
Power 1 & 2
LED Status Description
Green on Power onPWR1
Off Power off
Green on Power onPWR2
Off Power off
Red on Port link down or power failureAlm
Off No event
Green On A network device is detected and links upPort 1~4
Yellow On A powered device is detected and links up
Port 5 & 6 (SFP) Green on The Gigabit SFP port links up

Note: If the power LEDs go off when the power cord is plugged in, a power failure
might have occurred. Check the power output connection to see if there is any error at
the power source. If you still cannot solve the problem, contact your local dealer for
assistance.
5


Bottom Panel
Removable
Terminal Block
DIP Switch for
Alarm Control
Earth Ground Screw

The GV-POE0410-E-V2 is featured with a redundant power supply for automatic
power backup and supports alarms alerting for power and connection failure.
Power Supply
With DC power cables wired to both PW1 and PW2 on the terminal block, one of the
power supplies provides backup power to be automatically switched to when the other
fails.
Alarm Control
With an alarm device wired to Alm on the terminal block, when any of the power
supplies fails or any of the port links fails, the alarm is triggered. Use the dip switch to
enable or disable the alarm function.
Power 1 Connect to DC power input
Power 2 Connect to DC power input
Terminal
Block
Alarm
control Connect to an alarm output
Switch 1 ~ 6 Switch up/down to turn on/off the alarm of corresponding
port links on the front panel.
Dip switch 1 ~ 4 corresponds to Port 1 ~ 4, and dip switch
5 & 6 correspond to SFP Ports 5 & 6 on the front panel.
Dip
Switch
Switch 9 Switch up/down to enable/disable the alarm for power
failure.

Note: 7 & 8 on the DIP Switch are currently non-functional.
6


3. DIN-Rail Mounting

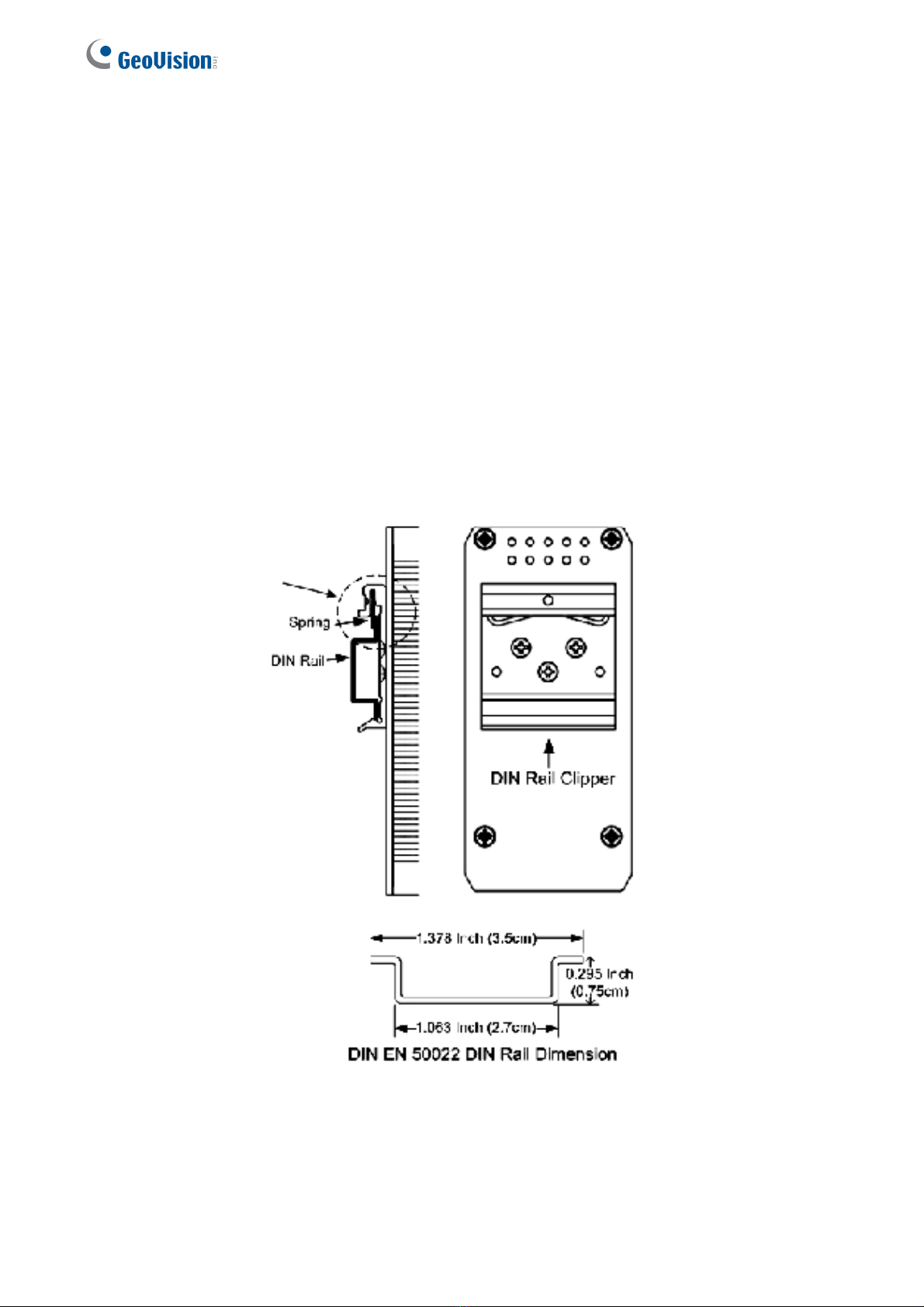

A DIN-Rail clip is built into the rear body of the switch supporting EN 50022
standard DIN Rail. The dimensions of EN 50022 DIN Rail are included in the
following diagram. Follow the steps below to mount the switch onto a DIN-Rail
track.
1. Insert the upper end of the DIN-Rail clip into the back of the DIN-Rail track
from its upper side
2. Lightly push the bottom of the DIN-Rail clip into the track.
3. Check if the DIN-Rail clip is tightly attached to the track.
4. To remove the switch from the track, reverse the steps above.
7


4. Hardware Installation
4.1. Wiring the DC Power Inputs
Before installing the power input, be sure the DC Power Supply is compliant with
the standard power supply certification. The suggested power output voltage you
can choose for IEEE 802.3af compliant PD is 48 V/DC, and 50 ~ 57 V/DC for IEEE
802.3at compliant PD.
Wire DC power cable to the connector
1. Insert the positive and negative wires respectively into the V+ and V-
terminal block connectors.
V+ V- V+ V-

2. Tighten the wire-clamp screws to prevent the DC wires from being loosened.
Note:The wire range of electric wire is 12 to 24 AWG.
Diagram of power input wiring
8


4.2. Wiring the Alarm Relay
The switch provides one dry relay output for power or port link event. The alarm
relay is “open” by default and forms a close circuit upon event occurrence. The
relay conductor has a maximum capability of 24 W. When it connects with a DC 24
V power source, the maximum current supported is 1 A. The following diagram
shows how to create an alarm circuit.
4.3. Wiring the Earth Grounding
In the real fields, there are a lot of automatic devices, such as AC motors, electric
welding machines and power generators. Those devices will generate
electromagnetic waves and interfere with communications of the switch. To prevent
such interferences, the switch should be well earthed, as illustrated below.
9


4.4. Enable the Event Alarm Function
The switch is equipped with one dry relay alarm output for alerting upon port link
and/or power failures. This session introduces how to enable the event alarm DIP
switch upon such events. The new configuration is activated immediately without
system reset whenever the DIP SWITCH has been changed.
At the bottom of the switch, there is a 9-Pin DIP SWITCH for alarm control. By
inserting the port and power wiring to set up the alarm, the DIP SWITCH of the
intended Alarm is switched to “ON”. The relay output will form a short circuit for
triggering the alarm upon port link and/or power failure events.
Power 1 Connect to DC power input
Power 2 Connect to DC power input
Terminal
Block
Alarm
control Connect to an alarm output
Switch 1 ~ 6 Switch up/down to turn on/off the alarm of corresponding
to Port 1 ~ 4, and dip switch
port links on the front panel.
Dip switch 1 ~ 4 corresponds
5 & 6 correspond to SFP Ports 5 & 6 on the front panel.
Dip
Switch
Switch 9 Switch up/down to enable/disable the alarm for power
failure.

ote: 7 & 8 on the DIP Switch are currently non-functional.N
10


4.5. Cabling
required for Port 1~4. Fiber transceiver is required for Port 5 &
thernet cable Request
ta transmission are as below.
on and power delivery in any speed are
SFP transceiver, make sure the SFP type of the 2 ends are the
ote: Select Ethernet cables with specifications suitable for your applications in
UTP/STP cables are
6 (SFP).
E
The wiring cable types for da
y10/100 BaseT(X) Cat. 5 UTP/STP
y1000 BaseT Cat. 5e, 6 UTP/STP
The wiring cable types for data transmissi
Cat. 5 or above.
InstallationSFP
While installing the
same, with a transmission distance, wavelength and fiber cable meeting your
request.
The way to connect the SFP transceiver is to Plug in SFP fiber transceiver first. The
SFP transceiver has 2 plugs for fiber cable, one is TX (transmit) and the other is RX
(receive). Cross-connect the transmit channel at each end to the receive channel at
the opposite end.
N
setting up your systems. Ethernet cables are categorized into unshielded twisted-p
(UTP) and shielded twisted-pair (STP) cables. For systems with 100 Mbps
transmission speed, Category 5, 6 Ethernet cables are the only ones with suitable
specifications. You also need to make sure that the distance between each node
cannot be longer than 100 meters (328 feet).
air
11
