GV-POE0801 User's Manual
GV-PoE Switch
POE0801-A
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.

© 2013 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part, without
the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is accurate.
GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no
responsibility for errors or omissions. No liability is assumed for incidental or
consequential damages arising from the use of the information or products contained
herein. Features and specifications are subject to change without notice.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV series
products are trademarks of GeoVision, Inc. Windows and Windows XP are registered
trademarks of Microsoft Corporation.
March 2013


i
Contents
1. Safety Precautions ........................................................................................... 1
2. Introduction....................................................................................................... 2
3. Hardware Description ...................................................................................... 5
4. Preparation for Web Configuration ................................................................. 8
5. User Login ...................................................................................................... 10
6. Administrator ...................................................................................................11
7. Port Management ........................................................................................... 17
8. VLAN Setting................................................................................................... 22
9. Per Port Counter............................................................................................. 27
10. QoS Setting..................................................................................................... 28
11. Security ........................................................................................................... 31
12. Spanning Tree ................................................................................................. 33
13. Trunking .......................................................................................................... 36
14. Backup / Recovery ......................................................................................... 38
15. Miscellaneous................................................................................................. 39
16. Logout ............................................................................................................ 42
17. Restoring Default Settings............................................................................. 43
18. Specifications.................................................................................................. 44


1
1. Safety Precautions
FCC Warning
This Equipment has been tested and found to comply with the limits for a Class-A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy. It may cause harmful interference to radio
communications if the equipment is not installed and used in accordance with the instructions.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the users are encouraged to try to correct the
interference by one or more of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio
interference in which case the users may be required to take adequate measures.





2
2. Introduction
Product Overview
The switch is a 8-port 10/100BaseTX, PSE plus 2-port Gigabit uplink (1xTP+1xSFP) Desktop
Web Smart PoE Switch. The switch supports IEEE 802.3at Power over Ethernet standard,
maximum 130 W power consumption per system and no special network cable required for
connecting your powered devices (PD), such as IP cameras. The switch also provides
exceptionally smart Web management features, such as VLAN, QoS, RSTP, IGMP Snooping,
LACP, Port Security, etc. The switch is designed for small or medium network environment to
strengthen its network connection and efficiency. It also gives you the option of installing it in a
19” cabinet with a rack-mount kit or underneath a desk.
Key Features
Interface
zNumber of Ports: 10
Fast Ethernet: 8-port 10/100BaseTX with IEEE 802.3at PSE
Gigabit Ethernet: 1-port 10/100/1000 Base-T, 1-port Gigabit SFP
Performance
zMAC Address: Up to 4K
zBuffer Memory: 2.75 Mb
zTransmission Method: Store and Forward Mechanism
Software Feature Description
zPort Management
Port Configuration: Enable / Disable such as Link State, Speed / Duplex, Flow
Control, Address Learning; Monitor Link Status
Port Mirroring: One to one, one to many, many to one mirroring
Bandwidth Control: Up to 256 levels Bandwidth Control for TX and RX Rate
Broadcast Storm Control: Broadcast Storm Control and Threshold Setting
PoE Control: PoE Enable / Disable, PoE Status
Port Counter (Statistic): Monitor the port statistic

Introduction

3
2
zVLAN Setting
VLAN Mode: Port-based and Tag-based VLAN
Port Based VLAN: Up to 10 ports Port-Based VLAN
Tag Based VLAN: Up to 32 VLANs, Available DID from 1~4094
zQoS Setting
Support High & Low Priority Queue
Priority Mode: First-In-First-Out, Strict and Weight-Round-Robin (WRR) Priority
Mode
Class of Service schemes: 802.1p, IP TOS / DS or Port Base
TCP / UDP Port & Priority queue mapping
zSecurity Setting
Port Security - Port & MAC Address Binding, up to 3 MAC Address per port
TCP / UDP Filtering: Protocol Port Filter for secure WAN Port
zSpanning Tree Protocol
Version: Support Legacy Spanning Tree Protocol & Rapid Spanning Tree Protocol
Loopback Detection: Loopback detection to avoid network loop.
zTrunking
Trunking Type: Static Trunk or LACP
Trunk Group: 1, Gigabit Port 9 and Port 10 can be aggregated
LACP Long / Short Timeout time
zIGMP Snooping V1&V2
zBasic Features
Embedded HTTP web Management
User name / Password Authentication Configuration
Configuration Backup / Recovery
Secure Management 





4

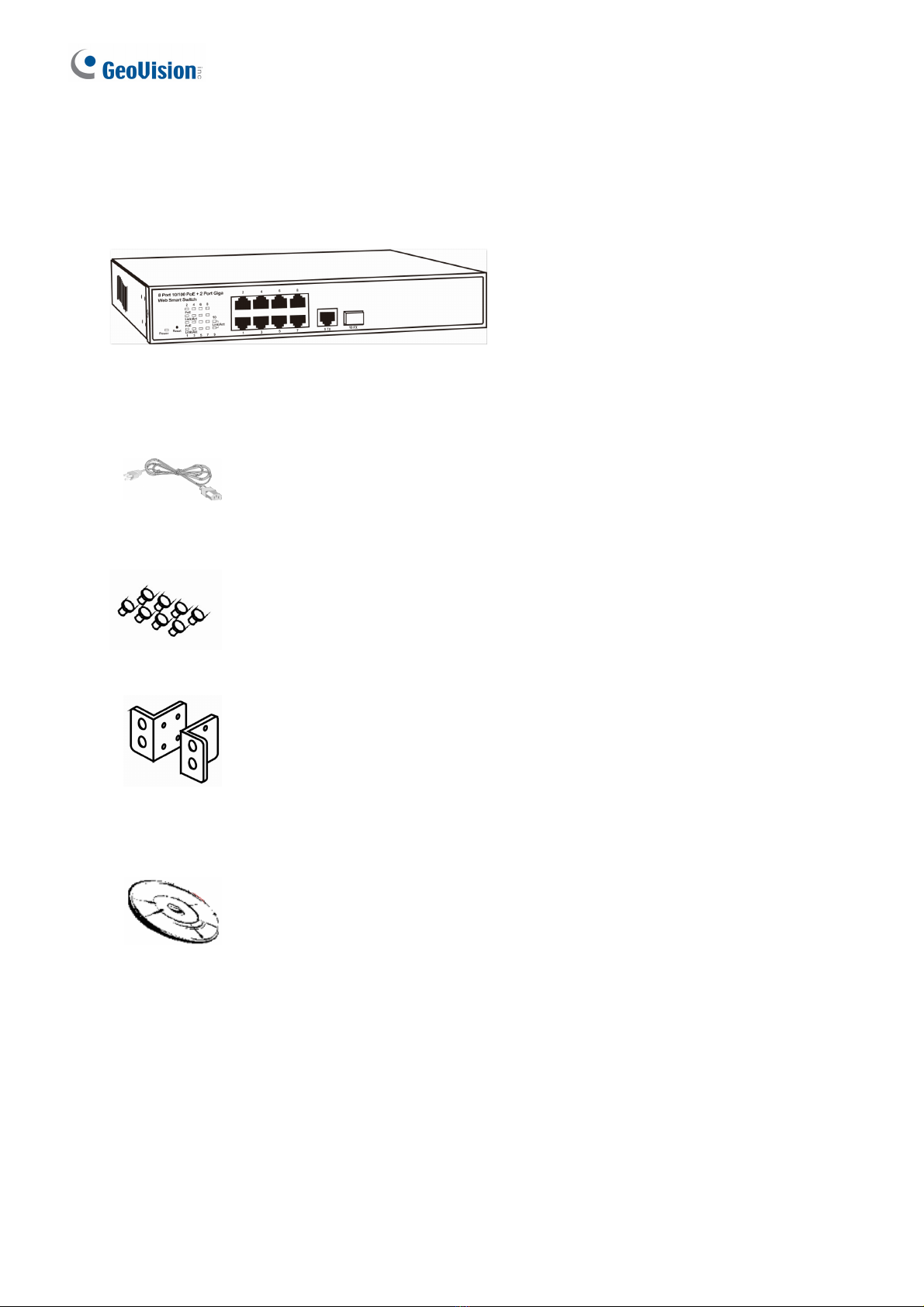

Package Contents
Before you start to install this switch, verify your package that contains the following items:
1. GV-POE0801 x 1
2. AC Power Cord x 1
3. Screw x 8
4. Rack Mount Kit x 1
5. User’s Manual CD x 1
6. GV-POE0801 Quick Start Guide x 1

Hardware Description

5
3
3. Hardware Description
This section mainly describes the hardware of the 8 PoE port Ethernet Combo Web-Smart
Switch and gives a physical and functional overview on the certain switch.

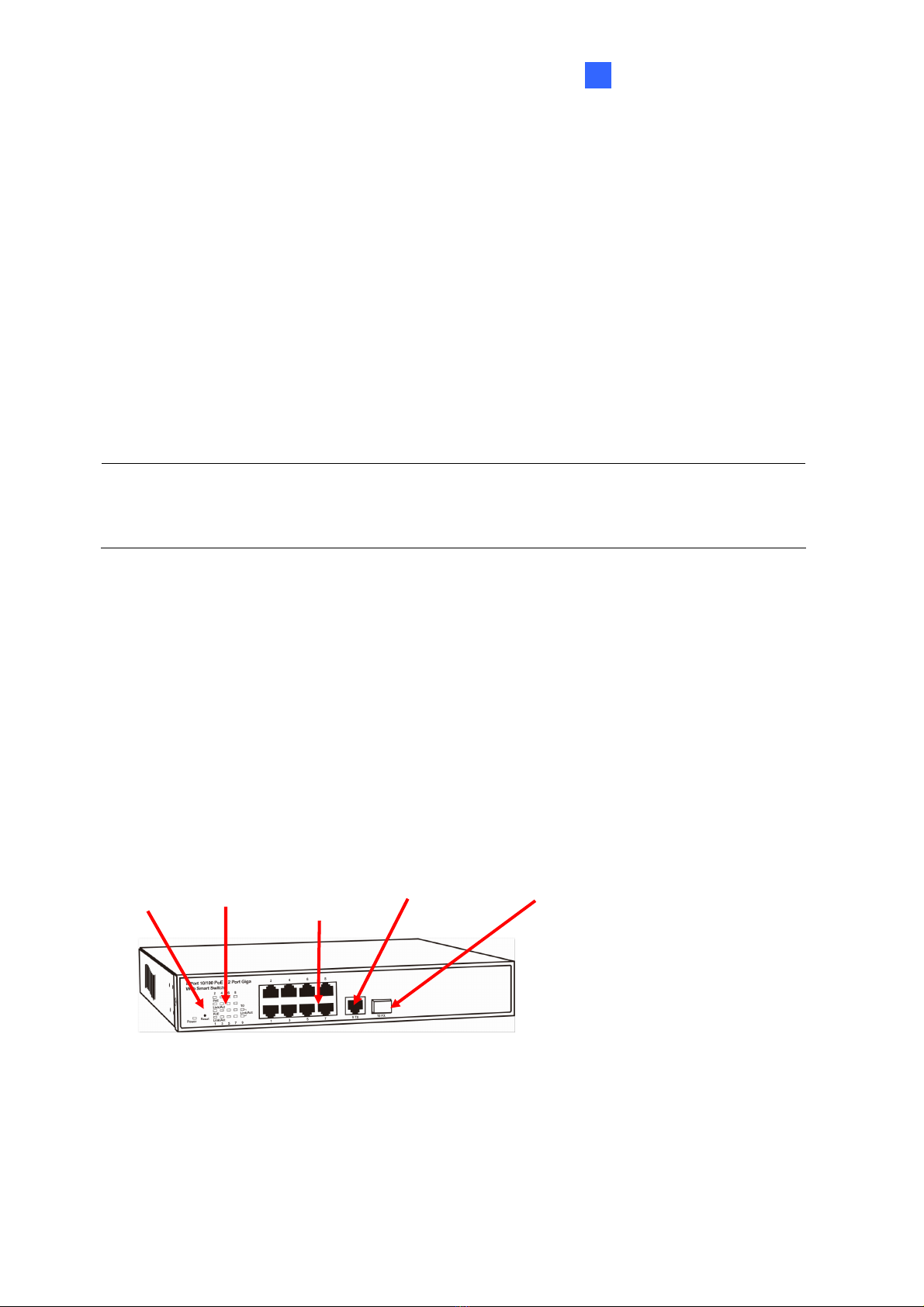

Product Overview
Front Ethernet Ports
The front panel of the web smart switch consists of 8 10/100Base-TX RJ-45 ports, 1
10/100/1000 M RJ-45 and 1 Gigabit SFP uplink ports.
Important: For combo uplink ports, both RJ-45 Gigabit Ethernet port and Gigabit SFP port
can be used at the same time. The maximum cable length for RJ-45 Gigabit Ethernet is 100
meters. For connection that exceeds 100 meters, you can use the Gigabit SFP port.
LED
The LED Indicators are also located on the front panel. They indicate the System and Port
Status.
Reset Button
The button allows you to restore the configuration to default. For details see 17. Restoring
Default Settings.
LED
Display
RJ-45 Fast
Ethernet
Port
RJ-45 Gigabit
Ethernet Port
Gigabit
SFP Port
Reset
Button





6
Rear Panel
The 3-pronged power plug is placed at the rear panel of the switch right side shown as below.

LED Indicators
The LED Indicators present real-time information of systematic operation status. The following
table provides description of LED status and their meaning.
No. Color/Status Description No. of LED
Amber On Power on
Power Off Power off Power
Green On Link Up
Green Blinking Data is transmitting or receiving
Link/ ACT
Off No connection
10/100 M (1~8)
1000 M (9~10)
Amber On Port is linked to Power Device
PoE Off No Power Device is connected 10/100 M (1~8)
Hardware Installation
Set the switch on a large flat space with a power socket close by. The flat space should be
clean, smooth, level and sturdy. Make sure there is enough clearance around the switch to
allow attachment of cables, power cord and allow air circulation. The last, use twisted pair
cable to connect this switch to your PC and then users could start to operate the switch.
AC Power Input
Connect the attached power cord to the AC power input connector; the available AC power
input is range from 100-240 VAC.
Ethernet cable Request
The wiring cable types are as below.
10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable, EIA / TIA-568 100-ohm (Max. 100 m)
100BaseTX: 2-pair UTP/STP Cat. 5 cable, EIA / TIA-568 100-ohm (Max. 100 m)
1000BaseT: 4-pair UTP/STP Cat. 5 cable, EIA / TIA-568 100-ohm (Max. 100 m)
PoE: To delivery power without problem, the Cat 5 / 5e and Cat 6 cable is suggested. The
high quality Ethernet cable reduces the lost while power transmission.

Hardware Description

7
3
SFP Installation
While install the SFP transceiver, make sure the SFP type of the 2 ends is the same and
the transmission distance, wavelength, fiber cable can meet your request. The way to
connect the SFP transceiver is to Plug in SFP fiber transceiver fist. The SFP transceiver
has 2 plug for fiber cable, one is TX (transmit), the other is RX (receive). Cross-connect
the transmit channel at each end to the receive channel at the opposite end.





8
4. Preparation for Web Configuration
The web management page allows you to use a standard web-browser such as Microsoft
Internet Explorer, Google Chrome or Mozilla Firefox, to configure and interrogate the switch
from anywhere on the network.
Before you attempt to use the web user interface to manage switch operation, verify that your
switch is properly installed on your network and that every PC on this network can access the
switch via the web browser.
Verify that your network interface card (NIC) is operational, and that your operating system
supports TCP/IP protocol.
Wire the switch power and connect your computer to the switch. The switch default IP
address is 192.168.0.250. The switch and the connected PC should locate within the same IP
Subnet.
Change your computer's IP address to 192.168.0.xxx or other IP address which is located in
the 192.168.0.xxx (For example: IP Address: 192.168.0.2; Subnet Mask: 255.255.255.0)
subnet.
Figure 4-1

Preparation for Web Configuration

9
4
Launch the web browser and Login.
1. Launch the web browser (Internet Explorer or Mozilla Firefox) on the PC.
2. Type http://192.168.0.250 (or the IP address of the switch). And then press Enter.
3. The login screen will appear next.
4. Type the default user name and password: admin.
If you can't login the switch, the following steps can help you to identify the problem.
1. Switch to DOS command mode and type the "ipconfig" to check the NIC's setting. Type
the "ping 192.168.0.250"to verify a normal response time.
2. Check the security or Firewall settings, high security level may limit the web access.
3. Try a different web browser, like the Mozilla or Google Chrome.





10
5. User Login
This part instructs users how to set up and manage the switch through the web user interface.
Follow the description to understand the procedure.
At first, open the web browser, type http://192.168.0.250 and then the users will see the login
page. Type the default ID and password admin and click OK to pass the authentication. Once
you are logged in, the main page will appear.
Login Page
Figure 5-1
Main Page
Figure 5-2

Administrator


11
6
6. Administrator

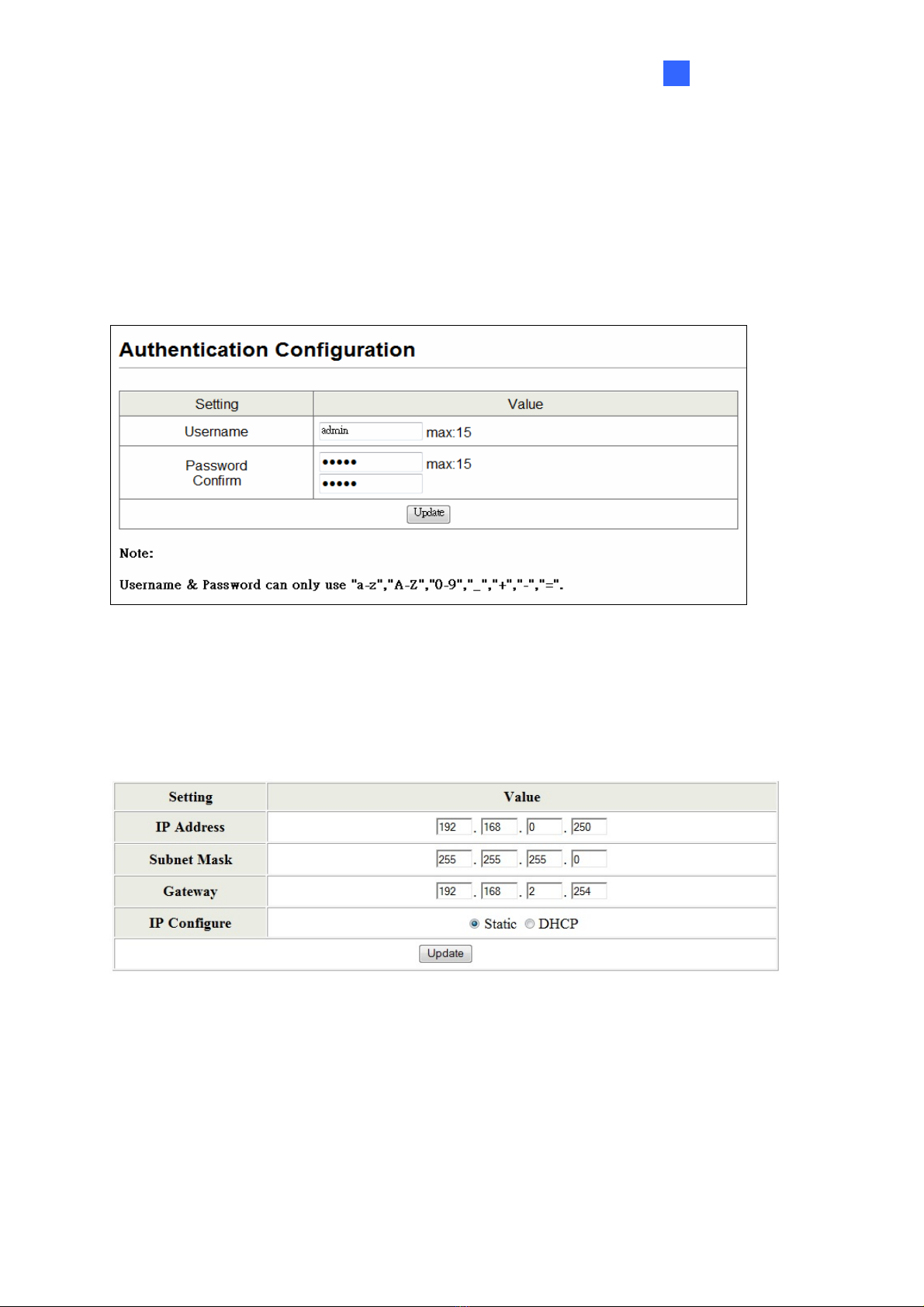

Authentication Configuration
This page shows authentication configuration information. Users can set new Username and
Password in this page.
Figure 6-1
System IP Configuration
This page shows system configuration including the current IP address and sub-net mask and
gateway.
Figure 6-2





12
Users can configure the IP settings, Subnet Mask, Gateway as below:
zIP address: Manually assign the IP address that the network is using. The default IP is
192.168.0.250
zSubnet Mask: Assign the subnet mask to the IP address.
zGateway: Assign the network gateway for industrial switch.
zIP Configure: Select the Static or DHCP.
The default setting is Static. You can manually configure the IP Address settings. Select
DHCP mode means the switch acts as the DHCP client and the switch will try getting the IP
Address from the DHCP server.
Click Update to update the new settings.
It will show update successfully and then press Reboot button. It will enter user login screen
automatically.
Note: After changed to DHCP mode, the switch must be restarted to get new IP address.
However, since the switch only provide web management, it is hard for users to find its new
IP. Don't try this mode without pre-configured DHCP setting in DHCP Server.

Administrator


13
6
System Status
This page displays the information about the switch of MAC address, how many ports it has,
system version and. Besides, users can also fill in up to 15 characters in the Comment,
Contact and Location field for note.
Figure 6-3
zMAC Address: Displays the unique hardware address assigned by manufacturer
(default).
zNumber of Ports: Displays number of ports in the switch.
zSystem Version: Displays the switch’s firmware version.
zIdle Time Security: User can set the time security. When user leave the computer for a
moment, the software will auto logout or back to the last display.
And then click Update button. The system may request you to restart the switch, follow the
instruction.
Figure 6-4





14
Load Default Setting
Clicking the Load button will make the switch being set to the original configuration.
Figure 6-5
Note: Loading default from the web interface does not include user name, password and IP
configuration. If you want to restore default settings including IP, user name and password,
you can press the Reset button on the front panel of the switch. For details, see 17 Loading
Default Settings..

Administrator


15
6

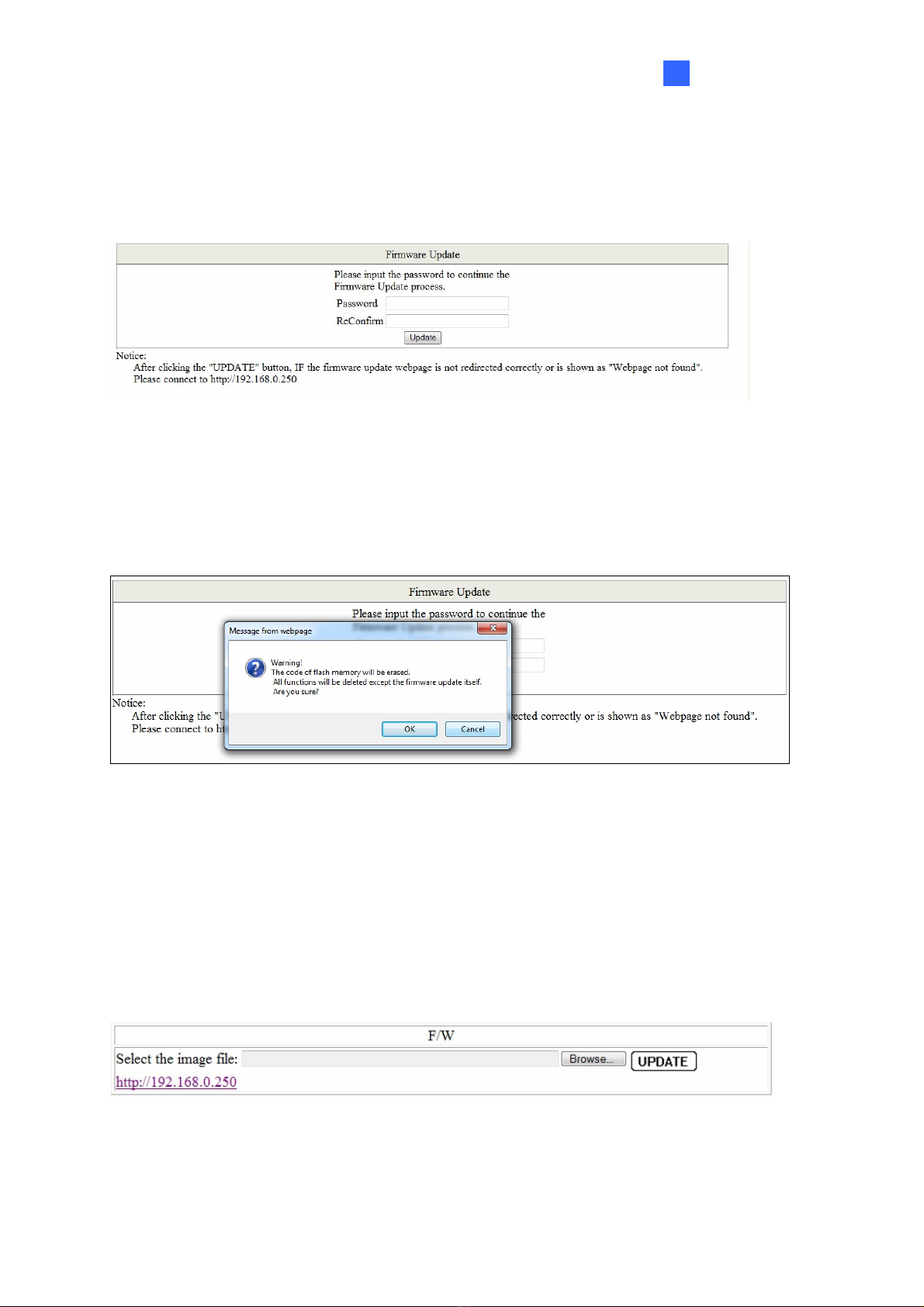

Firmware Update
Before the firmware update procedure is executed, you should enter the password twice and
then press Update button.
Figure6-6
The popup warning window appears for making sure you want to proceed the firmware
upgrading process. The flash memory will be erased, and all functions will be disabled
temporarily except the firmware update itself. Click Yes to continue. If not, click Cancel.
Figure6-7
The smart switch will erase the flash memory. There is a self-protection mechanism in the
Boot Loader, so the Boot Loader will keep intact. Even though the power is turned off or the
cable link fails during the firmware update procedure, the Boot loader will restore the code to
firmware update page.
After pressing Update button, the old web code will be erased. Then you can click Browse to
select the image file (.bin), and click Update to continue the firmware upgrading process.
Figure 6-8





16

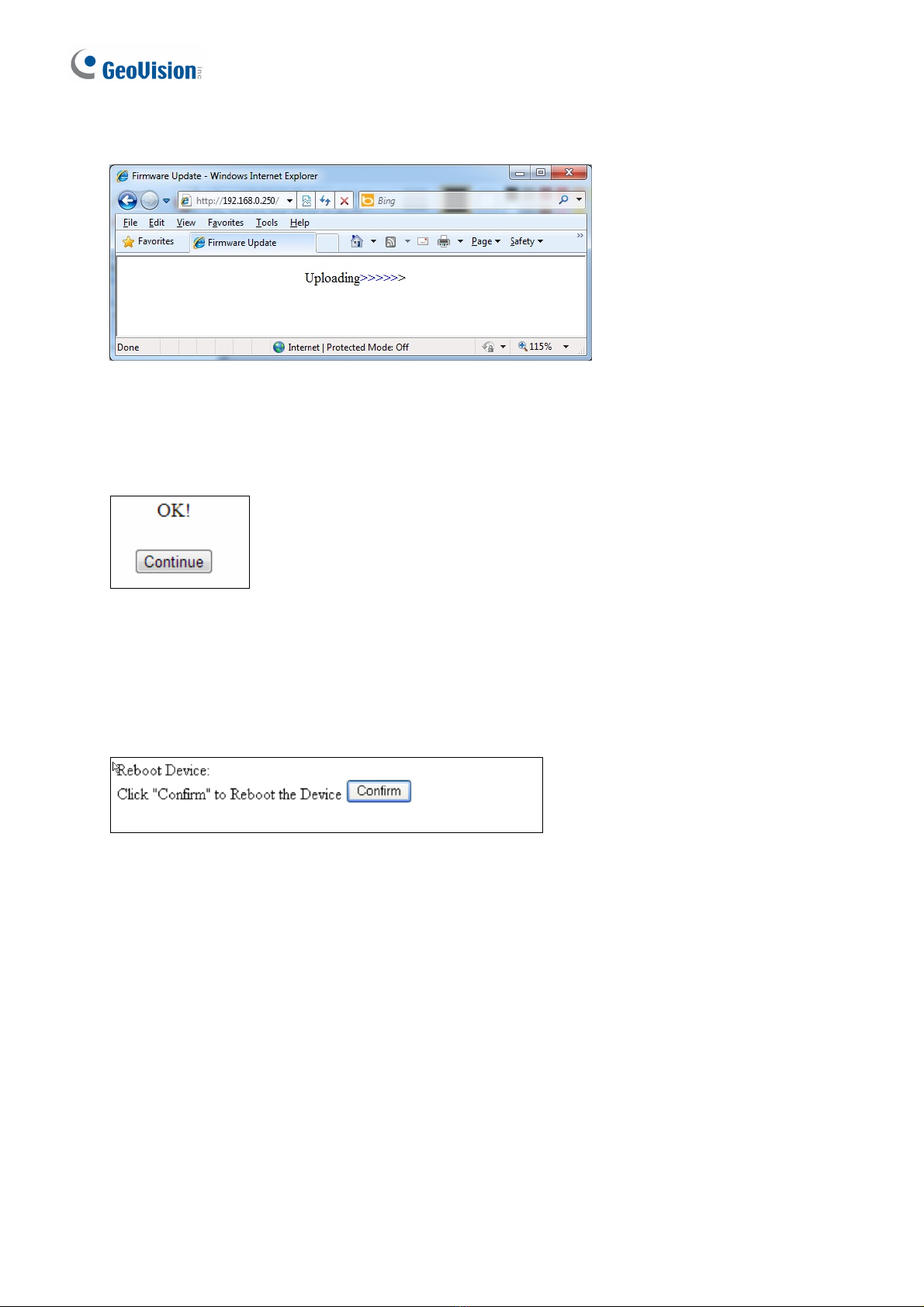

The below screen shows the Uploading process is starting.
Figure6-9
After firmware is correctly uploaded, the web page shows OK. Click Continue to re-login
the switch.
Figure 6-10
Reboot Device
Click Confirm button to restart the switch.
Figure6-11

Port Management


17
7
7. Port Management
Port Management includes Port Configuration, Port Mirroring, Bandwidth Control, Broadcast
Storm Control and PoE.

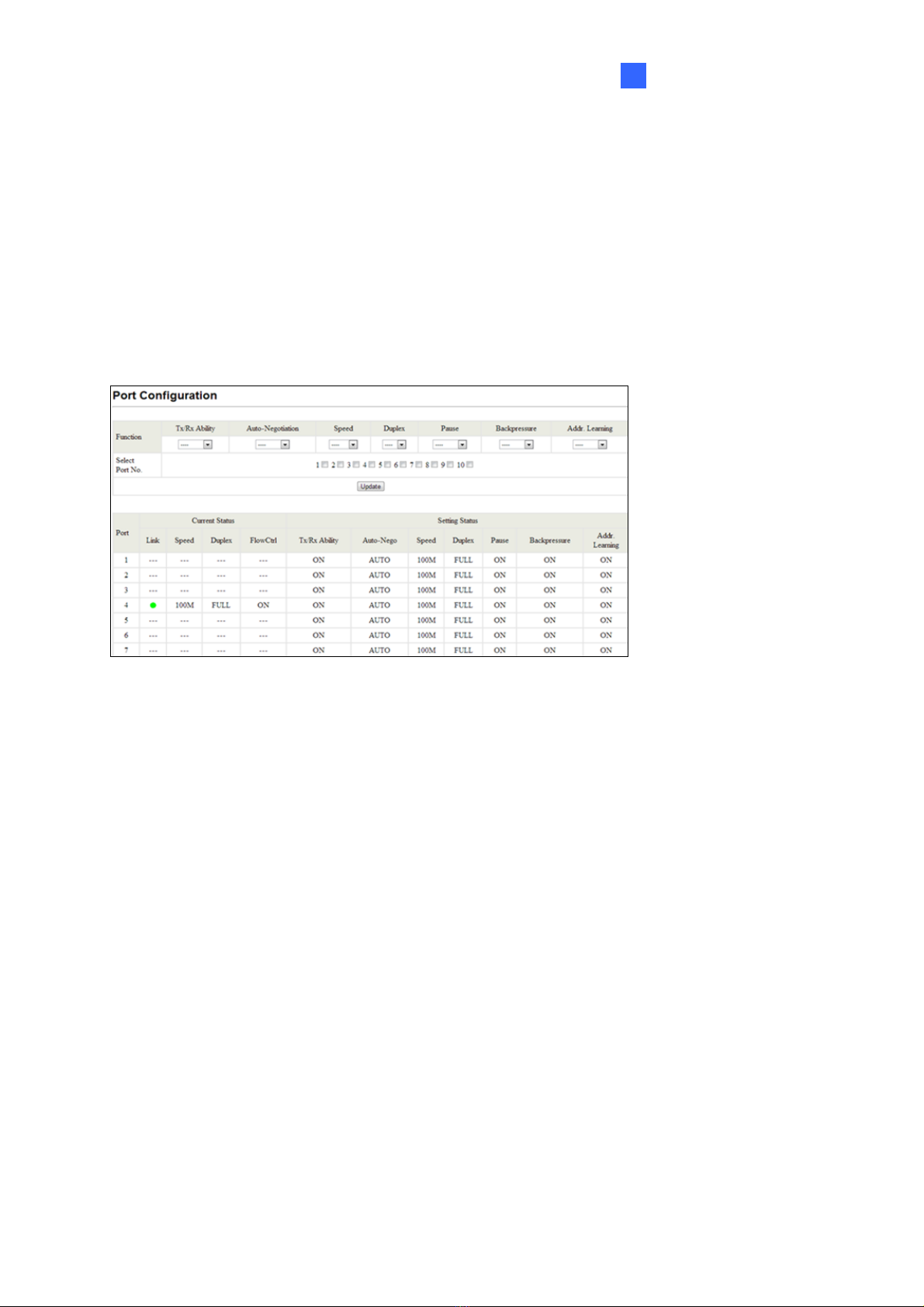

Port Configuration
In Port Configuration, you can set and view the operation mode for each port.
Figure 7-1
zFunction:
TX / RX-Ability: Enable or Disable. The default value is Enable. Being set as
Enable, the port can Transmit and Receive packet without any problem. After
changed to Disable, the selected ports can access the network any more.
Auto-Negotiation: Enable and Disable. Being set as Enable, the Speed, Duplex
mode, Pause, Backpressure, TX Capability and Address Learning are negotiated
automatically. When you set it as Disable, you have to assign those items manually.
Speed: When the Auto-Negotiation column is set as Disable, users have to set the
connection speed to the ports ticked.
Duplex: When the Auto-Negotiation column is set as Disable, users have to set the
connection mode in Half/Full to the ports ticked.
Pause: Flow Control for connection at speed of 10/100Mbps in Full-duplex mode.
Backpressure: Flow Control for connection at speed of 10/100Mbps in Half-duplex
mode.
Addr. Learning: When the Auto-Negotiation column is set as Disable, users have to
set this column as Enable or Disable.
