GEZE GC 335 User manual

Instruction sheet
GB
GC 335
Active infrared safety sensor

Konformitätserklärung
Declaration of Comformity
Déclaration de conformité
Hersteller: GEZE GmbH
Manufacturer: Reinhold-Vöster-Str. 21 - 29
Fabricant: D-71229 Leonberg
Produktbezeichnung: GEZE-Aktiv-Infrarot Sicherheitssensor
Product identifier: TYP: GC 335
Désignation du produit:
Erklärung (Declaration, Déclaration):
Der GEZE-Sicherheitssensor entspricht bei bestimmungsgemäßer Verwendung den grundlegenden
Anforderungen der nachfolgend genannten Richtlinien.
The GEZE-active infrared safety sensor is, by the directed application, in accordance with the 
essential requirements of the following directives.
Le détecteuer de sécurisation infrarouge actif de GEZE correspondent en cas d’utilisation 
appropriée aux exigences de la directives suivante.
• Maschinenrichtlinie (Machines Directive, Directive relative aux machines) 2006/42/EG
Benannte Stelle (Notified Body): TÜV NORD CERT GmbH & Co. KG, Kennnummer 0044,
Langemarckstraße 20, 45141 Essen
EG-Baumusterprüfbescheinigung (EC Type Certificate) Nr. 44 205 13095702
Bevollmächtigt zur Zusammenstellung der technischen Unterlagen: GEZE GmbH, Anschrift s.o.
• EMV-Richtlinie (EMV Directive, Directive CEM) 2004/108/EWG
Folgende europäische Normen sind angewandt (the following European standards have been ap-
plied, les normes européennes suivantes sont appliquées):
Folgende nationale Normen sind angewandt 
(the following national standards have been applied. Sont appliquées les normes nationals)
Dokumentation und Betriebsanleitung 
(Documentation and Operating Instrutions, Documentation et instructions de service):
Die Konformitätserklärung und die Betriebsanleitung sind dem Produkt beigefügt.
Produkt- und Konformitätsdokumentation sind bei GEZE GmbH archiviert.
The declaration of conformity and operating instructions are included with the product.
The product and conformity documentations have been archived at GEZE GmbH.
La déclaration de conformité et les instructions de service sont jointes au produit.
Les documents relatifs au produit et à son conformité sont archivés chez GEZE GmbH.
Dokumentationsverantwortlicher war: Peter Igl / TBP5, Tel: [phone]
The following party was responsible for the documentation: Peter Igl / TBP5, Tel: [phone]
Responsable de la documentation: Peter Igl / TBP5, Tél: [phone]
Bedienungsanleitung (User instructions, Mode d’emploi):
Die Bedienungsanleitung in den europäischen Amtssprachen liegt vor und ist in der Betriebsanleitung
abgelegt.
The user instructions are available in the European official languages have been deposited in 
the operating instruction.
Le mode d’emploi est disponible dans les langues officielles européennes et est joint aux 
instructions de service.
• EN 61000-6-2:2005 • EN 12978:2003+A1:2009
• EN 61000-6-3:2007/A1:2011 • EN ISO 13849-1:2008
• EN 16005:2012
• DIN 18650-1:2010 • DIN 18650-2:2010
Leonberg, den 02. September 2013

3
1 Design of the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Description of Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Principle of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Installation and initial Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1 Installation Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 Setting the monitoring Beam - closing Edge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.3 Optical Setting of the Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Detection Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 Master / Slave Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.1 Difference between Master and Slave Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.2 Installing Master / Slave Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5.3 Removing the Configuration Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Fault analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7 Technical data / connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7.1 Assignment of the Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
8 Components of GC 335 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9 Disposal, Repair, Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9.1 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9.2 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9.3 Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
This manual is for V.01 device version
General information
This symbol points out German standard 
DIN 18650 / EN 16005 to the user.
All points described there are required to fulfill German standard 
DIN 18650 / EN 16005.
This symbol points out important notes to the user.
EN

4
1 Design of the device

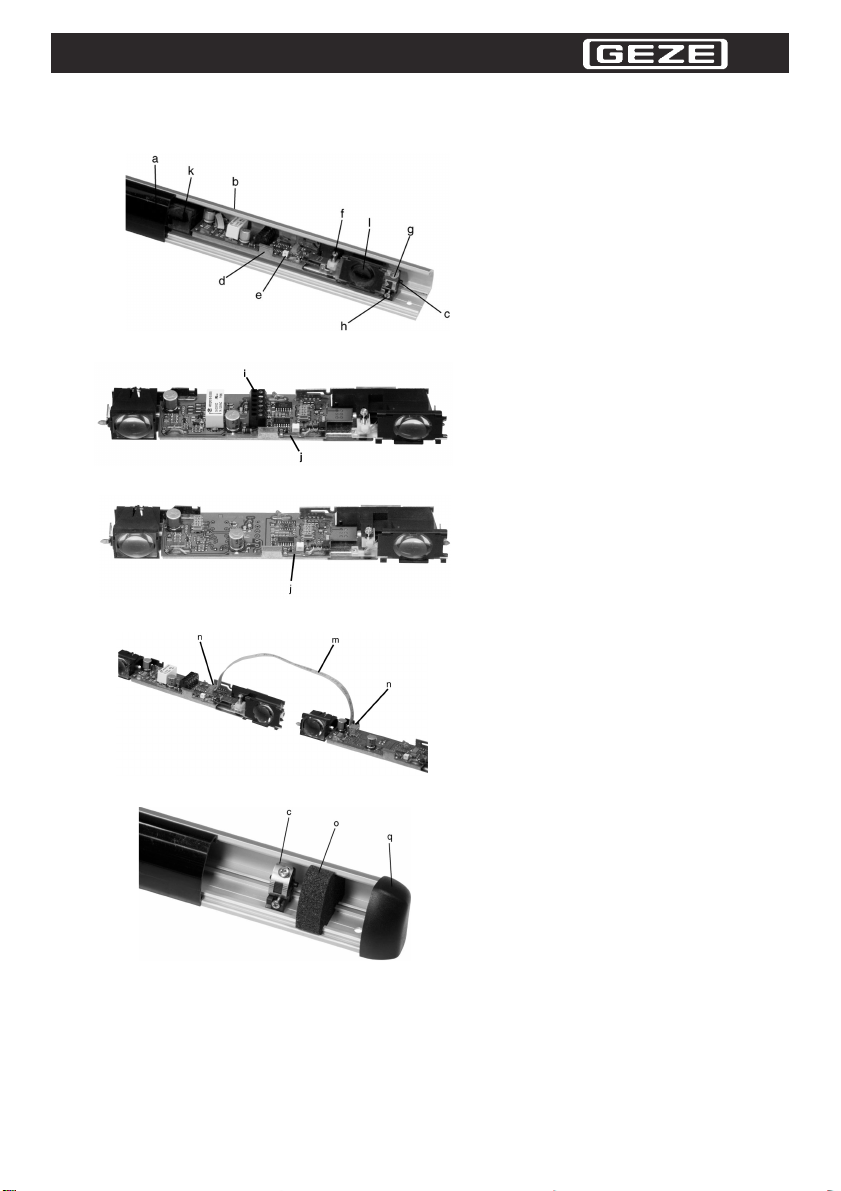

Figure 1.1 Internal design of the device
Figure 1.2 Design of the master module
Figure 1.3 Design of the slave module
Figure 1.4 Connection of two modules
Figure 1.5 Installation of the module holder and of the profile seal
aRemovable housing cover
bAluminum section
cModule holder
dHandle to set the angle of inclination
(chassis lever)
eFunction display for detection
fScrew for mechanical setting of the
detection range
gScrew to secure the angle of inclina-
tion
hHeadless screw to secure the module
holder
iTerminal block for supply voltage, out-
put and test input
jConfiguration bridge
kInfrared transmitter
lInfrared receiver
mFlat cable
nModule connector
oProfile seal
qEnd caps

5
2 Description of Function
The GC 335 is an active infrared triangulation scanner.
The GC 335 has been designed for detection traveling on the door leaf.
2.1 Principle of Operation
Any objects entering the protected area will be detected by the infrared beams and will cause the relay
outputs to be switched off.
The beam spot produced by the infrared beam on the ground is approx. 1,1 cm x 8,3 cm in size (at a
mounting height of approx. 2 m).
The angle of the two lens systems can be modified by an adjustment mechanism. A detection range
(detection height of objects) of up to a maximum of 2.50 m can be set. The sensing range of the device
is set to maximum at the factory. The device has been fitted with an optical adjusting tool.
The sensor reacts to objects in the detection range largely independently of the surface color and struc-
ture. Reflecting and very dark objects are detected as well.
Several sensors can be operated in a master and slave combination in order to be able to adapt the
area protected to the prevailing conditions.
By means of a six-pole screw terminal the master module is connected to the door control. The slave
modules are connected to and supplied by the master module by means of flat cables. The master
module and the slave modules are located in an aluminum profile together.
3 Installation and initial Operation
3.1 Installation Check List
3.1.1 Installation of Aluminum Section
1. Push the module holder (c) into the aluminum profile (b) and position the module holder at the
points where the modules will be mounted later.
2. Drill the fastening holes in the middle between the module holders (in Fig. 3.1 grayed surface).
Make sure that no chips remain in the aluminum section.
Seal the borehole when fastening in such a way that no dripping water can penetrate.
Mechanical information which may facilitate the positioning of screws:

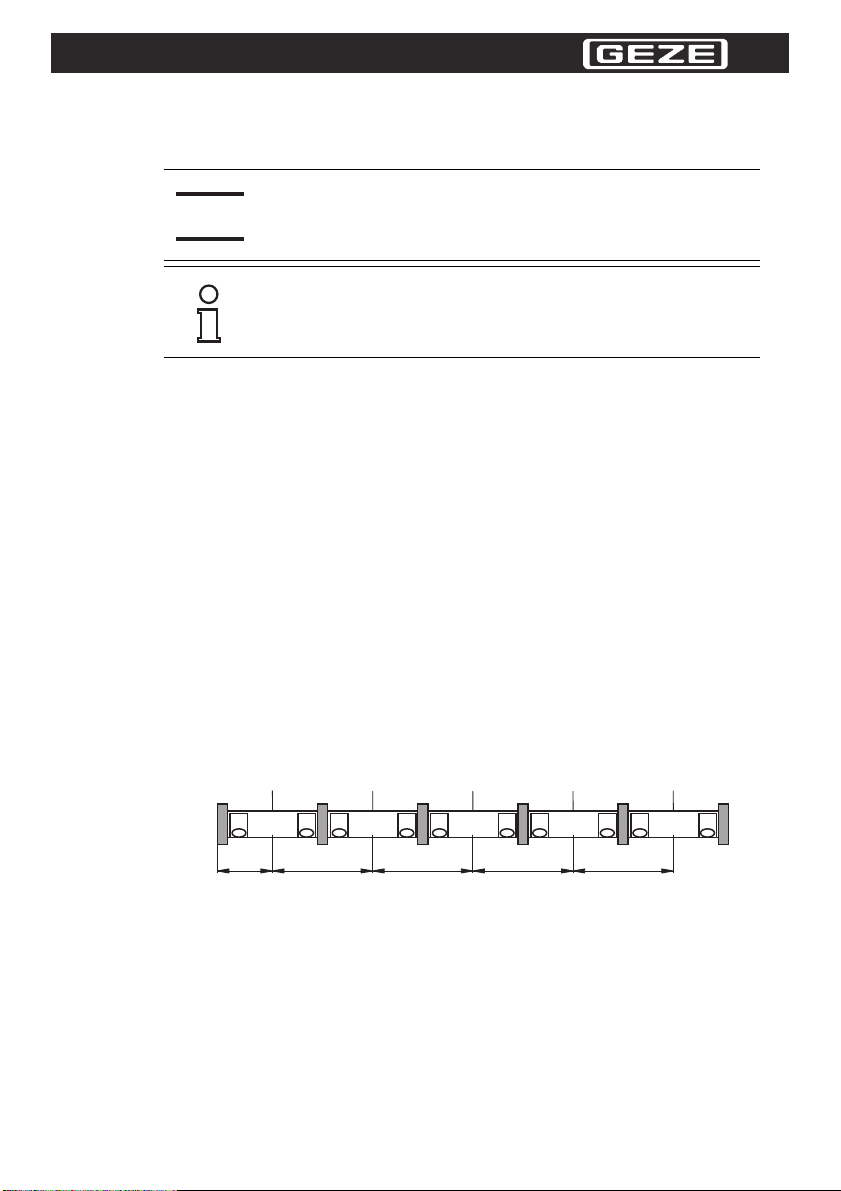

Figure 3.1 Mounting the aluminum section
3. Only use screws with a flat head to fasten the aluminum section, and mount the aluminum section
(b) at the intended mounting height (maximum 2.50 m).
The intended use of GC 335 is to secure automatic swinging door in keeping with
German standard DIN 18650 / EN 16005. If used as intended, the sensor shall influ-
ence the door movement through the safe door control only and not by direct inter-
vention as only the entirety of safe door control and sensor constitute a protective
device of Category 2 EN 954/1.
The modification of the construction/ arrangement of the installation without consul-
tation with the manufacturer could lead to dangerous situations.
EN
GC335 GC335GC335 GC335GC335
0 mm 100 mm 290 mm 480 mm 670 mm 860 mm
100 mm 190 mm 190 mm 190 mm 190 mm

6
3.1.2 Installation of the Module
1. Set the transmitters of the modules identically at all modules to be used (cf. Figure 3.3). -> For
this purpose, push the transmitter adjustment always in direction of the flat conductor cable
(the flat conductor cable side is opposite the closing edge).
2. Connect all required flat conductor cables to the modules prior to the installation of the modules.
3. Please make sure that the master module is always located on the hinge plate side.
4. Connect the terminal screw (i) of the master module to the transition cable of the door control.
5. Place the modules between the module holders (c). Subsequently use the screw M2.5 (h) to
screw down to the module holder (cf. Figure 1.1).
6. Use nippers to cut the configuration bridge (j) out of the PCB of the last module (last slave module
or individual master module) (cf. Chapter 5).
7. Set the angle of inclination and the detection range in keeping with Chapter 3.2.
8. Place the housing orifice (a).
9. Subsequently screw down the end caps.
10. Finally, check the detection range for each beam.
3.2 Setting the monitoring Beam - closing Edge
Set the transmitting or receiving beam upright in order to secure the closing edge as best as possible.

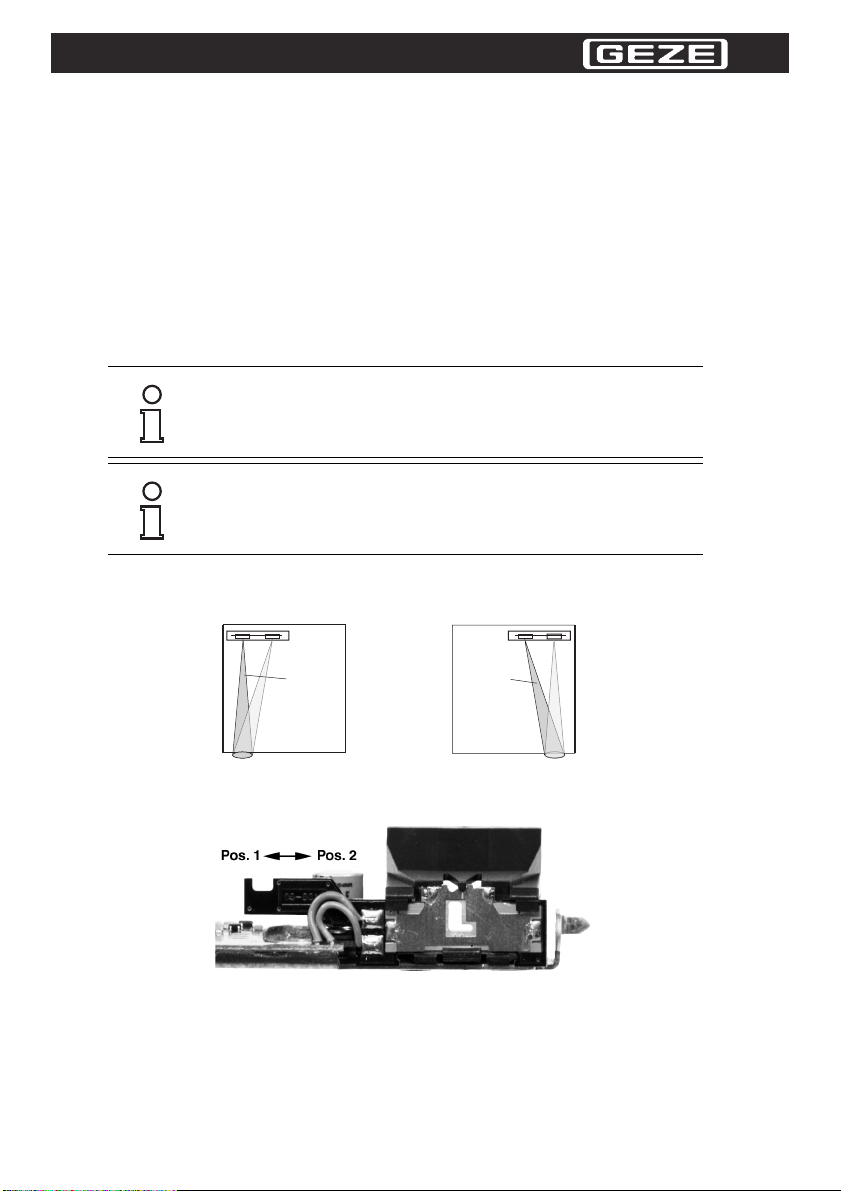

Figure 3.2 Explanation of the monitoring beam setting at the closing edge
Use two lock position to set a monitoring edge flush on the left or right side of the transmitter (cf. Figure
3.3.).
Figure 3.3 Setting the monitoring beam to the closing edge
In the factory default setting, all transmitter modules are preset to position 1 and the sensing range to
maximum. Position 1 means that the transmitter is straight and the closing edge is on the left (cf. Figure
3.2 left).
Make sure that the transmitters are all set identical in case of several slave modules (identical lock po-
sition of the transmitter) ! The master module has to have the same transmitter setting as well.
The transition cable to the door control can be passed through the end cap by
means of a cable bushing.
If you use the accessories "GC 335 Ergänzungskit IP54", please fix a double-faced
scotch tape between the profile and the mounting surface. This avoids the intrusion
of water through the drills of the sensor profile.
Transmitter
leading edge
Transmitter
leading edge
Position 1 Position 2

7
3.3 Optical Setting of the Sensor
You can swivel the detection field away from the door or towards the door by setting the angle of incli-
nation. The angle of inclination can be varied continuously from 0° to + 25°.
Use the handle on the chassis metal to set the angle of inclination.
For the adjustment of the angle of inclination use the M3 screw (g) at the top of the module holder.
Figure 3.4 Setting the angle of inclination
Use the detection range screw (f) to adjust the detection range.
By turning the detection range screw (f) with a screwdriver and the displacement of the receiver lens
caused, the detection range can be set.
An optical adjustment tool (LED green / red (p)) facilitates the exact adjustment of the detection range
over the ground.
If the sensor is not used for protection in keeping with German standard DIN 18650 /
EN 16005, a higher adjustment (no more than 80 cm) is possible.
Figure 3.5 Adjustment of the detection range
LED display:
LED red: Lens has been detected.
LED green: Free protected area and the sensor sees the ground.
Use the optional calibration tool (test card and square) for adjustment.
Detection range adjustment of the Sensor:
1. Use the chassis lever to set the module to the first marking line on the module holder (cf.
Illustration 6.3), and use the M3 screw to fasten (g).
2. Turn the detection range screw (f) counterclockwise until the overturn protection is activated
(slight "clicking" noise). Now the maximum detection range has been set.
3. Now use the test card and place it on the test specimen in such a way that it lays 12,5 cm above
the ground.
4. Turn the detection range screw clockwise until the LED display just switches from red to green (if
necessary turn back to red and then clockwise to just into green).
The detection range adjustment is thus completed.
If used as a means of protection in keeping with German standard DIN 18650 /
EN 16005, the angle of inclination and the detection range have to be adjusted as
follows:
0˚
25˚
EN

8
Angle of Inclination of the Sensor:
5. Lay the test card on the ground with the marking parallel to the door.
6. Rest the test specimen to the marking on the side of the door (cf. Figure
3.6).
7. The sensor points down vertically.
8. Use the chassis lever to swivel the sensor forward until it detects the test
specimen raised by 20 cm (LED = red).
9. Swivel the sensor further to the front until it just sees the ground again (LED
switches from red to green).
10. Now use the M3 screw (g) to attach the module to the module holder. The
angle of inclination has now been set.
This setting is now completed.
Checking the Detection range adjustment
11. Use the test card to check the detection range adjustment once again.
Figure 3.6Positioning the test specimen
4 Detection Field
Depending on the requirement and the door width, a master module can be supplemented with up to
seven slave modules.
We recommend to adjust the straight transmitting / receiving beam of the corresponding sensor mod-
ule no further than 10 cm away from the closing edge.
.Figure 4.1 renders information on the installation for different door leaf widths.
Figure 4.1 Detection field
The wider the door leaf is, the more slave modules are required.
For the operation as a safety sensor in keeping with German standard 
DIN 18650 / EN 16005, the detection range has to be set to approx. 
12,5 cm ±1 cm over the ground.
The following sensor characteristics do not conform to the safety regulations outlined in
the EC declaration of conformity:
- The distance between the modules and the main locking edge is greater than 10 cm.
- Gaps are left between the modules.
- The right/left adjustment position of the modules is not aligned with the main locking 
edge.
- The modules are set to a sensing height greater than 20 cm above ground level.
Marking on test card
12
20 cm
EN
750 mm
Width of door leaf
900 mm
Width of door leaf
1400 mm
Width of door leaf
closing edge
GC335 GC335GC335
Master
Slave
Slave
GC335 GC335GC335
Slave
Slave
Slave
GC335
Master
GC335 GC335GC335
Slave
Slave
Slave
GC335
Slave
GC335
Slave
GC335
Master
750 mm
900 mm
1400 mm
100 mm

9
5 Master / Slave Operation
5.1 Difference between Master and Slave Module
It is possible to fit up to seven additional slave modules, apart from one master module.
The differences between the master module and the slave module are as follows:
Master module: with relay; 6-pole connector; one red socket
Slave module: no relay; no 6-pole connector; two red sockets
5.2 Installing Master / Slave Module
Make sure that the chassis neatly locks into the module holder during the installation of the master
module and the slave module.
Figure 5.1 Master / slave module
The chassis plate has to lock into the module holder as follows:
Figure 5.2 Installing master / slave module
• Please make sure that the arbor of the module holder locks into the borehole of the chassis safely.
The chassis clip has to be visible in the middle of the module holder (Figure 5.2 Circle).
• Connect the master module only by means of the 6-pole terminal (i) to the door control.
• Connect the master module with the 24 cm flat cables provided for the purpose.
5.3 Removing the Configuration Bridge
Disconnect the configuration bridge (j) at the last slave module or on the last slave module's PCB or on
the master module's PCB.
Disconnect the bridge when the sensor is not powered.
Before carrying out this step, touch the chassis lever.
Figure 5.3 Configuration bridge
6 Fault analysis
Table 6.1 Fault analysis
Error Cause Remedy
The sensor does not initial-
ize or react. Supply voltage is not correct. Check the voltage supply.
The door opens and closes
cyclically.
• The sensor is disturbed by the move-
ment of the door.
• The door leafs are detected by the sen-
sor.
• The door movement causes vibrations.
• Change the adjustment an-
gle.
• Check the attachment of the
sensor.
The door opens and closes
sporadically. • There are objects in the detection field
which move in the air current. • Remove the objects.
Test unit is not recognized.
• The detection range has been wrongly
set.
• The angle of inclination has been
wrongly set.
• Check the detection range
and the test card.
• Readjust the angle of incli-
nation (cf. Chapter 3.3).

10
7 Technical data / connection diagram
General data
Detection range min. 0 ... 1,500 mm
Detection range max. 0 ... 2,500 mm
Light transmitter IRED
Black/white difference (6 % / 90 %) < 2 % at a detection range of 2,000 mm
Marking CE, TÜV
Number of beams Number of sensor modules GC 335 mounted
Mode of operation Background evaluation
Diameter of the light spot 1,1 cm x 8,3 cm at a detection range of 2 m for each module
Displays/operating elements
Function display LED red / green (cf. chapter titled Functional displays)
Operating components Detection range adjustment
Electrical data
Operating voltage 24 VDC ± 20 %
No-load current I0Master: <75 mA Slave: <65 mA
Input
Test input -3 V ... +5 VDC or open: Test off
+11 V...+24 V DC ± 20 % Test on
Output
Switching type Relay released when objects are inside the detection range.
Signal output Relay, 1 changeover unit
Switching voltage V ... 30 VAC / VDC
Switching current 0.001mA ...0.3 A
Response time 70 ms
Maximum length of the connecting cables 30 m
Connection diameter 0.3 mm ... 1.3 mm (AWG26-16) Cu single/multicore
Optical data
Light wave length 875 nm ± 15 nm
Classification according to EN 62471 free group
Minimum degree of reflection of the
floor 6 %
Minimum degree of reflection of the
objects to be recognized 0 %
Mutual interference (cross-talk) No
Resolution CA Reference body DIN 18650-1 / EN 16005 applicable in all
positions
Functional safety related parameters
Safety Integrity Level (SIL) SIL 1
Category Cat. 2
Performance level (PL) PL c
BWS-Typ Typ 2
Ambient conditions
Ambient temperature -10° Celsius ... 50° Celsius (263 K ... 323 K)
Humidity at 20° Celsius < 90 %
Humidity at 60° Celsius < 50 %
Mechanical data
Housing length L min. 310 mm
Mounting height max. 2,500 mm
Protection type IP52
Connection Screw terminal

11
Table 7.1 Technical data
7.1 Assignment of the Connections
Explanation:
Relay:
• Relay is inactive during detection
• Relay is active in free detection field
Test input:
• Test input is inactive at:U_low = -3 V ... +5 VDC
• Test input is active at: U_high = +11 V ... +24 V DC ± 20 %
8 Components of GC 335
Table 8.1 Components of GC 335
9 Disposal, Repair, Maintenance
9.1 Disposal
Dispose of the useless device in keeping with the applicable national legal regulations.
For example, take the sensor to a pertinent collection point for electronic waste.
9.2 Repair
Defective device may be repaired by the manufacturer only.
9.3 Servicing
Observe the applicable national regulations for servicing.
The sensor is maintenance-free by and large.
Nonetheless, check the technical safety of the sensor system in regular intervals, watching out for dam-
age of the housing in particular.
If it has to be assumed that a safe operation is no longer possible, the sensor system has to be shut
down and secured against unintentional operation.
Check the sensor for soiling occasionally. In order to clean the sensor, use a dry or moist soft cloth to
wipe across the sensor in regular intervals. This action will ensure an optimal function.
The housing is made of plastic. For this reason avoid contact with acetone and detergents containing
solvents.
Material
Housing Aluminum / ABS
Light exit PMMA
Pin Assignment
1GND (0 V)
2UB +24 VDC ± 20 %
3Relay - center contact
4Relay breakcontact
5Relay make contact
6Test input
Part Numbers Description
128074 GC 335, MASTERMODUL
128065 GC 335, SLAVEMODUL
120190 Prüfkörper GC 335
1
2
3
4
5
6
-
+
TE

Germany
GEZE Sonderkonstruktionen
GmbH
Planken 1
97944 Boxberg-Schweigern
Tel. [phone]
Fax [phone]
E-Mail: [email protected]
GEZE GmbH
Niederlassung Süd-West
Tel. [phone]
E-Mail: [email protected]m
GEZE GmbH
Niederlassung Süd-Ost
Tel. [phone]
E-Mail: [email protected]
GEZE GmbH
Niederlassung Ost
Tel. [phone]
E-Mail: [email protected]m
GEZE GmbH
Niederlassung Mitte/Luxemburg
Tel. [phone]
E-Mail: [email protected]
GEZE GmbH
Niederlassung West
Tel. [phone]
E-Mail: [email protected]
GEZE GmbH
Niederlassung Nord
Tel. [phone]
E-Mail: [email protected]
GEZE Service GmbH
Tel. [phone]
E-Mail: service-info.de@ge-
ze.com
Austria
GEZE Austria
E-Mail: [email protected]
www.geze.at
Baltic States
GEZE GmbH Baltic States office
E-Mail: office-latvi[email protected]
www.geze.com
Benelux
GEZE Benelux B.V.
E-Mail: [email protected]om
www.geze.be
www.geze.nl
Bulgaria
GEZE Bulgaria - Trade
E-Mail: office-bu[email protected]om
www.geze.bg
China
GEZE Industries (Tianjin) Co., Ltd.
E-Mail: [e-mail]
www.geze.com.cn
GEZE Industries (Tianjin) Co., Ltd.
Branch Office Shanghai
E-Mail: [email protected]
www.geze.com.cn
GEZE Industries (Tianjin) Co., Ltd.
Branch Office Guangzhou
E-Mail: [email protected]
www.geze.com.cn
GEZE Industries (Tianjin) Co., Ltd.
Branch Office Beijing
E-Mail: [email protected]
www.geze.com.cn
France
GEZE France S.A.R.L.
E-Mail: [email protected]
www.geze.fr
Hungary
GEZE Hungary Kft.
E-Mail: [email protected]
www.geze.hu
Iberia
GEZE Iberia S.R.L.
E-Mail: [email protected]
www.geze.es
India
GEZE India Private Ltd.
E-Mail: [e-mail]
www.geze.in
Italy
GEZE Italia S.r.l
E-Mail: [email protected]
www.geze.it
GEZE Engineering Roma S.r.l
E-Mail: [email protected]
www.geze.it
Poland
GEZE Polska Sp.z o.o.
E-Mail: geze.[email protected]
www.geze.pl
Romania
GEZE Romania S.R.L.
E-Mail: [email protected]
www.geze.ro
Russia
OOO GEZE RUS
E-Mail: [e-mail]
www.geze.ru
Scandinavia – Sweden
GEZE Scandinavia AB
E-Mail: [email protected]
www.geze.se
Scandinavia – Norway
GEZE Scandinavia AB avd. Norge
E-Mail: [email protected]
www.geze.no
Scandinavia – Finland
Branch office of GEZE
Scandinavia AB
E-Mail: [email protected]
www.geze.com
Scandinavia – Denmark
GEZE Danmark
E-Mail: [email protected]
www.geze.dk
Singapore
GEZE (Asia Pacific) Pte, Ltd.
E-Mail: [email protected]
www.geze.com
South Africa
GEZE Distributors (Pty) Ltd.
E-Mail: [email protected]
www.geze.co.za
Switzerland
GEZE Schweiz AG
E-Mail: [email protected]
www.geze.ch
Turkey
GEZE Kapive Pencere Sistemleri
E-Mail: [email protected]om
www.geze.com
Ukraine
GEZE Ukraine TOV
E-Mail: [email protected]
www.geze.ua
United Arab Emirates/GCC
GEZE Middle East
E-Mail: [email protected]
www.geze.ae
United Kingdom
GEZE UK Ltd.
E-Mail: [email protected]
www.geze.com
GEZE GmbH
P.O.Box 1363
Reinhold-Voster-Straße 21-29
71229 Leonberg
Ge r m a n y
Tel.: [phone]
Fax: [phone]
www.geze.com
Id. No. 128557 - Printed in Germany - Subject to change without notice
