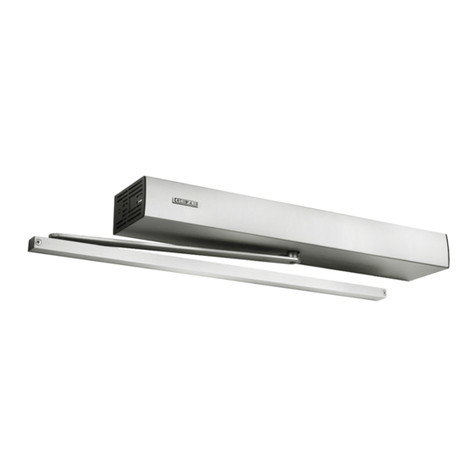

GEZE TSA 160 NT Operating instructions

1
TSA 160 NT
TSA 160 NT F
TSA 160 NT -IS
TSA 160 NT Invers
TSA 160 NT Z
TSA 160 NT Z Invers
TSA 162
Automatic drive for swing doors
GB Mounting and service instructions

TSA 160 NT and variants
2
Table of contents
1 Symbols and means of representation............................................................................................................3
2 Product liability ........................................................................................................................................................3
3 Safety ...........................................................................................................................................................................4
3.1 Intended use.......................................................................................................................................................................................................4
3.2 Safety instructions ...........................................................................................................................................................................................4
3.3 Safety-conscious working.............................................................................................................................................................................5
3.4 Inspection of the mounted system............................................................................................................................................................5
3.5 Additionally applicable documents ..........................................................................................................................................................5
4 Transportation and storage .................................................................................................................................5
5 Tools and aids ...........................................................................................................................................................5
6 Product description ................................................................................................................................................6
6.1 System description and technical data ....................................................................................................................................................6
6.2 Basic structure ...................................................................................................................................................................................................7
7 Types of mounting, stops .....................................................................................................................................9
7.1 Single-leaf............................................................................................................................................................................................................9
7.2 Double-leaf.........................................................................................................................................................................................................9
8 Mounting................................................................................................................................................................. 10
8.1 General information for mounting......................................................................................................................................................... 10
8.2 Conversion to DIN left ..................................................................................................................................................................................11
8.3 Preparation of installation...........................................................................................................................................................................13
8.4 Mounting dimensions for the mounting types...................................................................................................................................14
8.5 Mounting the drive....................................................................................................................................................................................... 21
8.6 Extension TSA 160 NT F and TSA 160 NT F -IS.....................................................................................................................................23
8.7 Extension of integrated closing sequence control unit TSA 160 NT -IS, TSA 160 NT F -IS, TSA 160 NT Z -IS ............... 23
9 Electrical mounting and device settings...................................................................................................... 26
9.1 Mains connection.......................................................................................................................................................................................... 26
9.2 Settings ............................................................................................................................................................................................................. 27
10 Final check............................................................................................................................................................... 30
11 Periodic monitoring, maintenance................................................................................................................. 30
11.1 Dangers during servicing........................................................................................................................................................................... 30
11.2 Service ................................................................................................................................................................................................................31
11.3 Repairs ................................................................................................................................................................................................................31

TSA 160 NT and variants
3
Symbols and means of representation
Symbols and means of representation1
Warnings
In these instructions, warnings are used to warn against material damage and injuries.
Always read and observe these warnings.
XObserve all the measures that are marked with the warning symbol and warning word.
XWarning
symbol
Warning word Meaning
DANGER Danger for persons.
Non-compliance will result in death or serious injuries.
WARNING Danger for persons.
Non-compliance can result in death or serious injuries.
CAUTION Danger for persons.
Non-compliance can result in minor injuries.
– CAUTION Information on avoiding material damage, understanding a concept or optimising the
processes.
Further symbols and means of representation
Important information and technical notes are emphasised in order to illustrate the correct operation.
Symbol Meaning
means "important note"
means "additional information"
XSymbol for an action: Here you have to do something.
Observe the sequence if there are several action steps.
XProduct liability2
In accordance with the liability of manufacturers for their products as dened in the German "Produkthaftungs-
gesetz" (Product Liability Act), the information contained in these instructions (product information and proper
use, misuse, product performance, product maintenance, obligations to provide information and instructions) is
to be observed. Non-compliance releases the manufacturer from its statutory liability.

TSA 160 NT and variants
4
Safety
Safety3
Intended use3.1
The TSA 160 NT swing door drives are designed for the automatic opening and closing of swing-door single ac-
tion doors.
The above-mentioned door drive is suitable for use:
solely for use in dry roomsà
in entrances and interior areas of pedestrian trac in commercial plants and public areasà
in private areasà
The door drive TSA 160 NT
may be used at escape and rescue routesà
mayànot be used at re or smoke proof doors
mayànot be used externally
The door drive TSA 160 NT F / TSA 160 NT F-IS
is designed for use at re or smoke proof doorsà
may be used at escape and rescue route doorsà
mayànot be used externally
The door drive TSA 160 NT Invers
is designed mainly for use at escape doors and RWA incoming air doorsà
mayànot be used externally
The door drive TSA 162
mayànot be used at re or smoke proof doors
is designed solely for use at a xed leaf at 2-leaf systemsà
mayànot be used externally
is not tested in accordance with DIN 18650à
Any other use than the proper use, such as permanent manual operation, as well as all changes to the product
are impermissible.
Observe the "GEZE Product information for door closers".
XSafety instructions3.2
CAUTION!
Danger of crushing through automatic closing force.
Hands or ngers can be crushed particularly in the area of the side closing edge (hinge side).
Use jarring-free doors.
XIf necessary monitor the opposite hinge side and hinge side with presence sensors (see wiring diagram).
XThe prescribed mounting, maintenance and repair work must be performed by properly trained personnelà
authorised by GEZE.
The country-specic laws and regulations are to be observed during safety-related tests.à
GEZE shall not be liable for injuries or damage resulting from unauthorised modication of the system.à
GEZE shall not be liable if products from other manufacturers are used with GEZE equipment. Only originalà
GEZE parts may be used for repair and maintenance work as well.
Protect the display programme switch against unauthorised access.à
In accordance with Machinery Directive 2006/42/EC, a risk analysis must be performed and the door systemà
identied in accordance with CE Identication Directive 93/68/EEC before commissioning the door system.
Observe the latest versions of guidelines, standards and country-specic regulations, in particular:à
BGR 232 "Guidelines for power-operated windows, doors, gates"à
DIN 18650 "Building hardware - Powered pedestrian doors"à
VDE 0100; Part 610 "Erection of low-voltage installations"à
DIN EN 60335-2-103, DIN 18263-4à
Accident-prevention regulations, especially BGV A1 "General regulations" and BGV A2 "Electrical systemsà
and equipment"

TSA 160 NT and variants
5
Transportation and storage
Safety-conscious working3.3
Observe the safety instructions for electrical systems and in the wiring diagram.
XProtect the workplace against unauthorised entry.
XAttach safety labels to glass leaf doors (Mat. No. 081476). Risk of injury through breakage of glass.
XRisk of injury by sharp edges and moving parts at the drive.à
Inspection of the mounted system3.4
Safety analysis (danger analysis)
In accordance with Machinery Directive 2006/42/EC and DIN 18650, a risk analysis must be performed and the
door system identied in accordance with CE Identication Directive 98/68/EEC before commissioning the door
system.
This includes:
Checking measures for security and prevention of crushing, impact, shearing or drawing-in spots.
XChecking the function of the safety and actuation sensors.
XChecking the protective conductor connection to all metal parts which can be touched.
XAdditionally applicable documents3.5
Wiring diagram TSA 160 NT EN 3-7à
Cable plan TSA 160 NT EN 3-7à
User manual TSA 160 NT EN 3-7à
The diagrams are subject to change.
Use only the most recent versions.
XTransportation and storage4
CAUTION!
Damage to the TSA 160 NT swing door drive through hard knocks and falls!
Do not throw or let drop the TSA 160 NT.
XStore dry. Protect from moisture during transportation and storage.
XStorage temperatures under –30 °C and above +60 °C can result in damage to the device.à
Tools and aids5
Tool Size
Tape measure
Marking pen
Drill bits Ø 4.2
Threading tap M5
Allen key 4 mm
Crosstip and screwdriver Blade widths: 2.5 mm and 5 mm
Centre punch
Hammer
Self-adhesive tape for fastening the drilling template
Wire stripper
Crimping pliers for wire-end ferrules

TSA 160 NT and variants
6
Product description
Product description6
System description and technical data6.1
The TSA 160 NT automatic system is an electronically controlled hydro-mechanical swing door system for system
doors made of wood, metal, all-glass, steel or plastic.
The system is mounted above the door leaf and is suitable for right- and left-hinged doors with a pulling or push-
ing function.
Single-leaf or double-leaf with intermediate cover or continuous cover.
The swing door drive of the TSA 160 NT operates electro-hydraulically when opening the door. During the open-
ing process a spring stores the energy required for closing. The closing process is controlled hydraulically.
The swing door drive of the TSA 160 NT Invers operates electro-hydraulically when closing the door. During the
closing process a spring stores the energy required for opening. The opening process is controlled hydraulically.
TSA 160 NT eld of application
TSA 160 NT / TSA 160 NT Invers TSA 160 NT F
Opening torque D D Z Z D D
On the door on
dimension EN
3–6 7 3–6 7 3–6 7
Automatic [Nm] approx. 150
... 90
approx. 180 approx. 70
... 40
approx. 80 approx. 150
... 90
180
Manual [Nm] approx. 35 ...
110
approx. 160 approx. 13
... 45
approx. 50 approx. 35 ...
110
approx. 160
Closing torque at
closed door [Nm]
approx. 20
... 60
approx. 110 approx. 8 ... 30 approx. 50 approx. 20
... 60
approx. 110
D = Pushing, Z = Pulling
Maximum range of use TSA 160 NT EN3–6 Maximum range of use TSA 160 NT EN7
100
150
200
250
800 900 1000 1100 1200 1300 1400
Türmasse/Door weight [kg]
Türbreite/Door width [mm]
50
100
150
200
250
300
800 900 1000 1100 1200 1300 1400 1500 1600
Türmasse/Door weight [kg]
Türbreite/Door width [mm]
Link arm
Roller guide rail
Mechanical data
Dimensions (H x D x L): 100 mm × 120 mm × 690 mmà
Ambient temperature range: –15 °C to +50 °Cà
Drive mass: approx. 13 kgà
Electrical data
Mains connection: 230 V, 50 Hzà
Power consumption: max. 300 W (TSA 160 NT EN 3–6)à
max. 450 W (TSA 160 NT EN 7)

TSA 160 NT and variants
7
Product description
Basic structure6.2
Drive TSA 160 NT EN 3–6
1
23
4
5
6
7
8
9
10
11
12
13
14
15
16
Side panel1
Base plate2
Controller3
Hydraulic cylinder4
Information plate5
Closing torque setting6
(at Invers drives: opening torque setting)
Motor7
Capacitor8
Pump9
Back check (ÖD)10
(at Invers drives: latching speed (SD))
Opening speed (ÖG)11
(at Invers drives: closing speed (SG))
Drive shaft12
Latching setting (SE)13
(not at Invers drives)
Closing speed (SG)14
(at Invers drives: opening speed (ÖG))
Latching speed (SD)15
(at Invers drives: back check (ÖD))
Mains fuse TSA 160 EN 3–6: T1.6A16
at Invers drives
2 1
3
4 5
1
2
2
3
4
5
SD SG
SE
ÖG ÖD
Invers
5
4
4
5
2
1
Invers
2
1
SG SD ÖD ÖG

TSA 160 NT and variants
8
Product description
Drive TSA 160 NT EN 7
1
23
4
5
6
7
8
9
10
11
12
13
14
15
Side panel1
Base plate2
Controller3
Hydraulic cylinder4
Information plate5
Capacitor6
Motor7
Pump8
Back check (ÖD)9
(at Invers drives: latching speed (SD))
Opening speed (ÖG)10
(at Invers drives: closing speed (SG))
Drive shaft11
Latching setting (SE)12
(not at Invers drives)
Closing speed (SG)13
(at Invers drives: opening speed (ÖG))
Latching speed (SD)14
(at Invers drives: back check (ÖD))
Mains fuse TSA 160 EN 7: T2.0A15
Delivery
Latching setting SE closed. If required SE is activated.
CAUTION
The SE setting may not cause a delayed opening of the door leaf.
Open the valve only partially.
X

TSA 160 NT and variants
9
Types of mounting, stops
Types of mounting, stops7
Single-leaf7.1
The TSA 160 NT allows the following types of stop, each for doors DIN left and doors DIN right:
Hinge side Opposite hinge side
Roller guide rail Link arm
TSA 160 NT Z / TSA 160 NT Invers TSA 160 NT / TSA 160 NT F / TSA 160 NT Z Invers
Lever length 350
Max. sot depth SD 75 mm* Max. sot depth SD 0–100 mm
Max. door overlap O 30 mm* 100–200 mm
200–350 mm (EN 3–6)
Max. 300 mm (EN 7)
* depending on door opening angle
O Door overlap
SD Sot depth
Double-leaf7.2
The two-leaf version corresponding to that of the single-leaf mounting type.
With integrated closing sequence control IS, see Section 8.7.
The combination TSA 160 NT is mechanically identical to 2 x TSA 160 NT.
An intermediate cover is optionally possible (see sketch).
Opposite hinge side mounting is also possible.

TSA 160 NT and variants
10
Mounting
Mounting8
General information for mounting8.1
WARNING
Danger of serious injury through incorrect mounting.
Observe all the instructions.
XObserve the specied ambient temperature range at the installation location of the drive.
XAfter completing mounting check the settings and functionality of the drive.
XWARNING
Danger of injury when the door is let go (TSA 160 NT Invers).
Set the opening angle in the open position using the link arm (deenergised motor).
XSet the correct closing position using cams.
XScope of delivery and completeness8.1.1
Open all the packaging units, check whether they are complete and familiarise yourself with the parts.
XDoor drive TSA 160 NT with roller guide rail or link arm, essentially consisting of:
Drive unità
1 (2) drive(s)à
1 drilling templateà
Coverà
1 hood per drive and, if necessary, 1 intermediate cover or continuous cover in accordance with scope ofà
order
Scope of delivery, depending on order:
Roller guide railà
1 roller guide railà
1 leverà
1 set of fastening screwsà
or:
Link armà
1 link arm (size depending on sot depth)à
Mounting plate for drives (optional)à
Depending on the installation situation a mounting plate is required. A mounting plate is generally recom-à
mended to facilitate mounting (for 2-leaf version available also continuous or with intermediate mounting
plate).
Accessories (optional)
Mounting plateà
Door stop buerà
Actuation elements (in accordance with the specications in the wiring diagram)à
Safety sensorsà
Switchà
Programme switch and smoke switch control unit in accordance with the guideline for hold-open systemà
Preparations to be made by the customer8.1.2
Checking of the location conditions and the required physical conditions
WARNING!
Danger of injury through falling components!
Unsecured components may fall down when under load.
When mounting the TSA 160 NT swing door drive ensure that the substructure ensures secure fastening of the
Xdrive.
Use suitable means of fastening such as anchors, rivet nuts, etc.
XBefore mounting the drive check whether the door leaf is in a good mechanical state and can be opened and
Xclosed easily.

TSA 160 NT and variants
11
Mounting
Mount the bottom edge of the element mounted at the lowest point (roller guide rail or link arm) at least 2 m
Xabove the oor.
Lay cables in accordance with the cable plan.
XCheck the type of stop on the leaf or frame prole (see Chapter 7).
XVersion DIN right/DIN left (conversion see Section 8.2).
XMounting the stop buer on the oor.
XConversion to DIN left8.2
State of delivery is DIN right. If required the drive can be converted on site to DIN left.
TSA 160 NT / TSA 160 NT Z Invers8.2.1
1 2
3456
12
3 4 5 6
DIN right
DIN left
2
12
34 5 6
Procedure
Screw o the limit switch (2), screw o the limit switch bar (4).
XDismantle the blue (5) and yellow (6) cam plates. Lift the black cover plate (1) slightly to do so.
XMount the blue (3) and yellow (4) cam plates on the other axis side. Lift the black cover plate (1) slightly to do
Xso.
Lay the cables (3) of the limit switch (2) in the cable duct (see drawing).
XMount the limit switch group (2), (4) in accordance with the sketch (see above).
XCarry out the ne adjustment of the cam plates for the limit switch and safety sensor.
XCable colours (3):
above: white upper limit switch. Yellow operating camà
below: green lower switch. Blue operating camà

TSA 160 NT and variants
12
Mounting
TSA 160 NT Z / TSA 160 NT Invers8.2.2
State of delivery is DIN right. If required the drive can be converted on site to DIN left.
12
3 4 5 6
1 2
3456
DIN right
DIN left
2
1 2
3456
Procedure
Screw o the limit switch (2), screw o the limit switch bar (4).
XDismantle the blue (5) and yellow (6) cam plates. Lift the black cover plate (1) slightly to do so.
XMount the blue (3) and yellow (4) cam plates on the other axis side. Lift the black cover plate (1) slightly to do
Xso.
Lay the cables (3) of the limit switch (2) in the cable duct (see drawing).
XMount the limit switch group (2), (4) in accordance with the sketch (see above).
XCarry out the ne adjustment of the cam plates for the limit switch and safety sensor.
XCable colours (3):
above: white upper limit switch. Yellow operating camà
below: green lower switch. Blue operating camà

TSA 160 NT and variants
13
Mounting
Preparation of installation8.3
Opening angle limitation8.3.1
Check the physical conditions.
XOpen and close the door manually.
XWhen mounting the door panel take care of the
Xpinch and shearing points of the door edges
when laying the cables.
Place the stop buer.
X
max.115°
Opening angle depending on the type of mounting
A stop buer is imperative if a TSA 160 NT Invers / TSA 160 NT Z Invers is used.
A stop buer is recommended if a TSA 160 NT / TSA 160 NT Z is used.
TSA 160 NT F conversion kit / Accessories8.3.2
1
2
3
4
Disconnection circuit board1
Door control unit DCU52
Reset switch3
Accessories for TSA 160 NT F4
Break out the side part for the reset switch and insert the reset switch.
XScrew the disconnection circuit board (1) on the provided location.
XConnect the electrical connections in accordance with the wiring diagram.
X

TSA 160 NT and variants
14
Mounting
Mounting dimensions for the mounting types8.4
The top of the door must be aligned exactly horizontally, both in the closed and in the open position.
Use the correct tting template in accordance with the mounting type.
XTake the type of fastening into account: Direct fastening or with mounting plate.
XAlign the tting template parallel to the top of the door.
XAx the template with adhesive tape in accordance with the specied mounting type.
XHelp: see the door and type of stop sketches on the template.à
In the case of doors not closing smoothly separate or fold the template along the perforation.
Predrill doors of wood with a diameter of 2.5 mm.
XIs there enough space to open the door suciently?
Check the preparations that are not included.
XExample: All the cables must be connected with door transmission to the junction boxes (concealed/surfaceà
mounting).
Transom mounting opposite hinge side with link arm (single-leaf, pushing)8.4.1
Observe drilling template: DIN left and DIN right mirrored.
XDrill both holes for the concealed cable path.
XUse rivet nuts, anchors bolts or equivalent fastening material.
XDirect xing
44
50
625
48
587
335
27 +X 54
27
34
420
12
2
Dimensional reference = hinge middle1 Ø 20, concealed cable routing2

TSA 160 NT and variants
15
Mounting
Fixing with mounting plate
12
14 +X
335
50
50
44
587
29
29
22
20
162.5
27
325
650
487.5
2
Dimensional reference = hinge middle1 Ø 20, concealed cable routing2
Fitting hole Ø 8
Fitting hole Ø 6
Fitting hole Ø 5
Axial extension X= 0 (without axial extension)
24 mm
30 mm
45 mm
With 24 mm axial extension
40
120
4 +X 100
Without axial extension
40
4 +X 100
8120

TSA 160 NT and variants
16
Mounting
Transom mounting hinge side with roller guide rail (single-leaf, pulling)8.4.2
Observe drilling template: DIN left and DIN right mirrored.
XDrill both holes for the concealed cable path.
XUse rivet nuts, anchors bolts or equivalent fastening material.
XDirect xing
625
48
186 453
34
420
21
54
42 +X
12
2
Dimensional reference = hinge middle1 Ø 20, concealed cable routing2
Fixing with mounting plate
1
22
50
21
20
162.5
186 453
29 +X 29
22
29
325
650
487.5
Dimensional reference = hinge middle1 Ø 20, concealed cable routing2
Fitting hole Ø 8
Fitting hole Ø 6
Fitting hole Ø 5
Axial extension X= 0 (without axial extension)
24 mm
30 mm
45 mm

TSA 160 NT and variants
17
Mounting
With 24 mm axial extension
31
8 120
19+X 100
Without axial extension
120
31
19 100
Transom mounting opposite hinge side with link arm (dual-leaf, pushing)8.4.3
Observe drilling template: DIN left and DIN right mirrored.
XDrill both holes for the concealed cable path.
XUse rivet nuts, anchors bolts or equivalent fastening material.
XDirect xing
12
48
625
625
44
335
335
44
27
B
50
587
27+X 54
34
420
34 420
2
3
4
Dimensional reference = hinge middle1
Ø 20, concealed cable routing2
Fixed leaf3
Moving leaf4

TSA 160 NT and variants
18
Mounting
Fixing with mounting plates
1
50
27
14 +X
44 44
335
335
B
50
587
20162.520 162.5
29 29
22
325
650
690
487.5
325
650
690
487.5
2 2
3 4
Dimensional reference = hinge middle1
Ø 20, concealed cable routing2
Fixed leaf3
Moving leaf4
Fixing with continuous mounting plate
1
4 5
14 +X
27
44
44
335
335
50
B
50
587
29
29
22
20
162.5
20
162.5
B /2
325
325
650
487.5 487.5
650
22
3
Dimensional reference = hinge middle1
Ø 20, concealed cable routing2
Only required for B > 20003
Fixed leaf4
Moving leaf5
Fitting hole Ø 8
Fitting hole Ø 6
Fitting hole Ø 5
Axial extension X= 0 (without axial extension)
24 mm
30 mm
45 mm

TSA 160 NT and variants
19
Mounting
With 24 mm axial extension
40
120
4 +X 100
Without axial extension
40
4 +X 100
8120
Transom mounting hinge side with roller guide rail (dual-leaf, pulling)8.4.4
Observe drilling template: DIN left and DIN right mirrored.
XDrill both holes for the concealed cable path.
XUse rivet nuts, anchors bolts or equivalent fastening material.
XDirect xing
21
587
48
50
625
625
B
42 +X 54
186453
186 453
34
420
34
420
1
2 2
3 4
Dimensional reference = hinge middle1
Ø 20, concealed cable routing2
Fixed leaf3
Moving leaf4

TSA 160 NT and variants
20
Mounting
Fixing with mounting plates
50
29 +X
B
20162.5
20
162.5
186453
186 453
50 587
21
29 29
22
325
690
650
487.5
325
650
690
487.5
1
2 2
3 4
Dimensional reference = hinge middle1
Ø 20, concealed cable routing2
Fixed leaf3
Moving leaf4
Fixing with continuous mounting plate
1
4 5
50
20
B
20
162.5
162.5
186 453 186453
50 587
21
29 +X
29 29
22
325
B/2
650
487.5
325
650
487.5
22
3
Dimensional reference = hinge middle1
Ø 20, concealed cable routing2
Only required for B > 20003
Fixed leaf4
Moving leaf5
Fitting hole Ø 8
Fitting hole Ø 6
Fitting hole Ø 5
Axial extension X= 0 (without axial extension)
24 mm
30 mm
45 mm
