GH Trading Mill User manual

Installation manual profi stables
Model Mill (sliding door)
Model Schengen (hinged door)

Lees eerst:
1. Hoewel we de frames na het verzinken controleren, kan het voorkomen dat er nog
scherpe druppels zink aan de frames zitten. Gebruik rubberen handschoenen om je
handen te beschermen. Voor je de paarden in de stal doet, controleer altijd op
eventuele scherpe druppen. Deze kun je eenvoudig met een ijzervijl verwijderen.
2. De wanden zijn zwaar. Installleer altijd met minimaal 2 personen.
3. Gebruik alleen veilig gereedschap, zoals een goede veilige tafelzaag met scherp
zaagblad.
4. Gebruik persoonlijke bescherming tijdens het monteren, zoals handschoenen,
werkschoenen, veiligheidsbril en gehoorbescherming.
5. Bij vragen kun je altijd bellen: [phone]
Read first:
1. However we check the stables after galvanisation, there are sometimes some sharp
drops of sink at the frames. Use rubber gloves to protect your hands. Before putting
your horse in the stables first check all sharp drops and remove them with a iron file.
2. The frames are heavy. Allways do the installation with at least 2 persons.
3. Use only secure and good tools like a cross saw table with a sharp saw blade.
4. Use personal protection like rubber gloves, working shoes, security glasses and
hearing protection!
5. If there are any questions please phone: [phone]

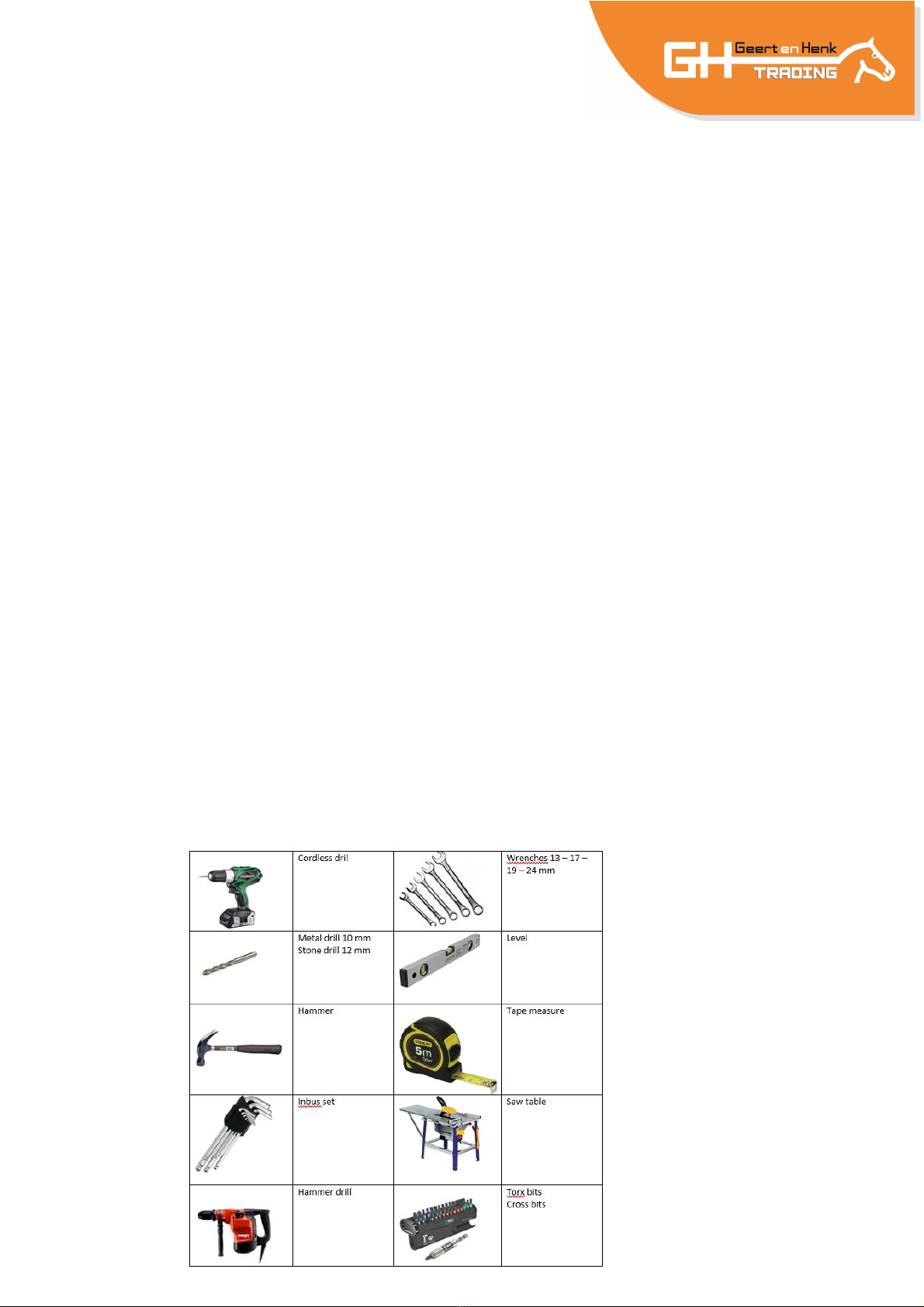

Tools:

Install the door guide under the front.

Connection to the wall:
- 2x Mounting angle 40x40
- 2x Hex wood screw M10x80
- 2x Plug M12
- 2x Carriage bolt M10x60
- 2x Hex nut M10
- 4x Washer (ring) M10
Connection separation middle:
- 2x Carriage bolt M10x180
- 2x Hex nut M10
- 2x Washer (ring) M10
Connection separation corner:
- 2x Carriage bolt M10x120
- 2x Hex nut M10
- 2x Washer (ring) M10
Connection to the wall:
- 2x Mounting angle 40x40
- 2x Hex wood screw M10x80
- 2x Plug M12
- 2x Carriage bolt M10x60
- 2x Hex nut M10
- 4x Washer (ring) M10

1300
2950
Connect the fronts with the separations.
Tips:
- Install first the top carriage bolt. The frames don't fall
anymore.
- Sometimes there is some sink in the hole. Use a drill
10-12 mm to remove the sink.
- Door opening is 1300 mm
Tools: wrench 17 mm, hammer
Bolts:
- Carriage bolt M10 x 180 mm
- Carriage bolt M10 x 120 mm
- Washers (ring)
- Hex nut

Connect the frames to the
floor.
Tip: use tape measure and level.
By the door we use a black knob to
support the sliding door.
Tools: drill 12 mm, wrench 17 mm,
hammer
Bolts:
- Hex wood screw M10x70
- Hex wood screw M10x100
- Plug M12
Connect the rail to the front
Tip: use the self locking hex nut for the rail holders.
Tools: wrench 13 mm, 2x wrench 17 mm, wrench 19
mm
Bolts:
- Hex bolt M10x80
- Self locking hex nuts
- Washers
- Rail locker with M12 bolts and hex nut - wrench 19
mm

Connection separation corner:
- 2x Carriage bolt M10x120
- 2x Hex nut M10
- 2x Washer (ring) M10

Option: minidoor in the
sliding door.
Tip: look at the detail drawing
Tools: inbus set
- Inbus screw M8x30 + Ring
- Bar
- Ring + inbus
- Steel spring
Bolts for the rail
Tip: look at the detail drawing
Tools: wrench 24 mm, inbus
- Hex screw M16
- Hex nut M 16
- Washer M16
- Hinge M16
Bar to lock door
- Bar
- Ring + inbus
- Steel spring

Install the sliding door.
Tip: First put in the rollers in the rail.
Tools: wrench 13, wrench 24 mm, inbus, level
Bolts:
- Rollers
- Rail stopper
Adjust the door height, locker, bar locker height, stopper until door opens and
closes smootly.

67
Installation of the
planks (wood or
plastic)
Tips:
- Carrefull with the
cutting of the boards.
Use a secure and sharp
saw!
- Drill a hole in the plank
were the bolts are.
Tools: tape measure,
cross cut table, cordless
drill with cross bit.
Working order:
1. Drill a hole in the first
plank to cover the nuts.
2. Put in the planks until
the last 2 planks
3. Cut the feather of the
second last plank
4. Cut the last plank by
measuring the opening.
Plastick planks have only
the following dimension:
- 1185 mm
- 970 mm
Therefore you have to
cut planks in length by
e.g. doors, tailor made
heights.

Attachment 1: Profi front model Schengen
Install horizontal plank.
Tools: wrench 13, drill 12 mm
Bolts:
- M8x50
- Head nut
Install horizontal plank.
Tools: wrench 13, drill 12 mm
Bolts:
- M8x50
- Head nut

Attachment 1: Profi front model Schengen
Connect the frames to the floor.
Tip: use tape measure and level.
Tools: drill 12 mm, wrench 17 mm,
hammer
Bolts:
- Hex wood screw M10x70
- Hex wood screw M10x100
- Plug M12
Connect night locker
Tools:
Bolts:
- Massive round 18 mm
- Galvanized threat M10x50
- Black knob
Hinges
Tools:
wrench 24 mm, inbus
Bolts:
- Hinge 16 mm
- Nuts 16 mm
- Washers 16 mm
Finger locker
Tools:
Cordless drill with cross bits
Bolts:
Self drilling cross screw
3.5x28 mm
