Giada MI-E350 User manual

www.giadatech.com User’s Manual
MI-E350
All right reserved
Version 001
Motherboard

21
Contents
www.giadatech.com
Gratitude ……………………………………………………………………………
I. About the product ………………………………………………………………
1. Picture of the motherboard ………………………………………………
2. Features ……………………………………………………………………
2.1 Processor ………………………………………………………………
2.2 Memory …………………………………………………………………
2.3 BIOS ……………………………………………………………………
2.4 Interfaces of peripherals ………………………………………………
2.5 Power management……………………………………………………
2.6 Expansion slot …………………………………………………………
II. Hardware installation……………………………………………………………
1. Layout of motherboard ……………………………………………………
2. Installing memory …………………………………………………………
3. Install expansion slot card …………………………………………………
4. Motherboard jumper setting ………………………………………………
4.1 SATA1/SATA2 (Serial ATA flat-cable sockets) ………………………
4.2 CPU_FAN (CPU FAN socket) ………………………………………
4.3 SYS_FAN (system FAN socket) ……………………………………
4.4 CLR_CMOS(CMOS pin) ………………………………………………
4.5 F_USB1/F_USB2 (frond-end USB pin) ……………………………
4.6 F_ AUDIO(Pins for front-end audio adapter) ………………………
4.7 ATX 24+4PIN (ATX Power receptacle) ………………………………
4.8 F_ PANEL (Front-end control panel) …………………………………
4.9 F_COM (Front end COM port) ………………………………………
4.10 SPKR …………………………………………………………………
5. Rear panel interface ………………………………………………………

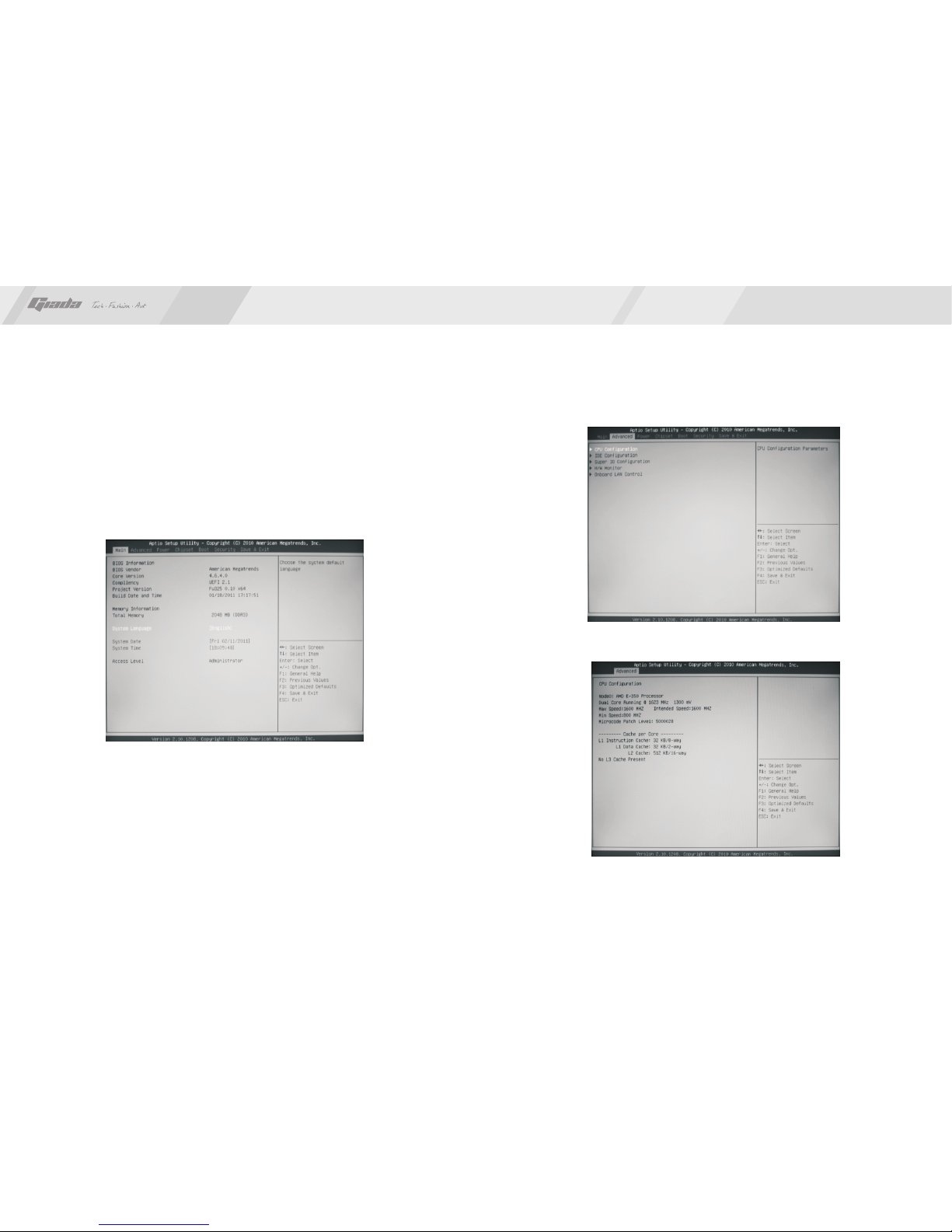

III. BIOS setting ……………………………………………………………………

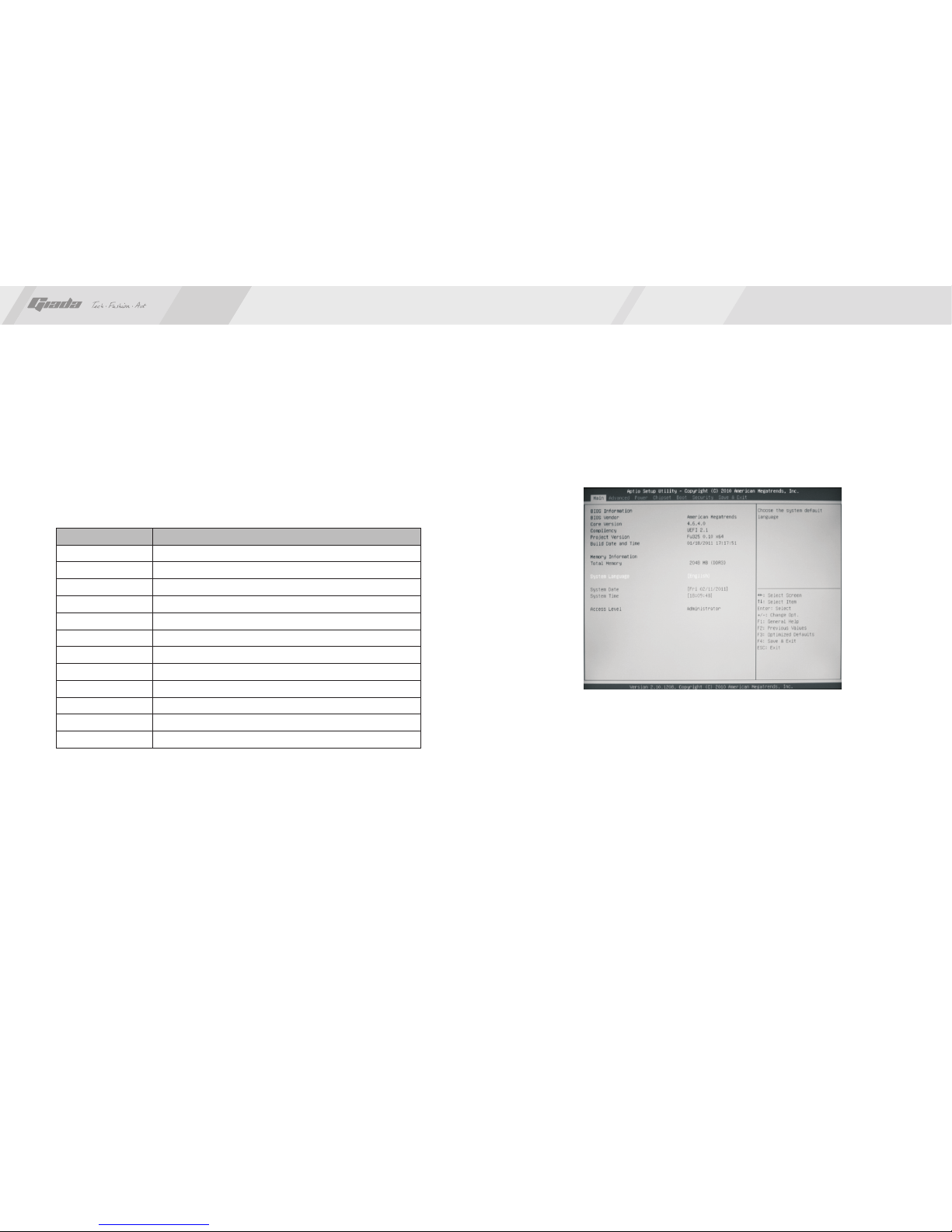

1. Main menu …………………………………………………………………
2. Main (standard CMOS setup) ……………………………………………

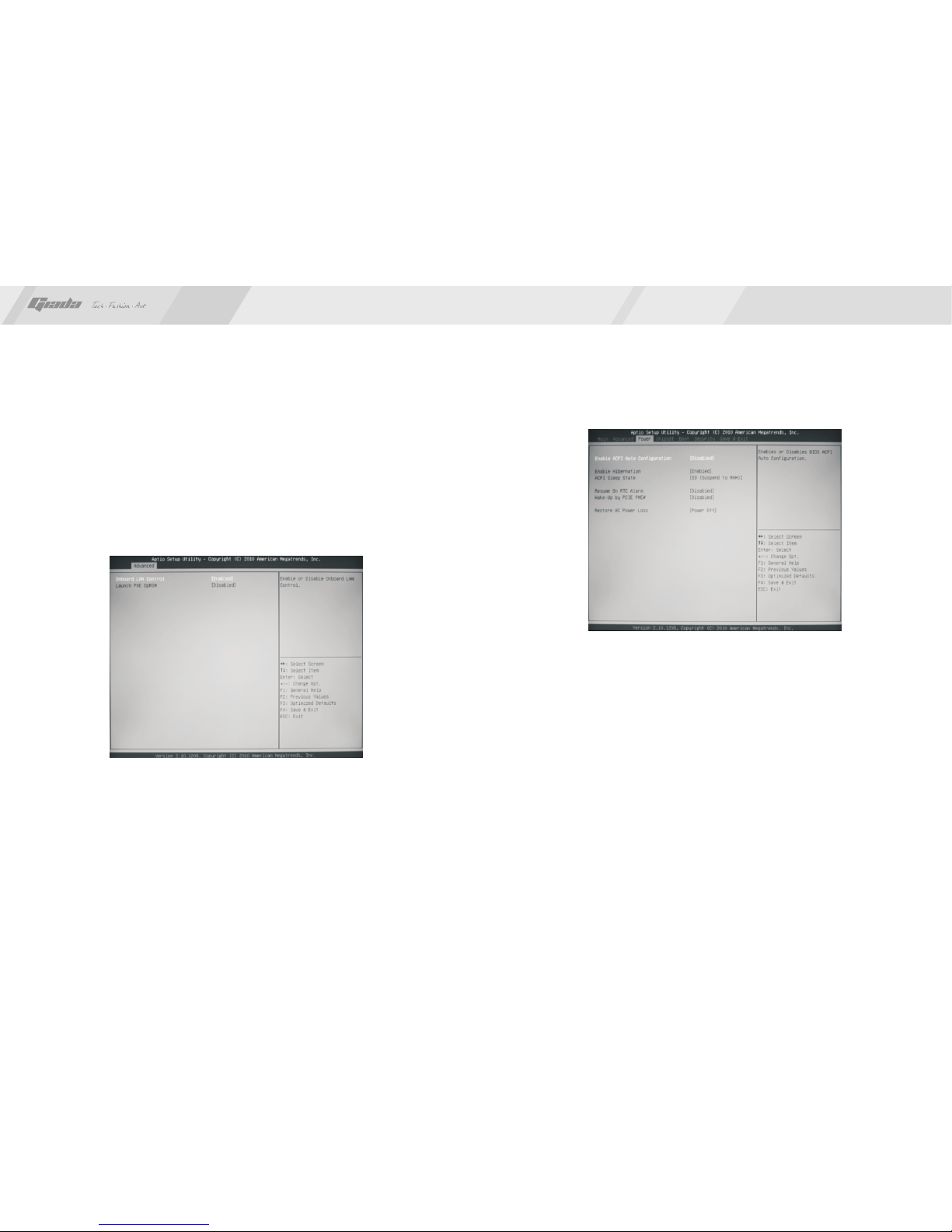

3. Advanced (Advanced BIOS setup) ……………………………………
3.1 CPU configuration ……………………………………………………
3.2 IDE configuration ……………………………………………………
3.3 Super IO configuration ………………………………………………
3.4 H/W Monitor …………………………………………………………
3.5 LAN configuration ……………………………………………………
4. Power ………………………………………………………………………

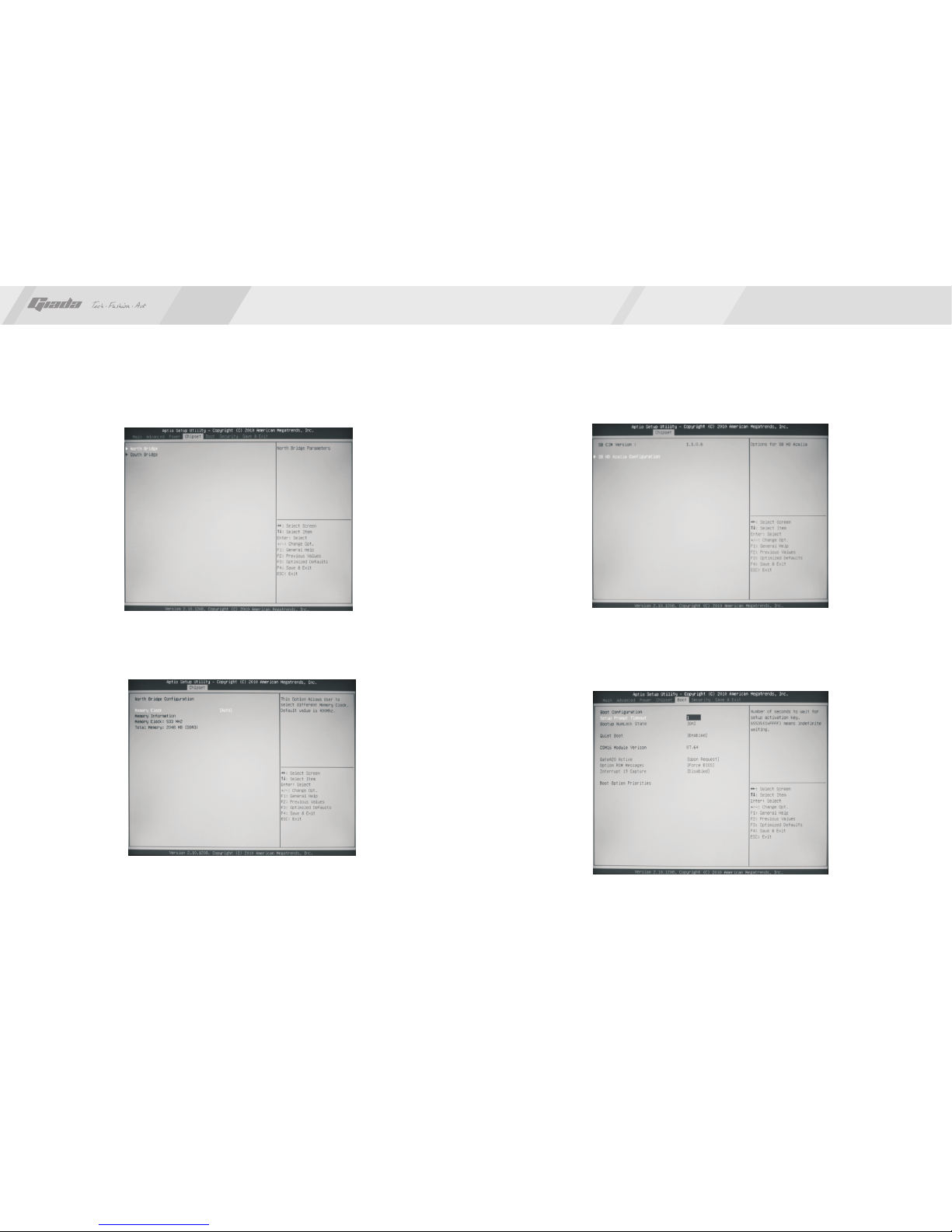

5. Chipset Configuration ……………………………………………………
5.1 NB chipset configuration ……………………………………………
5.2 SB chipset configuration ……………………………………………
6. Boot configuration …………………………………………………………
7. Security Setup ……………………………………………………………
8. Save&Exit …………………………………………………………………
IV. Software installation ……………………………………………………………
1. Install driver for motherboard ……………………………………………
1.1 Install driver for chipset ………………………………………………
1.2 Install sound card driver ………………………………………………
1.3 Install driver for on-board LAN chip …………………………………
1.4 Install driver for graphic card …………………………………………
2. HD_AUDIO and sound card setup ………………………………………
3
4
5
5
5
5
5
6
7
8
9
10
10
11
11
12
13
14
15
17
18
19
19
4
5
5
20
22
23
24
24
25
26
26
27
28
29
29
30
30
3 1
32
34
34
36
37
38
39
39

4
3
Gratitude I. About the product

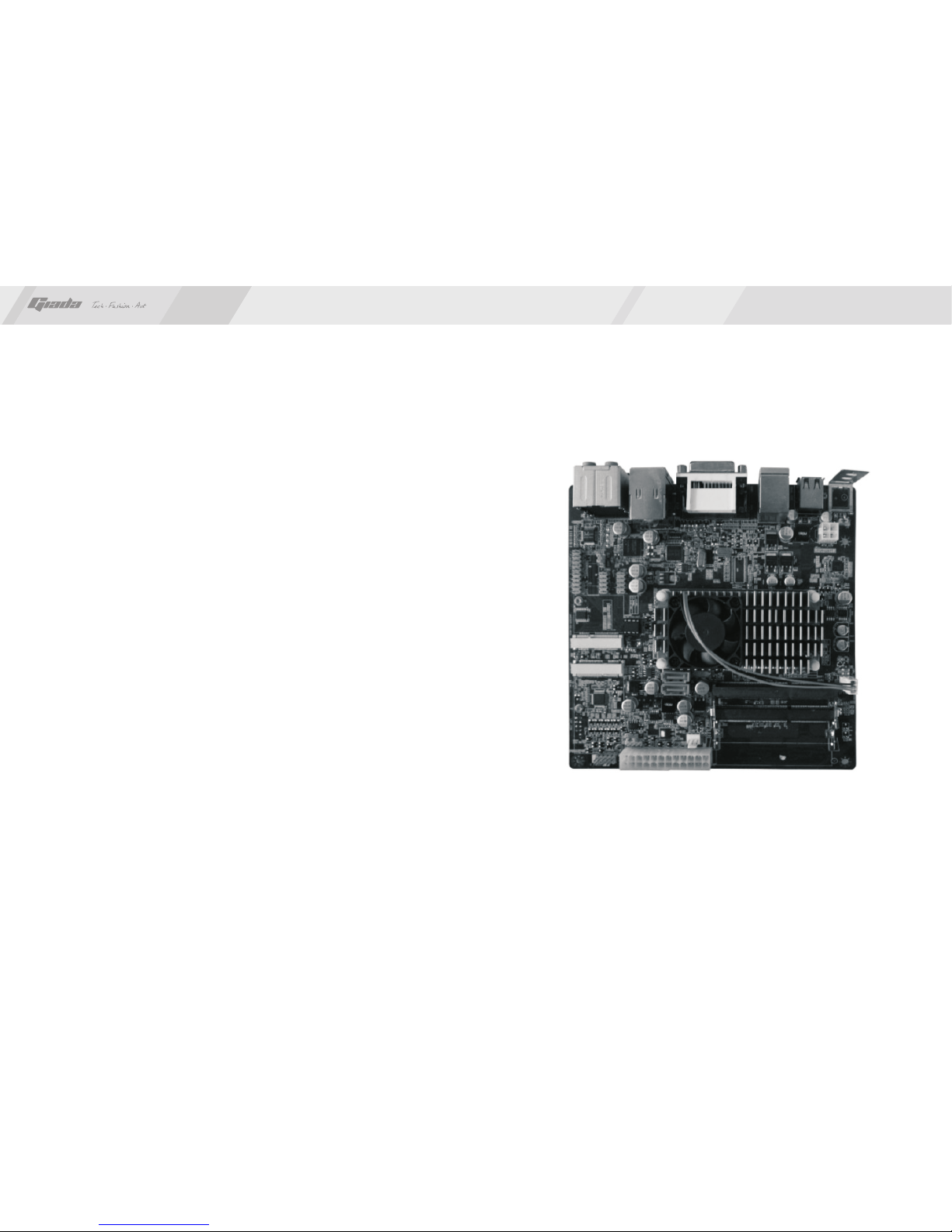

1. Picture of the motherboard
Thank you for choosing Giada motherboard.
Giada MI-E350 is based on AMD® Dual-Core Processor E-350 with AMD
Radeon™ HD 6310 Discrete-Class Graphics and “Hudson” M1 FCH.
Through the latest VISION(Tier) Technology and HD Internet Technology from
AMD®, MI-E350 support full 1080P video play and DirectX® 11 games.
It supports USB3.0 High Speed Transmission, DDR3 1066MHz memory, on-board
HD-AUDIO sound card and gigabit LAN. Support HDMI digital display output.
Any question about the product, please send e-mail to our support center.
Headquarter:
[email protected]
[email protected]
USA office: [email protected]
www.giadatech.com
NOTE:This is Giada real product photo show for your reference only, Product
appearance depends on goods.

6
5
2.1 Processor
·
·
2.2 Memory
·
·
2.3 BIOS
·
·
·
·
2.4 Interfaces for peripherals
·
·
·
·
·
·
·
·
·
·
2.5 Power management
·
·
2.6 Expansion slot
· Two MINI-PCIe slots.
2. Features
On-board AMD® E-Series “Zacate” APU E-350;
APU integrated AMD Radeon™ HD 6310 Discrete-Class Graphics.
Supports 204-Pin DDR3 1066MHz memory;
4GB at maximum.
Supports PNP, APM and ATAPI;
Supports ACPI and DMI;
Automatic detection and supporting hard disk whose LBA mode is over 160G;
End-users can easily upgrade the motherboard with BIOS.
Two SATA2 HDD port;
One HDMI digital interface;
One DVI interface；
Two USB3.0 high-speed transmission ports and are compatible with USB1.1；
Six USB2.0 high-speed transmission ports and are compatible with USB1.1;
One RJ45 network interface (PCIe Gigabit Ethernet);
On-board HD-AUDIO audio adapter;
Interfaces on panels can be compatible with HDD LED, Speaker, etc;
One CMOS contact pin;
One system FAN socket.
Support APM and ACPI;
Compatible with energy star “Green PC”.
II. Hardware installation
www.giadatech.com
Warning
·
·
·
·
·
The motherboard consists of a great number of ICs and other components. These
ICs might be damaged by the static charge. Therefore, the user must make the
following preparations before installation:
Turn off the power of the computer. It is preferable the power cord be unplugged.
Take care not to contact the metal wires and theirs joints on the motherboard
when handling it.
It is preferable that the operator wear the anti-static wrist strap when handling
the IC components.
Before the ICs are installed, the components of the motherboard should be
placed on the anti-static mat or bag.
When you remove the plug on the ATX power supply of the motherboard, make
sure the switch of the power supply is in OFF state.
Installing the motherboard onto the computer case:
For most of the computer cases, the multiple fixing holes left on their bottoms can
be used for securing the motherboard and preventing short circuit. During your
operation, take care not to allow the screws to contact any circuit or part on PCB.
When circuits on the surface of the motherboard get close to the fixing holes, you
can use the plastic sheet to separate the screws from the board surface so as to
avoid damage or failure of the motherboard.

8
7
1. Layout of motherboard 2. Installing memory
Please install the memory in accordance with the following procedures:
· Align the golden finger of the memory to the groove of the interface slot and
pay attention the concave hole of golden finger should be aligned to the
convex point of the slot.
· Finally, insert the memory into the interface slot gently. If no error occurs at
the moment, insert the card forward in the slot till the white buckle is
automatically engaged in the concave hole at the two sides of the memory.
NOTE: In order to avoid damages to the motherboard or the components, the
user must make sure the power supply to the computer is turned off before the
memory or other component is installed or removed. As the groove is set at the
golden finger of the DDR DIMM, the memory can only be inserted into the slot
with one direction. During installation, the user only needs to align the golden
finger and the dual-channel groove of the interface slot and insert it gently. To
avoid damage, never apply excessive force in that process.
www.giadatech.com
12
3
4
5
67
8
9
10
11
12
14
15 17 1816 19
22
23
1. 2*Antenna hole
2. 2*USB2.0 port
3. 1*PS/2 KB + 2*USB2.0 port
4. 1*DVI port
5. 1*HDMI port
6. 1*RJ45 port + 2*USB3.0 port
7. 5jack Audio-out/Mic-in
(includes 1*optical S/PDIF-out)
8. CLR_CMOS
9. Front Audio
10. Front COM
11. Front USB1
12. Front USB2
13. Mini PCIe 2
14. Mini PCIe 1
15. Front Panel
16. ATX 24PIN power socket
17. SATA2 Socket
18. 3PIN SYS_FAN
19. DDR3 DIMM Slot
20. 3PIN CPU_FAN
21. AMD E-350
22. AMD Hudson M1
23. 4PIN ATX power socket
13
20
21

10
9
www.giadatech.com

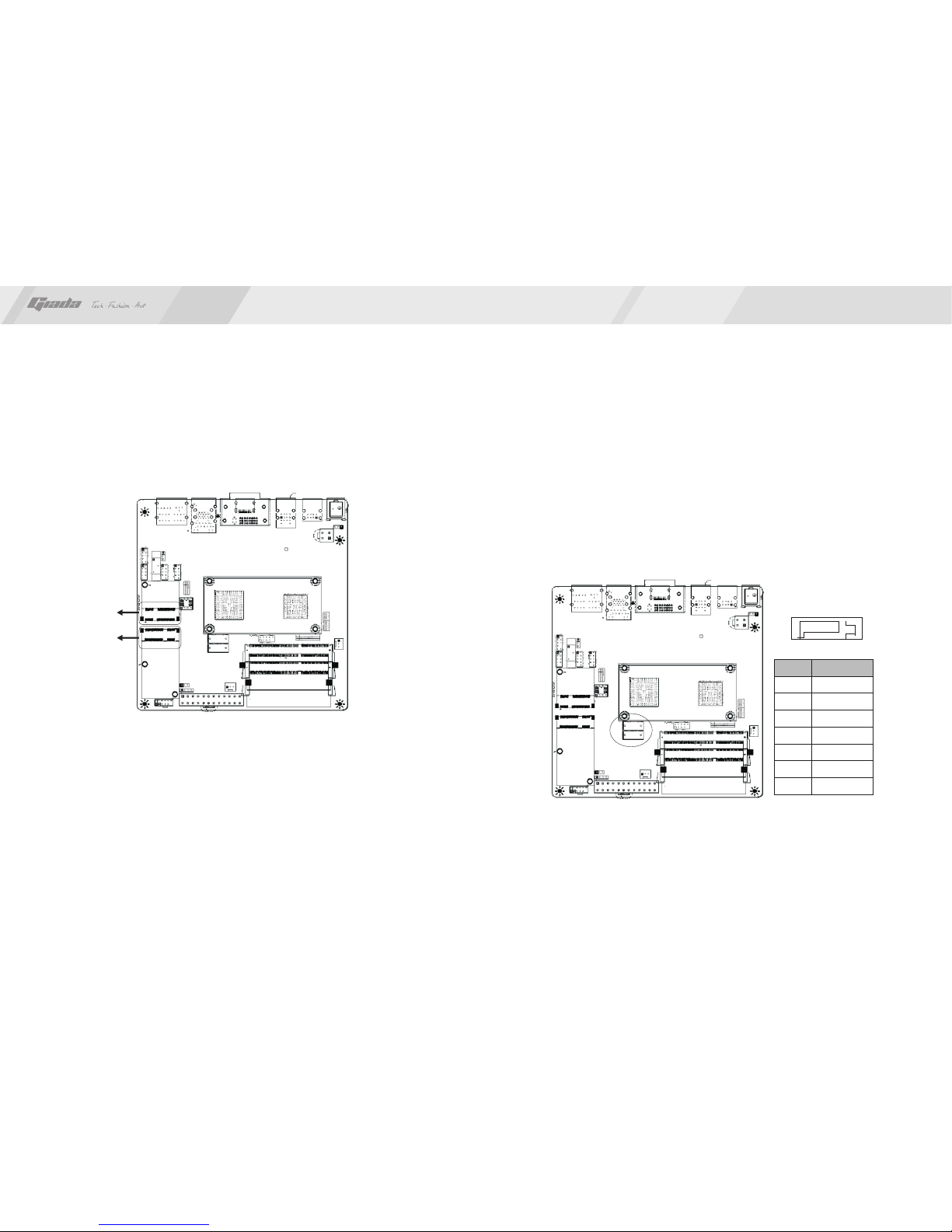

3. Install expansion slot card
Installing extended devices
At the top side of motherboard are two Mini-PCIE extended slots support
PCIe 1X signal, can use mini PCIe WiFi module etc.
4. Motherboard jumper setting
Note:
The user should notice that all sockets are marked with PIN1. The mark “#”
indicates the ex-factory default values.
4.1. SATA1/SATA2 (Serial ATA flat-cable sockets)
Serial ATA sockets can reach a transmission speed of 300MB/s, and you
can connect your Serial ATA device to this socket.
71
PIN Definition
1
2
3
4
5
6
7
GND
TXP
TXN
GND
RXN
RXP
GND
12.Mini PCIe 2
13.Mini PCIe 1
12
13

12
11
4.2. CPU_FAN (CPU FAN socket)
This receptacle can be used for connecting CPU fan. Its pins are defined
below. The user shall make sure the fan is conforming.
4.3. SYS_FAN (system FAN socket)
This receptacle can be used for connecting chassis fan. Its pins are defined
below. The user shall make sure the fan is conforming.
Pin#
Pin#
Pin#
Definition
Definition
Definition
1
2
3
1
2
3
1-2#
2-3
VSS
VDD
TAC
VSS
VDD
TAC
Normal
CLR_CMOS
www.giadatech.com

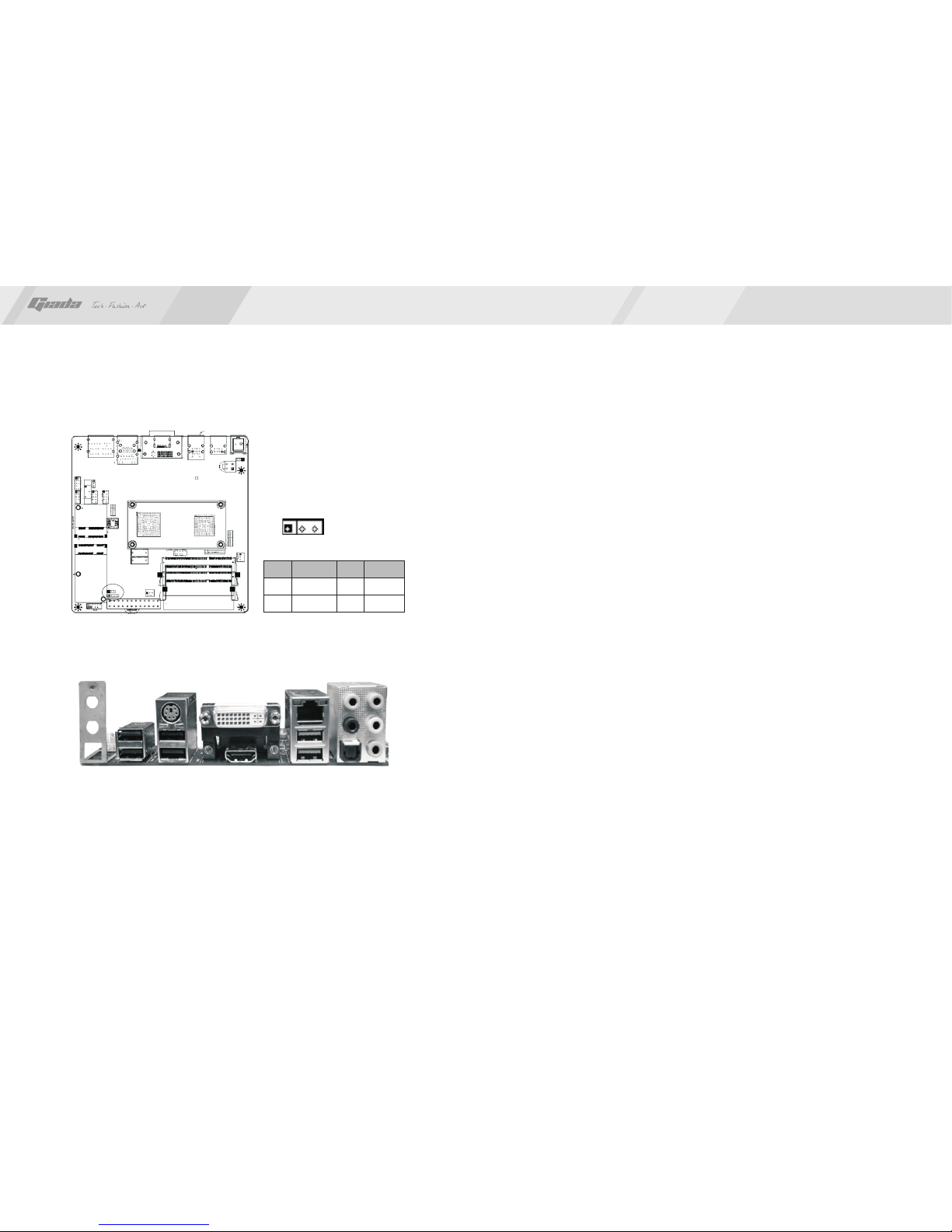

4.4. CLR_CMOS(CMOS pin)
The correct time, system hardware and other information are saved in the
CMOS memory of the motherboard. The interruption the computer's power
won't cause the loss of this information, for the CMOS is powered by the
battery on the motherboard. The port is defined as follows:
123
123
123

14
13
Definition
VCC
USB D1-
USB D1+
GND
NULL
PIN
2
4
6
8
10
Definition
VCC
USB D0-
USB D0+
GND
NULL
PIN
1
3
5
7
9
Definition
GND
PRESENCE# (Dongle present)
MIC_SENSE_RETURN
NULL
OUT_SENSE_RETURN
PIN
2
4
6
8
10
Definition
MIC_L
MIC_R
OUT_R
SENSE_SEND (Jack detection)
OUT_L
PIN
1
3
5
7
9
www.giadatech.com

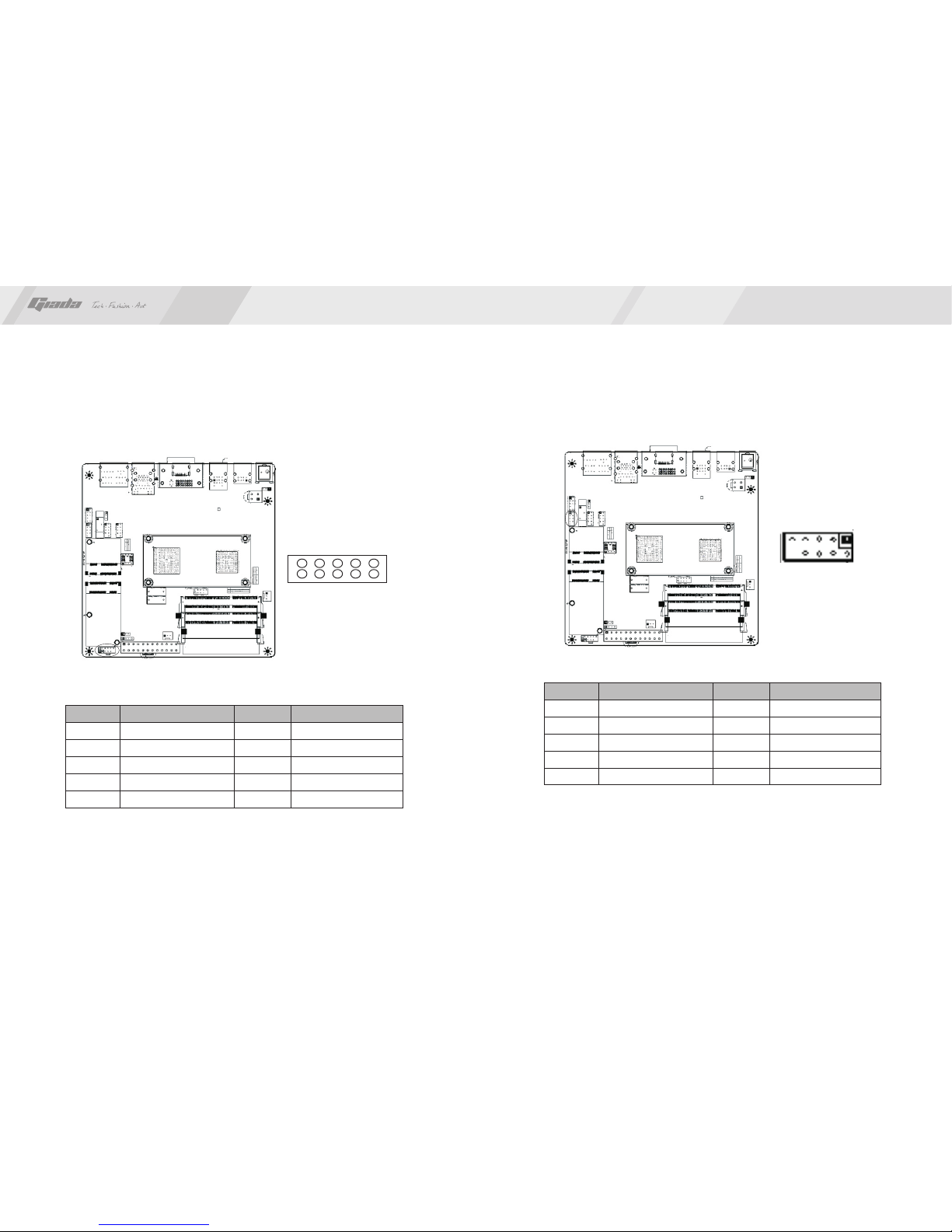

4.5. F_USB1/F_USB2 (frond-end USB pin)
In case the USB ports on the rear panel of the machine case are not enough,
the user can use the two sets of extension USB pins provided by this
motherboard. These ports support USB 2.0 devices. The definitions of the
ports are described below:
210
1
4.6. F_ AUDIO(Pins for front-end audio adapter)
These audio adapter ports allow you to connect to the wire harness of the
audio adapter. After connection, you can easily control the audio
output/microphone through the front panel of the host (Note: Don't connect
the wire to Pin 4).
The definitions of the ports are described below:
2 10
1 9

16
15

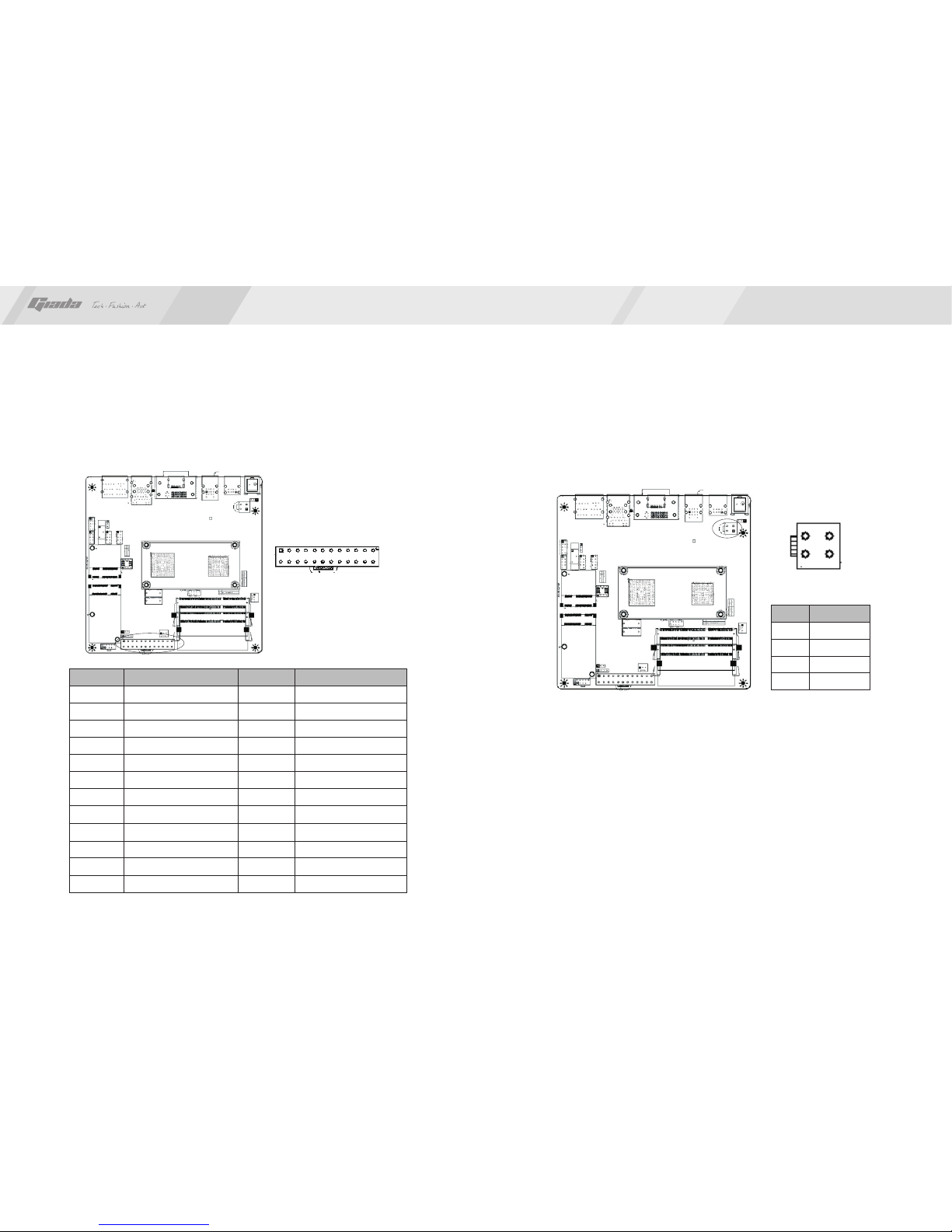

4.7.ATX 24+4PIN (ATX Power receptacle)
This socket is used for connecting the 24-pin outlet of the power supply. The
definitions of the pins are described below (when power supply with 20-pin
outlet is used, please make sure the numbers are matched correctly):
This board has special 4PIN 12V power receptacle for CPU. For better and
more stable processor power supply, we suggest keeping the connection on
this socket. The definitions of the pins are described below:
www.giadatech.com
1
PIN Definition
1
2
3
4
GND
GND
12V
12V
1
2
23
24
3.3V
5V
5V
PG
12V
3.3V
-12V
PS-ON
GND
-5V
5V
GND
Definition
PIN
2
4
6
8
10
12
14
16
18
20
22
24
Definition
3.3V
GND
GND
GND
5VSB
12V
3.3V
GND
GND
GND
5V
5V
PIN
1
3
5
7
9
11
13
15
17
19
21
23

18
17
1
2
9
10
4.9 F_COM (Front end COM port)
www.giadatech.com
RXD1
DTR1
DSR1
CTS1
NC
DCD1
TXD1
GND
RTS1
RI1
2
4
6
8
10
1
3
5
7
9
Signal
PIN
Signal
PIN
4.8. F_ PANEL (Front-end control panel)
This socket is used to connect the flat cables on the front-end panel.
PIN
1
3
5
7
9
Definition
HDLED+
GND
RST+
GND
NULL
PIN
2
4
6
8
10
2
1
PLED+(VCC)
GND
NULL
PWBT
GND
Definition
4
3
6
5
8
7
10
9

20
19
5. Rear panel interface
www.giadatech.com
1. Antenna aperture
2. USB2.0 port
3. PS/2 KB + USB2.0 port
4. DVI port (top)
5. HDMI port (bottom)
6. RJ45 port + USB3.0 port
7. 6jack (including 1*optical S/PDIF-out)
1 2 3 4 5 6 7
Note
The descriptions relating to BIOS in this Manual can only be used for reference
as the BIOS version of the motherboard is upgraded continuously. Giada provides
no guarantee that the contents in this Manual be consistent with the information
you acquire.
BIOS is a basic I/O control program saved in the Flash Memory. Bridging the
motherboard and the operating system, BIOS is used for managing the setup of
the related parameters between them. When the computer is activated, the
system is first controlled by the BIOS program. First, a self-detection called
POST is performed to check all hard devices and confirm the parameters of the
synchronous hardware. Once all detections are completed, BIOS will hand over
the controlling to the operating system (OS). As BIOS serves as the only channel
that connects the hardware and software, whether your computer can run stably
and work in optimized state will hinge on how to properly set the parameters in
BIOS. Therefore, the correct setup of BIOS plays a key role in stably running the
system and optimizing its performance.
The CMOS Setup will save the set parameters in the built-in CMOS SRAM on the
motherboard. When the power is shut off, the lithium battery on the motherboard
will provide continuously power for CMOS SRAM. The BIOS setup program will
allow you to configure the following items:
1. HD drive, floppy drive and peripheral devices;
2. Video display type and display items;
3. Password protection;
4. Power management characteristics.
A.State of BIOS Setup
When the computer is started up, BIOS will run the self-detection (Post) program.
This program includes series of diagnosis fixed in BIOS. When this program is
executed, the following information will appear if any error is found:
Press F1 to Run Setup
Press F2 to Load default values and continue
III. BIOS Setting
4.10 SPKR
PIN
1
3
1
Signal
5V
NC
PIN
2
4
Signal
NC
SPK

22
21
www.giadatech.com
C.Auxiliary information
Main interface
When the system enters the main interface of Setup, the major selected contents
will be displayed at the lower part of the interface with the change of the options.
Set interface
When you set the value for each column, you can view the preset value of the
column and the values that can be set if you press F1, for example, the BIOS
default values or CMOS Setup values. To exit the interface for auxiliary
information, press [ESC].
To enter BIOS, you can press F1; to load the default values and enter the system,
you can press F2. After the self-detection process is completed, you can press
DEL to enter the BIOS interface if no error is found. If the indicative information
disappears before you can act, you can shut off the computer and turn on it again,
or you can press the key RESET on the machine case. To restart your computer,
you can also simultaneously press <Ctrl>+<Alt>+<Delete>.
B. Function Keys definitions
Function
Move to the previous item
Move to the next item
Move to the left item
Move to the right item
Exit the current interface
Change the setup state, or add the values
Change the setup state, or deduct the values
Display the information of the current setup
Load the set values of previous time
Load the safest values
Load the optimized values
Save the settings and exit the CMOS SETUP
Key
↑ (Up key)
↓ (Down key)
← (Left key)
→ (Right key)
ESC
Page Up
Page Down
F1
F7
F8
F9
F10
1. Main menu
When the system enters the CMOS Setup menu, you can see the main menu on
the upper part of the screen, as shown in Figure 3.1. In this main menu, you can
use the left and right direction keys to select the setup items. Once the item is
selected, the lower part of the computer screen will show the details of setting.
(The options above and their contents may be different from your actual options,
so they are used for reference only).
· Main (standard CMOS setup)
This item is used for setting the date, time, specifications of HDD, RAM, CPU
and BIOS version.
· Advanced (advanced BIOS setup)
This item is used for setting the advanced functions provided by BIOS.
· Power
· Chipset
Fig 3.1

24
23
Fig 3.2
www.giadatech.com
· Boot (startup configuration characteristics)
· Security (setting the administrator/user password)
· Save&Exit (option of exit)
This item includes load optimal defaults/load failsafe defaults value/discard
changes/ discard changes and exit.
2. Main (standard CMOS setup)
· System language
Default English
· System time (hh:mm:ss)
Use this item to set the time for the computer, with the format as
“hour/minute/second”.
· System date (mm:dd:yy)
Use this item to set the date for the computer, with the format as “week,
month/day/year”.
3. Advanced (Advanced BIOS setup)
3.1 CPU configuration
This picture shows the CPU information.
Fig 3.3
Fig 3.4

2625
www.giadatech.com
3.2 IDE configuration
· Onchip SATA channel
Options: [disabled][enabled]
· Onchip SATA type
Options：[Native IDE][AHCI][Legacy IDE]
· SATA IDE Combines Mode
Options: [disabled][enabled]
· Combines Mode Option
Options: [SATA as primary][SATA as secondary]
3.3 Super IO configuration
This item shows the I/O which MB is using.
· Serial port 0 configuration
Use this to set serial port.
3.4 H/W Monitor
Fig 3.5
Fig 3.6
Fig 3.7

www.giadatech.com
4. Power
· Enable Hibernation
Options: [disabled][enabled]
· ACPI Sleep State
Use this to set sleep mode.
Options: [suspend disabled][S3(suspend to RAM)]
· Resume on RTC alarm
Use this to set RTC wake up time.
· Restore AC power loss
[Power off]: When power back after power failure, MB keeps shut down status.
[Power on]: When power back after power failure, MB boot-up automatically.
[Last state]: When power back after power failure, MB goes back to its last
state when power failure automatically.
· CPU FAN Mode Setting
Options: [Full on Mode][Automatic mode][PWM Manually mode]
· SYS FAN Mode Setting
Options: [Full on mode][Automatic mode][PWM manually model]
Below are working status of each parts, including CPU temperature, system
temperature, FAN speed, CPU voltage, RAM voltage, etc.
3.5 LAN configuration
· Onboard LAN Control
Options: [disabled][enabled]
· Launch PXE OpROM
Options: [disabled][enabled]
Fig 3.9
Fig 3.8
2827

3029
5. Chipset Configuration
This item includes North bridge and South bridge configuration.
5.1 NB chipset configuration
· Memory clock
Options: [AUTO][400MHZ][533MHZ]
5.2 SB chipset configuration
· SB HD Azalia Configuration
Options: [disabled][enabled][AUTO]
6. Boot configuration
Fig 3.10
Fig 3.11
Fig 3.12
Fig 3.13
www.giadatech.com

3231
· Setup prompt timeout
Use this item to set waiting time of enter the system.
· Bootup Num-Lock State
To set the state of Num Lock after start-up.
Options: [OFF] [ON]. In other words, this item can be used for setting the state
of Num Lock for the time the system has been started. It can be set on the basis
of the needs of the user and doesn't affect the performance of the computer.
· Quiet Boot
To start the system quietly.
Options: [disabled][enabled]
7. Security Setup
Fig 3.15
Fig 3.14
If this function is selected, the following information will appear:
Enter New Password hhhhhh
Then, enter the password with not more than eight characters and press <Enter>.
BIOS will requires to enter the password again. Once you enter it again, BIOS will
save the set password.
Once the password item is enabled, you will be required to enter the password
each time before the system goes to the set program of BIOS. The user can set
this item through the Security Option in advanced BIOS properties. If the item
Security Option is set as System, the password will be required to be entered
before the system guides and goes to the set program of BIOS. If set as Setup,
the password will be required to be entered only before the system goes to the
set program of BIOS.
To delete the password, press <Enter> in the popped-up window that requires to
enter the password. Then, information for confirmation will appear on the screen
to allow you decide whether the password is disabled. Once the password is
disabled, you won't have to enter the password and can enter the setup program
directly when the system is restarted.
8. Save&Exit
www.giadatech.com

3433
· Save Changes and Exit
Discard changes and exit
Save changes and reset
Discard changes and reset
· Save options
Save changes
Discard changes
· Restore defaults
This item can allow the user to restore all BIOS options to the failsafe defaults.
The failsafe defaults are conservative values for the system.
Also you can save current setting as [User default] or restore your [User default]
.
If you enter OK and press Enter, all set values will be saved to CMOS SRAM
and the system will exit from the BIOS setup program. If you don't want to save,
you can press Cancel or Esc to return to the main menu.
· BOOT Override
Launch EFI shell from file system device
www.giadatech.com
NOTE：Pictures below just showing the driver install steps, please see the real
product for detailed information.
1. Install driver for motherboard
After you complete the installation of the operating system, you should then
install the driver for the motherboard. To this end, put the disk into the CD-ROM.
The interface as shown in Fig. 4.1 will appear.
IV. Software installation
Fig. 4.1

36
35
In Fig 4.1, click "Driver ", another UI appears as shown in Fig 4.2.
Fig. 4.2
www.giadatech.com
1.1. Installing driver for Chipset
After you click “Install” behind the “Chipset driver” in the interface of Fig. 4.2,
a dialog box as shown in Fig. 4.3 will pop up. Then you can click Next and
wait till the driver is installed completely.
Fig. 4.3

3837
Fig. 4.4
of Fig. 4.2, a dialog box as shown in Fig. 4.4 will pop up. Then you can click
“Next” and wait till the driver is installed completely.
1.2 Install Sound card driver
After you click “Install” behind the “Realtek HD audio driver” in the interface
www.giadatech.com
interface of Fig. 4.2, a dialog box as shown in Fig. 4.5 will pop up. Then you
can click “Next” and wait till the driver is installed completely.
1.3 Installing driver for on-board LAN chip
After you click “Install” behind the “Realtek 10/100/1000 LAN Driver” in the
Fig. 4.5
