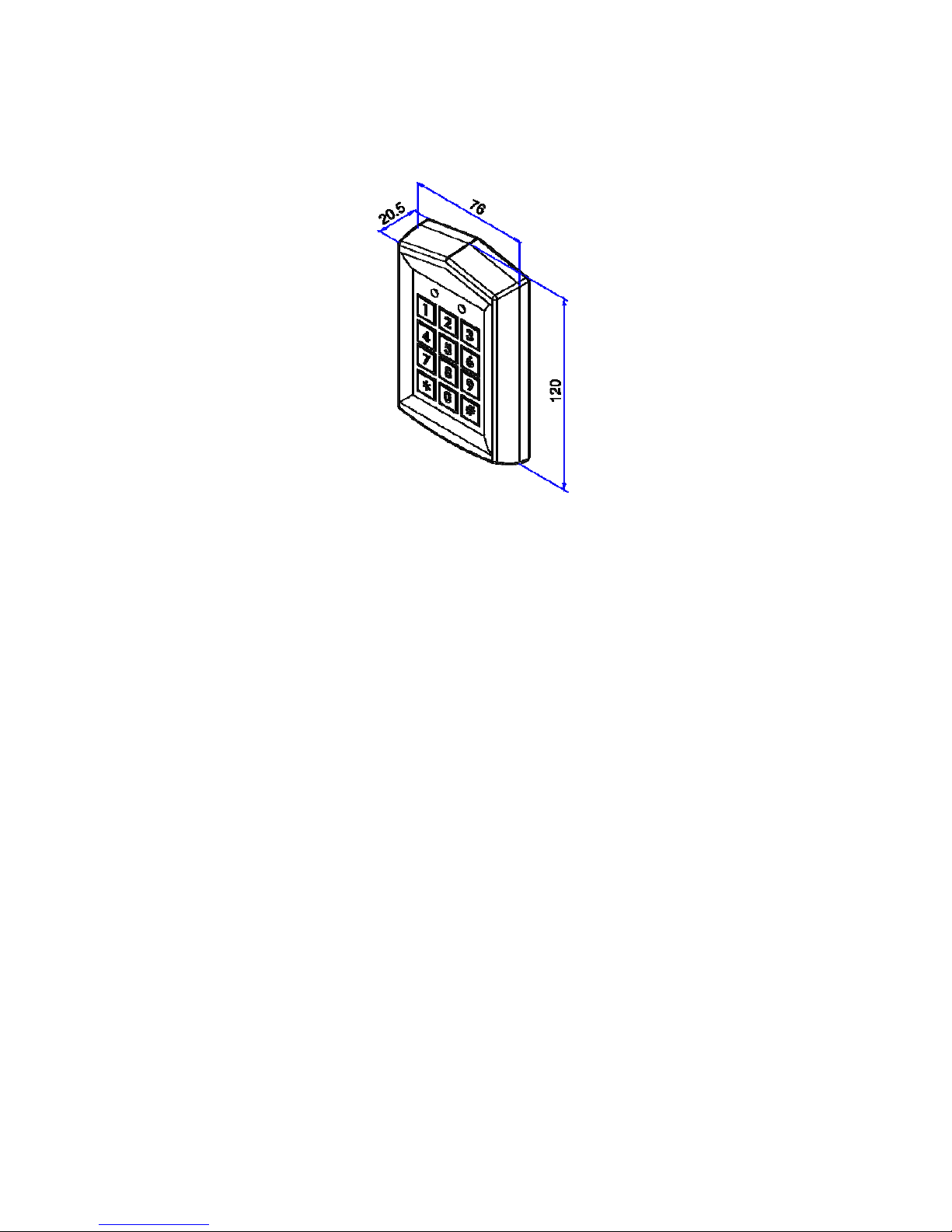

DG-800 Stand-Alone Proximity Reader
Instruction Manual
I. Features
1. Memory volume up to 1000+10 proximity cards/tokens and PINs
with the programming time up to 0.5 seconds.
2. Access modes:
a. Only Proximity Card (default setting) b. PIN or Proximity Card
c. PIN + Proximity Card
3. Logical memory prevents duplicated card setting.
4. Lockout Function: The controller will lockout for 60 seconds after
entering 5 times invalid codes or cards. (The keypad doesn’t beep
during the period of time).
5. Controller with keypad sound avoids incorrect key-in.
6. Additional input for anti-tailgating function ensures high security
access control.
7. Built-in tamper switch.
8. Non-volatile memory stores all code settings for a long time, even
in the event of total power failure.
9. Dual relays to control door lock and other security devices.
10. Aluminum alloy case designed with vandal resistant screws for
enhanced safety and durability.
11. Epoxy sealed for waterproof grade IP65.

Copyright © Gianni Industries, Inc. All rights reserved.
P-MU-DG-800 Ver. B Published: 2010.11.22
Page: - 2 -/ 8
II. Specification
Operating Voltage 12 VDC
Current Draw Pull-In: 60mA/12 VDC, Holding: 30mA/12 VDC
RF Frequency EM 125kHz
Read Range 5 cm (In noise-free environment)
Keypad Backlight 12 digits (0~9, ＊, #)
Input 2 contacts for Request-To-Exit button
1 contact for door reed switch
Output 2 relays (N.O./N.C./Com. Dry Contact)
LED indicator 2 LED indicators display (Red/Green)
Memory Volume 1000+10 proximity cards/tokens and PINs
Relay Electric Current Max. 2A/30 VDC, 0.6A/120 VAC
Relay Strike Time 01~99 seconds or Toggle Mode(00)
Ambient Humidity 5%~95% (Non-condensing)
Operating Temperature -20°C~70°C

Copyright © Gianni Industries, Inc. All rights reserved.
P-MU-DG-800 Ver. B Published: 2010.11.22
Page: - 3 -/ 8
III. Indicator Status & Default Setting Parameters
Beep & LED Indication:
Mode Signal Status
LED
Standby
Right Green Stay On Power on, Standby
Green On First relay active
Red On Second relay active
Programming
Yellow Stay On Enter programming mode
Green Stay On
Red Stay On
The slot position of first relay is available.
The slot position of first relay is unavailable.
Green Stay On
Red Stay On
The slot position of second relay is available.
The slot position of second relay is unavailable.
Beep
Standby
1 Beep Valid card, key press, enter programming mode
3 Beeps Invalid card, incorrect PIN
Programming
1 Beep Correct input data, exit programming mode
3 Beeps Incorrect input data, other incorrect operation,
duplicated card setting
Factory Default Setting:
Access Mode Proximity Card Only
Format All Bits
Card Storage (MAX. 1000+10 pcs) None
Master Code 12345 (5 digits)
Alarm Function (All) Function disabled
Relay Strike Time (Time Delay Setting) 5 seconds
Pressed Key Time Delay 5 seconds (Fixed)
PIN Code Input Waiting Time 5 seconds
Programming Mode Time Delay 25 seconds (Fixed)

Copyright © Gianni Industries, Inc. All rights reserved.
P-MU-DG-800 Ver. B Published: 2010.11.22
Page: - 4 -/ 8
IV. Wiring Diagram
Door Status
For DC use only For AC/DC
Note：
1. It is suggested to use a linear power supply unit to prevent reading range
reduction at the card reader.
2. It is suggested to use #22~26 AWG insulation wire.
3. Exit button is at N.O. contact.
4. With CE qualification EMC specification.
5. The door strike or relay must have a varistor or a diode across the door strike
terminals to suppress the back EMF of the strike – failure to do so will
damage the relay contacts and electronic components, or even burn the
controller.

Copyright © Gianni Industries, Inc. All rights reserved.
P-MU-DG-800 Ver. B Published: 2010.11.22
Page: - 5 -/ 8
V. Operation Instruction
1. Master Code
The master code comprises a five-digit number and is used to perform
programming functions of the digital keypad and cannot be used for access
i.e. it cannot be the same as other PINs. The default master code is set as
12345. Under normal operation the keypad is used for entering PIN to gain
access. In the programming mode the keypad can be used to add/delete
PINs, set relay strike time and other operation functions.
2. Entering Programming Mode
Enter the master code twice (12345 12345) to enter programming mode (1
long beep, Right Yellow LED stay on).
3. Setting the Access Mode
The dual authentication feature allows the keypad to be programmed to
grant access with either Proximity Card only, PIN or Proximity Card,
Proximity card and PIN.
1. Enter programming mode
2. Press＊0 (Right Yellow LED rapid flash)
3. Press 00 (1 beep, Right Yellow LED stay on) for Proximity Card Only
Press 01 (1 beep, Right Yellow LED stay on) for Proximity Card or PIN
Press 02 (1 beep, Right Yellow LED stay on) for Proximity Card + PIN
4. Press # (1 beep , Right Green LED stay on) back to standby mode
4. Setting the Relay Strike Time
The relay strike time determines the amount of time that the door remains
unlocked after a valid proximity card or PIN is entered.
＊NOTE: For both Relay 1 & Relay 2, enter 00 will set the relay strike
time to 0 second (relay set to toggle mode).
1. Enter programming mode
2. Press＊1 for Relay 1 (Right Yellow LED rapid flash
Press＊5 for Relay 2 (Right Yellow LED rapid flash)
3. Press 00~99 (1 beep, Right Yellow LED stay on)
4. Press # (1 beep Right Green LED stay on) back to standby mode

Copyright © Gianni Industries, Inc. All rights reserved.
P-MU-DG-800 Ver. B Published: 2010.11.22
Page: - 6 -/ 8
5. Clearing Memory of All Proximity Cards and PINs
1. Enter programming mode
2. Press＊8 (Right Yellow LED rapid flash)
3. Press 88 (Right Yellow LED stay on, 1 long beep)
4. Press # (1 beep , Right Green LED stay on) back to standby mode
6. Resetting Controller Parameter to Default Value
1. Enter programming mode
2. Enter＊8 (Right Yellow LED rapid flash)
3. Enter 99 (Both left & right Yellow LED stay on, 1 beep)
4. Press # (1 beep , Right Green LED stay on) back to standby mode
7. Adding a Proximity Card and PIN to Relay 1
a.
1. Enter programming mode to select slot position 000~999 (Left Green
LED stay on, Right Yellow LED rapid flash to indicate the slot position is
available)
2. Read new card (1 beep), then press 5-digit PIN 99999(1 beep, Right
Yellow LED stay on).
3. Press # (1 beep Right Green LED stay on) back to standby mode
NOTE: Master codes must NOT be the same as PIN codes.
b.
1. Enter programming mode to select slot position 000~999 (Left Red
LED stay on, Right Yellow LED rapid flash to indicate the slot position
is unavailable)
2. Press＊＊(1 beep), delete the data from the slot position (Left Green
LED stay on, Right Yellow LED rapid flash)
3. Repeat the steps of 7-a to add new card.
8. Adding a Proximity Card and PIN to Relay 2

Copyright © Gianni Industries, Inc. All rights reserved.
P-MU-DG-800 Ver. B Published: 2010.11.22
Page: - 7 -/ 8
a.
1. Enter programming mode
2. Press ＊4 to select slot position 00~09 (Left Green LED stay on, Right
Yellow LED rapid flash to indicate the slot position is available)
3. Read new card (1 beep, Right Yellow LED stay on)
4. Press # (1 beep , Right Green LED stay on) back to standby mode
b.
1. Enter programming mode
2. Press＊4 to select slot position 00~09 (Left Red LED stay on, Right
Yellow LED rapid flash to indicate the slot position is unavailable)
3. Press＊＊(1 beep, Left Green LED stay on, Right Yellow LED rapid
flash)
4. Repeat the steps of 8-a to add new card.
9. Changing Master Code
1. Enter programming mode
2. Press＊3 (Right Yellow LED rapid flash)
3. Enter 5-digit master code twice e.g. 45678 45678 (1 beep, Right Yellow
LED stay on)
4. Press # (1 beep , Right Green LED stay on) back to standby mode
10. Adding a New Master Card to Relay 1
a.
1. Enter programming mode
2. Press＊7 (Left Green LED rapid flash, Right Yellow LED rapid flash to
indicate the slot position is available)
3. Read new card to set as Master Card (1 beep, Right Yellow LED stay
on)
4. Press # (1 beep , Right Green LED stay on) back to standby mode
b.
1. Enter programming mode
2. Press＊7 (Left Green LED stay on, Right Yellow LED rapid flash to
indicate the Master Card had been stored)
3. Press＊＊(1 beep, Left Green LED rapid flash, Right Yellow LED rapid
flash)
4. Repeat the steps of 10-a to add new master card.

Copyright © Gianni Industries, Inc. All rights reserved.
P-MU-DG-800 Ver. B Published: 2010.11.22
Page: - 8 -/ 8
11. Adding New Cards by Master Card
a.
1. Read master card once (1 beep, Right Yellow LED stay on)
2. Enter slot position 001~999 (Left Green LED stay on, Right Yellow
LED rapid flash to indicate the slot position is available
3. Read new card (1 beep), then enter 5-digit PIN 99999 (1 beep, Right
Yellow LED stay on)
4. Press # (1 beep , Right Green LED stay on) back to standby mode
b.
1. Read master card once (1 beep, Right Yellow LED stay on)
2. Enter slot position 001~999 (Left Red LED stay on, Right Yellow LED
rapid flash to indicate the slot position is unavailable)
3. Press＊＊(1 beep, Left Green LED stay on, Right Yellow LED rapid
flash)
4.Repeat the steps of 11-a to add new card.
12. Turning Anti-Tamper Alarm Function ON/OFF
1. Enter programming mode
2. Press＊6 (Right Yellow LED rapid flash)
3. Press 01 (1 beep, Right Yellow LED stay on) – function OFF
Press 02 (1 beep, Right Yellow LED stay on) – function ON
4. Press # (1 beep , Right Green LED stay on) back to standby mode
13. Turning Doorbell Alarm Function ON/OFF
1. Enter programming mode
2. Press＊2 (Right Yellow LED rapid flash)
3. Press 01 (1 beep, Right Yellow LED stay on) – function OFF
Press 02 (1 beep, Right Yellow LED stay on) – function ON
4. Press # (1 beep , Right Green LED stay on) back to standby mode
14. Reseting the Master Code to Default Value
Turn off the power →Press # continuously, and energized (1 beep) the
master code is reset to default value.
