Gianni Industries Mortise Series User manual

Electromagnetic Lock
( Series)
Installation Instruction
Mortise
Specifications
Dimensions
2-1
Model Holding Force Current Drew Optional Bracket Bond Sensor Output
10003M
10000
10000ST
500mA/12VDC
250mA/24VDC AMB-300
AMB-300
600 lbs(272 Kg)
600 lbs(272 Kg)
300 lbs(136 Kg) 300mA/12VDC
250mA/24VDC
500mA/12VDC
250mA/24VDC
10000R
10000STR
Installation Diagram
A M B - 3 0 0 A r m a t u r e B r a c k e t
(optional for model:10000,10000ST)
Fixing Lug
Fixing Screw
Electromagnetic Lock
Armature Plate
Armature Screw
Rubber Washer
Washer
Hexagon Screw
Armature
Mounting Bracket
Sexnut Bolt
Guide Pins
Frame
Sliding Door
Rubber
Washer
The rub b e r w asher m a k es the
armature plate adjustable in order to
reach proper combination with the
magnetic lock.
The actual accessory packs vary by different models.
Copyright © Gianni Industries, Inc. All rights reserved.
P-MU-03M Ver. L Published on: 2012.03.20
200
32
170
24
10
152
32
227
38
19
188
26
12
185
38
230
38
19
187
27
12
185
38
10003M 10000 10000ST
Unit: mm

++
--
Power
UPS
Control
Device
Electromagnetic Locks
Power
Input
Reed
2-2
Important Note
Problem Possible Cause Solution
Door does not lock No power
Poor contact between electromagnet and
armature plate
Low voltage or incorrect voltage setting
A secondary diode was installed across
the electromagnetic lock
Misalignment between the armature plate
and electromagnetic lock
Make sure the wires are connected properly
Check that the power supply is connected and works properly
Make sure the lock switch is wired correctly
Make sure the armature plate is not deformed
Make sure the contact surfaces of the electromagnet and armature plate are clean
and free from dust and foreign material.
Make sure the armature plate and electromagnetic lock are aligned correctly
Make sure the rubber washer was used between the bracket and armature plate
Check the electromagnetic lock is set for the correct voltage.
Check the voltage at the electromagnetic lock input. If low, determine if the
correct wire gauge is being used to prevent excessive voltage drop.
Remove any diode installed across the magnet for "spike"
suppression. (The magnet is fitted with a metal oxide varistor to prevent back EMF)
Low holding force
Sensor output is not functioning
Trouble Shooting

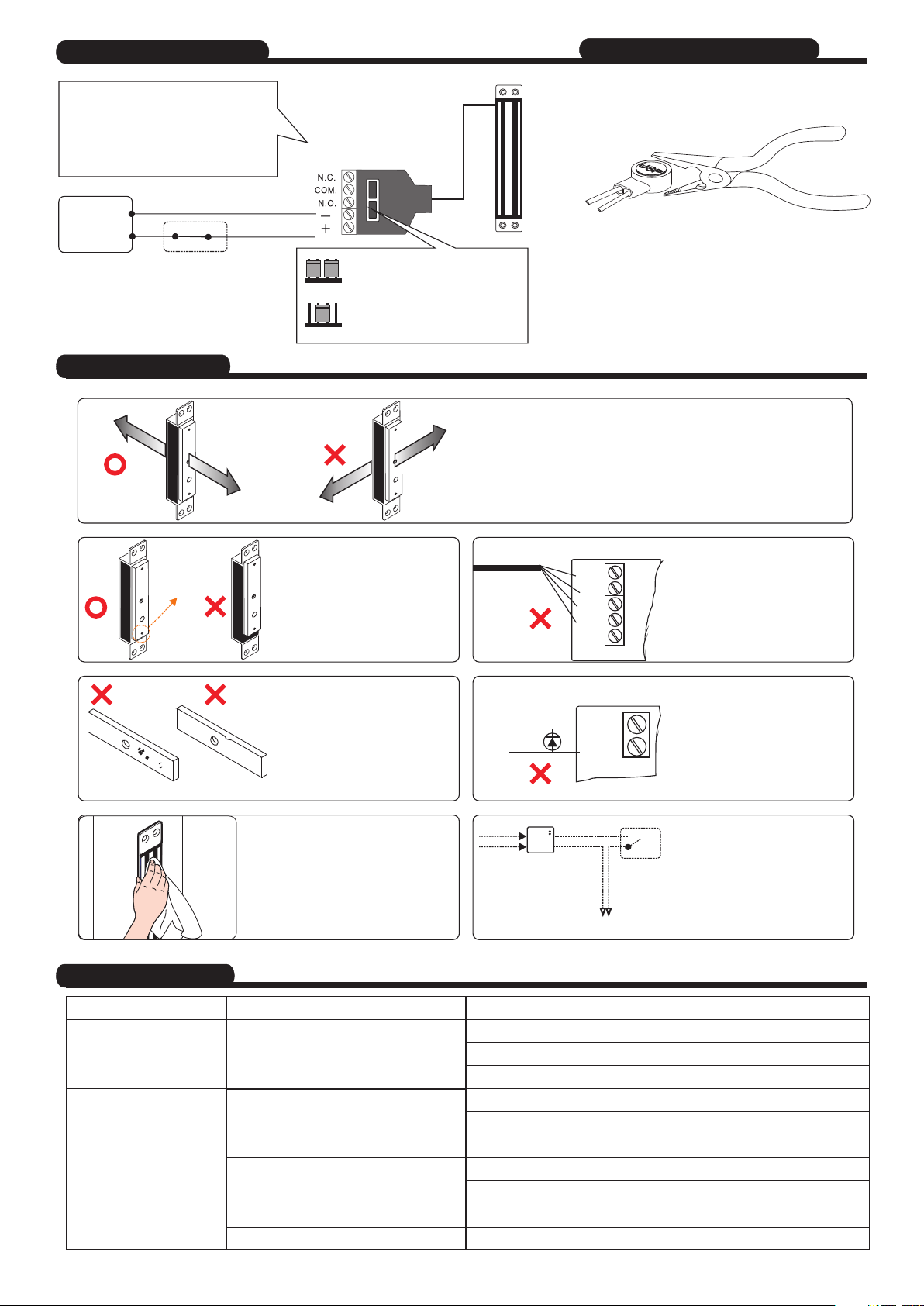

Connecting Diagram
The electromagnetic lock requires a face-to-
face alignment as shown in the Figure.
O t he rw is e , t h e h o ld in g f or ce w i l l b e
decreased to 25%.
Make sure the contact area of the
electromagnetic lock and the
armature plate is correct or the
bond sensor output function will
not work.
Wipe the surface of magnet lock
with anti-rust oil regularly.
+
-
N.O.
COM.
N.C.
Power
Input
Sensor
Output
Do not run power wires and signal
wires in the same cable or conduit.
Remove any diode installed
across the magnetic lock for
spike suppression. The magnet
is built-in with a metal oxide
varistor to prevent back EMF.
Bond sensor output
N.C. contact output: open status
N.O. contact output: locked status
SPDT relay rated: 0.5A/125VAC
1A/24VDC
Models: 10000R , 10000STR
(Polarity Free)
+
-
Power
supply
Control Device
N.C. contact or Access Relay
12VDC
24VDC
Voltage Selection jumpers
Check jumper settings before
connecting the lock to 24 VDC
input power. Damage to the lock
may result from incorrect jumper
settings.
Butt Splice(IDC) Connector
Use crimper or pliers and press the header
of connector down to even position
Dual Voltage Models:
10000,10000R,10000STR
Make sure the contact surfaces
o f t h e e l e c t r o m a g n e t a n d
armature plate are clean and free
from dust and foreign materials.
The electromagnetic locks are
fail safe. Therefore it needs the
p o w e r from U P S to re m a i n
locked during the power failure.
