Gilbarco FlexPay NC3L Wide Instruction Manual

FlexPay NC3L
Wide
71A8463279GB
E03 01/09/2018

FlexPay NC3L Wide Installation and maintenance
ii
COPYR IGHT
The information included in this manual is subject to change depending on the evolution of the product; the
user shall be take care of verify the release before use it.
Gilbarco Italia S.r.l. shall not be liable for incidental or consequential damages resulting from the improper
use of the products, or arising from installation, repair, maintenance by anyone other than authorized
personnel, or from usage of non-original spare parts, improper maintenance or alteration, accident, misuse,
abuse and neglect.
You may not copy or reproduce this manual for any purpose or transfer it to another party without prior
written authorization of Gilbarco Italia S.r.l.
Within this document "Gilbarco Italia S.r.l." could be hereinafter referred to as "Gilbarco".
© Copyright 2018 Gilbarco Iatlia S.r.l. All rights reserved
Gilbarco Italia S.r.l. Via de’ Cattani 220/G 50145 FIRENZE

FlexPay NC3L Wide Installation and maintenance
iii
NOTES
This equipment complies with the following EU applicable for the purpose of CE marking
Low Voltage Directive 2014/35/EU
Electromagnetic Compatibility Directive 2014/30/EU
RoHS Directive (Restriction of Hazardous Subastances Directive) 2011/65/EU
Radio Equipment directive 2014/53/EU
and thus features the CE marking.
This equipment also complies with the applicable requirements of the Measuring Instruments Directive,
2004/22/EC until 04/19/2016 and 2014/32/EU from 04/20/2016, according to the Evaluation Certificate.
Note
This equipment is generally used in Petrol Stations, so it has been evaluated together the dispenser whose it
is a part and it is suitable to be used when properly installed and maintained following the provisions of this
manual.
Please observe that the pictures in this manual show a general version of crind and fuel dispenser.
Details in the delivered model may differ.

FlexPay NC3L Wide Installation and maintenance
iv
WARNING
THE UNIT BEING THE SUBJECT-MATTER OF THIS MANUAL SHALL BE
INSTALLED AND COMMISSIONED BY TRAINED PERSONNEL
Trained personnel means people with the appropriate technical education and
experience required to:
- carry out operations in areas accessible by technical assistance staff,
- be aware of the dangers involved in carrying out the operations, and be instructed
about the measures required to minimise those dangers.
This equipment contains batteries and/or non-rechargeable batteries. This indicates
that these batteries shall be replaced and disposed only by trained personnel
certificated by Gilbarco.
Disposal of the equipment involves the battery removal in accordance with the
provisions laid following the instructions supplied by trained personnel certificated
by Gilbarco.
NOTE
Gilbarco declines all responsibility for any damages to property and/or persons due
to incorrect installation of equipment, incorrect connections or changes made to the
equipment, as well as for damages due to connections with other devices not
described in this manual.
DISCLAIMER
The equipment installed and put into service following the instructions given in this
manual, will operate fully covering the characteristics described here.
Installation and put into service of the equipment in different way from the
instructions given in this manual, but that have followed the local laws, rules and
requirements for installations in Petrol Service Stations and have followed the
provisions about the safety disconnection devices given at chapter “Electrical
Installation” are generally allowed, but the performance may be affected.
DANGER
Before performing any electrical operation make sure that all devices have been
disconnected from the mains power.
Before performing any electrical installing/uninstalling operations, make sure that
also supply lines are isolated from mains by safety disconnection devices.
WARNING
The equipment shall be installed into an electrical system complying with the plant
engineering regulations in force and equipped at least with a 2-pole, 6A, C curve,
MCB differential for each supply line.
The electrical cables used for connections shall comply with the plant engineering
regulations in force, depending on the installation conditions (e.g. indoor or outdoor
underground, in cable duct, etc.) and they shall meet any functional characteristics
prescribed by Gilbarco.

FlexPay NC3L Wide Installation and maintenance
v
TA B LE OF CONTENTS
COPYRIGHT ..................................................................... II
NOTES ...........................................................................III
REVISIONS ...................................................................... 7
1. DEFINITION ............................................................... 8
2. LABELLING ................................................................ 9
3. TER MINAL OVERVIEW ................................................. 11
4. DIMENSIONS ............................................................ 13
4.1. WE IGHT ............................................................... 13
4.2. UNPAC K ING THE NC 3L ............................................ 14
4.3. PLAC EMEN T .......................................................... 14
5. IN ST AL LAT ION IN ST RU C TI ON S ..................................... 15
5.1. INSTA LLA TION OF N C3L .......................................... 16
6. ELECTR ICA L I NST ALL AT IO N.......................................... 21
6.1. P OWER SUP PLY CONN EC T ION ................................... 22
6.2. E THER NET CABL E C ONNE C TION ................................ 23
6.3. CAB L E R OUT ING .................................................... 24

FlexPay NC3L Wide Installation and maintenance
vi
7. DEVICE STARTUP ....................................................... 26
8. MAINTENAN C E ........................................................... 29
8.1. CAR D R EADE R ....................................................... 29
8.2. PR I N TER ZE BRA KR20 3 ........................................... 30
8.3. M7 PLA TFOR M ....................................................... 34
8.4. CLE ANING EX TER NA L .............................................. 37
8.5. AB OU T BAT T ERIES ................................................. 38
9. POWER-ON PROCEDURE FOR T EMPERAT UR ES LOWE R THAN
0 °C ....................................................................... 39
10. CONNEC TI ON S SP EC IFI C AT IO NS ................................... 39
10.1. AC MAIN S ...................................................... 39
10.2. ET HERN ET ..................................................... 39

FlexPay NC3L Wide Installation and maintenance
7
RE V IS IONS
Changes brought to the previous edition 00 dated 20/12/2017
•Terminal overview updated.
•Product name inside texts updated.
Changes brought to the previous edition 01 dated 12/02/2018
•First Official Manual Release
•Terminal overview updated.
•Product name changed, and text updated.
•“Device power on” chapter changed in “Device startup”
Changes brought to the previous edition 02 dated 21/02/2018
•Company name changed from “Gilbarco S.r.l.” to “Gilbarco Italia S.r.l.”.

FlexPay NC3L Wide Installation and maintenance
8
1. DEFIN ITION
NC3L (NordicCard 3 Landscape) is a payment terminal designed for card payment able to read magnetic,
chip and contactless cards, it is mounted directly on fuel dispenser.
NC3L Wide

FlexPay NC3L Wide Installation and maintenance
9
2. LA BELLI NG
1. The unit has an identification plate that contains a label and the information shown below.

FlexPay NC3L Wide Installation and maintenance
10
2. The identification plate can be found inside the cabinet in one of the following areas:

FlexPay NC3L Wide Installation and maintenance
11
3. TE RMI NAL OVERVIEW
PART
DESCRIPTION
1
LCD 12” display
3
Key / Lock
4
Card rearder/Printer door
5
Contactless antenna
6
Card reader inlet
7
Pin pad
8
Cable channel
9
Cabinet
10
Display module door
11
Receipt slot

FlexPay NC3L Wide Installation and maintenance
12
PART
DESCRIPTION
12
Secure gasket
13
Fan
14
Pumps terminal blocks
15
Cable pass through cover
16
Audio/amplifier module
17
M7PS + M7IF boards
18
Touch interface board
19
Display Backlight module
20
TBSP power connection module
21
Ethernet Switch
22
Heater module
23
Power supply
24
Capacitors
26
UX410 contactless main unit
27
Card reader module
28
Power ON switch (one for each side)
29
Printer module

FlexPay NC3L Wide Installation and maintenance
13
4. DIMENSION S
4 . 1 . W E I G H T
NC3L Wide:……………………………………………………………………………………………….......... 50 kg

FlexPay NC3L Wide Installation and maintenance
14

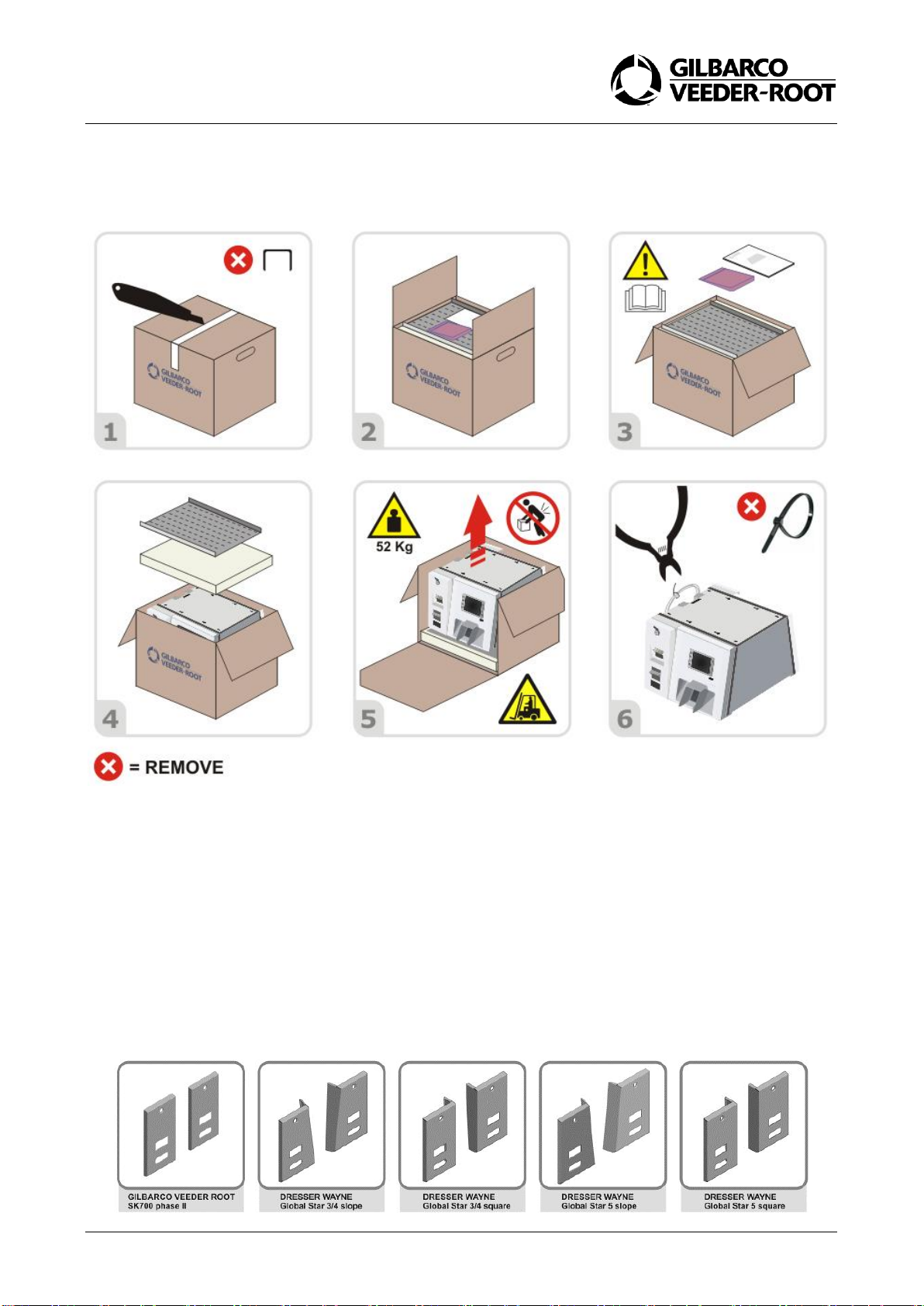

4 . 2 . U N P A C K I N G T H E N C 3 L
4 . 3 . P L A C E M E N T
The placement of NC3L is flexible and requires only little space, since all operative actions are carried out
from the front. Required space in front of the terminal is shown in chapter 3 picture.
NC3L it is mounted directly on fuel dispenser and is available with different version of reader/printer door to
fit on following dispensers:
•Gilbarco SK700 phase II
•Dresser Wayne Global Star 3/4 slope
•Dresser Wayne Global Star 3/4 square
•Dresser Wayne Global Star 5 slope
•Dresser Wayne Global Star 5 square

FlexPay NC3L Wide Installation and maintenance
15
5. IN STA LLA TION INSTRU C TIONS
The installation shall be performed in accordance with security regulations for service stations, issued by
responsible authorities.
All the operations must be done after disconnecting all supply lines and following all suitable procedures to
operate in explosion hazardous areas. Check before installation that the intended location meets this
requirement.
Warning
Installation operations are allowed only when safety conditions
are put in place.
Disconnect all supply lines before starting the installation.
Terminals do not have a safety switch, but such shall be installed in the electrical power centre.
The terminal shall not be modified without written permission from Gilbarco, otherwise the manufacturer’s
product liability will be voided.
Interference is prevented by installing power and communications cables in separate cable ducts.
Remove scrap cables from cable manholes.
The shield of the communications cable is grounded in the master system and shall have an unbroken shield
connection through connection boxes to the terminal.
Warning
Please read “Power-on procedure for temperatures lower than
0°C”chapter before switching on the terminal.

FlexPay NC3L Wide Installation and maintenance
16
5 . 1 . I N S T A LL A T I O N O F N C 3 L
1. Open the computer head doors, the computer head side and bottom panel, the airing panel and the two
side pumps panels. Remove also the cable pass through cover on the NC3L terminal.
2. Pull out all the cables from the inside of the dispenser column to let them pass around of the NC3L
terminal.

FlexPay NC3L Wide Installation and maintenance
17
3. Mount the small size airing panel fastening the screws.
4. Fasten for half length the four M6 screws on the dispenser computer head thread. If there is not any
fixing thread available, fasten the screws with four M6 hexagonal nuts.

FlexPay NC3L Wide Installation and maintenance
18
Warning
Risk of tipping over. High centre of gravity. Some lifts may
require two persons.
5. Insert the four screws head in the keyhole shaped holes of NC3L terminal pushing it upward (1) and then
moving it toward the column (2).
6. Open the reader/printer doors (opening the keyhole cover and turning the key 90° clockwise.

FlexPay NC3L Wide Installation and maintenance
19
Warning
Risk of crushing / pinch hazard.
Open the doors gently. Avoid placing fingers or hands between
the doors when they are moving.
7. Open the pinpad/display unit’s doors turning the key (situated inside the reader/printer unit left top) 90°
clockwise and pulling the safety lever.

FlexPay NC3L Wide Installation and maintenance
20
8. Check that the terminal is lined up with the computer head, then tighten up the four screws inside the
NC3L terminal.
9. For each terminal side follow this sequence: Insert additional two M6 screws with grower washers and
nuts inside the computer head, then tighten up.
