Gima GINEVRA User manual

Gima S.p.A. - Via Marconi, 1 - 20060 Gessate (MI) Italy
[e-mail] - [e-mail]
www.gimaitaly.com
POLTRONA ELEVABILE GINEVRA
GINEVRA LIFT ARMCHAIR
FAUTEUIL ÉLÉVATEUR GINEVRA
SILLÓN DE ELEVACIÓN GINEVRA
Manuale d’uso - User manual
Notice d’utilisation - Manual del usuario
Importato da/Imported by/Importé par/Importado por:
GIMA S.p.A. - Via Marconi, 1 - 20060 Gessate (MI) - Italy
Made in China - www.gimaitaly.com
45180 - 45182 - 45183
M45180-M-Rev.0.02.19
ATTENZIONE: Gli operatori devono leggere
e capire completamente questo manuale
prima di utilizzare il prodotto.
ATTENTION: The operators must carefully
read and completely understand the
present manual
before using the product.
AVIS: Les opérateurs doivent lire
et bien comprendre ce manuel avant
d’utiliser le produit.
ATENCIÓN: Los operadores tienen que
leer y entender completamente este
manual antes de utilizar el producto.

Contents:
Safety------------------------------------------------------------------------------------------1
Specifications--------------------------------------------------------------------------------- 2
Assembly-------------------------------------------------------------------------------------- 3
Placing of the Chair--------------------------------------------------------------------------- 4
Usage------------------------------------------------------------------------------------------5
Product Care and Storage ------------------------------------------------------------------ 6
Introduction:
This is an electrical Lift recliner chair designed to help people to rise easily from the
chair as well as to relax both the body and mind.
Please read the operation manual thoroughly for the correct methods of usage,
especially the notes on Safety.
This manual should be kept available for future reference after you have read it
through.
12
ENGLISH

ENGLISH
13
Safety:
1. Warning
- The chair must be assembled correctly according to the Assembly instruction enclosed.
The manufacturer of the chair, their agents and distributors are not liable for any damages
caused by improper assembly of the chair.
- The chair must be placed on a flat floor level.
- Do not use your Chair in humid or dusty environment, as it may cause electrical shock or
machine trouble. The chair must be in a dry room.
- Do not use your Chair in room temperature higher than 40 degrees.
- Do not expose your Chair to heaters, stoves or direct sunlight.
- Do not use the chair outdoor.
- When the chair is not in use, disconnect the power cord from the main supply to avoid
overheating.
- Do not rest or place any heavy object on the armrest, footrest, back of the chair.
- Do not jump or play on the chair.
- Do not sit or lean on the headrest or arm part of the chair, especially when in recline mode.
- Children must be supervised by an adult when using the lift chair, This chair is not intended
for children.
- Check that the voltage corresponds with the specifications indicated for the chair.
- Electrical connection must be made in accordance with local regulation.
- Do not disconnect the plug from the electrical outlet roughly.
- Do not connect or disconnect the plug from the electrical outlet with wet hands. It may
result in electrical shock or machine troubles.
- When disconnecting the plug, pull it out by holding the plug and not by the cord.
- Do not place the AC/DC adaptor cord under the Chair as it may damage the cord and
result in fire or electrical shock.
- Do not let the AC/DC cord hang down from the chair.
- Do not use the Chair if the AC/DC cord or plug is damaged, or if the electrical outlet is
excessively loose. Contact the professional for inspection.
- If necessary the power cable may be replaced with an identical one, which must only be
replaced by a qualified technician.
- Do not touch the surface of the plug immediately after use, as it can be very hot.
- Do not operate the remote control with wet hands, sharp or heavy objects.
- Do not drop the remote control.
- Do not step or place heavy objects on the remote control wire.
- Do not put your fingers and hands in between the seat and the footrest, when the chair
is reclining or when the chair is returning back from the recline position to sit position. You
may hurt your fingers/hands badly.
- This Chair must be used in accordance with the instruction provided.
- This Chair is not for professional use.
- The manufacturers of this chair, their agents and distributors are not liable for any damages
to person(s) or property(s) resulting from improper and misuse of the Chair.

ENGLISH
Note: All repairing must be done by qualified technician or the After Sales Service.
Caution:
Should you use the Chair in a cold room, do not increase the room temperature
abruptly. It is recommended that you increase temperature gradually to a normal
level. In the event that the Chair is stored in a cold place and is being brought into a
warm place, it is advisable to use it one hour later, This is because its performance
may not be at its optimum level as it may have dew on the mechanical parts. Machine
trouble may be resulted when a cold machine is being used in a warm room suddenly.
2. When the Chair Should Not Be Used
In the following events, please switch the power OFF immediately and disconnect the AC
power cord from the electrical outlet. Contact a professional for servicing.
- If the Chair is accidentally spilt with water. This may result in electrical shock.
- If the upholstery is torn and the inside mechanism are exposed.
- If you detect any main function or other abnormal condition during operation.
- If there is a power failure, injury may be caused when power is restored unexpectedly.
- If there is severe lightning
Note: Check for tears to the Upholstery Cloth regularly
Specification:
Weight - The weight of the chair is 56 kgs
- The maximum weight the chair can bear is 160 kgs
Power - 100~240 V ~ 50/60 Hz 70 W
14

ENGLISH
15
Assembly:
The chair is packed in semi knock down form consisting of the back and the seat. Assemble
the chair according to the instructions given in the Assembly Instruction section.
Assembly Instruction:
Note: DO NOT assemble the chair if any of the parts of the chair are damaged.
Check all parts carefully before assembling the chair. If any problem return to vendor.
Step 1:
The chair is packed into two packages (chair base and chair back). Please remove them and
the accessories bag from the packages.
Step 2:
Take out 4pcs leg levelers and 4sets of wheels from the accessories bag.
a. Install leg levelers on the chair frame. (Figures 1, 2 & 3)
(Figure 1) (Figure 2) (Figure 3)
(Figure 4) (Figure 5) (Figure 6)
b. Install wheels on the chair frame. (Figure 4, 5 & 6)

ENGLISH

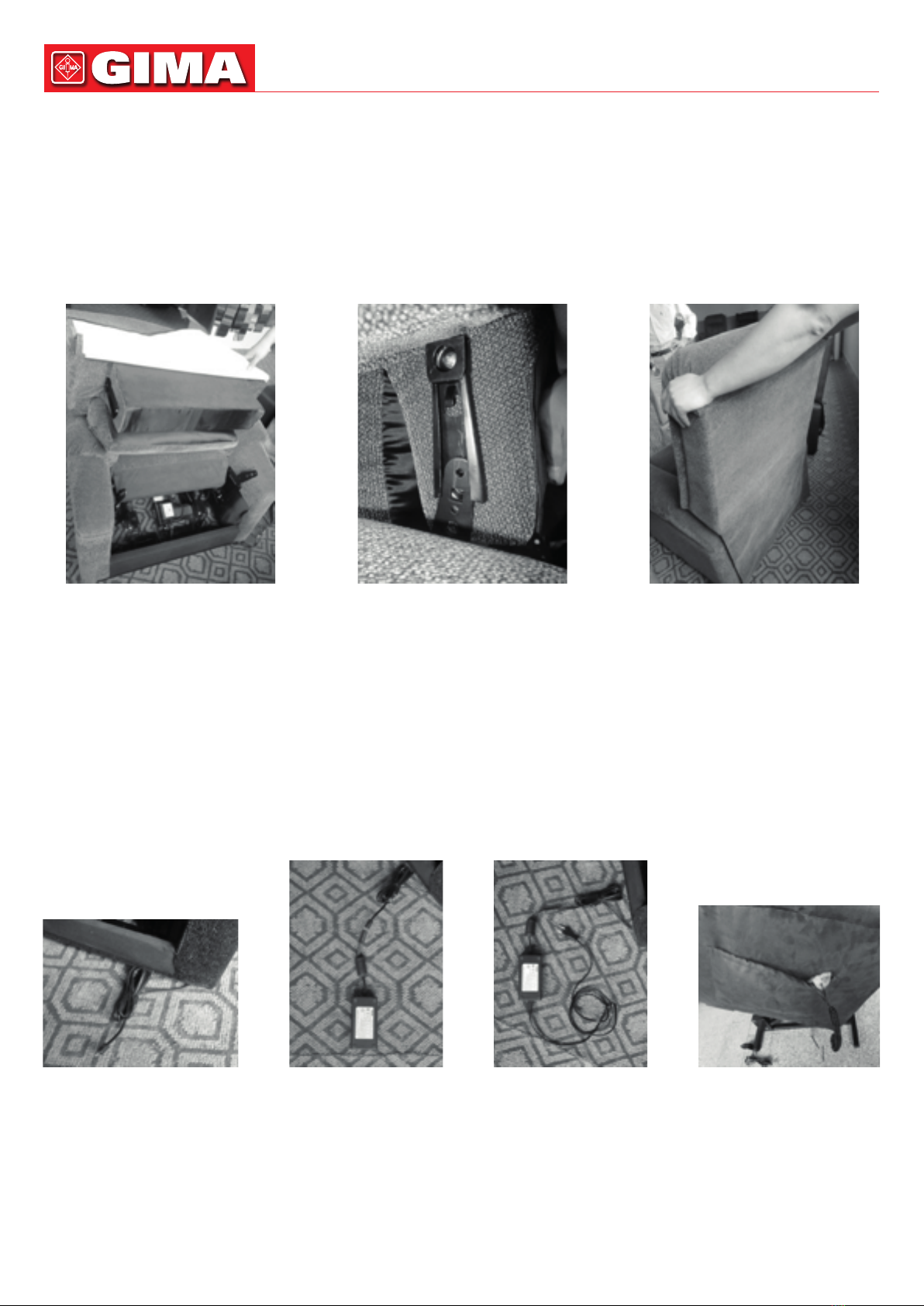

Step 3:
Put the chair back on top of chair base. (Figure 7)
Make sure the metal bracket slips into the metal bracket of the chair base. (Figure 8)
Press the metal brackets until you can hear the “click” sound when the metal bracket is installed
properly. (Figure 9)
(Figure 7) (Figure 8) (Figure 9)
Step 4:
Find the motor wire under the chair base. (Figure 10)
Connect the adaptor with the motor wiring and then connect the plug wiring with the adaptor.
(Figure 11 & 12)
Take the hand control out from the side pocket of the seat. (Figure 13)
The assembly is finished, and you can start to use the lift chair.
Once the chair is assembled as per Assembly Instruction, place the chair on a flat surface in a
dry room. The chair is now ready for use.
(Figura 10) (Figura 11) (Figura 12) (Figura 13)
16

ENGLISH
17
Note: Make sure all the wires are properly connected, if not the chair will not function
properly.
If the external transformer or hand control is damaged, immediately place it in a
plastic bag and call your authorized dealer for instructions on disposal. Recycling is
always recommended. Properly dispose of batteries per manufacturer’s instructions.
Electromagnetic and Radio Frequency Interference (EMI/RFI)
Per EMC standards, this lift chair is suitable for use in all establishments including
domestic establishments and those directly connected to the public low-voltage power
supply network that supplies buildings used for domestic purposes. This product has
passed immunity testing.

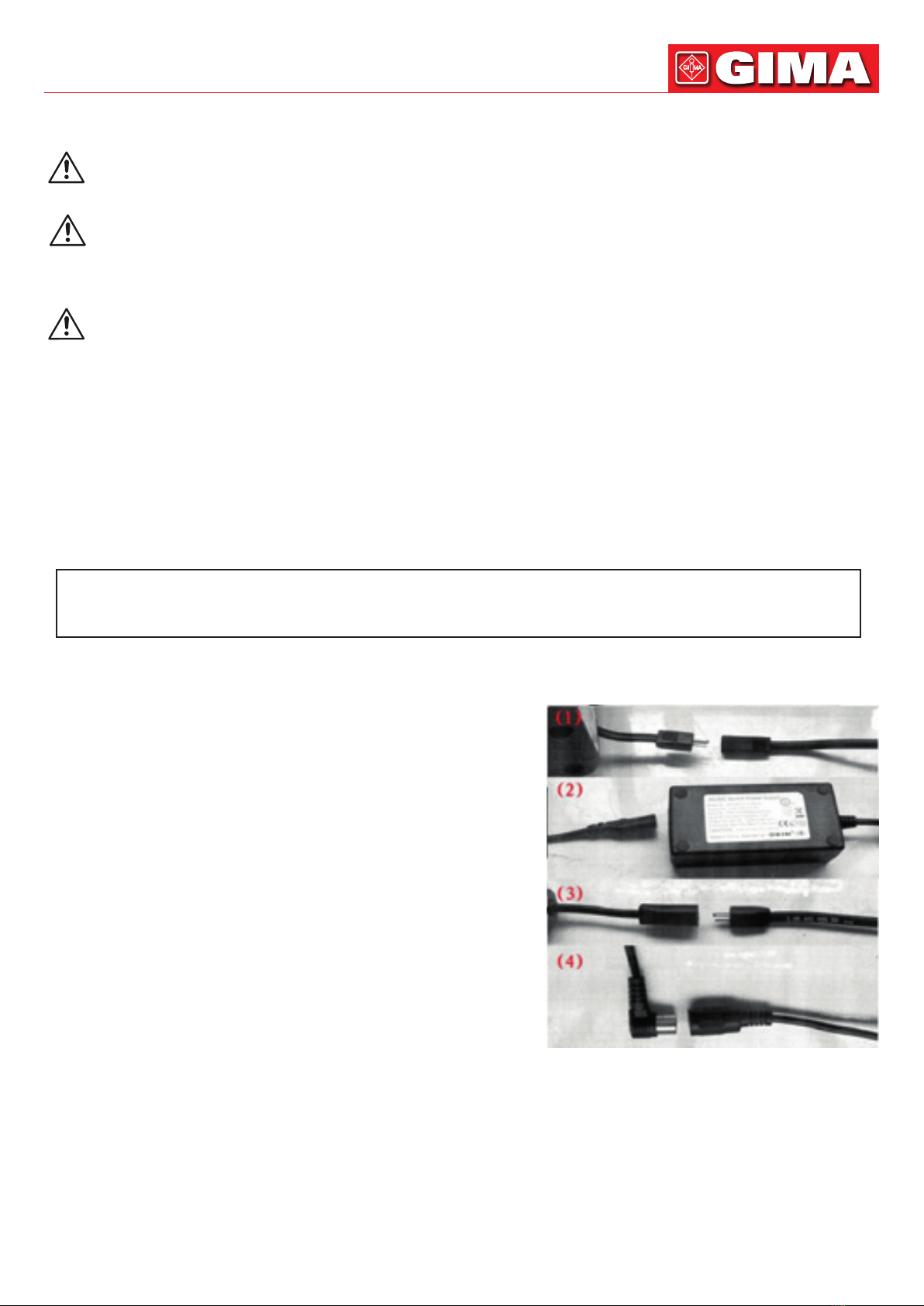

Note: Make sure all the wires are properly connected, if not it will not function properly.
(1). Connector for the motor and wiring
(2). Connector for wiring and adaptor
(3). Connector for adaptor wiring and plug wiring
(4). Connector for the motor and the hand control

ENGLISH

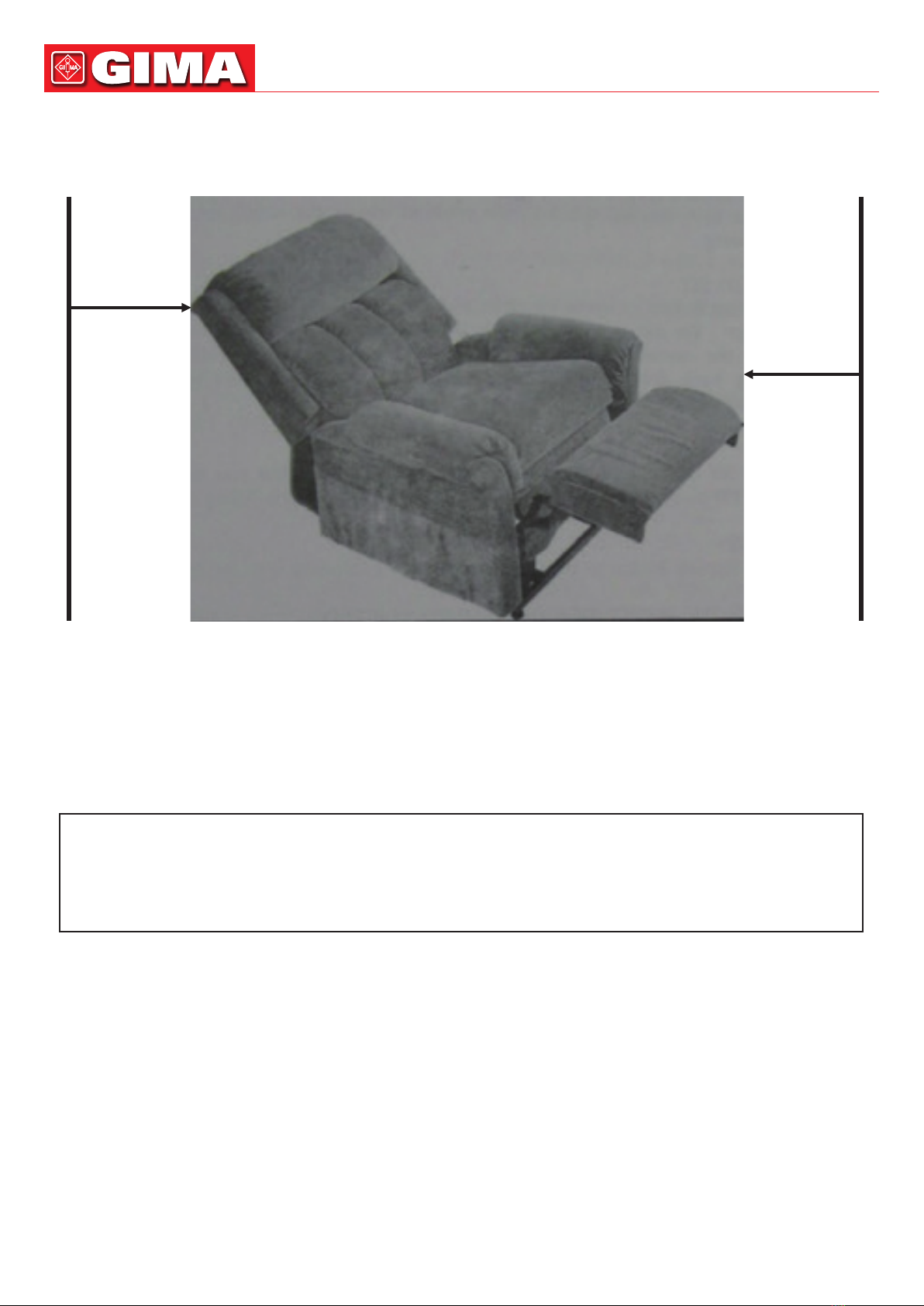

Placing of the Chair:
- Allow sufficient space in front of and behind the chair for reclining purpose.
- Make sure there is an allowance of more than 52cm behind the Chair and more 49cm in front
of the Chair.
- Place the chair on a flat surface/floor in a dry room.
Caution:
- Make sure there is no obstruction behind or in front of the Chair for a safe recline and
lift during operation.
- No finger or object should be placed between the Chair and the Footrest.
Product Care and Storage:
1. How to store
- Wipe the dust and dirt off Keep the Chair clean and away from places of high humidity
- If the Chair is not in use for a long period of time, cover it with a piece of clean cloth to protect
it from dust. Store in a dry room.
- Do not store the Chair under direct sunlight or in places of high temperatures. This may result
in the fading of fabric color.
18
52cm
49cm

ENGLISH
19
2. Self-maintenance
- Before cleaning, ensure that the Main Switch is turned off and AC plug is removed for the
electrical outlet.
3. Main Body
- Synthetic and very mild soap can be used to clean the plastic, pipe and upholstery of the
Chair. Carefully wipe away all traces of the soap with dry cloth.
- To clean a dry spot, dip a piece of soft cloth into some warm soap water, wring the cloth dry,
and apply it to the spot.
- Do not use cleaning agents like benzene or thinner, or any other cleaners which may result in
fading of fabric color and scratching of upholstery.
- Do not remove the upholstery for washing. Ironing of upholstery is strictly prohibited
Remote controller Unit
Use only dry cloth for cleaning of the unit, as usage of wet cloth may result in machine
trouble.

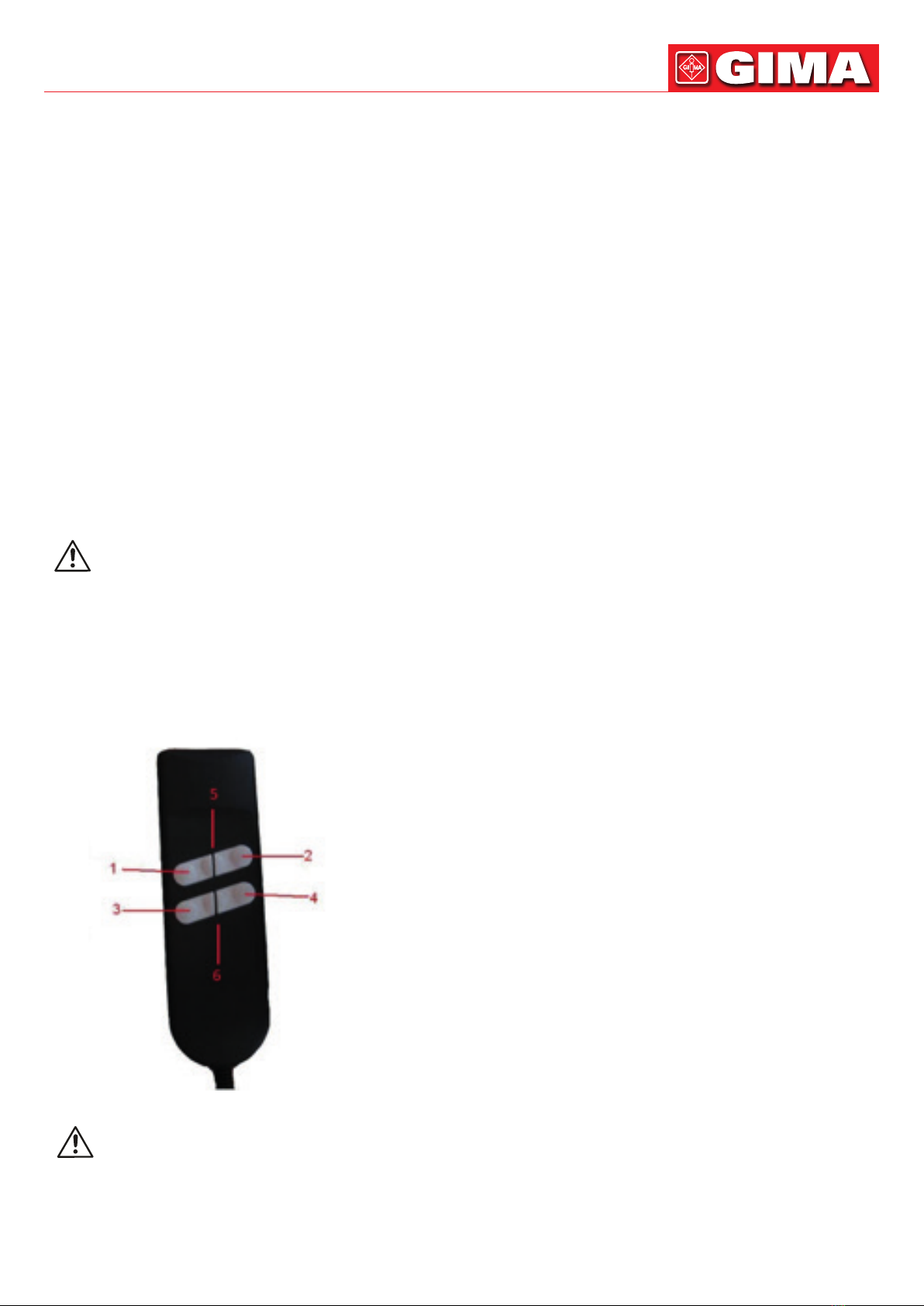

Remote control for lift and recline used only - 2 motors
Pressing the button 1 raises the backrest from the
“relax” position.
Pressing the button 2 raises the chair to the “stand
up” position from the sitting position.
By pressing button 3 from the “sitting” position,
the backrest is lowered.
By pressing button 4 from the “stand up” position,
the chair is lowered and the footrest is raised.
Button 5 raises the backrest and closes the
footrest at the same time.
Button 6 reclines the backrest and raises the
footrest at the same time.
Caution:
If the circuit (controller) doesn’t work well, please contact the supplier.
Don’t repair it by yourself in case of attainting the product. and call the professional to
repair it.

ENGLISH
Symbology:
PRODUCT
REFERENCE / ART. N.
DATE OF MANUFACTURING
LOT NUMBER /
BATCH NUMBER
READ USER MANUAL
CAUTION / WARNING
(READ MANUAL BEFORE USE)
20
PRODUCT COMPLIES WITH
APPLICABLE EUROPEAN
DIRECTIVES
ENVIRONMENT
PROTECTION - Waste electrical
products should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local
Authority or retailer for recycling advice
KEEP DRY KEEP AWAY FROM
SUNLIGHT

ENGLISH
Disposal: The product must not be disposed of along with other domestic
waste. The users must dispose of this equipment by bringing it to a specific
recycling point for electric and electronic equipment. For further information
on recycling points contact the local authorities, the local recycling center or
the shop where the product was purchased. If the equipment is not disposed
of correctly, fines or penalties may be applied in accordance with the national
legislation and regulations.
GIMA WARRANTY CONDITIONS
Congratulations for purchasing a GIMA product. This product meets high
qualitative standards both as regards the material and the production.
The warranty is valid for 12 months from the date of supply of GIMA.
During the period of validity of the warranty, GIMA will repair and/or replace free
of charge all the defected parts due to production reasons.
Labor costs and personnel traveling expenses and packaging not included.
All components subject to wear are not included in the warranty.
The repair or replacement performed during the warranty period shall not extend
the warranty. The warranty is void in the following cases: repairs performed by
unauthorized personnel or with non-original spare parts, defects caused by
negligence or incorrect use.
GIMA cannot be held responsible for malfunctioning on electronic devices or
software due to outside agents such as: voltage changes, electro-magnetic
fields, radio interferences, etc. The warranty is void if the above regulations are
not observed and if the serial code (if available) has been removed,
cancelled or changed. The defected products must be returned only
to the dealer the product was purchased from. Products sent to GIMA
will be rejected.
21
