GIRBAU RMS610 Instruction Manual

Cod. 598144
Rev. 11/0717
Operating Instructions Manual for
VENDED washers
GIRBAU, SA
Crta de Manlleu, km. 1
08500 VIC (Barcelona) • SPAIN
National sales:
T.(+ 34) 902 300 359
[email protected]
International sales:
T.(+ 34) 938 862 219
[email protected]
Service:
T.(+ 34) 902 300 357
[email protected]
www.girbau.es
For USA and CANADA:
CONTINENTAL GIRBAU Inc.
2500 State Road 44
WI 54904 Oshkosh • USA
Tel. [phone]
[email protected]om
www.continentalgirbau.com
EN
COIN
CONTROL
PROFIT PLUS
CONTROL
HS-6/EH
RMS/RMG/REM

Cod. 598144
Rev. 11/0717
Models
High speed
From software
version
HS-6008
45
HS-6013
45
HS-6017
45
HS-6023
45
HS-6024
80
HS-6032
78
EH020
45
EH030
45
EH040
45
EH055
45
EH060
80
EH080
78
EH090
45
Models
Medium speed
From software
version
RMS610
45
RMS/RMG613
80
RMS/RMG617
80
RMS/RMG623
80
RMS/RMG628
80
REM025
45
REM/RMG033
80
REM/RMG040
80
REM/RMG055
80
REM/RMG070
80

Contents 3
Cod. 598144
Rev. 11/0717
CONTENTS......................................................................................................................................................................3
SAFETY INSTRUCTIONS..................................................................................................................................5
1. INTRODUCTION AND APPLICATION..........................................................................................................9
2. DESCRIPTION...............................................................................................................................................9
2.1. Intended use of the washing machine ..................................................................................................9
2.2. Construction characteristics..................................................................................................................9
2.3. Protection, safety and control elements..............................................................................................10
2.4. Safety functions...................................................................................................................................10
2.5. Characteristics of the control...............................................................................................................10
3. MODES OF USE..........................................................................................................................................11
4. PROGRAM EXECUTION MODE.................................................................................................................12

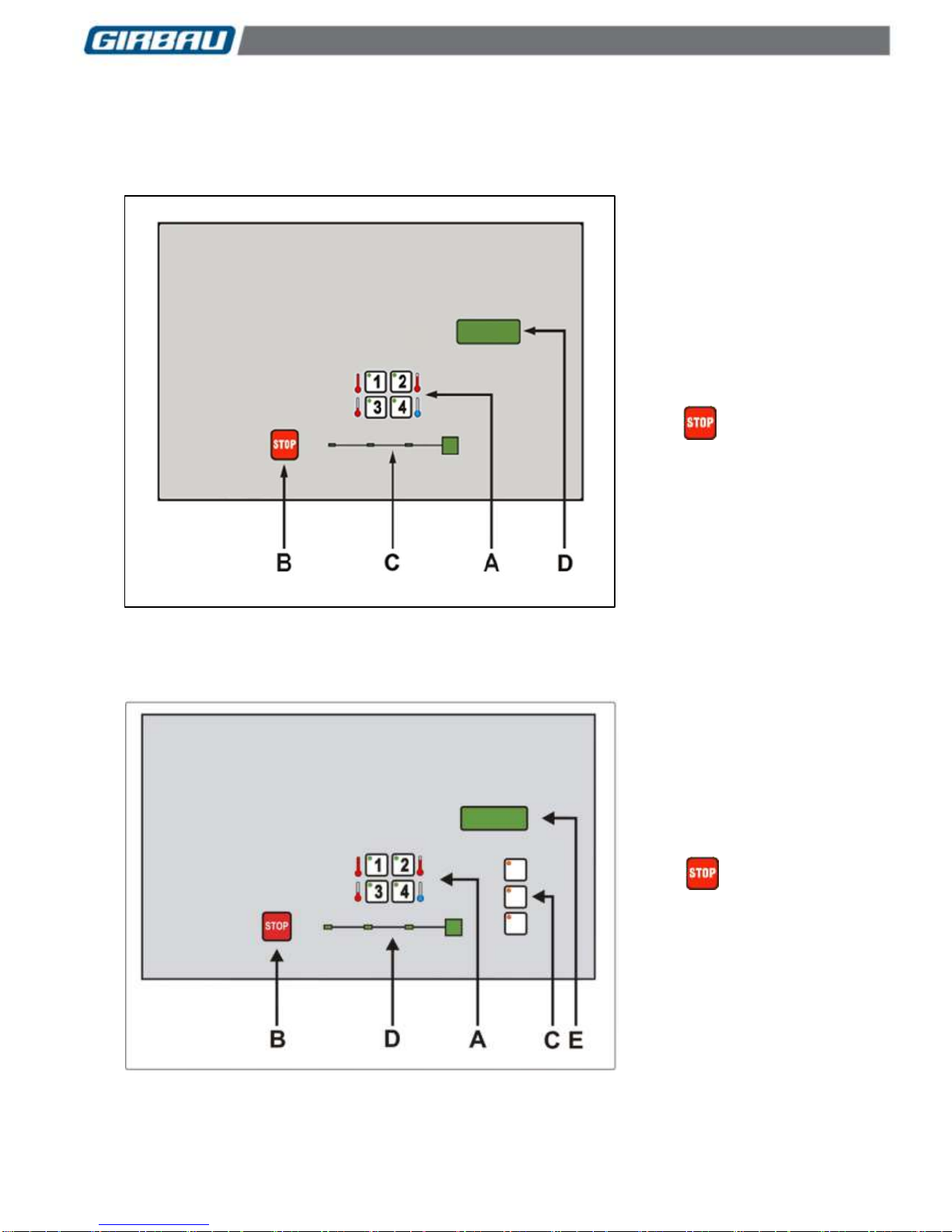

4.1. Control panel.......................................................................................................................................12
4.1.1. Machines with COIN CONTROL..................................................................................................12
4.1.2. Machines with PROFIT PLUS CONTROL ...................................................................................12
4.2. Loading the washing machine ............................................................................................................13

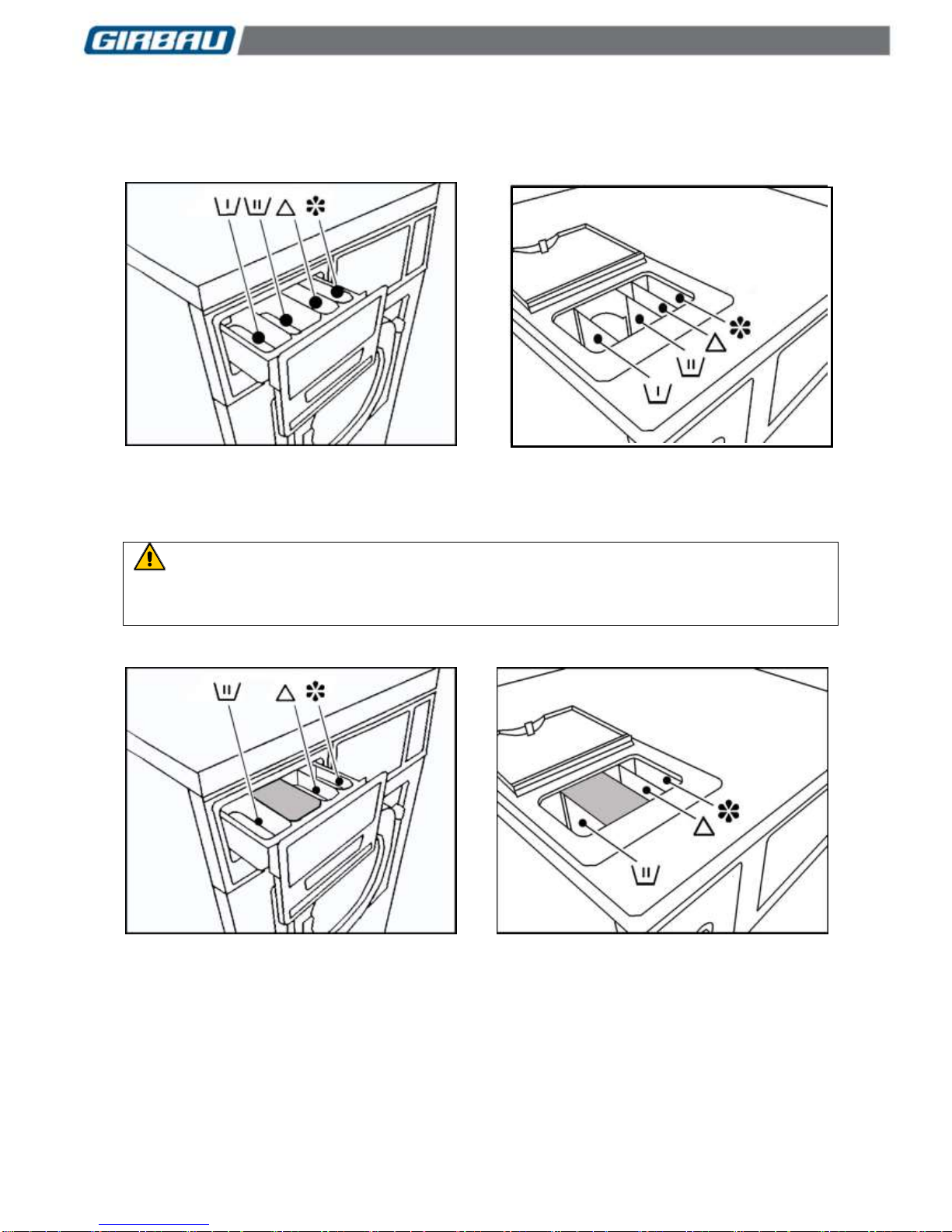

4.3. Using the dispenser ............................................................................................................................14
4.4. Starting a program ..............................................................................................................................16
4.4.1. Machines with COIN CONTROL..................................................................................................16
4.4.2. Machines with PROFIT PLUS CONTROL ...................................................................................16
4.4.3. Door lock ......................................................................................................................................16
4.5. Program application and contents ......................................................................................................17
4.6. Unbalance control...............................................................................................................................18
4.7. Stop modes.........................................................................................................................................19
4.7.1. End of cycle and door opening.....................................................................................................19
4.7.2. Pressing the STOP key................................................................................................................19
4.7.3. Interruption of the power supply...................................................................................................20
5. ADVANCED USE MODE.............................................................................................................................21
5.1. Access to the ADVANCED USE MODE .............................................................................................21
6. MODIFICATION OF THE PROGRAM CONTENTS. Menu Pro..................................................................21
6.1. Master program...................................................................................................................................22
6.2. Original content of the programs.........................................................................................................22
6.2.1. Program contents.........................................................................................................................22
6.2.2. Program contents. USA configuration..........................................................................................23
6.3. Definition of phases.............................................................................................................................24
6.4. Definition of programmable functions and values for each phase......................................................24
6.5. Modifying a program ...........................................................................................................................25
7. OPERATION MODE WITH PROGRAM ACCELERATOR. dEmo Menu...................................................29
8. INFORMATION MENU. InFO menu............................................................................................................29
9. MODIFICATION OF OPERATING PARAMETERS. Mod menu ................................................................30
9.1. Parameters modification .....................................................................................................................30
10. MODIFICATION OF ACCESS CODE TO ADVANCED MODE. NCod menu..........................................34
11. PROGRAM PRICE. CASH Menu..............................................................................................................35
11.1. Single price for each program...........................................................................................................35
11.2. Programs price based on time bands ...............................................................................................35
11.2.1. Hour Menu..................................................................................................................................36
11.2.2. CALE menu................................................................................................................................36
11.2.3. CASH Menu................................................................................................................................37
12. EXTRA OPTIONS MENU. EoPt menu......................................................................................................39
13. TROUBLESHOOTING...............................................................................................................................41
13.1. Freeing a trapped person..................................................................................................................41
13.2. Manually releasing of the safety lock................................................................................................41
13.3. Disassembling the door of the washing machine .............................................................................42
13.4. What to do when …...........................................................................................................................43
13.5. System alarms ..................................................................................................................................44

Contents 4
Cod. 598144
Rev. 11/0717
14. MAINTENANCE.........................................................................................................................................45
14.1. Cleaning the washer .........................................................................................................................45
14.2. Cleaning the door seal......................................................................................................................45
14.3. Cleaning the solenoid valve filters ....................................................................................................46
14.4. Checking safety mechanisms ...........................................................................................................46
14.4.1. Checking the door lock...............................................................................................................46
14.4.2. Verify the general Emergency Stop of the laundry.....................................................................47
14.5. Cleaning the dispenser .....................................................................................................................48
14.5.1. Washers with front dispenser.....................................................................................................48
14.5.2. Washers with top dispenser.......................................................................................................48
14.6. Cleaning the drain pump...................................................................................................................49
14.7. Checking the condition of the bearing housing seals .......................................................................49
14.8. General Overhaul..............................................................................................................................49
15. WITHDRAWING FROM SERVICE ............................................................................................................50

Safety instructions 5
Cod. 598144
Rev. 11/0717
WARNING!
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock or injury to persons when using the machine, follow basic
precautions, including the following:
1. READ all instructions before using the machine, and KEEP them in a prominent location for customer use.
2. Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline,
dry cleaning solvents, and other flammable or explosive substances as they GIVE OFF VAPOURS that
could ignite or explode.
3. DO NOT ADD petrol, dry-cleaning solvents, or other flammable or explosive substances to the wash water.
These substances give off vapours that could ignite or explode.
4. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for
two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such
a period, before using the washing machine, turn on all hot water faucets and let the water flow from each
for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this time.
5. Do not allow children to play on or in the washer. CLOSE SUPERVISION of children is necessary when the
washer is used near children.
6. Before the washer is removed from service or discarded, REMOVE the door.
7. DO NOT TRY TO OPEN THE WASHER’S DOOR if the drum is moving.
8. Do not install or store the washer where it will be exposed to the WEATHER.
9. DO NOT TAMPER with controls.
10. DO NOT REPAIR OR REPLACE any part of the washer or attempt any servicing, unless this is specifically
recommended in the user instructions or in published user-repair instructions that you understand and have
the skills to carry out.
11. DO NOT REMOVE any safety device OR MODIFY OR MANIPULATE any component or part of the
machine. DO NOT INSTALL any extra elements inside the machine.
12. Any part of the machine that is replaced may affect its operation and the user’s safety. For this reason,
USE ONLY THE MANUFACTURER’S ORIGINAL SPARE PARTS. Failure to comply with this warning can
cause serious accidents, malfunctions and the loss of the machine’s guarantee and certifications.
13. Failure to comply with or observe the legislation and regulations covering health, safety and prevention of
risks in the workplace applicable in the country where the machine has been installed, or actions contrary
to common sense, MAY CAUSE personal injury or even death to the user.
14. The machine should only be used for those purposes established by the manufacturer and following the
instructions for use set out in the instruction manuals. Any use not specified in the manuals may lead to
additional risks. Pay special attention to information headed DANGER, WARNING and PRECAUTION.
15. The room where the machine is located MUST comply with the environmental conditions (air venting,
temperature, humidity, etc.) specified in the technical specifications table. NEVER INSTALL THE
MACHINE IN ENVIRONMENTS where it will be splashed with water or where there is a very high level of
humidity in the atmosphere.
16. Clearly mark out danger areas and PREVENT public access to them when the machine is operating. Do
not expose yourself to drainage areas or to vapour, condensation, combustion gas or ventilation outlets.
17. All machines working at temperatures present a fire risk. Take EXTREME care: CLEAN the machine of
inflammable materials: lint, fluff, soot, etc. on a regular basis. KEEP the environment free of combustible
materials and PLACE suitable extinguishers near the machine in easily accessible places.

Safety instructions 6
Cod. 598144
Rev. 11/0717
18. All installations required for the proper operation of the machine MUST be carried out by a duly accredited
Registered Installation Contractors (see Note 3), in compliance with the legal regulations applicable in the
country of use.
19. The machine MUST be commissioned by the Authorised Technical Service in the presence of the
Customer Technical Service (see Notes 2 and 4) or a responsible person appointed by the customer.
20. This machine MUST BE USED by personnel who are properly trained in how to use it (see Note 1).
21. NEVER START THE MACHINE, OR USE IT, IF THE FOLLOWING ARE ABSENT, INCORRECTLY
POSITIONED OR MALFUNCTIONING:
COVERS (GUARDS) AND PROTECTIVE DEVICES
SAFETY DEVICES
CONTROL ELEMENTS
22. DO NOT USE the machine if you notice any abnormal noise or smell or if you suspect that the machine is
faulty or defective.
23. The inspections required by the regulations applicable to the country where the machine is being used
must be carried out. It is advisable to request an overall, detailed service of the machine by the Authorised
Technical Service every year (see Note 2).
24. WARNING!
INSPECTION, MAINTENANCE OR REPAIR OPERATIONS
Before carrying out any action on the machine:
Close and mechanically lock the manual fluid supply valves.
Check that the bath has COMPLETELY drained, that no part of the machine is at a high temperature
and that no circuits or containers are under pressure.
Check that all the machine’s moving parts are halted or in their rest position. Securely fix all the
machine’s moving parts that could cause an accident.
To reduce the risk of electric shock:
COMPLETELY disconnect the machine from the mains power supply and take steps to prevent
accidental reconnection. TURNING OFF THE ON SWITCH OR PRESSING THE STOP KEY IS NOT
ENOUGH.
Disconnect the electrical connection of any circuit external to the machine; for example external dosing
equipment, central vending units, linen feeders or folders, etc. The electrical connection for these circuits
is independent of the machine’s electrical connection.
To prevent the risk of electrical discharge caused by residual voltage, wait at least five minutes before
removing any guard or cover from the machine.
Failure to follow these warnings may cause a serious accident.
25. CONTACT the Installation Contractors or the Authorised Technical Service (see Notes 3 and 2) in the
event of any doubt, anomaly or problem.
26. It is advisable to copy and enlarge the SAFETY INSTRUCTIONS and place them in a visible place in the
laundry.
27. THE MANUFACTURER ACCEPTS NO RESPONSIBILITY IF THESE SAFETY INSTRUCTIONS AND
ALL THE INFORMATION IN THE CORRESPONDING MANUALS ARE NOT FOLLOWED.
SAVE THIS INSTRUCTIONS.

Safety instructions 7
Cod. 598144
Rev. 11/0717
SYMBOLS USED IN MACHINE LABELLING
Electrical risk
Protective guard for elements carrying
an electric current.
High temperature risk
Handle with caution.
Use adequate protection.
Mechanical risk
Protective guard for moving parts.
Risk of inhaling harmful or irritant
vapours
Keep the doors/covers closed.
Use adequate protection.
Flame risk (only on some machines)
Protective guard for flame.
Risk of falling
Use proper access and safety methods.
Access prohibited
Refer to instruction manual/booklet
SYMBOLS USED IN THIS MANUAL
Symbol used to highlight a possible
HAZARD, WARNING or NOTE.
This symbol is used to emphasise a
particular explanation.
TRANSLATION OF THE ORIGINAL MANUAL
NOTES:
(1) Trained personnel refers to those who have read and understood the Instruction Manual, who have been trained by the Authorised
Technical Service or by a representative of the customer present at the start-up who is familiar with the operation of the machine and is
authorised to use it.
(2) Authorised Technical Service (ATS) is one that has been recognised under contract and properly trained by the manufacturer.
(3) Registered Installation Contractors are those officially approved by the government of the country the machine is to be installed.
(4) Customer Technical Service (CTS) is one that has been authorised by the customer and which has sufficient basic technical knowledge
to correctly interpret and carry out the actions attributed to it in this manual. The manufacturer strongly recommends that the customer
should have its own technical service, particularly in laundries with large-scale machinery installations.

Safety instructions 8
Cod. 598144
Rev. 11/0717
IMPORTANT INSTRUCTIONS FOR USE AND PRESERVATION
1. INTENDED USE OF THE MACHINE AND INAPPROPRIATE USE. This machine is designed and intended
solely for processing fabrics washed in a water bath or that have been previously treated in these
conditions. Any use other than this is contraindicated without written authorisation from the manufacturer.
2. Maximum output, performance, reliability and durability are achieved when the machine is installed, used
and maintained correctly, and if a comprehensive and detailed service is carried out annually by the
Authorised Technical Service.
3. The machine’s MATERIALS that are in direct contact with the chemical products involved in treating the
linen are detailed in the manual.
4. The user must consult the supplier of the chemical products USED THROUGHOUT THE WHOLE LINEN
TREATMENT PROCESS regarding the risks associated with its products and their combination. It must be
confirmed that the products are not flammable, ARE MUTUALLY COMPATIBLE, and that they will not
cause oxidisation or deterioration of the machine or any injury to the people using them.
It should be borne in mind that in certain conditions of use, hypochlorite (bleach) can generate chlorine gas.
Chlorine is a corrosive and oxidising substance which, at high concentrations and temperature, deteriorates
stainless steel and elastomers.
There are other highly oxidising agents, such as the ozone, that can have the same effect.
5. FOLLOW the treatment recommendations for each fabric indicated by its manufacturer. THE
MANUFACTURER OF THE MACHINE accepts no responsibility for damage caused by inappropriate
treatment of a fabric.
6. Periodically CLEAN the outside of the machine to prevent damage to its metal parts. This will improve
safety and extend its life. To clean the machine, use water and detergent. Rinse with a damp cloth and
then dry off. To remove accumulated lint, use a suitable vacuum cleaner. Cleaning with water jets or
pressurised steam is prohibited.
7. NEVER use harsh products to clean the machine and laundry room. Some products on the market give off
highly corrosive gases.
8. If machine is left idle for long periods of time, it must be PROTECTED from humidity and temperature
variations.
9. Faults arising from improper machine operation may VOID THE WARRANTY.
10. When asking for information on your machine, MENTION the model and serial number. This information
can be found on the specification nameplate incorporated into the machine.
With every machine, the manufacturer provides all the necessary technical information and documents required
for its use. KEEP IT IN GOOD CONDITION.

Description 9
Cod. 598144
Rev. 11/0717
1. INTRODUCTION AND APPLICATION
This manual contains the OPERATION and ADVANCED USE MODE instructions for washing machines with
COIN CONTROL system with or without extra options.
Application
This manual applies to the following models:
HS, EH, RMS610, REM025 models with software version 31 or higher
RMS, RMG and REM models with software version 65 or higher
2. DESCRIPTION
Washer extractor designed to wash or treat fabric in a water bath.
Control designed primarily for use in coin-op laundries.
2.1. Intended use of the washing machine
This machine has been made and designed for washing or treating textile materials in a water bath. These textile
materials must be free of flammable or explosive products. Unless approved by the manufacturer in writing, it is
not considered appropriate for any other use.
Under-loading as well as overloading is not recommended. Always endeavour to match the capacity of the
machine.
It is not advisable to insert bags full of laundry. Where necessary, load the machine up to its set limit.
It is not recommended to spin carpeting, canvas or waterproof fabrics.
2.2. Construction characteristics
HIGH SPEED MODELS (HS / EH). Washing machines capable of spinning at a speed higher than 350G
(280G in model HS-6008/EH020) and up to 400G without needing to be bolted down. The design of its
suspension system cushions up to 95% of the vibrations produced during the spin cycle.
MEDIUM SPEED MODELS (RMS/REM/RMG). Hard-mount construction. They have to be bolted down to
the floor.
- Approximate spin speed: 125G, 150G, on models RMS, REM.
- Spin speed: 200G on models RMG.
Stainless steel inner and outer drum. The openings in the drum blades promote the uniform distribution of
bath water and improve the yield of the washer both during the wash and the rinse cycles.
The drum rotation is produced by an asynchronous AC motor controlled by an inverter.
The hot and cold water connections have a safety mechanism to prevent contaminating by back-flowing
into the general drinking water system.
Large capacity drain valve. (Option for pump drainage in models HS-6008/EH020).
Water inlets and all product dispensers made using a common collector with an anti-siphon mechanism.
Option for heating the bath using electric heaters or steam injection.

Description 10
Cod. 598144
Rev. 11/0717
2.3. Protection, safety and control elements
Fixed guards: Covers. These prevent access to dangerous points or moving parts. Protect from accidental
machine spattering.
Moving guards:
- Dispenser cover.
- Door with interlock microswitch, door lock and delayed opening.
Overflow. When the bath level is exceeded duet to solenoid valve failure, the bath is drained through the
drain outlet.
Thermal fuse to protect the electric heaters.
Electric circuit safety measures: To protect the electric circuit against external malfunctions and prevent
any malfunctioning from causing harm to the operator.
Sound alarm: Among other functions, the acoustic signal warns of possible alarms.
Unbalance microswitch. (Only in high speed models). Additional electromechanical safety to protect
against unbalance of drum load during the spin cycle.
2.4. Safety functions
Bath level control. Allows selecting different bath levels during the wash cycle and controls the overflow
safety and minim level of connection to the heating system and door opening.
Temperature control. Allows selecting the bath temperature during the wash cycle and controls the bath
insufficient temperature and overheat safeties.
Unbalance control.Repositioning of the washer's load if the inverter power control detects unbalance.
Door opening safety. Allows the opening of the door in safety conditions.
Safety measures against entrapment. To reduce the risk of a child becoming trapped inside a washing
machine while playing, or to help in freeing them during the first moments of launching a program, the
running sequence of a wash cycle is as follows:
After giving the start order, a 30-second safety time is started during which the drum rotation and the water
inlet operate at short impulses and door remains released. Further information in Sections: Freeing a trapped
person (Chapter 9) and Stopping methods (Chapter 4).
2.5. Characteristics of the control
Operation of the washer controlled by microprocessor.
Operation of the washer adaptable to the possibilities of the installation and the needs of the user. Designed
primarily for use in coin-op laundries.
Great versatility in individually modifying the content of each program. Further information in specific sections
of the ADVANCED USE MODE.
Temperature control in the wash phase achieved by the hot and cold water mixer in accordance with the
programmed temperature and the activation of the heating system. Precision of +/- 2 ºC (+/- 3.5 ºF).
Level control achieved using an electronic pressure transmitter.
Series communication between the washer microprocessor and the inverter’s control of the motor.
Multiple controls that assure the safe use of the washer.
Washing programs: availability of 4 pre-programmed programs. Each program allows for: pre-wash, wash
with a maximum temperature of 80 ºC and four rinse phases with a final spin at high speed.
The programs are activated by the introduction of coins or tokens into the washing machine’s meter o by a
signal from the central vending point.
Programming programs price. Option for automatically changing the prices for each program depending on
time period and day of the week.
Executed individual program counters.

Modes of use 11
Cod. 598144
Rev. 11/0717
3. MODES OF USE
The COIN CONTROL has TWO MODES OF USE.
PROGRAM EXECUTION MODE
This mode groups together the functions or actions aimed at selecting and executing the different wash
programs.
Information regarding this intervention mode: chapter 4 of this manual.
ADVANCED USE MODE
Covers the functions or interventions aimed at:
Modifying or displaying the content of the washing programs.
Consult the software version for the washer and the contents of the different program meters.
Modifying the general operating parameters.
Modifying the access code for ADVANCED USE MODE.
Setting the time of the system clock (optional).
Managing programs price.
Information regarding this intervention mode: From Chapter 5.

Program execution mode 12
Cod. 598144
Rev. 11/0717
4. PROGRAM EXECUTION MODE
4.1. Control panel
4.1.1. Machines with COIN CONTROL
Fig. 4.1
KEYS
A: Washing program selection
keys.
Each key corresponds to a
program. The selection of a
program is indicated by the
LED associated with the key.
B: The key: Program stop.
INDICATOR LIGHTS for a
program’s start sequence:
C: Phase of the program in
progress
D: Display
4.1.2. Machines with PROFIT PLUS CONTROL
Fig. 4.2
KEYS
A: Washing program selection
keys.
Each key corresponds to a
program. The selection of a
program is registered by the LED
associated to the key.
B: The key: Program stop.
C: Keys for selecting the extra
options
INDICATOR LIGHTS for a
program’s start sequence:
D: Phase of the program in
progress
E: Display

Program execution mode 13
Cod. 598144
Rev. 11/0717
SPECIFIC KEYBOARD FOR KOREA
The washing machines for Korea have a keyboard with the following special features:
COIN CONTROL keyboard:
The 1, 2 and 4 keys are coloured black.
The C, D and F LEDs and the LEDs associated with the 1, 2, 3 and 4 keys are not visible.
PROFIT PLUS CONTROL keyboard:
The 1, 2, 3 and 4 keys are coloured black.
The C, D and F LEDs and the LEDs associated with the 1, 2, 3 and 4 keys are not visible.
MAIN REPORTS that appear on the display:
REPORT
MEANING
door
Washer with door open. Machine ready to start a program
SEL
Indicates program selection
Pr-*
Program selected
C** / F***
Bath temperature (machines with heating)
8888
Program price
Minutes remaining in the program
End
End of program. Door unlocked. Machine in idle mode
4.2. Loading the washing machine
Group the fabrics to be washed into homogeneous loads, attempting wherever possible to reach the nominal
value of the load.
Empty all pockets, fasten buttons, close zippers and remove accessories that are not machine-washable.
Mixing whites with other colours is not recommended.
Open the door and load the machine. The LED of washer loading and program selection blinks.
Washer load recommendations according to the type of fabric to be washed:
Cotton fabrics: nominal load
Synthetic fabrics: between 80% & 90% of nominal load
Delicate fabrics: between 35% & 50% of nominal load
Do not overload the machine; the door must be able to close easily.
Whilst the door is open, the display reads door, indicating that the door must be closed in order for the program
to begin.
Health and safety instructions for loading and unloading the washer
Installing washing machines on raised bases, in accordance with the instructions set out in the corresponding
installation manuals, aids in loading and unloading the machine by avoiding the need to adopt awkward
positions.
Use linen collecting and transporting containers that are of a suitable height for the washer size. Consult the
dimensions of the washers set out in the corresponding installation manual.
Take care not to overload the machine. Overloading the washer leads to excessive strain when processing the
linen.
Certain chemical products that are used in the washing process are toxic. Handle them with care and wear
appropriate protection.
Follow the legislation and regulations for Health and Safety in the Workplace in force in the country where the
machine has been installed.

Program execution mode 14
Cod. 598144
Rev. 11/0717
4.3. Using the dispenser
HS, RMS and RMG models
Fig. 4.3 Fig. 4.4
Washing machines models EH, REM, RMG (USA/CANADA)
WASHING MACHINES WITHOUT PRE-WASH PHASE
To avoid clogging the dispenser, products are prevented from being added in the unused
compartments (Fig. 4.5 and 4.6). It is important to warn the operator about the correct use of the
dispenser.
Fig.4.5 Fig.4.6

Program execution mode 15
Cod. 598144
Rev. 11/0717
Fill the compartments with the corresponding products, according to these symbols.
Symbols used in the dispenser (Fig. 4.2, 4.3, 4.4 and 4.5)
FUNCTION
PROGRAMMING
Powdered detergent. Normally used in the pre-wash phase
d1
Powdered detergent. Normally used in the wash phase
d2
Liquid product. Normally used for bleaching (chloride, bleach, etc.)
d3
Liquid product. Normally used as a softener/neutraliser
d4
IN ORDER TO OPERATE CORRECTLY AND TO PREVENT POSSIBLE DAMAGE AND SPLASHING,
THE DISPENSER DRAWER MUST ALWAYS REMAIN CLOSED, EXCEPT WHEN ADDING
PRODUCTS.
SUDS CONTROL
The mechanical action of front-loading washing machines improves the quality of the wash but
encourages the creation of suds.
Remember that a suds bath always reduces the efficiency of your wash. ALWAYS USE
CONTROLLED SUDS DETERGENT.
Oversudsing causes an increase in the pressure inside the machine and decreases the efficiency of
the sealing systems.
Repeated washing with a large amount of suds considerably reduces the life of seals and bearings.
THIS CIRCUMSTANCE IS NOT COVERED BY THE MACHINE’S WARRANTY.

Program execution mode 16
Cod. 598144
Rev. 11/0717
4.4. Starting a program
4.4.1. Machines with COIN CONTROL
Close the door of the washing machine. SEL report displayed.
Place the washing products in the dispenser and close it (refer to section 4.3).
Select the desired program by pressing the corresponding keys. (For information on the characteristics of
each program, refer to section 4.5: Wash Programs). The selected program will be shown on the display.
The LED associated with the selected program key will light up.
The price for the program or the number of tokens to be inserted will be displayed, and the LED will light up,
indicating that the payment must be made for the program.
Insert the coins or tokens requested. The display will show the price or the number of tokens left to start the
selected program.
It is possible to change the selected programme while inserting the coins or tokens. The price of the
program adapts according to the new selection and the value of the coins or the number of tokens
introduced will remain in the memory. The newly selected program will be displayed on the LED relating to
the key.
Once all the coins or tokens have been inserted, the selected wash program will start.
4.4.2. Machines with PROFIT PLUS CONTROL
Close the door of the washing machine. SEL report displayed.
Place the washing products in the dispenser and close it (refer to section 4.3).
Select the desired program by pressing the corresponding keys. (For information on the characteristics of
each program, refer to section 4.5: Wash Programs). The selected program will be shown on the display.
The LED associated with the key for the program selected will light up, and the price for the program or the
number of tokens to be inserted will be displayed.
Select the extra options you want by pressing the corresponding key. The LED for the option selected will
light up and stay lit, and the price will be updated to the new selection.
Insert the coins or tokens requested. The display will show the price or the number of tokens left to start the
selected program.
It is possible to change the selected program and/or extra options while inserting the coins or tokens. The
price of the program adapts according to the new selection and the value of the coins or the number of
tokens introduced will remain in the memory. The newly selected program will be displayed on the LED
relating to the key.
Once all the coins or tokens have been inserted, the selected wash program will start.
4.4.3. Door lock
Door lock. After giving the start order, a 30-second safety time is started during which the drum rotation
and the water inlet operate at short impulses and door remains released. At the end of this time, the locking
mechanism closes and the wash cycle begins.
Throughout the program’s duration, the door remains locked until the LED indicating the end of the program
lights.
Risk of entrapment
To avoid the risk that, while playing, a child gets entrapped inside a washer IT IS CAUTIONED THAT:
After giving the start order, a 30-second safety time is started during which the drum rotation and the
water inlet operate at short impulses and door remains released.

Program execution mode 17
Cod. 598144
Rev. 11/0717
DOOR FITTED WITH SAFETY LOCK
Never attempt to open the door if:
the program has not finished.
the drum has not come to a complete halt.
the bath has not been completely evacuated.
4.5. Program application and contents
In the default configuration, the program content is defined as indicated in the following charts:
General application programs
HS, RMS and RMG models
PROGRAM
WASH
RINSES
FINAL SPIN
No.
icon
application
estimated
time
rotation
ºC
min
No.
type
min
1
HEAVY SOILED
Cotton. Very dirty
poly-cotton
31 min
heavy
duty
50
10
3


high
6
2
SOILED
Cotton. Poly-cotton.
with normal soiling
31 min
heavy
duty
40
10
3


high
6
3
NORMAL
Poly-cotton.
Synthetics
with normal soiling
29 min
heavy
duty
30
8
3


high
6
4
DELICATE
Wool. Synthetics.
Mixture
26 min
normal
20
10
3


mediu
m
3
USA / CANADA programs
EH, REM and RMG models. SP-0
PROGRAM
WASH
RINSES
FINAL SPIN
No.
application
estimated
time
rotation
ºF / ºC
min
No.
type
min
1
SUPER WASH
Heavy soil
22 min
heavy
duty
90 / 32
7
2


high
6
2
HOT
White
19 min
heavy
duty
90 / 32
4
2


high
6
3
WARM
Color-fast. Perm press
19 min
heavy
duty
82 / 28
4
2


high
6
4
COLD
Colors.Normal
19 min
normal
32 / 00
4
2


high
6

Program execution mode 18
Cod. 598144
Rev. 11/0717
USA / CANADA programs
EH020 and REM025 models. SP-1, SP-2, SP-3
Other EH, REM and RMG models.SP-1
PROGRAM
WASH
RINSES
FINAL SPIN
No.
application
estimated
time
rotation
ºF / ºC
min
No.
type
min
1
SUPER WASH
Heavy soil
26 min
heavy
duty
113 / 45
7
3


high
6
2
HOT
White
23 min
heavy
duty
104 / 40
7
2


high
6
3
WARM
Color-fast. Perm press
23 min
heavy
duty
86 / 30
7
2


high
6
4
COLD
Colors.Normal
21 min
normal
68 / 20
7
2


mediu
m
4
AREA OF USE JPN in CONFIGURATION menu
Program contents
CP option OFF (CP-0) in the MACHINE CONFIGURATION menu.
The content of the four programs is the same as in the Programs for general application configuration -
HS, RMS and RMG models.
CP option ON (CP-I) in the MACHINE CONFIGURATION menu.
The content of the first three programs is the same as in the Programs for general application
configuration - HS, RMS and RMG models.
Program 4 transforms into a program of very short duration (less than 2 minutes), designed for washing
the machine’s drum before loading the clothes for a wash cycle.
The values of the DRUM CLEANING program cannot be modified, except for the bath level, which will
be the level programmed in Phase 6 of this program.
See Sections 6.1 and 6.2 for further information.
4.6. Unbalance control
Before starting the spin, the washing machine’s electronic control checks the correct distribution of the load.
If it detects that the load is not well distributed and that can cause an excessive unbalance during the spin, a new
positioning of the clothes will be carried out.
If there’s still unbalance during the spin of the last phase, the washer can end the washing cycle reducing the
spin speed. If this is the situation, the report End/bAL will be showed alter the delay of the door opening.
Unbalance control with a micro-switch. Activates only in cases of extreme unbalance.
To improve the efficiency of the washer’s spin, it is advisable to:
Load the washer until its nominal value
Load the washer with homogeneous loads

Program execution mode 19
Cod. 598144
Rev. 11/0717
4.7. Stop modes
4.7.1. End of cycle and door opening
The End report will be displayed.
The buzzer and the LED indicating the end of the cycle inform that the program has finished and the door lock is
released.
From this moment on, the door can be opened.
Failure in the realising of the door
At the end of a cycle, if the end of cycle warning LED is not illuminated or a countdown of 120 seconds appears
on the display, push the door firmly using the handle and press any key on the keyboard to start a new attempt at
unlocking the safety lock.
If the problem persists, wait for a minimum of three minutes until the thermal locking device allows the door to
unlock.
4.7.2. Pressing the STOP key
Pressing the interrupts the programme being executed.
The drum stops rotating and the drain valve opens.
At the end of the safety delay, the buzzer informs the user that door lock is unlocked and the display shows
STOP –PUSH –Pr-* (number of program being executed).
From this moment onwards:
One press on the key corresponding to the program currently being executed resumes the cycle.
Opening the door cancels the cycle.
STOP key operating options
A parameter from the CONF menu can be used to select two different options for operating the STOP key.
Selectable options:
Immediate response
Pressing the STOP key immediately stops the program that is running.
Delayed response
To stop the program that is running, hold the key down continuously for at least 3 seconds.
Warnings regarding the HOLD STOP KEY DELAYED RESPONSE
Option available on machines with software Version 31 / 65 and later (see Section 1).
Option unavailable in machines configured for Japan Area of use.
To use this operating option, the corresponding parameter must be enabled in the machine’s
CONFIGURATION menu. This operation must be carried out by the Authorised Technical
Service.
The HOLD STOP KEY DELAYED RESPONSE option can only be activated on machines that
have the message “Push and hold for 3 seconds” inscribed next to the STOP key.

Program execution mode 20
Cod. 598144
Rev. 11/0717
4.7.3. Interruption of the power supply
These stop modes are not recommended, except in an emergency.
They may be caused by turning off the external switch, by activating the laundry’s general emergency stop (see
Installation Manual) or by a fault in the power supply.
In these cases the unlocking of the safety lock may be delayed for up to three minutes.
If the is door closed when the power supply is restored, the machine will interpret that there has been a power
failure and will resume the washing program in progress.
When a washing program is interrupted by electrical power failure or activating the general
Emergency Stop of the installation, the door lock mechanism stops being controlled by the
microprocessor and the opening of the door is thermally delayed.
In these cases the unlocking of the safety lock may be delayed for up to three minutes.
On restoring the power supply, it is normal for the washer to remain inactive for approximately 3 minutes.
On machines with pumped draining or a valve that is normally closed, interruption of the power
supply prevents the bath from being drained.
