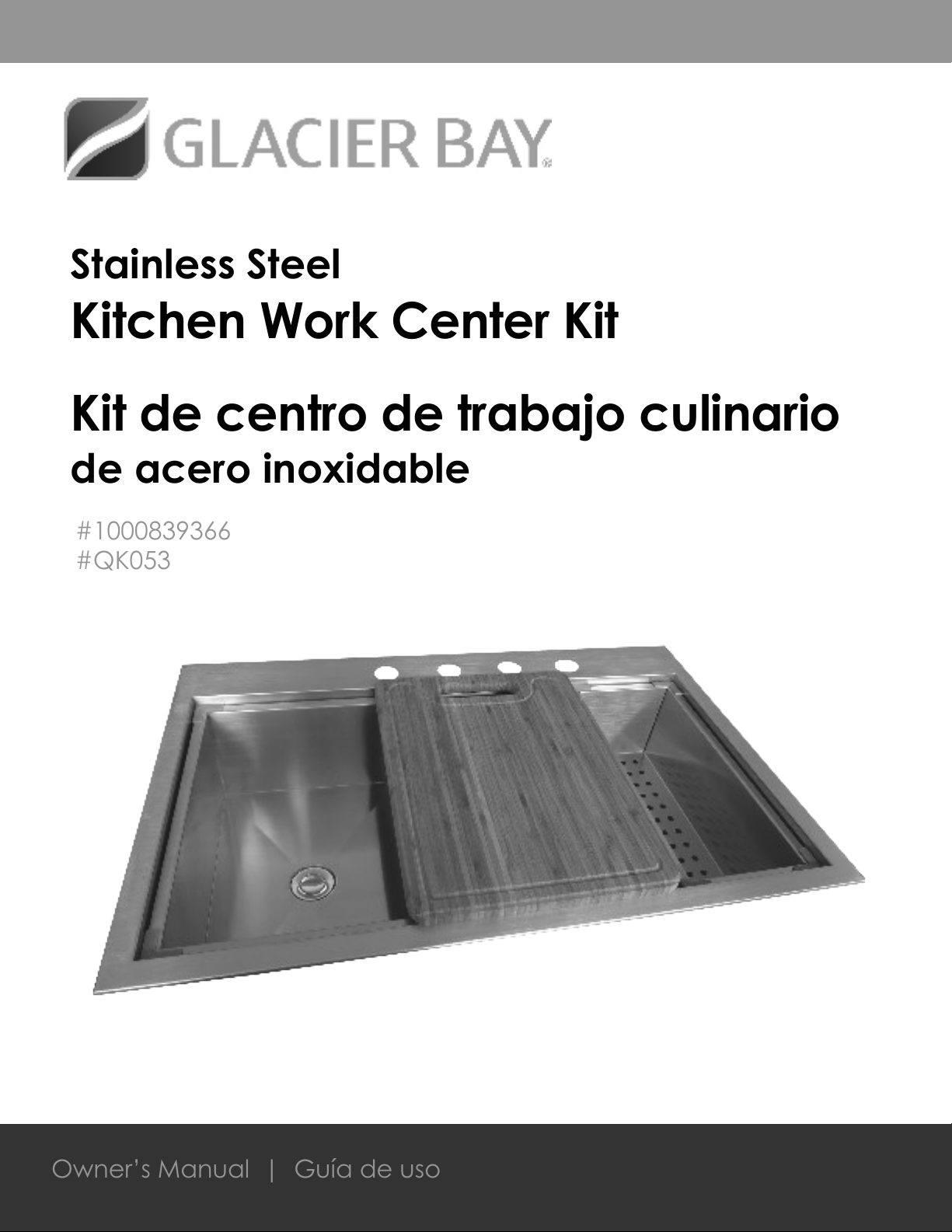

Glacier bay QK053 User manual

Stainless Steel
Kitchen Work Center Kit
Kit de centro de trabajo culinario
de acero inoxidable
#1000839366
#QK053
Owner’s Manual | Guía de uso

QK053 2
ENGLISH

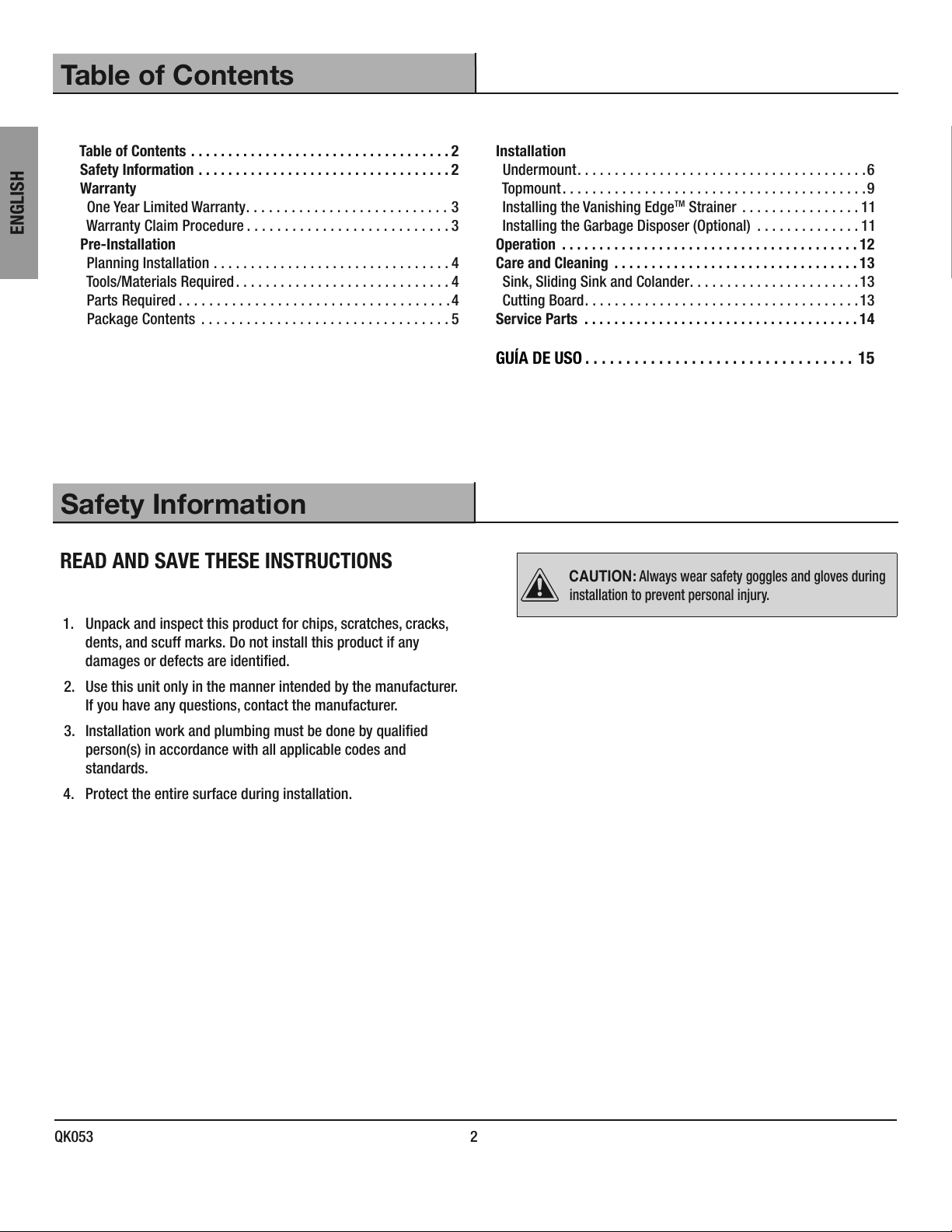

Table of Contents
Table of Contents ...................................2
Safety Information ..................................2
Warranty ...........................................
One Year Limited Warranty...........................3
Warranty Claim Procedure ...........................3
Pre-Installation......................................
Planning Installation ................................4
Tools/Materials Required .............................4
Parts Required ....................................4
Package Contents .................................5
Installation .........................................
Undermount.......................................6
Topmount.........................................9
Installing the Vanishing EdgeTM Strainer ................11
Installing the Garbage Disposer (Optional) ..............11
Operation ........................................12
Care and Cleaning .................................13
Sink, Sliding Sink and Colander.......................13
Cutting Board.....................................13
Service Parts .....................................14
GUÍA DE USO .................................15
Safety Information
READ AND SAVE THESE INSTRUCTIONS
1. Unpack and inspect this product for chips, scratches, cracks,
dents, and scuff marks. Do not install this product if any
damages or defects are identied.
2. Use this unit only in the manner intended by the manufacturer.
If you have any questions, contact the manufacturer.
3. Installation work and plumbing must be done by qualied
person(s) in accordance with all applicable codes and
standards.
4. Protect the entire surface during installation.
CAUTION: Always wear safety goggles and gloves during
installation to prevent personal injury.

3 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
ENGLISH
Warranty

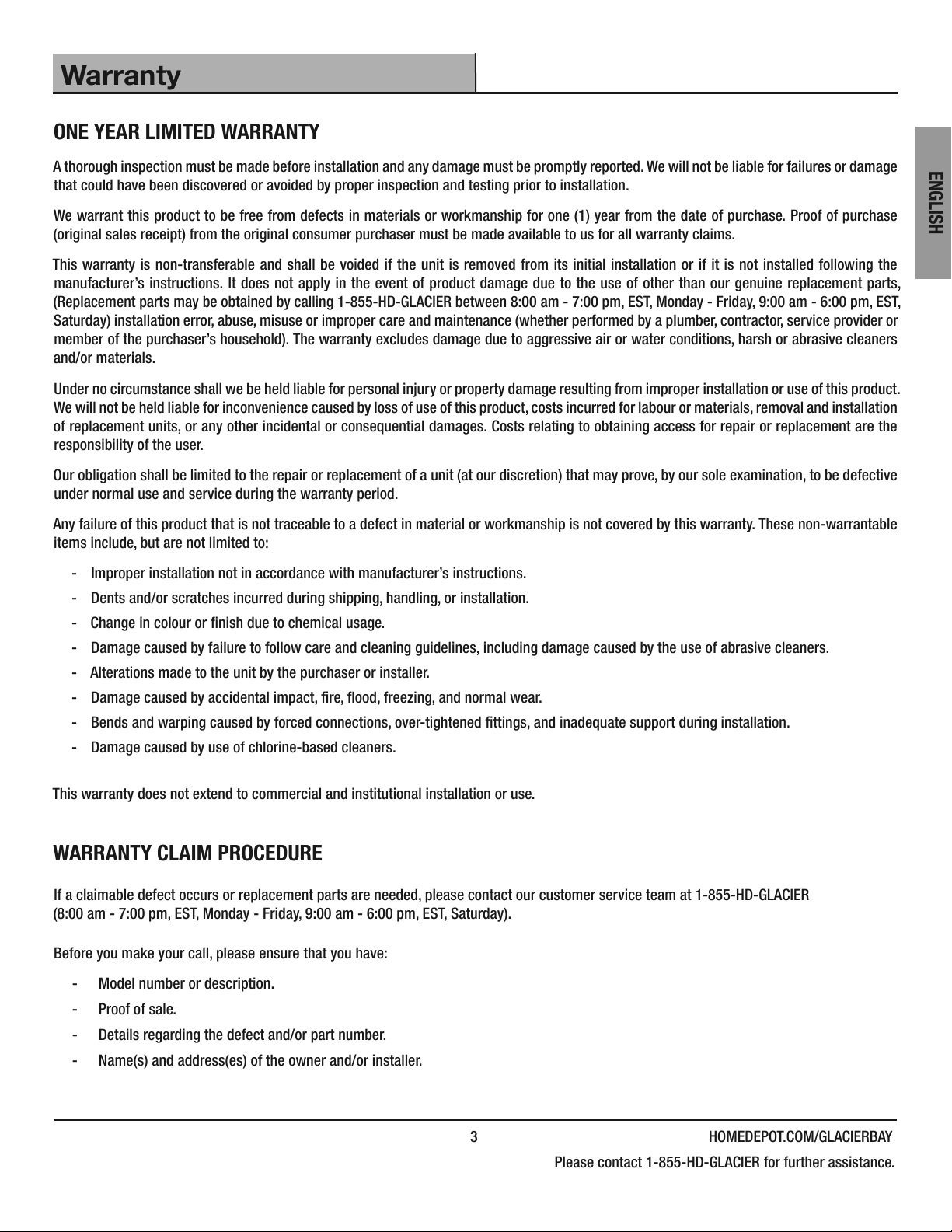

ONE YEAR LIMITED WARRANTY
A thorough inspection must be made before installation and any damage must be promptly reported. We will not be liable for failures or damage
that could have been discovered or avoided by proper inspection and testing prior to installation.
We warrant this product to be free from defects in materials or workmanship for one (1) year from the date of purchase. Proof of purchase
(original sales receipt) from the original consumer purchaser must be made available to us for all warranty claims.
This warranty is non-transferable and shall be voided if the unit is removed from its initial installation or if it is not installed following the
manufacturer’s instructions. It does not apply in the event of product damage due to the use of other than our genuine replacement parts,
(Replacement parts may be obtained by calling 1-855-HD-GLACIER between 8:00 am - 7:00 pm, EST, Monday - Friday, 9:00 am - 6:00 pm, EST,
Saturday) installation error, abuse, misuse or improper care and maintenance (whether performed by a plumber, contractor, service provider or
member of the purchaser’s household). The warranty excludes damage due to aggressive air or water conditions, harsh or abrasive cleaners
and/or materials.
Under no circumstance shall we be held liable for personal injury or property damage resulting from improper installation or use of this product.
We will not be held liable for inconvenience caused by loss of use of this product, costs incurred for labour or materials, removal and installation
of replacement units, or any other incidental or consequential damages. Costs relating to obtaining access for repair or replacement are the
responsibility of the user.
Our obligation shall be limited to the repair or replacement of a unit (at our discretion) that may prove, by our sole examination, to be defective
under normal use and service during the warranty period.
Any failure of this product that is not traceable to a defect in material or workmanship is not covered by this warranty. These non-warrantable
items include, but are not limited to:
- Improper installation not in accordance with manufacturer’s instructions.
- Dents and/or scratches incurred during shipping, handling, or installation.
- Change in colour or nish due to chemical usage.
- Damage caused by failure to follow care and cleaning guidelines, including damage caused by the use of abrasive cleaners.
- Alterations made to the unit by the purchaser or installer.
- Damage caused by accidental impact, re, ood, freezing, and normal wear.
- Bends and warping caused by forced connections, over-tightened ttings, and inadequate support during installation.
- Damage caused by use of chlorine-based cleaners.
This warranty does not extend to commercial and institutional installation or use.
WARRANTY CLAIM PROCEDURE
If a claimable defect occurs or replacement parts are needed, please contact our customer service team at 1-855-HD-GLACIER
(8:00 am - 7:00 pm, EST, Monday - Friday, 9:00 am - 6:00 pm, EST, Saturday).
Before you make your call, please ensure that you have:
- Model number or description.
- Proof of sale.
- Details regarding the defect and/or part number.
- Name(s) and address(es) of the owner and/or installer.

QK053 4
ENGLISH
Pre-Installation

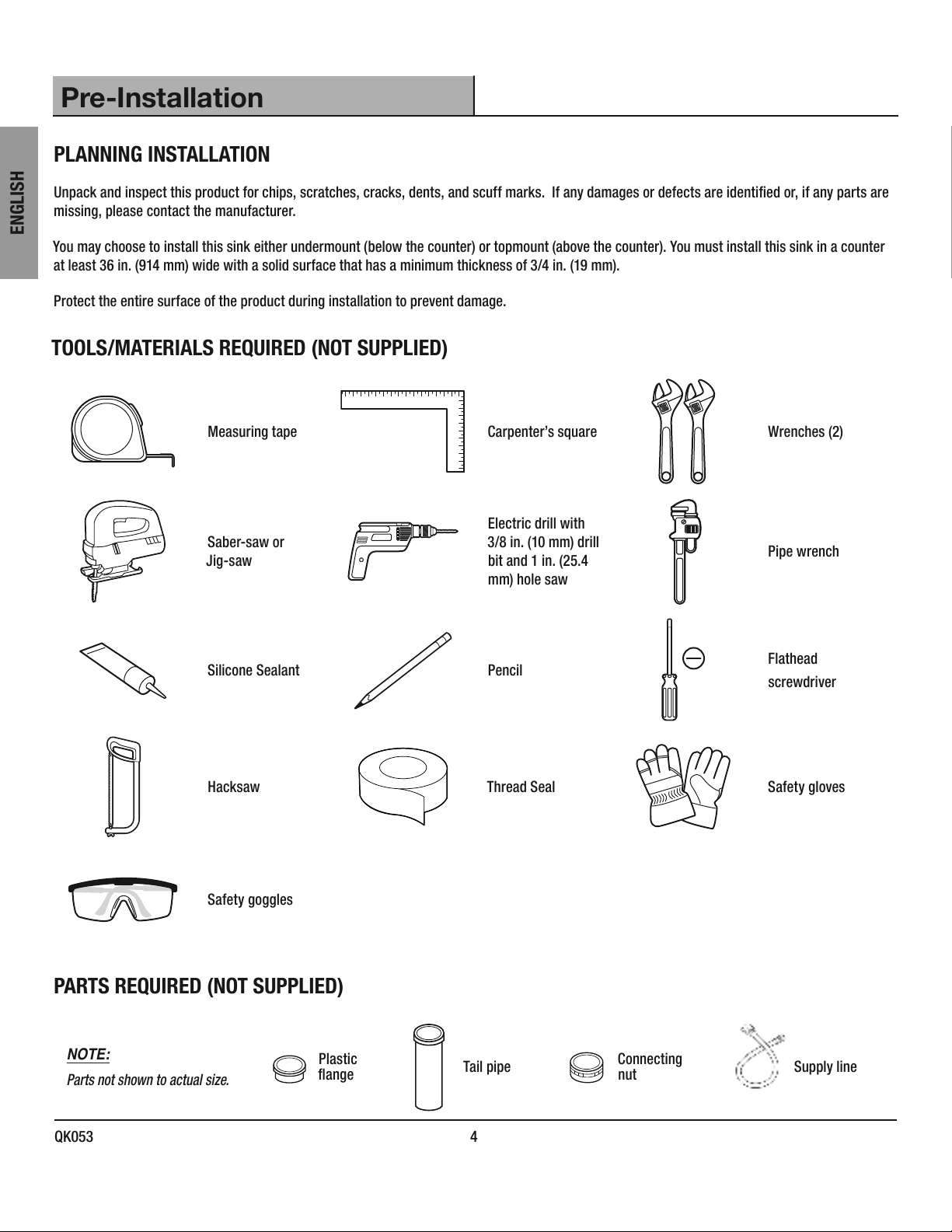

PLANNING INSTALLATION
Unpack and inspect this product for chips, scratches, cracks, dents, and scuff marks. If any damages or defects are identied or, if any parts are
missing, please contact the manufacturer.
You may choose to install this sink either undermount (below the counter) or topmount (above the counter). You must install this sink in a counter
at least 36 in. (914 mm) wide with a solid surface that has a minimum thickness of 3/4 in. (19 mm).
Protect the entire surface of the product during installation to prevent damage.
TOOLS/MATERIALS REQUIRED (NOT SUPPLIED)
Measuring tape Carpenter’s square Wrenches (2)
Saber-saw or
Jig-saw
Electric drill with
3/8 in. (10 mm) drill
bit and 1 in. (25.4
mm) hole saw
Pipe wrench
Silicone Sealant Pencil Flathead
screwdriver
Hacksaw Thread Seal Safety gloves
Safety goggles
PARTS REQUIRED (NOT SUPPLIED)
NOTE:
Parts not shown to actual size.
Plastic
ange Tail pipe Connecting nut Supply line

5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
ENGLISH
Pre-Installation (continued)

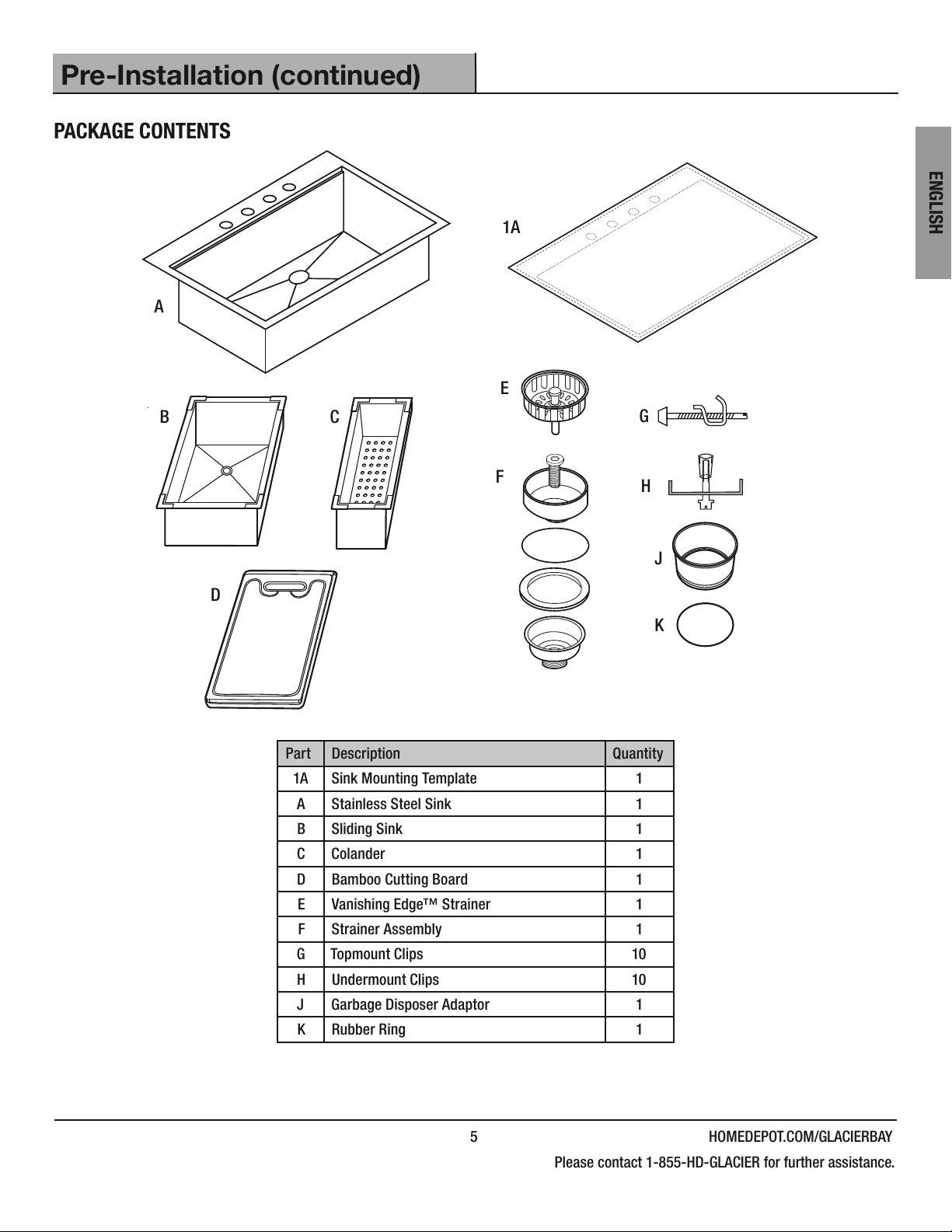

PACKAGE CONTENTS
A
E
B C
D
J
K
G
H
1A
F
Part Description Quantity
1A Sink Mounting Template 1
AStainless Steel Sink 1
BSliding Sink 1
CColander 1
DBamboo Cutting Board 1
EVanishing Edge™ Strainer 1
FStrainer Assembly 1
GTopmount Clips 10
HUndermount Clips 10
JGarbage Disposer Adaptor 1
KRubber Ring 1

QK053 6
ENGLISH
Installation

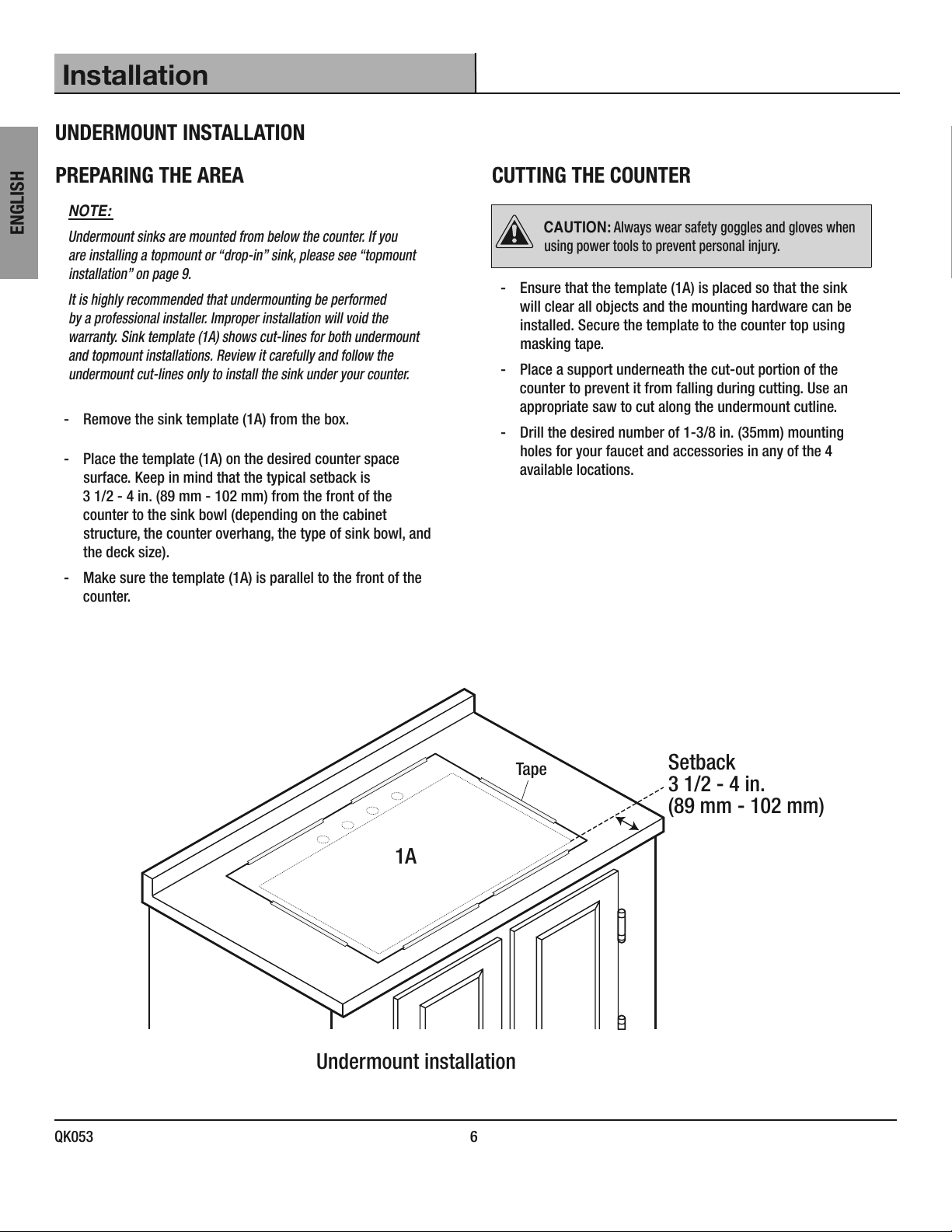

UNDERMOUNT INSTALLATION
PREPARING THE AREA CUTTING THE COUNTER
NOTE:
Undermount sinks are mounted from below the counter. If you
are installing a topmount or “drop-in” sink, please see “topmount
installation” on page 9.
It is highly recommended that undermounting be performed
by a professional installer. Improper installation will void the
warranty. Sink template (1A) shows cut-lines for both undermount
and topmount installations. Review it carefully and follow the
undermount cut-lines only to install the sink under your counter.
- Remove the sink template (1A) from the box.
- Place the template (1A) on the desired counter space
surface. Keep in mind that the typical setback is
3 1/2 - 4 in. (89 mm - 102 mm) from the front of the
counter to the sink bowl (depending on the cabinet
structure, the counter overhang, the type of sink bowl, and
the deck size).
- Make sure the template (1A) is parallel to the front of the
counter.
CAUTION: Always wear safety goggles and gloves when
using power tools to prevent personal injury.
- Ensure that the template (1A) is placed so that the sink
will clear all objects and the mounting hardware can be
installed. Secure the template to the counter top using
masking tape.
- Place a support underneath the cut-out portion of the
counter to prevent it from falling during cutting. Use an
appropriate saw to cut along the undermount cutline.
- Drill the desired number of 1-3/8 in. (35mm) mounting
holes for your faucet and accessories in any of the 4
available locations.
1A
Setback
3 1/2 - 4 in.
(89 mm - 102 mm)
Tape
Undermount installation

7 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
ENGLISH
Installation (continued)

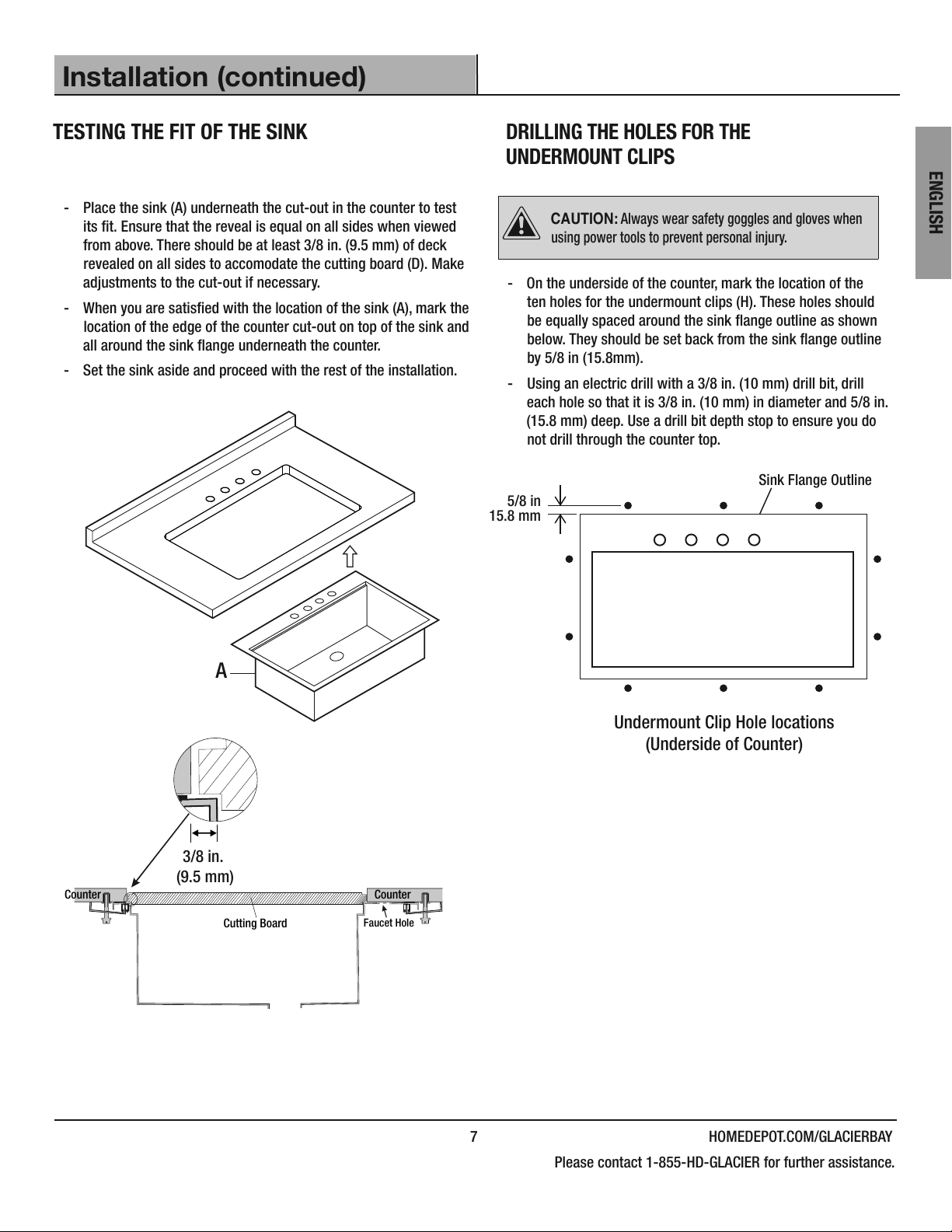

TESTING THE FIT OF THE SINK DRILLING THE HOLES FOR THE
UNDERMOUNT CLIPS
- Place the sink (A) underneath the cut-out in the counter to test
its t. Ensure that the reveal is equal on all sides when viewed
from above. There should be at least 3/8 in. (9.5 mm) of deck
revealed on all sides to accomodate the cutting board (D). Make
adjustments to the cut-out if necessary.
- When you are satised with the location of the sink (A), mark the
location of the edge of the counter cut-out on top of the sink and
all around the sink ange underneath the counter.
- Set the sink aside and proceed with the rest of the installation.
3/8 in.
(9.5 mm)
A
CounterCounter
Cutting Board Faucet Hole
CAUTION: Always wear safety goggles and gloves when
using power tools to prevent personal injury.
- On the underside of the counter, mark the location of the
ten holes for the undermount clips (H). These holes should
be equally spaced around the sink ange outline as shown
below. They should be set back from the sink ange outline
by 5/8 in (15.8mm).
- Using an electric drill with a 3/8 in. (10 mm) drill bit, drill
each hole so that it is 3/8 in. (10 mm) in diameter and 5/8 in.
(15.8 mm) deep. Use a drill bit depth stop to ensure you do
not drill through the counter top.
Undermount Clip Hole locations
(Underside of Counter)
5/8 in
15.8 mm
Sink Flange Outline

QK053 8
ENGLISH
Installation
INSTALLING THE SINK
NOTE:
Install the vanishing edgeTM strainer according to the instructions before completing this step. See page 11.
- Press t the threaded anchor inserts (H) into the holes drilled into the underside of the countertop. Use a bolt to make this process easier if
required.
- Loosely thread the undermount bolts and clips into the threaded anchor inserts and align them parallel to the sink ange outline so they do
not interfere with the placement of the sink.
- Place a small bead of silicone sealant (not included) around the outer top perimeter of the sink ange as shown below.
- Carefully place the sink (A) into its location under the counter, lining up the pencil
marks on the top of the sink that you made when you tested the t of the sink.
- Carefully rotate the clamps of the undermount clips (H) over the clamp bar on the sink (A) and gently tighten the bolts (see tightening
sequence) of the undermount clips (H), working from side to side to fasten the sink (A) rmly. Recheck the alignment visually from above.
- Wipe away any excess silicone and, for best results, allow the bond to rest undisturbed for 8 hours or overnight.
- Install the counter, faucet, and all other plumbing as per manufacturer’s instructions.
9
6 2 4
3 5 1
7
810
Tightening sequence for clips
H
Silicone
Sealant A
SUPPLY LINES (NOT INCLUDED)
The supply lines, which connect the faucet to the household water system, are not supplied with this unit. They need to be purchased separately.
Follow the supply line manufacturer’s instructions for proper installation.

9 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
ENGLISH
Installation (continued)

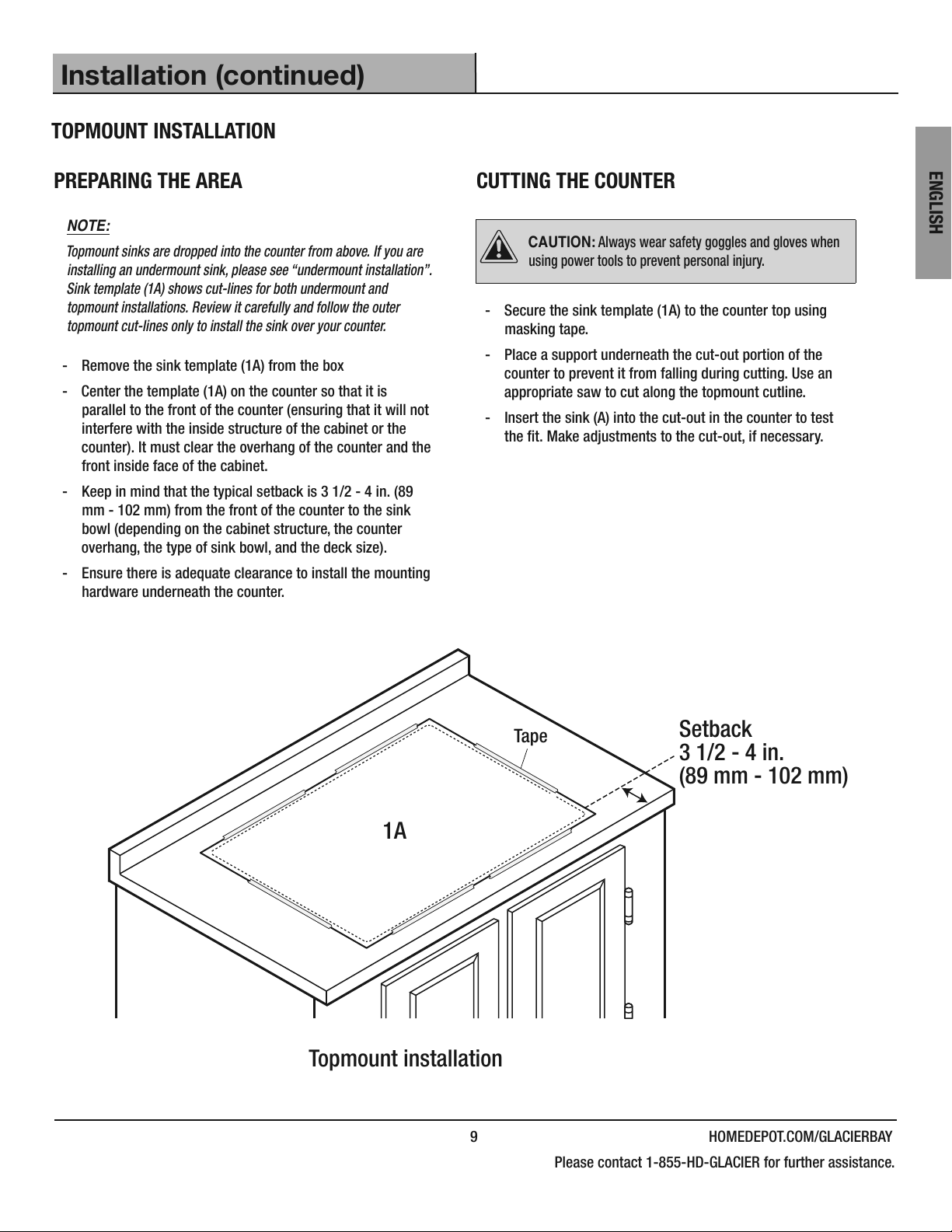

TOPMOUNT INSTALLATION
PREPARING THE AREA CUTTING THE COUNTER
NOTE:
Topmount sinks are dropped into the counter from above. If you are
installing an undermount sink, please see “undermount installation”.
Sink template (1A) shows cut-lines for both undermount and
topmount installations. Review it carefully and follow the outer
topmount cut-lines only to install the sink over your counter.
- Remove the sink template (1A) from the box
- Center the template (1A) on the counter so that it is
parallel to the front of the counter (ensuring that it will not
interfere with the inside structure of the cabinet or the
counter). It must clear the overhang of the counter and the
front inside face of the cabinet.
- Keep in mind that the typical setback is 3 1/2 - 4 in. (89
mm - 102 mm) from the front of the counter to the sink
bowl (depending on the cabinet structure, the counter
overhang, the type of sink bowl, and the deck size).
- Ensure there is adequate clearance to install the mounting
hardware underneath the counter.
CAUTION: Always wear safety goggles and gloves when
using power tools to prevent personal injury.
- Secure the sink template (1A) to the counter top using
masking tape.
- Place a support underneath the cut-out portion of the
counter to prevent it from falling during cutting. Use an
appropriate saw to cut along the topmount cutline.
- Insert the sink (A) into the cut-out in the counter to test
the t. Make adjustments to the cut-out, if necessary.
Topmount installation
1A
Setback
3 1/2 - 4 in.
(89 mm - 102 mm)
Tape

QK053 10
ENGLISH
Installation (continued)
INSTALLING THE SINK
NOTE:
Install the faucet according to the manufacturers instructions before completing this step.
Install the vanishing edgeTM strainer according to the instructions before completing this step. See page 11.
- Apply silicone sealant (not included) around the underside of the ange of the sink (A) on all four sides as shown below.
- Install the topmount clips (G) into the clip channels of the sink (A) as shown in the gures below.
- Carefully lower the sink (A) into the counter, ensuring that the topmount clips (G) do not catch on the counter edges.
- Adjust each topmount clip (G) along the rails so that they are evenly spaced around the sink (A).
- Rotate the clamps of the topmount clips (G) such that they engage the counter, and tighten the screws progressively (see
tightening sequence below) until the sink ange is ush with the counter. Check the alignment as you tighten so that the front of
the sink (A) is parallel to the front of the counter. Adjust and re-tighten if necessary. Do not over tighten.
- Wipe away any excess sealant with a rag and allow it to set before proceeding with the rest of the installation.
9
6 2 4
3 5 1
7
810
Tightening sequence for clips
A
A
G
Silicone
Sealant
Clamp Screw
SUPPLY LINES (NOT INCLUDED)
The supply lines, which connect the faucet to the household water system, are not supplied with this unit. They need to be purchased separately.
Follow the supply line manufacturer’s instructions for proper installation.

11 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
ENGLISH
Installation (continued)
INSTALLING THE VANISHING EDGE™ STRAINERS
NOTE:
If you are installing a garbage disposer (not supplied), do not install the strainer.
Included with this item is a Conglom Kitchen & Bath adaptor. This will replace the
ange from your garbage disposer.
Install the garbage disposer according to the manufacturer’s installation instructions
replacing the ange for the adaptor.
1
2
A3
4
5
6
7
8
9
Not supplied
- Apply a small amount of plumbers putty (not included) in the notch
around the drain hole of the sink (A).
- Connect the upper strainer body (3) and the strainer ring (4), and insert
them into the drain hole from the top of the sink (A).
- Connect the strainer gasket (5) and lower strainer body (6), and insert
them into the drain hole from underneath the sink (A).
- Insert the strainer screw (2) through the entire assembly, from the upper
strainer body (3) to the lower strainer body (6). Tighten with a athead
screwdriver.
- Connect the plastic ange (7) and the tail pipe (8), and thread the
connecting nut (9) through the tail pipe and ange up to the lower
strainer body (6). Tighten the connecting nut by hand.
NOTE:
The plastic ange (7), tail pipe (8), and connecting nut (9) are not supplied.
INSTALLING THE GARBAGE DISPOSER
NOTE:
If you are installing a garbage disposer (not supplied), do not install a
strainer in the sink. Adaptor (J) is intended for use with metal waste
disposer mounting anges.
- To install a garbage disposer, place the rubber ring (K) around
the underside lip of the adaptor (J).
- Insert the adaptor (J) into the drain hole of the sink (A).
- Install the garbage disposer to the adaptor (J) according to the
garbage disposer manufacturer’s installation instructions.
A
J
K

QK053 12
ENGLISH
Operation
USING THE SLIDING SINK AND COLANDER
- The sliding sink (B) and the colander (C) can be placed in any
location along the track (1) in the sink (A).
- The colander (C) ts inside the sliding sink (B) for easy storage.
B
A
1
C
USING THE CUTTING BOARD
- The specially designed cutting board (D) can be placed in the
track of the sink (A). Make sure side 1 faces up, so that juices
drain into the sink through the handle.
- The cutting board (D) can also be used on the counter. In this
case, side 2 should face up, so that drippings are caught in the
edge trough.
Side 1: In Sink Track Side 2: On Counter

13 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
ENGLISH
Care and Cleaning
SINK, SLIDING SINK AND COLANDER CUTTING BOARD
Do Do
- After use, always rinse your sink, sliding sink and colander
with tap water to dilute and remove deposits.
- Towel dry the sink after use whenever possible to prevent
water spots. Should water spots occur, clean with a mild
solution of vinegar and water followed by a thorough rinse.
- Use liquid soap, a general household cleaner, or a weak
solution of vinegar and water for regular cleaning.
- Only use plastic scouring pads recommended for use in
stainless steel sinks, and only use them in the bowl of the sink.
Scrub in the direction of the grain (original polish lines).
- Before using your new bamboo cutting board, oil with mineral
oil. Apply oil to your cutting board with a cottom cloth. Rub in
thoroughly. Let board sit for approximately 15-20 minutes before
removing excess oil. Then apply oil once a month for light usage
and up to once a week for boards that are used more often.
- After each use, wash your bamboo cutting board with a mild
dish detergent and warm water. Wipe the board dry immediately
after use.
- Sanitize your board after coming in contact with raw meat bu
using a solution of vinegar or hydrogen peroxide and water or a
bleach dilution. Be sure to rinse board thoroughly.
Do Not Do Not
- Do not allow any food, detergent, soap or grease to dry or sit for
extended periods of time on the surface of the sink.
- Never use abrasive cleaning products, as they will dull and
scratch the nish.
- Do not use scouring pads on the deck, as they will dull the
mirror nish.
- Never use steel wool pads, as they will leave iron particles on the
sink, which will cause corrosion.
- Never leave steel or cast iron pans in your sink for extended
periods of time, as this can cause corrosion.
- Never use chlorine-based cleaners in your new sink, they could
lead to rust spots and discolouration. If you must use them, rinse
sink thoroughly with fresh water immediately after use. If any
chemicals or glue make contact with the sink during installation,
wipe clean and rinse thoroughly with fresh water.
- Do not put your cutting board in the dishwasher and do not soak.
- Never put your bamboo cutting board in the microwave.
Your sink is manufactured with the highest grade stainless steel and will provide you many years of enjoyment with the proper care.
SCRATCH, SPOT, AND BLEMISH REMOVAL AND SURFACE RESTORATION:
Little rust spots and blemishes that periodically appear in the sink are typically the result of the steel interacting with the chemicals
found in the vast spectrum of substances that sinks are commonly exposed to. They may also get transferred from other objects
placed or left in the sink. Scratches are the result of regular wear and tear.
To remove scratches, spots, and blemishes from the sink, rub them with a non-metallic scouring pad (e.g. Scotch-Brite®) combined
with a mild abrasive cleaner (e.g. Barkeeper’s Friend®). Always rub the surfaces in the direction of the grain of the steel. When
nished, rinse the sink with water and dry it with a towel to allow the sink to form a protective outer layer. This procedure can also
be used to renew all of the surfaces of the sink.

QK053 14
ENGLISH
Service Parts
If you are missing parts or if you require replacement parts, please call our customer service team at 1-855-HD-GLACIER, 8:00 am - 7:00 pm, EST,
Monday - Friday, 9:00 am - 6:00 pm, EST, Saturday. Identify the required part(s) and have the part number(s) ready.
BC
F
D E
A
Part Description Code Quantity
ACutting Board QHS211 1
BVanishing Edge™ Strainer QHS113 1
CStrainer Assembly QHS155 1
DTopmount Clips QHS108 10
EUndermount Clips QHS109 10
FGarbage Disposer Adaptor and Gasket QHS112 1

15 HOMEDEPOT.COM/GLACIERBAY
Por favor, llame al 1-855-HD-GLACIER para obtener más ayuda.
ESPAGÑOL

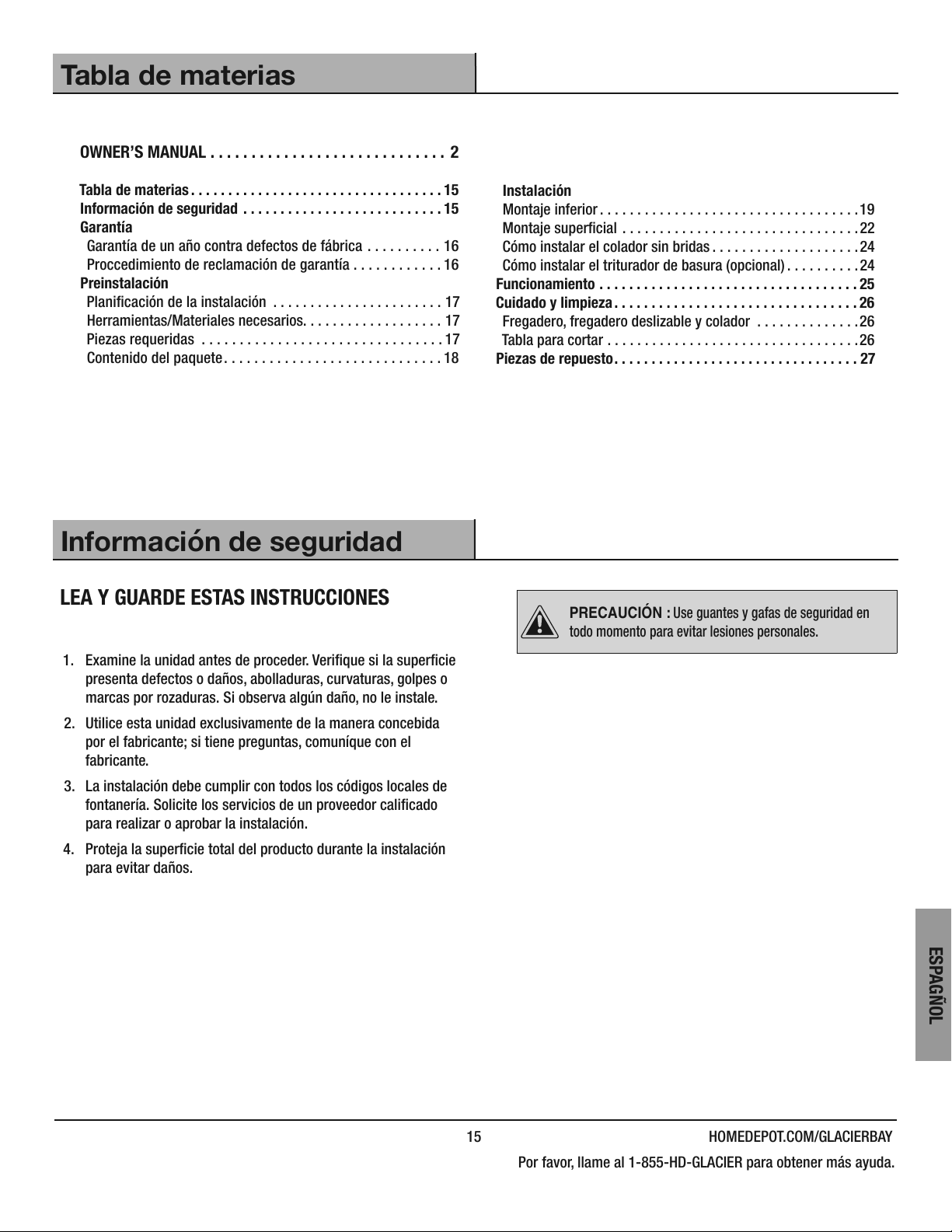

Tabla de materias
OWNER’S MANUAL ............................. 2
Tabla de materias ..................................15
Información de seguridad ...........................15
Garantía ...........................................
Garantía de un año contra defectos de fábrica ..........16
Proccedimiento de reclamación de garantía ............16

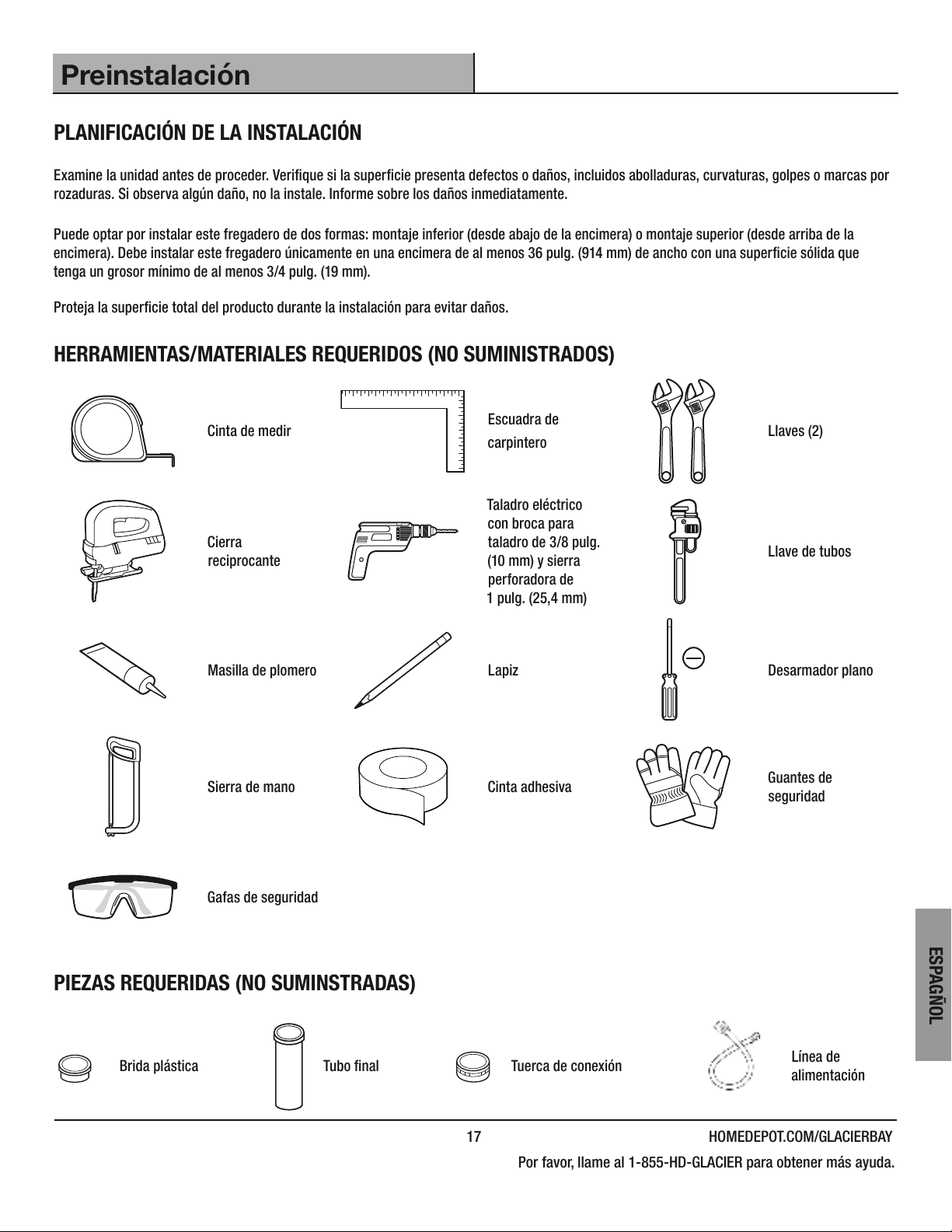

Preinstalación.......................................
Planicación de la instalación .......................17
Herramientas/Materiales necesarios. . . . . . . . . . . . . . . . . . . 17
Piezas requeridas ................................17
Contenido del paquete.............................18
Instalación ........................................
Montaje inferior ...................................19
Montaje supercial ................................22
Cómo instalar el colador sin bridas ....................24
Cómo instalar el triturador de basura (opcional) ..........24
Funcionamiento ...................................25
Cuidado y limpieza.................................26
Fregadero, fregadero deslizable y colador ..............26
Tabla para cortar ..................................26
Piezas de repuesto.................................27
Información de seguridad
LEA Y GUARDE ESTAS INSTRUCCIONES
1. Examine la unidad antes de proceder. Verique si la supercie
presenta defectos o daños, abolladuras, curvaturas, golpes o
marcas por rozaduras. Si observa algún daño, no le instale.
2. Utilice esta unidad exclusivamente de la manera concebida
por el fabricante; si tiene preguntas, comuníque con el
fabricante.
3. La instalación debe cumplir con todos los códigos locales de
fontanería. Solicite los servicios de un proveedor calicado
para realizar o aprobar la instalación.
4. Proteja la supercie total del producto durante la instalación
para evitar daños.
PRECAUCIÓN : Use guantes y gafas de seguridad en
todo momento para evitar lesiones personales.

QK053 16
ESPAGÑOL
Garantía
GARANTÍA LIMITADA DE UN AÑO
Debe hacerse una inspección a conciencia antes de la instalación y cualquier daño debe ser reportado inmediatamente. No seremos
responsables de los fallos o daños que pudieran haberse descubierto o evitado con una inspección y pruebas adecuadas antes de la instalación.
Garantizamos este producto contra todo defecto en los materiales o en la fabricación, durante un (1) año. Una prueba de compra (factura
original) del comprador/consumidor deberá acompañar toda reclamación hecha a nosotros.
Esta garantía no es transferible y será anulada si la unidad se quita del lugar donde se instaló inicialmente o si no se instala de acuerdo
con las instrucciones del fabricante. La garantía no se aplica en caso de daños al producto debido al uso de otros repuestos, (las piezas de
repuesto pueden obtenerse por llamando al 1-855-HD-GLACIER, 8 a 19 horas, hora del este, lunes a viernes, 9:00 a.m. - 6:00 p.m., hora del este,
sábado) error de instalación, abuso, mal uso, cuidado incorrecto o mal mantenimiento (ya sea realizada por un plomero, fontanero, contratista,
proveedor de servicios o un miembro de la familia del comprador). La garantía excluye los daños causados por condiciones agresivas de aire,
agua, abrasivos, limpiadores y/o materiales.
Bajo ninguna circunstancia seremos responsables de lesiones personales o daños a la propiedad que resulten de una instalación o de un
uso inapropiado de este producto. No seremos responsables por inconvenientes ocasionados por pérdida de uso de este producto, costos
incurridos en mano de obra o materiales, retiro e instalación de unidades de remplazo, ni ningún otro daño incidental o consecuente. Los
costos relacionados con la reparación o el reemplazo son la responsabilidad del usuario.
Nuestra obligación se limita a la reparación o reemplazo de una unidad (a nuestra discreción) que pueda comprobarse, únicamente al
examinarla por nosotros, que tiene defectos bajo un uso y servicio normal durante el periodo de garantía.
Cualquier fallo de este producto que no sea identicable como un defecto en materiales o de fabricación no estará cubierto por la garantía.
Estos artículos que no se pueden garantizar incluyen, pero no se limitan a:
- Instalación indebida que no siga las instrucciones del fabricante.
- Abolladuras, golpes y marcas ocasionadas durante el transporte, manejo o instalación.
- Cambio de color o en el acabado debido al uso de productos químicos.
- Daños ocasionados por no seguir las instrucciones de cuidado y limpieza, incluyendo daños ocasionados por el uso de
limpiadores abrasivos.
- Alteraciones hechas a la unidad por parte del comprador o el instalador.
- Daños ocasionados por impacto accidental, fuego, inundaciones, congelamiento y por el desgaste normal.
- Dobleces y deformaciones a consecuencia de conexiones forzadas, accesorios apretados en exceso y soporte inadecuado
durante la instalación.
- Daño provocado por el uso de limpiadores a base de cloro.
Esta garantía no cubre el uso o la instalación comercial ni institucional.
PROCEDIMIENTO DE RECLAMACIÓN DE GARANTÍA
Si ocurre un defecto por el que se puede presentar una reclamación, por favor contacte nuestro equipo de servicio al cliente al
1-855-HD-GLACIER (8 a 19 horas, hora del este, lunes a viernes, 9:00 a.m. - 6:00 p.m., hora del este, sábado).
Antes de llamar para presentar una reclamción, por favor asegúrese que tiene:
- La descripción o el numéro de modelo.
- El comprobante de venta.
- Los detalles del defecto.
- Nombre(s) y domicilio(s) del proprietario y del instalador.

17 HOMEDEPOT.COM/GLACIERBAY
Por favor, llame al 1-855-HD-GLACIER para obtener más ayuda.
ESPAGÑOL
Preinstalación
PLANIFICACIÓN DE LA INSTALACIÓN
Examine la unidad antes de proceder. Verique si la supercie presenta defectos o daños, incluidos abolladuras, curvaturas, golpes o marcas por
rozaduras. Si observa algún daño, no la instale. Informe sobre los daños inmediatamente.
Puede optar por instalar este fregadero de dos formas: montaje inferior (desde abajo de la encimera) o montaje superior (desde arriba de la
encimera). Debe instalar este fregadero únicamente en una encimera de al menos 36 pulg. (914 mm) de ancho con una supercie sólida que
tenga un grosor mínimo de al menos 3/4 pulg. (19 mm).
Proteja la supercie total del producto durante la instalación para evitar daños.
HERRAMIENTAS/MATERIALES REQUERIDOS (NO SUMINISTRADOS)
Cinta de medir Escuadra de
carpintero Llaves (2)
Cierra
reciprocante
Taladro eléctrico
con broca para
taladro de 3/8 pulg.
(10 mm) y sierra
perforadora de
1 pulg. (25,4 mm)
Llave de tubos
Masilla de plomero Lapiz Desarmador plano
Sierra de mano Cinta adhesiva Guantes de
seguridad
Gafas de seguridad
PIEZAS REQUERIDAS (NO SUMINSTRADAS)
Brida plástica Tubo nal Tuerca de conexión Línea de
alimentación

QK053 18
ESPAGÑOL
Preinstalación (continuación)
CONTENIDO DEL PAQUETE
A
E
B C
D
J
K
G
H
1A
F
Pieza Descripción Cantidad
1A Plantilla para montaje 1
AFregadero de acero inoxidable 1
BFregadero deslizable 1
CColador 1
DTabla para cortar de bambú 1
EColador sin bridas 1
F Conjunto de colador 1
GPresillas de montaje supercial 10
HPresillas de montaje inferior 10
J Adaptador del triturador de basura 1
K Aro de goma 1

19 HOMEDEPOT.COM/GLACIERBAY
Por favor, llame al 1-855-HD-GLACIER para obtener más ayuda.
ESPAGÑOL
Instalación
MONTAJE INFERIOR
PREPARACIÓN DEL ÁREA CORTE DE LA ENCIMERA
NOTA:
Los fregaderos bajo encimera se instalan desde la parte inferior de
la encimera. Si está instalando un fregadero de montaje supercial
o de encastre, consulte la sección correspondiente a “montaje
supercial”, en la página 22.
Recomendamos que un instalador profesional realice la instalación
bajo encimera. Una instalación incorrecta anulará la garantía. La
plantilla para montaje (1A) indica las líneas de corte para ambos tipos
de montaje: bajo encimera y supercial. Examínela atentamente y siga
las líneas de corte correspondientes al montaje bajo encimera solo
para instalar el fregadero por debajo de la encimera.
- Retire la plantilla para montaje (1A) de la caja.
- Coloque la plantilla (1A) sobre el espacio de la encimera que
preera. Tenga presente que la distancia lateral que se suele
utilizar es de 3 1/2 - 4 pulgadas (89 mm - 102 mm) desde el
frente de la encimera hasta el recipiente del fregadero (según
la estructura de la alacena, el voladizo de la encimera, el tipo
de recipiente del fregadero y el tamaño de la plataforma).
- Procure que la plantilla (1A) quede paralela a la parte
delantera de la encimera.
PRECAUCIÓN: Use guantes y gafas de seguridad en
todo momento para evitar lesiones personales.
- Procure que la plantilla (1A) se ubique de forma tal que
el fregadero quede alejado de todos los objetos y que
se puedan instalar los accesorios de montaje. Sujete
la plantilla a la parte superior de la encimera, con
cinta adhesiva.
- Coloque un soporte debajo de la abertura realizada en
la encimera, para evitar que se caiga durante el corte.
Utilice una sierra adecuada para cortar por la línea
de corte correspondiente al montaje inferior.
- Realice la cantidad de oricios de montaje de
1 3/8 pulgadas (35 mm) que preera, para el
grifo y los accesorios, en alguna de las cuatro
ubicaciones disponibles.
1A
Distancia lateral:
3 1/2 - 4 pulgadas
(89 mm - 102 mm)
Cinta
adhesiva
Montaje inferior

QK053 20
ESPAGÑOL
Instalación (continuación)
CÓMO PROBAR EL ENCAJE DEL FREGADERO CÓMO PERFORAR LOS ORIFICIOS PARA LOS
GANCHOS DE MONTAJE INFERIOR
- Coloque el fregadero (A) debajo de la abertura en la encimera,
para probar su encastre. Procure que el espacio que queda al
descubierto sea el mismo en todos los lados, visto desde arriba.
Debe quedar un espacio de 3/8 pulgadas (9,5 mm) de espacio al
descubierto en todos los lados, para adaptar la tabla de cortar (D).
Si es necesario, modique la abertura.
- Cuando esté conforme con la ubicación del fregadero (A),
marque la posición del borde de la abertura de la encimera,
en la parte superior del fregadero y en todo el contorno de la
brida del fregadero, por debajo de la encimera.
- Aparte el fregadero y continúe con el resto de la instalación.
3/8 pulg.
(9.5 mm)
Encimera
Agujero
del grifo
Tabla de cortar
Encimera
A
PRECAUCIÓN: Use guantes y gafas de seguridad en
todo momento para evitar lesiones personales.
- En la parte inferior de la encimera, marque la ubicación de
los diez oricios para las presillas de montaje inferior (H).
Estos oricios se deben ubicar a intervalos regulares, en el
contorno de la brida del fregadero, tal como se muestra más
abajo. Es necesario separarlos del contorno de la brida del
fregadero, alrededor de 5/8 pulgadas (15,8 mm).
- Con ayuda de un taladro eléctrico provisto de una broca
de 3/8 pulgadas (10 mm), perfore cada oricio para que
mida 3/8 pulgadas (10 mm) de diámetro y 5/8 pulgadas
(15,8 mm) de profundidad. Utilice un tope de profundidad
de la broca para asegurarse de no perforar la parte superior
de la encimera.
Ubicaciones de los orificios para las presillas
de montaje inferior
(Parte inferior de la encimera)
5/8 pulgadas
(15,8 mm)
Contorno de la brida del fregadero
