OWNER’S MANUAL
&Assembly Instructions
ECD-44
Chin/Dip/VKR Stand Combo
ECD-44_Rev0
Revision Date 3-28-12

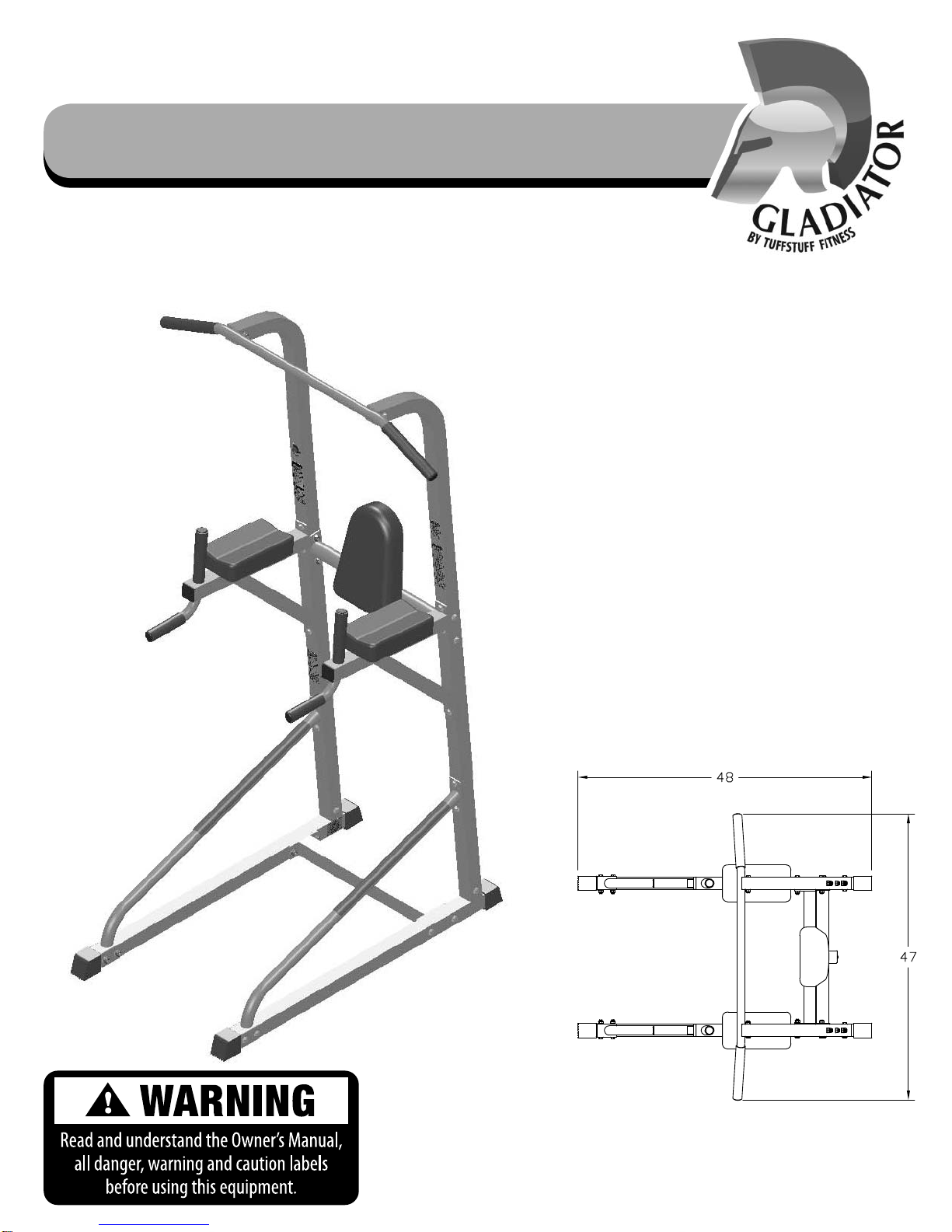

L48 X W47 X H83

Table of Contents
TuStu Fitness Equipment Inc. continually engages in research related to product improvements. Please take the time to carefully read through this
manual thoroughly. Instructions contained in this manual are not intended to cover all details or variations possible with Gladiator equipment, or to cover
every contingency that may be met in conjunction with assembly, installation, operation, maintenance or troubleshooting of the equipment. Eventhough
we have prepared this manual with extreme care, neither the manufacturer nor the author can accept responsibility for any errors in, or omission from, the
information given. Should additional information be required, or should situations arise that are not covered by this manual, the matter should be directed
to Customer Service atTuStu Fitness Equipment Inc. in Chino, California.
2ECD-44 Chin/Dip/VKR Stand Combo
DANGER, WARNING, & CAUTION LABELS INFORMATION ...............Page 3-4
IMPORTANT SAFETY INSTRUCTIONS..........................................................Page 5
PREPARATION & ASSEMBLY TIPS ..................................................................Page 6
ASSEMBLY INSTRUCTIONS – STEP 1 ...........................................................Page 7
ASSEMBLY INSTRUCTIONS – STEP 2 ...........................................................Page 8
ASSEMBLY INSTRUCTIONS – STEP 3 ...........................................................Page 9
ASSEMBLY INSTRUCTIONS – STEP 4 ........................................................ Page 10
ASSEMBLY INSTRUCTIONS – STEP 5 ........................................................ Page 11
PARTS LIST......................................................................................................... Page 12
EXPLODED VIEW ............................................................................................. Page 13
BASIC EXERSICE GUIDE...........................................................................Page 14-15
WARRANTY ....................................................................................................... Page 16

3
ECD-44 Chin/Dip/VKR Stand Combo
Carefully readALLDanger, Warning & Caution labels posted on the machine
BNH2907
BNH2917
BNH2919

4
Carefully readALLDanger, Warning & Caution labels posted on the machine
BNH2903BNH2915 BNH2918
ECD-44 Chin/Dip/VKR Stand Combo

5
Before using the equipment, read and
understand the Owner’s Manual and all DANGER, WARNING & CAUTION
labels posted on the machine. SERIOUS INJURY OR DEATH CAN OCCUR IF
THESE RULES ARE NOT FOLLOWED:
1. Inspect the equipment before each use for wear and tear, loose
ttings, and welded joints for cracks. If it appears to be inoperable
or damaged, DO NOT USE equipment until repaired. Use only
genuine TuStu parts. Failure to do so will void warranty and
could result in serious injury or death.
2. Children must not be allowed near this machine. Teenager must
be supervised.
3. Stop exercising if you feel faint or dizzy. Consult a physician if you
are experiencing pain.
4. Use this equipment only for exercises shown
pages 14-15.
5. Use spotters/helpers to assist when using weights.
6. Keep body, clothing and hair clear from all moving parts. Do not
attempt to free any jammed parts by yourself.
7. Always warm-up before and cool-down after weight training.
Warm-up for 10-15 minutes with stretching and cardiovascular
exercises. Cool-down should include light stretching exercises for
5-15 minutes.
8. Never hold your breath – will limit the ow of oxygen to your brain
and may cause dizziness. The most often used breathing pattern is
inhaling during least resistance and exhaling during maximum
resistance.
9. Do not remove any decals axed to the machine. Replace if
damaged.
10. Periodic maintenance is required to keep your equipment in safe
and proper operating condition. Follow the maintenance schedule
as shown in“Inpection”and“Schedule”labels.
11. Do not use accessories or accessory attachments that are not
recommended by TuStu.
12. Make sure all pull-pins are fully engaged and secured in the holes
before performing the exercises.
13. Do not use the equipment outdoors.
Personal Safety During Assembly
Before beginning assembly, it is important to take the time to read and
review all of the assembly the instructions provided in this manual.
Read each step in the assembly instructions and follow the steps in
sequence. Do not skip ahead as you may learn later the you have to
disassemble the components and that you may have damaged the
components or parts.
Assemble, lubricate all moving parts, and operate the ECD-44 on a solid,
level and clean surface.
Locate the unit a few feet from the walls or furniture to provide easy
access.
After assembly, you should check all nuts & bolts that are wrench-
tightened, and all functions to ensure correct operation. If you experience
problems, rst recheck the assembly instructions to locate any possible
errors made during assembly. If you are unable to correct the problem(s),
call the dealer from whom you made the purchase rst before contacting
TuStu Customer Service.
Obtaining Service
Please use this Owner’s Manual as your guide to all parts included in
your shipment. When ordering parts, you must specify the part number
and description from this manual. Use only genuine TuStu replacement
parts when servicing the equipment. Failure to do so will void your
warranty and could result in serious injury or death.
For information about product operation or service:
Phone: [phone]
Fax: [phone]
Toll Free: 888-884-8275
E-mail: service@tustu.net
Hours: M–F 8:00 – 4:30 PST
Or write to: TuStu Fitness Equipment Inc.
Customer Service
13971 Norton Avenue, Chino, CA 91710
Retain this Owner’s Manual for future reference when ordering
service or parts. To assist you better, please be prepared to
provide the following information:
1. Model Number
2. Place of Purchase
3. Serial Number
4. Part # and Description
MAXIMUM
LOAD
250 lbs
DO NOT ATTEMPT to use over
maximum weight capacity
Important Safety Instructions
Before beginning any form of exercise program, it is important to get your physician approval. If you have
not participated in a regular exercise program, smoke or have signs of high blood pressure, you must consult
with your personal physician before performing any form of physical activities.
ECD-44 Chin/Dip/VKR Stand Combo

6
ECD-44 Preparation & Assembly
Thank you for purchasing the Gladiator ECD-44 Chin/Dip/VKR Stan Combo. This bench is part of the TuStu
line of quality strength training equipment. To maximize your use of the equipment, please study the Owner’s
Manual thoroughly.
Required Tools
The basic tools that you will need to assemble the ECD-44 but are not
limited to:
• 9/16”, 1/2”, 14mm, and 13mm combination wrenches
• Adjustable wrench
• Ratchet wrench with 9/16”, 1/2”, 14mm, and 13mm
sockets
• Rubber mallet, measuring tape & utility knife
Assembly Requirements
Follow these installation requirements when assemblying the ECD-44.
Use the overhead view on the front page cover to layout your oor
plan before assemblying.
Set up the ECD-44 on a clean, solid, at surface. A smooth, at surface
under the machine helps keep it level.
Allow ample space around the machine for safe unrestricted use and
easier access.
Insert all bolts in the same direction. For aesthetic appearance,
insert all bolts in the same direction unless specied (in text or
illustration) to do otherwise.
Leave room for adjustments. Do not fully tighten fasteners until in-
structed in the assembly steps to do so (to prevent any diculty with
alignment of parts during the assembly process). When not instructed,
tighten fasteners such as bolts, nuts and screws so the unit is stable,
but leave room for adjustments.
Assembly Tips
Read all“Notes”on each page before beginning each step.
While you may be able to assemble the ECD-44 using the illustrations
only, IMPORTANT safety notes and other tips are included in the text.
Some pieces may have extra holes that you will not use. Use only
those holes indicated in the instructions and illustration. Safety bolts
(Stopper) are placed in some pieces to prevent accidental removal of
moving parts, be sure to comply with the manufacturer’s request.
NOTE: With so many assembled parts, proper alignment
and adjustment is critical.While tightening the
nuts and bolts, be sure to leave room for nal
adjustments.
CAUTION: Obtain assistance if you feel like you can’t assemble
the ECD-44 by yourself. Please do not attempt to
do so as this could result in equipment failure and
injuries to you. Review the installation requirements
before proceeding with the assembly steps.
Maintenance Requirements
Gladiator equipment is designed to oer long-life service and
minimum maintenance. Please refer to the inspection and schedule
replacement part labels posted on the machine or on pages 3-4 of this
manual. Do not use Lysol or Windex as they will dry out and crack the
vinyl. Use a lanolin based hand cleaner or naugahyde cleaner on the
upholstery.
Registration Card
To avoid unnecessary delays on warranty parts and to insure that a
permanent record of your purchase is on le with our company, be
sure to mail in the warranty registration card or register online at
www.tustudirectonline.com within 10 days of purchase.
Loosely Fasten
Finger tighten all hardware in this step. DO NOT wrench
tighten. Some component(s) may need pre-assembly
and alignment during the assembly process.
Fully Fasten
Wrench tighten all hardware in this step.
SCREWW
IDTH
WASHERDIAMETER
NUTDIAMETER
SCREWLENGTH
ECD-44 Chin/Dip/VKR Stand Combo

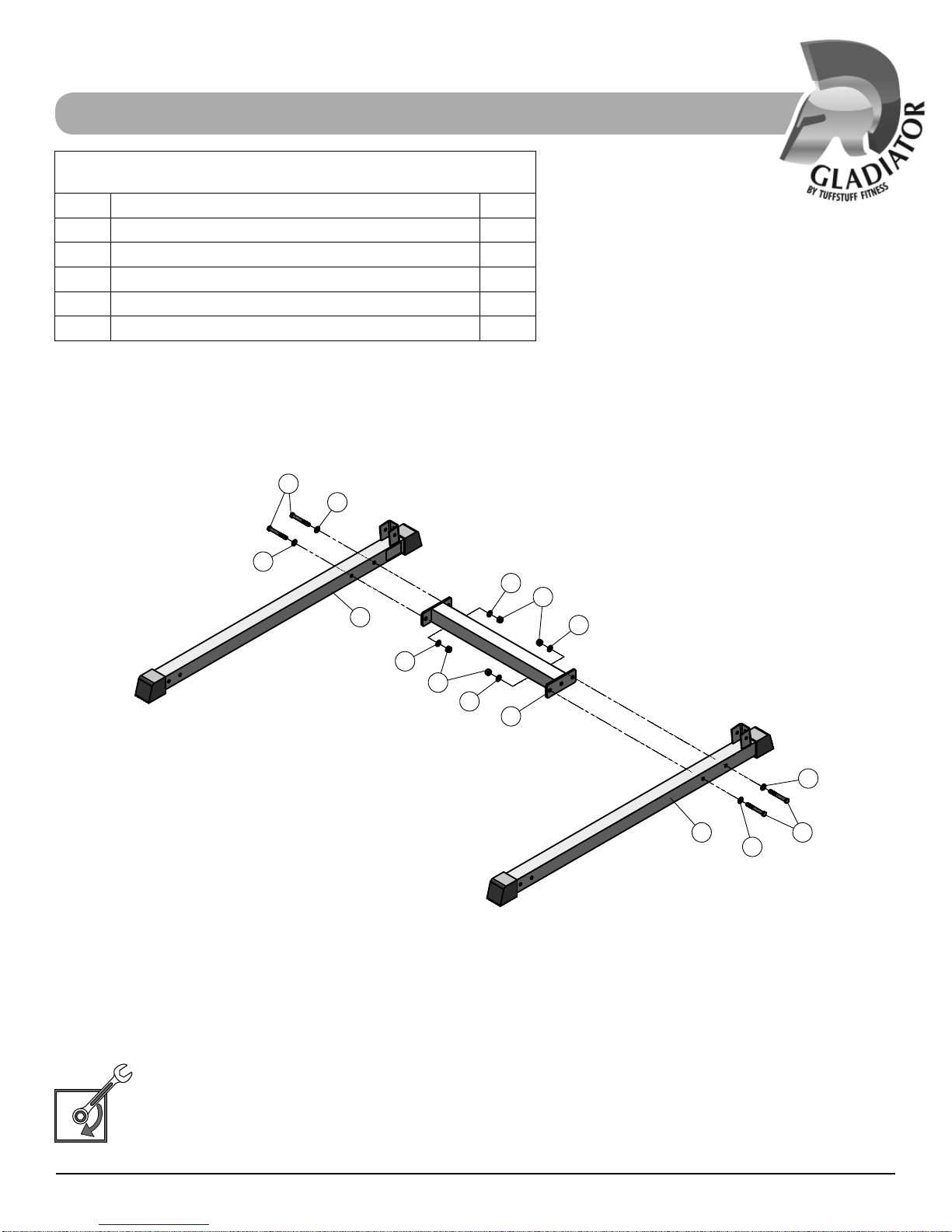

ECD-44 Step 1
7
10
17
1
10
10
10
1
10
15
17
10
2
10
15
10
LOOSELY FASTEN
Assembly List
Item # Description Qty.
1 BASE FRAME STABILIZER 2
2 BASE FRAME CONNECTOR 1
10 FLAT WASHER SAE Z/P 3/8 8
15 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 7/8 4
17 NYLON INSERT LOCK NUT Z/P 3/8-16 4
-WARNING-
1. IT IS STRICTLY RECOMENDED TO
HAVE ANOTHER PERSON ASSIST WITH
THE INSTALLATION OF THIS UNIT.
ECD-44 Chin/Dip/VKR Stand Combo

3
17
10
10
1
10
4 10
12
10
12
10
15
13
10
13
10
17
3
1
10
4
13 10 10
15
12
10
1213
10 17
17
ECD-44 Step 2
8
LOOSELY FASTEN
Assembly List
Item # Description Qty.
3 UPRIGHT FRAME 2
4 SIDE FRAME CONNECTOR 2
10 FLAT WASHER SAE Z/P 3/8 20
12 HEX HEAD CAP SCREW Z/P 3/8-16 X 1/2 4
13 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 3/4 4
15 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 7/8 4
17 NYLON INSERT LOCK NUT Z/P 3/8-16 8
ECD-44 Chin/Dip/VKR Stand Combo

10
17
10
10
10
13
10 13
5
10
17
17
10
10 17
17 10
3
3
10
14
10
17
6
1013
14
ECD-44 Step 3
9
Assembly List
Item # Description Qty.
5 CENTER FRAME CONNECTOR 1
6 CHIN/DIP FRAME 1
10 FLAT WASHER SAE Z/P 3/8 12
13 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 3/4 4
14 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 5/8 2
17 NYLON INSERT LOCK NUT Z/P 3/8-16 6
LOOSELY FASTEN
ECD-44 Chin/Dip/VKR Stand Combo

10
15
15
10
15
17
10
15
17
10
10
3
10
7
17
10
7
17
3

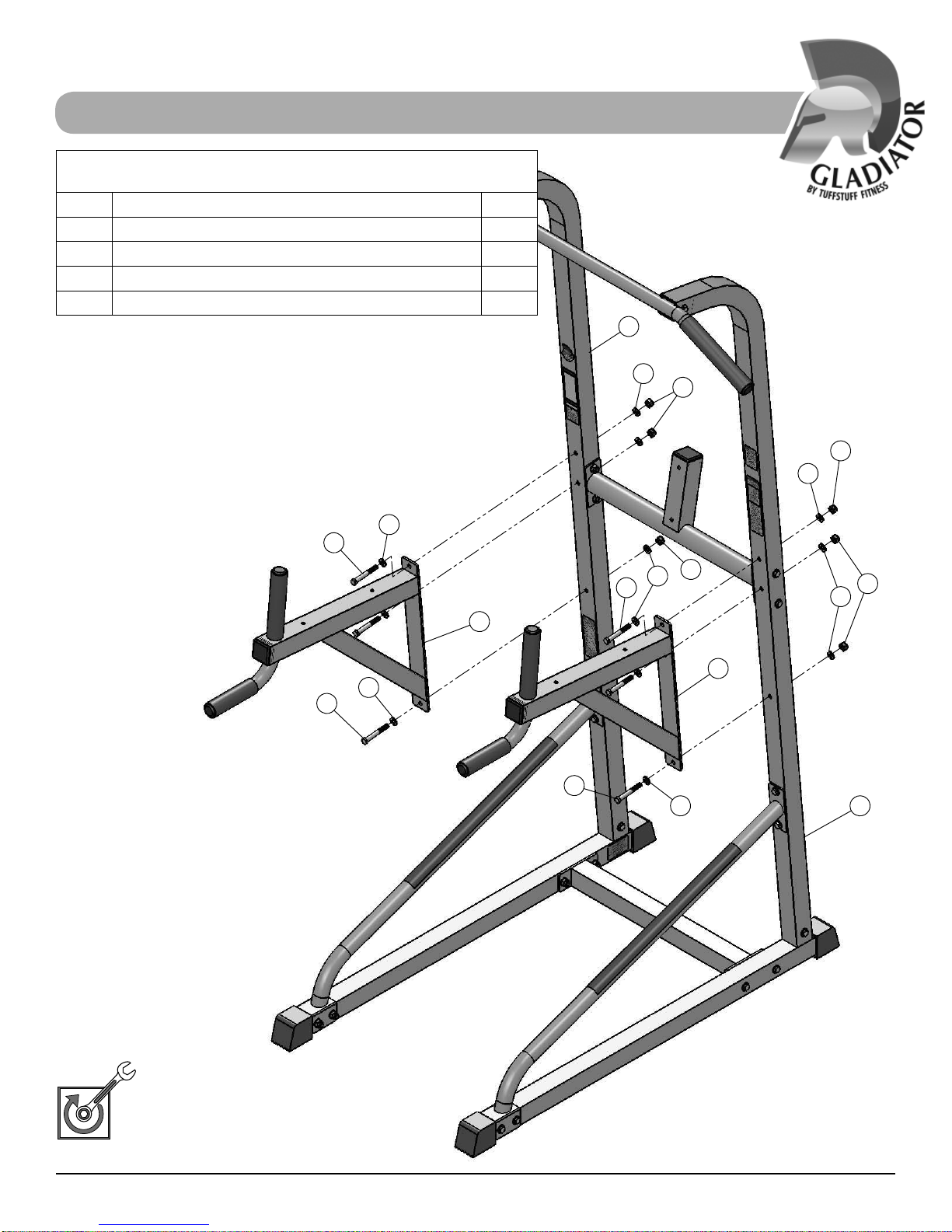

ECD-44 Step 4
10
FULLY FASTEN
Assembly List
Item # Description Qty.
7 ARM SUPPORT FRAME 2
10 FLAT WASHER SAE Z/P 3/8 12
15 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 7/8 6
17 NYLON INSERT LOCK NUT Z/P 3/8-16 6
ECD-44 Chin/Dip/VKR Stand Combo

8
10
8
16
10
10
16
16
9

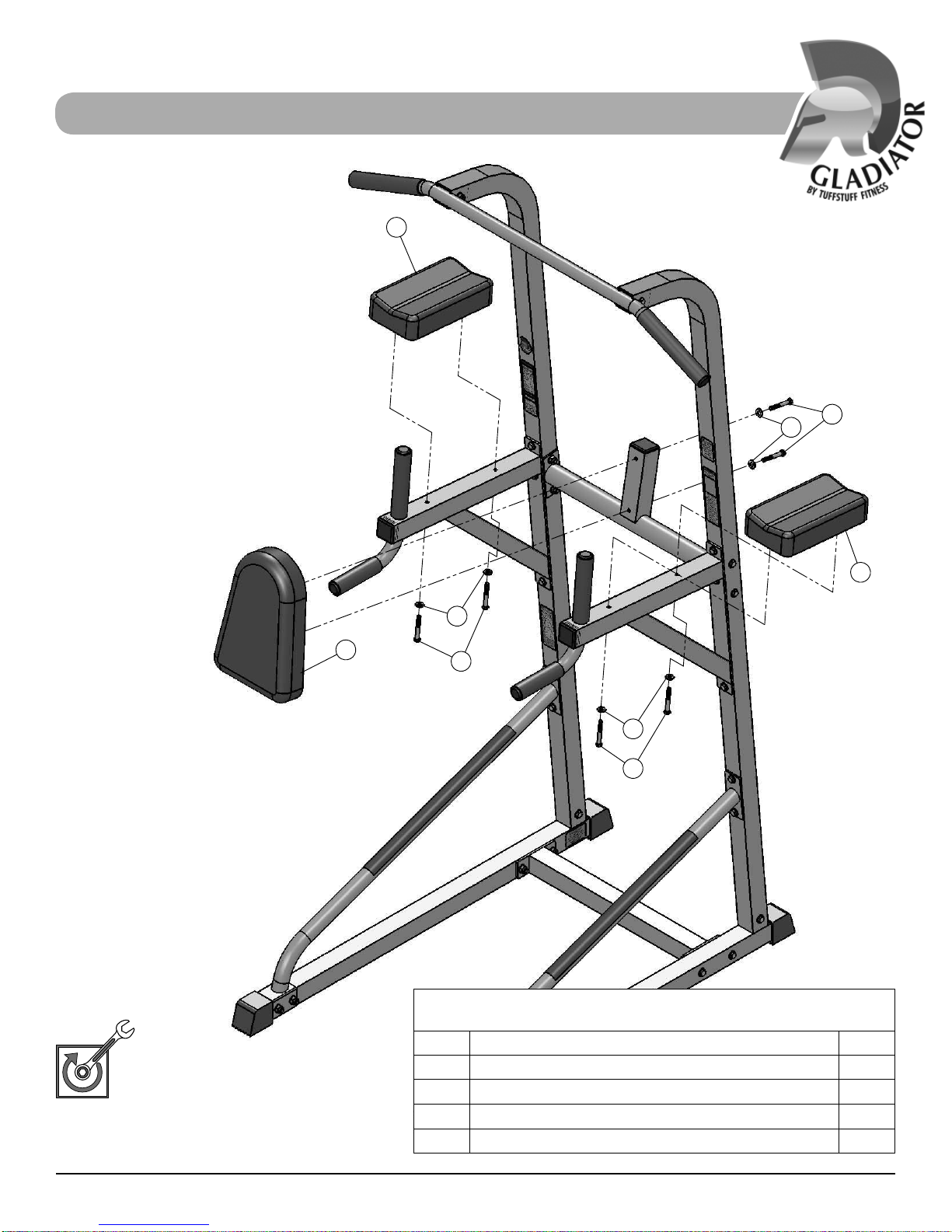

ECD-44 Step 5
)
FULLY FASTEN
THESE AND ANY LOOSELY
FASTEN HARDWARE
Assembly List
Item # Description Qty.
8 ARM PAD 2
9 BACK PAD 1
11 FLAT WASHER SAE Z/P 5/16 6
16 HEX HEAD CAP SCREW Z/P 5/16-18 X 2 3/4 6
11
ECD-44 Chin/Dip/VKR Stand Combo

ITEM DESCRIPTION REV PART NO. QTY
1 BASE FRAME STABILIZER 0 GLA1008 2
2 BASE FRAME CONNECTOR 0 GLA1009 1
3 UPRIGHT FRAME 0 GLA1010 2
4 SIDE FRAME CONNECTOR 0 GLA1011 2
5 CENTER FRAME CONNECTOR 0 GLA1012 1
6 CHIN/DIP FRAME 0 GLA1013 1
7 ARM SUPPORT FRAME 0 GLA1014 2
8 ARM PAD 0 GLA1015 2
9 BACK PAD 0 GLA1016 1
10 BNH0239 52
11 BNH4136 6
12 BNH4138 4
13 BNH2045 8
14 BNH4139 2
15 BNH4149 14
16 BNH4150 6
17 BNH4142 24
18 BNH4152 4
19 BNH4151 6
20 BNH4144 3
21 BNH4153 2
22 BNH4154 2
23 BNH4155 2
24 BNH2928 2
25 BNH2903 1
26 LABEL-WARNING SERIOUS INJURY OR DEATH CAN OCCUR... BNH2907 1
27 BNH2915 1
28 LABEL-SCHEDULE REPLACEMENT PARTS... BNH2917 1
29 BNH2918 1
30 LABEL-GLADIATOR SERIES SERIAL # BNH2919 1
SAFETY TAPE ANTI-SLIP 2 X 20
LABEL-INSPECTIONS RECOMMENDED INSPECTION...
LABEL-DANGER USE THIS EQUIPMENT...
ECD-44
Parts List
RUBBER GRIP Ø32*180
RUBBER GRIP Ø32*230
FLAT WASHER SAE Z/P 3/8
NYLON INSERT LOCK NUT Z/P 3/8-16
PLASTIC END CAP W/GROOVE 2" SQ
PLASTIC INSERT CAP 1 1/4" RD
LABEL-GLADIATOR BY TUFFSTUFF FITNESS
FLAT WASHER SAE Z/P 5/16
HEX HEAD CAP SCREW Z/P 3/8-16 X 1/2
HEX HEAD CAP SCREW Z/P 3/8-16 X 2 3/4
HEX HEAD CAP SCREW Z/P 3/8-16 X 2 5/8
HEX HEAD CAP SCREW Z/P 3/8-16 X 2 7/8
HEX HEAD CAP SCREW Z/P 5/16-18 X 2 3/4
PLASTIC INSERT CAP 2" SQ.
RUBBER GRIP Ø32*140
ECD-44 Parts List
12 ECD-44 Chin/Dip/VKR Stand Combo

3
11 19
15
10
11
24
10
17 10
10
10
18
1
13
10
17
10
12 10
13
4
13
15
19
21
17
20
22
19
7
10 10
20
15
17
10
10
5
10
17
10
9
10
18
10
10
12
2
11
17
10
17 10
10
16
10
10
13
4
1
10
18 10 10
10
17
18
12
10
10
10
12
10
13
13
15
17
7
10
15
21
19
20
22
23
6
19
23
17
10
10
14
8
10
15
17
3
15
8
15
10
10
17
11
10 14
10
16
17
10
17
16
24
ECD-44 Exploded View
13
ECD-44 Chin/Dip/VKR Stand Combo

Chin Up
Dip
Begin/End Mid-Range
Begin/End Mid-Range
14
Basic Exercise Guide
Use this equipment only for the exercises as shown. Know your limitations. If you are new to weight training, always start
with lighter weight, learn how to perform the exercise correctly and train at a controlled rate of speed. Warm up properly with
stretchings, calisthenics or cardiovascular exercises. Never hold your breath – general rule of thumb is to exhale when you exert.
Before working out, read and understand the Owner’s Manual, all danger, warning and caution labels listed on pages 3-4. This
equipment is for HOME use only. Obtain a medical examination before beginning any exercise program. If you feel faint, dizzy or pain, stop exercising immediately.
ECD-44 Chin/Dip/VKR Stand Combo

Knee Raise
Leg Raise
Begin/End Mid-Range
Begin/End Mid-Range
15
Basic Exercise Guide
Use this equipment only for the exercises as shown. Know your limitations. If you are new to weight training, always start
with lighter weight, learn how to perform the exercise correctly and train at a controlled rate of speed. Warm up properly with
stretchings, calisthenics or cardiovascular exercises. Never hold your breath – general rule of thumb is to exhale when you exert.
Before working out, read and understand the Owner’s Manual, all danger, warning and caution labels listed on pages 3-4. This
equipment is for HOME use only. Obtain a medical examination before beginning any exercise program. If you feel faint, dizzy or pain, stop exercising immediately.
ECD-44 Chin/Dip/VKR Stand Combo

WARRANTY
IMPORTANT: KEEPTHIS MANUAL FOR FUTURE REFERENCE
This warranty applies only in the United States to the products manufactured or distributed by TuStu Fitness
Equipment Inc. under the Gladiator brand name. The warranty period to the original purchaser is 3 years on the frame
and 1 year on ALL parts. TuStu warrants that the Product you have purchased for personal, family or household use
fromTuStu or from an authorized TuStu dealer is free from defects in materials or workmanship under normal use
during the warranty period. This warranty extends only to you, the original purchaser and it is not transferable to anyone.
This warranty does not cover:
A. TuStu products sold for and used in a commercial or institutional environment.
B. Any damage, failure or loss caused by accident, misuse, neglect, abuse, improper assembly, improper
maintenance, or failure to follow instructions or warnings in the owner’s manual and warning labels
posted on the machines.
C. Use of the product in a manner for which it was not designed.
D. It excludes expendable parts such as paint and nish.
E. Original product that is altered, or the use of replacement parts and components of another manufacturer.
F. VALID ONLY if the Product is assembled and installed according to the instructions provided in the
Owner’s manual.
The obligation of TuStu under this warranty is limited to repairing or replacing warranted defective parts asTuStu may
elect, at TuStu’s facility in Chino, California without charge to the purchaser. Purchaser is responsible for installation of
repaired or replaced parts, and all transportation and insurance costs on returned or replaced equipment to and from
TuStu’s facility in Chino.
THE FOREGOING SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER AND THE
SOLE LIABILITY OF TUFFSTUFF WITH REGARD TO WARRANTY, WHETHER EXPRESS OR
IMPLIED BY OPERATION OF LAW OR OTHERWISE, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS. TUFFSTUFF SHALL
IN NO EVENT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL LOSSES, DAMAGES,
OR EXPENSES IN CONNECTIONS WITH EXERCISE PRODUCTS. TUFFSTUFF’S LIABILITY
HEREUNDER IS EXPRESSLY LIMITED TO THE REPAIRS OR REPLACEMENTS OF
WARRANTED DEFECTIVE PARTS.
This written warranty is the nal, complete and exclusive agreement of the parties with respect to the quality or
performance of the equipment and no action for breach of this written warranty or any implied warranty shall be
commenced more than one (1) year after the accrual of the cause of action. No modication of this warranty or waiver of
its terms shall be binding on either party unless approved in writing by an authorized representative of the party. Contact
TuStu Fitness Equipment Inc. at 13971 Norton Avenue, Chino, CA 91710, before returning any defective equipment.
This warranty gives you specic legal rights and you may also have other rights, which may vary from state to state.
SERIAL #
Write your Serial number here for future reference Purchase Date
Gladiator is a brand name product manufactured and distributed by:
TuStu Fitness Equipment Inc.
13971 Norton Avenue, Chino, CA 91710, USA
Phone: [phone] Fax: [phone]
service@tustu.net service1@tustu.net
www.tustudirectonline.com
