Sec. 1:1
Section 1 - Installation: Introduction

Standard Equipment
Part
Number Description
22850-XX MH II Dispensing System
23950-XX Probler P2 Gun• W/ Round Spray Mixing Chamber
18006-01 Whip Hose Assembly
19524-01 Medium Pressure Heated Hose Assembly
59934-04 Dioctyl Phthalate, 1 Qt.
GC-1267 System User Manual
2
Model - MH II
Sec. 1:2
Section 1 - Installation: Standard Equipment

Material Ratio: 1:1 (Fixed)
Material Viscosity: 200- 2000 Centipoise (Cps)
At Operating Temperatures
Output: .042 GPC
.159 LPC
Operating Temperatures: 32º F ( 0º C ) - 190º (88 º C )
Operating Psi: 3000 Psi. Max (Over Psi Switches Set)
Hoses: 2200 PSI. W/ 19524-01
2600 PSI. W/ 22023-01
Hydraulic Psi To Pumps: 2:1 Ratio
1000 PSI. Hydraulic PSI.
2000 PSI. Fluid PSI. Per Side.
Purging: Automatic Pneumatic, Solvent-free, Constant
Electrical Requirements: 74 Amps @ 208/240 Vac, 50/60 Hz Single Phase 5 HP
35 Amps @ 208/240 Vac, 50/60 Hz Three Phase 5 HP
27 Amps @ 380 Vac, 50 Hz Three Phase 5 HP
Compressed Air Requirements: 15 Cfm @ 100 Psi
425 Liters @ 6.8 Bar
Max Hose Length: 310’ X 3/8 I.d. Hose
Includes 10’ X ¼ I.d. Heated Whip Hose
Shipping Weight: 950 Lbs
Overall Dimensions:
3
Section 1 - Installation: Specications
Sec. 1:3

4

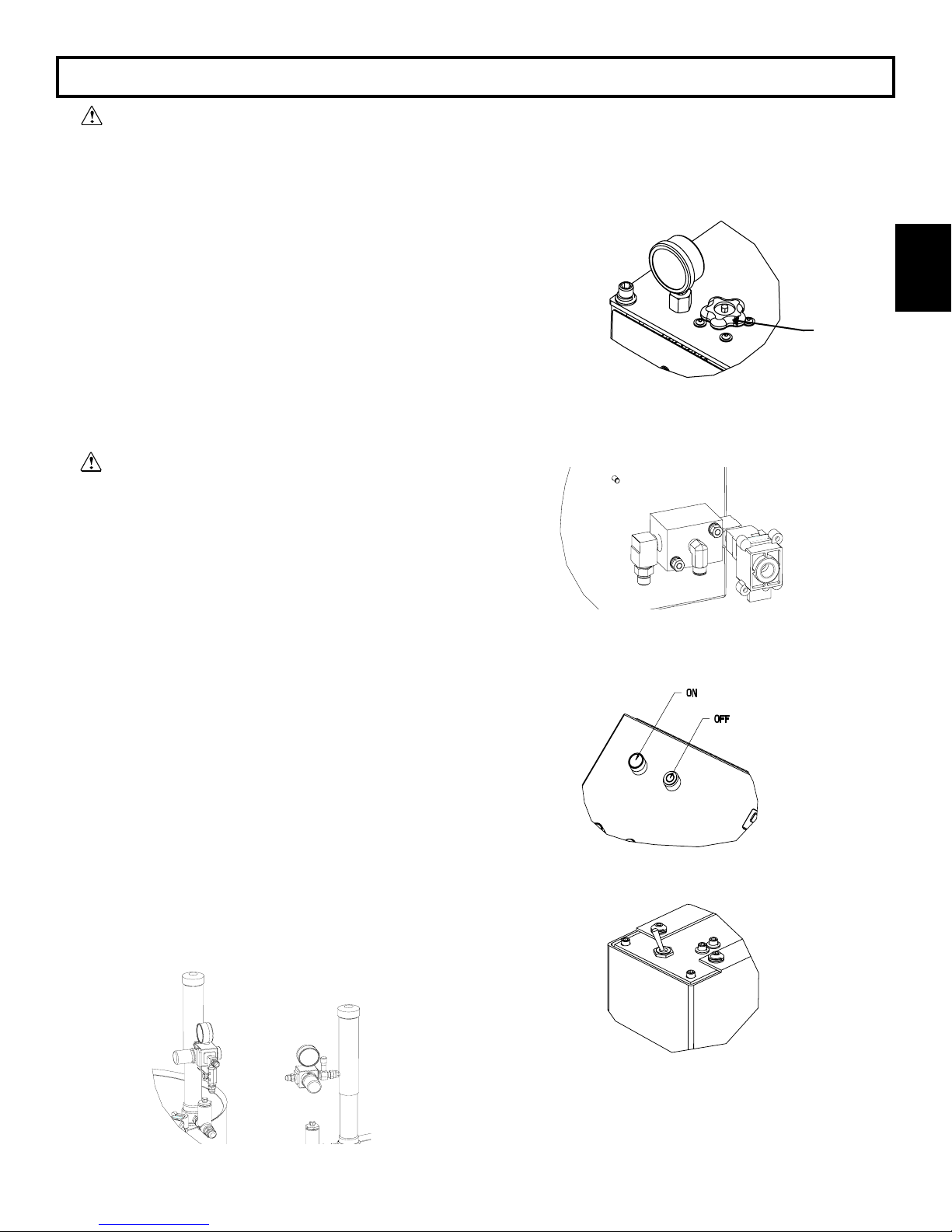

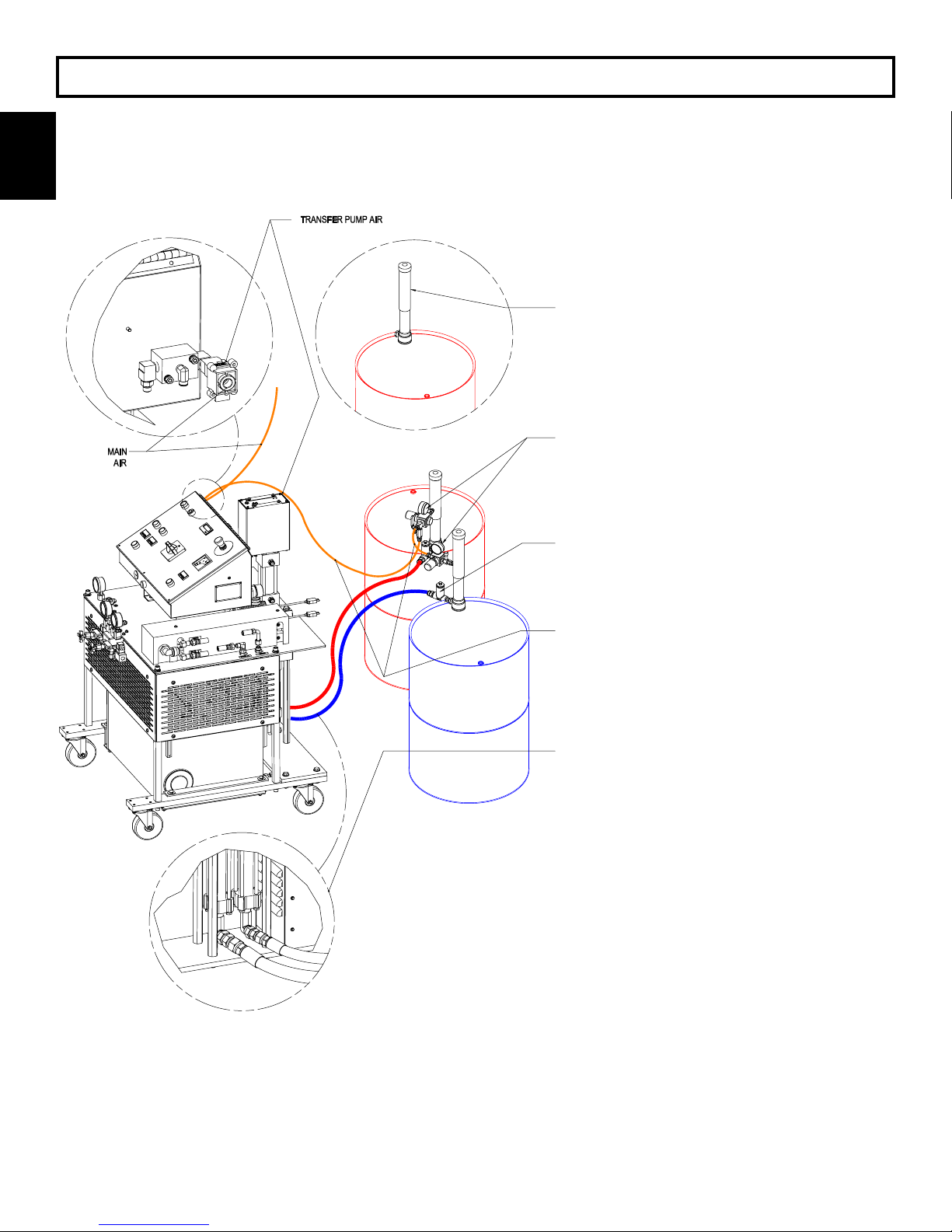

Optional Transfer Pump Installation
P/n: 17666-01
Optional Air Dryer Kit
P/n: 23410-00 should be installed on the ISO material
drum. Replacement cartridge pn: 23409-00.
1. Remove large drum bunghole cover and
install material transfer pump bung adapter.
Carefully lower the transfer pump into the
drum until it touches the bottom of the drum.
Raise the pump 1/4 to 1/2 inch and tighten
bung adapter securely.
2. Connect regulator assemblies to transfer
pumps.
3. Connect lter assemblies to transfer pumps.
Note: Replacement lter p/n: 17975-01. Replacement
gasket p/n: 294.
4. Connect air lines:
1) Manifold @ unit to bottom regulator
port on ISO drum.
2) Side regulator port on ISO drum to
air port on POLY drum.
5. Connect material hoses to material
pump inlet ttings on the unit and to
the outlet ttings at lter assemblies.
Sec. 1:4
Section 1 - Installation: Equipment Assembly

6. Install thermocouple at tee tting.
a. Feed 12’ line through hose.
b. Nut & Ferrules will lock into tting.
c. Tighten nut 1-1/4 turns past nger tight.
d. Plug thermocouple into control box.
Note: When replacing thermocouple p/n 22074-00 use kit
p/n: 21214-01.
TO AIR
MANIFOLD
7. a. Connect hose assembly to the front of the unit. The
ttings are sized differently and will attach only one
way. (match like sized ttings).
b. Connect twist-lock plugs. (see hose installation)
8. Connect supplied trigger air line to the
air line on the hose assembly.
5
Sec. 1:4
Section 1 - Installation: Equipment Assembly

6
Sec. 1:4
Section 1 - Installation: Equipment Assembly
9. Continue adding extra hose lengths if necessary.
Required Tools:
Opened - end wrenches - 5/8”, 3/4” , 13/16”
a. Lay hoses out straight.
b. Couple hoses together with supplied union ttings
and tighten nger-tight.
c. • Hold crimp tting hex (3/4”), and union tting
together, allowing the hose to hold it’s natural
line.
• Using the appropriate wrench (A-side 3/4” / B-side
13/16”) tighten swivel tting to union, not allowing
crimp tting or union to turn. Repeat on opposite
side of union.
This practice is required on all connection
points.
1) Hose @ machine
2) Hose @ gun
3) Adding additional hose sections
d. Plug hoses together, The TRU-FLOW hose plugs are
a twist-lock design.
• Push plugs together.
• Twist to lock position.
Once connections are made, tape connections
well enough to keep plugs from coming undone,
damaged, etc.

7
Sec. 1:4
Section 1 - Installation: Equipment Assembly

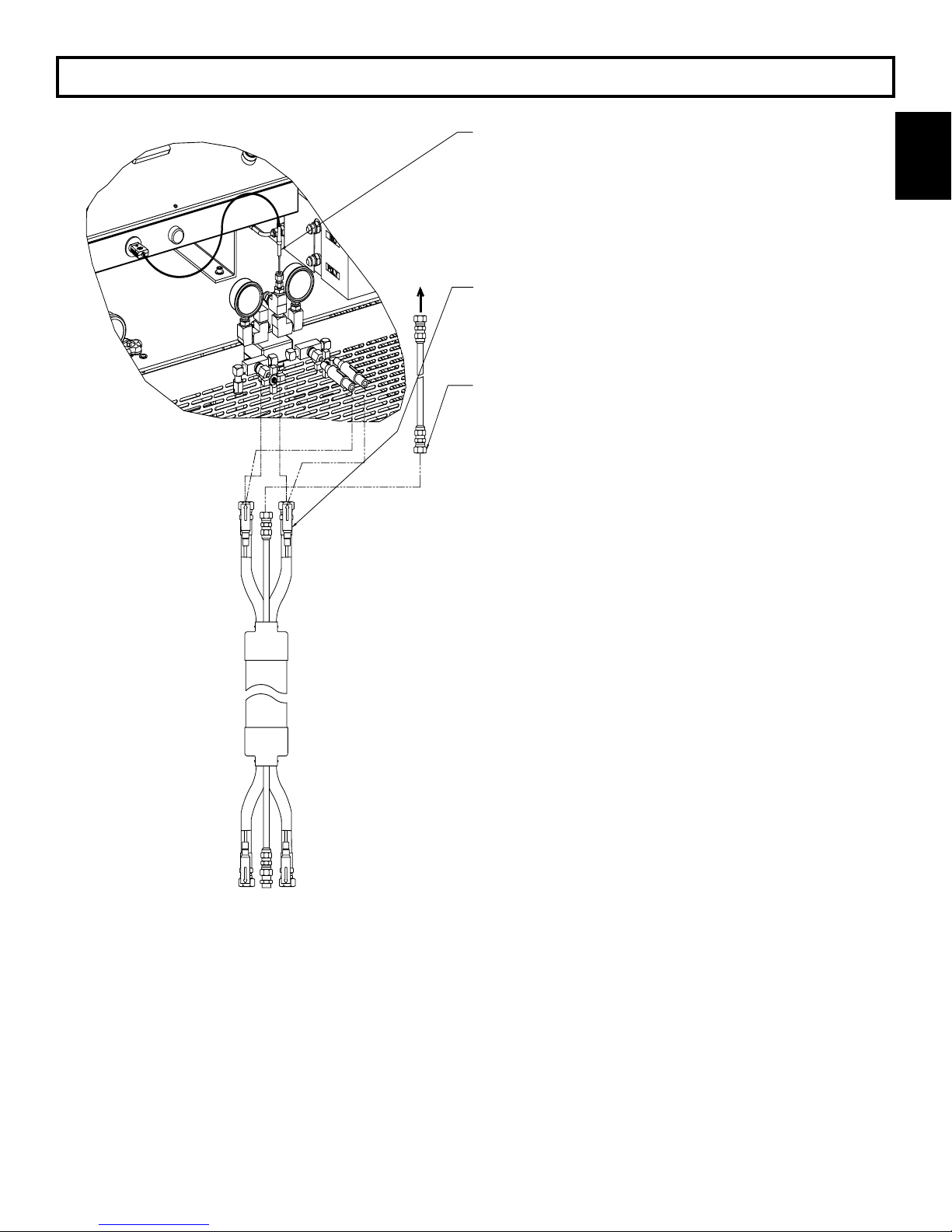

10. Connect the whip hose assembly to the
last section of material hose.

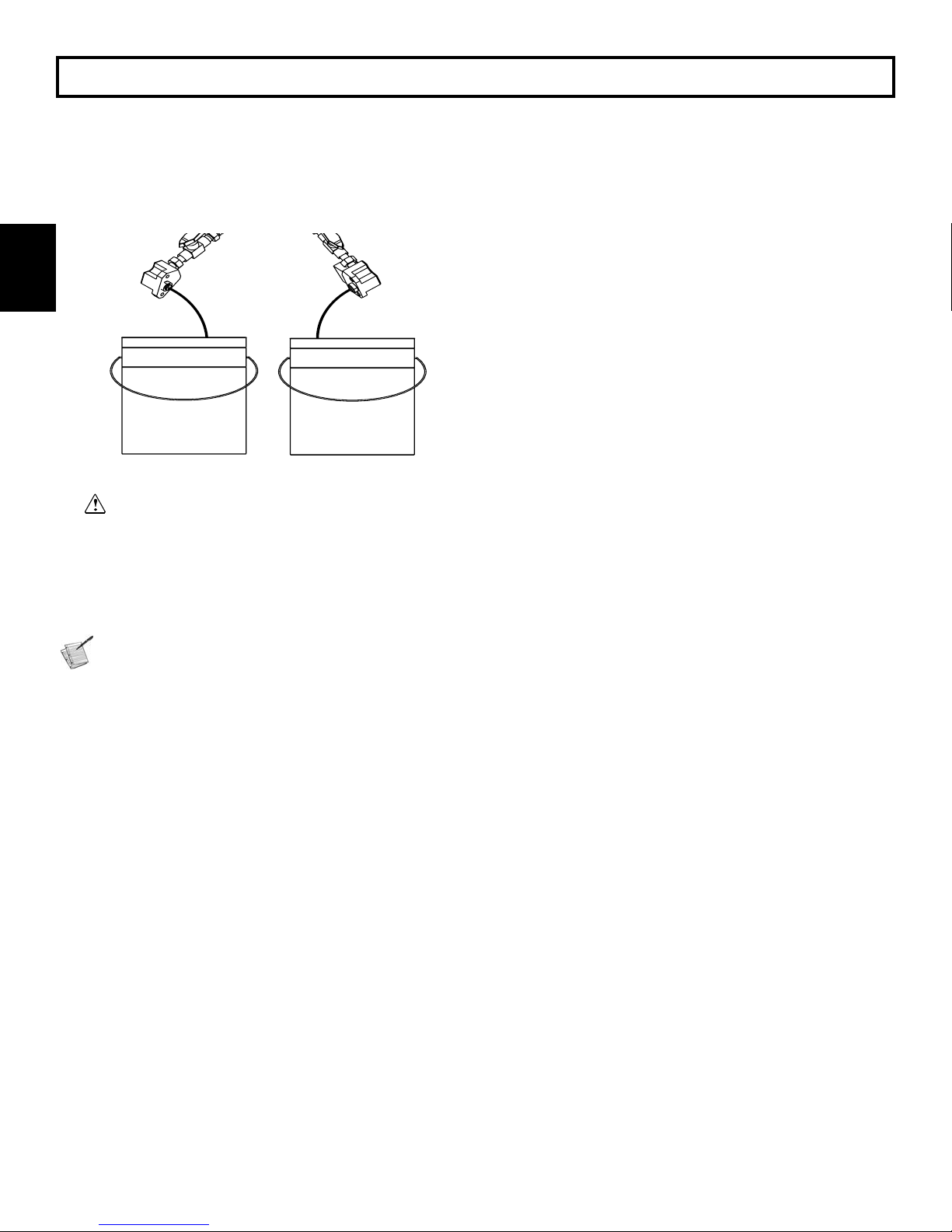

11. Connect jumper p/n: 22094-00 to the
plugs on material hose to complete the
circuit.
Jumper not needed with 18006-01 heated whip hose.
12. Connect Hose Assembly and the gun as
shown. The swivel ttings on the Hose assembly
are sized differently and will attach only one way.
13. Fluid and air connections between the sytem and
gun should now be complete and tight.
When Main Power to system console is on, the white
and black wires in the console are always live!
Disconnect or turn off Main Power source before
opening console to make any repairs or before making
any electrical repair of any type to the system.
If you do not understand the electrical hook-up
described above, consult your local GlasCraft distributor
OR a qualied electrician.
Electrical connections must be checked on a
periodic basis.
208/240 volt single phase
L1 L2 GROUND
208/240 volt three phase
L1 L2 L3 GROUND
380 volt three phase
L1 (black)
L2 (brown)
L3 (black)
L4 (blue)
GROUND (green)
14. If more than 50 ft. of hose is used the transformer tap
setting will need to be set for proper hose length. The
sticker on the front cover will say which tap to move
the wire to. DO NOT MOVE THE COMMON LEG!
21129-00
9500 D
L. LARSON 5-10-02
21192-00
LABEL, TRANSFORMER
SIZE: (ref.): 4" X 4-1/4"
COLOR:
BORDER, LINES, AND TEXT - BLACK
BACKGROUND - WHITE
MATERIAL:
ADHESIVE-BACKED MYLAR with CLEAR MYLAR LAMINATE ON THE TOP OF LABEL.
ARIAL 12 PT. BOLD
ARIAL 11 PT. BOLD
ARIAL 14 PT. BOLD
STENCIL 32 PT.
transformer
15V
30V
COM 45V
(DO NOT 60V
MOVE) 60V
75V
CONNECTIONS HOSE LENGTH
50 FT
100 FT
150 FT
200 FT
250 FT
300 FT
H1 PRIMARY H2
COM 15V 30V 45V 60V 75V
TO HOSE

8
Sec. 1:4
Section 1 - Installation: Equipment Assembly
15. Fill the hydraulic power pack with proper uid.
The hydraulic pack tank is empty when shipped
from GlasCraft. The tank MUST be lled before
operation. Tank Capacity: 20 GAL. / 75.5 Liter.
Recommended Hydraulic Fluid: ISO grade 32, 46,
or 68. Fluids containing anti-wear additives are
recommended for optimum service life.
Fill Cap
Fill Gauge

9
Section 2 - Operation: Start-Up Instructions
System Console
Sec. 2:1

1MAIN POWER SWITCH
Controls power and door; handle must point 1 to
energize power , handle must point to 0 to open control
box door. White pilot indicates when lighted, that the
main power is on.
2EMERGENCY STOP PUSH
BUTTON
To stop all functions, push down on red button. To reset,
turn handle on push button. All functions will remain off
until main power switch has been switched off and back
on
3 AMMETER An instrument for measuring amperes to the primary
side of the hose’s transformer.
4HOSE TEMPERATURE
CONTROLLER
Controls temperature of liquid inside the heated hoses.
To set desired temperature, press the up or down button
until you reach desired temperature From this point, the
temperature control is completely automatic.
5 ON PUSH BUTTON Powers the controller. It requires 10 seconds for the
Controller to respond.
6 WHITE PILOT LIGHT Indicates power on.
7 POLY PRESSURE GAUGE Indicates material pressure.
8 ISO PRESSURE GAUGE Indicates material pressure.
9 HYDRAULIC PRESSURE KNOB
Increases or decreases hydraulic pressure. Turn
clockwise to increase pressure. Turn counter-clockwise
to decrease pressure.
10 HYDRAULIC PRESSURE GAUGE Indicates hydraulic pump pressure
11 ON PUSH BUTTON Powers the controller. It requires 10 seconds for the
Controller to respond.
12 ISO / POLY TEMPERATURE
CONTROLLER
Controls temperature of liquid inside ISO heater. To set
desired temperature, press the up or down button until
you reach desired temperature. From this point, the
temperature control is completely automatic.
13 OVER-PRESSURE RESET
BUTTONS
When over-pressure is detected, the hydraulic power
pack will be shut down, and will remain off until
pressure is reduced and the push button is reset.
14 ON PUSH BUTTON Power On To the hydraulic power pack.
15 OFF PUSH BUTTON Power Off to the hydraulic power pack.
16 COUNTER Counts pumps cycles.
.042 GPC / .159 LPC
17 RETRACT SWITCH Retracts pumps to the full down stroke position to
protect pump shafts.
18 HYDRAULIC OIL FILL CAP Remove cap to ll tank with recommended hydraulic oil.
19 ISO / POLY DUMP VALVES Relieves pressure and material from ISO & POLY side.
20 HOSE THERMOCOUPLE OUTLET Power outlet for hose thermocouple.
10
Section 2 - Operation: Start-Up Instructions
System Console
Sec. 2:1

11
Never leave machine unattended while system power is
on or system is running.
System running is dened as: preheat cycle of the hose
heat, primary heaters, or any pump operation.
Machine operators must be familiar with the component
functions and operation of the machine.
Pre-Operation Check List
A. Check that all ttings are securely tight.
B. Check electrical hook-up (qualied electrician
recommended).
C. Main power switch on Control Box should be
switched to OFF position.
Do not place any part of the body in the path of the
material spray. Do not point the gun at or near other
personnel. Do not look into the Mixing Chamber orice
at any time. Because of the hazardous materials used in
this equipment, it is recommended that the operator use
an air mask, goggles, protective clothing, and other
safety equipment as prescribed by current regulations,
recommendations of the chemical suppliers, and the
laws in the area where the equipment is being used.
Initial Start-Up Procedure
With all material and air lines connected and power
cable attached, the system is now ready for start-up.
Filling The System
1. The system is now ready to be lled with material.
With transfer pumps in place, adjust regulators on
transfer pumps to 30-50 psi or until the pumps begin
cycling, once the pumps begin loading up (cycle rate
slows or stops) increase transfer pump air pressure
to to 100 psi. to ll the system.
If the transfer pumps can not move material adequately
enough to properly prime the system it may be
necessary to start the hydraulic power pack.

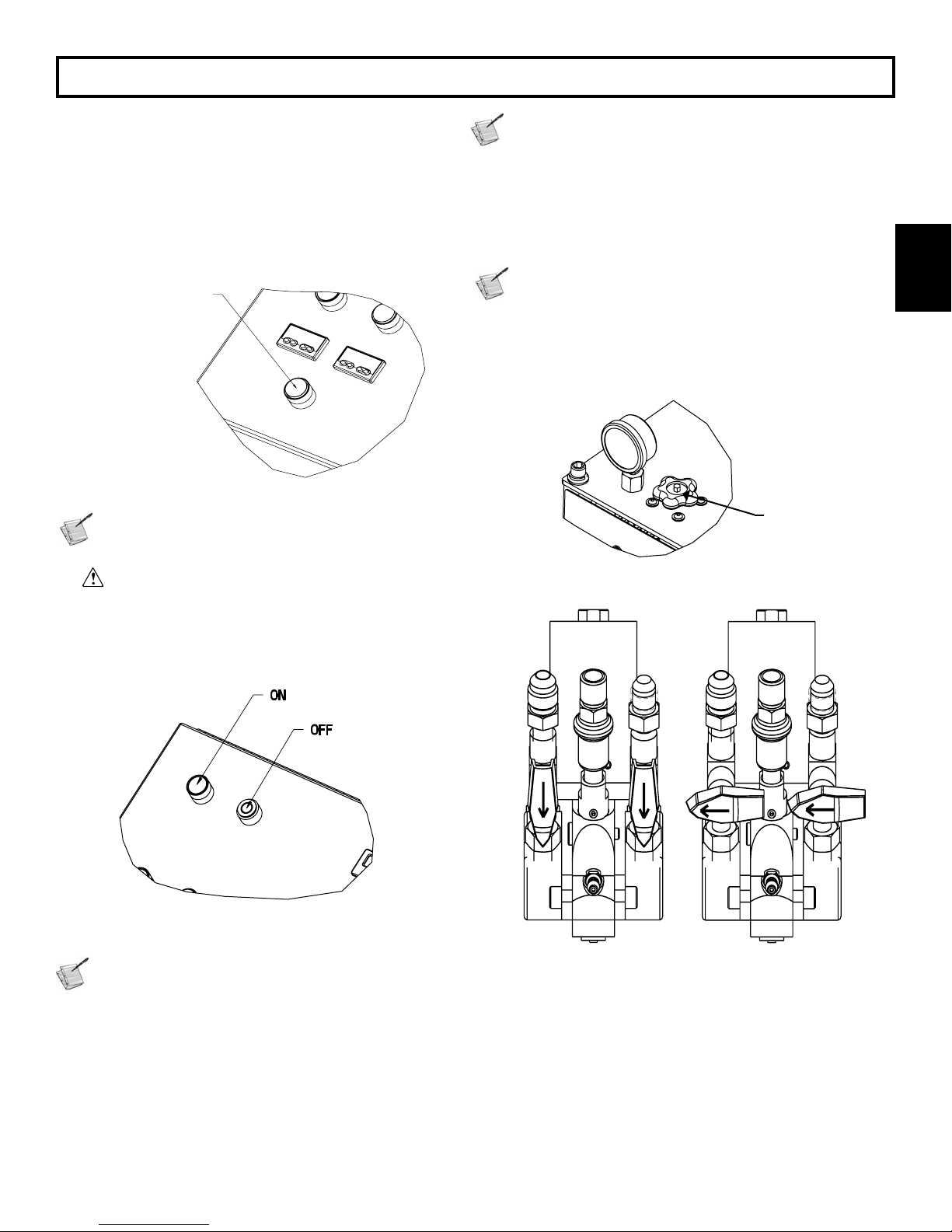

a. Ensure hydraulic pressure knob is turned com-
pletly counter clockwise.
Pressure
knob
b. Main air should be on to system manifold.
c. Turn on hydraulic power pack.
d. Flip retract switch to “run” position.
The pumps will begin cycling to completely prime the
system
Section 2 - Operation: Start-Up Instructions
Sec. 2:1

12

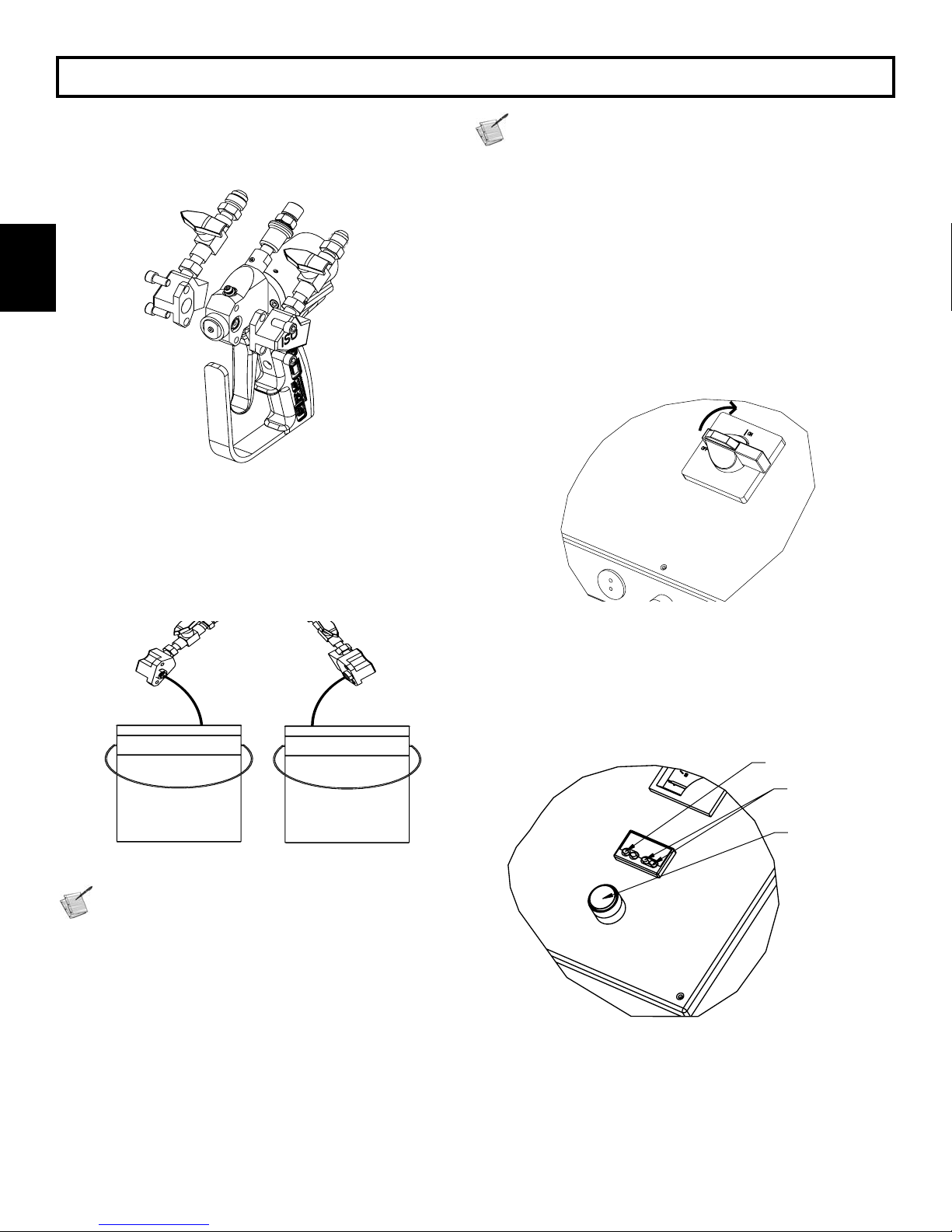

2. Remove ISO & POLY side blocks from gun.
MAKE SURE VALVES ARE OFF!
3. Place separate clean containers under each indi-
vidual side block. Slowly open material valves
(black arrow forward) on each side block to allow
trapped air to escape the hose and material to ow
into the containers until all air is purged from the
material system.
Remember to dispense one to two gallons of material
to clear the system of grease and plasticizer that was
used during factory testing.
4. Close the manual material valves. Material pressure
gauges should now register approximately equal
pressure.
5. Dispose waste material properly and in accordance
with chemical suppliers instructions and local, state
and federal regulations.
Before re-assembling Side Blocks, lubrication can be
applied by dabbing a white lithium grease into holes in-
side of Gun Front Housing and wiping grease over Side-
Block Seals. Grease will purge itself when air valve is
turned on at Gun and Gun is triggered.
6. Clean and lubricate the side blocks and seals thoroughly
and re-assemble them to the gun. Make certain that the
side block screws are tightend securely.
7. Refer to material manufacturers operating instructions
for proper preparation of material, i.e, mixers, etc.
8. Turn main power Switch to ON position.
9. Turn on hose control:
a. Push in the green button.
b. Press either up or down arrow buttons on the
controller until desired temperature setting
is achieved.
Section 2 - Operation: Start-Up Instructions
Sec. 2:1
For Programing
Use Only
Up & Down
Buttons
Green Power
On Button

13
9. Turn on hose control:
a. Push in the green button.
b. Press either up or down arrow buttons on the
controller until desired temperature setting
is achieved.
10. Turn on the ISO & POLY Heaters.
Green Power Button
Turn transfer pump air regulator on slowly. Pumps
should cycle slowly until hoses are full of material.
Straighten hose out at, to avoid uneven heating and
damage to internal wiring of the hose assembly.
11. Turn on Hydraulic Power Pack
Allow enough time for hose to warm up (approx. 30
minutes). Remember that the heated hose does not
have a delta rating. The heated hose’s function is to
maintain the heat generated by the primary heaters
during system operation, and preheat material during
initial start-up. The hose should be set to maintain a
temperature close to the set point of the primary
heaters.
To see the actual temperature of the liquid in the hose,
push the blue button once and release. The actual
temperature will then be displayed for 10 seconds.
12. Adjust temperature to desired setting. ISO and POLY
controllers function exactly the same as the hose
controller.
Allow enough time for the material to be heated
(approximately 3-5 minutes).
13. Slowly adjust hydraulic pressure knob clockwise
on the system to desired pressure.
Pressure Knob
14. Turn purge air and material valves ON at the gun.
ON OFF
Section 2 - Operation: Start-Up Instructions
Sec. 2:1

14
Section 2 - Operation: Start-Up Instructions
Sec. 2:1
15. If one side registers considerably more pressure
than the other side, go to the high pressure side
and bleed off some pressure by slightly opening
the manual material valve on the side block over
the container. Bleed pressure until both sides are
approximately the same pressure.
Material will dispense at high pressure. follow all
safety precautions
16. Relieve any excess pressure by triggering the gun.
The Emergency Stop Switch is located on the top
right side of the Box Panel, when depressed, it will
shut down the power to the system. To reset, turn the
“red” push button.
17. The system is now ready for operation.

15
Sec. 2:2
Section 2 - Operation: Shut-Down Instructions
System Shut-Down
1. Flip “retract” switch from “run” position.
2. Trigger gun to send pumps into full downstroke.
3. Turn off hydraulic power pack.
4. Turn off primary heaters.
5. Turn main power switch off.
6. Refer to gun manual for proper Gun maintenance.
7. Reduce Hydraulic Pressure Knob setting to ZERO.
8. Visually inspect entire system for leaks.
9. Turn OFF System.
Do not bleed uid pressure from the system.
Storing The Hose
Coil the hose with a minimum diameter of 4’, To avoid kink-
ing and subsequent damage to the internal wiring of the
hose assembly.
On/Off

16
Sec. 2:3
Section 2 - Operation: Daily Start-Up Instructions
System Daily Start-Up
1. Uncoil hose.
2. Check desiccant dryer beads to insure they are
still purple and have not changed to pink.
3. Check and lube top of the uid section.
Wipe off residual material
and add a tablespoon of
DOP or materail suppliers
reccommended lubricant.
4. Check material screens at the gun and transfer
pumps.
5. Start the drum mixer and it run to material suppliers
specications. (20-30 minutes)
6. Turn on the hose controller and set the temperature
according to material suppliers specications.
7. Once the hose temperature reaches desired set point,
It’s ok to turn on the primary heaters and set tempera-
ture to material suppliers specications.
Power on
8. Depress yellow slide valve to open main air to gun
and transfer pumps.
9. Flip retract switch to “run”
For Programing
Use Only
Up & Down
Buttons
Green Power
On Button

17
Sec. 2:3
Section 2 - Operation: Daily Start-Up Instructions
System Daily Start-Up
10. Increase Hydraulic pressure to desired pressure.
Pressure Knob
11. Perform Probler / Probler P2 side block seal integ-
rity test.
12. Perform Probler / Probler P2 high-pressure ball
valve test.
13. READY TO SPRAY!

REVISION S
18
xx
* NOTE: Use the 22145-05 power pack
with 22850-01.
Section 3 - General Information: Assembly Drawings
Sec. 3:1

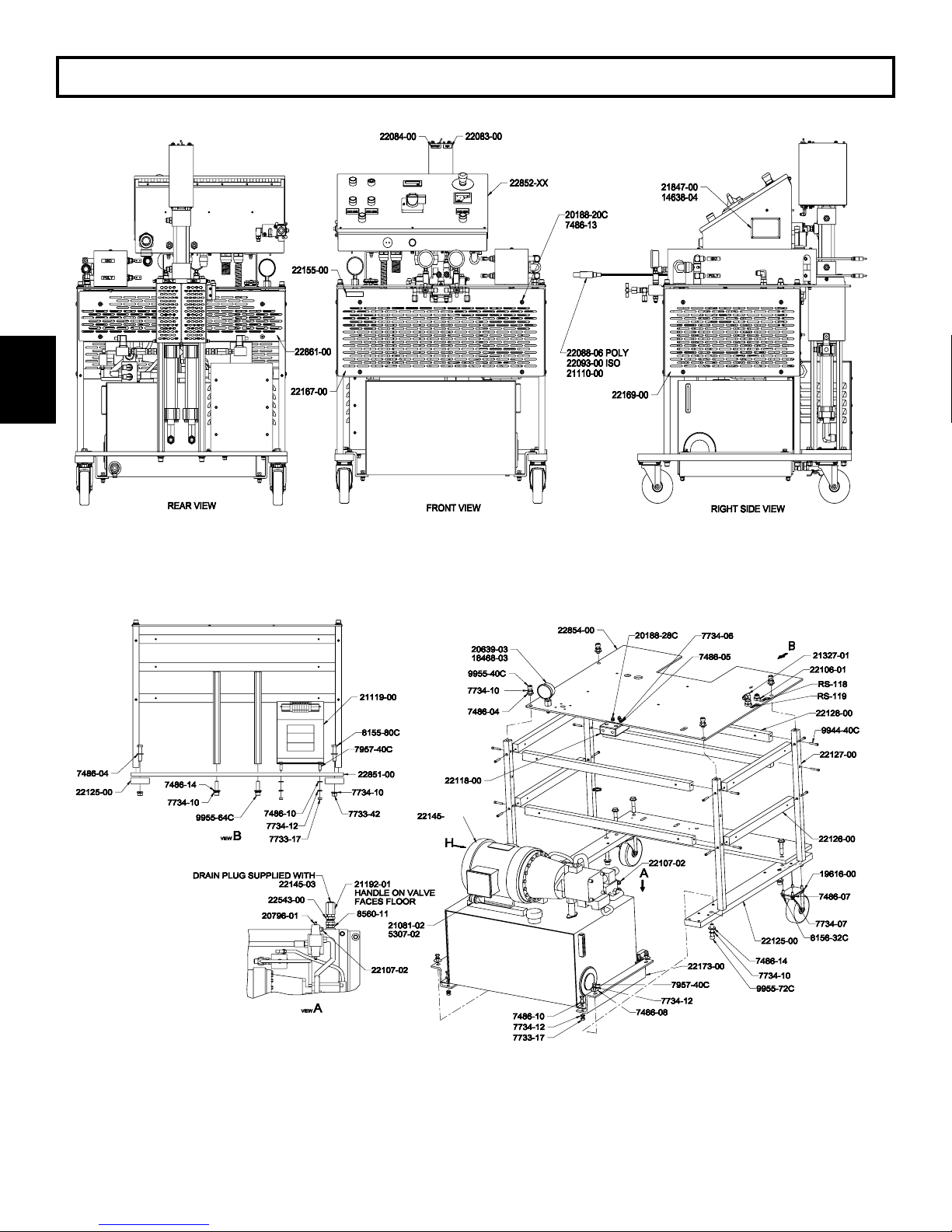

22850-XX Unit Assembly
