LICENCE INSTALLATION
L2DRxxxxFB
Safety Glasses
Required Tools
Screwdriver #2 Phillips Rubber Mallet
NOTE: Open and assemble only one product
at a time to avoid a potential mix-up of parts
and hardware.
It is adviseable to assemble the unit on a
carpet to avoid scratches.
Assembly

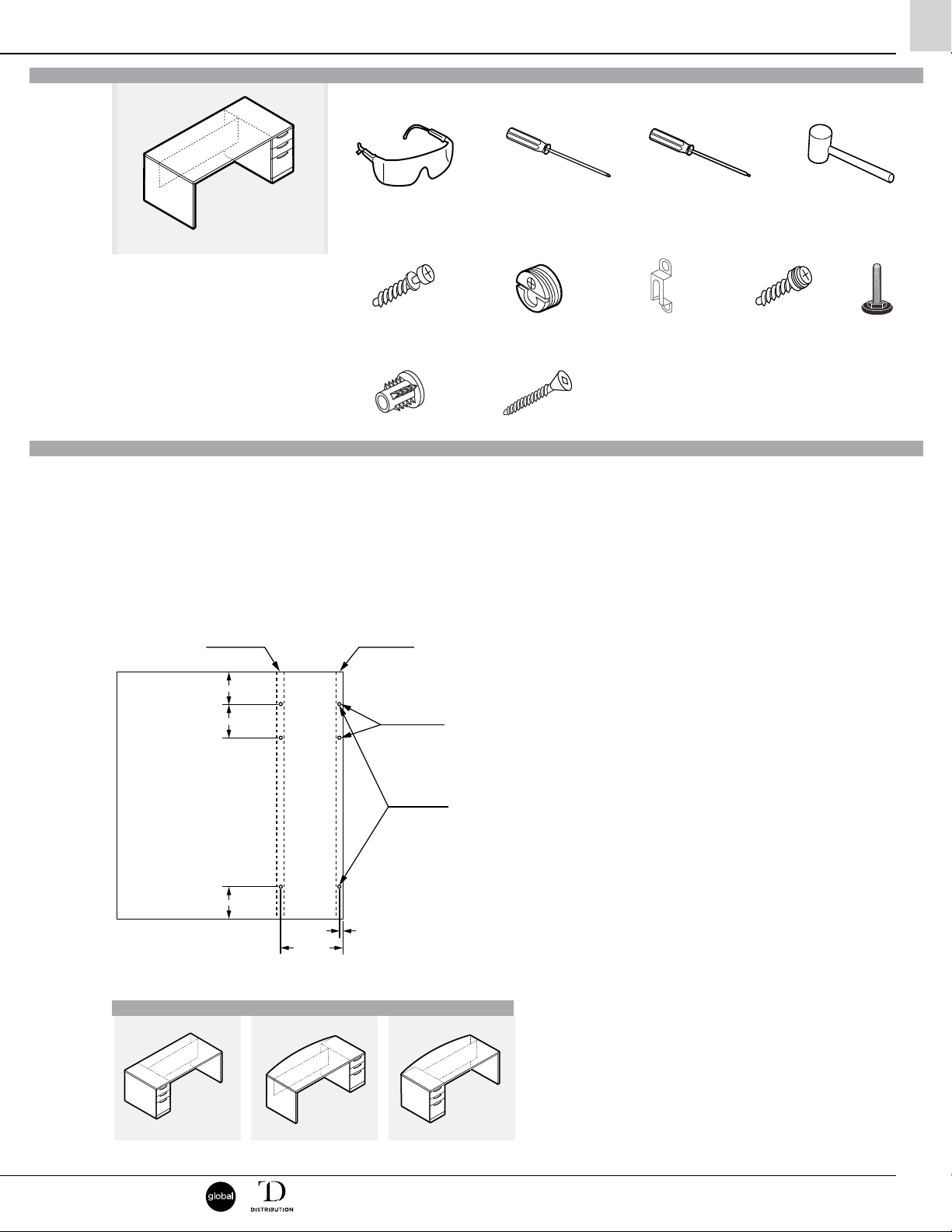

Included Hardware
Blum Connector
(installed) L005650061
Modular Screw
L007250001
Wood Screw #8 3/4
L007250032
L2DRxxxxBF L2DBxxxxFB L2DBxxxxBF
STEP 1: Unpack and inspect individual pieces for damages or missing hardware
STEP 2: Pick a clean unobstructed area to assemble desk. It is advisable to as-
semble of this product upright.
STEP 3: Handles for pedestals are shipped installed on the inside of the cabinet.
Remove handle from the inside of the cabinet and re-install with the same screws on
the front of cabinet.
a. Levellers for pedestals are shipped inside the unit. These levellers should
be installed prior assembling complete unit.
STEP 4: Arrange Pedestals as per the nal conguration of the product.
a. Using a 1/8” drill bit, drill though holes into side of pedestal according to
the provided template on the side of the pedestal exposed to the underside
of the desk. For this application, use the half modesty and recessed panel location.
b. Modular screws are to be installed into these holes.
STEP 5: The modesty panel comes with Modular connectors installed on each end
of the panel.
On the top edge of the modesty panel, install Blum Connector screws into the pre-
drilled holes.
a. Attach the modesty panel to the pedestals by lining up modular con
nectors to screws installed on the pedestals, lift modesty and slide into
position ensuring to engage connectors to screws. You can use a mallet
to securely seat the modesty panel into position. Do this on both sides
STEP 6: To install the worksurface top.
The worksurface comes with Blum Connectors pre-installed on the bottom of the
surface. Lift worksurface over the assembly and line up Blum connectors to the
installed Blum connector screws on the back of the modesty panel. Turn the screw
on Blum Connector ¼ turn, do not over tighten.
a. You must also secure the worksurface top to the pedestals. Line up
the top ush to the side and front of the pedestals. Use #8 x 3/4 wood
screws provided, screw through the mounting bar on the pedestal to
secure the top. Note: Drawers need to be removed to access drilling location.
STEP 7: When nal position has been located, level the unit with the levellers
installed on both pedestals.
LevelScrewdriver Roberson
Installation For Similar Products
Leveler
L007240005
Blum Connector
Screw L005650060
Modular Connector
(installed) L004250001
92.2mm
96mm
102.7mm
9.5mm
162mm
FULL HEIGHT
MODESTY
HALF HEIGHT
MODESTY
FLUSH MOD6” REC MOD
FF PED
BBF PED
FULL MODESTY
WORKSURFACE
