BX SERIES HANDHELD INSTRUCTION MANUAL PAGE 1
INSTRUCTION MANUAL
COMMERCIAL
BX SERIES
HANDHELD RADIOS
Instruction manual includes models:
• BX710
• BX720
• BX730
PAGE 2 INSTRUCTION MANUAL BX SERIES HANDHELD
WARNING - SAFETY INFORMATION
The BX Series are radio frequency transmitting devices.
When transmitting, keep the antenna more than 25 mm from any part of
your head or body.
Do not transmit near electrical blasting equipment or in explosive atmospheres.
Do not allow children to operate a radio transmitter unsupervised.
FEATURES
• 5W/1W RF Power (BX710), 4W/1W RF
Power (BX720/BX730)
• Available in VHF and UHF versions
• Up to 128 Dealer Programmable
Channels
• Desktop Fast Charger
• Power Save Mode
• CTCSS
• DCS (Digitally Coded Squelch)
• Keypad Lock
• Backlit LCD Display
• Calling Tone
• Roger Beep
• Dual Watch
• Priority Channel
• Memory Scan
• Busy Channel Lockout
• VOX (Voice Operated Transmit)
ACCESSORIES SUPPLIED
• 1700mAhLi-IonBatteryPack
• DesktopFastCharger
• ACAdaptor
• InstructionManual
• BeltClip
• RemovableFlexibleAntenna
If any items are missing or damaged
please contact your retailer or place of
purchase.
OPTIONAL ACCESSORIES
• SpeakerMicrophone
• 6WayCharger
• LeatherCase
CONTENTS
CONTROLS........................................... 3
LCD INDICATORS ................................. 4
INTRODUCTION ...................................4
GETTING STARTED ...............................5
Fitting the Battery pack................. 5
Removing the Battery pack............ 5
Charging the Battery..................... 5
Low Battery alert...........................5
BATTERY USAGE ..................................6
Conserving Battery Power ............. 6
Sleep Mode .................................. 6
Scanning....................................... 6
Low Transmit Power Setting...........6
GENERAL OPERATION.......................... 6
Power On/Off................................6
Adjusting the Volume.................... 6
Display Lighting ............................6
Selecting Channels........................ 6
Receiving Signals ..........................6
Transmitting.................................. 7
Transmitter Range......................... 7
Squelch (MON) Key ....................... 7
SCAN Key ..................................... 8
Keypad Lock ................................. 8
Mode Key ..................................... 9
SPECIFICATIONS ................................12
CTCSS TONE FREQUENCIES................ 14
DCS TONE FREQUENCIES ...................14
SC CONTRACT WARRANTY ................15
BX SERIES HANDHELD INSTRUCTION MANUAL PAGE 3

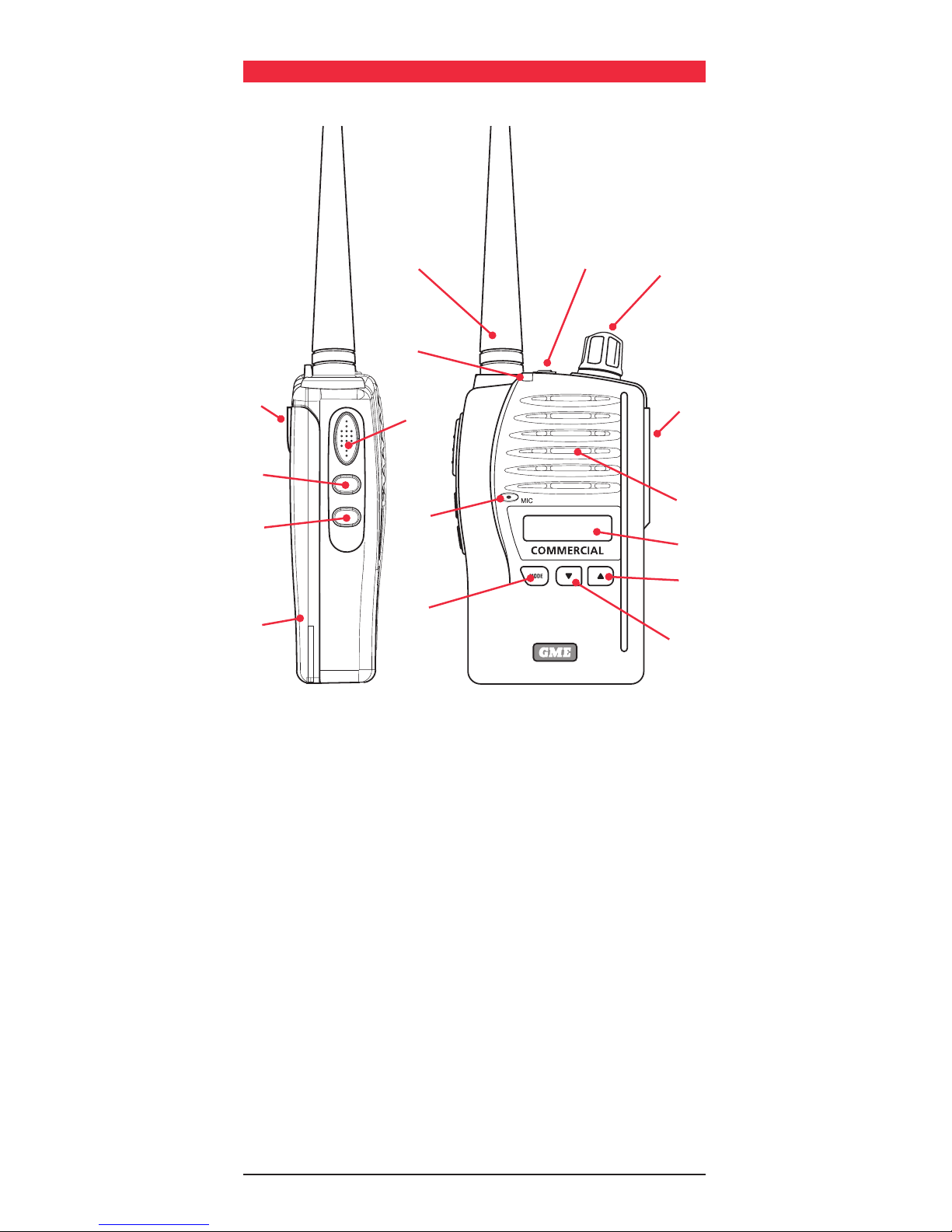

CONTROLS
BX720
SCAN
MON/T
4
3
2
1
9
8
7
6
10
11
12
13
14
15
16
5
1. Battery.
2 Scan.
3. Squelch/CTCSS Key.
4. Battery Release Clip.
5.Push-To-Talk(PTT)Switch.
6.ModeKey.
7. Microphone.
8. Indicator LED.
9. Antenna.
10 Priority Channel/Keylock Button.
11 Volume On/Off.
12 External Speaker/Mic.
13 Speaker.
14 LCD Display.
15 Channel Up.
16ChannelDown.
PAGE 4 INSTRUCTION MANUAL BX SERIES HANDHELD
LCD INDICATORS
1. Dual Watch Icon: Appears when the
Dual Watch mode is active
2. VOX (Voice Operated Transmitter)
Icon: Appears when VOX mode
is active
3. Keypad Lock Icon: Appears when the
keypad is locked
4. Button Beep Icon: Appears when the
button beep confirmation tones
are active
5. High Power Icon: Appears when High
transmitter power is selected
6. LowPowerIcon:AppearswhenLow
transmitter power is selected
7. Channel Memory Indicator: Appears
when the selected channel is stored
in the Scan Memory
8. Scan Indicator Icon: Appears when
SCAN is enabled and the radio
is scanning
9. Battery Level Icon: Indicates the
battery charge level. Flashes when
the battery is almost empty
10. Time Out Timer Indicator: Indicates
the Time Out Timer is enabled
11. Busy Channel Lockout: Indicates the
transmitter will be disabled on the
selected channel while incoming
signals are being received.
12. Priority Channel Indicator: Appears
when the Priority Channel mode
is activated
13. Battery Save Indicator: Flashes when
the radio is in standby mode
14. Channel Display: Indicates the
channel number in use
15. CTC (CTCSS) Icon: Indicates that
CTCSS tones are enabled
on the radio
16.CTCSSTone:Displaystheselected
CTCSS tone (from 001 to 038) or
DCS tone (from 001 to 104) on the
selected channel
17. DCS (Digitally Coded Squelch):
Indicates the Digitally Coded Squelch
is enabled
17
4
3
2
1
9
8
7
6
10
11
12
13
15
14 16
5
INTRODUCTION
The BX Series handhelds are easy to use,
full featured handheld commercial radios.
Their rugged assembly comprises a single
diecast frame housed in a polycarbonate
alloy case. They are supplied with a 1700
mAhLi-Ionrechargeablebatterypack
powerful enough for a full days used
under average conditions.
The BX Series handhelds are available in
three versions;
• BX710: VHF handheld operating in
the146–174MHzband
• BX720: UHF Handheld operating in
the450–490MHzband
• BX730: UHF Handheld operating in
the476.4–520MHzband
Programming
Your radio will probably have
been programmed for you by
your dealer. The frequencies and
features in your radio may vary
depending on your application.
This manual describes the normal
operation of your radio’s features
based on the default factory
settings. Changes in programming
may affect the way these features
operate in your radio.
If you require any of these features
to be changed please contact your
commercial radio supplier.
BX SERIES HANDHELD INSTRUCTION MANUAL PAGE 5

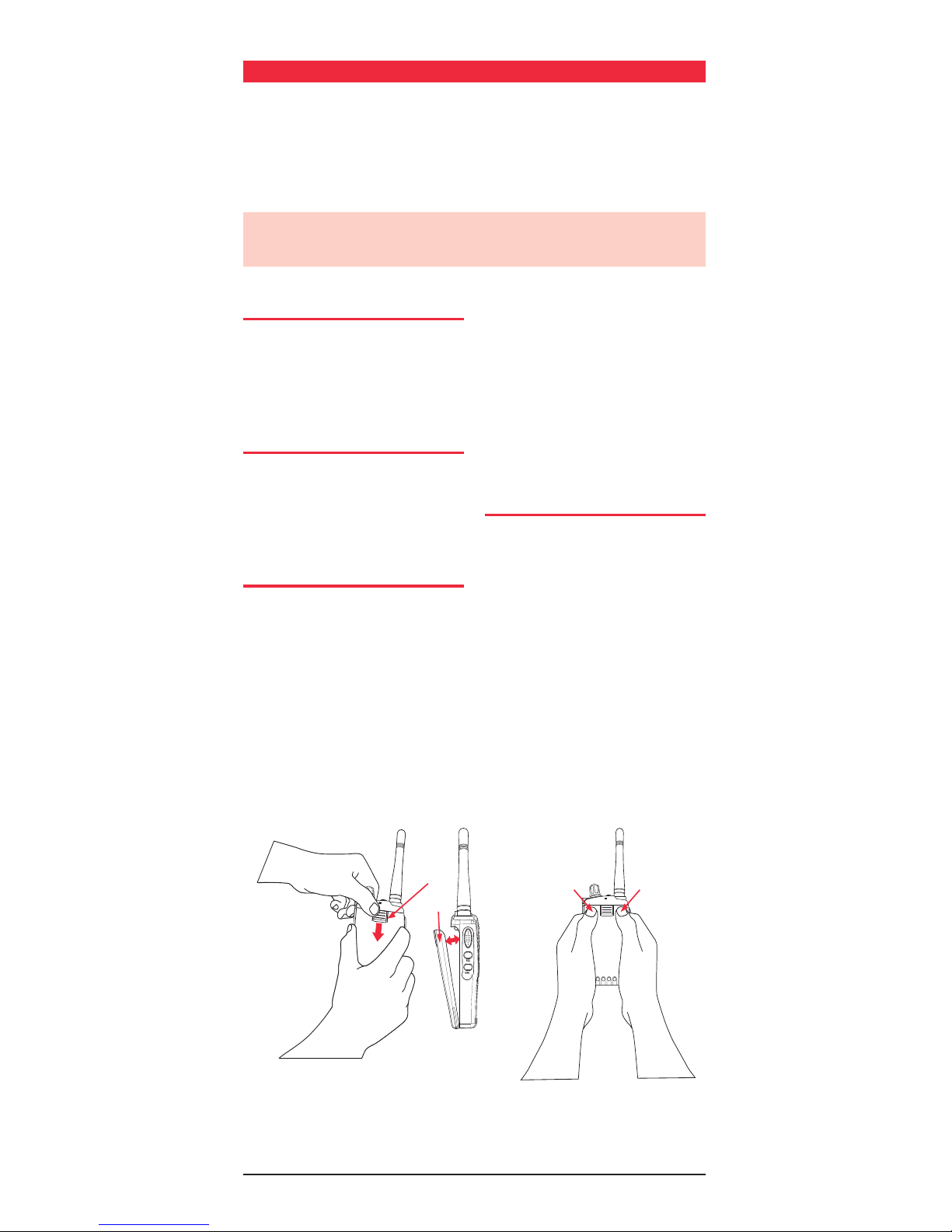

GETTING STARTED
Slide
Downwards
Swing
Away
Press Press
To Remove Battery Pack To Refit Battery Pack
YourBXSerieshandheldissuppliedwitha1700mAh7.4VoltLi-Ionrechargeable
battery pack. When the battery pack is new it will need to be fully charged before use.
Also, if you have not used your BX Series handheld for some time you will need to
recharge the battery pack before use.
Thebatterypackisasealedunitandcontainsnouser-serviceableparts.
WARNING: Use only GME approved battery packs and chargers.
The use of other types may be dangerous and may void the warranty.
Fitting the battery pack
1. Locate the bottom of the battery pack
into the two slots in the base of the
radio frame.
2. Press the top of the battery pack into
place against the radio until it ‘clicks’.
removing the battery pack
1. Slide the battery retaining clip
downward while pulling the top of the
battery away from the radio.
2. Lift the battery pack upward to clear
the slots at the bottom of the radio.
charging the battery
Your BX Series handheld is supplied with
an AC Adaptor and desktop fast charger.
The charger will charge a fully discharged
1700 mAh battery pack to full capacity in
around1-2hours.
1. Plug the charger into a standard
240 Volt AC Outlet.
2. Plug the lead from the charger into
the charging cradle
3. Place the BX series handheld into
the cradle. The Red LED will light to
indicate the battery is charging.
When the battery is charged the LED will
change to Green.
Low battery aLert
Whenthebatterydropstoaround6.1
Volts the radio will beep, the battery
icon on the display will flash and the TX/
Busy LED will blink to indicate that the
battery needs to be charged. You should
recharge the battery pack as soon as
possible. If you have been transmitting
using the ‘Hi’ power setting you can
extend the battery life a little further by
switching to ‘Lo’ transmit power.
PAGE6 INSTRUCTIONMANUAL BXSERIESHANDHELD
BATTERY USAGE
The time taken to discharge the battery
pack will depend on how you use your
BX Series handheld. The 1700 mAh
battery pack is powerful enough for a full
days use under average conditions.
conserving battery
power
The BX Series handheld has built in
power saving features to help you
maximise the amount of time between
chargesfromyourLi-ionbatterypack.If
you need to operate your handheld in a
situation where you require maximum
battery life (e.g. a remote site where
there is no convenient recharging facility
nearby), the following hints can greatly
reduce the amount of power drawn from
the battery pack.
sLeep mode
The BX Series handheld will automatically
enter the ‘Sleep’ mode after around 10
seconds of inactivity (i.e. no transmission
or reception). While sleeping, it will still
check for incoming signals but it will
draw only about one fifth of the power
from the battery. As soon as a signal is
received or any keys are pressed, the
radio will wake up again. This sleep
function is automatic and by itself can
greatly extend the battery life in standby
mode by many hours.
scanning
The BX Series handheld draws more
power from the battery when scanning
than when monitoring a single channel.
This is because it must wake more often
to monitor each channel for activity. You
cansqueezethatextrabitoflifefrom
the battery by avoiding any unnecessary
scanning. In addition, scanning several
channels increases the chance of finding
a signal thereby keeping the receiver
awake and the squelch open.
Low transmit power
setting
The transmitter has both ‘Hi’ and
‘Lo’ power settings. If you are only
operating over short distances, are in
a reasonably high location or are close
to a local repeater, try using the ‘Lo’
Transmit power setting. This reduces the
transmitter power to 1 Watt.
GENERAL OPERATION
power on/oFF
Rotate the volume control clockwise past
the ‘click’ to turn the radio ON. Rotate
the control fully counter clockwise past
the ‘click’ to turn the radio OFF.
adjusting the voLume
While receiving a signal, rotate the
volume control to achieve a comfortable
listening level. If there are no signals
present, press the MON key briefly (if
available) to open the squelch, then
adjust the volume while listening to
the receiver’s background noise. When
finished, briefly press the MON key again
to return the receiver to the
quiet state.
Note: The minimum setting of the
volume control has been factory preset
so that, even with the volume turned
right down, you can still safely listen to
an incoming signal with your ear against
the speaker (telephone style).
dispLay Lighting
Your BX Series handheld LCD features
built-inbacklighting.Thebacklighting
is normally switched OFF to conserve
battery power but will switch ON
automatically when any key
is pressed.
seLecting channeLs
1. In the ‘standby’ mode press the key
to step up one channel and the key
step down one channel.
2. Press and hold the or keys to
quickly scroll through the channels.
receiving signaLs
NOTE: Your radio may be programmed
with options that could affect the way
your radio behaves when it receives a
call. The description below is therefore
general and should apply to
most situations.
When the BX Series handheld is not
receiving signals it will remain in the
standby mode to conserve power. During
this time the receiver is normally muted,
the LED ‘Busy’ indicator on the upper
edge of the radio is not lit and the ‘Save’
indicator flashes on the display.
BX SERIES HANDHELD INSTRUCTION MANUAL PAGE 7
When a signal is received, the ‘Busy’
indicator will light Green and the signal
will be heard in the speaker. Adjust
the volume control as desired for a
comfortable listening level.
If the incoming signal is encoded with a
CTCSS tone that matches the one set in
your radio, the ‘Busy’ indicator will light
Orange and the signal will be heard in
the speaker. If the ‘Busy’ indicator lights
Green but you cannot hear the signal
(and the volume control is correctly
adjusted) it is likely your radio has CTCSS
enable but the incoming signal is not
using your selected CTCSS tone
(see MODE settings for CTCSS options).
In this way the radio can ensure you are
not disturbed by signals that were not
meant for you. If you wish to temporarily
listen to the encoded signal, press the
MON (Squelch) key.
Once no further signals are received, the
unit will return to standby mode.
transmitting
Important: Before transmitting,
check to see if the channel is
already in use (i.e. the ‘Busy’
indicator is lit). If the ’Busy’
indicator is Green or Orange, the
channel is busy. You should wait
until the channel is clear before
transmitting.
Totransmit,pressandholdthePush-
To-Talk(PTT)switch.Holdtheunit5-8
cm from your mouth with the antenna
verticalandspeakintothebuilt-in
microphone. While the PTT is pressed
the ‘Busy’ indicator will light Red.
When you have finished speaking,
release the PTT switch to receive
incoming signals again (you cannot
transmit and receive at the same time).
If no further signals are received the unit
will return to standby mode.
Note: The other radio you are calling
must be set to the same channel
as yours.
Transmitting a ‘Call Alarm’ Melody
The PTT switch can be used to transmit a
‘Call Alarm’ to another radio on the same
channel. The Alarm melody will be heard
in the speaker of the other radio to alert
them to your call. To use this feature the
‘Call Alarm’ option in your radio must be
enabled through the MODE settings.
To send the ‘Call Alarm’ melody, press
the PTT switch TWICE quickly. The
‘Busy’ indicator will light Red for several
seconds and the Alarm melody will
beheardinyourspeaker-andinthe
speaker of the radio you are calling.
transmitter range
The signal range on the VHF/UHF
frequency bands used by the BX series
handhelds is generally considered to be
‘line-of-sight’.Generallytherangewill
vary according to your location and the
height of your antenna. UHF and VHF
signals are easily blocked by hills or large
buildings so you will get less range in a
valleyorbuilt-upcityareathanyouwill
from a hill top or open country. If you are
having trouble with reception, try moving
to an open space or a higher location. If
you can receive but are having difficulty
transmitting back, try using the ‘Hi’
power setting on the transmitter to
ensure maximum range is available.
squeLch (mon) key
The Squelch (MON) key serves a dual
function that controls both the Squelch
and CTCSS.
Squelch
To open the squelch briefly press the
MON key. This will allow you to check
the current channel for activity before
transmitting, particularly if you have
CTCSS enabled. When the squelch is
open the ‘Busy’ indicator will light Green
and you will hear static or hiss if the
channel is clear. Do not transmit if you
hear any conversations.
Briefly press the MON key again to close
the squelch.
CTCSS/DCS
Note: For a description of the CTCSS
and DCS features please refer to the
MODE Key section later in this manual.
If you have one or more channels
programmed with CTCSS or DCS codes,
select one of these channels and press
and hold the MON key to globally
activate or deactivate CTCSS/DCS on
the radio. When CTCSS/DCS is activated,
‘CTC’ or ‘DCS’ will appear on the display
PAGE 8 INSTRUCTION MANUAL BX SERIES HANDHELD
along with the selected CTCSS/DCS code.
When deactivated the CTCSS/DCS code
willbedisplayedas‘---‘
Note: If your radio does not have any
channels programmed with CTCSS/DCS
codes or you have selected a channel
that does not have a CTCSS/DCS code,
this function will be ignored.
scan key
The SCAN key is a dual function key
that controls both Scan and Memory
functions.
Channel scanning allows you to monitor
selected channels automatically for
incoming signals. While the radio is
scanning, the MODE key is disabled.
Before scanning you must select the
channels you wish to scan and store
them in memory
To select channels for scanning
From the standby mode;
1. Press the or keys to select the
required channel.
2. Press and hold the SCAN key until
the radio beeps. ‘M’ will be displayed
indicating the selected channel is now
stored in the Scan memory.
3. Repeat to store further channels
for scanning.
4. To remove a channel from the Scan
memory, select a channel from the
Scan memory (identified by ‘M’ on
the display) then press and hold the
SCAN key. ‘M’ will disappear from the
display and the channel will
be removed.
To scan the selected channels
Briefly press the SCAN key. ‘SCAN’ will
be displayed and the radio will show
rapidly changing channel numbers as
it scans through the channels. While
scanning, briefly press the or keys
to select the scan direction.
To stop scanning press the SCAN key
again. The radio will return to normal
operation and ‘SCAN’ will disappear
from the display.
NOTE: There must be at least TWO
channels in the scan memory otherwise
the radio will not scan.
Scanning Features
If a signal is received, the scan pauses
allowing you to transmit and receive on
that channel. The scan will resume a few
seconds after the last activity.
Press the PTT switch while scanning to
jump to the Home channel (the Home
channel is the channel the radio was
on at the time scanning was activated).
You can then transmit and receive on
that channel. The scan will automatically
resume a few seconds after the
last activity.
If the radio stops on a busy channel and
you do not wish to listen, briefly press
the or keys to ‘skip’ over the busy
channel and continue scanning.
TIP: The scan mode will reduce the
overall battery life because the standby
(battery save) feature is overridden. You
should avoid scanning if the battery is
running low and you need to
conserve power.
keypad Lock
The Keypad Lock feature disables the
keys to prevent accidental key presses
from changing your preferred settings.
When the keys are locked the icon is
displayed and all key presses are ignored
except for the PTT and Keypad Lock
functions.
To activate the Keypad Lock
Press and hold the key for a couple of
seconds. The icon will be displayed.
To cancel the keypad lock
Press and hold the key again for a
couple of seconds. The icon
will disappear.
BX SERIES HANDHELD INSTRUCTION MANUAL PAGE 9
mode key
The Mode key is used to change the
various feature settings of the BX Series
handhelds. The following chart shows
the order of these selections:
STANDBY MODE
1 CTCSS Code Selection
2 DCS Code Selection
3 Transmitter Power
4 VOX Settings
5 Dual Watch Settings
6Priority Channel Settings
7 Squelch Settings
8 Roger Beep Settings
9 Button Beep Settings
10 Call Alarm Melody Settings
1. CTCSS CODE SELECTION
The Continuous Tone Coded Squelch
System (CTCSS) is a squelch quieting
system that allows groups of users
to share the same channel without
disturbing each other. It uses 1 of 38 low
frequency tones to open and close the
squelch on the radio. The CTCSS tones
do not prevent others from hearing your
transmission. They simply provide you
with a quieter channel by preventing
you from hearing transmissions that are
not using the same tone as you and are
therefore not directed at you.
NOTE: To communicate with other radios
using CTCSS, all radios you wish to
communicate with must be on the same
channel and have the same CTCSS code
selected. If you wish to receive signals
from others who are not using CTCSS
you will need to either disable CTCSS
or set the CTCSS code to ‘oFF’ on that
channel (as described below).
To select a CTCSS code
From the standby mode;
1. Select the required channel using the
or keys.
2. Press the MODE key ONCE. ‘CTC’ will
flash on the display.
3. Press the or keys to select
the required CTCSS tone (a list of
available tone codes is provided at the
end of this manual). To turn CTCSS off
on this channel set the CTCSS
code to ‘oFF’.
4. Briefly press the PTT switch to store
the setting.
To activate the
CTCSS function on the radio
1. Select a channel that has a CTCSS
code selected.
2. Press and hold the MON key. The
‘CTC’ icon will be displayed and the
CTCSS code will appear. CTCSS is now
activated on all channels that have
CTCSS codes selected.
NOTE: CTCSS is only activated on those
channels with CTCSS codes selected. All
other channels will continue to operate
normally.
To deactivate CTCSS on the radio
1. Select a channel that has a CTCSS
code selected.
2. Press and hold the MON key. The
‘CTC’ icon will disappear and the
CTCSScodewilldisplayas‘---‘
indicating CTCSS has been globally
deactivated on the radio.
2. DCS (DIGITALLY CODED SQUELCH)
Digitally Coded Squelch (DCS) is also a
squelch quieting system similar to CTCSS
that allows user groups to share the
same channel without disturbing each
other. There are 104 DCS codes available.
To select DCS on the radio
From the standby mode;
1. Select the required channel using the
or keys.
2. Press the MODE key TWICE. ‘DCS’
will flash.
3. Press the or keys to select the
required DCS code (a list of available
DCS codes is provided at the end of
this manual). To turn DCS codes off on
this channel set the code to ‘oFF’.
4. Briefly press the PTT switch to store
the setting.
NOTE: You cannot have both DCS and
CTCSS codes selected on the same
channel. Selecting one automatically sets
the other to ‘oFF’. However you can mix
DCS and CTCSS codes across a number
of channels.
To activate DCS on the radio
1. Select a channel that has a DSC
code selected.
PAGE 10 INSTRUCTION MANUAL BX SERIES HANDHELD
2. Press and hold the MON key. The
‘DCS’ icon will appear and the DCS
code will be displayed. DCS is now
activated on all channels that have
DCS codes selected.
To deactivate DCS on the radio
1. Select a channel that has a DCS
code selected.
2. Press and hold the MON key. The
‘DCS’ icon will disappear and the DCS
codewilldisplayas‘---‘indicating
DCS has been deactivated on
the radio.
NOTE: DCS is only activated on those
channels with DCS codes selected. All
other channels will continue to operate
normally.
3. TRANSMITTER POWER
The transmitter power can be set to high
(Hi) or Low (Lo) power. For the BX710,
high power is 5 Watts. For the BX720/
BX730 models, high power is 4 Watts.
Low power is 1 Watt across all BX series
models. Separate high or low power
settings can be applied to individual
channels.
To set the transmitter power
From the standby mode;
1. Select the required channel using the
or keys.
2. Press the MODE key THREE times.
‘PWR’ is displayed and ‘Hi’ or ‘Lo’ will
be flashing.
3. Press the or keys to select the
required Power setting. Select ‘Hi’ for
high power or ‘Lo’ for low power.
4. Briefly press the PTT switch to store
the setting. The transmitter power
setting is now applied to the
selected channel.
The radio should now display the
selected channel along with ‘Hi’ or ‘Lo’
to indicate the transmitter power you
have set.
4. VOX
The VOX feature allows you to have
hands free conversations. When you
speak, the microphone automatically
detects your voice (or other nearby
sound) causing the radio to transmit
without the need to press the PTT
switch.
To set the VOX sensitivity
From the standby mode;
1. Press the MODE key FOUR times. The
icon will flash.
2. Press the or keys to select the
VOX sensitivity from 1 (minimum) to
7 (maximum). The minimum setting
requires a louder voice to activate
the VOX. The maximum setting will
activate the VOX with a much
softer voice.
3. Briefly press the PTT switch to store
the setting.
To enable VOX
1. Press and hold the MODE key for
several seconds, will appear on
the LCD.
To disable VOX
1. Press and hold the MODE key for
several seconds, will disappear
from the LCD.
5. DUAL WATCH SETTINGS
The Dual Watch mode lets you monitor
two channels simultaneously. While in
Dual Watch mode, the unit will monitor
a ‘selected’ channel along with a second
‘Dual Watch’ channel.
To set the Dual Watch mode
From the standby mode;
1. Using the or keys, chose the
‘selected’ channel you wish to
monitor. This must be a different
channel to the Dual Watch channel.
2. Press the MODE key FIVE times. The
icon will flash on the display.
3. Press the or keys to select
the Dual Watch channel. Note that
channel you selected in step 1 is not
displayed and therefore cannot be
selected as the Dual Watch channel.
To disable the Dual Watch mode
altogether select ‘oFF’.
4. Briefly press the PTT switch to store
the setting. While Dual Watch is
enabled, is displayed on the LCD
and the display will alternate between
the selected channel and the Dual
Watch channel.
Note: The Dual Watch function requires
that you have more than one channel
programmed into your radio.
BX SERIES HANDHELD INSTRUCTION MANUAL PAGE 11
To Exit the Dual Watch mode
Briefly press the SCAN key. This is
equivalent to setting the Dual Watch
channel to ‘oFF’.
Dual Watch operation
Any signal received on the selected
channel will be heard in the speaker,
but the radio will continue to switch
to the Dual Watch channel at regular
intervals to listen for signals resulting in
short breaks in the conversation on the
selected channel.
If a signal is received on the Dual
Watch channel, the radio will pause
on that channel to allow the signal to
be heard but will regularly switch back
to the selected channel to listen for
signals resulting in short breaks in the
conversation on the Dual Watch channel.
Once the channel has become clear for a
few seconds the Dual Watch function will
resume normally.
If you wish to talk when either channel
is busy, press the PTT switch while the
radio is paused on the busy channel and
talk in the usual way. The Dual Watch
will resume a few seconds after the last
activity on that channel. To resume the
Dual Watch manually, briefly press the
or keys.
6. PRIORITY CHANNEL SCAN
The Priority Channel scan is similar the
Dual Watch function except for some
minor operational differences. It is
also much easier to activate as it has a
dedicated key. While in Priority Channel
mode, the unit will monitor a preselected
‘Priority’ channel along with a second
‘selected’ channel.
To set the Priority Channel
From the standby mode;
1. Using the or keys , choose
the ‘selected’ channel you wish to
monitor. This must be a different
channel to the Priority channel.
2. Press the MODE key SIX times. ‘PRI’
is displayed and the ‘PRI’ icon will
flash on the display along with a
channel number.
3. Press the or keys to select the
Priority Channel. Note that channel
you selected in step 1 is not displayed
and therefore cannot be selected as
the Priority channel.
4. Briefly press the PTT switch to store
the setting.
To activate the Priority Channel Scan
Briefly press the /P key on the top
of the radio. ‘PRI’ will appear and the
‘selected’ channel will be displayed. After
a few seconds the unit will switch to
the Priority Channel then return to the
‘selected’ channel to continue the cycle.
To Exit the Priority Channel Scan
Briefly press the /P key on the top of
the radio. The ‘PRI’ icon will disappear
Priority Channel Scan Operation
When the Priority Channel Scan is active,
the radio will monitor the ‘selected’
channel but will switch to the Priority
channel every few seconds to listen for
signals. If no signals are present it will
immediately return to the ‘selected’
channel and the cycle will be repeated.
During this time, signals received on the
‘selected’ channel can be heard in the
usual way but the radio will continue to
switch to the Priority channel every few
seconds, resulting in short breaks in the
reception on the ‘selected’ channel. To
talk on the ‘selected’ channel during this
time, press the PTT switch. The Priority
Scan will pause to allow you to converse
on the ‘selected’ channel. The Priority
scan will resume a few seconds after the
last activity on that channel.
If a signal is received on the Priority
channel, the radio will pause on that
channel to allow the signal to be heard
but will continue to switch back to the
‘selected’ channel every few seconds,
resulting in short breaks in the reception
on the Priority channel. To talk on the
Priority channel during this time, press
the PTT switch. The radio will remain
on the Priority channel to allow you
to continue your conversation but will
return to the ‘selected’ channel a few
seconds after the last activity on that
channel.
7. SQUELCH SETTINGS
The Squelch mode lets you adjust the
squelch sensitivity. The higher the
squelch level is set the stronger the
signal needs to be, to be heard in the
speaker.
PAGE 12 INSTRUCTION MANUAL BX SERIES HANDHELD
To set the squelch
From the standby mode;
1. Press the MODE key SEVEN times.
‘SQL’ is displayed.
2. Press the or keys to set the
squelch sensitivity. A setting of 001
will allow the squelch to open to
the weakest signals while a setting
of 005 requires much stronger
signals to open the squelch. Select
‘At’ to enable an automatic (preset)
level setting. To disable the squelch
altogether select ‘oFF’.
3. Briefly press the PTT switch to store
the setting.
8. ROGER BEEP SETTINGS
The ‘Roger Beep’ setting causes a short
tone to be automatically transmitted
whenever the PTT switch is released. This
tone alerts the receiving party that your
transmission has ended.
To enable or disable the Roger Beep
From the standby mode;
1. Press the MODE key EIGHT times.
‘RB’ is displayed.
2. Press the or keys to set the tone
to ‘on’ or ‘oFF’
3. Briefly press the PTT switch to store
the setting.
Note: There is no display icon to indicate
the status of the Roger Beep feature.
9. BUTTON BEEP SETTINGS
The Button Beep tone provides a
confirmation tone whenever you press
the keys on the radio.
To turn the Beep Tones on or off
From the standby mode;
1. Press the MODE key NINE times. BP is
displayed along with a flashing
icon.
2. Press the or keys to set the Beep
Tone to ‘on’ or ‘oFF’
3. Briefly press the PTT switch to store
the setting.
When the Beep Tones are on the icon
is visible on the display
10. CALL ALARM MELODY SETTINGS
The BX Series handhelds have 5 user
selectable Call Alarm melodies to alert
other users to your incoming call. When
enabled, the melody can be transmitted
to another user where it will be heard in
the speaker of the receiving radio.
To choose a Call Melody:
From the standby mode;
1. Press the MODE key TEN times. ‘C’
will be displayed.
2. Press the or keys to set the
required Call Alarm melody. To turn
the Call Alarm melody off select ‘oFF’.
3. Briefly press the PTT switch to store
the setting.
To send the Call Alarm melody, press the
PTT twice quickly. The ‘Busy’ indicator
will light Red for several seconds as the
melody is sent.
SPECIFICATIONS
ELECTRICAL
General
Compliance: AS/NZS 4295
FrequencyRange: BX710:146-174MHz
BX720:450-490MHz
BX730:476.4-520MHz
ChannelSpacing: 25kHz/12.5kHz
Operation Mode: Simplex or half duplex
Scanning Speed: 40 ms per channel (25 channels per second)
PC program setting.
Antenna Impedance: 50 Ohms nominal
Battery Voltage: 7.4 Volts DC nominal
OperatingVoltageRange: 6–9VDC
Reverse Voltage
Protection: Shunt Diode
BX SERIES HANDHELD INSTRUCTION MANUAL PAGE 13
Transmitter
BX710RFOutput: High-5WattsMax.
Low-1Watt.
BX720/730RFOutput: High-4WattsMax.
Low-1Watt.
SpuriousEmissions: <-26dBm
FrequencyStability: 25kHz:±3kHz
12.5kHz:±1.5kHz.
Modulation: FM
MaximumDeviation: 25kHz<±5kHz
12.5kHz<±2.5kHz
Transmit Frequency
Response: +6dBperoctave300Hzto3kHz,+1,-3dB.
Current Consumption
(Max.): 1.7 Amps @ 4 Watts
0.7 Amps @ 0.75 Watts
Receiver
IntermediateFrequencies: 1st:45.3MHz
2nd:455kHz.
Sensitivity: -119dBmfor12dBSINAD
Adjacent Channel
Selectivity: 25kHz>63dB
12.5kHz>60dB
Intermodulation: 25kHz>60dB
12.5kHz>60dB.
Blocking: 25kHz>80dB
12.5kHz>80dB.
SpuriousRejection: 25kHz>60dB
12.5kHz>60dB.
AudioOutputPower: 0.6Watts@<10%distortion
Receiver Frequency
Response: -6dBperoctavede-emphasis
Current Consumption: 25 mA: Sleep Mode
65mA:Muted
250 mA: Full volume
MECHANICAL SPECIFICATIONS
Dimensions: 62(W)x98(H)x30(D)mmMeasuredwithoutantenna.
ENVIRONMENTAL
OperatingTemperature: -10°Cto60°C
*Specications are typical unless otherwise indicated and may be subject to change
without notice or obligation.
PAGE 14 INSTRUCTION MANUAL BX SERIES HANDHELD
DCS TONE FREQUENCIES
CH CODE CH CODE CH CODE CH CODE
1 023 77 464 87 565 97 703
2 025 78 465 88 606 98 712
3 026 79 466 89 612 99 723
4031 23 132 90 624 100 731
5032 24 134 91 627 101 732
6036 25 143 92 631 102 734
7 043 26 145 45 255 103 743
8047 27 152 46 261 104 754
9051 28 155 47 263
10 053 29 156 48 265
11 054 30 162 49 266
12 065 31 165 50 271
13 071 32 172 51 274
14 072 33 174 52 306
15 073 34 205 53 311
16 074 35 212 54 315
17 114 36 223 55 325
18 115 37 225 56 331
19 116 38 226 57 332
20 122 39 243 58 343
21 125 40 244 59 346
22 131 41 245 60 351
67 413 42 246 61 356
68 423 43 251 62 364
69 431 44 252 63 365
70 432 80 503 64 371
71 445 81 506 65 411
72 446 82 516 66 412
73 452 83 523 93 632
74 454 84 526 94 654
75 455 85 532 95 662
76 462 86 546 96 664
CTCSS TONE FREQUENCIES
CTCSS Frequency Hz CTCSS Frequency Hz
1 67.0 20 131.8
2 71.9 21 136.5
3 74.4 22 141.3
477.0 23 146.2
579.7 24 151.4
682.5 25 156.7
7 85.4 26 162.2
888.5 27 167.9
991.5 28 173.8
10 94.8 29 179.9
11 97.4 30 186.2
12 100.0 31 192.8
13 103.5 32 203.5
14 107.2 33 210.7
15 110.9 34 218.1
16 114.8 35 225.7
17 118.8 36 233.6
18 123.0 37 241.8
19 127.3 38 250.3
BX SERIES HANDHELD INSTRUCTION MANUAL PAGE 15
STANDARD COMMUNICATIONS CONTRACT WARRANTY
1. statutory warranties
1.1 The Trade Practices Act Part V,
Division 2A and other legislation
imply conditions, warranties and
other obligations on us to consumers
that cannot be excluded, restricted
or modified. Those provisions apply
to the extent required by law.
1.2 We exclude all other conditions,
warranties and obligations which
would otherwise be implied
concerning the activities covered by
this agreement.
1.3 We limit our liability where we are
allowed to do so. Examples of where
weareallowedtolimitliabilityare-
(a) you acquire goods from us
forre-supply;
(b) the goods or services we supply
are not of a kind ordinarily
acquired for personal, domestic
or household use
or consumption.
1.4 Where we are allowed to limit our
liability, to the extent permitted
by law, our sole liability for breach
of a condition, warranty or other
obligationimpliedbylawislimited-
(a) in the case of goods we
supply, to any one of the
followingaswedecide-
(i) the replacement of the
goods or the supply of
equivalent goods;
(ii) the repair of the goods;
(iii) the payment of the
cost of repairing the
goods or of acquiring
equivalent goods;
(iv) the payment of the
cost of having the
goods repaired; or
(b) in the case of services we
supply, to any one of the
followingaswedecide-
(i) the supplying of the
services again;
(ii) the payment of the cost
of having the services
supplied again.
2. additionaL warranties
2.1 The warranties in this clause are in
addition to the statutory warranties
referred to in the previous clause.
2.2 We warrant our goods to be free
from defects in materials and
workmanship for one year from the
date of original sale (or another
period we agree to in writing).
During this period and as our sole
liability to you under this warranty,
we agree to, at our option, either
repair or replace goods which we
are satisfied are defective. We
warrant replacement parts for the
remainder of the period of warranty
for the goods into which they
are incorporated.
2.3 We warrant our other repairs to be
free from defects in materials and
workmanship for three months from
the date of the original repair. During
this period and as our sole liability to
you for the repair, we agree to repair
or replace (at our option) repaired
goods which we are satisfied
are defective.
2.4 We warrant that we will perform
services with reasonable care and
skill and agree to investigate any
complaint made in good faith
that we have performed services
unsatisfactorily. If we are satisfied
that the complaint is justified, and
as our sole liability to you under this
warranty, we agree to supply those
services again at no extra charge
to you.
2.5 If you want warranty service under
this clause you must give us an
original or copy of the sales invoice
from the transaction or some other
evidence showing details
of the transaction.
www.gme.net.au
A Division of: Standard Communications Pty. Ltd.
Head Office: SYDNEY-LockedBag2086,NorthRydeNSW1670,Australia.
T:(02)98446666F:(02)98446600.
MELBOURNE
7MicroCircuit,DandenongSouth,Vic3165T:(03)97980988F:(03)97980177
ADELAIDE
14PhillipsSt.,Thebarton,SA5031T:(08)82342633F:(08)82345138
PERTH
Unit1,10-12HarvardWay,CanningVale,WA6155T:(08)94555744F:(08)94553110
BRISBANE
Unit1,89-101FactoryRd.,Oxley,Qld4075T:(07)32786444F:(07)32786555
SYDNEY
UnitB,22-24CollegeSt.,Gladesville,NSW2111T:(02)98798888F:(02)98164722
AUCKLAND
Unit 2/24 Bishop Dunn Pl., East Tamaki, Manukau NZ 2013
T: (09) 274 0955 F: (09) 274 0959
For customers outside Australia and New Zealand, please contact your local GME retailer or
PartNumber:310434DrawingNumber:44274-4
3. other Limitations
3.1 You may not rely on any
representation, warranty or other
provision by or for us which is not
covered by clause [ 1 ] or repeated in
this agreement in clear terms.
3.2 We are not liable (nor are our
employees, contractors and
agents) for any damage, economic
loss or loss of profits whether
direct, indirect, general, special or
consequential-
(a) arising out of any breach
of any implied or express
term, condition or
warranty; or
(b) suffered as a result of
our negligence (or that
of our employees,
contractors or agents)
-apartfromliabilityas
set out in the previous
two clauses.
3.3 The liability of a party under this
agreement (whether arising in
contract, tort or by statute) is to be
reduced by the same proportion as
represents the proportion of the loss
or damage caused or contributed to
by the other party, its contractors
or agents.
This manual suits for next models
2
Table of contents
Other GME Radio manuals
