GME XRS-390C User manual

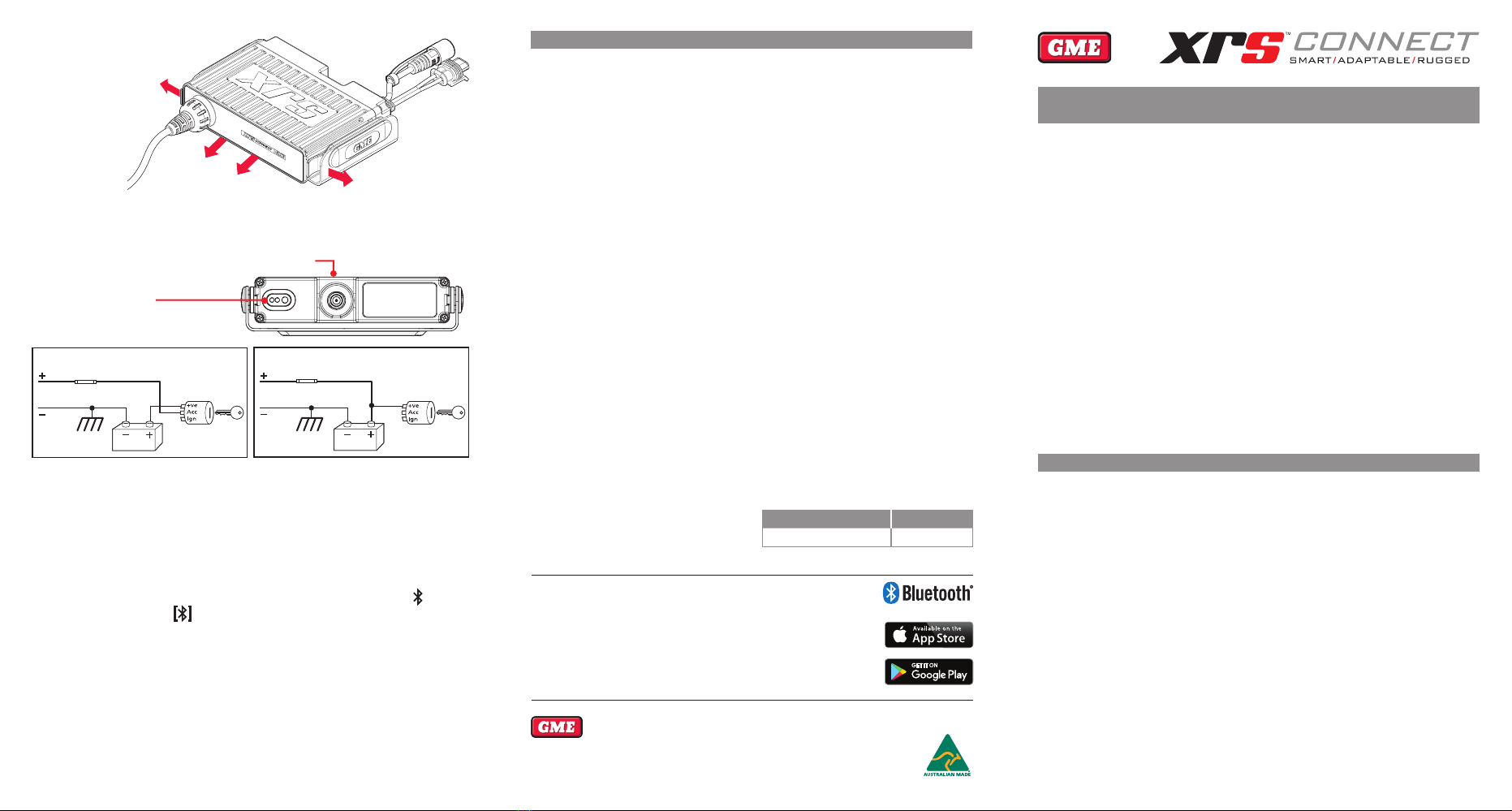

Wiring
12v DC lead supplied with the unit must be fully connected to the radio unit to
ensure full IP67 ingress protection.
12V DC and Extension Speaker Harness
Antenna socket
XRS-390C Quick Start Guide
Heavy Duty IP67 UHF CB Radio with GPS
The full Instruction Manual can be downloaded from www.gme.net.au
In the box
Introduction
Your GME XRS-390C 80-channel CB radio is designed and manufactured in Australia and
is the most advanced UHF Citizen Band radio available. It combines the very latest in
electronic hardware and software to produce an extremely compact mobile radio with
innovative features and outstanding specications and performance. The XRS™Connect
speaker microphone with OLED display and front mounted speaker provides clear sound
and total control from the palm of your hand. XRS™Connect are the rst UHF radios
with an app to congure and control the radio. Visit gme.net.au/GETXRS for more
information.
IMPORTANT INFORMATION CONCERNING UHF CB RADIO
The use of the Citizen Band radio service is licensed in Australia by the Australian
Communications and Media Authority (ACMA) Radio communications (Citizens
Band Radio Station Class Licence and in New Zealand by the Ministry of Economic
Development New Zealand (MED)).
A General User Radio Licence for Citizens Band radio and operation is subject to
conditions contained in those licences.
The class licence for users and equipment operating in the CB/PRS 477 MHz band was
amended in 2011 to include 80 channels. This radio meets the 80 channel standard.
Further information and updates are available from the ACMA at www.acma.gov.au and
the MED, Radio Spectrum Management at: www.rsm.govt.nz
Emergency channels
The ACMA has allocated channels 5/35 for emergency use only. Channel 5 is the primary
Simplex Emergency Channel. Where a Channel 5 repeater is available, you should select
Duplex on CH 5.
NOTE: Channel 35 is the input channel for the Channel 5 repeater therefore Channel 35
should also not be used for anything other than emergency transmissions.
•XRS™Connect UHF CB Radio (XRS-390C)
•Professional Grade Speaker Microphone
with GPS (MC668B-IP)
•Microphone Mounting Bracket (MB206)
•IP67 12V DC Power Lead (LE016)
•Mounting Hardware
XRS™Connect app
The GME XRS™Connect app is the easy way to customise, update and maintain your
XRS™Connect radio. To download the free XRS™Connect app for iOS or Android go to
the App Store or Google Play and search for ‘XRS™Connect’.
Pairing
To pair your Smart Device with your XRS™Connect radio, open the XRS™Connect app,
go to the ‘My Radio’ tab and select ‘Connections’. Locate your radio in the list and select
‘Pair’. Once connected, your app will return to the ‘My Radio’ screen and the icon on
your radio should change to to show that the Bluetooth pairing is successful. Once
connected select the ‘Read from Radio’ button to read your radio’s settings into the
app. After you have congured your preferences in the app, select ‘Write to Radio’ to
update your radio with your new settings.
NOTE: The Bluetooth® connection between your smart device and your XRS
™
Connect
radio must be made through the XRS
™
Connect app. You will not be able to pair your
smart device to your XRS
™
Connect radio using the normal Bluetooth settings option on
your smart device.
XRS™Connect radios are compatible with iSO and Android. A full list of compatible
devices and application software is available at gme.net.au/GETXRS 15
Radio remains ON when ignition switch is OFF
RED Fuse
Fuse
BLACK
Chassis
Car battery
Ingnition Switch
Radio turns ON and OFF with ignition switch
RED
BLACK
Chassis
Car battery
Ingnition Switch
To Radio
To Radio
Radio remains ON when ignition switch is OFF
RED Fuse
Fuse
BLACK
Chassis
Car battery
Ingnition Switch
Radio turns ON and OFF with ignition switch
RED
BLACK
Chassis
Car battery
Ingnition Switch
To Radio
To Radio
This warranty against defects is given by GME Pty Ltd ACN 000 346 814
(We, us, our or GME). Our contact details are set out in clause 2.7.
1. Consumer Guarantees
1.1 Our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major
failure.
1.2 To the extent we are able, we exclude all other conditions,
warranties and obligations which would otherwise be implied.
2. Warranty Against Defects
2.1 This Warranty is in addition to and does not limit, exclude or
restrict your rights under the Competition and Consumer Act 2010
(Australia) or any other mandatory protection laws that may apply.
2.2 We warrant our goods to be free from defects in materials and
workmanship for the warranty period (see warranty table) from
the date of original sale (or another period we agree to in writing).
Subject to our obligations under clause 1.2, we will at our option,
either repair or replace goods which we are satised are defective.
We warrant any replacement parts for the remainder of the period
of warranty for the goods into which they are incorporated.
2.3 To the extent permitted by law, our sole liability for breach of a
condition, warranty or other obligation implied by law is limited
(a) in the case of goods we supply, to any one of the following as
we decide –
(i) the replacement of the goods or the supply of equivalent
goods;
(ii) the repair of the goods;
(iii) the cost of repairing the goods or of acquiring equivalent
goods;
(b) in the case of services we supply, to any one of the following as
we decide –
(i) the supplying of the services again;
(ii) the cost of having the services supplied again.
2.4 For repairs outside the warranty period, we warrant our repairs
to be free from defects in materials and workmanship for three
months from the date of the original repair. We agree to re-repair or
replace (at our option) any materials or workmanship which we are
satised are defective.
2.5 We warrant that we will perform services with reasonable care and
skill and agree to investigate any complaint regarding our services
made in good faith. If we are satised that the complaint is justied,
and as our sole liability to you under this warranty (to the extent
permitted at law), we agree to supply those services again at no
extra charge to you.
2.6 To make a warranty claim you must before the end of the applicable
warranty period (see warranty table), at your own cost, return the
goods you allege are defective.
Before returning any goods you will be required to follow the
available options:
Contact our Customer Support Team on 1300 463 463 or
[email protected].
A customer support team member will troubleshoot and validate
if your product is faulty. If so, they will email you a product RMA
(Return Material Authorisation).
Products that are authorised to be returned to Standard
Communications must include the following:
RMA form (Return Material Authorisation)
A copy of your proof of purchase
The faulty product, including all accessories
2.7 Send your claim to:
GME Pty Ltd. 17 Gibbon Road, Winston Hills, NSW 2153, Australia.
Telephone: [phone] Fax: [phone].
Email: [email protected]
2.8 If we determine that your goods are defective, we will pay for
the cost of returning the repaired or replaced goods to you, and
reimburse you for your reasonable expenses of sending your
warranty claim to us.
3. What this warranty does not cover
3.1 This warranty will not apply in relation to:
(a) goods modied or altered in any way;
(b) defects and damage caused by use with non Standard
Communications products;
(c) repairs performed other than by our authorised representative;
(d) defects or damage resulting from misuse, accident, impact or
neglect;
(e) goods improperly installed or used in a manner contrary to the
relevant instruction manual; or
(f) goods where the serial number has been removed or made
illegible
4. Warranty period
4.1 We provide the following warranty on GME and Kingray products.
No repair or replacement during the warranty period will renew or
extend the warranty period past the period from original date of
purchase.
PRODUCT TYPE WARRANTY PERIOD
477 MHz UHF CB mobile radios 5 years
Requires Bluetooth® 2.1 (Android 8.0 or later) or Bluetooth® 4.0 (iOS 9.0 or later).
The Bluetooth® word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks by GME is under license. Other
trademarks and trade names are those of their respective owners.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and
other countries. App Store is a service mark of Apple Inc.
Google Play and the Google Play logo are trademarks of Google Inc.
Part Number: 311097 Drawing Number: 52111-1
Head Oce: 17 Gibbon Road, Winston Hills NSW 2153, Australia. T: [phone]
New Zealand: PO Box 58446 Botany, Auckland, 2163, NZ. T: [phone] Email: [email protected]
Gently spread tabs
Gently spread tabs
Slide radio from cradle
Removing the radio
GME WARRANTY AGAINST DEFECTS
gme.net.au
GME Pty Ltd

Antenna connection
It is essential to select a good quality, high eciency, 477 MHz antenna. A poor quality
antenna or one not designed for the specic frequency band you are using will give
very poor performance.
INSTALLATION
Squelch: Press the SQL key to open or close the squelch.
Duplex
Mode:
To enable or disable Duplex on a repeater channel, select the required
repeater channel (1 - 8, 41 - 48) then press the DUP key. The
icon will appear whenever Duplex is enabled on the current channel.
Priority
Channel:
To store a Priority channel, select the required channel then hold the
PRI key. To recall a Priority channel press the PRI key. The ‘PRI’ icon
is displayed whenever the Priority channel is selected.
Transmitting
IMPORTANT: Always listen to ensure the channel is free before transmitting.
To transmit, press the PTT on the microphone. The icon will appear. Hold the
microphone about 3-5 cm from your face and speak at a normal voice level. Release the
PTT when you have nished talking, the icon will disappear.
Menu
The Menu provides access to all the settings, adjustments and functions in the radio.
All menu items are controlled using the MENU, , and BACK keys.
To access the menu, press the MENU key. Scroll through the list of menu items using the
or keys. To select an item, press the MENU key. To step back through the menu,
or to exit the current screen, hold the BACK key.
4
3
2
Mounting option 2
Screw mounting
cradle to a rm surface.
Telemetry Channels
ACMA regulations have allocated channels 22 and 23 for telemetry only applications
and have prohibited the transmission of speech on these channels. Consequently your
radio has a transmit-inhibit applied to channels 22 and 23. Currently transmissions on
channels 61, 62 and 63 are also inhibited and these channels are reserved for future use.
GENERAL OPERATION
Controls
Summary of basic controls
For a detailed description please refer to the full instruction manual available from the
GME website.
Receiving
Power: Press and hold the key to turn the radio on or o.
Volume: Press the or keys to adjust the volume.
Selecting
Channels:
Press the or keys to select a channel.
Inserting the radio
Slide radio fully into cradle until it clicks
into place.
MAIN WIRING AND CONNECTION
Connection of the microphone
Microphone must be correctly installed to ensure
the radio has full IP67 ingress protection.
Plug the microphone’s RJ45 plug into the socket on
the front of the main unit.
Slide rubber grommet into the radio housing until
fully seated.
Turn the screw cap clockwise and
hand tighten to seal the unit against
water and dust ingress.
Microphone
Push to talk
Programmable
(XRS) function
key
Power
Priority
Channel/Up
Menu/Enter
Channel/Down
Back
Programmable
(Top) Function
Key
OLED display
Scan
Duplex
Squelch
Speaker
Volume +
Volume - 12V DC
Connector Plug
Red+
Fuse
-Black
Coax Cable
MC668B-IP
Microphone
UHF antenna
Optional extension speaker
Mounting option 1
