Go Rhino 3096MB User manual

QTY PART DESCRIPTION QTY PART DESCRIPTION
21/2 x 1 1/2" HEX BOLT 21037A CENTER PLATE BRACKETS
61/2" FLAT WASHER 11038BD DRIVER UPPER BRACKET
41/2" LOCK WASHER 11038BP PASSENGER UPPER BRACKET
21/2" HEX NUT 11038CD DRIVER FRAME BRACKET
2M12 HEX NUT 11038CP PASSENGER FRAME BRACKET
2SQUARE NUT SPACER 1P200 PLUG KIT
43/8 x 1" BUTTON ALLEN BOLT 21/4" SOCKET SCREW
12 3/8 x 1" HEX BOLT 2NYLON FLANGE WASHER
23/8" FLAT WASHER 45/16" LOCK NUT
14 3/8" LOCK WASHER 25/16 X 1 3/4" FLAT HEAD BOLT
10 3/8" HEX NUT 45/16 x 1" BUTTON BOLT
PART LIST
ASSEMBLY INSTRUCTIONS
3000 SERIES STEPGUARD
GRILLE GUARD ASSEMBLY INSTRUCTIONS
PART NO. 3096MB & 3096MC 01 - 02 Chevy Silverado 1500HD, 99 - 02 Silverado 2500
Crew Cab P/U / 00 - 06 Suburban 2500 2/4 WD
Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
READ THE ASSEMBLY AND INSTALLATION INSTRUCTIONS COMPLETELY BEFORE YOU BEGIN.
STEP 1. BEGIN THE GRILLE ASSEMBLY BY LAYING THE COMPONENTS OUT ON A PROTECTIVE SURFACE.
STEP 2. LOOSELY ATTACHING THE BOTTOM PLATE TO THE GRILLE GUARD SIDE PLATES USING THE 3/8” X
1” BUTTON BOLTS.
STEP 3. INSERT THE FLANGE WASHERS IN THE SIDE PLATES. POSITION THE TOP TUBE BETWEEN THE
GRILLE GUARD SIDE PLATES, AND SLIDE THE BRUSH GUARDS THROUGH THE SIDE PLATES, FLANGED
WASHERS AND INTO THE TOP TUBE. NOTE: LUBRICATE BRUSH GUARD TUBES TO EASE ASSEMBLY.
STEP 4. ATTACH EUROTUBE TO BRUSHGUARDS USING 5/16 x 1 3/4" FLAT HEAD SCREWS AS SHOWN IN
DIAGRAM. DO NOT SECURE.
STEP 5. POSITION THE CENTER PLATE BETWEEN THE SIDE PLATES, AND ATTACH THE CENTER PLATE
USING THE 3/8” X 1” HEX HEAD BOLTS, FLAT AND LOCK WASHERS, AND NUTS.
STEP 6. ALIGN THE GRILLE ASSEMBLY AND TIGHTEN ALL NUTS AND BOLTS. NOTE: SECURE THE TOP
TUBE USING THE 1/4” SOCKET SCREWS.
STEP 7. ATTACH THE HEAD LIGHT PROTECTORS TO THE BRUSH GUARDS USING THE 1/4” x 3/4” BUTTON
HEAD BOLTS AND TO THE SIDE PLATES USING THE 5/16” X 1” BUTTON HEAD BOLTS AND LOCK NUTS.
INSTALLATION INSTRUCTIONS
NOTE: SOME MODELS MAY REQUIRE NOTCHING THE LOWER BUMPER FASCIA .
STEP 1. BEGINNIN WITH THE PASSENGER SIDE, LOCATE AND REMOVE THE UPPER BUMPER BOLT. THE BOLT
IS LOCATED BEHIND THE GRILLE ON TOP OF THE BUMPER. THE BOLT IS ACCESSABLE BY REMOVING THE
RIVETS AND PLASTIC TRIM PANEL ON TOP OF THE GRILLE. LOOSENING THE CAMS LOCKS SECURING THE
GRILLE AND REACHING DOWN THROUGH THE OPENING. NOTE: PULL OUTWARD ON BOTTOM OF GRILLE TO
EXPOSE BOLT.
STEP 2. ATTACH 1038BP UPPER BRACKET TO BUMPER USING THE BUMPER BOLT AND SQUARE SPACER AS
SHOWN. DO NOT TIGHTEN.
STEP 3. POSITION 1037A CENTER PLATE BRACKET BETWEEN THE GRILLE AND BUMPER AND ATTACH TO TOP
OF 1038BP UPPER BRACKET USING 3/8 x 1" HEX BOLT AND LOCK WASHER. DO NOT TIGHTEN.
STEP 4. ATTACH 1038CP FRAME BRACKET TO LOWER BUMPER BOLT USING 12MM HEX NUT AND 1/2" FLAT
WASHER AND TO HOLE IN SIDE OF FRAME USING 1/2 x 1 1/2" HEX BOLT, WASHERS AND NUTS AS SHOWN. DO
NOT TIGHTEN.
NOTE: IF EQUIPPED WITH TOW HOOKS REMOVE AND USE THE TOW HOOK BOLT.
STEP 5. REPEAT THE ABOVE STEPS FOR THE DRIVER SIDE BRACKET.
STEP 6. ATTACH THE GRILLE AND BRUSH GUARD ASSEMBLY TO THE OUTSIDE OF THE FRAME BRACKETS AND
TO THE CENTER PLATE BRACKETS USING 3/8 x 1" HEX BOLTS, LOCK WASHERS AND NUTS. ALIGN THE GRILLE
AND BRUSH GUARD ASSEMBLY WIT FRONT OF VEHICLE AND TIGHTEN ALL NUTS AND BOLTS.
STEP 7. REATTACH THE GRILLE AND TRIM PANEL.
GO RHINO BULL BARS GRILLE GUARDS

This manual suits for next models

1

Other Go Rhino Automobile Accessories manuals

Go Rhino XE Series User manual

Go Rhino

Go Rhino XE Series User manual

Go Rhino 3160MB User manual

Go Rhino

Go Rhino 3160MB User manual

Go Rhino 5934048T User manual

Go Rhino

Go Rhino 5934048T User manual

Go Rhino 28296T User manual

Go Rhino

Go Rhino 28296T User manual

Go Rhino Lightning Series Programming manual

Go Rhino

Go Rhino Lightning Series Programming manual

Go Rhino 3219MC User manual

Go Rhino

Go Rhino 3219MC User manual

Go Rhino 3128MB User manual

Go Rhino

Go Rhino 3128MB User manual

Go Rhino 23174B User manual

Go Rhino

Go Rhino 23174B User manual

Go Rhino 3000 Series User manual

Go Rhino

Go Rhino 3000 Series User manual

Go Rhino 34389T User manual

Go Rhino

Go Rhino 34389T User manual

Go Rhino 310B User manual

Go Rhino

Go Rhino 310B User manual

Go Rhino Road Defender Push Bumper 5000 Series User manual

Go Rhino

Go Rhino Road Defender Push Bumper 5000 Series User manual

Go Rhino D361291 User manual

Go Rhino

Go Rhino D361291 User manual

Go Rhino 230121T User manual

Go Rhino

Go Rhino 230121T User manual

Go Rhino 37201 User manual

Go Rhino

Go Rhino 37201 User manual

Go Rhino 390325 User manual

Go Rhino

Go Rhino 390325 User manual

Go Rhino 3000 Series User manual

Go Rhino

Go Rhino 3000 Series User manual

Go Rhino 565460T User manual

Go Rhino

Go Rhino 565460T User manual

Go Rhino 3293B User manual

Go Rhino

Go Rhino 3293B User manual

Go Rhino GRH-4412B User manual

Go Rhino

Go Rhino GRH-4412B User manual

Go Rhino Dominator Series Programming manual

Go Rhino

Go Rhino Dominator Series Programming manual

Go Rhino Rhino! Charger 5565 User manual

Go Rhino

Go Rhino Rhino! Charger 5565 User manual

Go Rhino 3000 Series User manual

Go Rhino

Go Rhino 3000 Series User manual

Popular Automobile Accessories manuals by other brands

Whelen Engineering Company TN Series installation guide

Whelen Engineering Company

Whelen Engineering Company TN Series installation guide

Westfalia 46 19 13 instruction manual

Westfalia

Westfalia 46 19 13 instruction manual

Menabo DELTA DL FIX 208FP Fitting instructions

Menabo

Menabo DELTA DL FIX 208FP Fitting instructions

Carefree Awning Stabilizer Pole Kit HD manual

Carefree

Carefree Awning Stabilizer Pole Kit HD manual

EVO Manufacturing EVO-3038 manual

EVO Manufacturing

EVO Manufacturing EVO-3038 manual

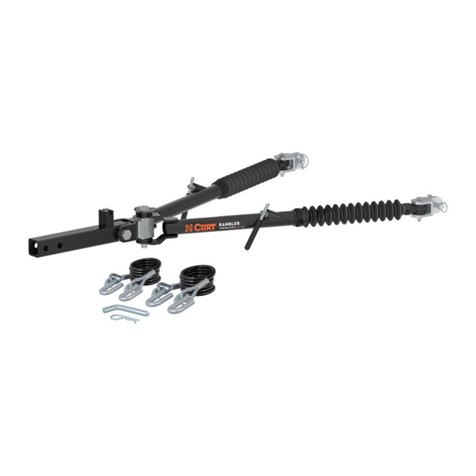

Curt Manufacturing 70001 installation manual

Curt Manufacturing

Curt Manufacturing 70001 installation manual

Dynojet power commander III installation instructions

Dynojet

Dynojet power commander III installation instructions

HUSKY LINERS 6921FR Care and use instructions

HUSKY LINERS

HUSKY LINERS 6921FR Care and use instructions

Whispbar K437W Fitting instructions

Whispbar

Whispbar K437W Fitting instructions

AudioBus DF2402 Safety and use instructions

AudioBus

AudioBus DF2402 Safety and use instructions

SUPERTOOTH buddy manual

SUPERTOOTH

SUPERTOOTH buddy manual

aFe Power 57-10018D instruction manual

aFe Power

aFe Power 57-10018D instruction manual

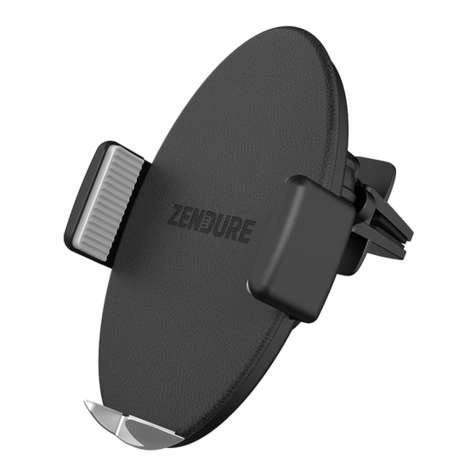

Zendure Q7 user manual

Zendure

Zendure Q7 user manual

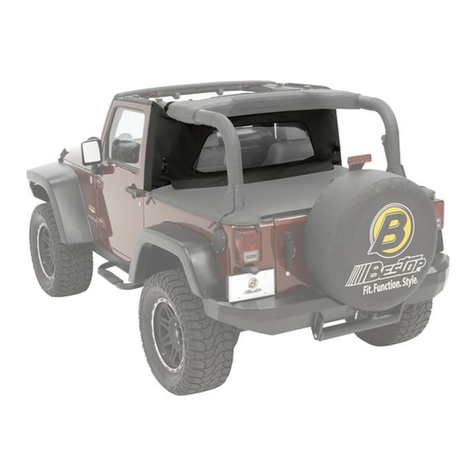

Bestop WrapAround Windjammer installation instructions
