GoldenDesigns GDI-6996-01 User manual

1
Infrared Sauna Instruction Manual
Models: GDI-6996-01
6 Person FAR Infrared Sauna
INFRARED CARBON MODEL SAUNA
FOR INDOOR USE ONLY
REQUIRES 2 SEPARATE DEDICATED 120V/20 AMP OUTLETS
Carefully and thoroughly read this Owner’s Manual before using/operating
the sauna. We recommend keeping this Owner’s Manual for regular review
and future reference.

2
TABLEOFCONTENTS
Packing List 2
Visual Assembly Diagrams 6
Parts Description 7
Assembly Instructions 12
Operating the Sauna 26
Tips for Using Your Sauna 29
Safety Instructions 30
Safeguards for Your Sauna 32
Troubleshooting Guide 33
Warranty 35
Warranty Card 37
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage
to the heating elements. DO NOT START the sauna if damage is detected!
Contact your dealer or manufacturer for troubleshooting and replacement
parts.
Packing List (main panels)
1pc Front Panel 1pc Rear Panel 1pc Right Side Panel
1pc Left Side Panel 1pc Roof Panel 1pc Roof Cover
4pc Benches 2pc Bench Heat Emitter Panels 1pc Floor Panel
NOTE: Your model sauna has been completely assembled and tested prior to
packaging. The rear wall panel is intentional warped as part of the overall design.
Two adults will be needed to assemble the sauna room, but three adults will be
ideal.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy,
Or Any Discomfort.

3
What Are Infrared Rays?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the
naked eye, but we can feel this type of light in the form of heat. Our sun produces most of
its energy output in the infrared segment of the spectrum. Infrared rays heat your body
without having to heat the air in-between. This process is called conversion.
The infrared is divided into 3 segments by wavelengths measured in microns: Near
Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-
1000 microns. Among these segments, Far Infrared penetrates organic substances such
as the human body two to three inches so that the warming effect is very uniform.
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly beneficial
to our bodies on a cellular level. Health professionals have used infrared heat lamps for
decades to treat muscle and joint problems. In hospital baby care units, incubators are
often equipped with infrared heating systems to keep newborn babies warm.
WHAT IS AN ELECTROMAGNETIC FIELD (also known as EMF)?
An Electromagnetic Field is a physical field produced by electrically charged objects. It is
one of the fundamental forces of nature. The field can be viewed as the combination of
an electric field and a magnetic field. The electric field is produced by stationary charges
and the magnetic field by moving charges referred to as currents. The magnetic field is
measured in milligauss (mG). Our sauna products have been developed to have low
EMF. Our Low EMF carbon heater panels range between an average of 5mG-10mG at
about two inches from the heater panel, our Ultra Low EMF sauna models range between
3mG-5mG, and our Near Zero EMF models range at less than 3mG (NIR heaters range
at about 5mG-7mG at the same approximate 2 inches).

4
EMF Levels from Common Homes Sources
After many years and numerous studies on EMF exposure, no government body including
the Occupational Safety and Health Administration (OSHA) have established permissible
exposure limits (PEL). Currently, there is no consensus on the potential health hazard
from any exposure to EMF. The mainstream scientific evidence suggests that low-power,
low-frequency, electromagnetic radiation associated with household currents like that of
the infrared sauna does not constitute a short or long term health hazard.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible
therapeutic benefits based on research completed over the last 40 years from all around
the world. These benefits are presented for reference purposes only and no implication of
infrared saunas creating a cure for or treating any disease is implied nor should it be
inferred. If you have a medical/health condition, are taking prescription drugs, or have
acute joint injuries, please consult with your medical physician before using the sauna.
Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of
surgical implants) typically do not experience any adverse effects, but should also consult
their medical physician or surgeon before using the sauna room.

5

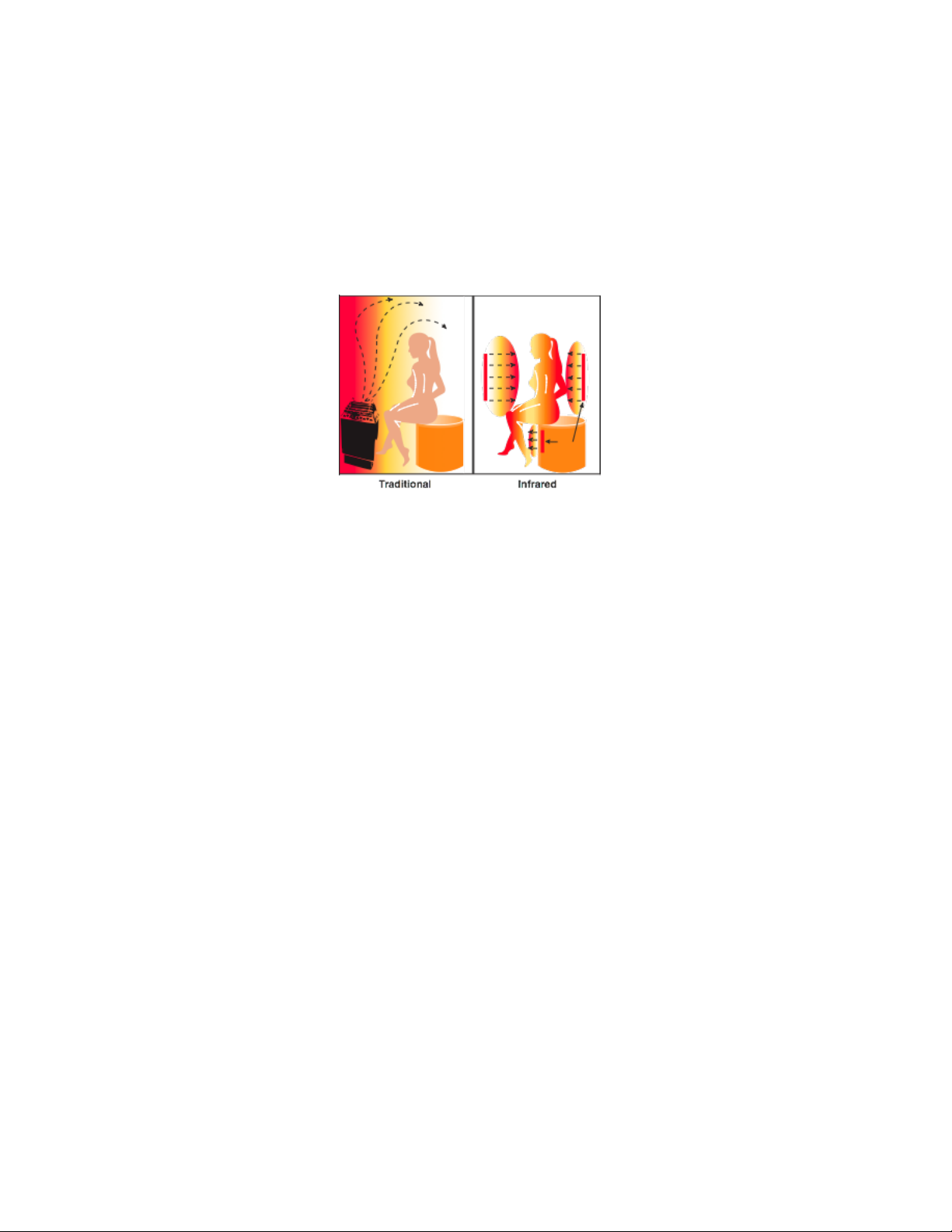

HOW IT WORKS
Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to
directly penetrate into the body's tissue to produce perspiration. Traditional saunas use
steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the
upwards of 190 degrees Fahrenheit. Infrared saunas only need a temperature of up to
120 degrees Fahrenheit to obtain the same effect. This lower temperature makes the
environment more tolerable and allows you to breathe easier.
Health Benefits
Because infrared rays penetrate the body through conversion, there is a deep heating
effect in both the muscle tissues and internal organs without putting too much burden on
the heart.
Our body reacts to the increased heating through the natural cooling process of
perspiring. Through the perspiration process, acid and waste residue like toxins, sodium,
alcohol, nicotine, cholesterol, and the potentially carcinogenic heavy metals are removed
from the cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our skin open
and discharge waste products shedding any old skin cells leaving the skin glowing and
clean, with improved tone, elasticity, texture, and color.
Health Benefits Include, But Are Not Limited To:
*Pain relief from Rheumatoid Arthritis *Relaxes muscle spasms *Reduces cellulite
*Increases blood circulation *Clears, rashes, acne *Enhances skin tone
*Cardiovascular conditioning *Reduces stress & fatigue *Removes toxins
Sauna Maintenance
Since infrared saunas do not require hot rocks, water, or steam to operate, they require
very little maintenance. You can simply wipe it down with water –use a damp, soft, and
clean cloth. Do not use any chemical based cleaning agents as they can be absorbed
into the wood and be released into your sauna during use.

6
*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
Visual Assembly Diagram
GDI-6996-01
*The above assembly diagram is for a quick reference visual guide only. All
sauna models are not shown. Parts and accessories may vary and are subject
to change. Backrests are sold separately.

7
PARTS DESCRIPTION
GDI-6996-01
NOTE: The pictures and diagrams shown within this owner’s manual are
representations of this model. Actual model may vary. Design and Construction
are subject to change. Backrests are sold separately.
*PLEASE READ INSTRUCTIONS BEFORE
ASSEMBLY*

8
*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
GDI-6996-01 Visual Interior Diagram
*The above assembly diagram is a quick reference visual guide only . All sauna
models are not shown . Model types, parts, and accessories may vary.

9
I. Power Supply
Both POWER SUPPLY BOXES are the control centers of the sauna room. They are
installed on the ROOF PANEL and have input/outputs connected to them. The two
types of POWER SUPPLY BOXES can be seen below. (see Figure 1)
Power Supply 1 Power Supply 2
Figure 1
MAIN POWER - main power of the sauna room POWER IN - main power of the sauna room
HT1, HT2, HT3, HT4 –heater cords HT1, HT2, HT3, HT4, HT5, HT6 –heater cords
LIGHT –chromotherapy lights LAMPROOF –roof lamp power (optional)
ROOF LAMP - roof lamp (optional) LIGHTING –chromotherapy lights
CTRL - control panel connection PANEL CONTROL –control panel connection
CD/SIG - signal cable group FUSE RESET –protects against power surges
FUSE RESET –protects against power surges
II. FM/CD/DVD Player and Monitor (optional)
The FM/CD/DVD Player, Monitor, and Speaker System allow you to listen to music
and watch DVD’s during your sauna session at your own leisure. (see Figure 2)
Figure 2

10
III. Component Labeling
POWER Power Cord
HT1, HT2, HT3, HT4 Emitter (heater) power cords
LIGHT Reading lamp connector
CTRL Control panel connector
CD/SIG For CD/temperature sensor/buzzer/etc.
L/SPEAKER Left speaker connector
R/SPEAKER Right speaker connector
TEMP SENSOR Temperature sensor
BUZZER Buzzer connector
MP3 AUX INPUT MP3 /radio connection
IV. Guide & Guide Inserts and Buckles
The guide and guide inserts are used to connect the FRONT PANEL to the LEFT
SIDE PANEL and RIGHT SIDE PANEL. The buckles are used to connect the
REAR WALL to the LEFT SIDE PANEL and RIGHT SIDE PANEL. (see Figure 3
and 4)
Figure 3 Figure 4

11
V. Panel Descriptions
For easier installation, please understand and distinguish the differences between each
panel.

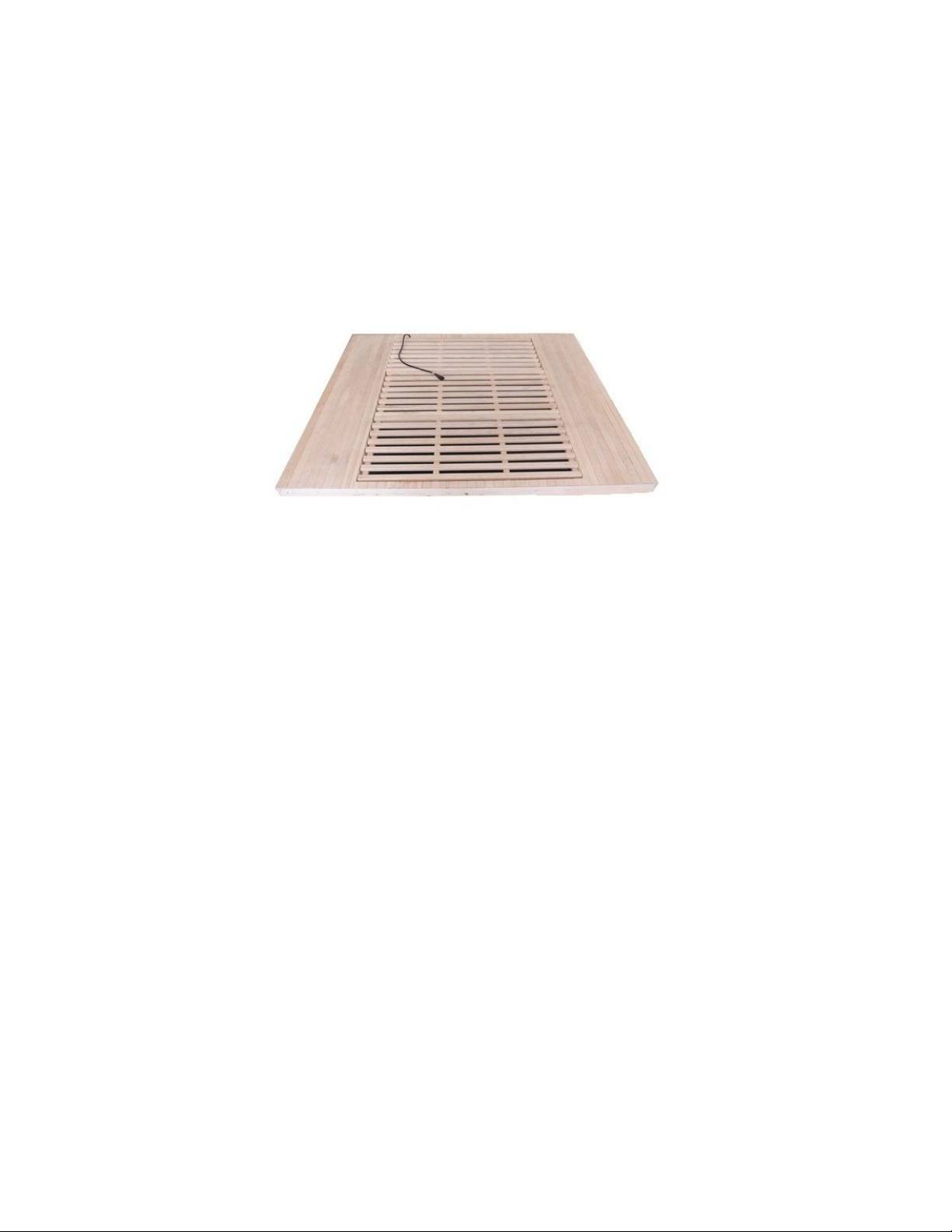

A. Floor Panel
When the FLOOR PANEL faces upward, you will find (3) heat emitter
panels in the center of the FLOOR PANEL and a power cord at the rear.
(see Figure 5)
Figure 5

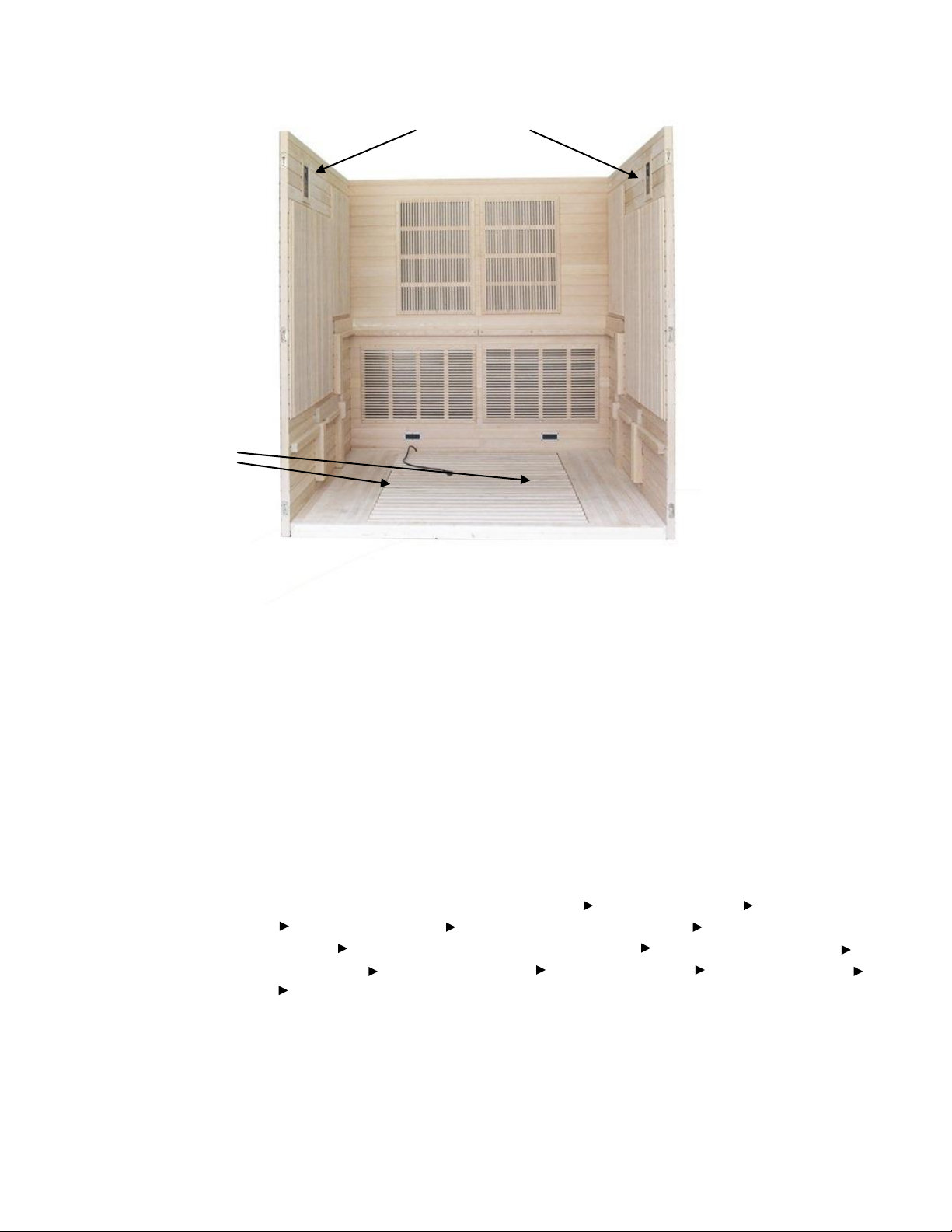

B. Understanding The Difference Between The Top And Bottom Of The Wall
Panels
The top of the wall panels will have heat emitter power cords and control
panels coming from them. The control panels will be at the top of the side
wall panels. Also, the power outlets will be at the bottom of the REAR WALL
PANEL. (see Figure 6)

12
Control Panels
Power Outlets
Figure 6
Assembly Instructions
A. Choose a good location to install the sauna
1. The location must be dry, leveled, and away from any source of water
2. MAIN POWER cord must be easily accessible
3. Two adults are required for installation
4. Wood cabin installation order: Floor Panel Rear Wall Panel Left Side
Panel Right Side Panel Lower Bench Heater Panel Wood Brace
(fixed frame) Middle Level Bench Heater Panel Center Bench Guides
Benches (large) Bench Supports Benches (small) Front Wall Panel
Roof Roof Cover
5. Tools Required: Philips Screwdriver and Ladder

13

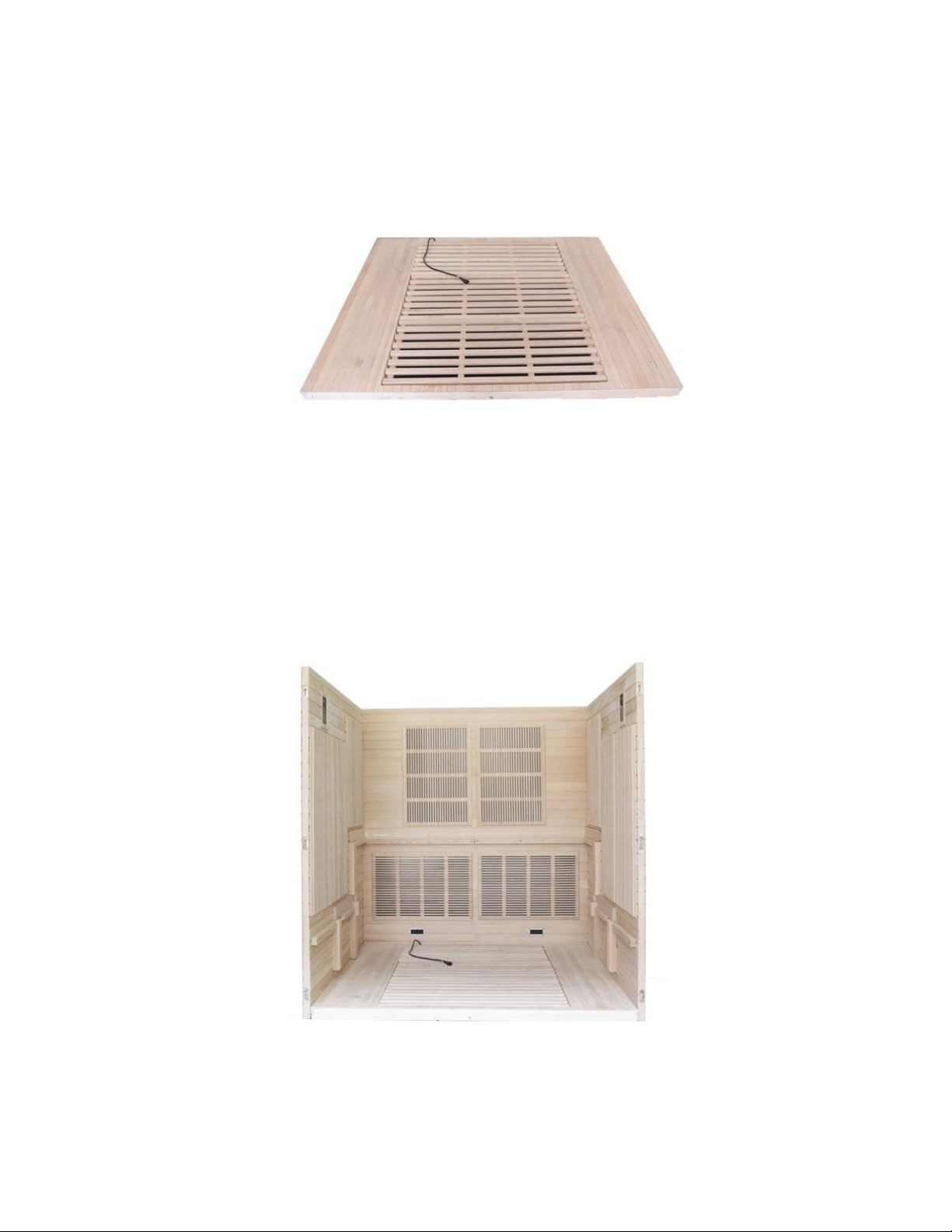

B. Installing the FLOOR PANEL
1. Place the FLOOR PANEL on the floor. Turn the FLOOR PANEL so that
the heater power cord is at the rear. (see Figure 7)
Figure 7
C. Installing the REAR PANEL and SIDE PANELS
1. Place the REAR PANEL up against the FLOOR PANEL. Attach the
REAR PANEL to the SIDE PANELS using the buckles as seen in
Figure 8. Connect the floor heater cord into the rear wall outlet.
Figure 8

14
D. Installing the LOWER BENCH HEATER PANEL and WOOD BRACE
(fixed frame)
1. Insert the correct LOWER BENCH HEATER PANEL. Please note
that the LOWER BENCH HEATER PANEL and and MIDDLE LEVEL
BENCH HEATER PANEL are not the same. Proceed in inserting
the WOOD BRACE (fixed frame). (see Figure 9 and 10) Connect
LOWER BENCH HEATER cord into the rear wall outlet.
Figure 9
Figure 10

15
E. Installing the MIDDLE LEVEL BENCH HEATER PANEL
1. Insert the MIDDLE BENCH HEATER PANEL and connect the
MIDDLE LEVEL BENCH HEATER into the rear wall outlet. (see
Figure 11)
Figure 11

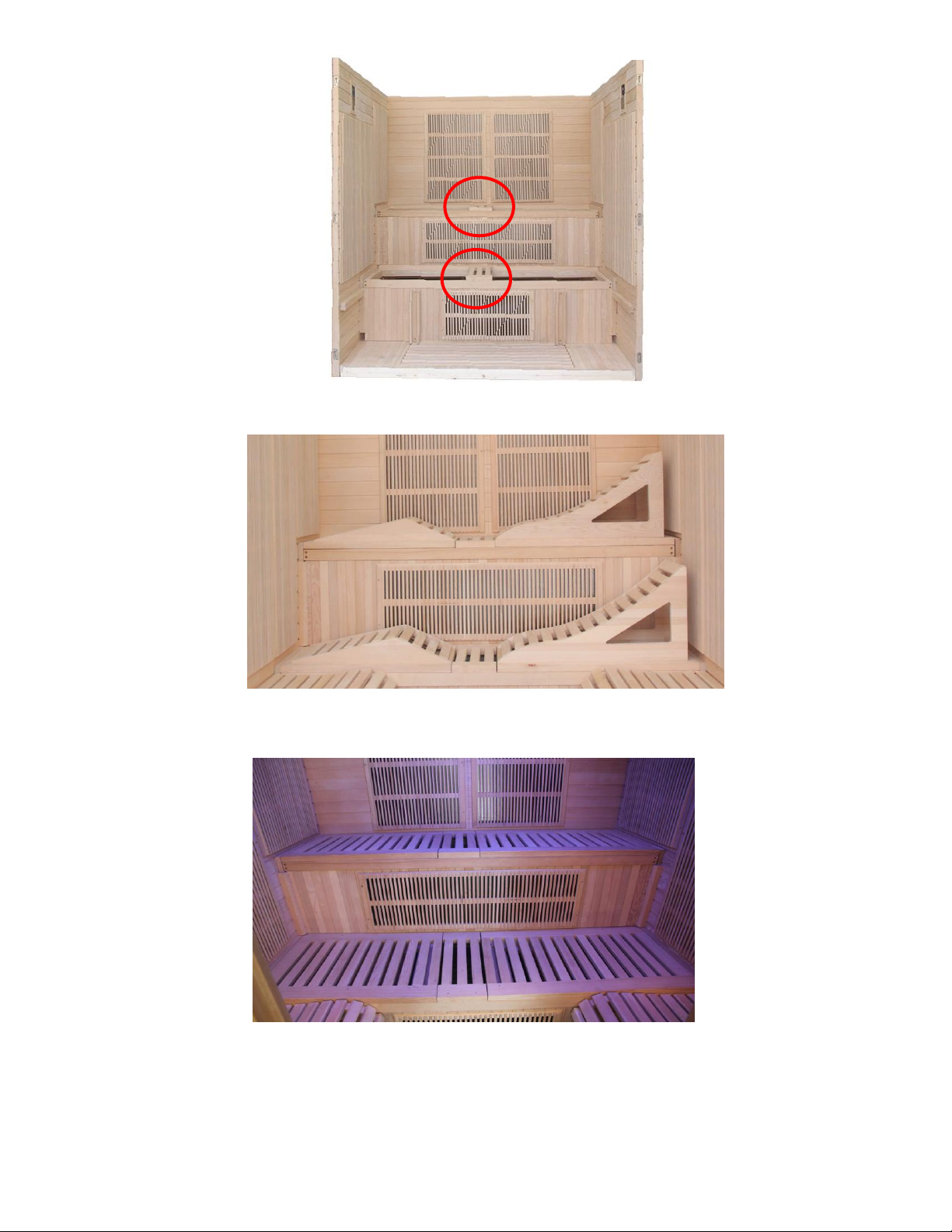

F. Installing the CENTER BENCH GUIDES and BENCHES (large)
1. Locate the (2) CENTER BENCH GUIDES. Place them in the correct
positions as seen in Figure 12.
2. Next, locate the BENCHES (large). Insert them into there correct
positions. They can be inserted facing upward which will allow you to
lay down. They can also be inserted facing downward which would
allow more seating. (see Figures 13 and 14)

16
Figure 12
Figure 13
Figure 14

17

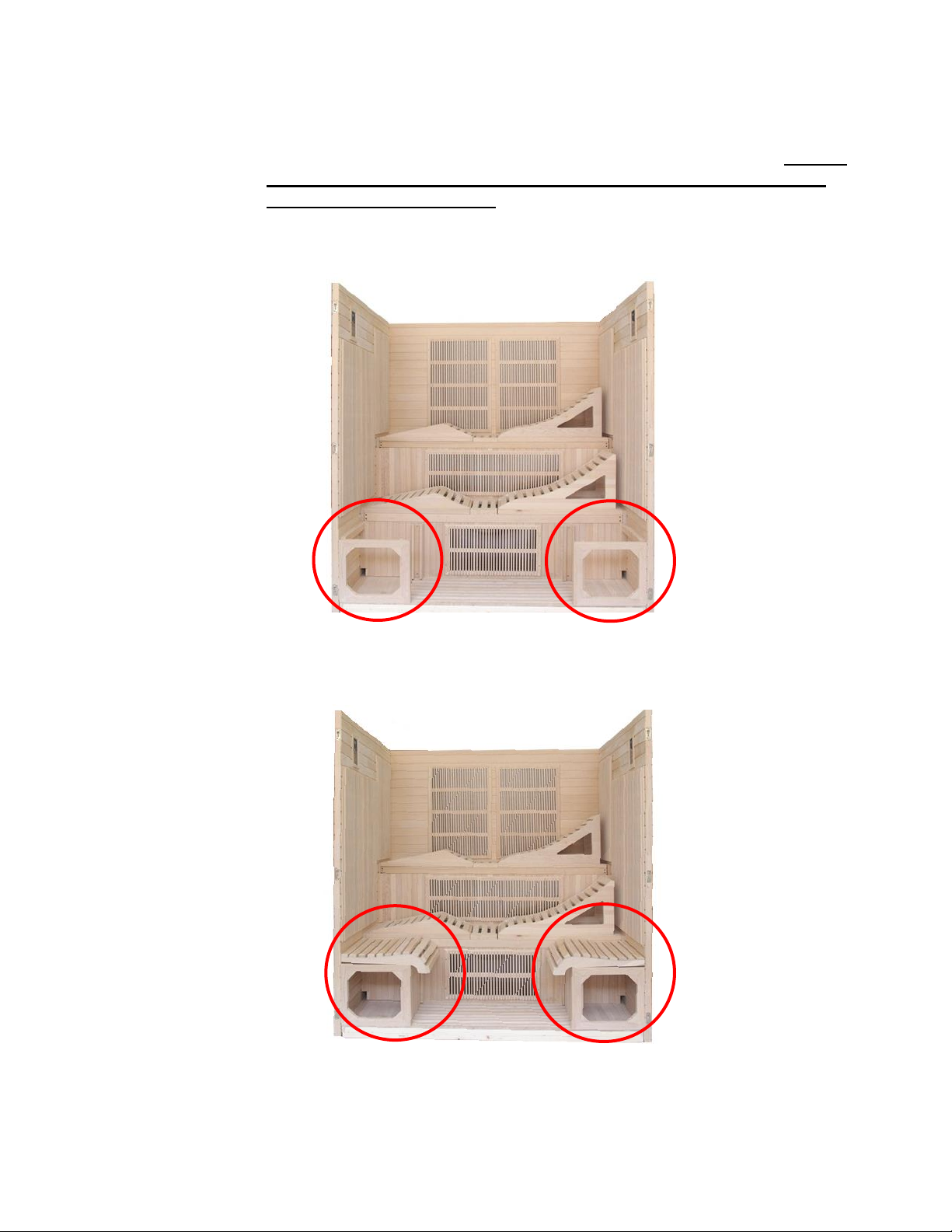

G. Installing the LOWER BENCH SUPPORTS and LOWER BENCHES
1. Place the LOWER BENCH SUPPORTS as seen in Figure 15. Do not
screw in the LOWER BENCH SUPPORTS until after the FRONT
WALL PANEL is installed.
2. Next, place the LOWER BENCHES onto the top of the LOWER
BENCH SUPPORTS. (see Figure 16)
Figure 15
Figure 16

18
H. Installing the FRONT WALL PANEL
1. Place the FRONT WALL PANEL up against the FLOOR PANEL.
Attach the FRONT WALL PANEL to the SIDE PANELS using the guide
and guide inserts as seen in Figure 17. After the FRONT WALL
PANEL is installed, the LOWER BENCH SUPPORTS can be
screwed in.
Figure 17
Please note that the black protection corners used to protect the corners of the
glass door can be removed and discarded once the sauna room is assembled.
I. Installing the ROOF PANEL
1. Carefully lift the roof panel up and over the sauna room. Gently sit the
roof panel on top of the sauna room. (see figure 18)
2. Connect the plugs according to the respective labels. (see Parts
Description above and J below)

19
Figure 18
J. Connecting the plugs on the ROOF PANEL
1. Connect the plugs according to their respective labels up on the rooftop.
(see Figure 19)
Figure 19

20
2. You will need to connect the right and left speaker connectors, the MP3
connector, and the CTRL harness wire connector.
Before Connecting After Connecting
Figure 20
K. Installing the TEMPERATURE SENSOR
1. Enter the sauna and remove the protective covering from the
TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so
that it is vertical, pointing downward. (see Figure 12)
Figure 21
Note: Some sauna models are shipped with a spare TEMPERATURE
SENSOR in case the TEMPERATURE SENSOR is damaged in transit. The
manufacturer decides this according to sauna models and packaging.
L. Installing the Radio
1. Locate the hole in the ceiling where the RADIO WOOD BOX
HOUSING is going to be placed. Use the provided screws to screw
