Goldmedal 5099NS User manual

Part No. 89932
GAS FRYER
Instruction Manual
Model #5099NS
Cincinnati, OH 45241-4807 USA
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
concessionstands.com

GAS FUNNEL CAKE FRYER
2 MODEL #5099NS
Safety Precautions
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
concessionstands.com

GAS FUNNEL CAKE FRYER
3 MODEL #5099NS
OPERATING INSTRUCTIONS
UNPACKING AND ASSEMBLY
After unpacking your GAS FUNNEL CAKE FRYER, set it on a counter where you intend to use it.
Remove all tape. Observe the following clearances:
Front and sides: 10 inches
Back and front: 10 inches
Ensure proper clearances for air supply and maintenance.
NOTE:
Locate the fryer on a base that is strong enough to safely support the fryer when full of oil. To
restrain fryer use 3/8-16 bolts through the counter into tapped holes in the bottom of the fryer.
GAS INSTALLATION INSTRUCTIONS
DANGER
Gas is safe when used properly, but can be very
dangerous when used improperly. We suggest that the
installation be carefully made by qualified personnel only.
Gas companies have competent service personnel to
provide safe installation.
When installing your GAS FUNNEL CAKE FRYER, you must conform with local codes, or in the
absence of local codes, with National Fuel Gas code, ANSI Z223.1 (latest edition).
NOTE:
Some local codes may require ventilation hoods or automatic fire systems. During any pressure
testing of the gas supply piping system at pressure equal to or less than ½ psig (3.45 kPa), the
appliance must be isolated from the gas supply piping system by closing its individual manual
shutoff valve.
After installation, all gas connections must be checked with a soap solution (see next section).
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
concessionstands.com

GAS FUNNEL CAKE FRYER
4 MODEL #5099NS
CHECKING FOR GAS LEAKS
After installation or after performing any work on the gas train, ALWAYS check ALL gas
connections for leaks with a soap solution.
DANGER
Do NOT use a match or flame to check for leaks – you
may cause a fire or explosion! When gas connections are
complete, wire the unit to a power source which will carry
the current specified on the units data plate.
1. Apply SOAP BUBBLES to all connections and pressurize the gas line to check for leaks.
Perform this test outdoors away from any flames or sparks.
DO NOT use a flame to check for gas leaks.
2. It is recommended to check your flexible gas lines for cuts and abrasions on a frequent
basis. Stop using the appliance immediately if damage is found.
3. Securely route all gas lines away from flames and high temperature areas.
4. Contact Gold Medal Technical Support, or a qualified Gas Service Technician with any
questions.
TYPES OF GAS
The data plate is marked at the factory to indicate the type of gas the appliance uses. The
5099NS is designed for Propane only.
NOTE:
This fryer must be attached to a 100 pound LP cylinder.
This fryer will not operate properly on small (20-40 lb.) cylinders.
ALTITUDE RANGE:
The factory has sized the orifices for elevations up to 2000 feet above sea level. For high altitude
applications, please contact Gold Medal customer service.
GAS PRESSURE
We have determined that optimum frying occurs when the gas pressure is adequate. For propane
gas, we recommend a manifold pressure setting of 11 inches of water column.
The pressure is measured at the appliance when the main burner is ignited.
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
concessionstands.com

GAS FUNNEL CAKE FRYER
5 MODEL #5099NS
LIGHTING AND SHUT DOWN INSTRUCTIONS
Follow these steps to light your unit:
1. Turn the gas safety valve to the “PILOT” position.
2. Depress the button next to the safety valve handle.
3. Light the pilot burner with a household match. Continue to hold the safety valve button for
approximately 30 - 45 seconds, then release. The pilot burner will remain lit.
4. Turn the gas safety valve handle to the “ON” position. The main burner will ignite.
5. To extinguish both the pilot and the main burner flames, lift the lock button on the gas safety
valve and turn the safety valve handle to the “OFF” position.
6. Should the burner become extinguished because of the high-limit tripping, shut off the gas
supply until the fryer cools down, then re-ignite.
CAUTION
If pilot is turned off, a five minute shut down period is
required before attempting to re-light.
FILLING THE OIL TANK
The tank will hold 50 lbs. of cooking oil. The surface on this amount of oil will be approximately 2¾
inches above the bottom of the tank.
NOTE:
Cooking oil expands upon heating. Do not overfill the tank as overfilling could result in a
dangerous situation.
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
concessionstands.com

GAS FUNNEL CAKE FRYER
6 MODEL #5099NS
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or the parts list.
2. When ordering, please include part number, part name, and quantity needed.
3. Please include your model name, serial number, and date of manufacture (located on the machine
nameplate) with your order.
4. Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
[phone]
[phone]
Fax: [phone]
or, place orders at:
E-mail: [e-mail]
Web Page: www.gmpopcorn.com
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
concessionstands.com

GAS FUNNEL CAKE FRYER
7 MODEL #5099NS

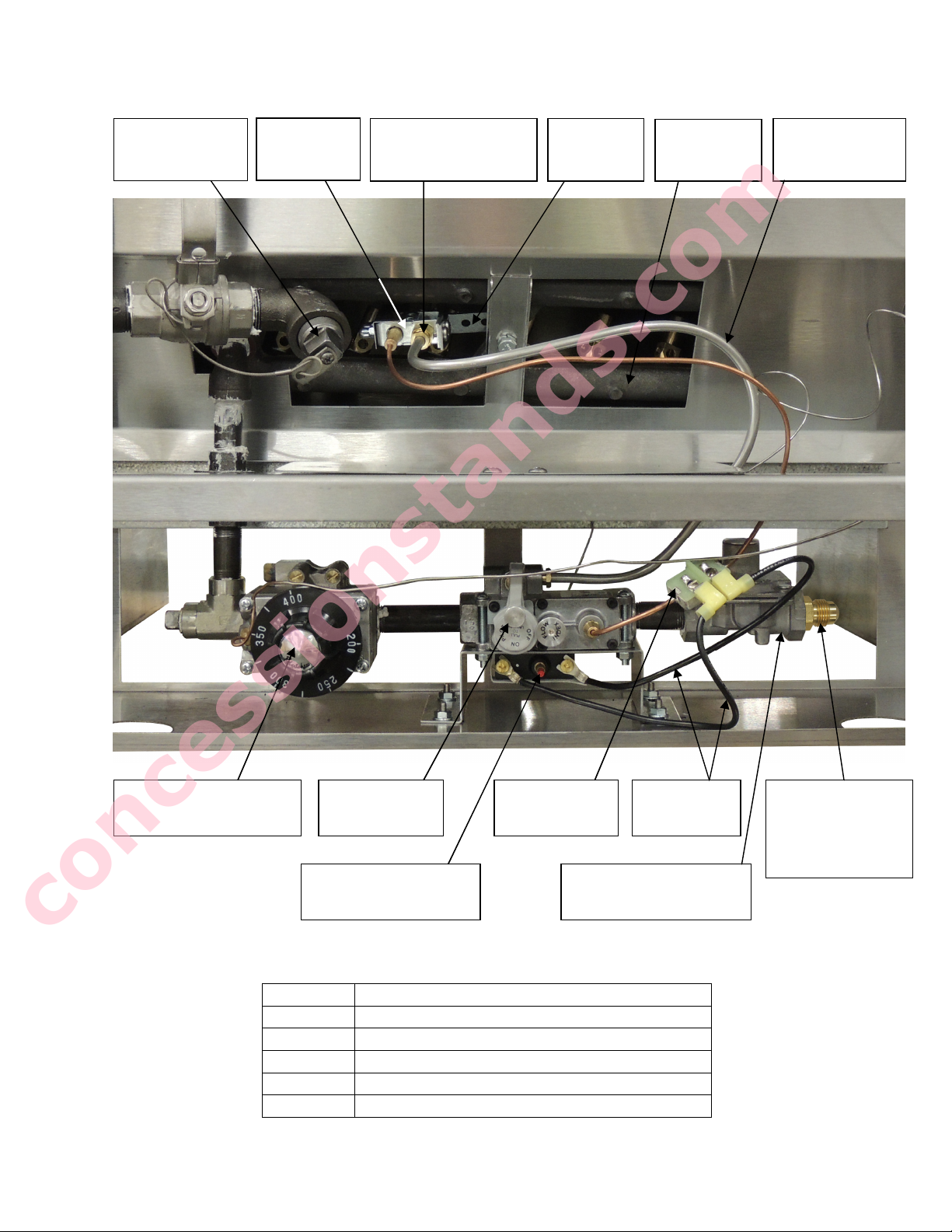

Not Shown:
4300 Dial Thermometer
8055 Fine Mesh Skimmer
89014 Tank Drain Valve
89245 Tank Regulator
89246 Tank Fitting
109000 Hose Assembly (has a Flared Hose Fitting)
11 in. w.c. Regulator
P/N 89916
Temperature Control
P/N/ 89679
Safety Valve
74027
Thermocouple
P/N 89762
Aluminum Tube
P/N 27010-20
Wire Assy.
P/N 89767
(2)
High Limit Control
P/N 89615
U-11 Burner
P/N 89666
Pilot Orifice .010 LP
P/N 74050
Bracket
P/N 74094
Drain Plug Assy
P/N 89440
Pilot Burner
P/N 74028
Flare Pipe Fitting
P/N 74595
(use w/Gas Hose
P/N 109000)
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
concessionstands.com

GAS FUNNEL CAKE FRYER
8 MODEL #5099NS
© 2013 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of
Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website
display, without its express written consent.
WARRANTY
Gold Medal Products Co. warrants to the original purchaser each item of its manufacture to
be free of defects in workmanship and material under normal use and service. Gold Medal
Products Co.’s obligation under this warranty is limited solely to repairing or replacing parts,
f.o.b. Cincinnati, Ohio, which in its judgment are defective in workmanship or material and
which are returned, freight prepaid, to its Cincinnati, Ohio factory or other designated point.
Except for “Perishable Parts” on specific machines, the above warranty applies for a period
of two (2) years from the date of original sale to the original purchaser of equipment when
recommended operating instructions and maintenance procedures have been followed. These
are packed with the machine. Parts warranty is two (2) years, labor is six (6) months.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. In no event shall Gold Medal Products Co. be liable for special, incidental or
consequential damages. No claim under this warranty will be honored if the equipment covered
has been misused, neglected, damaged in transit, or has been tampered with or changed in any
way. No claim under this warranty shall be honored in the event that components in the unit at
the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty
is effective only when electrical items have been properly attached to city utility lines only at
proper voltages. This warranty is not transferable without the written consent of Gold Medal
Products Co.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that person,
firm, association, or corporation who was billed by the GOLD MEDAL PRODUCTS CO.,
or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS CO. AT 1-800-543-0862 TO
DISCUSS WITH OUR SERVICE REPRESENTATIVE THE EQUIPMENT PROBLEM,
AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING THE REPAIR OR
REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
10700 Medallion Drive, Cincinnati, Ohio 45241
-
4807 USA
gmpopcorn.com
Phone: [phone] Fax: [phone]
[phone] [phone]
