Goldmedal 8065NSD User manual

© 2017 Gold Medal Products Co. Part No. 88847
Instruction Manual
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Gas Fryer
Foot Long Dogs
Model No. 8065NSD

Gas Fryer
Foot Long Dogs Model No. 8065NSD
Page 2
gmpopcorn.com
SAFETY PRECAUTIONS
DANGER
Gas is safe when used properly, but can be very dangerous when used
improperly. We suggest that installation be carefully made by qualified
personnel only. Gas companies have competent service personnel to
provide safe installation.
001_010914
DANGER
DO NOT use a match or flame to check for gas leaks – you may cause a fire
or explosion!
003_010914
DANGER
Never add water to hot oil. When water is added to hot oil a stream explosion
may ensue spattering hot oil resulting in serious burns or more seriously hot
oil in someone’s eyes.
024_010914
DANGER
Hot oil is dangerous – severe burns can result when hot oil contacts the skin.
Hot oil is flammable – keep open flames away from hot oil and its vapors.
Keep a fire extinguisher near this unit.
Instruct personnel on what to do if there is a grease fire. DO NOT USE
WATER ON A GREASE FIRE! Use only fire extinguishers approved for
grease, oil, and electric fire.
002_102214
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
DO NOT store or use gasoline, or other flammable vapors and liquids, in the
vicinity of this equipment.
004_010914

Gas Fryer
Foot Long Dogs Model No. 8065NSD
Page 3
gmpopcorn.com
SAFETY PRECAUTIONS (continued)
WARNING
Instructions on what to do when a user smells gas can be obtained from the
local gas supplier. These instructions must be posted in a prominent location
where the unit is to be operated.
005_010914
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914

Gas Fryer
Foot Long Dogs Model No. 8065NSD
Page 4
gmpopcorn.com
SAFETY PRECAUTIONS (continued)
WARNING
This machine is NOT to be operated by minors.
007_010914
Note: Improvements are always being made to Gold Medal’s equipment. This information
may not be the latest available for your purposes. It is critical that you call Gold Medal’s
Technical Service Department at -800-543-0862 for any questions about your
machine operations, replacement parts, or any service questions. (Gold Medal
Products Co. does not assume any liability for injury due to careless handling and/or
reckless operation of this equipment.) General images may be used in manual for
reference only.

Gas Fryer
Foot Long Dogs Model No. 8065NSD
Page 5
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this
equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold
Medal Products Co., 0700 Medallion Drive, Cincinnati, OH 4524 USA -(800)-543-0862.
Model Description
8065NSD: Gas Fryer, Foot Long Dogs
Items Included with this Unit
Optional Accessories – Not Included
The following accessories are available for purchase separately.
Dog on a Stick Kit – Gold Medal Item No. 8054
Single Large Fry Basket – Gold Medal Item No. 8072
Fine Mesh Skimmer
Dial Type Thermometer
Tank Regulator
Tank Hose

Gas Fryer
Foot Long Dogs Model No. 8065NSD
Page 6
gmpopcorn.com
Setup
This unit is fully assembled and has been tested at the factory.
. Remove all packaging and tape prior to operation.
2. This unit is for outdoor use only.
3. Place the fryer in a protected location on a level, sufficiently stable base or table,
where it cannot be knocked off. The base or table must be strong enough to support
the fryer when full of oil. Adjust the Case Levelers as needed (see image below).
4. Observe the following clearances to ensure proper air supply and maintenance:
•Minimum of 6 inches clearance on each side of unit.
•Minimum of 30 inches clearance for the front, back, and top of unit.
5. Bolt the unit to the counter to secure it from tipping. To restrain the fryer,
use 3/8- 6 bolts through the counter into tapped holes in the bottom of the fryer.
6. Set the thermometer bracket on the rim of the tank in a convenient location, where the
dial thermometer can be inserted and monitored without reaching over the tank.
7. After setup, the unit should be cleaned prior to use (see Care and Cleaning section of
this manual).
Case evelers (4)

Gas Fryer
Foot Long Dogs Model No. 8065NSD
Page 7
gmpopcorn.com
Gas Installation Instructions
Gas Requirements
The 8065NSD is designed for Propane only. Converting this unit to an alternate fuel source will
void the warranty and may cause a dangerous condition.
8065NSD: Propane Gas, 65,000 BTU/HR
NOTE: The unit must be attached to a minimum of 40 pound LPG cylinder. For outdoor
use only.
Gas Installation
DANGER
Gas is safe when used properly, but can be very dangerous when used
improperly. We suggest that installation be carefully made by qualified
personnel only. Gas companies have competent service personnel to
provide safe installation.
001_010914
When installing this gas unit in the United States, you must conform with local codes, or in the
absence of local codes, with National Fuel Gas Code, ANSI Z223. (latest edition).
NOTE: Some local codes may require ventilation hoods or automatic fire systems. During
any pressure testing of the gas supply piping system at pressure equal to or less
than /2 psig (3.45 kPa), the appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve.
After installation, all gas connections must be checked for leaks with a soap
solution (see Checking for Gas Leaks section of this manual).
CAUTION
Be sure to observe all clearances for this unit. Refer to the Setup Section of
this manual to ensure proper air supply and adequate clearance for servicing
and installation of this gas unit.
033_042814

Gas Fryer
Foot Long Dogs Model No. 8065NSD
Page 8
gmpopcorn.com
Important Fire Safety Notice
Consult your local fire protection agency for your area’s requirements. Check local fire protection
requirements regularly to ensure compliance with local codes and proper operation. Have a fire
extinguisher near the fryer. (Use only fire extinguishers approved for grease, oil, and electrical
fires.)
A thermometer (capable of 500°F or higher) should be immersed in the oil to monitor the oil
temperature and make sure the unit is operating properly.
DANGER
Hot oil is dangerous – severe burns can result when hot oil contacts the skin.
Hot oil is flammable – keep open flames away from hot oil and its vapors.
Keep a fire extinguisher near the fryer.
Instruct personnel on what to do if there is a grease fire. DO NOT USE
WATER ON A GREASE FIRE! Use only fire extinguishers approved for
grease, oil, and electric fire.
002_020314
Advanced Safety Measures
KEEP FRYER AREA C EAN AND MAINTAINED
•Keep your floors clean and free of grease to prevent slips, accidents, and contact with a
hot fryer.
•Keep filters and areas above the fryer clean. Oil-soaked lint or dust can ignite easily
and flames spread quickly in an oily environment.
EDUCATE PERSONNE
•Ensure all personnel understand the hazards of hot oil. Instruct them on proper
actions to take if they suspect any part of the fryer is malfunctioning.
If your fryer malfunctions, have it serviced by Qualified Service Personnel.
IMPORTANT: If the fryer starts to smoke or boil abnormally, shut off gas supply and
determine the reason why the fryer is overheating before attempting to use it.
•Ensure all personnel understand procedures to follow if the High Limit Control is
tripped. (See High Limit Control description in the Controls and Their Functions
section of this manual.)
•Educate all personnel on proper procedures to follow if a grease fire should occur.
DO NOT USE WATER ON A GREASE FIRE! Never direct the extinguisher in a manner
that would blow grease out of the tank.
Ensure a fire extinguisher is readily available to extinguish a grease, oil, and
electric fire. Make sure all personnel are properly trained in the use of the fire
extinguisher.

Gas Fryer
Foot Long Dogs Model No. 8065NSD
Page 9
gmpopcorn.com
Checking For Gas Leaks
After making any gas connection, or after performing any work on the gas train, A WAYS check
ALL gas connections for leaks with a soap solution.
DANGER
DO NOT use a match or flame to check for gas leaks – you may cause a fire
or explosion! When gas connections are complete, have a qualified
professional wire the unit to a power source which will carry the current
specified on the unit’s data plate.
034_042814
. Apply SOAP BUBB ES to all connections and pressurize the gas line to check for leaks.
Perform this test outdoors away from any flames or sparks.
DO NOT use a flame to check for gas leaks.
2. It is recommended to check your flexible gas lines and gas fittings for wear and tear on
a frequent basis. Stop using the appliance immediately if damage is found, and contact
a qualified professional to inspect and correct any issue.
3. Securely route all gas lines away from flames and high temperature areas.
4. Contact Gold Medal Technical Support, or a qualified Gas Service Technician with any
questions.
Gas Pressure
We have determined that optimum frying occurs when the gas pressure is adequate. For
propane gas, we recommend a manifold pressure setting of inches of water column. The
pressure is measured at the appliance when the main burner is ignited.
Lighting and Shutdown Instructions
The igniter for this unit requires a AAA Battery. To install/replace the battery, see Igniter Battery
Replacement Instructions on next page. For pilot and burner lighting and shutdown instructions,
refer to the Operating Instruction section.

Gas Fryer
Foot Long Dogs Model No. 8065NSD
Page 10
gmpopcorn.com

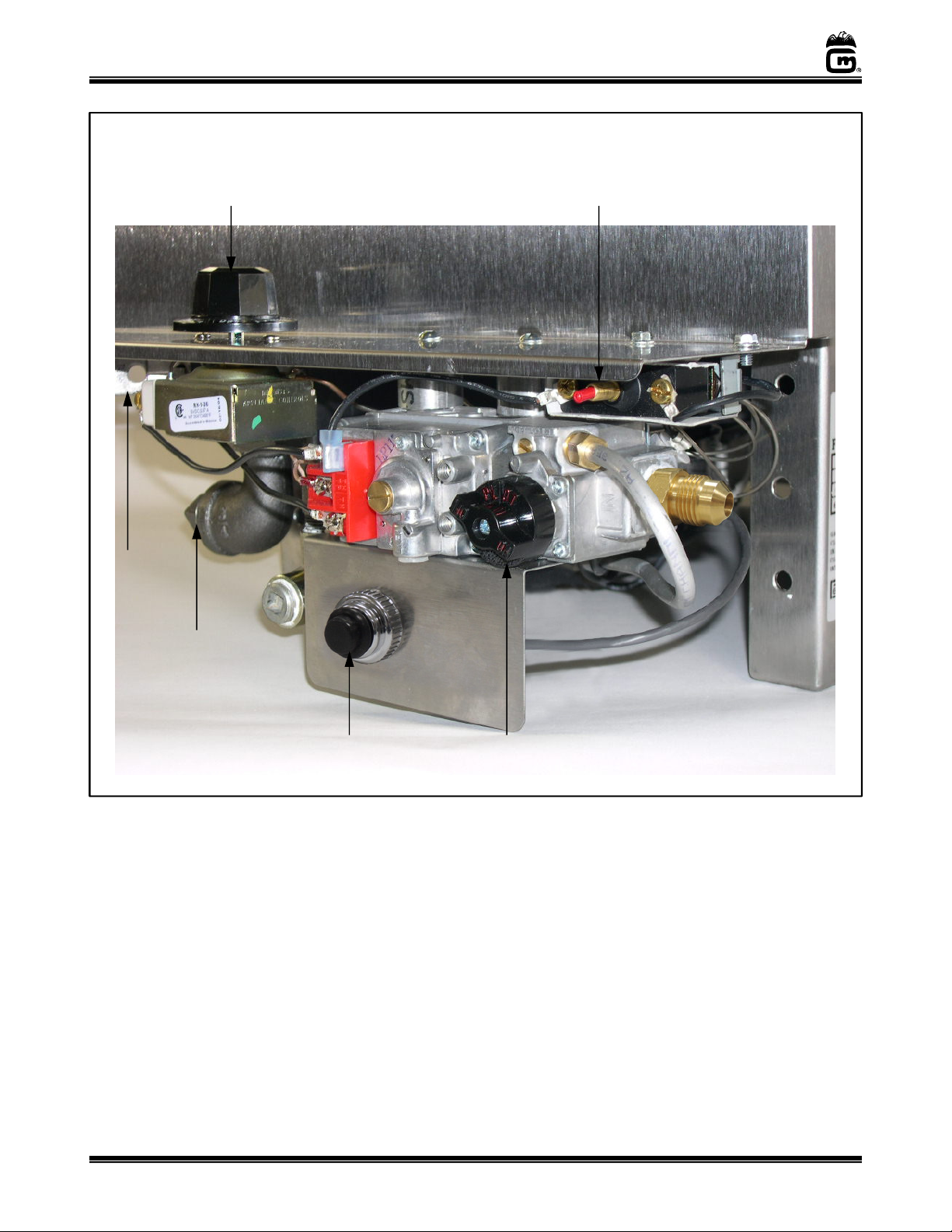

Igniter Battery Replacement Instructions
The igniter for this unit requires a AAA Battery. DO NOT install the battery until gas installation
is complete (reference the Gas Installation Instructions section).
To install/replace igniter battery, make sure all machine switches and gas valves are OFF, then a
five minute shutdown period is required before attempting to install/replace the battery.
(Reference the Lighting and Shutdown instructions located in the Operating Instruction section.)
Retaining Nut
Igniter
AAA Battery

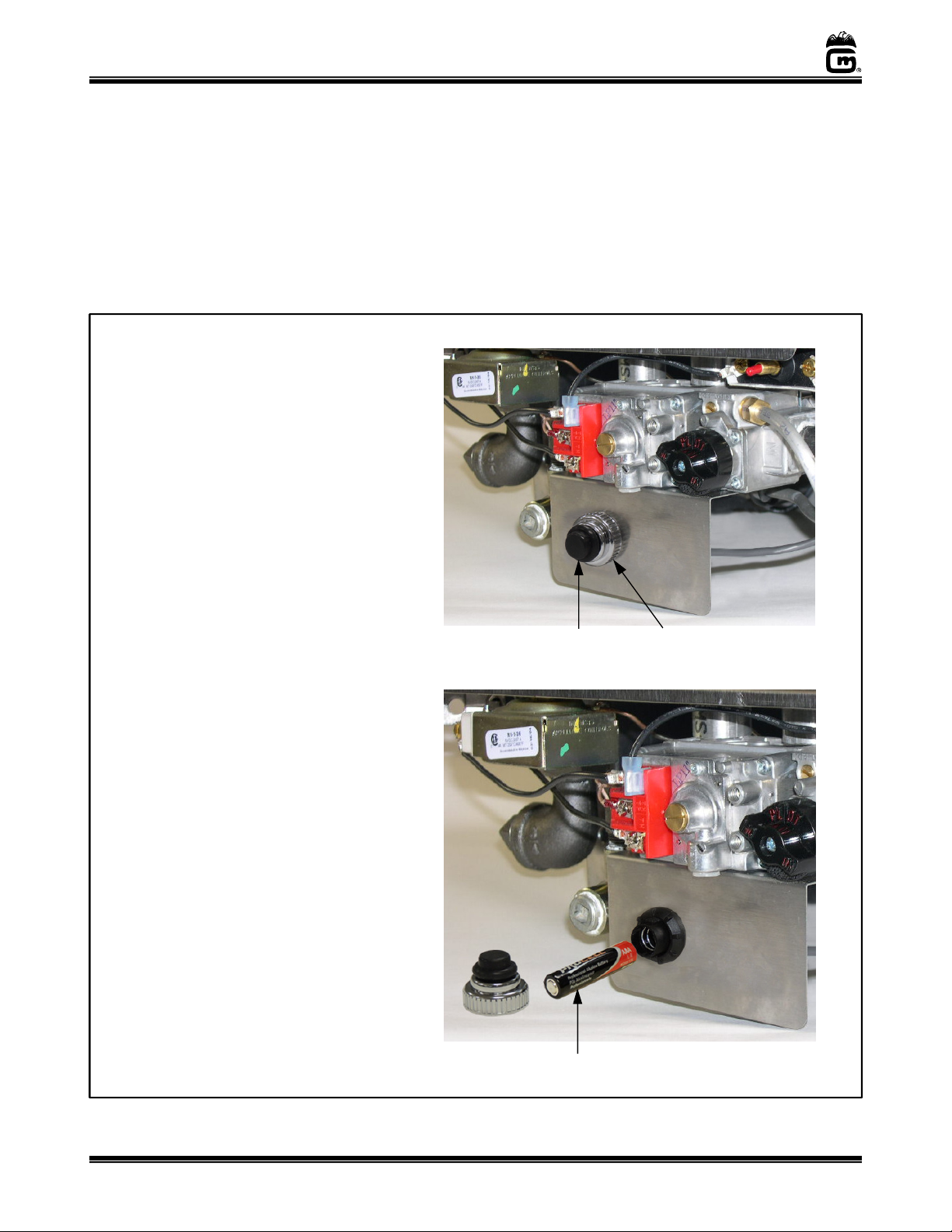

Step 1:
Locate igniter
and remove the
plastic retaining nut.
Step 2:
Remove old battery from igniter,
and replace with new AAA Battery.
Step 3: Replace retaining nut to its
original position.
