Goldmedal 8065NS User manual

Part No. 88847
Revised: August 2004

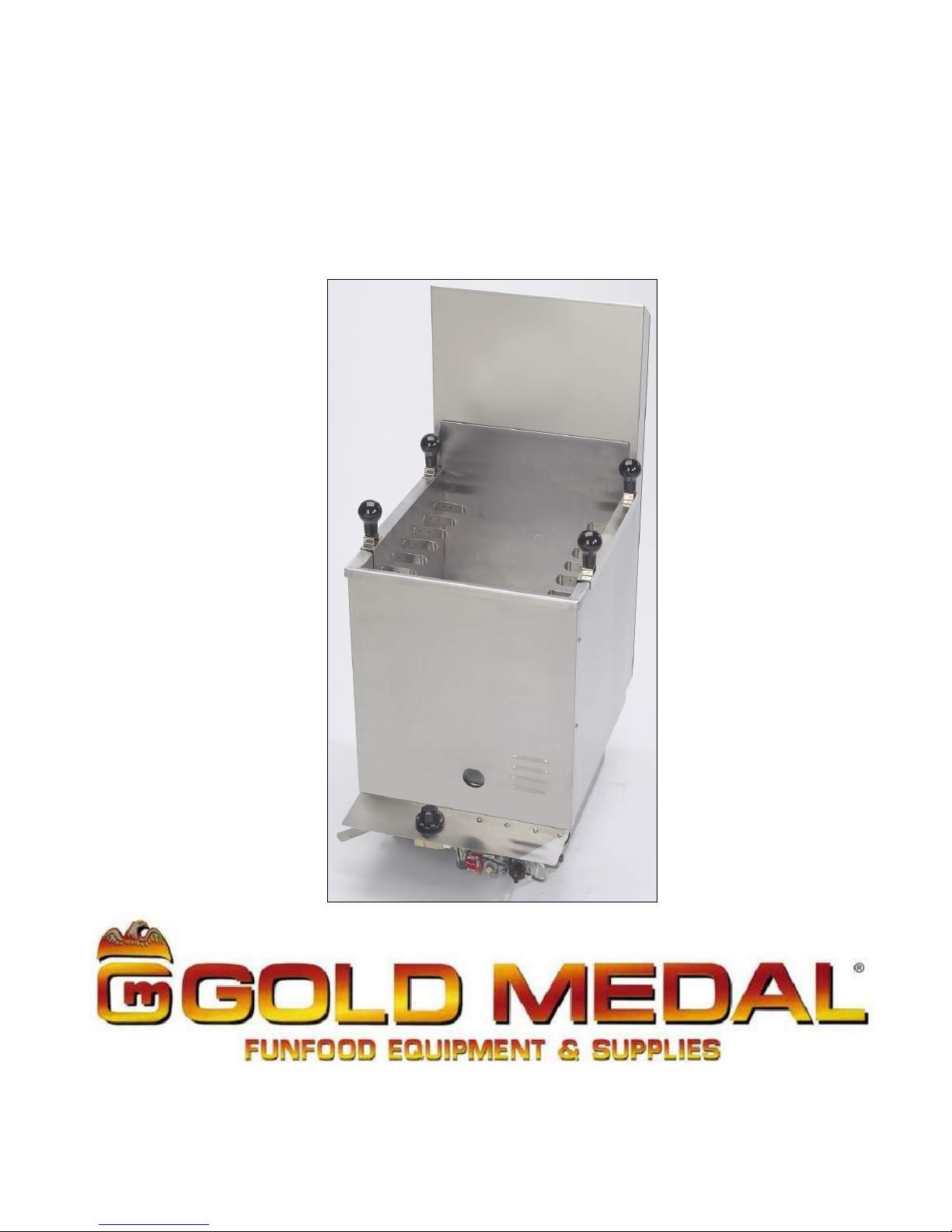

UNIVERSAL GAS FRYER
Instruction Manual
Model #8065NS
Cincinnati, OH 45241-4807 USA

UNIVERSAL GAS FRYER 2 MODEL #8065NS

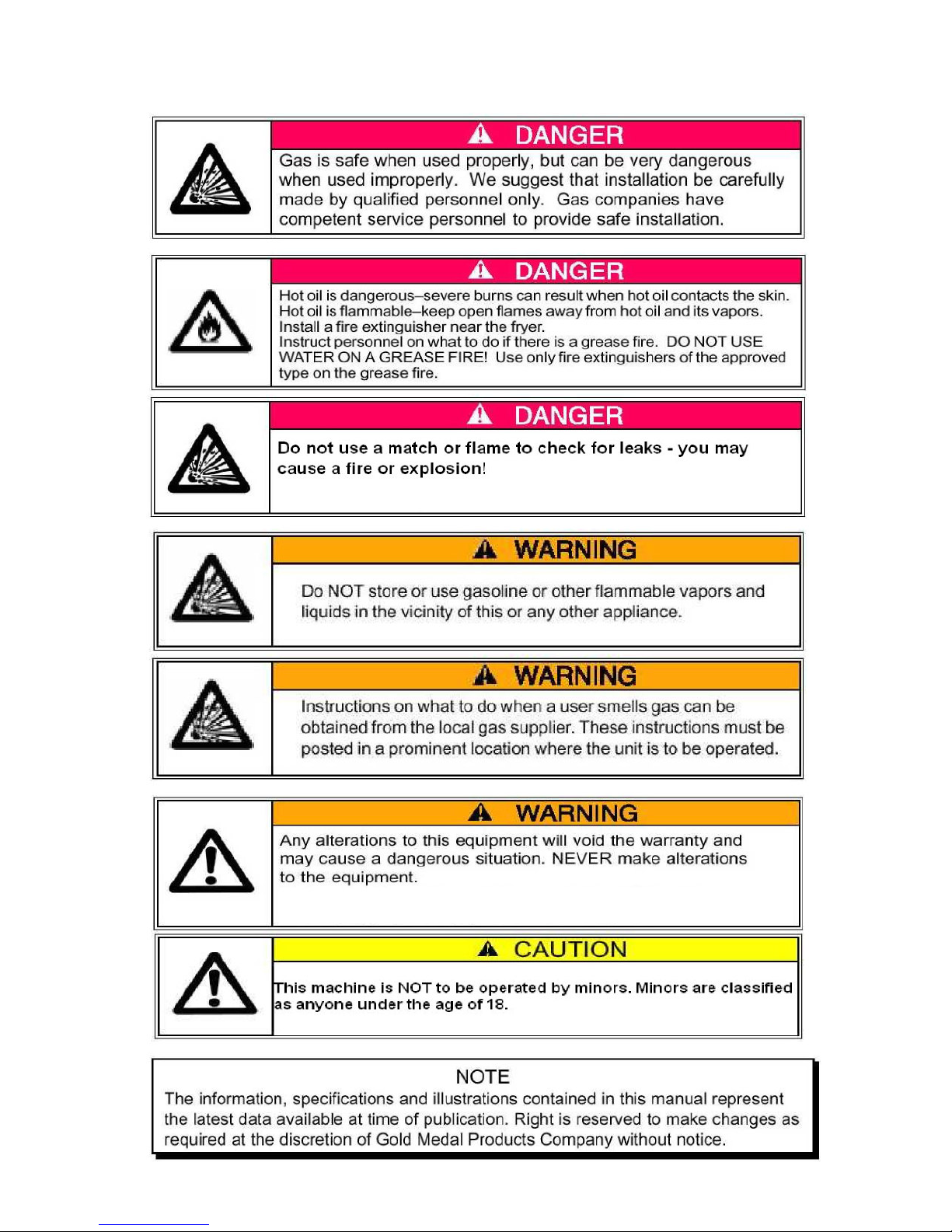

GAS SAFETY PRECAUTIONS

UNIVERSAL GAS FRYER 3 MODEL #8065NS
SAFETY PRECAUTIONS

UNIVERSAL GAS FRYER 4 MODEL #8065NS
OPERATING INSTRUCTIONS
UNPACKING AND ASSEMBLY
After unpacking your UNIVERSAL GAS FRYER, set it on a counter where you intend to use it.
Remove all tape.
Observe the following clearances:
Front and sides: 10 inches
Back and front: 10 inches
Ensure proper clearances for air supply and maintenance.
NOTE:
Locate the fryer on a base that is strong enough to safely support the fryer when full of oil. The
base should be rated for a minimum of 150 lbs. (This is the approximate weight of the fryer when
full of oil). To restrain fryer use 3/8-16 bolts through the counter into tapped holes in the bottom of
the fryer.
INSTALLATION
When installing your GAS FUNNEL CAKE FRYER, you must conform with local codes, or in the
absence of local codes, to National Fuel Gas code, ANSI Z223.1 (latest edition).
NOTE:
Some local codes may require ventilation hoods or automatic fire systems. During any pressure
testing of the gas supply piping system at pressure equal to or less than ½ psig (3.45 kPa), the
appliance must be isolated from the gas supply piping system by closing its individual manual
shutoff valve. After installation, all gas connections must be checked for leaks with a soap
solution.

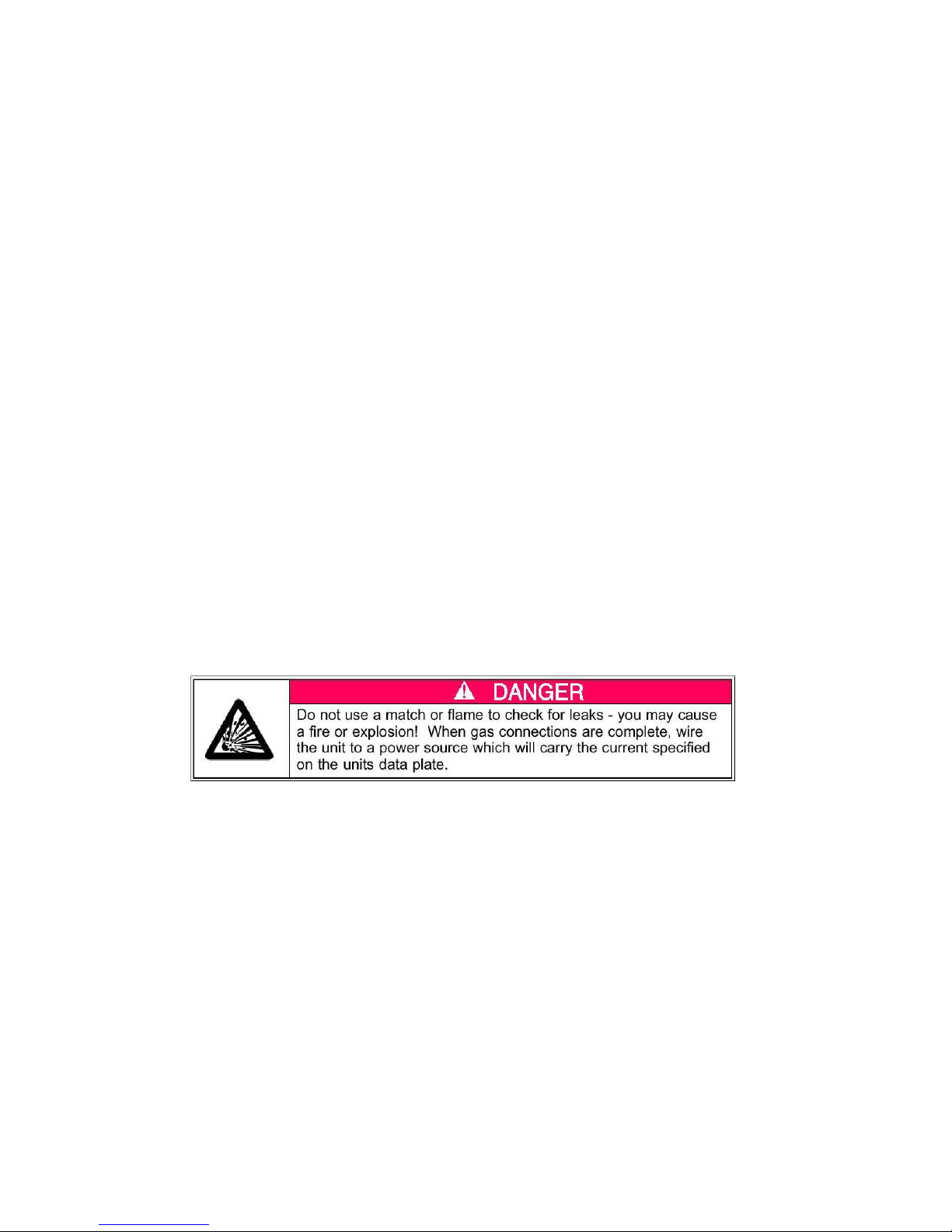

Do not use a match or flame to check for leaks – you may cause a fire or explosion!
TYPES OF GAS
The data plate is marked at the factory to indicate the type of gas the appliance uses. The
8065NS is designed for Propane only, and should be operated on a 40# propane cylinder.
ALTITUDE RANGE
The factory has sized the orifices for elevations up to 2000 feet above sea level. For high altitude
applications, please contact Gold Medal customer service.
Gas is safe when used properly, but can be very dangerous when used improperly. We suggest
that installation be carefully made by qualified personnel only. Gas companies have competent
service personnel to provide safe installation.

UNIVERSAL GAS FRYER 5 MODEL #8065NS
GAS PRESSURE
We have determined that optimum frying occurs when the gas pressure is adequate. For propane
gas, we recommend a manifold pressure setting of 11 inches of water column.
The pressure is measured at the appliance when the main burner is ignited.
LIGHTING AND SHUT DOWN INSTRUCTIONS
Follow these steps to light your unit:
1. Turn the gas safety valve to the “PILOT” position.
2. Depress the safety valve button. While holding the safety valve button in, depress the red
igniter button and hold in until pilot remains lit. Continue holding safety valve button for 30-45
seconds then release.
3. Turn the gas safety valve handle to the “ON” position. The main burner will ignite.
4. To extinguish both the pilot and the main burner flames, turn the safety valve handle to the
“OFF” position.
5. Should the burner become extinguished because of the high-limit tripping, shut off the gas
supply until the fryer cools down, then re-ignite.
6. Note: The igniter is operated by (1) AA Battery (Included). If the igniter does not work, see
page 11 for battery replacement instructions. We recommend that the battery be replaced
annually.

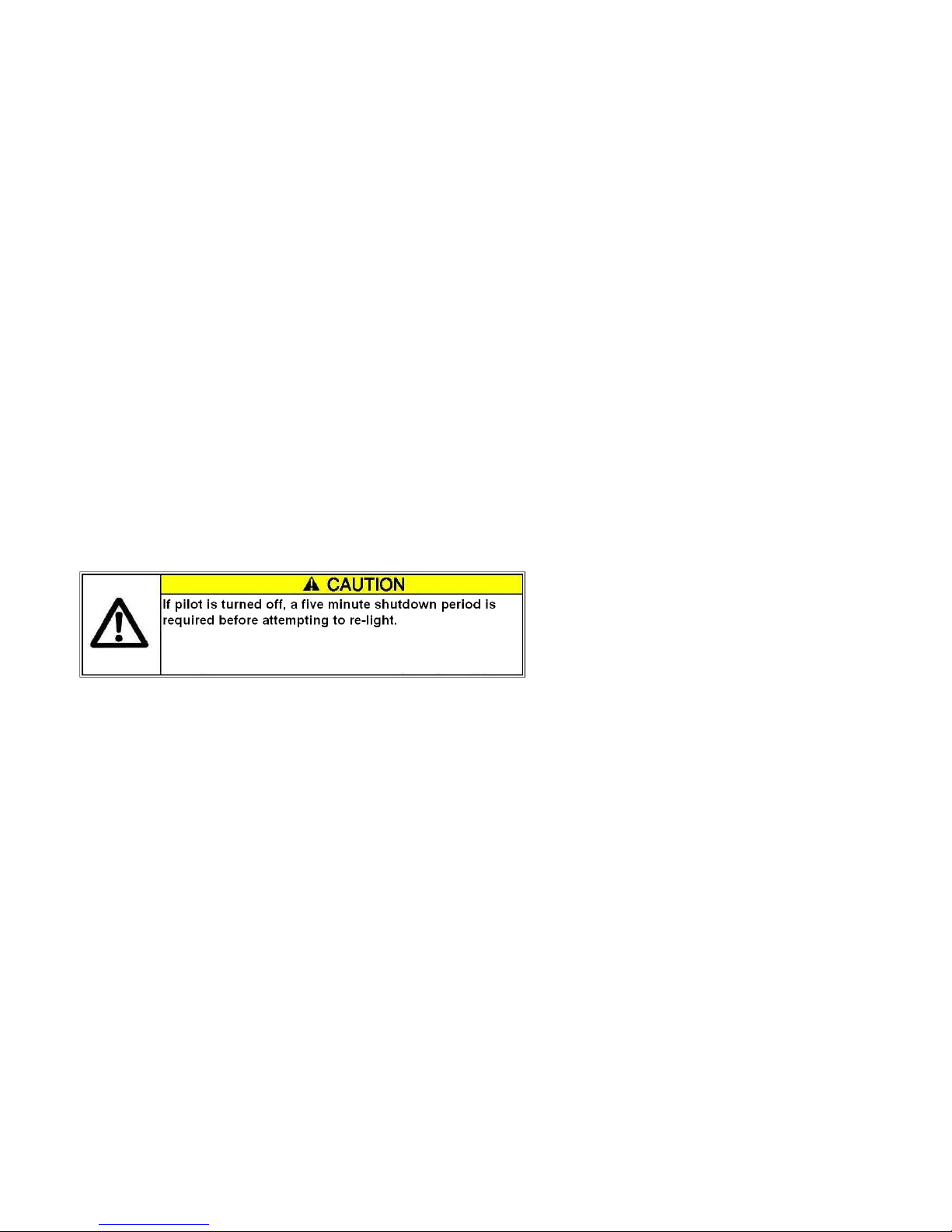

If the pilot is turned off, a 5-minute shutdown period is required before relighting.
FILLING THE TANK
The tank will hold 50 lbs. of cooking oil. The surface on this amount of oil will be approximately 6
inches above the bottom of the tank. When cooking corn dogs, 75 lbs. of cooking oil is required.
This will bring the oil level to approximately 9 inches above the bottom of the tank.
NOTE:
Cooking oil expands upon heating. Do not overfill the tank.
Accessories Included:
Dial type thermometer – Item # 4300
Fine Mesh Skimmer – Item #8055
Tank Regulator – Item #89920
Tank Hose – Item #89921
Optional Accessories – Not Included:
Dog on a stick kit – Item #8054
Single large fry basket – Item # 8072

UNIVERSAL GAS FRYER 6 MODEL #8065NS
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or the parts list.
2. When ordering, please include part number, part name, and quantity needed.
3. Please include your model name, serial number, and date of manufacture (located on the machine
nameplate) with your order.
4. Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
or, place orders at:
[phone]
[phone]
Fax: [phone]
E-mail: [email protected]
Web Page: www.gmpopcorn.com

UNIVERSAL GAS FRYER 7 MODEL #8065NS

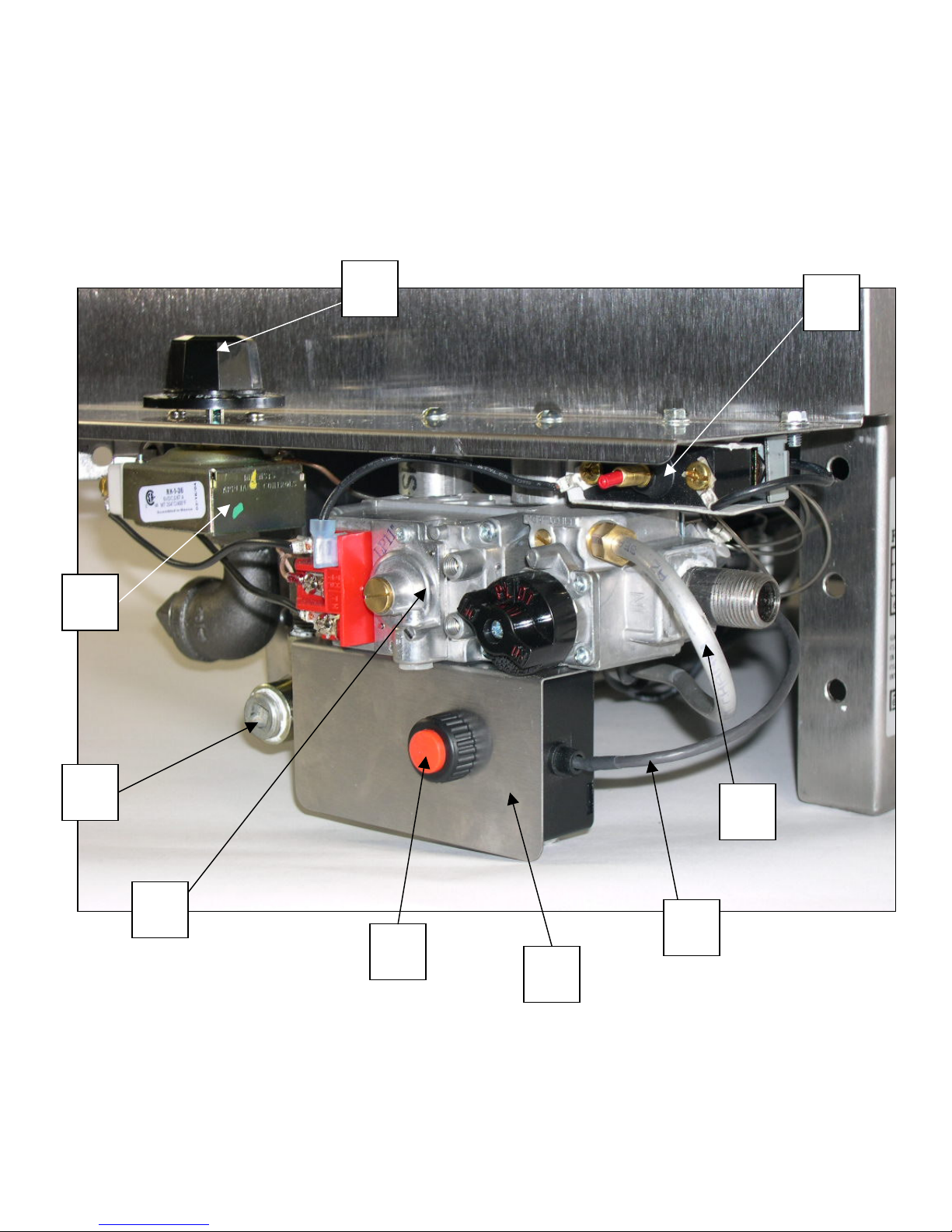

GAS LINE ASSEMBLY
6
2
1
4
5
9
7
3
8

UNIVERSAL GAS FRYER 8 MODEL #8065NS
GAS LINE ASSEMBLY (CONTINUED)
11
12
10
14
15 16
13
3

UNIVERSAL GAS FRYER 9 MODEL #8065NS
BURNER ASSEMBLY
18
17
19
14
9

UNIVERSAL GAS FRYER 10 MODEL #8065NS
Item No. Part No. Description
1 89005 Thermostat Knob
2 88844 Thermostat
3 89770 3/8" NPT Pipe Plug
4 88843 Combination Gas Valve
5 89615 Hi-Limit Control
6 88854 Igniter
7 88853 Igniter Bracket
8 88855 Igniter Wire
9 27010-20 1/4" O.D. Aluminum Tubing
10 89014 Drain Valve
11 89794 3/4" Pipe Plug
12 89416 3/4" x 90 Degree Street Elbow
13 62510 3/8" x 90 Degree Elbow
14 88845 Thermopile
15 89835 3/4" NPT x 6" Nipple
16 89764 T-fitting
17 88836 S-85 Burner Assembly
18 62510 3/8" x 90 Degree Elbow
19 74028 Pilot Burner
*
74050 Pilot Orifice
*
88856 AA Battery - (1) Required
PARTS LIST – MODEL 8065NS
* Item Not Shown

UNIVERSAL GAS FRYER 11 MODEL #8065NS
Igniter Battery Replacement Instructions
1. Locate igniter and remove the black plastic retaining nut as shown in figure 1.
2. Pull igniter out of bracket and remove the small back cover shown in figure 2.
3. Change battery, replace cover, and re-install igniter.
Figure 1
Figure 2
Retaining Nut
Battery Cover
Battery
Igniter

UNIVERSAL GAS FRYER 12 MODEL #8065NS
WARRANTY
WE WARRANT to the original purchaser the Gold Medal equipment sold by us to
be free from defects in material or workmanship under normal use and service. Our
obligation under this warranty shall be limited to the repair or replacement of any
defective part for a period of six (6) months from the date of sale to the Original
Purchaser with regard to labor and two (2) years with regard to parts and does not
cover damage to the equipment caused by accident, alteration, improper use, voltage,
abuse, or failure to follow instructions.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED
OR IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR
PART, INCLUDING THE IMPLIED WARRANTY OF MERCHANTIBILITY.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HEREOF. We neither assume, nor authorize any other person
to assume for us, any other obligation or liability in connection with the sale of said
GOLD MEDAL equipment or any part thereof.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that
person, firm, association, or corporation who was billed by the GOLD MEDAL
PRODUCTS COMPANY, or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS COMPANY AT 1-800-
543-0862 TO DISCUSS WITH OUR SERVICE REPRESENTATIVE THE
EQUIPMENT
PROBLEM, AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING
THE REPAIR OR REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
