Good Way GVC-1502-VAC Manual

GVC-1502-VAC
Professional Steam Cleaner
Operating and
Maintenance
Instructions
Read before operating.

GVC-1502-VAC 0920
2
CONTENTS:
IMPORTANT SAFETY INSTRUCTIONS.................................................................................................3
SAFETY FEATURES ................................................................................................................................4
POWER CONNECTIONS ......................................................................................................................5
ELECTRICAL SAFETY.............................................................................................................................6
UNIT OVERVIEW ....................................................................................................................................6
SPECIFICATION .....................................................................................................................................7
OPERATING INSTRUCTIONS ........................................................................................................... 7-8
VACUUM MODELS ONLY.....................................................................................................................8
EMPTYING THE SOILAGE TANK DURING CLEANING......................................................................9
ACCESSORY KIT...................................................................................................................................10
Thank you for purchasing this Goodway GVC-1502-VAC. We appreciate your
business and look forward to serving you in the future. As with all Goodway
products, you can be assured that the nest quality components and workmanship
have gone into this machine.
Please take a few minutes to read the following Operating and Maintenance
Instructions. By carefully following the instructions, you will obtain years of
trouble free service from this product. Please pay particular attention to the safety
instructions and exercise caution when using this machine.
GOODWAY®TECHNOLOGIES CORPORATION
HVAC & FACILITY MAINTENANCE SOLUTIONS
For Sales Call: 1-800-333-7467
For Service Call: 1-800-370-2855

GVC-1502-VAC 0920 3
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this pressure washer.
1. Warning: Read and understand all instructions before using.
2. Keep this manual with the unit at all times.
3. Do not operate without eye protection or other necessary protective gear.
4. Consult SDS on all products used with this machine.
5. Consult Goodway or chemical manufacturer about mixing or using unspecied
chemicals with this unit.
6. Keep work area clean and well lit.
7. Service must be performed by qualied personnel.
8. Unplug the power cord when servicing the unit or leaving the unit unattended.
9. Turn off all controls before unplugging the power cord.
10. When unplugging the power cord, grasp the plug-not the cord.
11. Do not use the machine if it has a damaged cord or plug.
12. If the machine does not operate properly or has been damaged or exposed to
water, return it to factory for service.
13. Do not handle the base unit or plug with wet hands.
14. Do not use unit with combustible uids or where combustible uids or fumes may
be present.
15. Be extra careful when not on level, secure ground.
16. Do not use unit with children or visitors in the immediate area.
17. Do not operate unit when fatigued or under the inuence of alcohol or drugs.
18. Keep operation area clear of all persons.
19. Do not over reach or stand on unstable support.
20. Keep good footing and balance at all times.
21. Replace any damaged, missing or worn safety labels.
WARNING

GVC-1502-VAC 0920
4
SAFETY FEATURES
• Boiler pressure safety valve.
• Pressure gauge.
• Boiler thermostat.
• Auto thermostat cut out.
USAGE - This appliance must only be used for its designated purpose: a steam
generator with vacuum and cleaning accessories. The manufacturer will not be held
liable for any damages arising from the improper, incorrect or unreasonable use of
this appliance.
POWER SUPPLY - Before connecting the appliance, check that the data on the
voltage rating plate are the same as the electrical supply. The rating plate is found
at the rear of the steam cleaner. THIS APPLIANCE MUST BE GROUNDED. Use of a
ground fault circuit interrupter (GFCI) for additional safety is strongly recommended.
The following rules must be observed when using
this appliance:
• Never use the appliance barefooted, or in wet ambient conditions.
• Never use power supply extension cords without appropriate safety marks
(CE, UL, IMQ-VDE, BS, etc.).
• Always check daily before use that the power supply cord, plug and sockets
(including any extension cords) are in good condition; check for visible signs of
damage and do not use if damaged or faulty.
• Never pull at the power supply cord, and never allow it to rub against sharp
edges, or get caught between doors or drawers; protect the cord from heat,
stress and moisture, and route away from paths/work areas.
• Never allow children or inexperienced, untrained, or unauthorized people access
to this appliance.
• Never leave the GVC-1502-VAC unguarded when switched on.
• Never leave it unprotected from adverse weather conditions (rain, ice, etc.).
• Never allow any part if this appliance to be immersed in liquid.
• Always ensure the GVC-1502-VAC is kept upright, even when not switched on.
Use only authorized parts, components and accessories with this appliance. For
instance, should the power supply cord become damaged, it must be replaced only
with the correct cord, obtainable (as with all components, parts and accessories) from
Goodway Technologies Corp.
Always unplug at the power supply;
• Before emptying the boiler.
• Before cleaning or servicing the appliance.
• Before parts are exchanged or removed.
The steam temperature can reach 320°F (160 °C) at the outlet, so never point the steam
in your direction, at other people or animals, as this presents a real danger of scalding.

GVC-1502-VAC 0920 5
• In the event of breakdown or malfunction, switch off the GVC-1502-VAC and
contact Goodway Technologies Corp. Customer Service Department.
• Electrical appliances and ttings (TV, radio, lights, etc,) should never be
cleaned with steam, even when not connected to a power supply. Exercise
extreme caution when cleaning xed electrical plant equipment; if in any doubt
contact the relevant suppliers.
• Do not put any detergent or other chemical substances (especially perfumed)
in the water canister, as noxious gases can arise due to the high temperature.
• Both main ‘on/off’ and pistol-grip switch must be off (‘OFF’) when connecting
steam hose to the GVC-1502-VAC.
• Ensure that the accessories are securely connected into the pistol-grip, by
pulling both parts against each other to ensure a tight t.
• Exercise care when accessing internal components. For instance, steam-
associated components (e.g. drain screw) get very hot during operation and
cools down very slowly after use.
• Do not use on or near heat sensitive materials; this may damage
such materials!!
• If you are unsure whether the material you want to clean is suitable for dry
vapor steam cleaning, check rst with a trial application on a small unobtrusive
piece of the same material.
• Do not use the small round metal brush on scratch-sensitive materials.
• Exercise utmost care when cleaning windows or glass surfaces in low
temperatures; warm the surfaces with steam beforehand to reduce the
possibility of damage and injury.
• The GVC-1502-VAC must never be immersed in water. Failure to comply with
this warning will ENDANGER LIFE.
• Always store the GVC-1502-VAC in a safe, dry and frost-free place. Frozen
components can fail. Exercise care when storing directly after use as residual
heat remains for some time.
• For the GVC-1502-VAC to work efciently the ambient temperature should be
between 50°F (10°C) and 104°F (40°C) with humidity lower than 90%.
NOTE: Deionized and distilled water should never be used in the GVC-1502-VAC.
POWER CONNECTIONS
The GVC-1502-VAC is supplied with 13 feet (4 m) of cable and has a 15A three
pin plug.
Ensure voltage between machine and supply match.

GVC-1502-VAC 0920
6
ELECTRICAL SAFETY
Grounded tools must be plugged into an outlet properly installed and grounded in
accordance with all codes and ordinances. Never remove the grounding prong or
modify the plug in any way. Do not use any adapter plugs. Check with a qualied
electrician if you are in doubt as to whether the outlet is properly grounded.
If the tools should electrically malfunction or break down, grounding provides a low
resistance path to carry electricity away from the user.
Boiler on/off switch
(93-S02181)
On/Off Main Switch
(93-S02180)
Steam output
regulator valve
(93-S02196)
Pressure Gauge
(93-S02328)
Green Light
Flashing Filling Boiler
Steady Light Ready for use
(93-S02362)
Red Light
Low Water Level
(93-S02361)
Water Tank
Filler Cap
(Behind
Bottles)
(93-S02235)
UNIT OVERVIEW
A- Vacuum switch
B- Steam release Trigger
C- Steam Trigger Locking Button
A
C
B

GVC-1502-VAC 0920 7
Description GVC-1502-VAC
Stainless steel boiler capacity
(continuous lling)
0.6 gallon (2,3 liters)
Water tank capacity 1.3 gallons (5 liters)
Heating time 5 minutes
Pressure in use (kinetic energy) 90 psi (6 bar)
Maximum temperature 320°F (160°C)
Maximum power 1500 W
Power requirement 115V 50/60 Hz
Steam production 8 lbs/hour
(3,6 kg/hour)
SPECIFICATION
OPERATING INSTRUCTIONS
1. Lift the protective cover and plug the steam hose into the steam hose
connecting socket. When the plug is located correctly it will click into place.
2. Unscrew the ller cap and carefully ll the tank with water.
DO NOT ADD ANY KIND OF CLEANING CHEMICAL TO THE WATER TANK.
3. Plug unit into appropriate supply.
4. Turn main switch ON to start the machine. The ON/OFF indicator light
will illuminate.
5. The green light ashing indicate that boiler is being lled with water. Wait until
the pump stops lling the boiler (ready light goes on.).
6. Switch ON the boiler at the ON/OFF switch. After approximately 5 minutes
from cold ll, the machine reaches 90 ± 5 psi (6 bar) steam pressure and a
temperature of 320°F (160°C) inside the boiler.
7. The green indicator light will illuminate when the machine is ready.
8. Choose the accessory that you wish to use. Connect it to the pistol grip by
clicking into place. Before you start cleaning, direct the nozzle into a suitable
receptacle and depress the trigger on the handle to blow out residual
condensation from the steam hose.
9. Now direct the steam jet onto the surface you wish to clean and depress
the trigger.

GVC-1502-VAC 0920
8
CONTINUED OPERATING INSTRUCTIONS
10. As water in the boiler is used, it is automatically replenished from the water tank
until the tank is empty.
11. The red indicator light and an acoustic signal will alert you that the water tank
is empty.
YOU MUST STOP USING THE MACHINE AT THIS POINT AND REFILL THE
WATER TANK.
ATTENTION: Failure to rell the machine in time will activate the security system
cut out and the appliance will require the attention of the Goodway Technologies
Service Department.
REFILLING THE WATER TANK
Rell with water when red indicator light come on, close the ller cap.
VACUUM MODELS ONLY
The pistol grip and extension tubes have double locking clips. Insert the selected
accessory fully into the locking clip, rotate it anticlockwise to secure and slide the
secondary lock forward to close the lock.
Check that both parts are tightly connected by gently pulling them apart.
DO NOT USE if the tools are not tightly and correctly connected.
When using the Steam & Vacuum hose for Steam only, DO NOT use Steam Only for
more than 10 minutes at a time. After 10 minutes, switch on the vacuum for a few
minutes to cool the hose and prevent hose deterioration.
Ensure switch on the vac head is in the
ON position.
If vacuum is required press right on/off
switch (A) on the pistol grip handle of
the steam & vac hose.
A

GVC-1502-VAC 0920 9

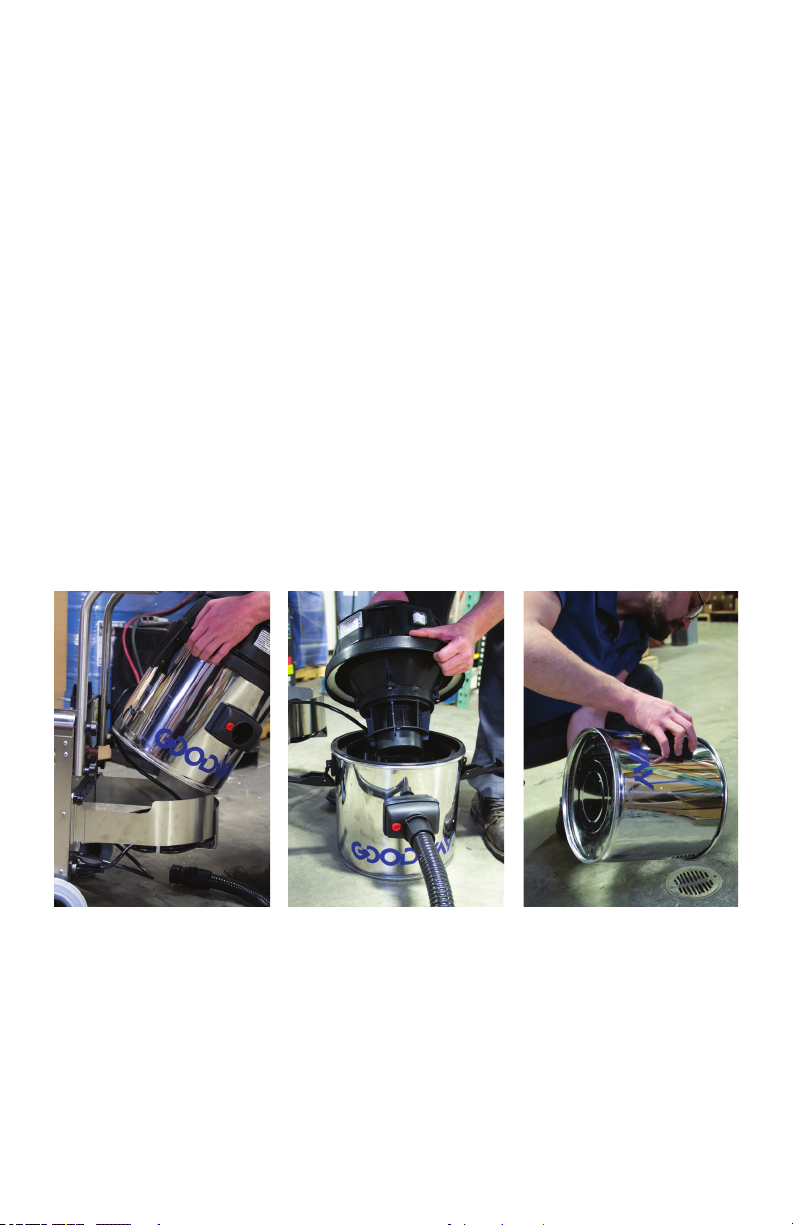

EMPTYING THE COLLECTION TANK DURING CLEANING
(VACUUMATED ONLY)
It will be necessary to empty the waste tank after each use . This will prevent any
blockages or unnecessary interruptions while the machine is in use.
If the waste tank is not emptied regularly, an automatic cut off oat mechanism will
activate. Switch off the heating, then the main on/off switch. It is recommended also
to disconnect unit from the mains power supply.
Open the Vac housing to gain access to the waste tank and remove the lid. Use
fresh tap water to rinse out the waste water tank and the tap. Remove any items
from inside the tank that are likely to cause a blockage. Replace the waste tank and
ret the motor housing. Reconnect the power, switch on the main on/off switch and
wait for the pump to cease operating and then switch on the Heating.
Ensure that the lid and the locking clips are always installed correctly and keep all
other objects out of the area. Never put anything on or around the tank as this may
affect the performance of the unit.
Remove vac unit from the
support frame.
Unclip and remove the
vacuum motor head.
Empty the collection tank
and clean thoroughly, also
cleaning the lter.

GVC-1502-VAC 0920
10
Description QTY
93-A03054
8' (3,0 m) Steam and Vac
Hose
1
93-A00055
2 Piece Extension
Wands
1
93-A03034
Short Nozzle 1
93-A00063
12" (30 cm) Floor Tool
93-A00066
Replace Squeegee
1
93-A00077
10" (25 cm)
Squeegee Tool
1
93-A00078
6" (15 cm) Hand Tool
93-A00080
Replacement Squeegee
93-A00079
Replacement Brush
Insert
1
93-A00155
1" (2.5 cm) Round
Brass Brush
3
93-A00072
1" (2.5 cm) Round
Nylon Brush
3
93-S02576
Replacement Polyester
Filter for Vacuum
1
ACCESSORY KIT

GVC-1502-VAC 0920 11
NOTES

GOODWAY®TECHNOLOGIES CORPORATION
420 West Avenue, Stamford, CT 06902 USA
Tel: [phone] · Toll-Free Tel: [phone]
Fax: [phone] · Toll-Free Fax: [phone]
Email: [e-mail]
Visit: www.goodway.com
P/N: MNL-GVC1502-VAC
©Copyright 2020 Goodway Technologies Corp., Stamford, CT USA
Effective date September 28, 2020
Goodway is a Trademark of Crossford International.
Goodway reserves the right to improve products; contact the factory for the latest conguration and uses.
Provides innovative maintenance solutions for a wide variety
of industries including commercial HVAC, food and beverage
processing, power generation and manufacturing.
HVAC & FACILITY MAINTENANCE SOLUTIONS
Call Us: [phone]
For Sales Call: 1-800-333-7467
For Service Call: 1-800-370-2855
