Goodwe Lynx Home F Plus+ Series User manual

Rechargeable Li-ion Battery System
Lynx Home F Series | Lynx Home F Plus+ Series
User Manual
V1.9-2023-04-30

Copyright StatementUser Manual V1.9-2023-04-30
The information in this user manual is subject to change due to product updates or other
reasons. This guide cannot replace the product labels or the safety precautions in the user
manual unless otherwise specied. All descriptions here are for guidance only.
and other GOODWE trademarks are trademarks of GoodWe Technologies
Co.,Ltd. All other trademarks or registered trademarks mentioned in this manual are owned by
GoodWe Technologies Co.,Ltd.
Trademarks
NOTICE
No part of this manual can be reproduced or transmitted to the public platform in any form or
by any means without the prior written authorization of GoodWe Technologies Co., Ltd.
Copyright ©GoodWe Technologies Co., Ltd., 2023. All rights reserved

CONTENT
II
User Manual V1.9-2023-04-30
Content
1 About This Manual .......................................................................01
1.1 Applicable Model......................................................................................... 01
1.2 Target Audience .......................................................................................... 01
1.3 Symbol Denition........................................................................................ 01
1.4 Updates ........................................................................................................ 02
2 Safety Precaution.........................................................................03
2.1 General Safety ............................................................................................. 03
2.2 Battery Safety .............................................................................................. 04
2.3 Emergency Measures ................................................................................ 06
2.4 EU Declaration of Conformity.................................................................... 06
3 Product Introduction...................................................................07
3.1 Product Overview........................................................................................ 07
3.2 Application Scenarios ................................................................................. 08
3.3 Appearance.................................................................................................. 09
3.4 Dimensions .................................................................................................. 11
4 Check and Storage .......................................................................12
4.1 Check Before Receiving.............................................................................. 12
4.2 Deliverables ................................................................................................ 12
4.3 Storage ......................................................................................................... 13
5 System Installation......................................................................14
5.1 Installation Requirements.......................................................................... 14
5.2 Installing the Battery System .................................................................... 16
5.2.1 Moving the Equipment ........................................................................................ 16
5.2.2 Installing the Battery System.............................................................................. 16
5.2.3 Installing the Power Control Unit ....................................................................... 19
6 Electrical Connection...................................................................21
6.1 Safety Precaution ........................................................................................ 21
6.2 Electrical Connection .................................................................................. 22
6.3 Connecting the PE cable............................................................................. 23
6.4 Connecting the Power Cable ..................................................................... 24
6.5 Connecting the Communication Cable .................................................... 28
6.6 Connecting the Terminal Resistor............................................................. 31
6.7 Installing the Protection Cover.................................................................. 34
7 System Operation ........................................................................34

CONTENT
III
User Manual V1.9-2023-04-30User Manual V1.9-2023-04-30
7.1 Check Before Power ON............................................................................. 34
7.2 Power ON the Battery System................................................................... 35
7.3 Setting the Battery Parameters................................................................. 36
7.4 Indicator Status ........................................................................................... 37
7.4.1 Normal Status ....................................................................................................... 37
7.4.2 Alarming Status .................................................................................................... 38
7.4.3 Faulty Status.......................................................................................................... 39
8 Maintenance................................................................................. 41
8.1 Power OFF the Battery System.................................................................. 41
8.2 Routine Maintenance ................................................................................. 41
9 Parameters ...................................................................................42

01 About This ManualUser Manual V1.9-2023-04-30
01
1 About This Manual
1.1 Applicable Model
1.2 Target Audience
This manual describes the product information, installation, electrical connection,
commissioning, troubleshooting and maintenance. Read through this manual before
installing and operating the product. All the installers and users have to be familiar with the
product features, functions, and safety precautions. This manual is subject to update without
notice. For more product details and latest documents, visit https://en.goodwe.com.
This manual applies to trained and knowledgeable technical professionals. The technical
personnel has to be familiar with the product, local standards, and electric systems.
This manual applies to the listed models below:
1.3 Symbol Denition
Dierent levels of warning messages in this manual are dened as follows:
DANGER
Indicates a high-level hazard that, if not avoided, will result in death or serious injury.
WARNING
Indicates a medium-level hazard that, if not avoided, could result in death or serious injury.
CAUTION
Indicates a low-level hazard that, if not avoided, could result in minor or moderate injury.
NOTICE
Highlights and supplements the texts. Or some skills and methods to solve product-related
problems to save time.
• LX F6.6-H
• LX F9.8-H
• LX F13.1-H
• LX F16.4-H

01 About This Manual User Manual V1.9-2023-04-30
02
1.4 Updates
The latest document contains all the updates made in earlier
issues.
V1.0 2022-07-20
• First Issue
V1.1 2021-12-20
• Updates 5.3 Installing the Battery System
V1.2 2022-02-18
• Updates 2.2 Symbol Description
• Updates 4.2 Packing List
• Updates 5.4 Electrical Connection
• Updates 6.4 Indicator Status
• Updates 07 Technical Parameters
V1.3 2022-08-20
• Updates Battery Cluster Application Scenarios.
V1.4 2022-10-20
• Updates 3.1 Product Overview.
V1.5 2022-11-20
• Updates 7.2 Power ON the Battery System.
V1.6 2022-12-15
• Updates 3.4 Dimensions.
• Updates 4.2 Deliverables.
• Updates 5.2 Installing the Battery System.
• Updates 6Electrical Connection.
V1.7 2023-02-15
• Updates 4.3 Storage.
V1.8 2023-03-20
• Updates 4.3 Storage.
V1.9 2023-04-30
• Updates 4.2 Deliverables.
• Updates 6.4 Connecting the Power Cable.

02 Safety Precaution
03
User Manual V1.9-2023-04-30
2 Safety Precaution
2.1 General Safety
NOTICE
• The information in this user manual is subject to change due to product updates or other
reasons. This guide cannot replace the product labels or the safety precautions in the user
manual unless otherwise specied. All descriptions here are for guidance only.
• Before installations, read through the user manual to learn about the product and the
precautions.
• All operations should be performed by trained and knowledgeable technicians who are
familiar with local standards and safety regulations.
• Use insulating tools and wear personal protective equipment (PPE) when operating the
equipment to ensure personal safety. Wear anti-static gloves, cloths, and wrist strips when
touching electronic devices to protect the equipment from damage.
• Strictly follow the installation, operation, and conguration instructions in this manual. The
manufacturer shall not be liable for equipment damage or personal injury if you do not
follow the instructions. For more warrant information, please visit: https://en.goodwe.com/
warranty.
NOTICE
The products are designed and tested strictly to comply with related safety rules. Read and
follow all the safety instructions and cautions before any operations. Improper operation might
cause personal injury or property damage as the products are electrical equipment.
Please strictly follow these safety instructions in the user manual during the operation.

02 Safety Precaution
04
User Manual V1.9-2023-04-30
CAUTION
• Protect the battery system from damage during transportation and storage.
• The transportation must be carried out by trained professionals. All operations during the
process have to be recorded.
• Keep the equipment stable to avoid dumping, which can result in equipment damage and
personal injuries.
• Place the cables at least 30mm away from the heating components or heat sources,
otherwise the insulation layer of the cables may be aging or broken due to high
temperature.
• Tie the cables of the same type together, and place cables of dierent types at least 30mm
apart. Do not place the cables entangled or crossed.
DANGER
• The battery system exists high voltage during the equipment running. Please keep Power
O before any operations to avoid danger. Strictly follow all safety precautions outlined in
this manual and safety labels on the equipment during the operation.
• The inverter used with the battery shall be approved by the battery manufacturer. The
approved list of battery and the matched inverter can be obtained through the ocial
website.
• Do not disassemble, modify, or replace any part of the battery or the power control unit
without ocial authorization from the manufacturer. Otherwise, it will cause electrical
shock or damages to the equipment, which shall not be borne by the manufacturer.
• Do not hit, pull, drag, squeeze or step on the equipment or put the battery into re.
Otherwise, the battery may explode.
• Do not place the battery in a high temperature environment. Make sure that there is
no direct sunlight and no heat source near the battery. When the ambient temperature
exceeds 60 ℃, it will cause re.
• Do not use the battery or the power control unit if it is defective, broken, or damaged.
Damaged battery may leak electrolyte.
• To protect the battery pack and its components from damage during transportation,
please ensure that the transportation personnel are professionally trained. All operations
during the transportation have to be recorded. The equipment shall be kept in balance,
thus avoiding falling down.
• The battery equipment is heavy. Please equip the corresponding personnel according to its
weight, so that the equipment does not exceed the weight range of the human body can
carry, and cause personnel injury.
• Contact after-sale service immediately if the battery is not able to be started. Otherwise,
the battery might be damaged permanently.
• Do not move the battery system if it is connected with external battery modules. Contact
after-sales service if the battery shall be replaced or added.
2.2 Battery Safety

02 Safety Precaution
05
User Manual V1.9-2023-04-30
Potential risks exist. Wear proper
personnel protective equipment
before any operations.
Install the equipment away from
re sources.
HIGH VOLTAGE HAZARD. High
voltage exists during the
equipment’s running.
Ensure the equipment is power o
before any operations.
Keep the equipment away from
children.
Operate the equipment properly to
avoid explosion danger. No extinguishing with water.
The equipment contains corrosive
electrolytes. In case of a leak in
the equipment, avoid contact the
leaked liquid or gas.
Do not dispose of the equipment
with household garbage at its end
of life.
Dispose it according to local laws
and regulations
or send it to the manufacturer.
Batteries contain ammable
materials, beware of re. Recycle regeneration mark.
Read through the user manual
before any operations. CE certication mark
Pay attention to wear PPE during
installation, operation and
maintaining of the equipment.
Grounding point.

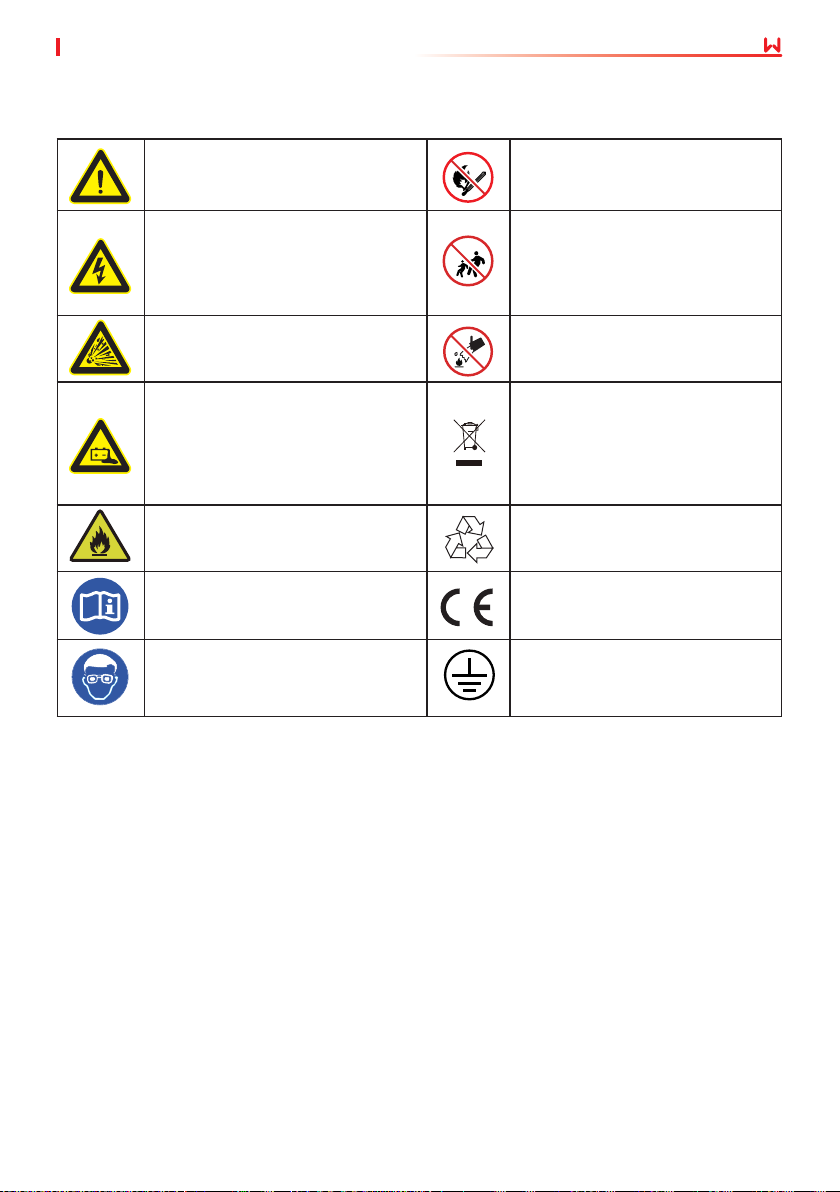

Label Description

02 Safety Precaution
06
User Manual V1.9-2023-04-30
Battery Electrolyte Leakage
Fire
GoodWe Technologies Co., Ltd. hereby declares that the inverter without wireless
communication modules sold in the European market meets the requirements of the following
directives:
• Electromagnetic compatibility Directive 2014/30/EU (EMC)
• Electrical Apparatus Low Voltage Directive 2014/35/EU (LVD)
• Battery Directive 2006/66/EC and Amending Directive 2013/56/EU
• Waste Electrical and Electronic Equipment 2012/19/EU
• Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006
(REACH)
You can download the EU Declaration of Conformity on the ocial website:https://en.goodwe.
com.
• The battery may explode when the ambient temperature exceeds 150℃. Poisonous and
hazard gas may be released if the battery is on re.
• In the event of a re, please make sure that the carbon dioxide extinguisher or Novac1230 or
FM-200 is nearby.
• The re cannot be put out by water or ABC dry powder extinguisher. Fireghters are required
to wear full protective clothing and self-contained breathing apparatus.
If the battery module leaks electrolyte, avoid contact with the leaking liquid or gas. The
electrolyte is corrosive. It will cause skin irritation or chemical burn to the operator. Anyone
contact the leaked substance accidentally has to do as following:
• Breath in the leaked substance: Evacuate from the polluted area, and seek immediate
medical assistance.
• Eye contact: Rinse your eyes for at least 15 minutes with clean water and seek immediate
medical assistance.
• Skin contact: Thoroughly wash the touch area with soap and clean water, and seek
immediate medical assistance.
• Ingestion: Induce vomiting, and seek immediate medical assistance.
2.3 Emergency Measures
2.4 EU Declaration of Conformity

07
03 Product IntroductionUser Manual V1.9-2023-04-30
NOTICE
The battery system supports capacity expansion. A maximum of 5 battery modules can
be used to extend the usable energy of the battery system. Strictly follow the expansion
requirement. For details, please contact the Dealer or Manufacturer. Otherwise, undervoltage,
overvoltage or voltage dierence might occur to the battery system.
The battery system, which consists of a power control unit (PCU for short) and battery modules,
can store and release the electric energy according to the requirements of the solar energy
storage system. The input and output ports of the energy storage system are high voltage direct
current ports.
LX F6.6-H
6.55kWh
LX F9.8-H
9.83kWh
LX F13.1-H
13.10kWh
LX F16.4-H
16.38 kWh
A max of eight battery systems can be parallel connected in one energy storage system. Ensure
that the usable energy of each battery system is the same.
3 Product Introduction

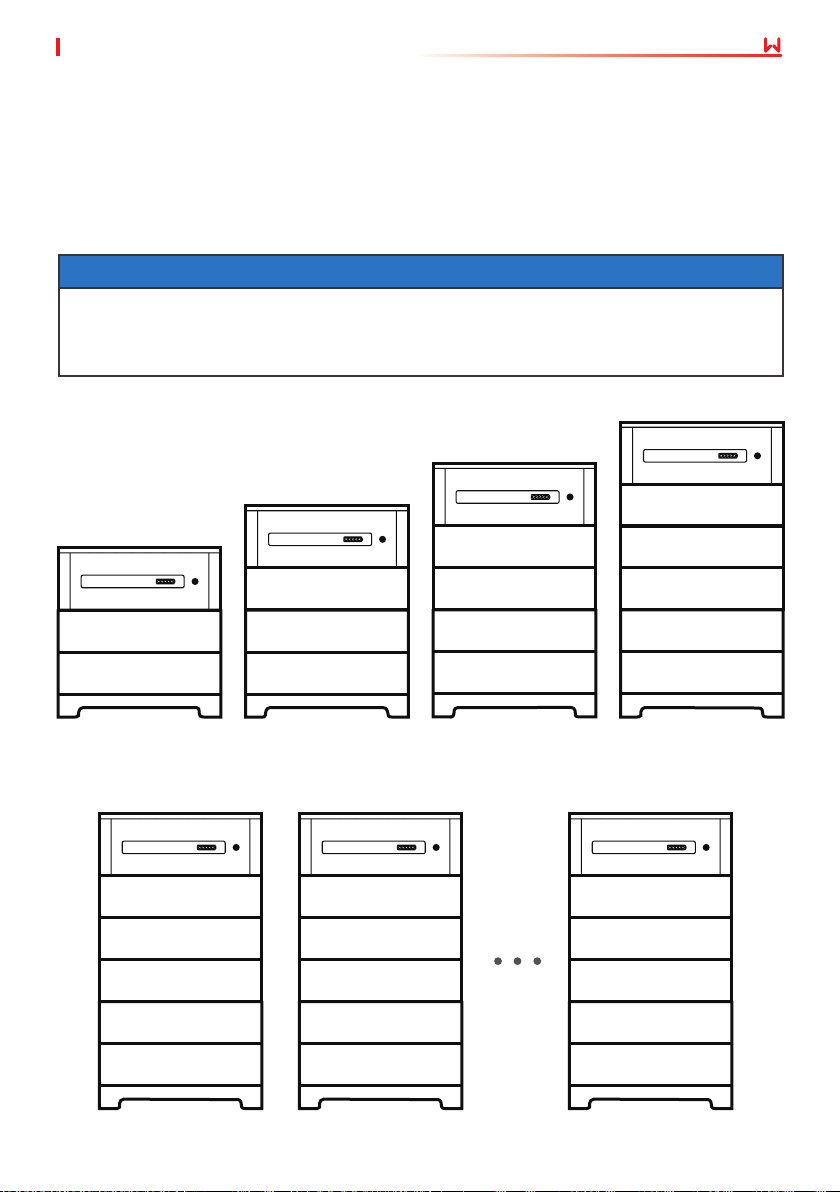

3.1 Product Overview
PCU
PCU
PCU
PCU
Intended usage
Usable energy description
Battery 1 Battery 1 Battery 1 Battery 1
Battery 3Battery 3
Battery 2 Battery 2 Battery 2 Battery 2
Battery 4Battery 4
Battery 5
Battery 3
Battery system 1 Battery system 2 Battery system N
2≤N≤8

08
03 Product Introduction User Manual V1.9-2023-04-30
Scan the QR code below or visit the ocial website to get the Approved Battery Options
Statement.

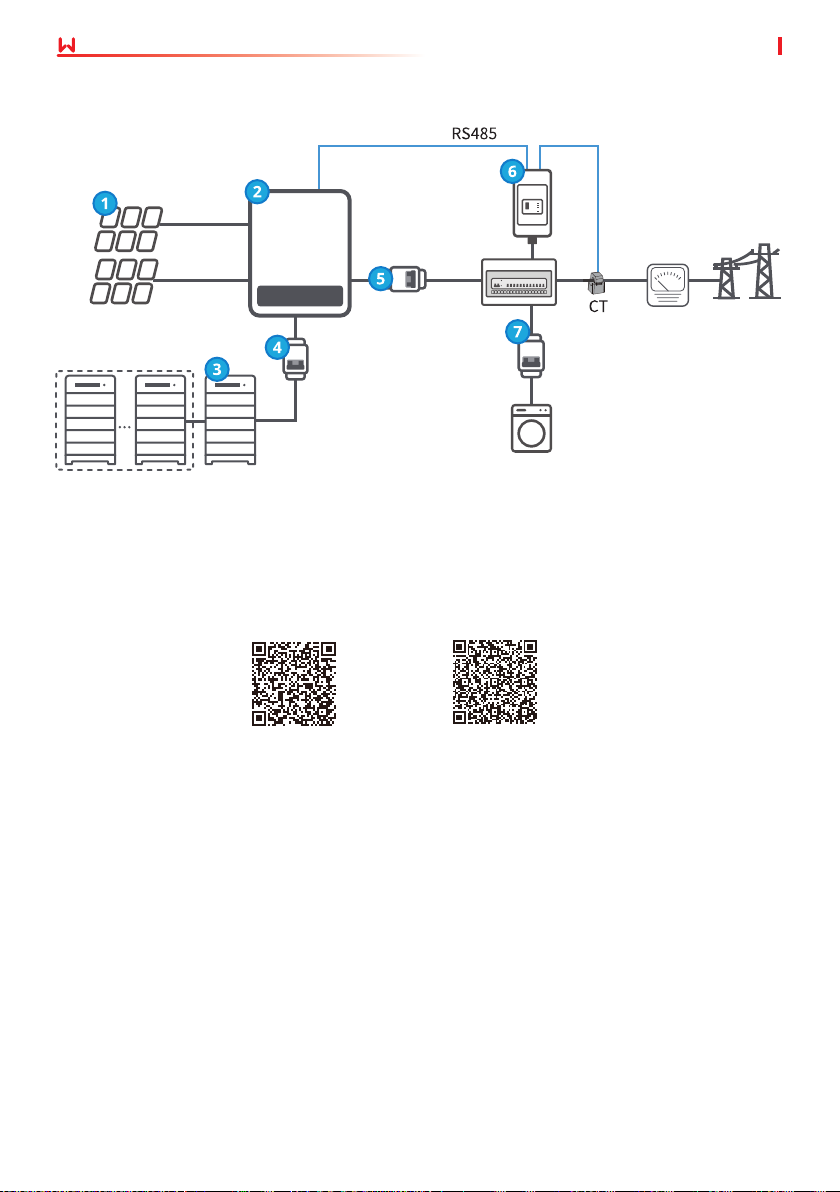

3.2 Application Scenarios
GoodWe Inverter GE Inverter
Approved inverter list
Battery
system 1
Battery
system N
Inverter
PV string
Battery
breaker
Loads
AC circuit
breaker
AC circuit
breaker
Smart
meter
Smart
meter
Utility grid

09
03 Product IntroductionUser Manual V1.9-2023-04-30
No. Parts
1 PCU
2, 3, 4, 5, 6 Battery
7 Base
No. Parts
1 Ventilation valve
2 Rectangular connector
No. Parts
1 Rectangular connector
2Grounding point
NOTICE
• Ensure that the PCU is installed
above the battery modules. Do
not install any battery modules
above the PCU.
• This manual will show you
the installation and electrical
connection of 5 battery modules.
3.3 Appearance
Battery system appearance
Battery appearance
Base appearance

10
03 Product Introduction User Manual V1.9-2023-04-30
1. DC terminal (BAT) 2. Ventilation valve 3. Communication terminal
(COM)[1]
4. Grounding point 5 Air switch 6. SOC indicator
7. Multifunction button
indicator[2] 8. Battery serial connection
interface
Right View Left View
Front View Bottom View
[1]. Some models do not have the COM3 terminal, which is designed for battery system parallel
connection.
[2]. The multifunction button indicator is designed as an indicator, black start switch, and power
o button.
Power control unit appearance

11
03 Product IntroductionUser Manual V1.9-2023-04-30
3.4 Dimensions
70mm
1075mm
Lynx home F series
Lynx home F Plus+ series

12
04 Check and Storage User Manual V1.9-2023-04-30

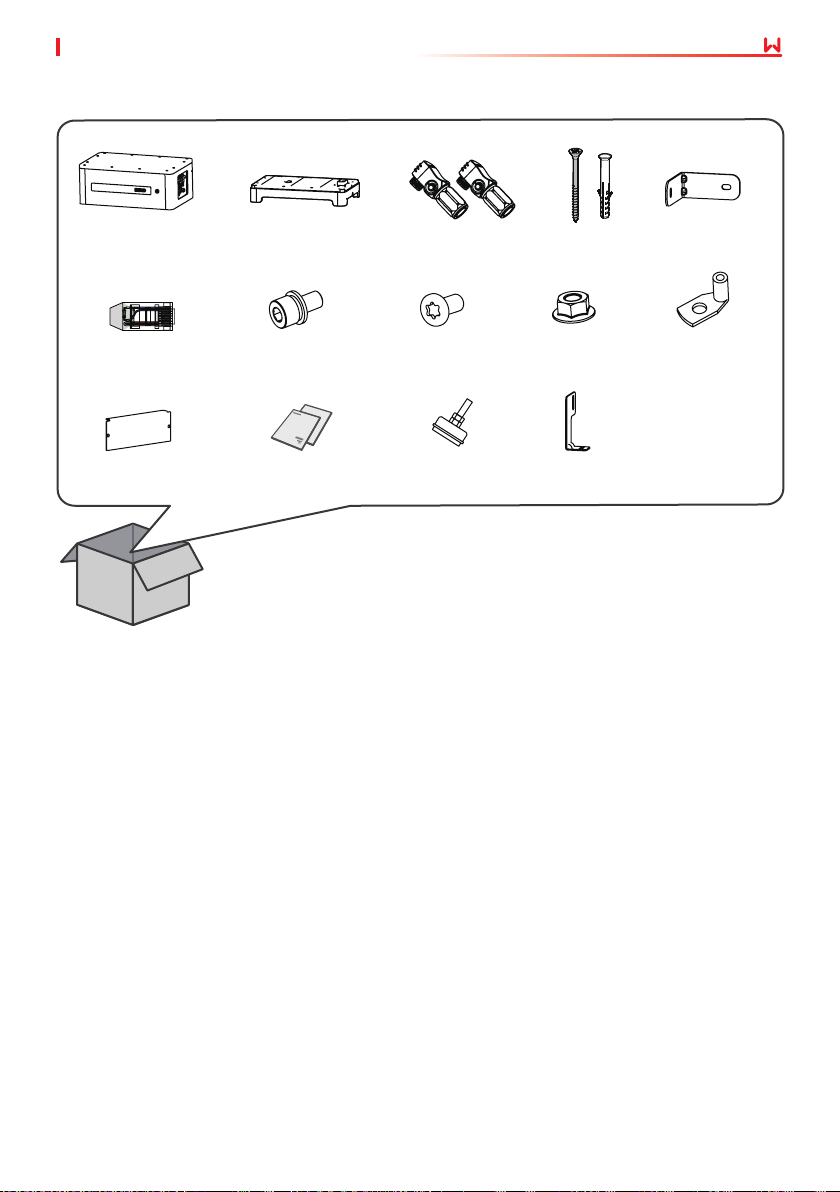

4.2 Deliverables
WARNING
• Lynx home F series are delivered with 1 set of DC connectors, and Lynx home F Plus+
series are delivered with 2 sets. Each set includes one positive connector and one negtive
connector.
• The adjustable feet are only for Lynx home F Plus+ series.
• The adjustable feet are optional. If you choose to install the battery system using the feet,
four pieces of adjustable feet will be provided by default.
• The locking bracket will be dierent to match the adjustable feet. You can select the locking
bracket based on your requirements.
• If you choose to use the adjustable feet, two locking brackets match the feet and two
normal locking brackets will be provided by default except for the four adjustable feet.
• If you do not need the adjustable feet, four normal locking brackets will be provided by
default.
4 Check and Storage
4.1 Check Before Receiving
Check the following items before receiving the product.
1. Check the outer packing box for damage, such as holes, cracks, deformation, and other
signs of equipment damage. Do not unpack the package and contact the supplier as soon as
possible if any damage is found.
2. Check the product model. If the product model is not what you requested, do not unpack the
product and contact the supplier.
3. Check the deliverables for correct model, complete contents, and intact appearance. Contact
the supplier as soon as possible if any damage is found.
Battery module x 1
Battery module

13
04 Check and Storage
User Manual V1.9-2023-04-30
PCU x 1
Terminal resistor x 1
Protection cover x 1
M5*12 screw x 4
Base x 1 DC connector x N Expansion
bolt x 4
Normal locking
bracket x N
Grounding
terminal x 2
M5 hexagon
screw x 2
Adjustable
feet x N
Locking bracket (match
adjustable feet) x N
M6 screw x 2
Documents x 1
Power control unit
4.3 Storage
If the equipment is not to be installed or used immediately, please ensure that the storage
environment meets the following requirements:
1. Do not unpack the outer packing box or throw the desiccant away.
2. Complete the equipment installation in three days after unpacking it. Pack and store the
equipment using the original packing box if it is not installed.
3. Stack the equipment complying with the labels and requirements on the packing box.
4. The equipment must be stacked with caution to prevent them from falling.
5. Keep the equipment away from ammable, explosive, and corrosive matters.
6. Place the equipment in a cool place where away from direct sunlight.
7. Store the equipment in a clean place. Make sure the temperature and humidity are
appropriate and no condensation.
8. Storage SOC: 25%~50% SOC. Circle the charge-discharge every 6 months.
9. Recommended storage temperature: 0℃~35℃ (less than one year), -20℃~0℃ or 35℃~45℃
(less than one month).
10.Recommended storage humidity: 0%~95%RH(no condensation). Do not install the battery if
there is any moisture or condensation.

14
05 System Installation User Manual V1.9-2023-04-30
5.1 Installation Requirements
5 System Installation
Installation Environment Requirements
1. Do not install the equipment in a place near ammable, explosive, or corrosive materials.
2. Do not install the equipment in a place that is easy to touch, especially within children’s reach.
High temperature exists when the equipment is working. Do not touch the surface to avoid
burning.
3. Avoid the water pipes and cables buried in the wall when drilling holes.
4. Install the equipment in a sheltered place to avoid direct sunlight, rain, and snow. Build a
sunshade if it is needed.
5. Install the equipment in a well-ventilated place to ensure good dissipation. Also, the
installation space should be large enough for operations.
6. The equipment with a high ingress protection rating can be installed indoors or outdoors.
The temperature and humidity at the installation site should be within the appropriate range.
7. Install the equipment at a height that is convenient for operation and maintenance, electrical
connections, and checking indicators and labels.
8. The altitude to install the equipment shall be lower than the maximum working altitude
2000m.
9. Install the equipment away from electromagnetic interference. If there is any radio or
wireless communication device below 30MHz near the equipment, make sure that the
equipment is at least 30m far away from the wireless device.
Prevent Child
Access

15
05 System InstallationUser Manual V1.9-2023-04-30
Mounting Support Requirements
• The mounting support shall be nonammable and reproof.
• Install the equipment on a surface that is solid enough to bear the product weight.
• Put the battery system near the wall and install the locking brackets to prevent the battery
from falling down.
Installation Angle Requirements
• Install the equipment vertically, no tilt or upside down.

16
05 System Installation User Manual V1.9-2023-04-30
NOTICE
• Ensure that the base stands on the oor vertically.
• Ensure that the base clings to the wall and the arrow points outward.
• Ensure that all batteries cling to the wall and the arrow points outward.
• Align the holes of the upper and the lower battery modules when placing the upper battery
module.
• Ensure that the locking bracket clings to the wall.
• Do not install the two locking brackets on one side.
CAUTION
• Operations such as transportation, turnover, installation and so on must meet the
requirements of the laws and regulations of the country or region where it is located.
• Move the equipment to the site before installation. Follow the instructions below to avoid
personal injury or equipment damage.
1. Consider the weight of the equipment before moving it. Assign enough personnel to
move the equipment to avoid personal injury.
2. Wear safety gloves to avoid personal injury.
3. Keep balance to avoid falling down when moving the equipment.
5.2.1 Moving the Equipment
5.2.2 Installing the Battery System
5.2 Installing the Battery System
