Goodwe ES Series User manual

User Manual
Hybrid Inverter
ES Series
V1.1-2022-01-05

Content User Manual V1.1-2022-01-05
2
TABLE OF CONTENTS
01 Introduction ..............................................................1
1.1 Operation Modes Introduction................................................................1
1.2 Safety and Warning...................................................................................2
1.3 Product Overview ......................................................................................4
02 Installation Instructions .............................................5
2.1 Unacceptable Installations.......................................................................5
2.2 Packing List ................................................................................................6
2.3 Mounting ....................................................................................................6
2.3.1 Select Mounting Location .................................................................................6
2.3.2 Mounting ............................................................................................................7
2.4 Electrical Wiring Connection ....................................................................9
2.4.1 PE Cable Connection ......................................................................................... 9
2.4.2 PV Wiring Connection .....................................................................................10
2.4.3 Battery Wiring Connection .............................................................................10
2.4.4 On-Grid&Back-up Connection........................................................................12
2.4.5 Smart Meter & CT Connections .....................................................................15
2.5 DRED & Remote Shutdown Device Connection...................................17
2.6 WiFi Module Connection.........................................................................18
2.7 Earth Fault Alarm Connection................................................................18
03 MANUAL OPERATION ................................................ 21
3.1 Wi-Fi Conguration .................................................................................21
3.2 PV Master .................................................................................................22
3.3 CEI Auto-Test Function ............................................................................23
3.4 Startup/shutdown Procedure ................................................................23
3.5 SEMS Portal ..............................................................................................23

ContentUser Manual V1.1-2022-01-05
3
04 OTHER ..................................................................... 24
4.1 Error Messages........................................................................................24
4.2 Troubleshooting ......................................................................................26
4.3 Disclaimer.................................................................................................30
4.4 Technical Parameters ............................................................................32
4.5 Quick Checklist To Avoid Dangerous Conditions.................................36
Appendix ..................................................................... 37

1
01 Introduction User Manual V1.1-2022-01-05
1.1 Operation Modes Introduction
01 Introduction
The ES series, also called hybird or bidirectional solar inverters, apply to soalr system with
partcipation of PV, battery, loads and grid system for energy management. The energy produced
by PV system shall be used to optimize household, excess power charges battery and the
rest power could be exported to the grid. Testing to AS/NZS 4777.2:2020 for multiple phase
combinations has not been conducted
The battery shall discharge to support loads when PV power is insucient to meet self-
consumption needs. If battery power is not sucient, the system will take power from the utility
grid to support loads.
The preceding introduction describes the general operation
of the ES system. The operation mode can be changed
with the PV Master app based on the system layout. The
possible operation modes for the ES system are shown
below.
ES system normally has the following operation modes based on your conguration and layout
conditions.
Mode I
The energy produced by the PV system is used
to optimize self-consumption needs. The excess
energy is used to recharge the batteries, any
remaining excess is then exported to the grid.
Mode III
When the grid fails, the system will
automatically switch to back-up mode. The
back-up loads can be supplied by both PV and
battery energy.
Mode II
When there is no PV, and the battery is
sucient, it can supply the load together
with grid power.
Mode IV
Battery could be charged by grid, and
charge time/power could be set to various
options on the PV Master App.

2
User Manual V1.1-2022-01-05 01 Introduction
1.2 Safety and Warning
The ES series of inverters from GoodWe Technologies Co., Ltd. (also called GoodWe) strictly
complies with related safety rules for product design and testing. Please read and follow all of
the instructions and cautions appearing on the inverter or in the User Manual during installation,
operation and maintenance, as any improper operation might cause personal injury or property
damage.
Symbol Explanation
Danger - high voltage and electric shock!
Caution!
Failure to observe any warnings contained in this manual may result in injury.
Danger - hot surface!
The components of the product can be recycled.
This side up! This package must always be transported, handled and stored in such
a way that the arrows always point upwards.
No more than six (6) identical packages being stacked on each other.
Products shall not be disposed as household waste.
5min
Fragile - The package/product should be handled carefully and never be tipped over
or slung.
Refer to the operating instructions.
Keep dry! The package/product must be protected from excessive humidity and
must be stored under cover.
This symbol indicates that you should wait at least 5mins after disconnecting the inverter
from the utility grid and from the PV panel before touching any inner live parts.
CE mark.

3
01 Introduction User Manual V1.1-2022-01-05
Any installation or operations on the inverter must be performed by qualied electricians
in compliance with standards, wiring rules and the requirements of local grid authorities or
companies (such as AS 4777 and AS/NZS 3000 in Australia).
Before any wiring connection or electrical operation on inverter, all battery and AC power
must be disconnected from inverter for at least 5 minutes to make sure inverter is totally
isolated to avoid electric shock.
The temperature of inverter surface might exceed 60℃ during operation, so please make
sure it has cooled down before touching it, and make sure the inverter is out of reach of
children.
Do not open the inverter's cover or change any components without manufacturer's
authorization, otherwise the warranty commitment for the inverter will be invalid.
Usage and operation of the inverter must follow instructions in this user manual, otherwise
the protection design might be impared and warranty commitment for the inverter will be
invalid.
Appropriate methods must be adopted to protect inverter from static damage. Any damage
caused by static is not warranted by manufacturer.
PV negative (PV-) and battery negative (BAT-) on inverter side is not grounded as default
design. Connecting PV- to EARTH are strictly forbidden.
PV modules used on the inverter must have an IEC61730 class A rating, and the total open-
circuit voltage of PV string/array is lower than the maximum rated DC input voltage of the
inverter. Any damage caused by PV over-voltage is beyond warranty.
The inverter, with built-in RCMU, will exclude possibility of DC residual current to 6mA, thus in
the system an external RCD (type A) can be used(≥30mA).
In Australia, the inverter internal switching does not maintain neutral integrity, which must
be addressed by external connection arrangements like in the system connection diagram for
Australia.
In Australia, output of back-up side in switchbox should be labeled on "Main Switch UPS
Supply".The output of normal load side in switch box should be labeled "Main Switch Inverter
Supply".
Safety Warnings

4
User Manual V1.1-2022-01-05 01 Introduction
1.3 Product Overview
* Model GW3648D-ES inverters are designed without DC switch. For inverters designed with
DC switch, the model name should be GW3648C-ES.
Model GW5048D-ES inverters are designed without DC switch. For inverters designed with
DC switch, the model name should be GW5048C-ES.
If the inverter is not equipped with a DC switch, an external DC breaker shall be added. The
external DC breaker shall be AU/NZ certied; Complied to AS60947.3:2018; Be classied as
DC-PV 2; With ratings and properties suitable for the intended application conditions such as
outdoor, exposed to sunshine, on non-combustible material surface.
1. Battery Terminal
(BATTERY +/-) 2. PV Input Terminal (PV1/ PV2) 3. DC Switch (optional)*
4. DC Switch Locking Hole 5. Communication Module
Port (WiFi or LAN) 6. METER Communication
Port
7.
DRED or Remote
Shutdown
Communication Port
8. BMS Communication
Port 9. RS485 Communication Port
10. Reserved Port 11. AC Terminal (ON-GRID
and BACKUP) 12. Indicators
13. Mounting Plate 14. Heat Sink 15. PE Terminal
13 14 15 1210 11987654321

5
01 Introduction User Manual V1.1-2022-01-05
PV PV
Back-Up Back-Up
Load
On-Grid

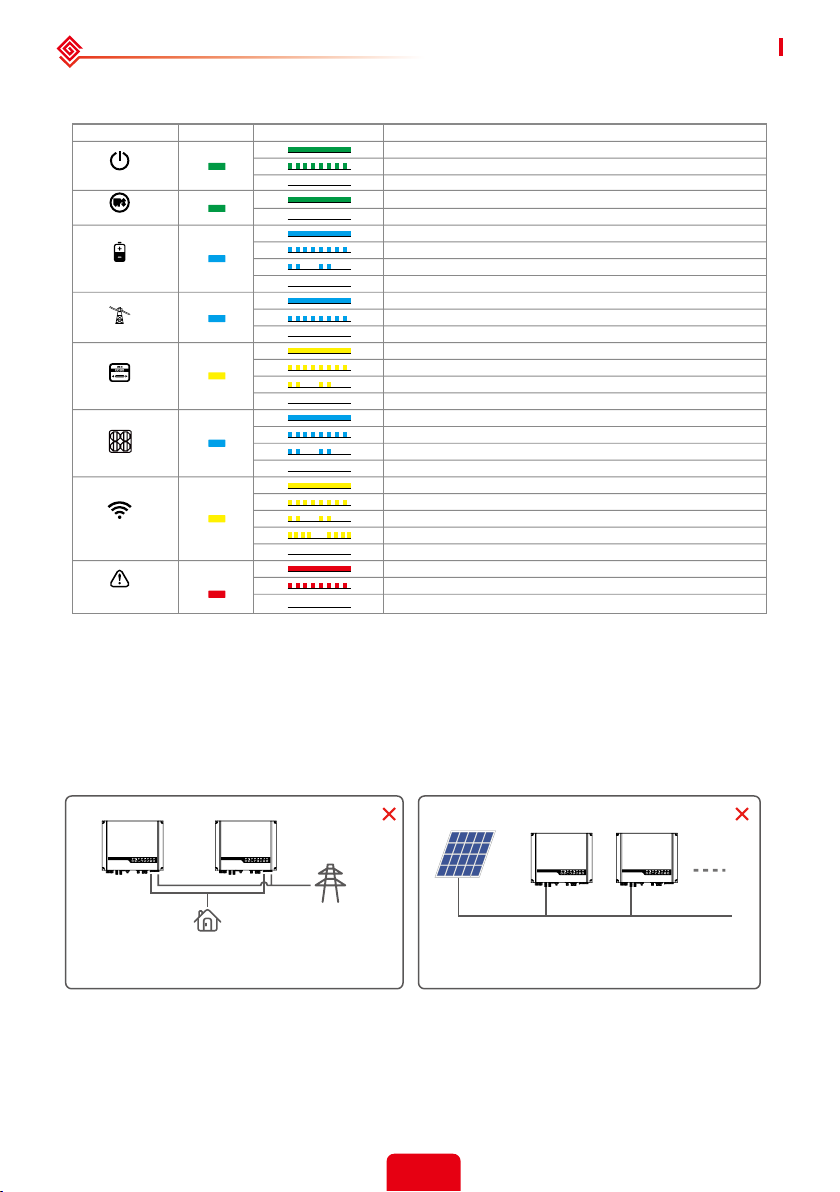

LED Indicators
EXPLANATION
ON = System is ready
BLINK = System is starting up
OFF = System is not operating
ON = Back-up is ready / power available
OFF = Back-up is o / on power available
ON = Battery is charging
BLINK 1 = Battery is discharging
BLINK 2 = Battery is low / soc is low
OFF = Battery is disconnected / not active
ON = Grid is active and connected
BLINK = Grid is active but not connected
ON = Consuming energy from grid / buying
BLINK 1 = Supplying energy to grid / zeroing
BLINK 2 = Supplying energy to grid / selling
OFF = Grid not connected or system not operating
ON = Solar inputs #1 and #2 are active
BLINK 1 = Solar input #1 is active /#2 is not active
BLINK 2 = Solar input #2 is active /#1 is not active
OFF = Solar input #1 and #2 are not active
ON = WiFi connected / active
BLINK 1 = WiFi system resetting
BLINK 2 = WiFi not connect to router
BLINK 4 = WiFi server problem
OFF = WiFi not active
ON = Fault has occurred
BLINK = Overload of back-up / Output / reduce load
OFF = No fault
OFF = Grid is not active
SYSTEM
INDICATOR COLOR STATUS
BACK-UP
BATTERY
GRID
ENERGY
SOLAR
WiFi
FAULT
02 Installation Instructions
2.1 Unacceptable Installations
Please avoid the following installations which will damage the system or the Inverter.
The following installations should be avoided. Any damage caused will not be covered by the
warranty policy.
For the general version, backup cannot connect in parallel.
For advanced applications, please contact our after-sales
department.
Single PV string cannot connect to multiple inverters.

6
User Manual V1.1-2022-01-05 02 Installation Instructions
Smart Meter
Battery
On-Grid Battery Back-Up On-Grid Back-Up
Incompatible battery
Generator
One meter cannot be connected to multiple inverters.
Dierent CTs cannot connect to the same line cable.
The on-Grid or backup side cannot be
connected to any AC generator directly.
The inverter battery input must not be
connected to incompatible batteries.
The backup side cannot be connected
to the grid.
One battery bank cannot be connected to multiple inverters.
2.2 Packing List
Upon receiving the hybrid inverter, please check if any of the components as shown below are
missing or broken.
2.3 Mounting
2.3.1 Select Mounting Location
For inverter's protection and convenient maintenance, mounting location for inverter should be
selected carefully based on the following rules:
Rule 1. Any part of this system shouldn't block the switch and breaker from disconnecting the
inverter from DC and AC power.
Rule 2. Inverter should be installed on a solid surface, where it is suitable for inverter's dimensions
and weight.
PE
Terminal
Expansion
Bolts
Fixed
Screw
Positive PV Plug
or
Battery Cover
or
Negative PV PlugInverter
Documentations
Smart Meter With CT
Wall-Mounted
Bracket
Reset
SMART METER
USB
Battery
Terminal
Pin
Terminal
Hexagon
screw
WiFi
Module
Bluetooth
Module
Mounting Support Requirements
• The mounting support shall be nonammable and reproof.
• Make sure that the support surface is solid enough to bear the product weight load.
• Do not install the product on the support with poor sound insulation to avoid the noise
generated by the working product, which may annoy the residents nearby.

7
02 Installation Instructions User Manual V1.1-2022-01-05
Rule 3. Inverter should be installed vertically with a max rearward tilt of 15°.
Rule 4. Ambient temperature should be lower than 45°C. The temperature and humidity at the
installation site should be within the appropriate range (60 °C for outdoor unconditioned with
solar eects).
Rule 5. It is recommanded that the installation of the inverter should be prevented from direct
sunlight, snow, rain and other negative inuences which may cause function impact or life aging.
Accmulated snow
Keep away
from sunlight Keep dry Keep it clear
of snow Sun Rain
Rule 6. Inverter should be installed at eye level for convenient maintenance.
Rule 7. Product label on inverter should be clearly visible after installation. Do not damage the
lable.
Rule 8. Do not install the inverter when it is snowing or raining. If you have to, pay attention to
the waterproof and moisture-proof of the inverter and distribution box.
Rule 9. Leave enough space around the inverter according to the below gure for natural heat
dissipation.
2.3.2 Mounting
Remember that this inverter is heavy! Please be careful when lifting out from the
package.
If there is any radio or wireless communication equipment below 30mhz near the
inverter, make sure that:
1. Install the inverter at least 30m far away from the high-precision wireless equipment.
2. Add ferrite core with multi coil winding or low pass EMI lter to the DC cable or AC
cable.
300mm
500mm
200mm 200mm
Upward
Downward
Front
Both sides
---------- 300mm
------ 500mm
------------- 300mm
------- 200mm
300mm

8
User Manual V1.1-2022-01-05 02 Installation Instructions
1
The inverter is suitable for mounting on concrete or other non-combustible surfaces only.
Please use the mounting bracket as a template to drill 4 holes in the correct positions
(10mm in diameter and 80mm in depth).
Use the expansion bolts in the accessory box and tightly attach the mounting bracket
to the wall.
Carry the inverter by holding the heat sink on two sides and place the inverter on the
mounting bracket.
FOR AUSTRALIA ONLY. Lock the DC switch before mounting. Unlock the DC switch
when you are going to switch it to power on or power o the inverter.
Note: Bearing capacity of the wall must be higher than 25kg, otherwise it may not be
able to keep the inverter from dropping. wall bracket
expansion pipe
self-tapping screws
228.5mm 228.5mm
117.5mm
104.5mm
400mm
2
3

9
02 Installation Instructions User Manual V1.1-2022-01-05
2.4 Electrical Wiring Connection
2.4.1 PE Cable Connection
• Disconnect the PE cable after dismantling the equipment if needed.
• To improve the corrosion resistance of the terminal, it is recommended to apply silica gel or
paint on the ground terminal after installing the PE cable.
• The PE cable should be prepared by customers. Recommended specications:
• Type: single-core outdoor copper cable.
• Conductor cross-sectional area S≥4mm2.
The inverters can be locked for anti-theft purposes if this is necessary for individual
requirements.
The lock and accessories are not included in the
package and can be purchased by the user.
L1
1
23
Copper, ≥4mm2
L=L1+(1~2)mm
M5
1.5~2N·m
4

10
User Manual V1.1-2022-01-05 02 Installation Instructions
3
MC
MC
2
MC4 /QC4.10 Series AMPHENOL Series
2.4.2 PV Wiring Connection
Before connecting PV panels/strings to the inverter, please make sure all requirements listed
below are followed:
• The total short-circuit current of a PV string must not exceed the inverter's max DC current.
• The minimum impedance to earth of the PV module shall be greater than R. R=Max.Input
Voltage (V)/30mA, i.e. R=1100V/30mA=36.7KΩ or R=1000V/30mA=33.4KΩ).
• The PV string must not be connected to the earth/grounding conductor.
• Use the right PV plugs in the accessory box. (BAT plugs are similar to PV plugs. Please check
before using them.)
Note: There are MC4, QC4.10, or Amphenol plugs in the accessory box. The connection details are shown
below.
Prepare the PV cables and PV plugs.
Screw the cap on and plug it into the inverter side.
Connect the PV cable to the PV
connectors.
Note:
1. Please use the PV plugs and connectors from the
accessory box.
2. The PV cable should be a standard 2.5–4mm2.
Note: There will be a clicking sound if the connectors are inserted correctly into the PV plugs.
Note:
1. Crimp the PV cable tightly onto the connectors.
2. For Amphenol connectors, the limit buckle cannot be
pressed.
3. There will be a clicking sound if the connectors are
inserted correctly into the PV plugs.
2.5-4mm27mm
2.5-4mm27mm
1
The polarity of the PV strings must not be connected in a reverse manner. Otherwise, the
inverter could be damaged.
Please be careful of any electric shock or chemical hazards.
Make sure there is an external DC breaker (≥125A) connected to the battery without build-in DC
breaker.
2.4.3 Battery Wiring Connection
Make sure that the breaker is o and battery nominal voltage meets ES series'
specication before connecting battery to inverter. Make sure inverter is totally isolated
from PV and AC power.

11
02 Installation Instructions User Manual V1.1-2022-01-05
For lithium battery (pack) the capacity should be 50Ah or larger. Battery cable requirements are
as following.
You are recommended to refer to the battery user manual as well when selecting the battery
cable.
C
A
B
Battery wiring connection process
Grade Description Value
AOutside diameter Insulation 10-14mm
B Insulation section NA
C Conductor core length 20-35mm2
1
2
3
Prepare battery cables and accessories and
put battery power cable through battery
cover.
Make battery terminals
• Strip cable coat, revealing 10mm length of metal
core.
• Use special crimper to compress battery terminal
tightly.
Connect battery terminal onto inverter.
Note:
Please make sure polarity (+/-) of battery
are not reversed.
Note:
1. Please use accessories from accessory box.
2. Battery power cable should be 20-35mm2.
Tightening Torque: 6-8N.m
Pan Head Screw
Screw Cap
Insulator
Battery Terminal
Waterproof Ring
Cable
* For the compatible lithium batteries (LG / PYLON / BYD / GCL / DYNESS / ALPHA) connection,
please refer to https://en.goodwe.com.
Battery Protection
Battery will act as a protective charge/discharge current limitation under any condition as below:
• Battery SOC is lower than I-DOD (Depth of discharge).

12
User Manual V1.1-2022-01-05 02 Installation Instructions
• Battery voltage is lower than discharge voltage.
• Battery over heating protection.
• Battery communication is abnormal for lithium battery.
• BMS limitation for lithium battery.
When charge/discharge current limitation protection happens:
• Under on-grid mode, battery charge/discharge operation could be abnormal.
• Under o-grid mode, Back-Up supply will shut down.
Note:
• Under o-grid mode, if Back-Up supply shuts o because of battery, low battery SOC or voltage, PV
power will all be used to charge battery till battery SOC reaches 40% +(1-DOD)/2, then Back-Up supply
will be activated.
• Under on-grid mode & o-grid mode, battery is protected from over discharge by DOD and discharge
voltage.
• The DOD setting of a battery prevents the inverter from discharging battery reserve power. As soon
as the DOD is reached the load of building will only be supported by either PV power or the grid. If
there are continuous days when little or no battery charging occurs, the battery may continue to self-
consume energy to support communications with the inverter. This behavior is dierent between battery
manufactures products, however, if the SOC of the battery reaches a certain level, the inverter will boost
the SOC back up. This protection mechanism safeguards the battery from falling to 0% SOC.
2.4.4 On-Grid&Back-up Connection
An external AC breaker is needed for on-grid connection to isolate the inverter from the utility
grid when necessary.
The requirements for the on-grid AC breaker are shown below.
Inverter Model AC Breaker Specication
GW3648D-ES 32A / 230V (e.g. DZ47-60 C32)
GW5048D-ES 40A / 230V (e.g. DZ47-60 C40)
Note: The absence of AC breaker will lead to inverter damage if an electrical short circuit happens on
grid side.
1. Use separate AC breakers for individual
inverters.
AC breaker AC breaker
AC breaker
AC breaker
Grid
Grid Load
2. On the AC side, an individual breaker
should be connected between the inverter
and grid but before any loads.
Requirement of AC cable connected to On-Grid and Back-Up side.
Make sure the inverter is totally isolated from any DC or AC power before connecting the
AC cable.
Note:
1. Neutral cable shall be blue, line cable shall be black or brown (preferred) and protective earth cable
shall be yellow-green.
2. For AC cables, PE cable shall be longer than N&L cables, so in case that the AC cable slips or is taken
out, the protecting earth conductor will be the last to take the strain.

13
02 Installation Instructions User Manual V1.1-2022-01-05
Prepare the terminals and AC cables according to the correct table.
Put AC cable through terminal cover as
shown in the gure.
Note: Please use the terminals in accessory
box.
Press the 6 connectors on cable conductor core tightly.
Note: Make sure cable jacket is not locked within the connector.
ABC
D
1
Grade Description Value
A Outside diameter 13-18 mm
B Separated wire length 20-25 mm
C Conductor wire length 7-9 mm
D Conductor core section 4-6 mm2
Cable Single Hole Seal Ring Connection
Terminal
Screw Cap
AC Cover
Insulator
2
3
4
1. Connect the assembled AC cables into AC terminals with fastening torque about 2.0-
2.5N·m.
Note: Connect back-up terminals before connecting on-grid terminals. Make sure it is not connected
to a wrong side.
2. Lock the cover and screw the cap.
Tightening torque
2.0-2.5N·m

14
User Manual V1.1-2022-01-05 02 Installation Instructions
Special adjustable settings
The inverter has a eld where the user could set functions, such as trip points, trip time, time
of reconnection, active and invalid of QU curve and PU curve etc. by special rmware. Please
contact after-sales for the special rmware and adjustable methods.
Connection For SPLIT Grid System
In SPLIT grid system, there is a solution to allow inverter to work under on-grid condition. For
details, please check the ocial application plan on website -GoodWe Hybrid Solution For Split
Grid Type.
To Smart Meter
220V Load 110V Load
N
L2
L1
CT A Grid
CT B
Declarations For The Backup Function
The back-up output of ES hybrid inverters have over load ability.
For details please refer to the technical parameters of ES series inverter section (Page 31).
And the inverter has self-protection derating at high ambient temperature.
The below statement lays out general policies governing the energy storage inverters of the
series EH, EM, ES, ET, BH, BT and SBP.
1. For Hybrid inverters (Series EH, EM, ES and ET), the standard PV installation typically consists
of the connection of the inverter with both panels and batteries. In the case where the
system is not connected to the batteries, the back-up function is strongly not advised for use.
Manufacturer shall not cover the standard warranty and be liable for any consequences arising
from users not following this instruction.
2. Under normal circumstances, the back-up switching time is less than 10 ms (the minimal
condition to be considered as the UPS level). However, some external factors may cause the
system failing on back-up mode. As such, we recommend the users to be aware of conditions
and follow the instructions as below:
• Do not connect loads when they are dependent on a stable energy supply for a reliable
operation.
• Do not connect the loads which may in total exceed the maximum back-up capacity.
• Try to avoid those loads which may create very high start-up current surges such as inverter
air-conditioner, high-power pump etc.
• Due to the condition of the battery itself, battery current might be limited by some factors
including but not limited to the temperature, weather etc.
Acceptable Loads Are As Below:
ES series inverter is able to supply a continuous 4600VA output or maintain a 6900VA output
for less than 10 seconds on back-up side to support loads. The inverter also has self-protection
against derating at high ambient temperature.
• Inductive Load: Maximum 1.5KVA for single inductive load, maximum 2.5KVA for total
inductive load power.
• Capacitive Load: Total capacitive load (like computer, switch power etc.)power ≤3.0KVA.
(Any load with high inrush current at start-up is not accepted)

15
02 Installation Instructions User Manual V1.1-2022-01-05
Note:
For convenient maintenance, please install a SP3T switch on back-up and on-grid side. Then it is
adjustable to support load by back-up or by grid or default settings.
1. Back-up load is supplied from back-up side.
2. Back-up load is isolated.
3. Back-up load is supplied from grid side.
Declarations For Backup Overload Protection
Inverter will restart itself if overload protection triggers. The preparation time for restarting will
be longer and longer (one hour at most) if overload protection repeats. Take following steps to
restart inverter immediately.
Decrease back-up load power within maximum limitation.
On The PV Master App > Advanced Settings > Click "Reset Backup Overload History".
2.4.5 Smart Meter & CT Connections
Make sure the AC cable is totally isolated from AC power before connecting the Smart
Meter and CT.
A Smart Meter with the CT in product box is compulsory for ES system installation. It can be
used to detect the grid voltages and current directions, provide the operating condition of the ES
inverter via RS485 communications. For more detailed information of the Smart Meter, refer to
the Smart Meter user manual in https://en.goodwe.com.
Note:
1. The Smart Meter with CT is already congured ; please do not change any settings on the Smart
Meter.
2. One Smart Meter can be used with only one ES inverter.
3. Three CTs must be used for one Smart Meter and must be connected on the same phase with the
Smart Meter power cable.
Smart Meter & CT connection diagram
Back-Up
SP3T
1
2
3
On-Grid
Grid
Load
• For Single Phase Grid
• For Three Phase Grid
To Smart Meter CT
Grid
Load
PE
N
L
Grid side
GM1000

16
User Manual V1.1-2022-01-05 02 Installation Instructions
Note:
1. Please use the Smart Meter with 3 CTs in product box.
2. CT cable is 3m as default, could be extended to maximum of 5m.
3. Smart Meter communication cable (RJ45) is attached on the inverter ("To Smart Meter" cable), could
be extended to max 100m, and must use standard RJ45 cable and plug, as below:
Power Meter Grid
Load
To Smart Meter CT A
CT B
CT C
PE
N
L3
L2
L1
Detailed PIN Functions Of Each Port On The Inverter
BMS: CAN communication is congured by default. If 485 communication is used, please contact
the after-sales service to replace this with the correct communication cable.
CT A connect to L1
CT B connect to L2
CT C connect to L3
Position Color BMS
Function
Smart Meter
Function EMS
1 Orange & white 485_A2 NC 485_A
2 Orange NC NC 485_B
3 Green & white 485_B2 485_B1 485_A
4 Blue CAN_H NC NC
5 Blue & white CAN_L NC NC
6 Green NC 485_A1 485_B
7 Brown & white NC 485_B1 NC
8Brown NC 485_A1 NC
Smart Meter LED Indications
STATUS OFF ON Blinking
POWER Not working Working /
ENERGY / Importing Exporting
COM Single blink when data are transferred to the inverter
POWER
ENERGY
COM
Grid side
GM3000

17
02 Installation Instructions User Manual V1.1-2022-01-05
123456
3-1
2.5 DRED & Remote Shutdown Device Connection
DRED (Demand response enabling device) is used for Australia and New Zealand installation
(also used as remote shutdown function in European countries), in compliance with Australia
and New Zealand safety requirements (or European countries). Inverter integrates control logic
and provides an interface for DRED. The DRED is not provided by inverter manufacturer.
Detailed connection of DRED & Remote Shutdown are shown below.
1Screw this plate o from the inverter.
Note: DRED should be connected through "DRED Port" as the gure shows.
2
1. Plug out the 6-pin terminal and dismantle
the resistor on it.
2. Plug the resistor out, leave the 6-pin
terminal for next step.
Note: The 6-pin terminal in the inverter has the
same function as DRED. Please leave it in the
inverter if no external device is connected.
1. Put DRED cable through the plate.
2. Connect DRED cable on the 6-pin
terminal.
The function of each connection position
as below.
Single hole
seal ring
RS485
communication
board
Screw
Cable
Screw Cap
Insulator
Nut
NO 1 2 3 4 5 6
Function DRM1/5 DRM2/6 DRM3/7 DRM4/8 REFGEN COM /DRMO
For DRED
