Goodwe ABD Series User manual

V1.0-2022-05-30
Automatic Backup Device
ABD Series
(ABD200-40-US10 | ABD200-63-US10 | ABD100-40-US10 | ABD100-63-US10)
Multi-inverter Parallel Device
MPD Series
(MPD200-40-US10 | MPD200-63-US10)
Quick Installation Guide

2
1 IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
1.1 Hazard Level Denition
Dierent levels of warning messages in this manual are dened as follows:
DANGER
Indicates a high-level hazard that, if not avoided, will result in death or serious injury.
WARNING
Indicates a medium-level hazard that, if not avoided, could result in death or serious injury.
CAUTION
Indicates a low-level hazard that, if not avoided, could result in minor or moderate injury.
NOTICE
Highlights key information and supplements other text. It may include skills and methods to
solve product-related problems.
1.2 General Safety
NOTICE
• The information in this manual is subject to change due to product updates or other
reasons. This guide cannot replace the product labels or other safety precautions unless
otherwise specied. All descriptions here are for guidance only.
• Before installation, read through this manual to learn about the product and the
precautions.
• All operations should be performed by trained and knowledgeable technicians who are
familiar with local standards and safety regulations.
• Use insulating tools and wear personal protective equipment when operating the device
to ensure personal safety. Wear anti-static gloves, cloths, and wrist strips when touching
electronic devices to protect the device from damage.
• Strictly follow the installation, operation, and conguration instructions in this manual.
The manufacturer shall not be liable for device damage or personal injury if you do not
follow the instructions. Visit https://en.goodwe.com to get more information about product
warranty.
Notice
The product is designed and tested to strictly comply with related safety rules. Read and follow
all the safety instructions and cautions before any operations. Improper operations might
cause personal injury or property damage as the device is electrical equipment.
You shall follow all the safety precautions mentioned in this manual when working on the device.

3
DANGER
All labels and warning marks should be visible after the installation. Do not scrawl on,
damage, or cover any label on the device.
Unauthorized dismantling or modication may damage the equipment. Such action may
damage the equipment and is not covered under the warranty.
Warning labels on the device are as follows.
WARNING
The voltage and frequency at the connecting point should meet the on-grid requirements.
Make sure that the current rating of this product’s main breaker meets the specications of
the household power distribution unit.
The PE (equipment grounding) cable of the device must be connected rmly (1.6N·m).
For AC circuit connections, copper (CU) conductors are recommended.
1.3 Device Safety
DANGER High voltage hazard.
Disconnect all incoming power
and turn o the product before
working on it.
Delayed discharge. Wait
5 minutes after power o
until the components are
completely discharged.
Read through the user manual
before working on this device.
Potential risks exist. Wear
proper PPE before any
operations.
High-temperature hazard. Do
not touch the product under
operation to avoid being burnt.
Grounding point.
Do not dispose of the device
as household waste. Discard
the product in compliance with
local laws and regulations,
or send it back to the
manufacturer.
SGS certication mark.
1.4 Personal Requirements
NOTICE
• Personnel who install or maintain the device must be strictly trained, learn about safety
precautions and correct operations.
• Only qualied professionals or trained personnel are allowed to install, operate, maintain,
and replace the device or parts.

4
2 Product Introduction
2.1 Product Introduction
Model Description
This manual covers listed device below:
• ABD200-40-US10
• ABD200-63-US10
• ABD100-40-US10
• ABD100-63-US10
• MPD200-40-US10
• MPD200-63-US10
ABD Series MPD Series
Supported Grid Type
The inverter supports 120/240V split phase grid type.
Function Description
The device transfers between on-grid mode and backup mode with an integrated switch.
The device connects the main panel, the utility grid, and the AC output of the inverter to form
an on-grid system when the utility grid works normally. Once the utility grid fails, the device will
connect loads and the AC output of the inverter only to form a backup system.
The ABD supports one inverter and the MPD supports up to three inverters.
L1
L2
240V
120V
120V
N
Model Explanation
No. Meaning Description
1 Product ABD: Automatic Backup Device
MPD: Multi-inverter Parallel Device
2Main breaker rating 200: Applies to the main service panel whose main breaker rating
is smaller than or equal to 200A and larger than 100A.
100: Applies to the main service panel whose main breaker rating
is smaller than or equal to 100A.
3Protection current of
the inverter breaker
40/63: The protection current of the inverter breaker is 40A or
63A, which matches with the following inverters:
Hybrid inverters: GW5000/6000/7600/9600/11K-ES-US20
AC-coupled inverters: GW5000/6000/7600/9600/11K-SBP-US20
4Region code US: the U.S.
5Generation code 10: generation 1.0
ABD200-40-US10
12 3 4 5

5
Hybrid
inverter
Auto transfer
switch
Utility
meter Utility Grid
PV module strings
Battery
Battery breaker
Load
breaker
Electric
vehicle
ABD
Generator
Emergency stop button
Household
loads
Hybrid,AC-
Coupled
inverter
Main panel
2.2 Application Scenarios
Add an ABD (Automatic Backup Device) in the system to realize the whole home backup. Once
the utility grid fails, the ABD will disconnect the main service panel from the utility grid, and the
inverter will switch to o-grid working mode to supply power to the loads.
2.2.1 Application Scenarios - ABD
Power cable Signal cable
• Whole Home Backup System
• Microgrid System
Power cable Signal cable
Load
breaker
CT
Utility meter Utility Grid
PV module
strings
Battery
Battery
breaker
Electric
vehicle
Emergency stop button
ABD
AC
breaker
Grid
tied PV
inverter
AC coupled
inverter
Household
loads
Main panel

6
2.2.2 Application Scenarios - MPD
Power cable Signal cable
inverter
Hybrid
inverter
Utility
meter Utility Grid
PV module strings
MPD
Household
loads
Main panel
Inverter
Inverter
Inverter
PV module strings
PV module strings

7
2.3 Electrical Diagram
2.3.1 Electrical Diagram - ABD
2.3.2 Electrical Diagram - MPD
Main
Panel
Meter
L1
L2
N
PE
L1
L2
N
Inverter
Control
Board
L1
L2
N
PE
RLY
CT1
CT2
MCB
INVCB
Main
Panel
Control
Board
L1
L2
N
PE
L1
L2
N
Meter
L1
L2
N
PE
L1
L2
N
PE
Inverter
Inverter
Inverter
L1
L2
N
PE
RLY
MCB
INVCB
INVCB
INVCB
CT1
CT2

8
2.4 Appearance
2.4.1 Parts
1
2
2
3
No. Part Description
1 LED indicator Indicates the working status of the device.
2Lock To lock the device’s door (key included).
3Hanging bracket Hangs the device on the mounting support.
4Smart meter Contact after-sales service for support or replacement.
5Insulation board Ensures personal safety and protects the device.
6 Inverter breaker Provides overcurrent protection for the inverter.
Recommended specications: 40A or 63A (or 60A when the ALT of
the installation site is less than 2000m) Breaker, UL489 certied.
ABD: 1 x inverter breaker. MPD: 3 x inverter breakers.
7 Main Breaker This breaker is optional when the main panel is also equipped
with a breaker. Provides overcurrent protection from utility grid
4
5
6
7

9
2.4.2 Dimensions
2.4.3 Indicators
150mm
(5.9in)
100mm
(3.94in)
100mm
(3.94in)
145mm
(5.71)
610mm
(24in)
450mm
(17.7in)
Indicator Status Explanation
ON= The grid is abnormal and the system is in Back-up
mode.
BLINK = The grid is normal and the system is in On-grid
mode.
OFF = With no input source, the system is in waiting mode.
ON = The communication with the inverter is normal, and
the 12V power supply from the inverter is normal.
BLINK 1= The communication with the inverter is normal,
and the 12V power supply from the inverter is abnormal.
BLINK 2= The communication with the inverter is abnormal,
and the 12V power supply from the inverter is normal.
O = The communication with the inverter is abnormal, and
the 12V power supply from the inverter is abnormal.
On = Fault has occurred.
O = No fault.

10
NOTICE
N = Quantity depends on the device model.
The number of pin terminals and communication terminal are various depending on dierent
devices. The actual accessories may dier.
2.5 Deliverables
Cable Tie *2 6AWG pin
terminal *N
10AWG pin
terminal *N
Terminal for
Neutral wire *N
Communication
terminal and
CT *N
Documents *1Key *4
Device *1 Expansion
bolt *4 Screw *N
Mounting
bracket *1
Waterproof nut
remove tool *1

11
Prevent Child Access
≥200mm
7.87in
≥200mm
7.87in
≥200mm
7.87in
≥300mm
11.81in
≥500mm
19.68in
Installation Angle Requirements
IP44
TYPE 3R
ALT: 3000m
9842ft
-31°F~140°F
(-35°C~60°C)
0%~95%RH
3 Installation
3.1 Installation Requirements
Installation Environment Requirements

12
123
4
5
3.2 Device Installation
NOTICE
• Avoid the water pipes and cables buried in the wall when drilling holes.
• Wear goggles and a dust mask to prevent the dust from being inhaled or contacting eyes
when drilling holes.
Step 1 Put the mounting bracket on the wall or the support horizontally and mark positions for
drilling holes.
Step 2 Drill holes to a depth of 80mm(3.15in) using the hammer drill. The diameter of the drill
bit should be 10mm(0.39in).
Step 3 Secure the mounting bracket using the expansion bolts.
Step 4 Install the device on the mounting bracket.
Step 5 Screw to secure the device and the mounting bracket.

13
4 Electrical Connection
4.1 Safety Precaution
NOTICE
• Cable colors in this document are for reference only. The cable specications shall meet local
laws and regulations.
DANGER
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR ELECTRIC SHOCK
• Perform electrical connections, including operations, cables, and component specications
in compliance with local laws and regulations ANSI/NFPA 70.
• The input and output circuits are isolated from the enclosure and that system grounding,
if required by the National Electric Code, ANSI/NFPA 70, is the responsibility of the installer.
• Power o the device before any electrical connections. Otherwise, an electric shock may
occur.
• Tie the cables of the same type together, and place cables of dierent types apart. Do not
place the cables entangled or crossed.
• If the tension is too large, the cable may be poorly connected. You have to reserve a certain
length of the cable before connecting it to the device cable port.
• Make sure that the cable conductor is in full contact with the terminal and the cable insulation
part is not crimped with the terminal when crimping the terminal. Otherwise, the device may
not be able to work properly, or the connection may be unreliable during working, which
may cause terminal block damage, etc.

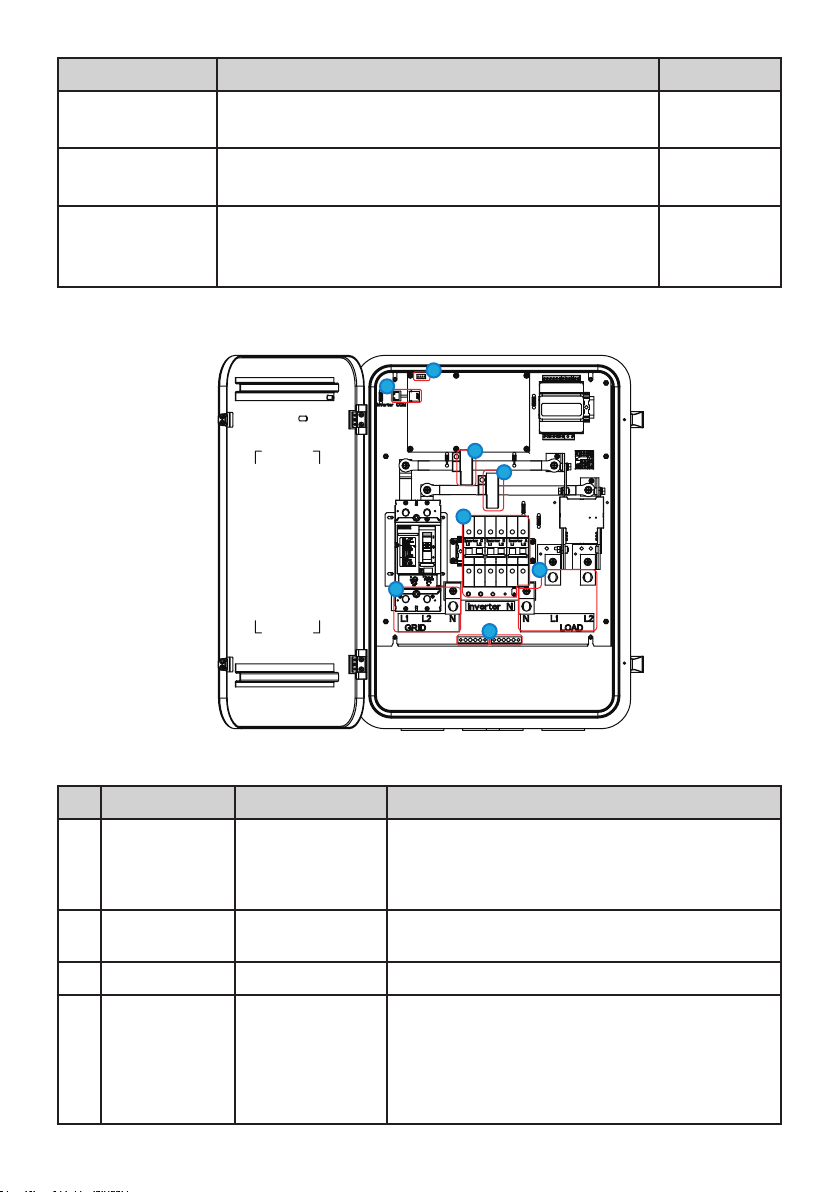

4.2 Preparing Conductor Conduit & Fittings
4.2.1 Conduit Holes
WARNING
• Wiring conduits are additionally required, not included in the scope of delivery. The conduit
must be UL514B listed and meet the specications of the waterproof nut.
• To avoid inuencing the protection class or damaging the equipment, check the wiring
conduit to make sure that the conduit is installed properly and the holes are sealed.
AC Grid conduit hole
Inverter conduit hole
AC Loads conduit hole

14
4.2.2 Wiring Specications
1
2
3
3
5
7
6
4
Conduit Hole Description Conduit
AC Grid Install the wiring conduit and run Grid-L1, Grid-L2, and
Neutral wire through the cable hole. 2 inch conduit
AC Loads Install the wiring conduit and run Load-L1, Load-L2,
Neutral wire, and PE through the cable hole. 2 inch conduit
Inverter
Install the wiring conduit and run Inverter-L1,
Inverter-L2, Neutral wire, PE cable, and communication
cable through the cable hole.
1 inch conduit
No. Parts Labeling Description
1. Inverter
communication
terminal
Inverter COM • Terminal for connecting the communication
cable of the inverter.
• Recommended specication: RJ45 cable,
24AWG, CAT5 or better.
2. CT terminal for
solar inverter
-• Terminal for connecting the CT for the solar
inverter.
3. CT - -
4. Inverter
terminal
Inverter A-L1 / L2,
Inverter B-L1 / L2,
Inverter C-L1 / L2,
Inverter-N
• Terminal for connecting the AC conductor of the
inverter.
• Inverter B and Inverter C are only for MPD
series products.
• Recommended specication: 6-8AWG, copper
conductor, 90℃.

15
4.3 Opening the Cabinet Door
Step 1 Unlock the cabinet door using the included key.
Step 2 Remove the six screws xing the insulation board(torque: 0.8Nm).
Step 3 Remove the insulation board.
1
1
11
1
1
2
1
2
1
0.8N·m
5. AC Grid
terminal
Grid-L1, Grid-L2,
Grid-N
• Terminal for connecting the Grid conductor.
• Recommended specication: 4/0-3AWG, copper
conductor, 90℃.
6. AC Loads
terminal
Load-L1, Load-L2,
Load-N
• Terminal for connecting the AC conductor of the
load.
• Recommended specication: 4/0-3AWG, copper
conductor, 90℃.
7. Grounding
busbar
• Busbar for connecting the PE cable.
• Recommended specication:
• Load-PE: 4-6AWG, copper conductor, 90℃.
• Inverter-PE: 10AWG, copper conductor, 90℃.

16
WARNING
• Connect the conductors to the right terminals like L1, L2, and N. The device may be
damaged if the conductors are connected inappropriately.
• Make sure that the whole conductors are inserted into the terminal holes. No part of the
conductor can be exposed.
• Make sure that the conductors are connected securely. Otherwise, the terminal may get
too hot and damage the device.
4.4 Connecting the Conductors
WARNING
• The ac output (neutral) is not bonded to ground.
4.4.1 Connecting the AC Conductors (Grid)
Step 1 Strip the conductor wiring.
Step 2 Remove the waterproof cover using the included cap removal tool.
Step 3 Insert the desired conduit and corresponding adaptors, ttings, and bushings.
Step 4 Insert the conductors into the device and tighten the conduit.
12
3
44
2
1
10N·m
4
3
1
2
2
4
10N·m
2
18-22mm
18-22mm
18-22mm

17
Step 1 Strip the conductor wiring.
Step 2 Remove the waterproof cover using the included cap removal tool.
Step 3 Insert the desired conduit and corresponding adaptors, ttings, and bushings.
Step 4 Insert the conductors into the device and tighten the conduit.
4.4.2 Connecting the AC Conductors (Load)
12
3
2
1
3
5
4
10N·m
5
1.6N·m
4
5
Step 1 Strip the conductor wiring, crimp the conductor with appropriate wire connector.
Step 2 Remove the waterproof cover using the included cap removal tool.
Step 3 Insert the desired conduit and corresponding adaptors, ttings, and bushings.
Step 4 Insert the conductors into the device and tighten the conduit.
4.4.3 Connecting the AC Conductors (Inverter)
18-22mm
18-22mm
18-22mm
10-12mm
3
1
4
4
2
4
10N·m
4
1.6N·m
2

18
1
4
2
3
1
1.6N·m
1 3
1
2
3N·m
2
5
2
3
1
0.8N·m
1 3
6
2
3
2
2
1
1
3
3
13-15mm 6-9mm
10-12mm13-15mm

19
L1
L2
Step 1 Prepare a RJ45 network cable and insert it into the terminal.
Step 2 Run the cable through the cable clip and the conduit.
4.4.4 Connecting the Communication Cable
4.4.5 Connecting the CT Cable (Optional)
ABD or MPD
ABD or MPD
Inverter
NOTICE
• Only for AC coupled inverters.
Step 1 Clamp the CT around the cable to be measured.
Step 2 Insert the CT cable into the terminal block.
Grid tied PV
inverter
Main Panel

20
4.5 Closing the Cabinet Door
Step 1 Install the insulation board.
Step 2 Tighten the six screws x the insulation board(torque: 0.8Nm).
Step 3 Optional. Lock up the device using the cabinet key. Keep the key properly for future use.
5 Equipment Commissioning
5.1 Check Before Power ON
5.2 Power ON the Device
No. Check Item
1The product is rmly installed at a clean place that is well-ventilated and easy-to-
operate.
2The PE, power, and communication cables are connected correctly and securely.
3Cable ties are intact, routed properly and evenly.
4Unused ports and terminals are tted using the waterproof caps.
5The insulation board is installed properly.
6The voltage and frequency at the connection point meet the grid connection
requirements.
7 The electrical conduit holes are sealed.
Step 1 Turn on the main breaker of the device.
Step 2 Turn on the inverter breaker of the device.
2
2
22
2
2
1
2
0.8N·m
1
2
3
