Graco Extend2Fit User manual

www.gracobaby.com
Read This Instruction Manual
NWL0001153323A 8/20
4-IN-1 CAR SEAT
featuring Anti-Rebound bar
4EVER®DLX EXTEND2FIT®
Do not install or use this child restraint until you read and understand
the instructions in this manual.
FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE
RISK OF SERIOUS INJURY OR DEATH IN A SUDDEN STOP OR CRASH.
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 1NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 1 8/28/20 3:50 PM8/28/20 3:50 PM

2
1-A Quick Guide to Your Manual
1-B Welcome to the Graco Family
1-C Right Mode of Use
1-D Before You Begin
Register This Child Restraint
If You Need Help
Certification
Car Seat’s Useful Life
Vehicle Seat Protection
Warm Weather Use
1-E Safety Warnings
1 Important Pages 6-27
2 Features Pages 28-33
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 2NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 2 8/28/20 3:50 PM8/28/20 3:50 PM

3
4-A Forward-Facing Use
4-B Install Forward-Facing with LATCH
4-C Install Forward-Facing with the Vehicle Seat Belt
4 Forward-Facing Pages 50-67
3-A Rear-Facing Use
3-B Install Rear-Facing with Lower Anchor Attachment
3-C Install Rear-Facing with Vehicle Seat Belt
3 Rear-Facing Pages 34-49
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 3NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 3 8/28/20 3:50 PM8/28/20 3:50 PM

4
5-A Securing Child 5-Point Harness
5 Securing Child Pages 68-77
6-A Booster Use
6-B Install Highback Booster
6-C Install Backless Booster
6-D Securing Child Highback Booster
6-E Securing Child Backless Booster
6 Booster Pages 78-106
8 Accessories Page 111
7 Moving the Lower Anchor
Attachment
Pages 107-110
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 4NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 4 8/28/20 3:50 PM8/28/20 3:50 PM

5
10-A How to Uninstall Lower Anchor Connectors and Tether
10-B Choosing Vehicle Seat Location
10-C Unsafe Vehicle Seat Location
10-D Vehicle Seat Belts
11-A Cleaning Rapid RemoveSeat Pad
11-B Cleaning Crotch Buckle
11-C Cleaning Harness, Lower Anchor Attachment and Tether
11-D Cleaning Extend2Fit®Extension Panel
11-E Cleaning Anti-Rebound Bar
10 Vehicle Information Pages 114-124
11 Care & Cleaning Pages 125-130
9 Anti-Rebound Bar Pages 112-113
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 5NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 5 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
6
1-A Quick Guide to Your Manual
This car seat is for children: Rear-Facing: 4-50 lb (1.8-22.5 kg)
Forward-Facing: 22-65 lb (10-30 kg)
Backed Booster: 40-100 lb (18.1-45 kg)
Backless Booster: 40-120 lb (18.1-54 kg)
• Children less than 22 lb (10 kg) must use this car seat rear-facing. Review section 1-C for
more information.
Note: Preterm or low birth weight infants may be at special risk in a vehicle or aircraft.
According to the AAP, these infants may suffer breathing issues if improperly reclined in a
car seat. When rear-facing, use the corrected age for preemies. Graco advises that you have
your physician or hospital staff evaluate your infant and recommend the proper car seat or
car bed before you and your infant leave the hospital.
R
L

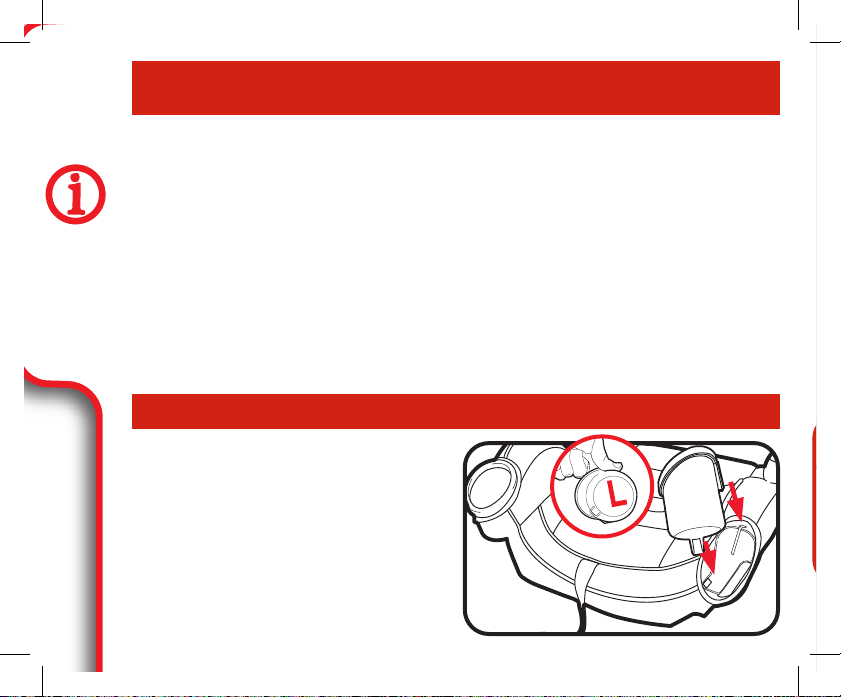

Cup holders MUST be installed.
To attach the cup holders, unsnap the seat pad
from the side and match the right cup holder to
the right side of the seat and the left to the left.
Align the tabs on the cup holder with the slots
in the seat and slide down. You will hear a
“CLICK” when they are secured in place.
Install Cup Holders (Adult Assembly Required)
Review section 2-A to see all of the features of this car seat.
The best seating location for this car seat is one that:
• Is recommended by your vehicle owner’s manual, and
• Results in a secure installation of this car seat.
Some vehicles have specific requirements for where the car seat can be installed, so
be sure to check your vehicle owner’s manual for available seating positions, if any. For
example, sometimes the center rear seat has a lap belt only vehicle seat belt, which cannot
be used when this car seat is in Booster mode.
Review section 10-B, 10-C and 10-D of this manual AND your vehicle owner’s manual.
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 6NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 6 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
7
Get to Know Your Car Seat
What Seating Location Should I Use?
Review section 2-A to see all of the features of this car seat.
The best seating location for this car seat is one that:
• Is recommended by your vehicle owner’s manual, and
• Results in a secure installation of this car seat.
Some vehicles have specific requirements for where the car seat can be installed, so
be sure to check your vehicle owner’s manual for available seating positions, if any. For
example, sometimes the center rear seat has a lap belt only vehicle seat belt, which cannot
be used when this car seat is in Booster mode.
Review section 10-B, 10-C and 10-D of this manual AND your vehicle owner’s manual.
NEVER place this child restraint rear-facing in a vehicle seating
location that has an active front air bag.
In the event there is no back seat, review your vehicle owner’s manual to
see how to use your child restraint.
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 7NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 7 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
8
Which Installation Method Should I Use?
This car seat can be installed in your vehicle using either the vehicle seat
belt OR the lower anchor attachment. Both are equally safe to use. INSTALL
USING ONLY ONE METHOD.
Vehicle Seat Belt: Review section 10 and your vehicle owner’s manual to
learn how to install your car seat with the vehicle seat belts.
LATCH or Lower Anchor Attachment: The LATCH system or lower anchor
attachment allows you to securely attach your safety seat in your car without
using the vehicle seat belt and possibly to get a better fit. All 2003 and
newer model year vehicles are required to have a LATCH system, although
some manufacturers began including LATCH earlier. Some vehicle owner
manuals use the term ISOFIX to identify the LATCH system.
According to accident statistics, children are
safer when properly restrained in the rear seating
positions than in the front seating positions. The
center of the back seat can be the safest during
a possible side impact.
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 8NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 8 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
9
LATCH consists of lower anchors and a tether anchor, which are built in
to your vehicle, and a lower anchor attachment and a tether that are built
in to your car seat. The lower anchor attachment is used INSTEAD of the
vehicle’s seat belt to secure the child seat to the vehicle. The tether is used
IN ADDITION to the lower anchor attachment OR the vehicle’s seat belt to
secure a forward-facing car seat to the vehicle.
Review your vehicle’s owner manual for exact location and use.
What is LATCH?
Vehicle’s Tether
Anchor
Vehicle’s Lower
Anchor
Typical seat in a passenger
vehicle. Other vehicle types may
have different lower anchor and
tether anchor locations.
Vehicle Seat Bight
11”
(28 cm)
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 9NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 9 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
10
When Installing Rear-Facing or Forward-Facing
Lower Anchor Attachment
The lower anchor attachment consists of
lower anchors, which are built in to your
vehicle, and lower anchor connectors that
are built in your car seat.
Review section 3-B, 4-B of this manual
AND your vehicle owner’s manual before
installing.
Lower anchor attachment can ONLY be
used if the vehicle lower anchor spacing
is 11 inches (28 cm) from the center of
one lower anchor to the center of the
other lower anchor.
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 10NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 10 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
11
Vehicle Seat Belt
Only use the Lap/Shoulder seat
belt configuration.
Review section 6-B, 6-C, 6-D, 6-E
and 10 of this manual AND your
vehicle owner’s manual.
When Installing As a Booster
Vehicle Seat Belt
There are two types of vehicle seat belts
that can be used. Lap/Shoulder Seat Belt
or Lap Only Seat Belt.
Review section 3-C, 4-C and 10 of this
manual AND your vehicle owner’s manual
before installing.
When Installing Rear-Facing or Forward-Facing (continued)
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 11NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 11 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
12
Does Your Car Seat Fit Your Child Correctly?
To make sure your child is secured properly, review section 3,4,5 and 6 to
understand all of the actions you need to take to properly adjust the car seat
to fit your child.
For Rear-Facing, You Need to Adjust:
Harness Height, Rear-Facing(A)
Harness straps at or just below the child’s
shoulders and top of head must be 1” (2.5 cm)
below the headrest adjustment lever (B). Review
section 5.
Buckle Position (C)
The correct slot is the one that is closest to
your child without being underneath them.
Review section 5.
Harness Tightness (D)
If your fingers slide off the harness straps
without pinching the straps, it is tight enough.
Review section 5.
A
C
B
D
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 12NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 12 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
13
Harness Height, Forward-Facing (A)
Harness straps at or just above the child’s
shoulders and top of child’s ears below top of
headrest (B). Review section 5.
Buckle Position (C)
The correct slot is the one that is closest to
your child without being underneath them.
Review section 5.
Harness Tightness (D)
If your fingers slide off the harness straps
without pinching the straps, it is tight enough.
Review section 5.
For Forward-Facing, You Need to Adjust:
A
C
B
D
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 13NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 13 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
14
Use Lap/Shoulder Belt Only
Position Lap Belt
Lap belt must go behind armrest
and lie low across your child’s
hips and thighs.
Position Shoulder Belt
Shoulder belt lies across shoulder
between neck and edge of
shoulder.
For Booster, You Need to Adjust:
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 14NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 14 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
15
Did You Do Everything Correctly?
Car Seat Does Not Move More
than 1” (2.5 cm) at the Belt
Path (A)
Review section 3
Level Indicator’s Bubble in the
Blue Zone (B)
Review section 3
Harness Straps at or Just Below
the Child’s Shoulders (C)
Review section 5.
Chest Clip Even With Armpits (D)
Review section 5
Cannot Pinch Harness Straps at
the Shoulder (E)
Review section 5
Rear-Facing
A B
C
E
D
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 15NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 15 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
16
Use the Tether Strap When
Using Forward-facing (A)
When used properly, the tether
helps reduce injury in a sudden
stop or crash.
Review section 4
Car Seat Does Not Move More
than 1” (2.5 cm) at the Belt
Path (B)
Review section 4
Harness Straps at or Just
Above Child’s Shoulders (C)
Review section 5
Chest Clip Even With Armpits(D)
Review section 5
Cannot Pinch Harness Straps
at the Shoulder (E)
Review section 5
Forward-Facing
B
A
D E
C
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 16NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 16 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
17
Never Use Lap Belt Only
Review section 6
Lap Belt Behind Armrest and
Lies Low Across Hips and Thighs
Review section 6
Shoulder Belt Lies On the
Shoulder, Between the Neck and
Edge of Shoulders
Review section 6
Booster
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 17NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 17 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
18
1-B Welcome to the Graco Family!
Your child’s safety depends on you. No car seat can guarantee
protection from injury in every situation, but proper use helps reduce
the risk of serious injury or death.
Even if this car seat seems easy to figure out on your own, you must
follow the detailed instructions in this instruction manual to ensure the
steps below are performed correctly.
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 18NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 18 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
19
1-C Right Mode of Use
4 lb
(1.8 kg)
22 lb
(10 kg)
40 lb
(18.1kg) 50 lb
(22.5 kg)
65 lb
(30 kg)
120 lb
(54 kg)
Rear-Facing with 5-Point Harness
Must be 49” (125 cm) or less:
4-22 lb (1.8-10 kg) less than 1
year old MUST be rear-facing.
22-50 lb (10-22.5 kg) SHOULD
be rear-facing.*
Forward-Facing with 5-Point Harness
Must be 49” (125 cm) or less:
22-50 lb (10-22.5 kg) can sit upright
unassisted CAN be forward-facing.
50-65 lb (22.5-30 kg) SHOULD be
forward-facing.*
Booster Mode with Vehicle Lap/Shoulder Seat Belt
Must be 43-57” (110.1-145 cm) tall and 4+ years old:
40-65 lb (18.1-30 kg) CAN be in backed booster mode.
40-65 lb (18.1-30 kg) CAN be in backless booster mode.
Over 65 lb (30 kg) MUST be in booster mode.*
*Check your local and state laws and the AAP/NHTSA recommendations. See page 25
for more information.
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 19NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 19 8/28/20 3:50 PM8/28/20 3:50 PM

Important
1
Important
1
20
1-D Before You Begin
Please fill out the prepaid registration postcard attached to the harness
and mail it in today or register online at www.gracobaby.com/
carseatregistration.
Child restraints could be recalled for safety reasons. You must register
this restraint to be reached in a recall. Send your name, address, and the
restraint’s model number and manufacturing date to:
Graco Children’s Products, Inc.
Attn: Customer Service
P.O. Box 169, Elverson, PA 19520-9901
or call 1-800-345-4109
or register online at
www.gracobaby.com/carseatregistration
For recall information, call the U.S. Government’s Vehicle Safety Hotline at
1-888-327-4236 (TTY: 1–800–424–9153), or go to http://www.NHTSA.gov.
Register This Child Restraint
NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 20NWL0001153323A 4Ever DLX Extend2Fit USA ENG R07.indd 20 8/28/20 3:50 PM8/28/20 3:50 PM
