Graco NAUTILUS User manual

© 2013 Graco PD247333A 5/13 US
READ THIS MANUAL
Do not install or use this child restraint until you read and understand the instructions in this manual.
FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE RISK OF SERIOUS
INJURYOR DEATH INASUDDEN STOP OR CRASH.
Child Restraint/Booster Seat
Owner’s Manual

2
Table of Contents
1.0 Warnings to Parents and Other Users
......................4-5
2.0 Registration Information.........6
2.1 Register Your Child Restraint 6
2.2 For Recall Information ......6
2.3 If You Need Help ..........7
3.0 Useful Information .............7
3.1 Certification...............7
3.2 Child Restraint Useful Life....7
3.3 Second Hand Child Restraint .7
4.0 Features...................8-9
5.0 Assembling the Child Restraint10-13
6.0 WARNINGS..............14-15
7.0 Height and Weight Limitations . . .16
7.1 WITHBuilt-inHarness......16
7.2 WITHOUT Built-in Harness. .17
7.3 WITHOUT Back Support....18
8.0 Choosing anAppropriate Vehicle
Seat Location ...............19
8.1 Vehicle Seat Location
Requirements............19
8.2 Vehicle Seat Belt Requirements
......................20
8.3 SAFE Vehicle Seat Belt
Systems ................20
8.4 For Built-in Harness Only . .21
8.5 WITH or WITHOUT Built-in
Harness................22
8.6 To Install Locking Clip......23
8.7 UNSAFE Vehicle Belt
Systems..............24-25
9.0 LATCH......................26
9.1 WhatisLATCH?.......26-27
9.2 LATCHSystem........28-29
10.0Using Child Restraint WITH Built-in
Harness.................30-35

3
Table of Contents (cont.)
11.0 Securing the Child Restraint in Your
Vehicle .....................36
11.1 Using a Child Restraint WITH a
Built-inHarness..........36
11.2 With a Vehicle Lap or
Lap/shoulder belt ......36-37
11.3WithLATCH..........38-39
12.0Securing Your Child in the
Child Restraint............40-41
13.0 Harness Removal or
Re-attaching Harness ......42-46
14.0 Using Your Child Restraint WITHOUT
Built-inHarness...........47-49
15.0 Securing Child & Booster Seat in . .
Vehicle.....................50
16.0 Adjusting Head Support........51
17.0 Removing or Re-attaching Back
Support .................52-54
18.0 Securing Child in Vehicle Belt
with Shoulder Belt
Positioning Clip ...........55-58
19.0 Using the Tether..............59
19.1 Storing Lower Anchors and
Tether..................60
20.0 Airplane Use ................61
21.0Accessories.................62
21.1 Body Support and
HarnessCovers...... ...62
21.2 Body Support and
HarnessCovers...... ...63
22.0 Recline Foot ................64
23.0 Care and Maintenance .........65
23.1 Buckle Cleaning Process. . .66
24.0 To Remove or Re-attach
SeatCover..................67
25.0 Owners Manual Storage. .......68
26.0 Replacement Parts and
Warranty.....................68

4

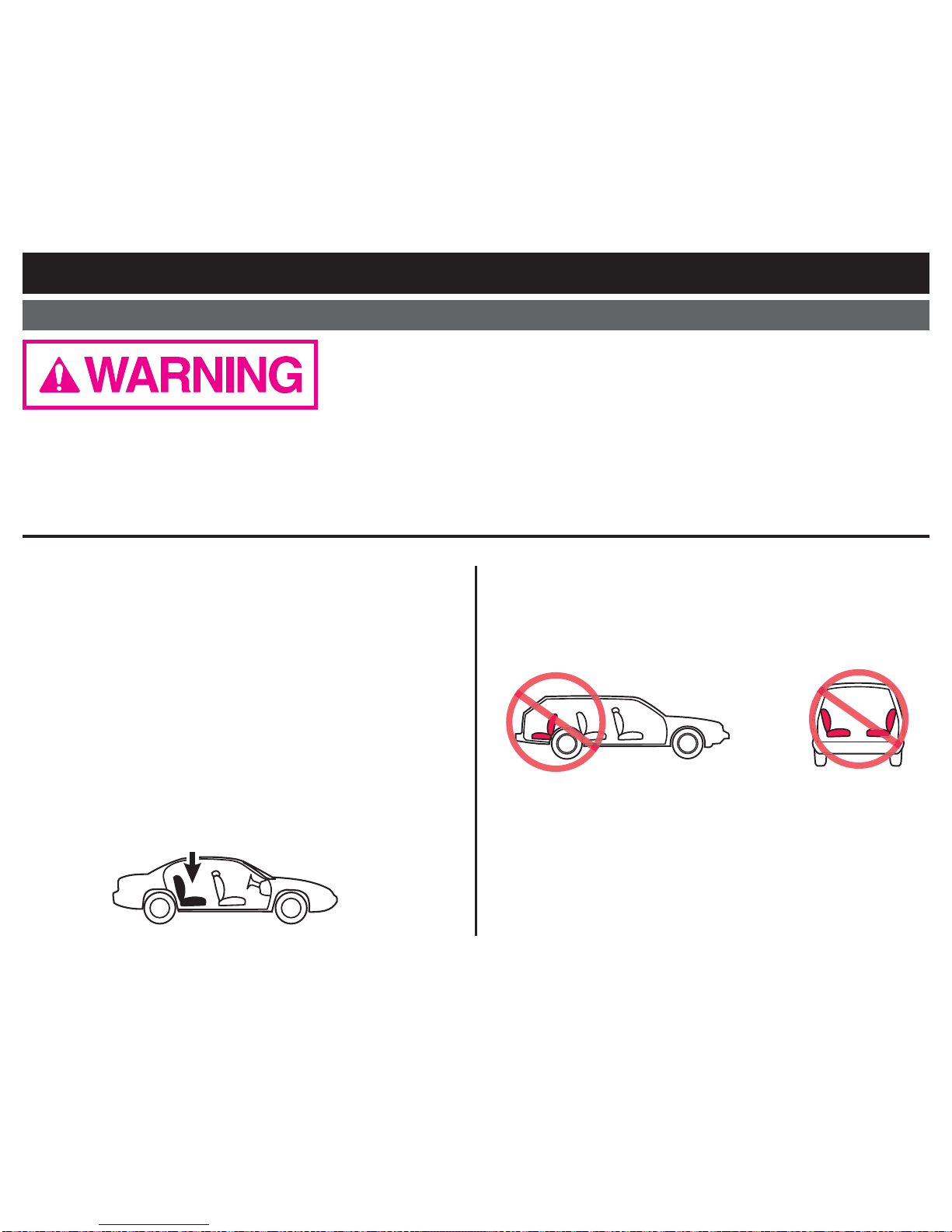

1.0 Warnings to Parents and Other Users

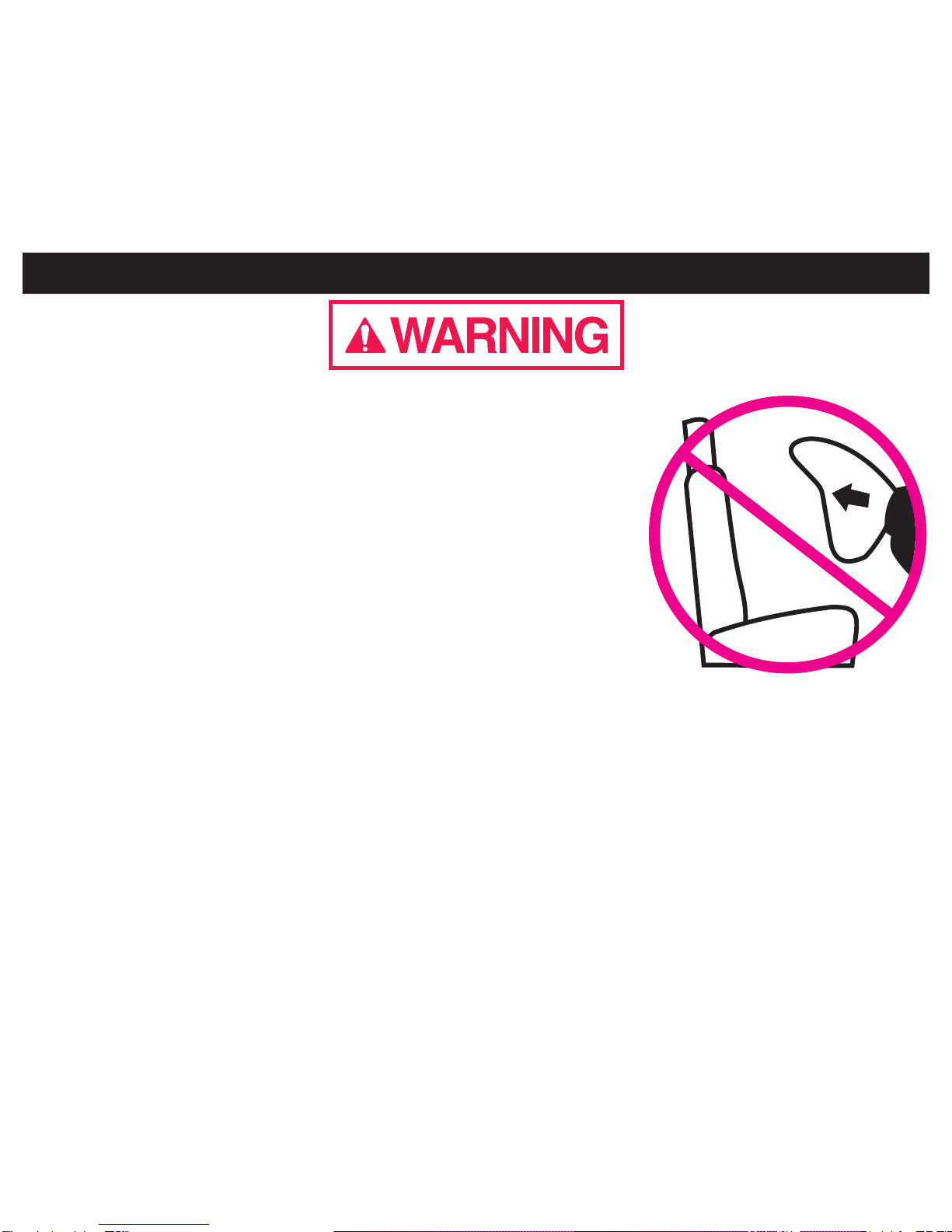

NEVER PLACE THIS CHILD RESTRAINT INA VEHICLE
SEATING LOCATION THAT HAS A FRONTAIR BAG. If an air
EDJLQÀDWHVLWFDQKLWWKHFKLOGDQGFKLOGUHVWUDLQWZLWKJUHDWIRUFH
and cause serious injury or death to your child. Refer to your
vehicle owner’s manual for information about side air bags and
child restraint installation.

5
Failure to properly use this child restraint increases the risk of serious injury or death in a sharp
WXUQVXGGHQVWRSRUFUDVK<RXUFKLOG¶VVDIHW\GHSHQGVRQ\RXLQVWDOOLQJDQGXVLQJWKLVFKLOG
restraint correctly.
(YHQLIXVLQJWKLVFKLOGUHVWUDLQWVHHPVHDV\WR¿JXUHRXWRQ\RXURZQLWLVYHU\LPSRUWDQWWR5($'
THE OWNER’S MANUALand the vehicle owner’s manual.
Your child’s safety depends on:
1. Choosing the correct mode of use for the child restraint depending on your child’s size.
2. Inserting the harness straps (if needed) in the proper slots for your child.
3. Selecting a suitable location for the child restraint in your vehicle.
4. Properly routing the vehicle seat belt or LATCH.
5. Properly securing the child restraint in the vehicle using a seat belt designed to restrain
both the child restraint and your child or by using LATCH. Many seat belts are NOT safe to use
with this child restraintHYHQWKRXJKWKH\FDQHDVLO\EHWKUHDGHGWKURXJKRUDURXQGWKHchild
restraint!
6. Properly securing your child in the child restraint.

6
2.0 Registration Information
3OHDVH¿OOLQWKHDERYHLQIRUPDWLRQ7KHPRGHOQXPEHUDQGGDWHRIPDQXIDFWXUHFDQEHIRXQGRQ
a label on the child restraint. Fill out the prepaid registration postcard attached to the harness and
mail it today.
Child restraints could be recalled for safety reasons. You must register this restraint to be reached
in a recall. 6HQG\RXUQDPHDGGUHVVDQGWKHUHVWUDLQW¶VPRGHOQXPEHUDQGdate of manufacture
to: Graco Children’s Products Inc.
Attn: Customer Service
3 Glenlake Parkway, Atlanta, GA 30328
or call 1-800-345-4109 or register online at:
http://www.gracobaby.com/carseatregistration
2.1 Register Your Child Restraint
Call the U.S. Government’s Vehicle Safety Hotline at: 1-888-327-4236
(TTY:1-800-424-9153), or go to http://www.NHTSA.gov or contact Graco:
1-800-345-4109 or www.gracobaby.com
2.2 For Recall Information
Model Number:
Date of Manufacture:
Purchase Date:

7
3.2 Child Restraint Useful Life
Please contact our Customer Service Department with any questions you may have concerning
SDUWVXVHRUPDLQWHQDQFH:KHQ\RXFRQWDFWXVSOHDVHKDYH\RXUSURGXFW¶VPRGHODQG
GDWHRIPDQXIDFWXUHUHDG\VRWKDWZHPD\KHOS\RXHI¿FLHQWO\7KHVHQXPEHUVFDQEHIRXQG
on a label on the child restraint.
USA: 1-800-345-4109 or www.gracobaby.com
www.cpsc.gov
www.NHTSA.gov
www.seatcheck.org
2.3 If You Need Help
THIS CHILD RESTRAINT
CONFORMS to all applicable
Federal Motor Vehicle Safety
6WDQGDUGVDQGLVFHUWL¿HGIRUXVHLQ
motor vehicles.
,WLVFHUWL¿HGIRUXVHLQ$LUFUDIWRQO\
when used with the built-in harness.
When used as a booster without
WKHKDUQHVVWKLVUHVWUDLQW
LVQRWFHUWL¿HGIRUXVHLQDLUFUDIW
3.1&HUWLÀFDWLRQ
Graco Children’s Products Inc. advises against loaning or
passing along a child restraint.
3.3 Second Hand Child Restraint
3.0 Useful Information
STOP using this child restraint and throw it away
10 years after the date of manufacture. Look for this
sticker on rear of child restraint:
MODEL
Date of Manufacture
GRACO CHILDREN'S PRODUCTS, INC.
ATLANTA, GA 30328 1-800-345-4109
Made in China
PD206938A
NAME
year month day

8

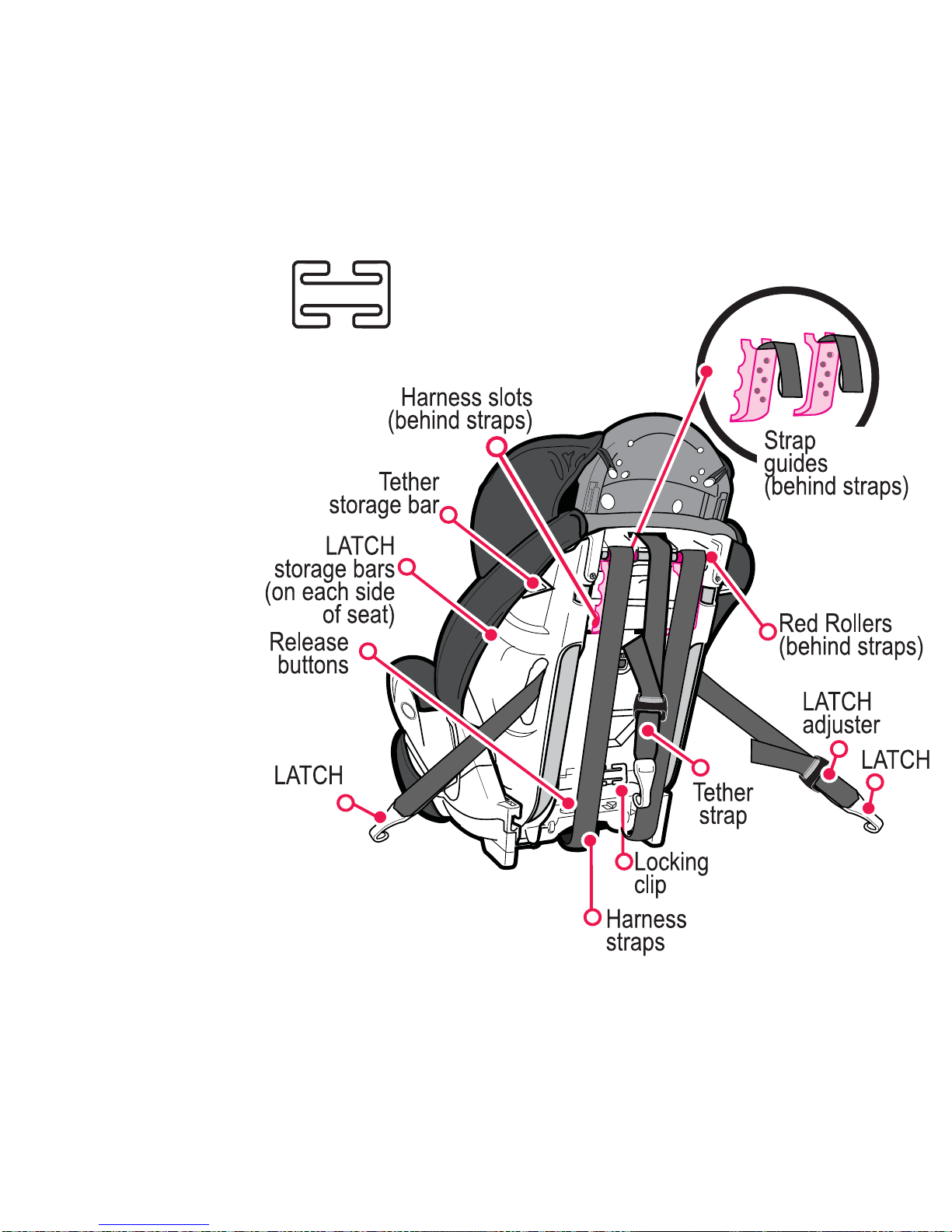

4.0 Features

9
The locking clip is stored
on the back of the child
restraint. You will need
to use it with certain
types of vehicle seat
belts.
United States Federal
Motor Vehicle Safety
Standards have
GH¿QHGDV\VWHPIRU
installing child restraints
in vehicles. The system
is called LATCH (Lower
Anchorage and Tether
for CHildren). LATCH
may ONLY be used
IN PLACE of vehicle belt
if vehicle is equipped
with LATCH anchor
points. Please refer to
vehicle owners manual
for LATCH locations in
vehicles.

10


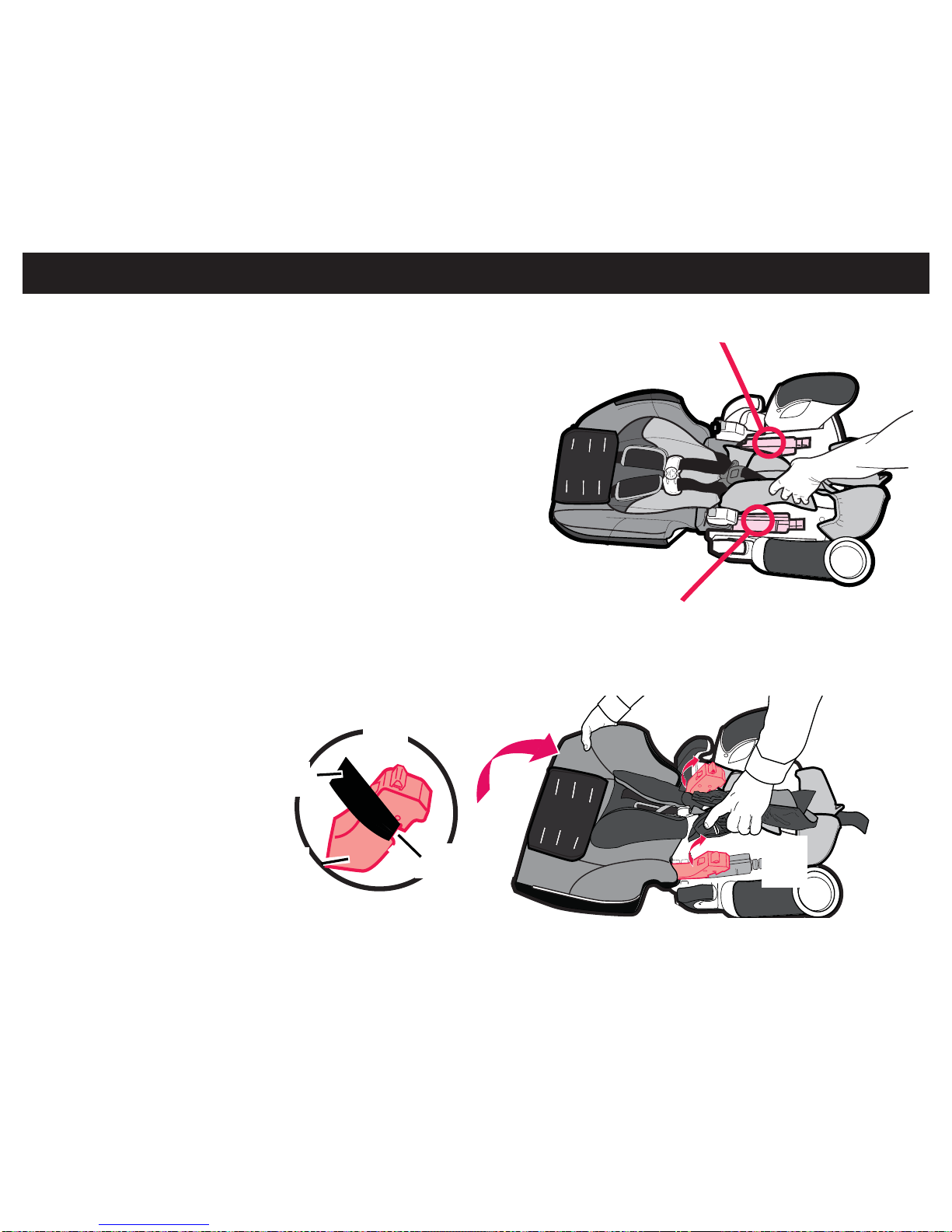

1. Lay child restraint flat on back. Grab seat pad
fabric in sitting area to expose the gutters .
MAKE SUREDOOKDQGVILQJHUVDQGRWKHUREMHFWV
are clear of the gutters.
2. MAKE sure the harness straps are securely
attached within the “T”-shaped slots around the
arms as shown .
:LWK\RXURWKHUKDQGUDLVHVHDWEDFNVRWKDW
both arms LOCK into the gutters .
KEEP GUTTERS CLEAR
KEEP GUTTERS CLEAR
A r m
Harness Strap
T-slot
5.0 Assembling the Child Restraint
Adult assembly required.



11
3.Arms should CLICK into the gutters.
Seat assembly should appear as shown .
CLICK!


4.Attach 4 elastic loops from the seat pad under
the seat exactly as shown in .

12

5. Pull elastic loop on the seat pad through the
vehicle belt guide on side of seat and attach to
hook as shown . Repeat on other side.
6. Squeeze height adjust button and push
head support into slots on the back support
as shown. Head support will click into the back
support.
You may need to unfasten the hook and loop
attachment tape on both sides at the top of
the back support to allow for easier access to
the slots.
Always use child restraint with head support
installed and properly adjusted.
CLICK!



13
7. The assembly is now complete.

14
6.0 WARNINGS
DO NOT use locking clip in booster mode.
$FFRUGLQJWRDFFLGHQWVWDWLVWLFV
CHILDRENARE SAFER WHEN PROPERLY
RESTRAINED IN REAR VEHICLE
SEATING POSITIONS, RATHER THAN
FRONT SEATING POSITIONS. For a
YHKLFOHZLWKDIURQWSDVVHQJHUDLUEDJUHIHUWR
your vehicle owner’s manual as well as these
instructions for child restraint installation.
NEVER LEAVE YOUR CHILD
UNATTENDED.
12&+,/'5(675$,17&$1*8$5$17((
PROTECTION FROM INJURY. +RZHYHU
proper use of this child restraint reduces the
risk of serious injury or death to your child.
DO NOT INSTALL OR USE THIS CHILD
RESTRAINT UNTILYOU READ AND
UNDERSTAND THE INSTRUCTIONS IN THIS
MANUALAND IN YOUR VEHICLE OWNER’S
MANUAL. DO NOT let others install or use the
child restraint unless they understand how to
use it.
FAILURE TO PROPERLY USE THIS CHILD
RESTRAINT INCREASES THE RISK OF
SERIOUS INJURY OR DEATH IN A SHARP
TURN, SUDDEN STOP OR CRASH. Your child
can be injured in a vehicle even if you are not
in a crash. Sudden braking and sharp turns
can injure your child if the child restraint is not
properly installed or if your child is not properly
secured in the child restraint.

15
NEVER LEAVE ACHILD RESTRAINT
UNSECURED IN YOUR VEHICLE.An
unsecured child restraint can be thrown around
DQGPD\LQMXUHRFFXSDQWVLQDVKDUSWXUQ
sudden stop or crash. Remove it or make sure
that it is securely belted in the vehicle. If not
using LATCH and tether,make sure LATCH
and tether connectors are properly stored on
back of seat.
REPLACE THE CHILD RESTRAINTAFTER
AN ACCIDENT OFANY KIND. An accident
can cause damage to the child restraint that
you cannot see.
DO NOT MODIFY YOUR CHILD
RESTRAINT or use any accessories or parts
supplied by other manufacturers.
NEVER USE CHILD RESTRAINT IF IT HAS
DAMAGED OR MISSING PARTS. Do not use
DFXWIUD\HGRUGDPDJHGFKLOGUHVWUDLQW
KDUQHVVLATCH belt or vehicle seat belt.
THE CHILD RESTRAINT CAN BECOME
VERY HOT IF LEFT IN THE SUN. Contact with
these parts can burn your child’s skin.Always
touch the surface of any metal or plastic parts
before putting your child in the child restraint.
NEVER GIVE THIS CHILD RESTRAINT to
someone else without also giving them this
manual.
NEVER USEA SECOND-HAND CHILD
RESTRAINT or a child restraint whose history
you do not know.
DO NOT USE THIS child restraint without
properly assembling it.

16
FAILURE TO USE CHILD RESTRAINT INAMANNER APPROPRIATE FOR YOUR CHILD’S
SIZE MAY INCREASE THE RISK OF SERIOUS INJURY OR DEATH. Instructions for the use of
this child restraint differ greatly depending on the size of your child. Be sure you are using the child
restraint in the correct mode and with the correct features for your child.
7.0 Height and Weight Limitations
Your child must meet all requirements:
:HLJKWWROEVPDVVEHWZHHQDQGNJ
+HLJKWWRLQFKHVDQGFPLQKHLJKW
$WOHDVWRQH\HDUROGDQGFDQVLWXSULJKWXQDVVLVWHG
6KRXOGHUVDUHBELOW top harness slots.
,IVKRXOGHUVDUHDERYHWRSKDUQHVVVORWVFKLOG
is too large for built-in harness.
7.1 WITH Built-In Harness

17
7.2 WITHOUT Built-in Harness
Your child must meet all requirements:
:HLJKWWROEV
(mass between 13.6 and 45 kg)
+HLJKWWRLQFKHV
(96 and 145 cm) in height
DSSUR[LPDWHO\\HDUVRIDJH

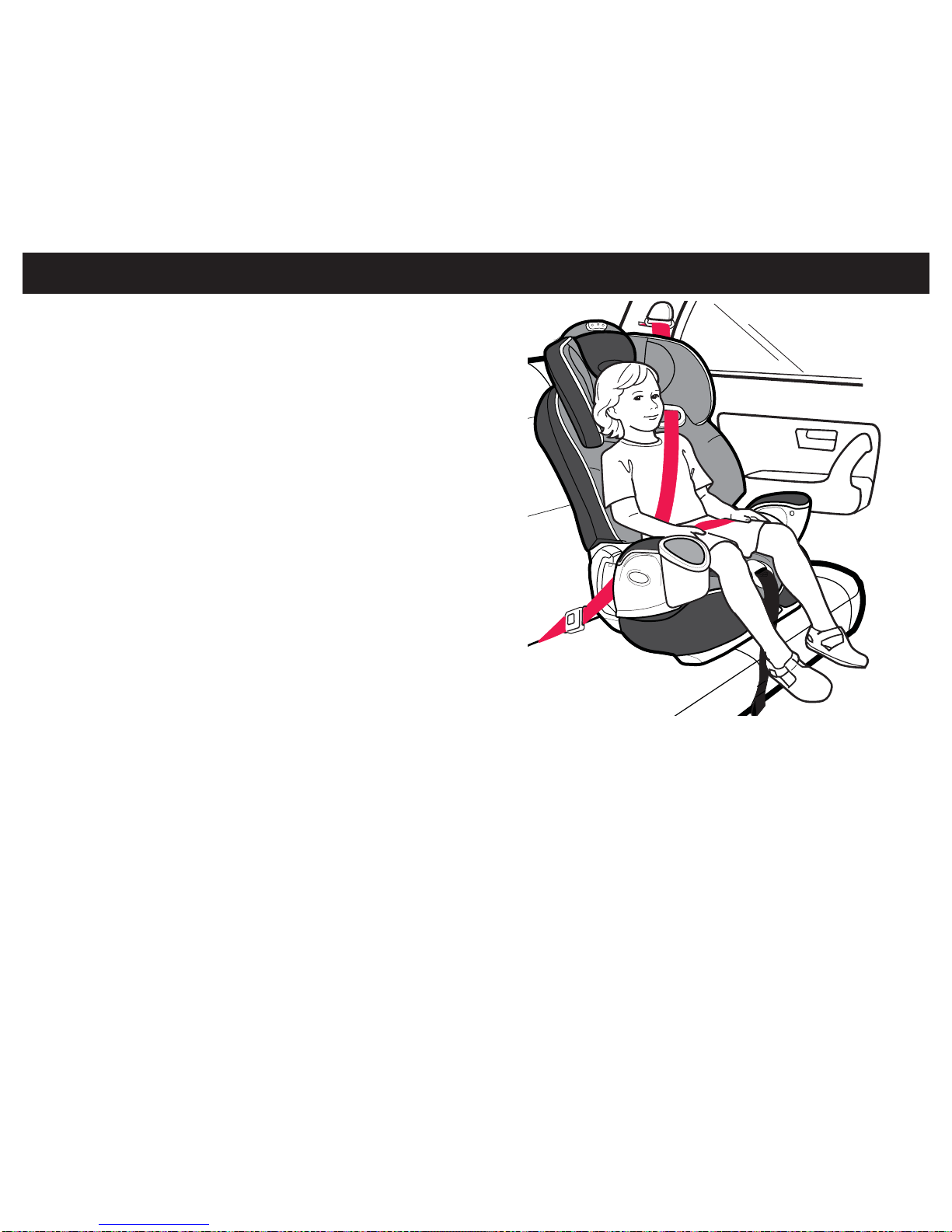

WKHVKRXOGHUEHOWMUST lie across child’s
shoulder as shown and the lap portion of the
belt is positionned low on the child’s hips.
&KLOG¶VHDUVDUHBELOW top of booster seat.
,IWRSVRIHDUVDUHDERYHWRSRIVHDWFKLOGLVWRR
large for booster seat.
If child is between 30 and 65 lbs and
shoulders are below the upper harness
slots, we highly recommend use of the
built-in harness for as long as possible
(up to 65 lbs).

18
7.3 WITHOUT Back Support
Your child must meet all requirements:
ZHLJKEHWZHHQDQGOEV
PDVVEHWZHHQDQGNJ
DQGDUHEHWZHHQDQGLQFKHV
DQGFPLQKHLJKW
DSSUR[LPDWHO\\HDUVRIDJH
WKHVKRXOGHUEHOWMUST lie across child’s
shoulder as shown and the lap portion of the
belt is positionned low on the child’s hips.
:KHQVLWWLQJRQWKHERRVWHUVHDW\RXUFKLOG¶V
ears should be below the top of the vehicle seat
cushion / head rest.
Your Graco booster seat can be used with or
without the back support as long as all
requirements are met.

19
8.0 Choosing an Appropriate Vehicle Seat Location
8.1 Vehicle Seat Location Requirements
Some seating positions in your vehicle may not be safe for this child restraint. Some vehicles do
not have any seating positions that can be used safely with the child restraint. If you are not sure
ZKHUHWRSODFHWKHFKLOGUHVWUDLQWLQ\RXUYHKLFOHFRQVXOW\RXUYHKLFOHRZQHU¶VPDQXDORUFDOO
*UDFR&KLOGUHQ¶V3URGXFWV,QF
Children are safer when properly
restrained in rear vehicle seating positions.
Whenever possible secure the child restraint in
the center position of the seat directly behind
WKHIURQWVHDWV+RZHYHUWKLVSRVLWLRQLV
sometimes equipped with a lap belt only and
cannot be used when this child restraint is
used without the built-in harness.
7KHYHKLFOHVHDWPXVWIDFHIRUZDUG
Do not use child restraints on rear-facing or
side-facing vehicle seats.
IMPROPER PLACEMENT OF THE CHILD RESTRAINT
INCREASES THE RISK OF SERIOUS INJURY OR DEATH.

20
8.2 Vehicle Seat Belt Requirements
8.3 SAFE Vehicle Seat Belt Systems
MANY SEAT BELT SYSTEMS ARE NOT SAFE TO USE
WITH THE CHILD RESTRAINT. THE VEHICLE SEAT BELT
MUST BE DESIGNED TO HOLD THE CHILD RESTRAINT
TIGHTLY AT ALL TIMES. Pay careful attention to these systems; some of the seat belts that
DUHQRWVDIHWRXVHORRNYHU\PXFKOLNHVHDWEHOWVWKDWDUHVDIHWRXVH,I\RXDUHXQVXUH
FRQVXOW\RXUYHKLFOHRZQHU¶VPDQXDORUFDOO*UDFR&KLOGUHQ¶V3URGXFWV,QF
THE FOLLOWING BELT SYSTEMS CAN BE USED WITH YOUR CHILD RESTRAINT, IF the
seat location meets all other requirements of these instructions and those in your vehicle owner's
manual. LATCH can be used in place of the following vehicle belt systems if your vehicle is
equipped with LATCH anchor points. Please refer to vehicle owners manual for LATCH locations.
