Graco 234533 Parts list manual

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2003, Graco Inc. is registered to I.S. EN ISO 9001
234533
For use with Multi-Orifice Linear Streaming Applicator (MOLSA) to apply automotive Liquid Applied
Sound Deadener (LASD) materials.
100 psi (0.68 MPa, 6.8 bar) Maximum Working Pressure
120° F (35° C) Maximum Fluid Temperature
Read warnings and instructions.
See table of contents, page 2.
310623A
Instructions/Parts
Cleaning System

Table of Contents
2 310623A
Table of Contents
Manual Conventions . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 10
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 10
Manual Conventions
Note:
WARNING
WARNING: a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION
CAUTION: a potentially hazardous situation which, if
not avoided, may result in property damage or destruc-
tion of equipment.
Additional helpful information.

Warnings
310623A 3
Warnings
The following warnings include general safety information for this equipment. More specific warnings are included in
the text where applicable.
Warning
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system com-
ponent. See Technical Data in all equipment manuals.
• Use with water (or water treated with anti-fungal materials) only. See Technical Data in all equipment
manuals.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your Graco distributor for information.
• For professional use only.
• Locate away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not use hoses to pull equipment.
• Comply with all applicable safety regulations.

Setup
4 310623A
Setup
Key:
A Tank Assembly
B Secondary Float Valve
C Air Pressure Regulator
D Diaphragm Pump
ESprayBar
F Drain Valve
G Water Supply Valve
H Sponge
J Primary Float Valve
KFilterValve
L Primary Reservoir
M Sponge Holder
N Filter Housing
PRollers
Q Spray Bar Bolt

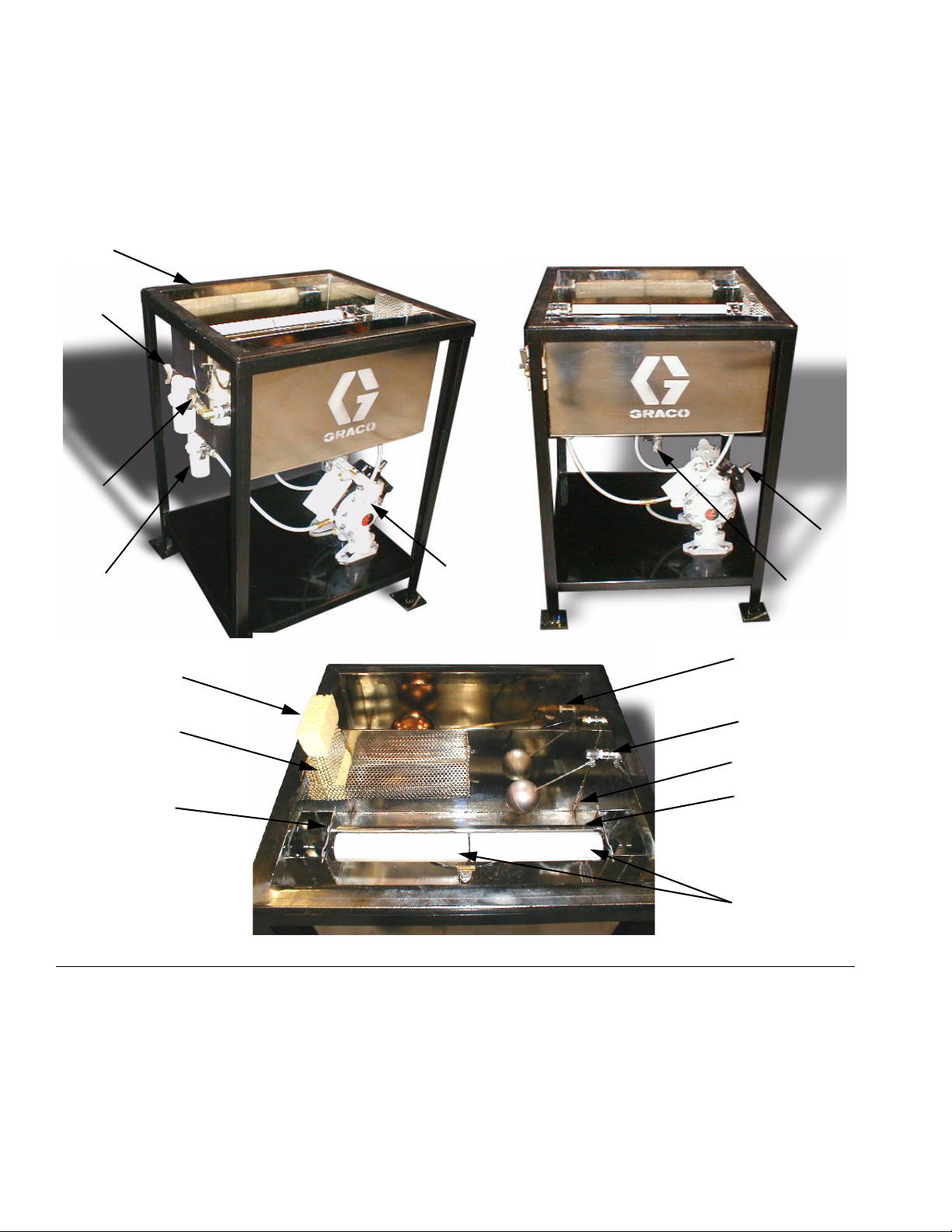

FIG. 1: Typical Installation
M
H
B
J
L
E
P
K
G
N
A
D
F
C
Q

Setup
310623A 5
Mounting the tank
Secure the tank to the floor using the mounting holes on
the tank legs. See Dimensions in the Technical Data on
page 9.
Connecting the water and air supply
Connect the 1/4 in. (6 mm) water and air supply lines to
the tank assembly.
Starting the pump
Graco Husky 515 Diaphragm pump (D52966) is used in
this tank assembly. Refer to your Graco Diaphragm
pump manual 308981 for setup and operation proce-
dures.
Filling the tank reservoir
1. Open the filter valves (K) and water supply valve (G)
to allow the reservoir to fill.
2. Fill the primary reservoir (L) with water, approxi-
mately 13 gallons (49 liters), until the float valve (J)
shuts off.
3. While the primary reservoir is filling, verify that the
water is shut off to the primary float valve by gently
lifting the second reservoir float lever (B).
4. If the water is shut off to the primary float valve,
release the secondary float valve (B).
5. Adjust the float valve lever (J) so that the water level
is even with the top of the rollers +/- 1/8 in. (3 mm).
6. Add the antifungal fluid (NALCO 39M or equivalent)
to the tank according to manufacturer’s instructions.
Setting the air pressure
Adjust the air pressure regulator (C) to the diaphragm
pump (D). The pump should cycle once every second
(approximately 20 psi [0.14 MPa, 1.4 bar]).
Setting the spray bar and sponge
1. Adjust the spray bar (E) by loosening the hex bolts
(Q), located on both ends of the spray bar.
2. While water is spraying from the spray bar, rotate
the spray bar angle relative to the rollers to obtain
the maximum roller revolutions per minute.
3. Tighten the bolts (Q).
4. Wet sponge in tank water. Squeeze sponge to
remove any excess water.
5. Place sponge (H) in the holder (M). The bottom of
the sponge should just contact the bottom of the
holder.

Maintenance
6 310623A
Maintenance
With use, the water will become saturated with the
LASD material. If rotation of the rollers or the pump
cycle rate slows down, you should change the water in
the tank.
Draining the tank water
1. Place bucket under drain valve (F).
2. Open drain valve (F) and let water empty into
bucket.
3. While tank is draining, next to the water supply filter
housing, turn off one of the water supply valves (G)
or (K).
4. Once water level is within 1 in. of the bottom, reopen
the water supply valve (G) to dilute the remainder of
the water until clear water is circulating from the
spray bar (E).
Cleaning and replacing sponge
1. Remove sponge (H) and place it under the clean
water. Rinse until clean.
2. To extend the life of the sponge, turn sponge upside
down from its original position and place it in the
holder (M).
Cleaning and replacing roller assembly
1. While rollers (P) are running through clean water,
rub rollers with your hands until build up of contami-
nates are removed.
2. Inspect the rollers (P). If the nap of the rollers is less
than 1/16 in. (2 mm), replace with new rollers.
3. To replace rollers, remove pin (R).
4. Pull roller assembly from housing.
5. Pull off spring retainer (U), spring cover (W), spring
(V), axle support (T), and washer (S). See FIG. 3.
6. Inspect parts and replace if damaged. See Parts,
page 8, for replacement part numbers.
7. Remove end bearing (Z), roller (P), and center bear-
ing (Y) from axle (X).
8. Inspect parts and replace if worn. See Parts, page
8, for replacement part numbers.
9. Reassemble roller assembly in the opposite order
shown in steps 3 - 7.
Inspect sponge after cleaning. When sponge looks
too worn, replace it.

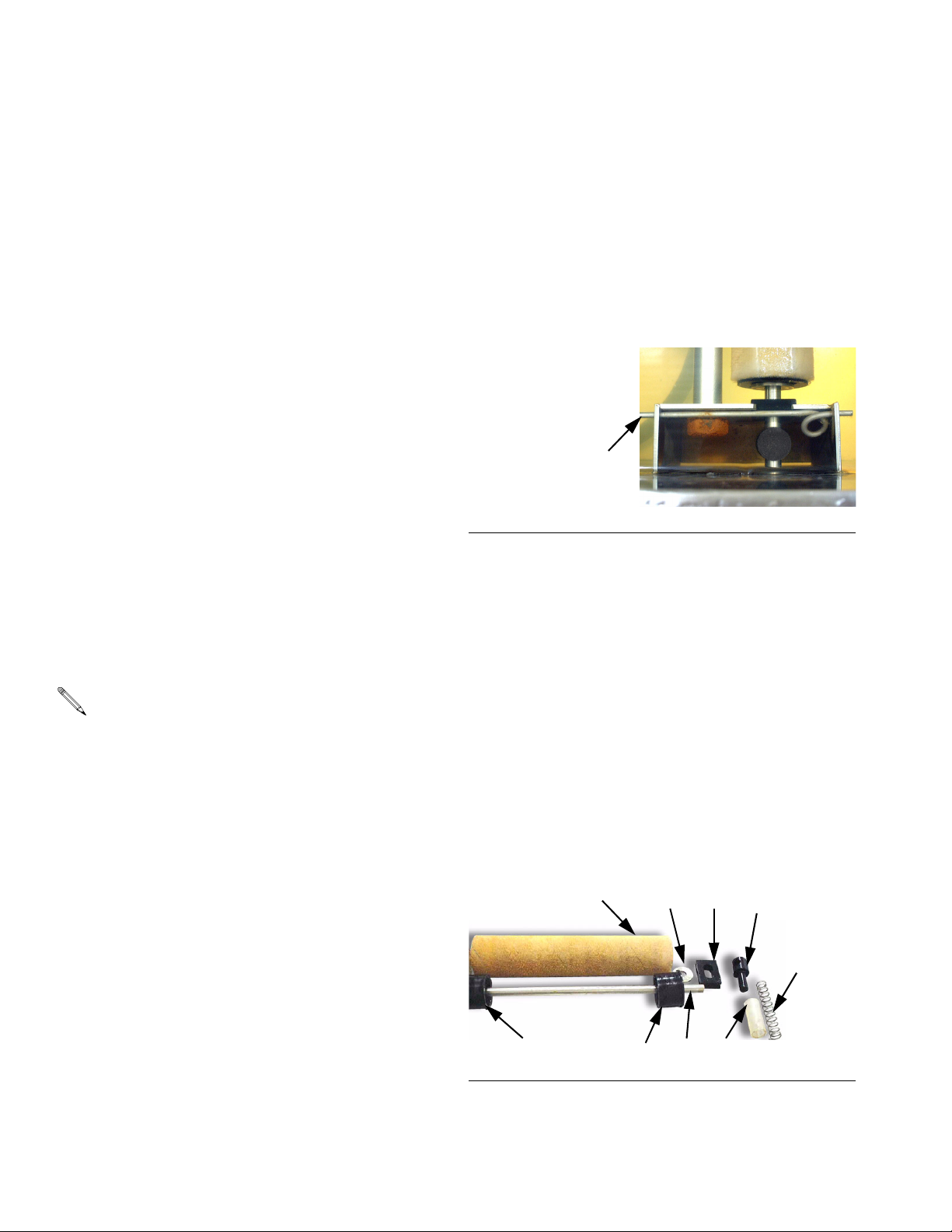

FIG. 2
Roller Assembly
FIG. 3
PSTU
V
WXY Z
R

Maintenance
310623A 7
Draining remaining water
1. While clean water is circulating from the spray bar,
wipe the walls and bottom of reservoir until clean.
2. Turn off the regulator (C) to the diaphragm pump
(D).
3. Allow the remaining reservoir water to drain by turn-
ing off water supply valve (G) or (K).
4. Close reservoir drain valve (F).
5. Close both valves (G) and (K) that isolate both recir-
culating filters.
6. Remove the filter housings (N) and screen elements
112302.
7. Clean and inspect screen elements. Reinstall into
filter housings or replace if elements are dam-
aged.See Parts, page 8, for replacement part num-
bers.
Use extra care to ensure that the element screens
are round and properly seated in the housing
counterbore.

Parts
8 310623A
Parts

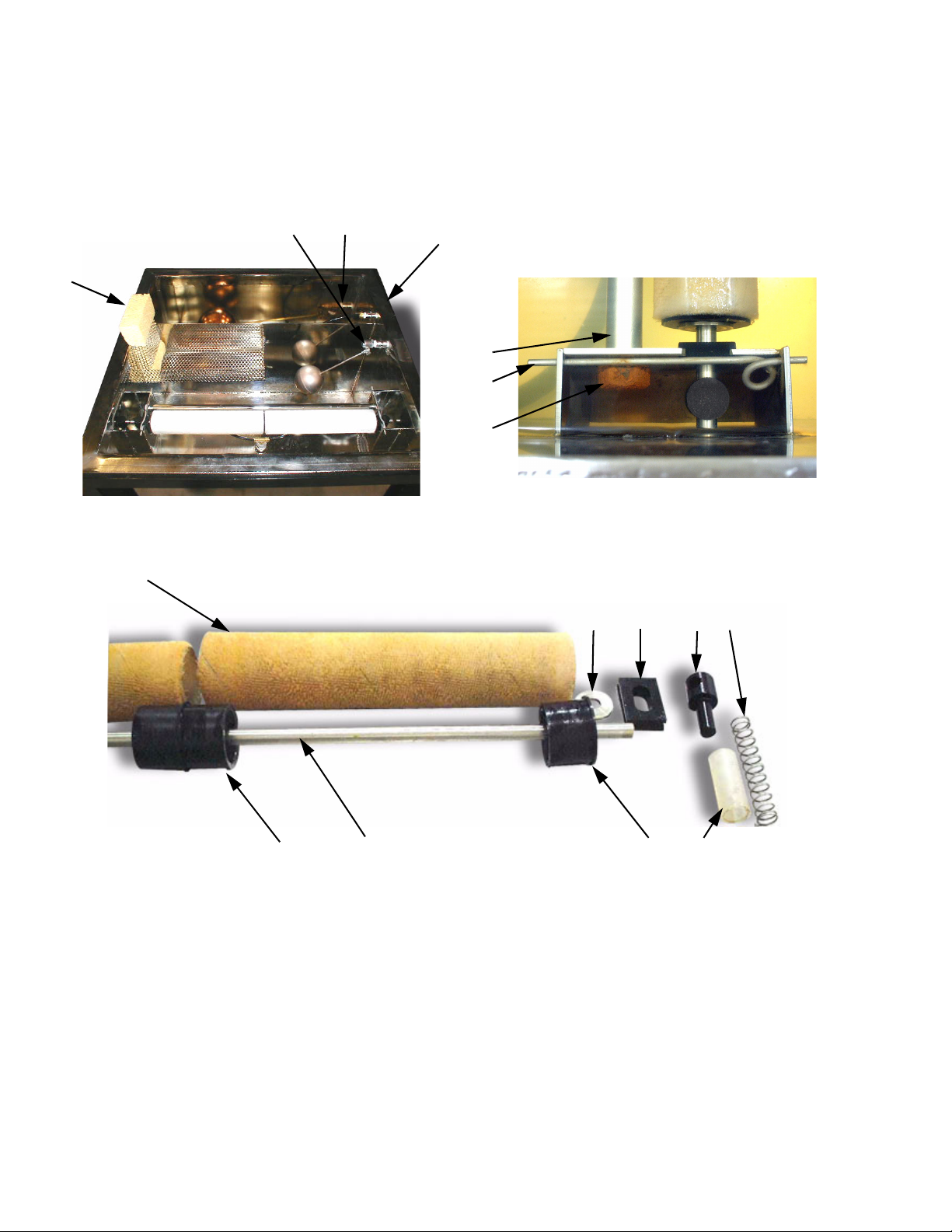

MOLSA Cleaning System
1
3
5 67
4
8
2
11109
12
13
14, 15
16
17
Ref.
No. Part No. Description Qty.
1 234533 TANK, assembly 1
2 118865 SPONGE 1
3 118864 ROLLER 2
4 119055 SPRING 2
5 119056 AXLE 1
6 119057 BEARING, end 2
7 119058 BEARING, center 1
8 119059 VALVE, float 1
9 119210 WASHER 2
10 119205 HOUSING, axle 2
11 119206 SPRING, guide 1
12 119211 TUBE, spring 2
13 119209 VALVE, float secondary 1
14 119207 PIN, left 1
15 119208 PIN, right 1
16 119204 BAR, spray 1
17 119203 BOLT 2
18 112302 FILTER, screen (not shown) 1
Ref.
No. Part No. Description Qty.

Technical Data
310623A 9
Technical Data
All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
Maximum Fluid Working Pressure 100 psi (0.68 MPa, 6.8 bar)
Maximum Air Pressure 100 psi (0.68 MPa, 6.8 bar)
Dimensions 36 x 27 x 25.75 in. (914 x 686 x 654 mm)
Mounting Leg Dimensions 24.5 x 25.5 x .44 in. mounting hole diameter (622 x 648 x
11 mm mounting hole diameter)
Wetted Parts 300 series stainless steel, brass, plastic, polypropylene,
Santoprene®, nylon

All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Sales Office: Minneapolis
International Offices: Belgium, Korea, Hong Kong, Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
www.graco.com
Printed in USA 310623A
12/2003
