Graco 248037 Assembly instructions

3300 psi (227 bar, 22.7 MPa) Maximum Working Pressure
Vac Model
Standard/
Premium
695 Standard 248037 248036
Premium 248031 248030
120 795 Standard 248308 248038
North America Premium 248033 248032
1095 Standard 248039
Premium 248034
240 695 248042 248041
Europe 795 248043
1095 248044
240 695 248046 248045
Europe Multi-cord 795 248047
1095 248048
110 695 248049
UK 795 248050
1095 248051
240 695 248058 248057
Asia & Australia 795 248059
1095 248060
100 695 248053 248052
Japan & Taiwan 795 248055 248054
1095 248056
All models not available in all countries.
ti4281a
Repair
GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441
Copyright 2004, Graco Inc. is registered to I.S. EN ISO 9001
UltrarMax II 695/795/1095t
Airless Sprayers 309941 Rev. A
248036

2309941
Table of Contents
Component Function and Identification 4. . . . .
General Repair Information 5. . . . . . . . . . . . . . .
Grounding 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 6. . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical/Fluid Flow 6. . . . . . . . . . . . . . . .
Electrical 7. . . . . . . . . . . . . . . . . . . . . . . . . . . .

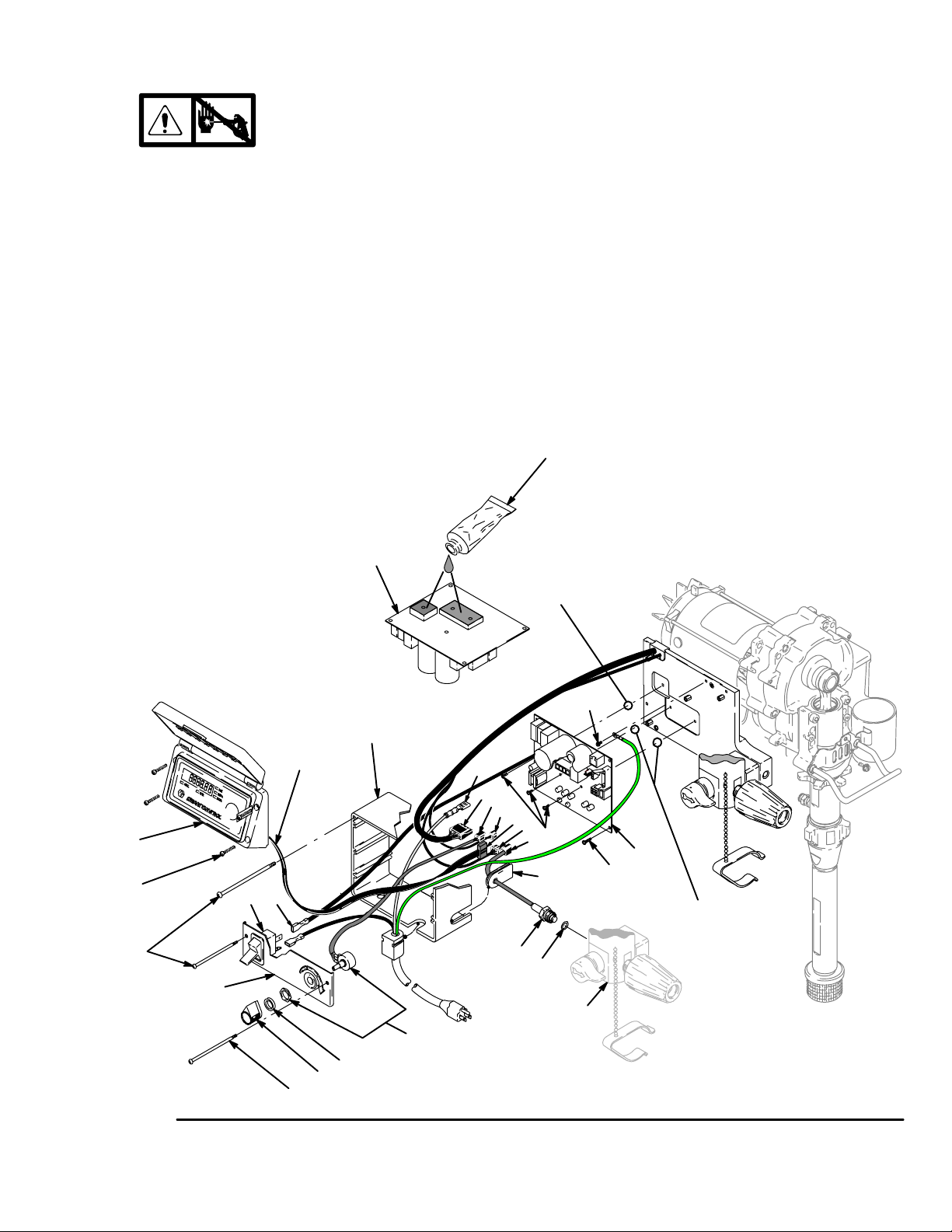

Pressure Control Repair 10. . . . . . . . . . . . . . . .

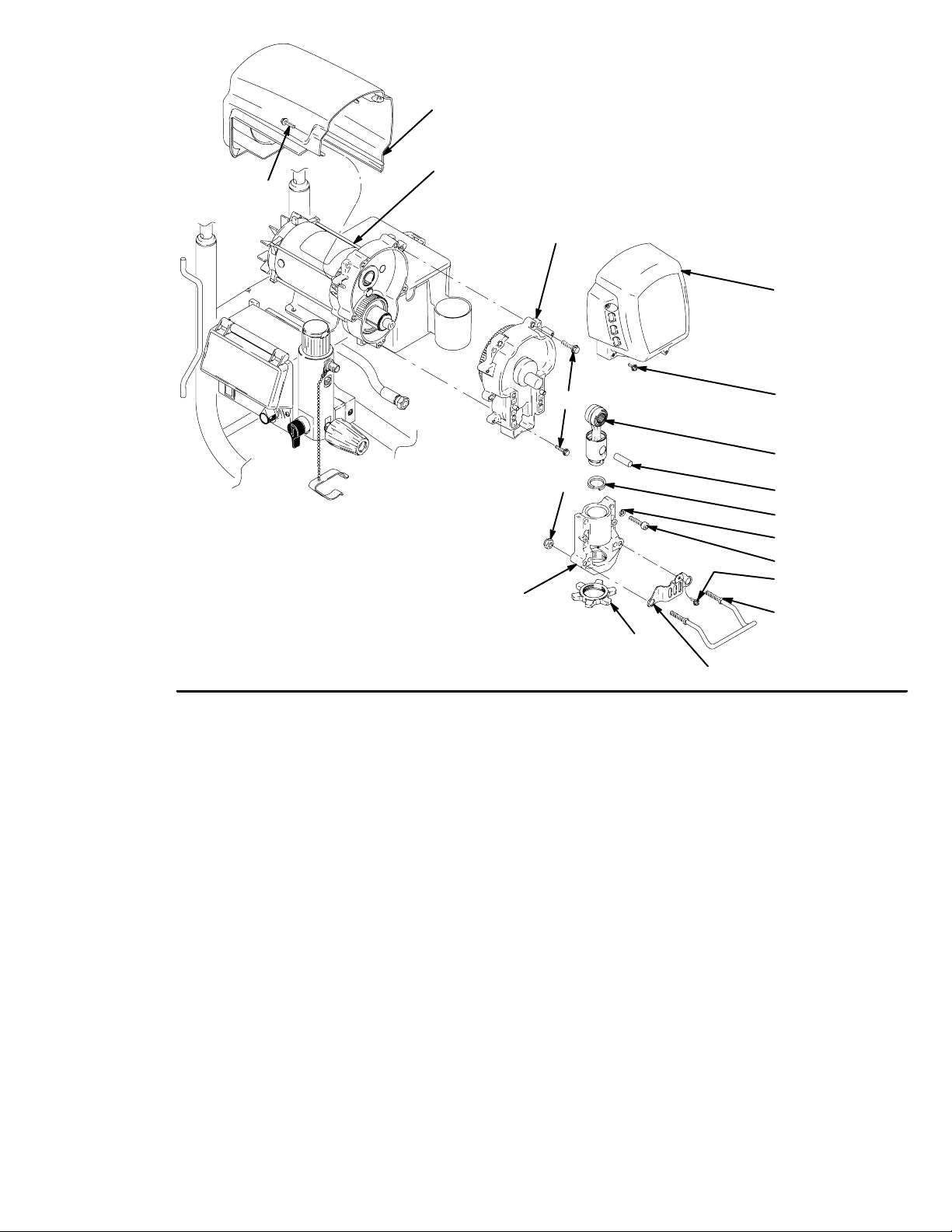

Drive and Bearing Housing Replacement 12. .
Motor Replacement 14. . . . . . . . . . . . . . . . . . . . .

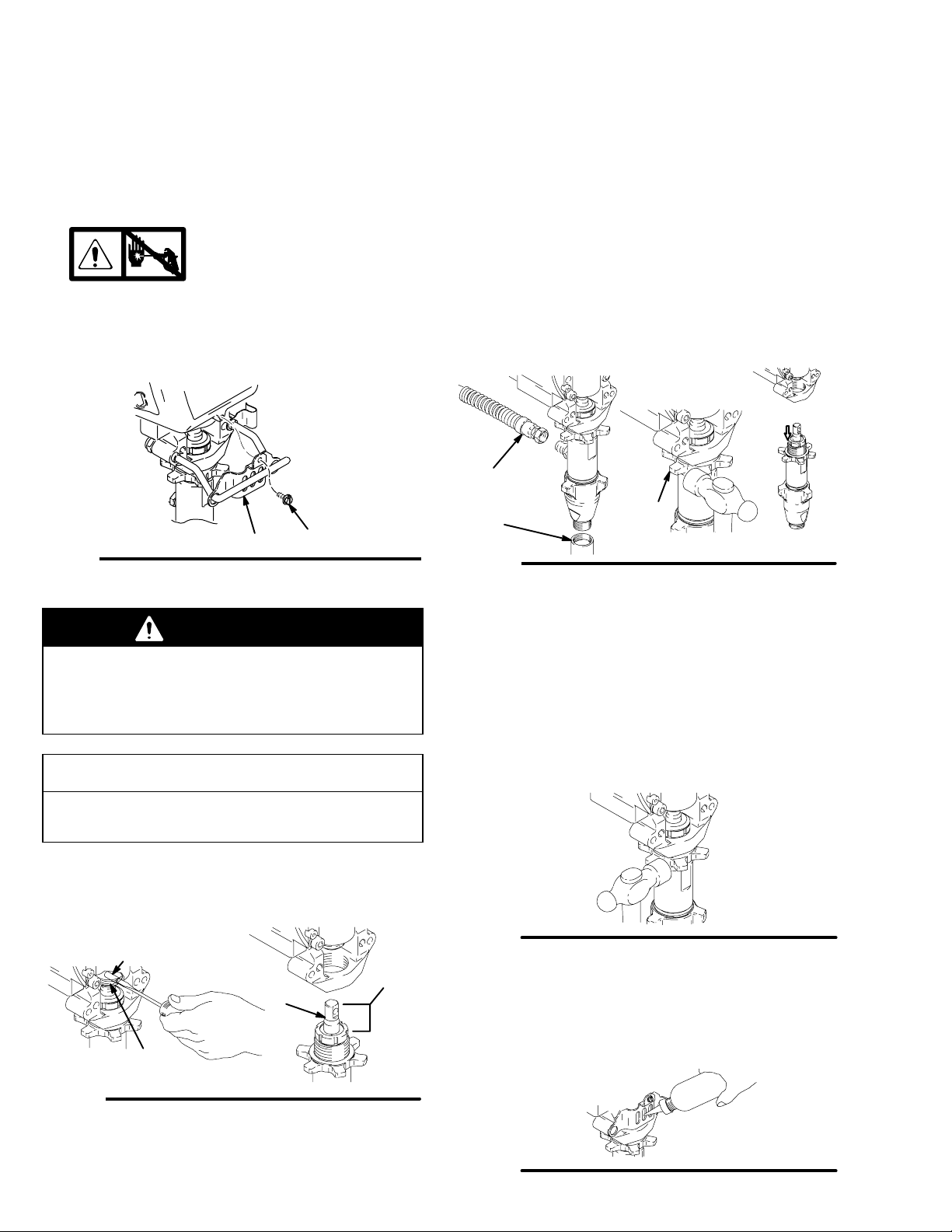

Displacement Pump Replacement 16. . . . . . . .
3-D Wiring Diagram 17. . . . . . . . . . . . . . . . . . . .
Technical Data 18. . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions 18. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Phone Number 18. . . . . . . . . . . . . . . . . . .

3309941
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help pre-
vent fire and explosion:
DUse equipment only in well ventilated area.
DEliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop cloths (potential static arc).
DKeep work area free of debris, including solvent, rags and gasoline.
DDo not plug or unplug power cords or turn lights on or off when flammable fumes are present.
DGround equipment and conductive objects in work area. See Grounding instructions.
DUse only conductive hoses.
DHold gun firmly to side of grounded pail when triggering into pail.
DIf there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
INJECTION HAZARD
High–pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like
just a cut, but it is a serious injury that can result in amputation. Get immediate medical attention.
DDo not point the gun at anyone or at any part of the body.
DDo not put your hand over the spray tip.
DDo not stop or deflect leaks with your hand, body, glove or rag.
DDo not spray without tip guard and trigger guard installed.
DEngage trigger lock when not spraying.
DFollow the Pressure Relief Procedure on page 5 if the spray tip clogs and before cleaning,
checking or servicing the equipment.
ELECTRIC SHOCK HAZARD
Improper grounding, setup or usage of the system can cause electric shock.
DTurn off and disconnect power cord before servicing equipment.
DUse only grounded electrical outlets.
DUse only 3-wire extension cords.
DEnsure ground prongs are intact on sprayer and extension cords.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
DProtective eyewear
DClothing and respirator as recommended by the fluid and solvent manufacturer
DGloves
DHearing protection
PRESSURIZED ALUMINUM PARTS HAZARD
Do not use 1,1,1–trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents in pressurized aluminum equipment. Such use can cause serious
chemical reaction and equipment rupture, and result in death, serious injury, and property damage.

4309941
Component Identification and Function
ti4281a
ti2377a
K
E
H
B
A
D
J
G
F
V
Fig. 1
U
N
M
PR
T
S
W
AMotor DC motor, permanent magnet, totally enclosed, fan cooled
BDrive Assembly Transfers power from DC motor to displacement pump
DDisplacement Pump Transfers fluid to be sprayed from source through spray gun
EFluid Outlet Spray gun is connected here
FPrime Valve Used to prime and drain sprayer (also relieves fluid outlet pressure) when open
GFluid Filter Final filter of fluid to spray gun
HPressure Adjusting Knob Controls fluid outlet pressure
JPressure Control Controls motor speed to maintain fluid outlet pressure at displacement pump
outlet. Works with pressure adjusting knob.
KON/OFF Switch Power switch that controls main power to sprayer
M50 ft (15 m) Main Hose 1/4 in. ID, grounded, nylon hose with spring guards on both ends
NSpray Gun High pressure spray gun with gun safety latch
PSpray Tip Uses high pressure fluid to clear tip clogs without removing tip from spray gun
RHandTitetTip Guard Tip guard reduces risk of injection injury
SGun Safety Latch Gun safety latch inhibits accidental triggering of spray gun. Contractor II gun
shown. Refer to your gun manual to properly set your gun safety latch.
THose Rack Holds wrapped hose for storage
USuction Tube Transfers fluid to be sprayed from source to pump
VDrain Tube Fluid outlet used to drain and prime the sprayer
WAutoClean Reverse flush system

5309941

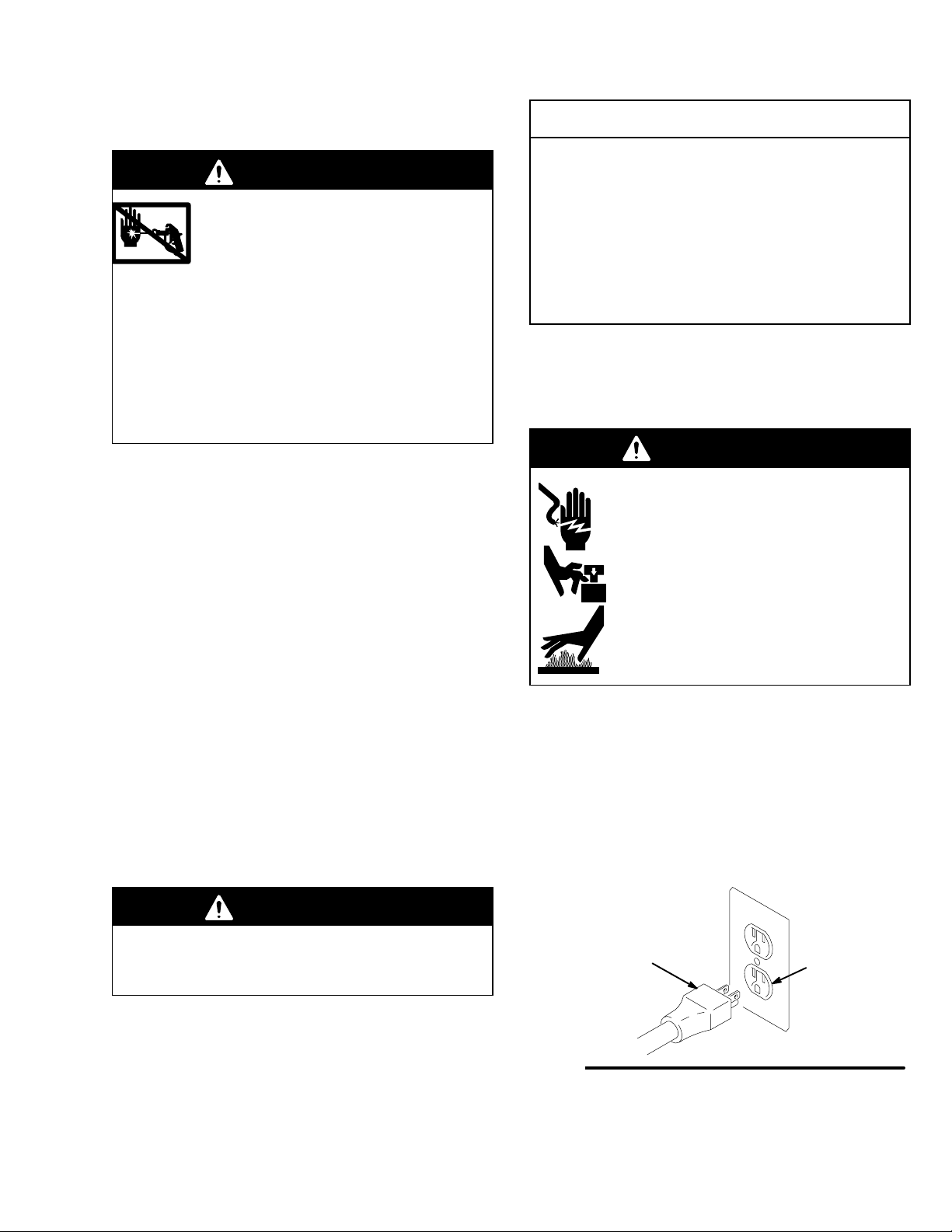

General Repair Information
Pressure Relief Procedure
WARNING
INJECTION HAZARD
System pressure must be manually
relieved to prevent system from starting
or spraying accidentally. Fluid under high
pressure can be injected through skin and cause
serious injury. To reduce risk of injury from injec-
tion, splashing fluid, or moving parts, follow Pres-
sure Relief Procedure whenever you:
Dare instructed to relieve pressure,
Dstop spraying,
Dcheck or service any system equipment,
Dor install or clean spray tip.
1. Turn pressure to zero.
2. Turn ON/OFF switch to OFF.
3. Unplug power supply cord.
4. Hold metal part of gun firmly to grounded metal
pail. Trigger gun to relieve pressure.
5. Lock gun safety latch.
6. Open prime valve. Leave prime valve open until
ready to spray again.
If suspected that spray tip or hose is completely
clogged, or that pressure has not been fully relieved
after following steps above, VERY SLOWLY loosen tip
guard retaining nut or hose end coupling to relieve
pressure gradually, then loosen completely. Now clear
tip or hose obstruction.
CAUTION
To reduce risk of pressure control malfunction:
DUse needle nose pliers to disconnect wire. Never
pull on wire, pull on connector.
DMate wire connectors properly. Center flat blade of
insulated male connector in female connector.
DRoute wires carefully to avoid interference with
other connections of pressure control. Do not pinch
wires between cover and control box.
1. Keep all screws, nuts, washers, gaskets, and
electrical fittings removed during repair proce-
dures. These parts are not normally provided with
replacement assemblies.
WARNING
ELECTRIC SHOCK HAZARD
MOVING PARTS HAZARD
HOT SURFACE HAZARD
To reduce risk of serious injury, including
electric shock, do not touch moving or
electrical parts with fingers or tools while
testing repair. Shut off and unplug spray-
er when inspection is complete. Install all
covers, guards, gaskets, screws, wash-
ers and shroud before operating
sprayer.
2. Test repair after problem is corrected.
3. If sprayer does not operate properly, review
repair procedure to verify procedure was done
correctly. If necessary, see Troubleshooting, pages
6 – 9, for other possible solutions.
Grounding
WARNING
Improper installation or alteration of grounding plug
results in risk of electric shock, fire or explosion
that could cause serious injury or death.
1. 100–120 Vac models require a 50/60 Hz, 15A
circuit with a grounding receptacle. 220–240 Vac
models require a 50 Hz, 10A circuit with a ground-
ing receptacle. See Fig. 2.
2. Do not alter ground prong or use adapter.
Fig. 2
Grounding Plug Grounded
Outlets
3. 120 Vac: A 12 AWG, 3 wires with grounding prong,
300 ft (90 m) extension cord may be used.
220–240 Vac: You may use a 3-wire, 1.0 mm (12
AWG) (minimum) extension cord up to 90 m long.
Long lengths reduce sprayer performance.

6309941
Troubleshooting
Relieve pressure;page 5.
Mechanical/Fluid Flow
TYPE OF PROBLEM WHAT TO CHECK
If check is OK, go to next check
WHAT TO DO
When check is not OK refer to this column
Low Output or Pressure 1. For worn spray tip. 1. Follow Pressure Relief Procedure Warn-
ing, then replace tip. See your separate
gun or tip manual.
2. Spray tip clogged. 2. Relieve pressure. Check and clean spray
tip.
3. Paint supply. 3. Refill and reprime pump.
4. Intake strainer clogged. 4. Remove and clean, then reinstall.
5. To see if intake valve ball and piston ball are seat-
ing properly.
5. Remove intake valve and clean. Check
balls and seats for nicks; replace if neces-
sary, page 16. Strain paint before using to
remove particles that could clog pump.
6. Suction hose connections. 6. Tighten any loose connections. Check for
missing or damaged seals.
7. Filter clogged. 7. Relieve pressure. Check and clean filter.
8. Prime valve leaking. 8. Relieve pressure. Repair prime valve.
9. Verify pump does not continue to stroke when
gun trigger is released. (Prime valve not leak-
ing.)
9. Service pump. See page 16.
10. Leaking around throat packing nut which may
indicate worn or damaged packings. See page
16.
10.Replace packings, page 16. Also check
piston valve seat for hardened paint or
nicks and replace if necessary. Tighten
packing nut/wet-cup.
11. Pump rod damage. 11. Repair pump, page 16.
12.Low stall pressure. 12. Do either or both:
a. Turn pressure control knob fully
clockwise. Make sure pressure
control knob is properly installed to
allow full clockwise position.
b. Try a new pressure transducer.
Motor runs but pump does not
stroke
1. Displacement pump pin (32) (damaged or miss-
ing), page 16.
1. Replace pump pin if missing. Be sure re-
tainer spring (31) is fully in groove all
around connecting rod, page 16.
2. Connecting rod assembly (43) for damage,
page 12.
2. Replace connecting rod assembly,
page 12.
3. Gears or drive housing, page 12. 3. Inspect drive housing assembly and gears
for damage and replace if necessary,
page 12.

7309941
Troubleshooting
Electrical
Symptom: Sprayer does not run or stops running
DRelieve pressure;page 5.
DPlug sprayer into correct voltage, grounded outlet
DSet power switch OFF for 30 seconds and then ON
again. This ensures sprayer is in normal run mode.
DTurn pressure control knob up 1/2
DView digital display
WARNING
To avoid electrical shock or moving parts hazards
when covers are removed for troubleshooting, wait
30 seconds after unplugging power cord for stored
electricity to dissipate. Keep clear of electrical and
moving parts during troubleshooting procedures.
DIf no digital display is available, use control board
status light to troubleshoot problems: Turn ON/OFF
switch OFF, remove control cover and then turn
power back ON. Observe status light.
DIGITAL
DISPLAY
CONTROL BOARD
STATUS LIGHT
INDICATION WHAT TO DO
Blank Never lights
LED 100
No power to control
board
1. Verify required voltage is present
2. Check wiring connections to control board
3. Perform continuity check on power cord and switch.
Replace power cord or switch as needed.
4. If steps 1 – 3 are ok, replace control board
–––– psi Blinks once and
stops
No RUN command
to control board.
Potentiometer or
transducer problem
1. Make sure prime valve is open and there is no pres-
sure in the system
2. Turn pressure control knob clockwise
3. Check potentiometer connection to control board
4. Check pressure control knob alignment to potentiom-
eter shaft. Turn shaft fully clockwise and attach knob
in full ON position.
5. Unplug potentiometer. Short out center pin of control
board potentiometer connector to each outer pin (one
at a time). If sprayer runs, replace potentiometer.
6. Check transducer connection
7. Disconnect and reconnect transducer plug to ensure
good connection with control board socket. Check
that transducer contacts are clean.
8. Open prime valve. Connect a known good transducer
in place of the sprayer transducer. Set sprayer ON.
Replace transducer If sprayer runs. Replace control
board If sprayer does not run.

8309941
Troubleshooting
Electrical
DIGITAL
DISPLAY
CONTROL BOARD-
STATUS LIGHT
INDICATION WHAT TO DO
Displays high
pressure
when prime
valve is open
and there is
no pressure in
sprayer.
– Improper pressure
signal to control
Open prime valve. Connect a known good trans-
ducer in place of the sprayer transducer. Set
sprayer ON. Replace transducer If sprayer runs.
Replace control board If sprayer does not run.
E=02 Blinks 2 x repeat-
edly
Control board is re-
ceiving excessive
pressure signal
from transducer.
Transducer may be
damaged or fluid
flow path may be
clogged.
1. Check fluid path for clogs, such as a clogged
filter.
2. Open prime valve and gun if running AutoClean.
3. Use airless paint spray hose with no metal
braid, 1/4 in. x 50 ft minimum. Smaller hose or
metal braid hose may result in high–pressure
spikes.
4. Replace transducer if fluid path is not clogged
and proper hose is used.
E=03 Blinks 3 x repeat-
edly
Transducer or
transducer connec-
tion error
1. Check transducer connection
2. Disconnect and reconnect transducer plug to
ensure good connection with control board
socket. Check that transducer contacts are ok.
3. Open prime valve. Connect a known good
transducer in place of the sprayer transducer.
Set sprayer ON. Replace transducer If sprayer
runs. Replace control board If sprayer does not
run.

9309941
Troubleshooting
Electrical
DIGITAL
DISPLAY
CONTROL BOARD-
STATUS LIGHT
INDICATION WHAT TO DO
E=05 Blinks 5 x repeat-
edly
Possible locked
pump or drive. May
be motor connection
or wiring error.
1. Check motor wiring connections
2. Check for locked or frozen pump or drive train
3. If all motor wiring connections are OK and pump/
drive train are not locked up, replace motor
E=06 Blinks 6 x repeat-
edly
Motor is too hot or
motor/thermal de-
vice connection may
be bad.
1. Check all wire connections from motor to control
board
2. If connections are all ok, allow sprayer to cool. If
sprayer runs when cool, correct cause of overhea-
ting. Keep sprayer in cooler location with good
ventilation. Make sure motor air intake is not
blocked.
E=07 Blinks 7 x repeat-
edly
Exceeded 2000 psi
during timed flush
cycle
This error only occurs in flush timer mode
1. Make sure prime valve and gun are open
2. Make sure no flow obstructions or clogged filter
E=09 Blinks 9 x repeat-
edly
Motor sensor failure Make sure motor sensor (resolver) is connected to
the control board and check wiring for damage
E=10 Blinks 10 x repeat-
edly
High control board
temperature
1. Make sure the motor air intake is not blocked
2. Make sure control board is properly connected to
the back plate and that conductive thermal paste
is used on the power components, Fig. 3
E=11 Blinks 11 x repeat-
edly
Excessive motor
speed
Check for damaged gears or disconnected pump
E=12 Blinks 12 x repeat-
edly
High Current 1. Check for locked or frozen pump or drive train
2. Check for possible short circuits in wiring
3. Check pressure output and replace transducer if
pressure is excessive
E=13 Blinks 13 x repeat-
edly
Model not selected Control board identity resistors must be properly
clipped to identify model type, manual 309709
EMPTY – EMPTY on digital
display indicates a
loss of paint to the
pump or a severe
loss in pressure
1. Check for empty paint condition, clogged inlet
strainer, failed pump or severe leak. Turn pressure
control knob to zero to restart sprayer.
2. WatchDog feature can be deactivated. See Opera-
tion Manual.

10 309941
Pressure Control Repair
Motor Control Board
Removal
1. Relieve pressure;page 5.
2. Fig. 3. Remove four screws (38) and cover (96).
3. Disconnect display connector (A) from motor
control board (95).
4. Remove bottom two screws (39) and allow control
panel (68) to hang down freely.
5. Disconnect control board power lead(s) (D) from
ON/OFF switch (33) and motor control board (95).
6. Disconnect potentiometer connector (C) from
motor control board.
7. Disconnect transducer connector (E) from motor
control board.
8. Disconnect motor connectors (F, G and H) from
motor control board.
9. Remove top two screws (39) and control box (61).
10. Remove five screws (27), three screws (102) and
motor control board.
Installation
1. Fig. 3. Apply small amount of thermal compound
110009 (5) to shaded component areas on rear of
motor control board (95).
CAUTION
To reduce risk of motor control board failure, do not
overtighten screws (102) which can damage the
electric components.
2. Install motor control board (95) with five screws
(27). Torque to 10–12 in-lb (1.13 – 1.35 N·m).
Install and torque three screws (102) to values
shown in Fig 3.
3. Connect motor connectors (F, G and H) to motor
control board.
4. Install control box (61) with top two screws (39).
5. Connect transducer connector (E) to motor control
board.
6. Connect motor control board power lead(s) (D) to
ON/OFF switch (33).
7. Connect potentiometer connector (C) to motor
control board.
8. Install control panel (68) with two screws (39) .
9. Connect display connector (A) to motor control
board (95).
10. Install cover (96) with four screws (38).
Pressure Adjust Potentiometer
Removal
1. Relieve pressure;page 5.
2. Fig. 3. Remove four screws (38) and cover (96).
3. Disconnect potentiometer connector (C) from
motor control board (95).
4. Remove knob (34) with a hex wrench.
5. Remove gasket (115), nut and potentiometer (82)
from control panel (68).
Installation
1. Install gasket (115), nut and potentiometer (82) on
control panel (68). Torque nut to 30–35 in-lb
(3.38–3.95 N·m).
2. Install knob (34) with a hex wrench.
3. Connect potentiometer connector (C) to motor
control board.
4. Install cover (96) with four screws (38).

11309941
Pressure Control Transducer
Removal
1. Relieve pressure;page 5.
2. Fig. 3. Remove four screws (38) and cover (96).
3. Disconnect transducer connector (E) from motor
control board (95).
4. Disconnect potentiometer connector (C) from
motor control board.
5. Remove four screws (39) and control box (61).
Allow control panel to hang down freely.
6. Remove transducer (86) and o-ring (20) from filter
base (67).
7. Remove grommet (40) from transducer and save
for reuse.
Installation
1. Install o-ring (20) and transducer (86) in filter base
(67). Torque to 35–45 ft-lb (47–61 N·m).
2. Install grommet (40) onto transducer (86).
3. Connect transducer connector (E) to motor control
board.
4. Install control box (61) and control panel (68) with
four screws (39).
5. Connect potentiometer connector (C) to motor
control board.
6. Install cover (96) with four screws (38).
Fig. 3
39
38
96
68
ti4289a
33
F
G
H102
95
61
A
26
27
5
95
80 20
40
67
E
A
C
82
115
34
39
Tighten 2 screws
to 7–10 in–lb
Tighten 1 screw
to 18–22 in–lb
120 Vac
D
D

12 309941
Drive and Bearing Housing Replacement
CAUTION
Do not drop gear cluster (89) when removing drive
housing (90). Gear cluster may stay engaged in
motor front end bell or drive housing.
Disassembly
1. Relieve pressure;page 5.
2. Remove screw (31), two nuts (24), pail hanger (55)
and pump rod cover (108).
3. Remove pump (91); Displacement Pump Re-
placement, page 16.
4. Fig. 4. Remove two screws (31) and shroud (72).
5. Remove four screws (31) and front cover (51).
6. Remove four screws (14) and washers (12) to
remove bearing housing (83) and connecting
rod (85).
7. Remove five screws (6) and pull drive housing (90)
off motor (84).
Assembly
Fig. 5. Make sure gear (89) and thrust washers (28,
30, 90a, 36) are in place. Brush grease onto gear
teeth.
1. Fig. 4. Push drive housing (90) onto motor (84)
and install with five screws (6). Torque to 190–210
in-lb (21–23 N·m).
2. Install bearing housing (83) with four screws (14)
and washers (12). Torque to 25–30 ft-lb (34–40
N·m).
3. Install front cover (51) with four screws (31).
4. Install shroud (72) with two screws (31).
5. Install pump (41); Displacement Pump Replace-
ment, page 16.
6. Install pump rod cover (108) and pail hanger (55)
with screw (31) and two nuts (24).

13309941
Fig. 4
85
44
43
12
14
55
31
56
24
31
51
6
84
72
31
90
108
ti4253a
83

14 309941
Motor Replacement
Removal
1. Relieve pressure;page 5.
2. Remove pump (91); Displacement Pump Re-
placement, page 16.
CAUTION
Do not drop gear cluster (89) when removing drive
housing (90). Gear cluster may stay engaged in
motor front end bell or drive housing.
3. Remove drive housing (89); Drive Housing Re-
placement, page 12.
4. Fig. 5. Remove four screws (38) and control cover
(96).
5. Remove bottom two screws (39) and and allow
control panel (68) to hang down freely.
6. Disconnect all three motor leads from motor con-
trol board (95).
7. Remove top two screws (39) and control
housing (61).
8. Remove strain relief (29) from motor wires and
power bar plate (69).
9. Remove two screws (23) and nuts (19) on side
opposite control.
10. Loosen two nuts (19) on side near control and
remove motor (84) from cart frame (62).
Installation
1. Slide new motor (84) under two screws (23) in cart
frame (62) near control.
2. Install two screws (23) and nuts (19) on motor side
opposite control.
3. Tighten all four screws (23) and nuts (19). Torque
nuts to 115–135 in-lb (13–15 N·m).
4. Install strain relief (29) onto motor wires and into
power bar plate (69).
5. Install control housing (61) with top two
screws (39).
6. Connect all three motor leads to motor control
board (95).
7. Install control panel (68) with two screws (39).
8. Install control cover (96) with four screws (38).
9. Install drive housing (42); Drive Housing Re-
placement, page 12.
10. Install pump (13); Displacement Pump Replace-
ment, page 16.

15309941
Fig. 5
39
38
96
68
89
28
30
36
84
23
23
29
27
61 19
19
ti4254a
6
31
51
31
58
31
14
12
90A
90
69
95
LED Status Light

16 309941
Displacement Pump Replacement
See manual 310643 for pump repair instructions.
See manual 309943, 309944 or 309951 – 309954 for
applicable sprayer part number references.
Removal
1. Flush pump (13).
2. Relieve pressure;page 5.
3. Fig. 6. Remove screw (31) and slide pump rod
shield (108) forward.
Fig. 6
ti4258a
31
108
4. Fig. 8. Cycle pump in JOG mode until pump pin
(44) is in position to be removed. Turn power
switch OFF and unplug power cord. Push up
retaining ring (43) and push pump pin out.
5. Fig. 7. Remove suction tube (76), hose (94) and
any washers and o-rings.
6. Loosen pump jam nut (56). Unscrew pump.
Fig. 7
76 56
94
ti4258a
Installation
WARNING
If pump pin works loose, parts could break off due
to force of pumping action. Parts could project
through the air and result in serious injury or prop-
erty damage.
CAUTION
If the pump jam nut loosens during operation, the
threads of the drive housing will be damaged.
1. Fig. 8. Extend pump piston rod 1.5 in. Apply
grease to top of pump rod at (A) or inside connect-
ing rod.
Fig. 8
1.5 in.
A
ti4258a
44
43
2. Install pump pin (44). Verify retaining spring (43) is
in groove of connecting rod (85).
3. Push pump up until pump threads engage.
4. Screw in pump until threads are flush with drive
housing opening. Align pump outlet to back.
5. Fig. 7. Install washers, o-rings and suction tube
(76) and hose (94).
6. Fig. 9. Screw jam nut (56) up onto pump until nut
stops. Tighten jam nut by hand, then tap 1/8 to 1/4
turn with a 20 oz (maximum) hammer to approxi-
mately 75"5 ft–lb (102 Nm).
Fig. 9
7. Fig. 6. Install pump rod shield (108) with screw
(31).
8. Fig. 10. Fill packing nut with Graco TSL until fluid
flows onto top of seal.
Fig. 10
ti4258a

17309941
3-D Wiring Diagram
Fig. 11
See Parts manual for wiring schematic
39
38
96
68
61
29
ti4251a

18 309941
Technical Data
Model 100–120V,
A, Hz
220–240V,
∅, A, Hz
Generator
Minimum
W
Motor HP (W) Cycles per
gallon (liter)
Maximum
Delivery gpm
(lpm)
Maximum
Tip size
Fluid Outlet
npsm
1 Gun 2 Guns
695 14, 50/60 9, 50/60 5000 1.75 (1300) 243 (64) 0.75 (2.8) 0.027 N/A 1/4 in.
795 15, 50/60 10, 50/60 5000 2.00 (1490) 195 (52) 0.95 (3.6) 0.031 0.021 1/4 in
1095 15, 50/60 10, 50/60 5000 2.20 (1640) 123 (33) 1.1 (4.1) 0.033 0.023 1/4 in
Basic Sprayer Wetted Parts: . . . . . . . . . . . . . . . . . . . . . . . . . . . .
zinc- and nickel-plated carbon steel, nylon, stainless
steel, PTFE, Acetel, leather, UHMWPE, aluminum,
tungsten carbide, PEEK, brass
Noise Level
Sound power 91 dBa*. . . . . . . . . . . . . . . . . . . . . . . . .
Sound pressure 82 dBa*. . . . . . . . . . . . . . . . . . . . . . .
* per ISO 3744; measured at 3.1 feet (1 m)
Dimensions
Model Weight lb (kg) Height in. (cm) Length
in (cm)
Width
in (cm)
Lo-Boy Hi-boy Lo-Boy Hi-Boy in. (cm) in. (cm)
695 94 (43) 94 (43) 26.5 (67.3) Handle down,
38.8 (98.6) Handle up
28.5 (72.4) Handle down,
38.75 (98.4) Handle up
25.75
(65.4)
20.5
(52.1)
795 98 (45) 98 (45) 26.5 (67.3) Handle down,
38.8 (98.6) Handle up
28.5 (72.4) Handle down,
38.75 (98.4) Handle up
25
(63.5)
20.5
(52.1)
1095 N/A 120 (55) N/A 29.5 (74.9) Handle down,
38.5 (97.8) Handle up
26 (66) 22.5
(57.2)
Graco Phone Number
TO PLACE AN ORDER OR FOR SERVICE, contact your Graco distributor, or call 1–800–690–2894 to identify the
nearest distributor.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Sales Office: Minneapolis
International Offices: Belgium, Korea, Hong Kong, Japan
www.graco.com
PRINTED IN USA 309941 12/2003
