Graco Edge II 17R236 Guide

3A5097D
EN
Operation/Parts
HVLP EDGE II™/EDGE II Plus Gun
For the application of architectural paints and coatings. The HVLP Edge II Gun is not
intended to be used on an external compressor. For professional use only.
Models: 17R236, 17R351, 17P655, 17P483
10 psi (0.07 MPa, 0.7 bar) Maximum Air Working Pressure
50 psi (0.35 MPa, 3.5 bar) Maximum Fluid Working Pressure
Important Safety Instructions
Read all warnings and instructions in this manual and your sprayer instruction
manual. Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
Related Manuals:
3A5085 HVLP Sprayer
ti31143a

Table of Contents
23A5097D
Table of Contents
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Know Your Spray Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
EDGE II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
EDGE II Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Fluid and Work Piece Preparation . . . . . . . . . . . . . . . . . . . . . 9
Fluid Set Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Fluid Set Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fill FlexLiner System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

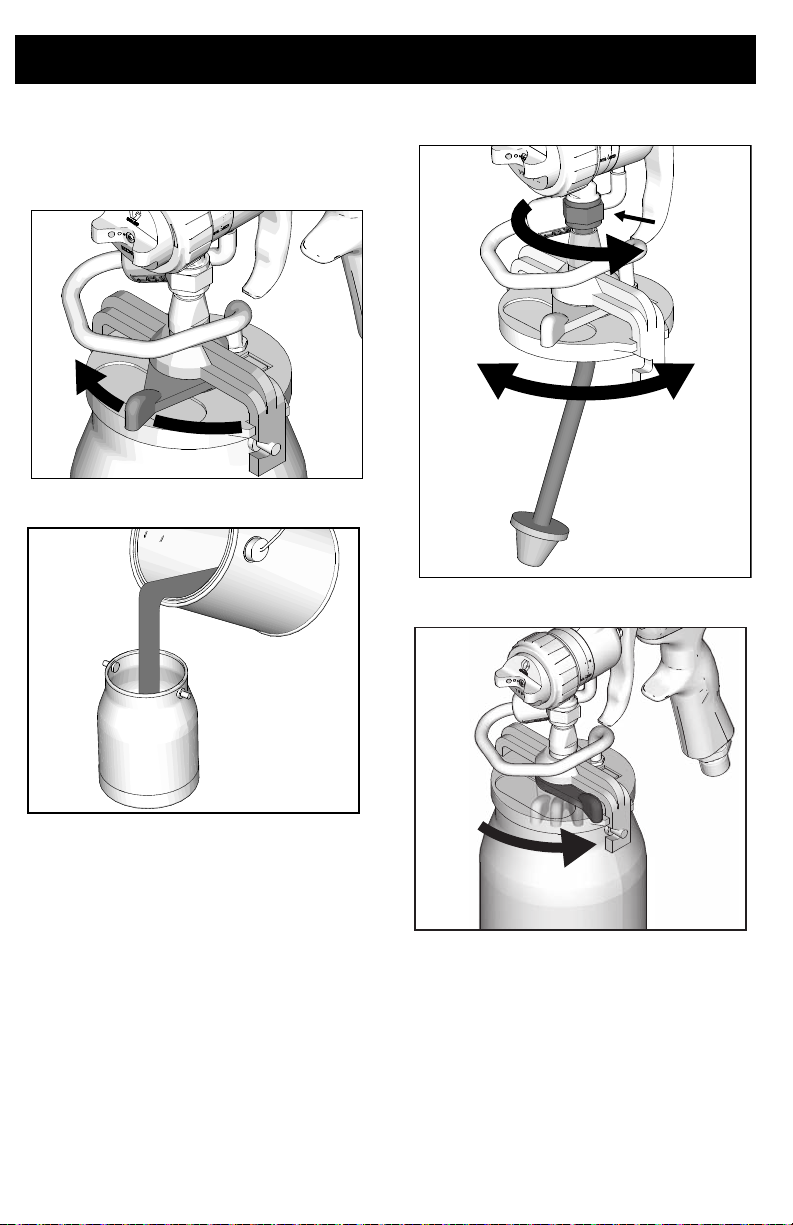

Fill Siphon Cup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to Spray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

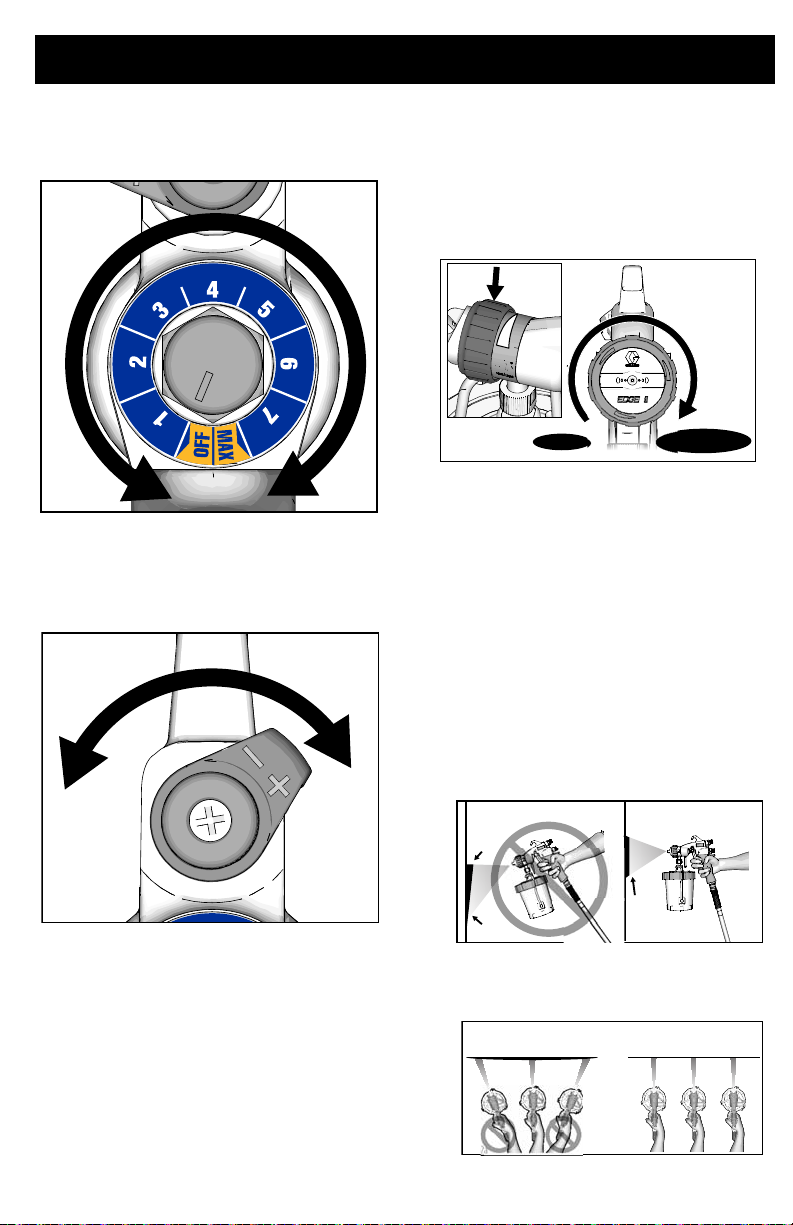

Adjust Spray Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Adjust Flow and Pattern Size . . . . . . . . . . . . . . . . . . . . . . . . 16
Spray Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Triggering Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Aiming Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Refilling FlexLiner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Refilling Siphon Cup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

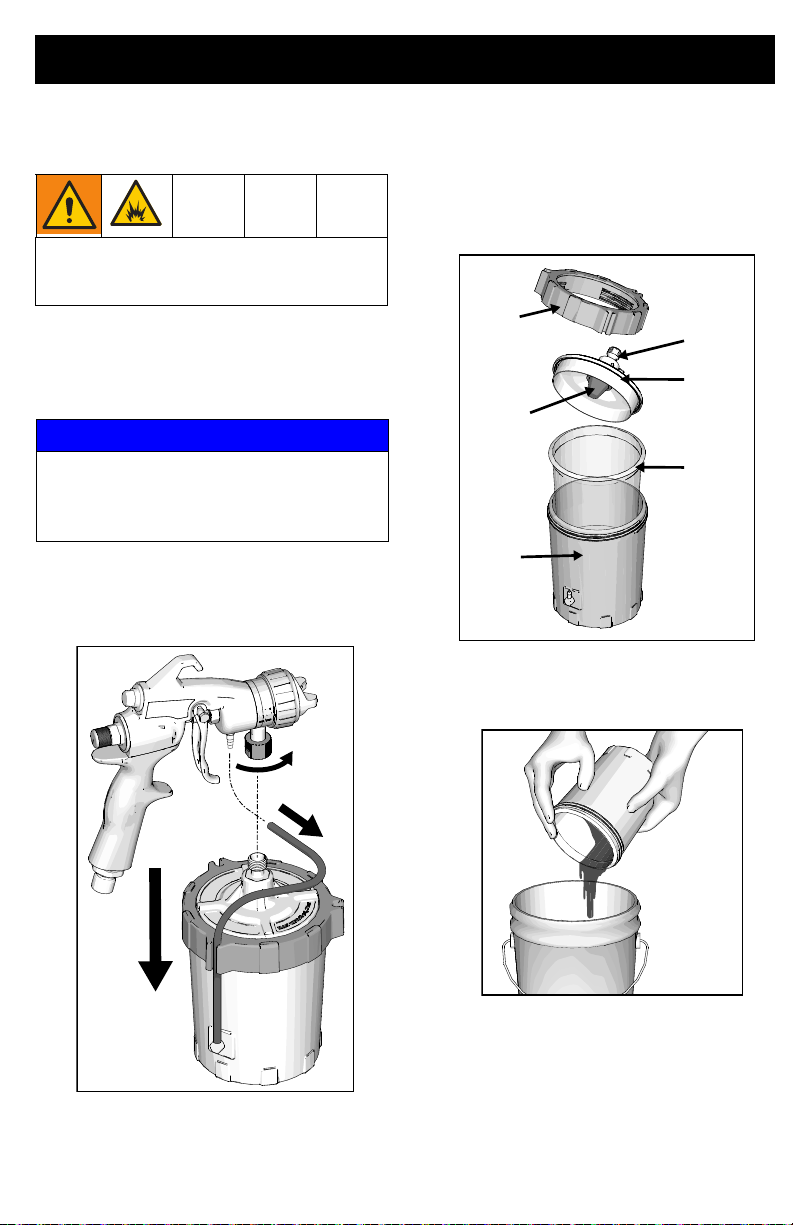

Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
EDGE II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Parts List - EDGE II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
EDGE II Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Parts List - EDGE II Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
FlexLiner System & Siphon Cup Assembly . . . . . . . . . . . . . 32
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
FlexLiner System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Siphon Cup Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Models
3A5097D 3
Models
Key Features
Edge II •Combines fluid and air flow into one simple control.
•Optimized to spray the majority of fine finish applications.
•Quick adjustment and indicator for repeatable spray setting (select models).
Edge II Plus •Ultimate control for customized fine finish applications.
•Independent fluid and air flow controls.
•Additional pattern size control.
•Compatible with SmartStart feature on select sprayer models.
FlexLiner System •Allows user to spray gun at any angle without cup adjustment.
•Reduces cleaning time with disposable liner and no siphon tube.
•Quick change cup connection.
Siphon Cup •Traditional metal HVLP fluid cup.
Provided with:
Model FlexLiner System Siphon Cup
Edge II 17R236 17R351
Edge II Plus 17P483 17P655
ti31026a
ti31027a

Warnings
43A5097D

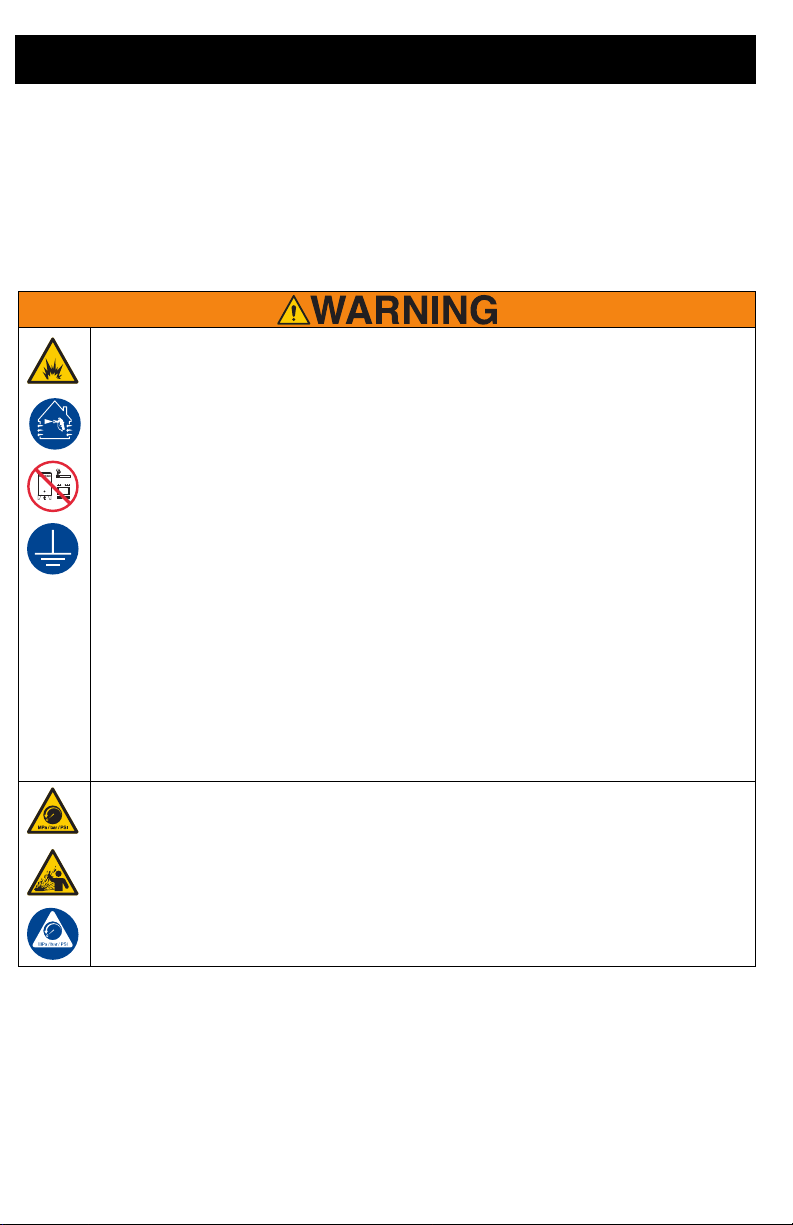

Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this
equipment. The exclamation point symbol alerts you to a general warning and the hazard
symbols refer to procedure-specific risks. When these symbols appear in the body of this
manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols
and warnings not covered in this section may appear throughout the body of this manual
where applicable.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help
prevent fire and explosion:
•Do not spray flammable or combustible materials near an open flame or sources of ignition
such as cigarettes, motors, electrical equipment, and plastic drop cloths (potential static
sparking).
• Turbine motor generates sparks. Keep sprayer in a well ventilated area at least 20 feet (6 m)
from the spray area when spraying, flushing, cleaning, or servicing. Do not spray pump
assembly.
•Connect to a grounded outlet and use grounded extensions cords. Do not use a 3-to-2
adapter.
•Do not use a paint or a solvent containing halogenated hydrocarbons.
•Do not spray flammable or combustible liquids in a confined area.
•Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.
•Do not smoke in the spray area or spray where sparks or flame is present.
•Do not operate light switches, engines, or similar spark producing products in the spray
area.
•Keep area clean and free of paint or solvent containers, rags, and other flammable
materials.
•Know the contents of the paints and solvents being sprayed. Read all Safety Data Sheets
(SDSs) and container labels provided with the paints and solvents. Follow the paint and
solvents manufacturer’s safety instructions.
•Keep a working fire extinguisher in the work area.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin and
cause serious injury.
•Follow the Pressure Relief Procedure when you stop spraying/dispensing and before
cleaning, checking, or servicing equipment.
•Tighten all fluid connections before operating the equipment.
•Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.

Warnings
3A5097D 5

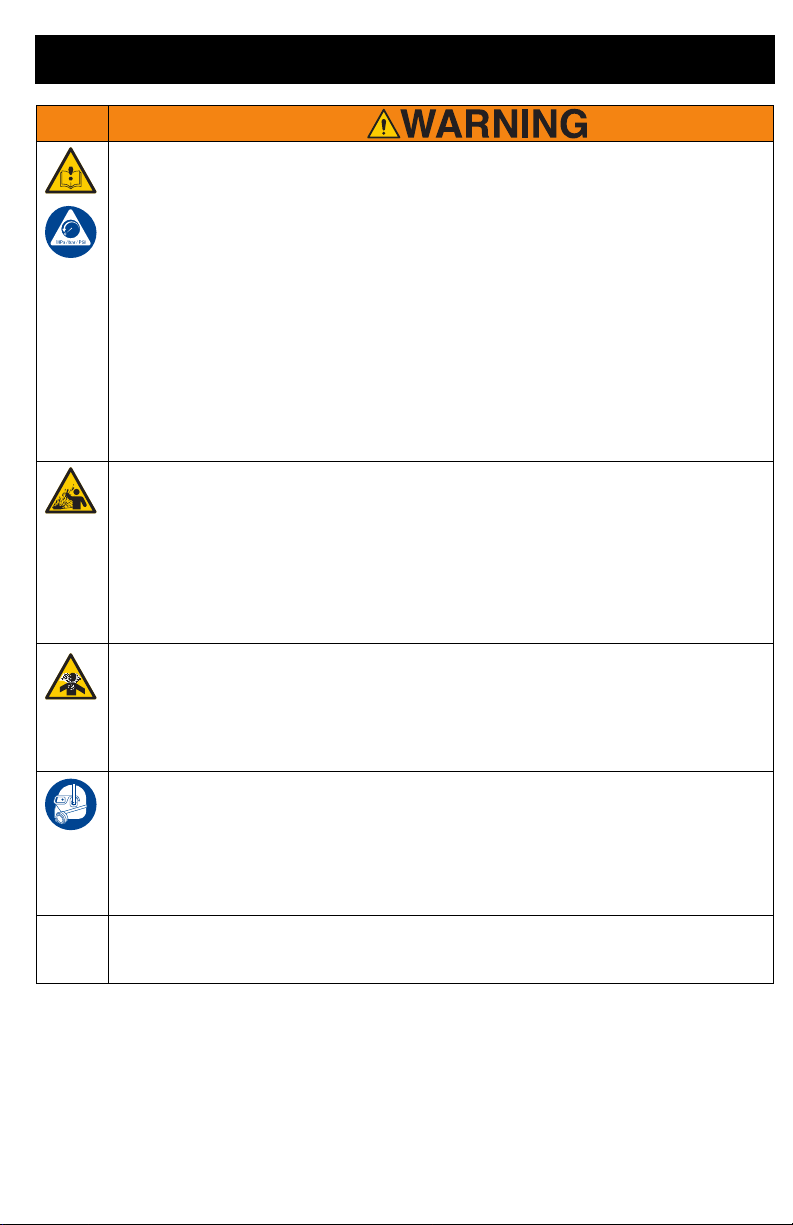

EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•Always wear appropriate gloves, eye protection, and a respirator or mask when painting.
•Do not operate or spray near children. Keep children away from equipment at all times.
•Do not overreach or stand on an unstable support. Keep effective footing and balance at
all times.
•Stay alert and watch what you are doing.
•Do not operate the unit when fatigued or under the influence of drugs or alcohol.
•Do not kink or over-bend the hose.
•Do not expose the hose to temperatures or to pressures in excess of those specified by
the manufacturer.
•Do not use the hose as a strength member to pull or lift the equipment.
•Do not alter or modify equipment. Alterations or modifications may void agency approvals
and create safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious
chemical reaction and equipment rupture. Failure to follow this warning can result in death,
serious injury, or property damage.
•Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents or fluids containing such solvents.
•Do not use chlorine bleach.
•Many other fluids may contain chemicals that can react with aluminum. Contact your
material supplier for compatibility.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin,
inhaled, or swallowed.
•Read SDSs to know the specific hazards of the fluids you are using.
•Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective
equipment includes but is not limited to:
•Protective eyewear, and hearing protection.
•Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.
CALIFORNIA PROPOSITION 65
This product contains a chemical known to the State of California to cause cancer, birth defects
or other reproductive harm. Wash hands after handling.

Know Your Spray Gun
63A5097D

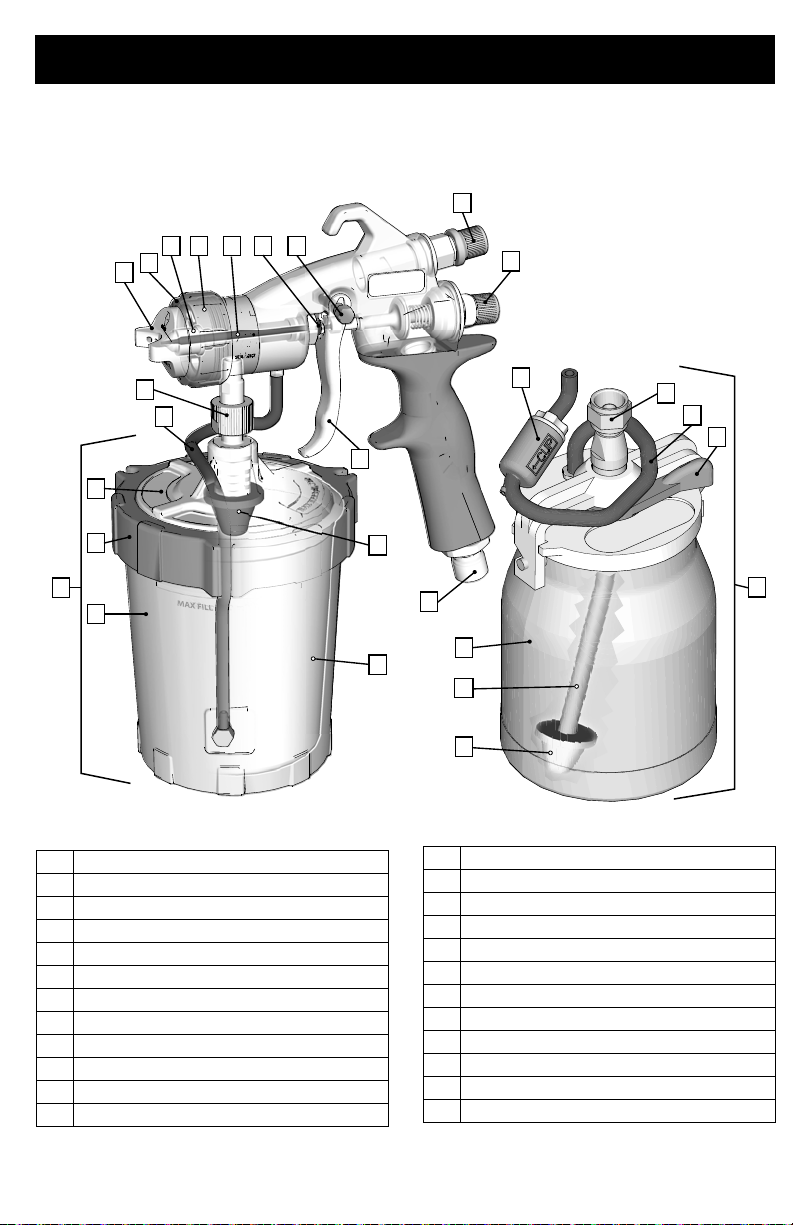

Know Your Spray Gun
EDGE II
R
Y
H
A B C D
M
L
Q
P
X
G
K
S
N
E
ti30936a
Z
T
V
U
Y
S
W
R
A Edge II Air Cap
B Retaining Ring
C Fluid Nozzle
D Fluid Needle
E Fluid / Air Flow Control Knob (select
models)
G EasyGlide™ Trigger
H Trigger Slide
K Air Inlet
L FlexLiner System (select models)
M FlexLiner Cup
N FlexLiner
P FlexLiner Cover
Q FlexLiner Ring
R Cup Fitting
S Material Strainer
T Siphon Cup
U Quick Clean Check Valve
V Latch
W Swivel Tube
X Packing Nut
Y Spray Gun Tubing
Z Siphon Cup Assembly (select models)

Know Your Spray Gun
3A5097D 7
EDGE II Plus
R
H
AB
C J D
M
Q
P
X
G
K
N
E
F
ti30937a
L
S
Y
Z
T
V
U
Y
S
W
R
A Edge II Air Cap
B Retaining Ring / Pattern Size Control
C Fluid Nozzle
D Fluid Needle
E Fluid Flow Control Knob
F Air Flow Control Knob
G EasyGlide™ Trigger
H Trigger Slide
J Air Cap Guide
K Air Inlet
L FlexLiner System (select models)
M FlexLiner Cup
NFlexLiner
P FlexLiner Cover
Q FlexLiner Ring
R Cup Fitting
S Material Strainer
T Siphon Cup
U Quick Clean Check Valve
V Latch
W Swivel Tube
X Packing Nut
Y Spray Gun Tubing
Z Siphon Cup Assembly (select models)

Pressure Relief Procedure
83A5097D
Pressure Relief Procedure
Follow the Pressure Relief
Procedure whenever you see this
symbol.
1. Turn the HVLP sprayer ON/OFF switch
to OFF position.
2. Unplug power cord to disconnect power
from the HVLP sprayer.
3. Disconnect spray gun from air hose.
NOTE: If using a remote cup, refer to
manuals provided with cup and sprayer.
4. If using a FlexLiner System:
Disconnect tubing from gun to relieve
pressure in the cup.
5. If using a metal siphon cup:
Unlatch cup cover, loosen or remove cup
from cover to relieve pressure.
The spray gun cup is pressurized. To
reduce the risk of splashing from
pressurized fluid, always follow the
Pressure Relief Procedure before
removing cup.
ti30757a
ti30627a
ti30628a

Setup
3A5097D 9
Setup
Fluid and Work Piece
Preparation
•Strain fluids before spraying. This
includes colors, reducers and
hardeners.
•Use a slower drying reducer or thinner to
compensate for the faster drying time
caused by the warm air of the turbine. Do
not over reduce.
•Spray performance varies with the
viscosity of the material sprayed, HVLP
sprayer, and length of hose.
•Most material manufacturers provide
recommendations for their materials.
Follow these recommendations.
•For proper adhesion, ensure surface of
work piece is completely clean.

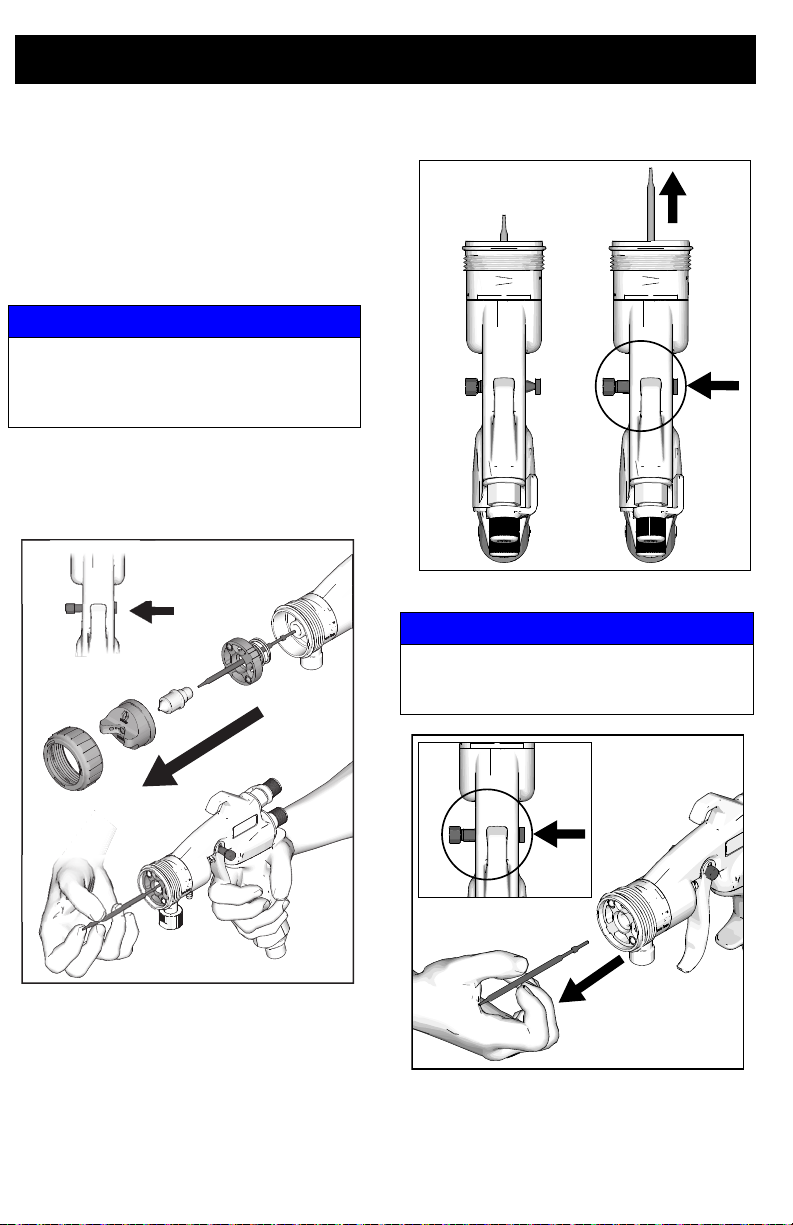

Fluid Set Selection
For best spray performance, select proper
fluid set for fluid being sprayed. Reference
the Fluid Set Selection Guide for the fluid
set recommended for your application. Fluid
set numbers are marked on fluid needles and
nozzles.

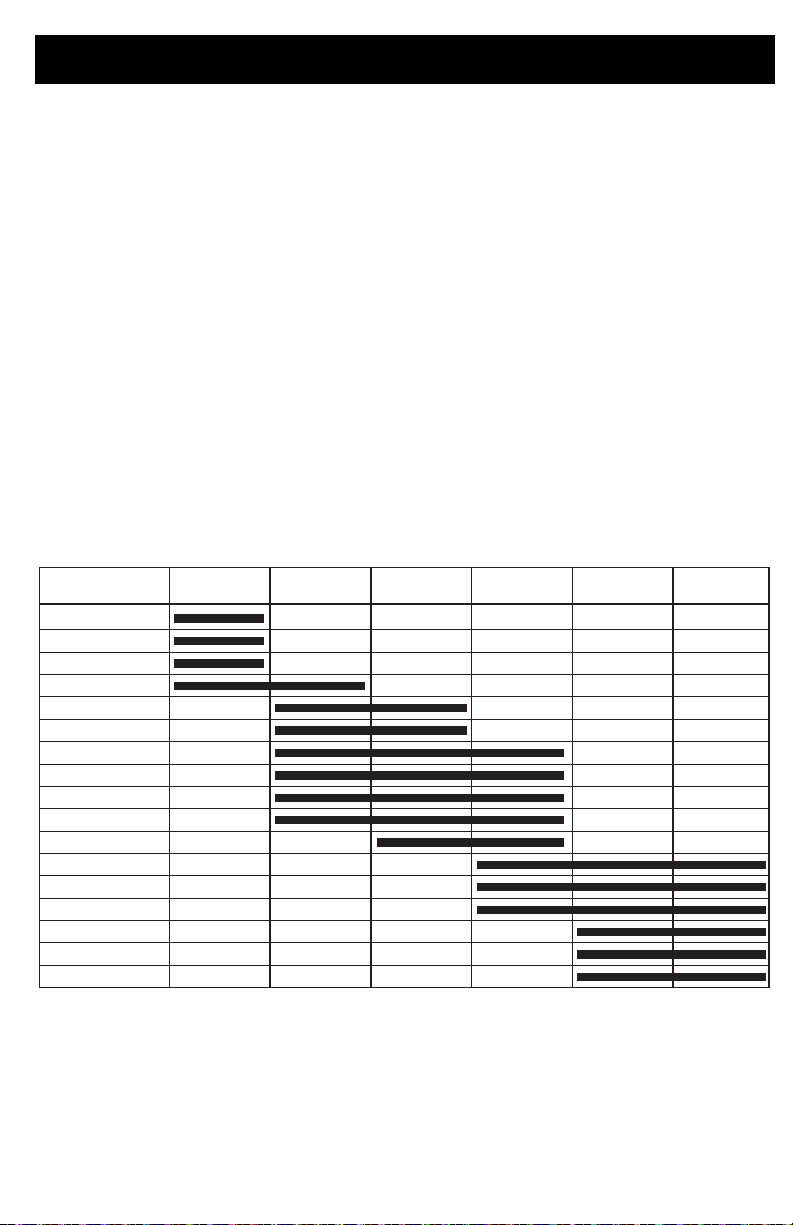

FLUID SET SELECTION GUIDE
Material Fluid Set #2 Fluid Set #3 Fluid Set #4 Fluid Set #5 Fluid Set #6 Fluid Set #7
17P485 17P486 17P487 17P488 17P489 17P490
Dye
Ink
Non-wiping Stain
Automotive Finish
Lacquer
Stain
Enamel
Epoxy
Urethane
Varnish
Primer
Industrial Finishes
Latex
Multi-Spec
Butyrate
Nitrate Dope
Oil Wall Paint
ti30938a

Setup
10 3A5097D
Fluid Set Replacement
Removal
1. Perform Pressure Relief Procedure,
page 8.
2. Remove retaining ring and air cap.
3. Trigger the gun and remove fluid nozzle.
NOTE: Edge II Plus guns contain air cap
guide and spring held in place by fluid nozzle.
Upon removal of fluid nozzle, set aside air cap
guide and spring.
4. Move trigger slide from SPRAY position
(A) to NEEDLE REMOVAL position (B).
5. Remove needle from front of gun.
NOTICE
Trigger the gun whenever removing or
installing the fluid nozzle. This prevents the
fluid nozzle and needle seating surfaces
from being damaged.
ti30850a
NOTICE
Do not use a pliers to remove needle.
Damage to the needle tip will cause leaking
at the fluid nozzle.
ti30851a
SPRAY
Position
NEEDLE
REMOVAL
Position
AB
ti30852a

Setup
3A5097D 11
Installation
1. Insert needle and move trigger slide from
NEEDLE REMOVAL position (B) to
SPRAY position (A).
2. Trigger the gun and install air cap guide
with spring (Edge II Plus only), and fluid
nozzle.
3. Install air cap and retaining ring.
ti30939a
ti30940a

Startup
12 3A5097D
Startup
Fill FlexLiner System
1. Disconnect gun from FlexLiner System.
2. Loosen ring from cup. Remove cover
and ring from cup. Verify FlexLiner
remains in cup upon removal of cover
and ring.
3. Fill FlexLiner with material to “MAX FILL”
line. Clean threads and sealing surfaces
of FlexLiner System.
ti30706a
ti30707a
ti30708a

Startup
3A5097D 13
4. Install cover and ring onto cup. Tighten
ring securely.
5. Connect FlexLiner System to gun.
6. Connect air hose to inlet fitting of gun.
7. Verify trigger slide is in SPRAY position
(A).
8. With HVLP sprayer powered ON, point
gun into a waste area. Evacuate air from
FlexLiner System by holding gun
vertically and pull trigger open until a
continuous spray pattern is observed.
NOTE: Tilt gun back and forth to help in
evacuation of air.
9. You are now ready to spray. Reference
How to Spray, page 16.
ti30709a
ti30681a
ti30683a
ti30945a
ti30687a

Startup
14 3A5097D
Fill Siphon Cup
1. Unlatch cup cover and remove from
siphon cup.
2. Fill siphon cup with material.
3. Verify siphon tube is positioned in ideal
location for desired spray orientation. If
adjustment is necessary:
a. Loosen nut, rotate cup cover to
attain desired siphon tube position.
b. Tighten nut.
4. Latch cup cover to siphon cup.
ti30628a
ti30941a
ti30942a
ti30943a

Startup
3A5097D 15
5. Connect sprayer air hose to air inlet of
gun.
6. Verify trigger slide is in SPRAY position
(A).
7. You are now ready to spray. Reference
How to Spray, page 16.
ti30944a
ti30945a

How to Spray
16 3A5097D
How to Spray
Take a few moments prior to spraying and
review these tips to ensure your spraying
project is a success.
Adjust Spray Pattern
Set air cap to position for spray pattern
desired.
Adjust Flow and Pattern Size
Edge II (Model 17R236)
Flow and pattern size is determined by how
far trigger is pulled.
Edge II (Model 17R351)
Fluid/Air Control:
Flow and pattern size is determined by
adjustment to the Fluid/Air control knob. Set
knob to OFF. Increase flow until desired finish
is attained.
Edge II Plus
Flow and pattern size is determined by
adjustment to the Fluid, Air and Pattern Size
controls.
The turbine motor generates sparks.
These sparks can ignite flammable fumes.
•Keep sprayer in a well ventilated area.
•Keep sprayer at least 20 feet (6m) from
spray area. Use additional hose if
necessary.
ti30977a
ti31144a
ti30978a
Edge II Plus Air Control
Fluid Control
Pattern
Size ti30979a

How to Spray
3A5097D 17
Fluid Control:
Set knob to OFF. Increase fluid until desired
flow is attained.
Air Control:
Start with air control at the + position. To
decrease atomization of fluid, adjust air
control toward the - position.
Pattern Size Control:
Additional control of the pattern size is
available by rotation of the air cap retaining
ring. Start with the fluid nozzle flush with the
center surface of the air cap. Pattern size can
be adjusted by rotating the retaining ring in
either direction.
Spray Techniques
Use a piece of scrap cardboard to practice
spraying techniques before spraying the
work piece.
•Always spray with the least amount of
pressure required to provide the desired
spray pattern and rate of application.
Spraying at pressures higher than
necessary wastes material and can
result in an orange peel finish.
•Aim gun straight at surface. Tilting gun to
direct spray angle causes an uneven
finish.
•Flex wrist to keep gun pointed straight.
Fanning gun to direct spray at angle
causes uneven finish.
F
L
U
I
D
ti30980b
L
U
I
ti30980a
ti30981a
THICK
UNEVEN FINISH EVEN FINISH
THIN
EVEN
ti30761a
UNEVEN FINISH
EVEN FINISH
THICKTHIN THIN
ti30762a

How to Spray
18 3A5097D
Triggering Gun
Pull trigger after starting stroke. Release
trigger before end of strike. Gun must be
moving when trigger is pulled and released.
NOTE: To prevent uneven spray pattern,
start and end stroke off of work piece surface.
Aiming Gun
Aim center of spray gun at bottom edge of
previous stroke, overlapping each stroke by
half.
If gun does not spray, reference
Troubleshooting, page 24.
Refilling FlexLiner
1. Perform Pressure Relief Procedure,
page 8.
2. Reference Fill FlexLiner System, page
12.
Refilling Siphon Cup
1. Perform Pressure Relief Procedure,
page 8.
2. Reference Fill Siphon Cup, page 14.
ti30763a
ti30764a

Cleanup
3A5097D 19
Cleanup
Cleaning the gun after every job is important.
Proper care and maintenance results in
optimal spray performance.
Cleaning FlexLiner System
1. Perform Pressure Relief Procedure,
page 8.
2. Disconnect gun from FlexLiner system.
3. Loosen ring (1) from cup (5). Remove
ring (1) and cover (2) from cup. Verify
FlexLiner (4) remains in cup upon
removal of cover and ring.
4. Return excess fluid to original container.
Hold the FlexLiner (4) in place when
pouring.
When cleaning gun with solvents, read all
fire and explosion hazard warnings on
page 4.
NOTICE
Strong solvents, such as lacquer thinner,
can damage parts of the FlexLiner System.
Do NOT immerse parts of the FlexLiner
System in solvent.
ti30706a
1
2
2a
3
4
5
ti30775a
ti30702a

Cleanup
20 3A5097D
5. It is recommended to dispose of the used
FlexLiner (4) and install a new one. If
reusing, clean by wiping all excess fluid
from FlexLiner (4).
6. Wipe excess fluid from cover (2) and ring
(1) of FlexLiner System.
7. Fill the FlexLiner (4) approximately
half-full with cleaning fluid (warm water
or appropriate solvent).
8. Remove and clean material strainer (3)
by flushing with cleaning fluid. Re-install
material strainer (3).
9. Install cover (2) and ring (1) onto cup (5).
NOTICE
Dispose of FlexLiner, cleaning materials,
and unused fluid according to local
regulations. Refer to Safety Data Sheet
(SDS) of fluids used.
ti30776a
ti30900a
ti30777a
ti30680a
