Graco MAGNUM 261800 User manual

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2007, Graco Inc. is registered to I.S. EN ISO 9001
ti9338a
For portable spray applications of architectural paints and coatings
Model: 261800
Maximum Working Pressure: 2800 psi (19 MPa, 193 bar)
Dispense Rate: 0.24 gpm (0.91 lpm)
IMPORTANT SAFETY INSTRUCTIONS.
Read all warnings and instructions in this
manual. Save these instructions.
Use water-based or mineral spirit-type
materials only. Do not use materials having
flash points lower than 70°F (21°C). For
more information about your material
request MSDS from distributor or retailer.
I
nc
l
u
d
es:
Gun: SG10
Hose: 1/4 inch x 25-ft. (6.4 mm x 7.5 m)
9 inch Pressure Roller Attachment
312079A
Operation
Project Painter 5 Airless Sprayer
The manual provided with this
sprayer contains
English and Español.
Visit our website;
http://MAGNUM.Graco.com
Specifications
This equipment is not intended for use
with flammable or combustible
materials used in places such as
cabinet shops or other “factory” or fixed
locations. If you intend to use this
equipment in this type of application,
you must comply with NFPA33 and
OSHA requirements for the use of
flammable and combustible materials.
ti9208a
ti91915a

Warnings
2312079A
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equip-
ment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer
to procedure-specific risks. Refer back to these warnings. Additional, product specific warnings
may be found throughout the body of this manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode.
To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric
lamps, and plastic drop cloths (potential static arc).
• Sprayer generates sparks. When flammable liquid is used in or near the sprayer or
for flushing or cleaning, keep sprayer at least 20 feet (6 m) away from explosive
vapors.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes
are present.
• Ground equipment and conductive objects in work area. Read Grounding instruc-
tions.
• If there is static sparking or you feel a shock, stop operation immediately. Do not
use equipment until you identify and correct the problem.
• Keep a fire extinguisher in the work area.
ELECTRIC SHOCK HAZARD
Improper grounding, setup, or usage of the system can cause electric shock.
• Turn off and disconnect power cord before servicing equipment.
• Use only grounded electrical outlets.
• Use only 3-wire extension cords.
• Ensure ground prongs are intact on sprayer and extension cords.
• Do not expose to rain. Store indoors.
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get
immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Engage trigger lock when not spraying.
•FollowPressure Relief Procedure in this manual, when you stop spraying and
before cleaning, checking, or servicing equipment.

Warnings
312079A 3
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not exceed the maximum working pressure or temperature rating of the lowest
rated system component. Read Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. Read
Technical Data in all equipment manuals. Read fluid and solvent manufacturer’s
warnings. For complete information about your material, request MSDS from dis-
tributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with
genuine Graco replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your Graco distributor for informa-
tion.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and
hot surfaces.
• Do not kink or overbend hoses or use hoses to pull equipment.
• Comply with all applicable safety regulations.
• Keep children and animals away from work area.
• Do not operate the unity when fatigued or under the influence of drugs or alcohol.
PRESSURIZED ALUMINUM PARTS HAZARD
Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents or fluids containing such solvents in pressurized aluminum equipment. Such
use can cause serious chemical reaction and equipment rupture, and result in death,
serious injury, and property damage.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on
skin, inhaled, or swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to appli-
cable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in
the operating area of the equipment to help protect you from serious injury, including
eye injury, inhalation of toxic fumes, burns, and hearing loss. This equipment includes
but is not limited to:
• Protective eye wear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
•Gloves
• Hearing protection
WARNING

Installation
4312079A
Installation
Grounding and Electric
Requirements
Sprayer must be grounded. Grounding reduces
the risk of static and electric shock by providing an
escape wire for electrical current due to static build
up or in the event of a short circuit.
• The 120 Vac
sprayers require a
120 Vac, 60 Hz,
15A circuit with a
grounding
receptacle.
• Never use an outlet
that is not grounded
or an adapter.
• Do not use the sprayer if the
electrical cord has a
damaged ground prong.
• Only use an extension cord
with an undamaged 3-prong
plug.
Recommended extension cords for use with
this sprayer:
• 50 ft (15.0 m) 16 AWG (1.0 mm2)
• 100 ft (30.0 m) 14 AWG (1.5 mm2)
Spray gun:ground through connection to a prop-
erly grounded fluid hose and pump.
Fluid supply container:follow local code.
Solvent pails used when flushing: follow local
code. Use only conductive metal pails, placed on a
grounded surface such as concrete. Do not place
the pail on a nonconductive surface, such as paper
or cardboard, which interrupts grounding continuity.
Grounding the metal pail: connect a ground wire
to the pail by clamping one end to pail and other
end to ground such as a water pipe.
Maintaining grounding
continuity when flush-
ing or relieving pres-
sure: hold metal part of
the spray gun firmly to the
side of a grounded metal
pail, then trigger the gun.
Thermal Overload
Motor has a thermal overload switch to shut itself
down if overheated. If unit overheats, allow approx-
imately 45 minutes for unit to cool. Once cool,
switch will close and unit will restart.
WLD
WLD
Smaller gauge or longer extension cords may
reduce sprayer performance.
To reduce the risk of injury from motor starting
unexpectedly when it cools, always turn power
switch OFF if motor shuts down.
ti9207a

Component Identification
312079A 5

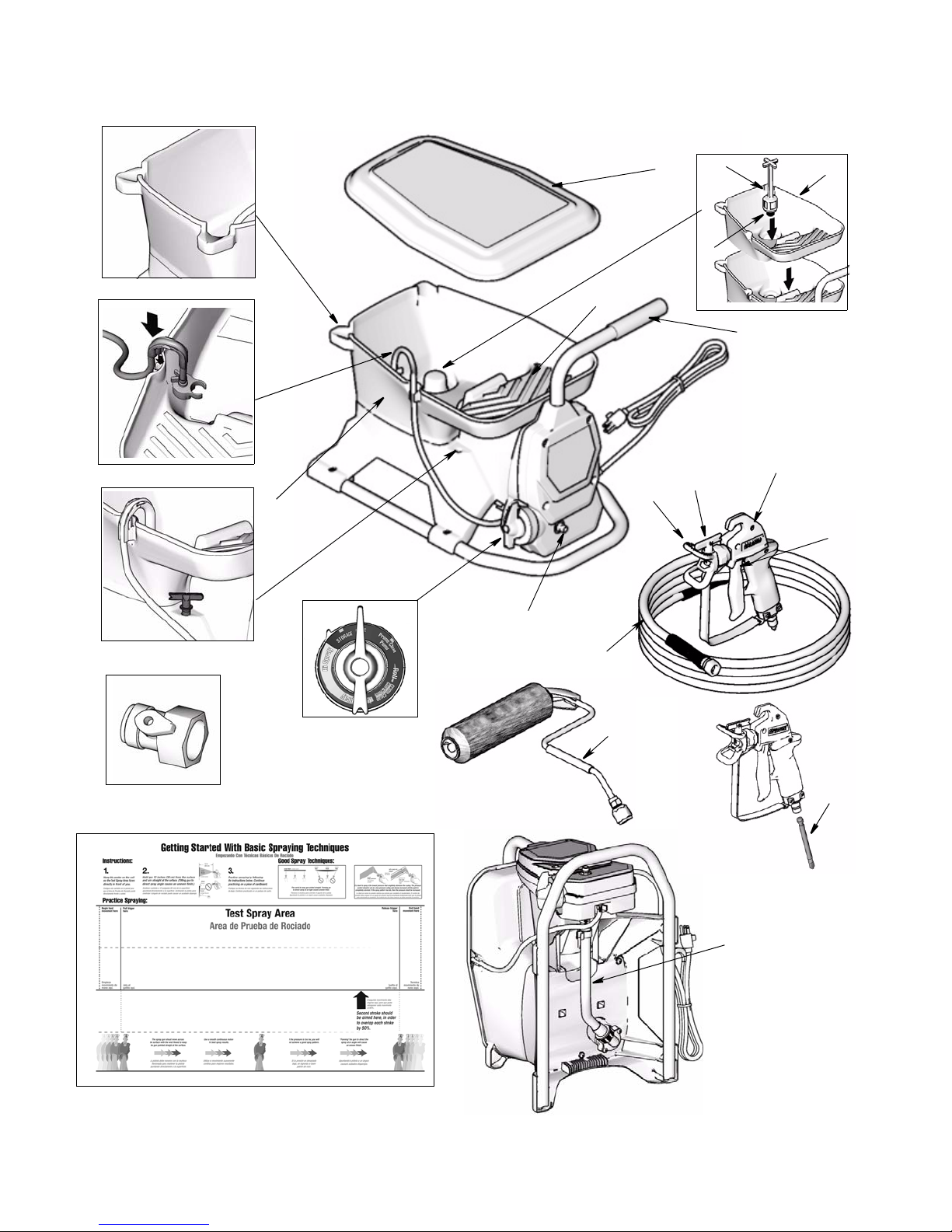

Component Identification
Project Painter 5
AAllControl™• STORAGE: for long term or overnight shutdown and stor-
age.
• OFF: turns motor off for short term shutdown and
relieves system pressure.
• PRIME/CLEAN PUMP: turns on motor and directs fluid
to prime tube.
• ROLL: directs low pressure fluid to roller (when used)
• PRIME/CLEAN GUN & HOSE: directs fluid to gun and
hose.
• LOW SPRAY to HIGH SPRAY: directs fluid to spray gun.
B Pump fluid outlet fitting Threaded connection for paint hose.
C Suction tube Draws fluid from paint pail or hopper into pump.
D Prime tube (with diffuser) Drains fluid in system during priming and pressure relief.
E Inlet screen Prevents debris from entering pump.
E1 Inlet screen handle Aids in the installation and removal of the inlet screen.
F Hopper cover Prevents debris from entering hopper.
G Pour spouts Directs paint out of hopper and back into paint container.
H Hopper 2.5 gal. (9.5 L) capacity hopper that holds paint.
J Tip holder Storage for 2 spray tips.
K Hopper handle Press and turn handle to allow access to hopper and paint
tray.
L Paint tray Built in paint tray to rest roller attachment when not in use.
M Disposable hopper liner Fits directly in hopper and is disposable for simple cleanup.
N Practice Spray Board Instructs user on how to perform basic spraying techniques
and provides surface to practice techniques prior to spraying
surfaces.
PPower Flush™attachment Connects garden hose to suction tube for power flushing
water-base fluids.
R Paint hose Transports high-pressure fluid from pump to spray gun.
S Airless spray gun Dispenses fluid.
T Tip guard Reduces risk of fluid injection injury.
U Reversible spray tip • Atomizes fluid being sprayed, forms spray pattern and
controls fluid flow according to hole size.
• When reversed, unclogs plugged tips without disassem-
bly.
V Gun fluid filter Filters fluid entering spray gun to reduce tip clogs.
W Roller attachment Attaches to spray gun for pressure rolling directly on
surfaces.
X Gun trigger safety lever (page 7) Prevents accidental triggering of spray gun.

Component Identification
6312079A
B
C
H
F
G
A
J
D
E1
G
K
N
Bottom view and
p
osition for direct immersion mode
R
S
TU
W
L
P
ti9724a
ti9168a
V
X
M
ti9305a
ti9374a
ti9533a
ti9301a
ti9306a
ti9208a
ti9338a
ti9257a
ti9294a
E

Getting Started
312079A 7
Getting Started
Pressure Relief Procedure
Follow this Pressure Relief Procedure when you
stop spraying and before cleaning, checking, ser-
vicing, or transporting equipment.
1. Set AllControl to OFF.
Unplug sprayer.
2. Hold gun firmly to the side of a pail. Trigger the
gun to relieve pressure.
3. Engage trigger lock. See Trigger Lock, page 7.
If you suspect the spray tip or hose is clogged or
that pressure has not been fully relieved after fol-
lowing the previous steps, VERY SLOWLY loosen
tip guard retaining nut or hose end coupling to
relieve pressure gradually, then loosen completely.
Clear hose or tip obstruction. Read Unclogging
Spray Tip, page 14.
Trigger Lock
Always engage the trigger lock when you stop
spraying to prevent the gun from being triggered
accidentally by hand or if dropped or bumped.
ti9168a
Locked Unlocked
ti8923a ti8922a

GettingStarted
8312079A

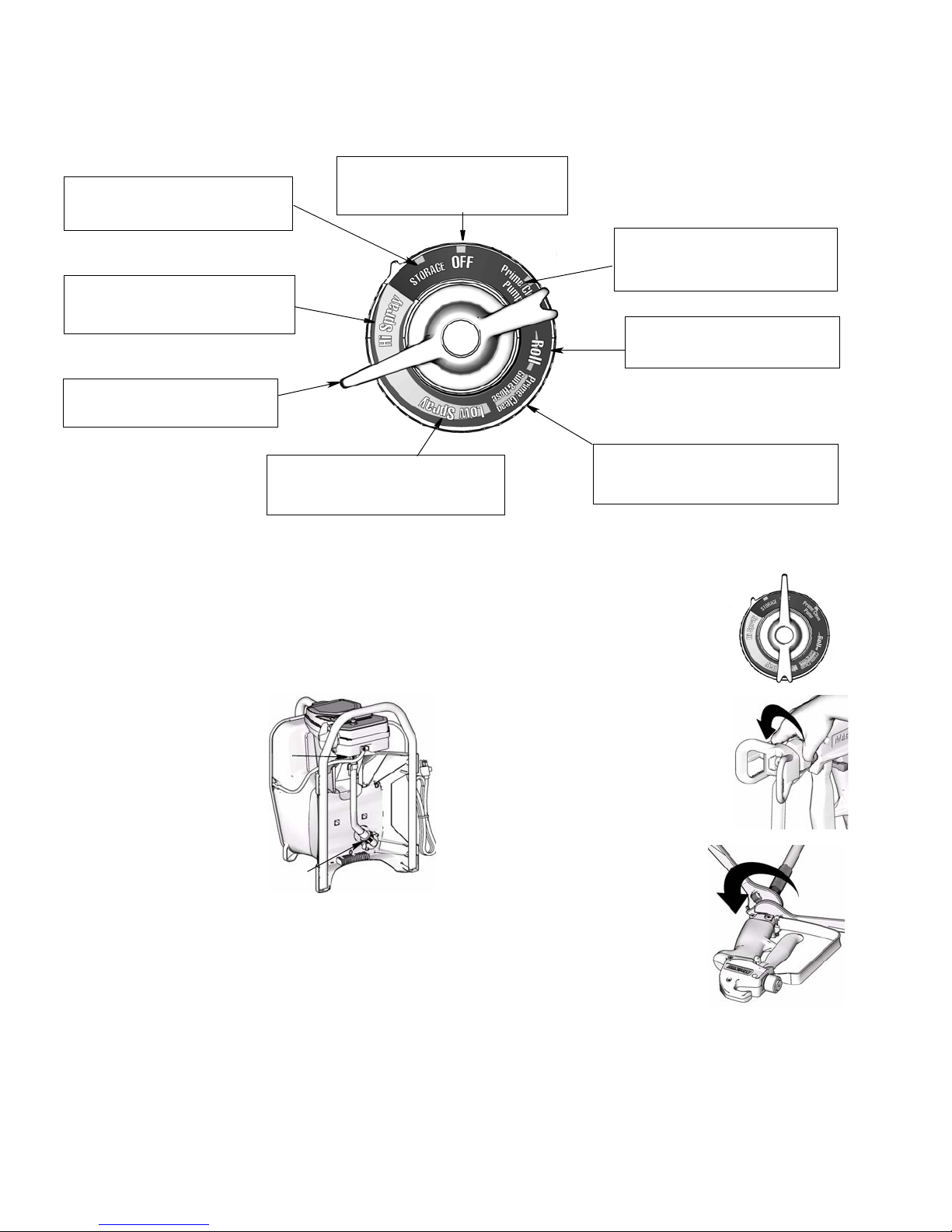

AllControl™Settings
Setup
Project Painter 5 can be used as either a hopper or
direct immersion sprayer.

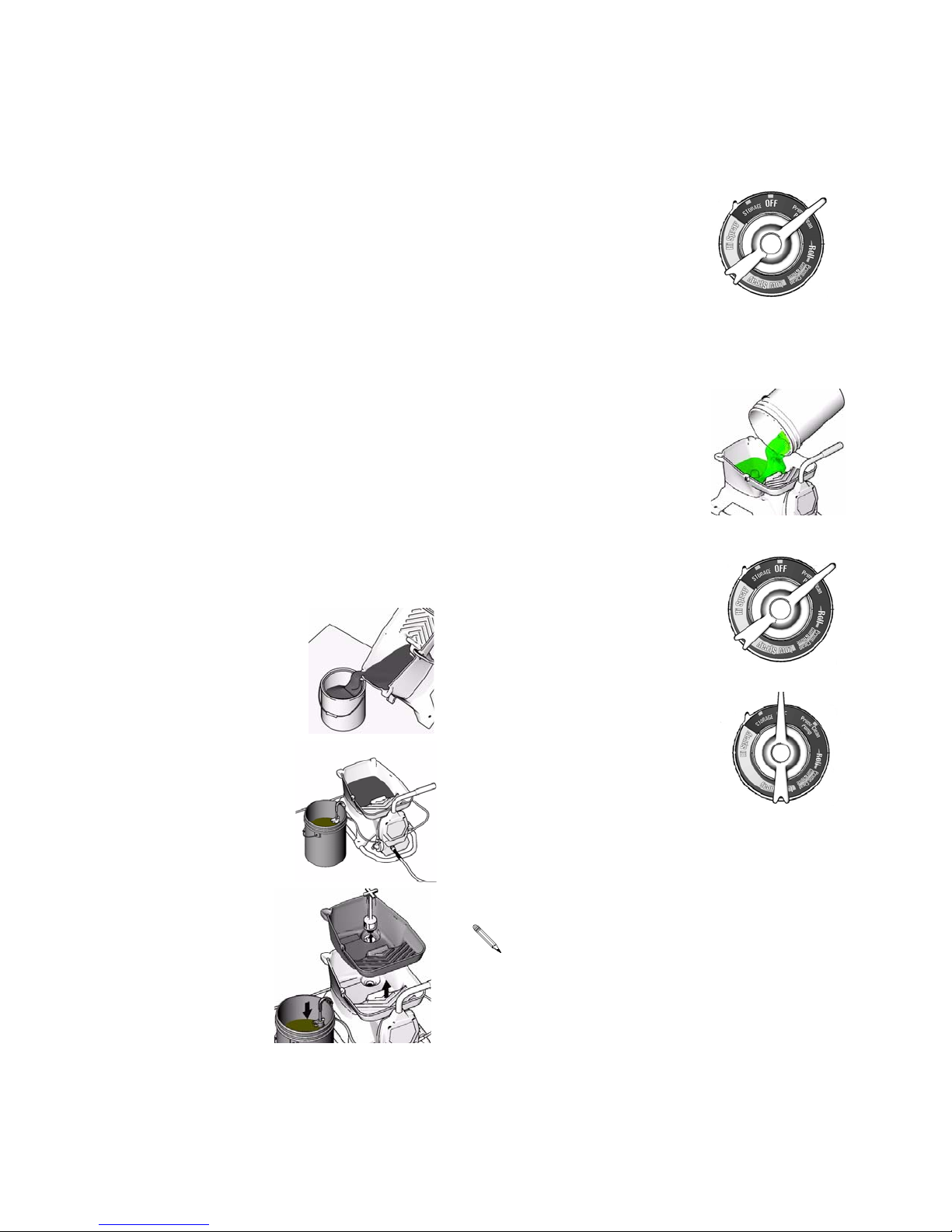

Hopper Method (Primary Spray Method)
1. Stand sprayer upright
to verify the suction
tube is securely and
properly connected to
fitting (a) and hopper
elbow (b). If they are
not, connect suction
tube and tighten
securely.
2. Return sprayer to horizontal position.
3. Set AllControl to OFF. Engage
gun trigger lock.
4. Unscrew tip and guard
assembly from gun.
5. Uncoil hose and connect
one end to gun. Use two
wrenches to tighten
securely.
STORAGE - long term and
overnight shutdown and storage
HI SPRAY - uses high pressure
to direct fluid to spray gun
OFF - turns motor off for short
term shutdown and relieves
system pressure
PRIME/CLEAN PUMP - turns
motor on and directs fluid to
prime tube
ROLL - directs low pressure
fluid to roller (when used)
PRIME/CLEAN GUN & HOSE -
directs fluid to gun and hose
LOW SPRAY - uses low pressure
to direct fluid to spray gun
SETTING INDICATOR -
selects function
a
bti9294a
ti9168a
ti9204a
ti9203a

Getting Started
312079A 9
6. Connect other end of hose
to sprayer (a). Use two
wrenches to tighten
securely.
7. Push down on bend of
handle and pivot 90°.
Remove cover.
8. Unclip drain tube from
side of hopper and place
in waste pail.
9. Install liner (c) in
hopper (optional).
10. Use inlet screen
handle (d) to install
inlet screen into
opening in bottom of
hopper.
NOTE: If using a liner, be sure liner is in place
before you install inlet screen. The inlet screen
will hold the liner in place and help prevent
paint from seeping between the liner and the
hopper for easier cleanup.
Priming and Flushing Storage Fluid
(Hopper Method)
Before you use your sprayer for the first time or
begin a new spraying project, you need to prime
the sprayer and flush the storage fluid out of the
sprayer.
Oil- or Water-based Materials
1. Make sure AllControl is set to
OFF and sprayer is unplugged.
If hose is already connected, make sure con-
nections are tight.
a
ti9375a
ti9290a ti9291a
ti9829a
c
d
• When spraying water-based materials,
flush the system thoroughly with water.
• When spraying oil-based materials, flush
the system thoroughly with mineral spirits
or compatible, oil-based flushing solvent.
•Tospraywater-based materials after
spraying oil-based materials, flush the
system thoroughly with water first. The
water flowing out of prime tube should be
clear and solvent-free before you begin
spraying the water-based material.
•Tosprayoil-based materials after
spraying water-based materials, flush the
system thoroughly with mineral spirits or a
compatible oil-based flushing solvent first.
The solvent flowing out of the prime tube
should not contain any water.
• When flushing with solvents, ground gun.
Read Grounding and Electric
Requirements, page 4.
• To avoid fluid splashing back on your skin
or into your eyes, always aim gun at inside
wall of pail.
ti9168a

GettingStarted
10 312079A
2. Fill hopper with water or
compatible flushing solvent.
3. Plug sprayer in a grounded outlet.
4. Turn AllControl to
PRIME/CLEAN PUMP.
5. When sprayer starts
pumping, water or
flushing solvent and air
bubbles will be purged
from the system. Allow
fluid to drain out of prime
tube, into waste pail, until
all fluid has drained out of
hopper. Pour out any
remaining fluid.
6. Turn AllControl to OFF.
7. Fill hopper with paint.
8. Turn AllControl to
PRIME/CLEAN PUMP.
9. When paint comes out of
drain tube, turn AllControl to
OFF.
10. Clip drain tube to side of
hopper.
11. Point gun into waste pail.
12. Unlock gun trigger lock.
13. Pull and hold gun trigger.
14. Set AllControl to
PRIME/CLEAN GUN &
HOSE.
15. Continue to trigger into waste pail until you see
only paint coming out of gun.
16. Release trigger. Engage
trigger lock.
17. If spraying, install tip and guard on gun, page
13 and see Spraying Techniques, page 14.
If rolling, roller setup and Rolling Techniques,
begin on page 18.
ti9377a
ti9169a
ti9376a
ti9168a
ti9529a
ti9169a
ti9168a
ti9374a
ti8922a
ti9171a
ti8923a

Getting Started
312079A 11

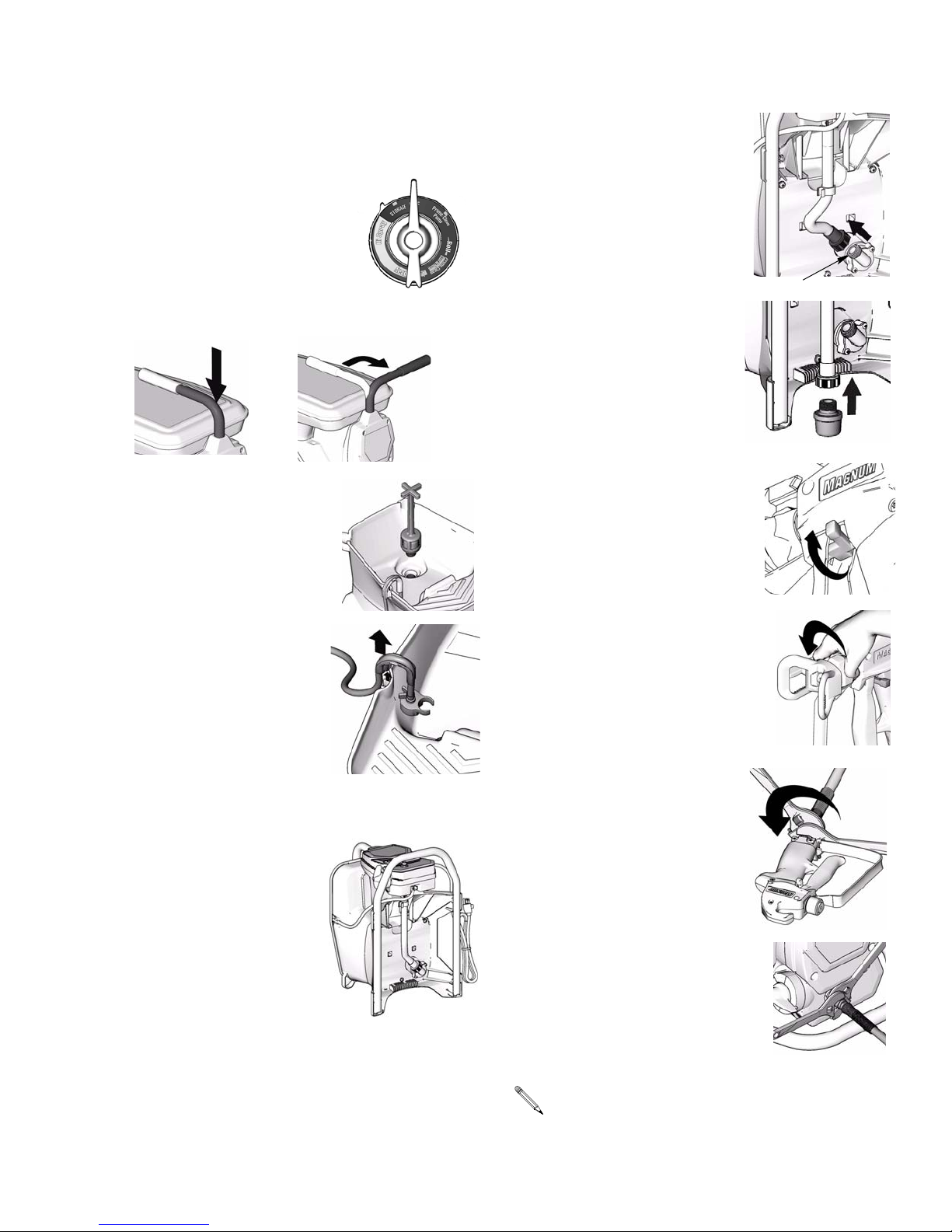

Direct Immersion Setup (Alternate Spray
Method)
1. Set AllControl to OFF.
2. Push down on bend of handle and pivot 90°.
Remove cover.
3. Use inlet screen handle to
unscrew and remove inlet
screen from hopper.
4. Unclip drain tube from side
of hopper.
5. Replace hopper cover and return handle to
locked position.
6. Stand sprayer upright in
immersion spray position.
7. Unscrew suction tube
fitting from hopper elbow
(b).
8. Install inlet screen into
end of suction tube.
9. Engage gun trigger lock.
10. Unscrew tip and guard
assembly from gun.
11. Uncoil hose and connect
one end to gun. Use two
wrenches to tighten
securely.
12. Connect other end of hose
to sprayer. Use two
wrenches to tighten
securely.
ti9168a
ti9290a ti9291a
ti9302a
ti9828a
ti9294a
If hose is already connected, make sure con-
nections are tight.
bti9379a
ti9824a
ti8923a
ti9204a
ti9203a
ti9375a

GettingStarted
12 312079A
Priming and Flushing Storage Fluid (Direct
Immersion Method)
Before you use your sprayer for the first time or
begin a new spraying project, you need to prime
the sprayer and flush the storage fluid out of the
sprayer.
Oil- or Water-based Materials
1. Verify AllControl is set to OFF
and sprayer is unplugged.
2. Place prime tube in waste
pail.
3. Submerge suction tube in
flushing solvent.
4. Plug sprayer in grounded
outlet.
5. Set AllControl™to
PRIME/CLEAN PUMP.
6. When sprayer starts pumping,
flushing solvent and air bubbles will be purged
from system. Allow fluid to pump out of prime
tube, into waste pail, for 30 to 60 seconds.
7. Turn AllControl to OFF.
8. Transfer suction tube to paint pail and
submerge in paint.
9. Turn AllControl to
PRIME/CLEAN PUMP.
10. When paint is pumping out of prime tube:
a. point gun into waste pail.
b. unlock gun trigger lock.
c. pull and hold gun trigger.
• When spraying water-based materials,
flush the system thoroughly with water.
• When spraying oil-based materials, flush
the system thoroughly with mineral spirits
or compatible, oil-based flushing solvent.
• To spray water-based materials after
spraying oil-based materials, flush the
system thoroughly with water first. The
water flowing out of prime tube should be
clear and solvent-free before you begin
spraying the water-based material.
• To spray oil-based materials after
spraying water-based materials, flush the
system thoroughly with mineral spirits or a
compatible oil-based flushing solvent first.
The solvent flowing out of the prime tube
should not contain any water.
• When flushing with solvents, ground gun.
Read Grounding and Electric
Requirements, page 4.
• To avoid fluid splashing back on your skin
or into your eyes, always aim gun at inside
wall of pail.
ti9168a
ti9825a
ti9827a
ti9169a
ti9168a
ti9169a
ti8922a

Getting Started
312079A 13
d. set AllControl to
PRIME/CLEAN GUN &
HOSE.
11. Continue to trigger into waste pail until you see
only paint coming out of gun.
12. Release trigger. Engage
trigger lock.
13. Transfer drain tube to paint pail and clip prime
tube to suction tube.
14. If spraying, install tip and guard on gun, page
13 and see Spraying Techniques, page 14.
If rolling, roller setup and Rolling Techniques,
begin on page 18.
Install Tip and Guard
1. Engage trigger lock.
2. Verify tip and guard parts are assembled in
order as shown below.
3. Screw tip and guard assem-
bly on gun. Tighten retaining
nut.
• Motor stopping indicates pump and hose
are primed with paint.
• If motor continues to run the sprayer is
not properly primed. To reprime repeat
step 6.
ti9171a
ti8923a
ti8923a
retaining nut
black rubber gasket and
guard
tip
ti8911a
metal seat
TIA
Use tip to align seat
in guard.Tip must be pushed
all the way into guard
ti9574a
ti9255a

GettingStarted
14 312079A

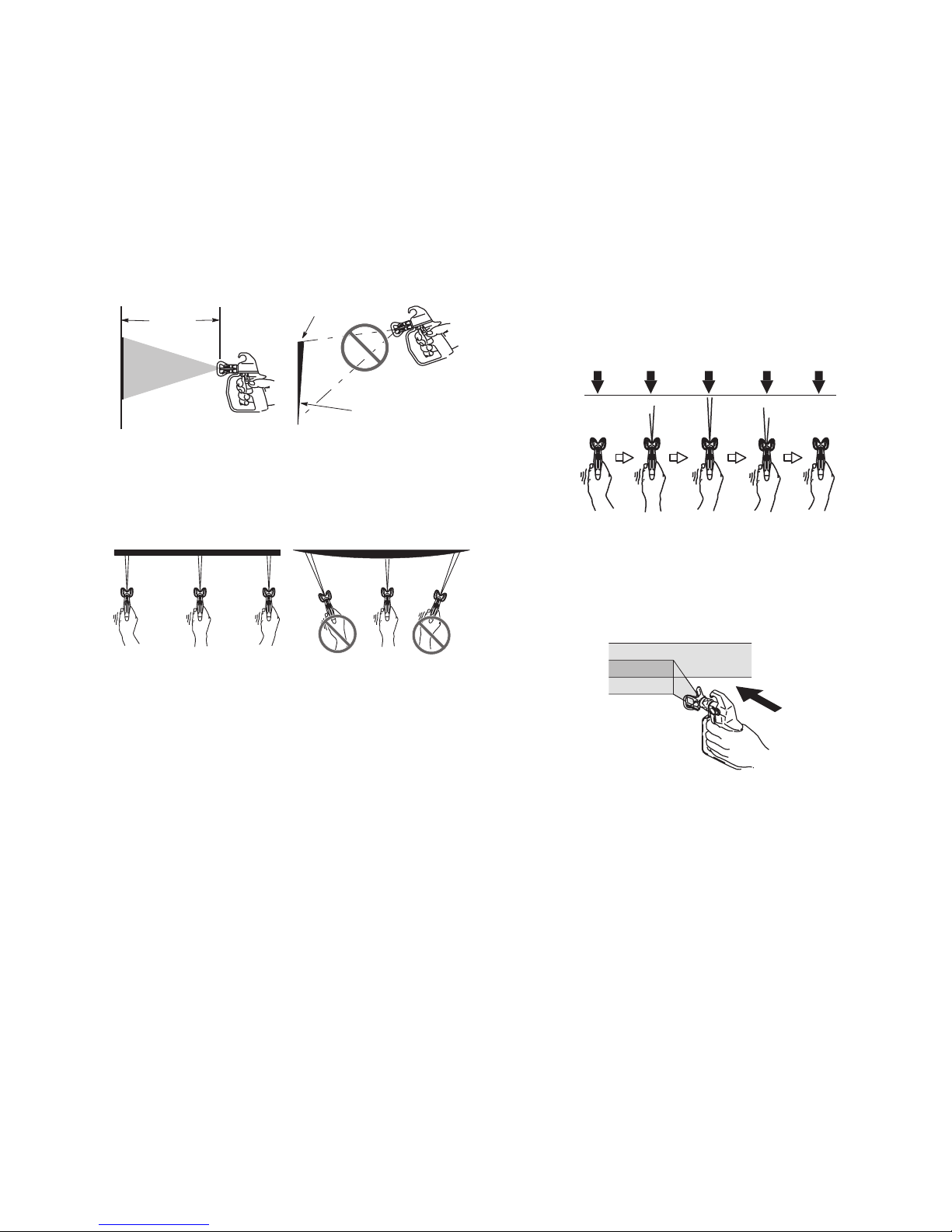

Spraying Techniques
Preventing Excessive Tip Wear
• Spray should be atomized (evenly distributed,
no gaps at edges). Start at low pressure set-
ting, increase pressure a little at a time until you
see a good spray pattern, without tails.
• Spray at lowest pressure that atomizes paint.
• If maximum sprayer pressure is not enough for
a good spray pattern, tip is too worn. See
Reversible Spray Tip Selection Chart, page 16.
Adjusting Pressure
Align setting indicator on AllControl with function,
page 8.
• LOW SPRAY provides the
lowest pressure for
spraying.
• HIGH SPRAY increases
pressure.
Unclogging Spray Tip
To avoid fluid splashback:
• Tip must be pushed all the way into guard.
• Never pull gun trigger when arrow-shaped han-
dle is between SPRAY and UNCLOG positions.
1. To UNCLOG tip obstruction,
engage trigger lock.
2. Point arrow-shaped handle
backward to UNCLOG posi-
tion.
3. Aim gun at piece of scrap or cardboard.
4. Unlock trigger lock. Pull trigger
to clear clog.
5. When obstruction is cleared,
lock trigger lock and rotate
arrow-shaped handle back to
SPRAY position.
Point the arrow-shaped handle on the spray tip for-
ward to SPRAY and backward to UNCLOG
obstructions.
If tails persist when spraying at the highest
pressure, a smaller tip is needed or the
material may need to be thinned.
GOOD
SPRAYPATTERN
TAILSGAPS
ATEDGES
PRESSURE
TOOLOW
TIA
ti9172a
ti9175a
ti8923a
ti9048a
to8922a
ti9049a

Getting Started
312079A 15
Choosing the Correct Tip for the Job
Consider coating and surface to be sprayed. Make sure you use best tip hole size for that coating and best
fan width for that surface.
Tip Selection
Selecting Tip Hole Size
• Tip hole size controls flow rate - the amount of
paint that comes out of the gun.
HINTS:
• Use larger tip hole sizes with thicker coatings
and smaller tip hole sizes with thinner coatings.
• Maximum tip hole sizes supported by sprayer is
0.015 in. (0.38 mm).
• Tips wear with use and need periodic replace-
ment.
• Tips come in a variety of hole sizes for spraying
a range of fluids. Your sprayer includes an
0.015 in (0.38 mm) tip for use in most spraying
applications. Use the following table to deter-
mine the range of recommended tip hole sizes
for each fluid type. If you need a tip other than
the one supplied, see the Reversible Tip Selec-
tion Chart on page 16.
HINTS:
• As you spray, the tip wears and enlarges. Start-
ing with a tip hole size smaller than the maxi-
mum will allow you to spray within the rated flow
capacity of the sprayer.
• Maximum tip hole sizes supported by sprayer is
0.015 in. (0.38 mm).
Fan Width
Fan width is the size of the spray pattern, which determines the area covered with each stroke. Narrower
fans deliver a thicker coat, and wider fans deliver a thinner coat.
HINTS:
• Select a fan width best suited to the surface
being sprayed.
• Wider fans allow provide better coverage on
broad, open surfaces.
• Narrower fans provide better control on
small, confined surfaces.
Coatings
Tip Hole Size Stains Enamels Primers Interior
paints Exterior paints
0.011 in. (0.28 mm) ✔
0.013 in. (0.33 mm) ✔✔✔✔
0.015 in. (0.38 mm) ✔✔✔✔

GettingStarted
16 312079A
Understanding Tip Number
The last three digits of tip number (i.e.: 221413)
contain information about hole size and fan width
on surface when gun is held 12 in. (30.5 cm) from
surface being sprayed.
Reversible Tip Selection Chart
Example: For an 8 to 10 in. (203 to 254 mm) fan
width and 0.013 (0.33 mm) hole size, order Part
No. 221413.
TIA
First digit when doubled
= approximate
fan width 413 tip has
8-10 in.
fan width
413 tip has a
0.013 in.
hole size
Last two digits = tip hole size in thousands of an inch
Tip
Part
No.
Fan Width 12 in.
(305 mm) from
surface Hole Size
221311 6 - 8 in.
(152 - 203 mm)
0.011 in.
(0.28 mm)
221411 8 - 10 in.
(203 - 254 mm)
0.011 in.
(0.28 mm)
221313 6 - 8 in.
(152 - 203 mm)
0.013 in.
(0.33 mm)
221413 8 - 10 in.
(203 - 254 mm)
0.013 in.
(0.33 mm)
221415 8 - 10 in.
(203 - 254 mm)
0.015 in.
(0.38 mm)
221515 10 - 12 in.
(254 - 305 mm)
0.015 in.
(0.38 mm)

Getting Started With Basic Techniques
312079A 17
Getting Started With Basic Techniques
Use the Practice Spray Board to practice these basic spraying techniques before you begin spraying the
surface.
• Hold gun 12 in. (30 cm) from surface and aim
straight at surface. Tilting gun to direct spray
angle causes an uneven finish.
• Flex wrist to keep gun pointed straight. Fanning
gun to direct spray at angle causes uneven
finish.
Triggering Gun
Pull trigger after starting stroke. Release trigger
before end of stroke. Gun must be moving when
trigger is pulled and released.
Aiming Gun
Aim tip of gun at bottom edge of previous stroke,
overlapping each stroke by half.
TIA
12 in.
(30 cm)
even
finish
thick
thin
uneven
finish
TIA
even finish thin thick thin
TIA
TIA

Rolling
18 312079A

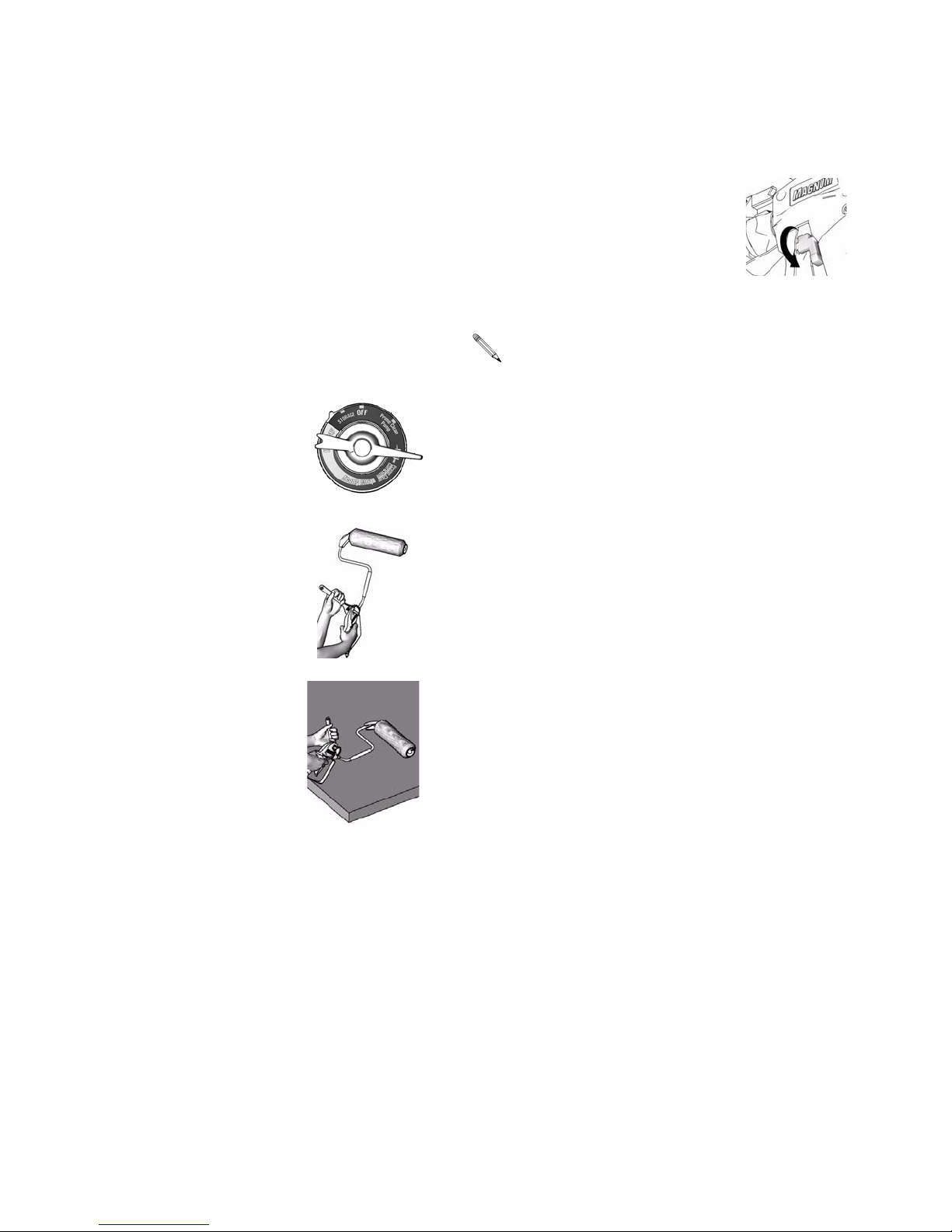

Rolling
Setup
• Before assembling roller, follow Priming
instructions, beginning on page 9 for Hopper
Method or page 12 for Immersion Method.
• After priming, only paint should come out of
spray gun. Water in hose line will cause paint to
run.
1. Set AllControl to lowest
ROLL setting.
2. If installed, remove tip and
guard assembly from gun.
3. Make sure gasket is in
place in bottom of roller
frame.
4. Rest roller on flat surface
and align gun with roller.
Tighten nut with wrench
while keeping gun and
roller aligned.
5. Unlock gun trigger safety. Trig-
ger gun. Roll surface until paint
is fully dispersed on roller. This
may take a minute.
6. Increase pressure only if triggering gun does
not supply enough paint for your rolling speed.
7. Whenever you stop painting, relieve pressure,
page 7and elevate roller end of extension tube
to prevent paint from draining out.
8. Flush the pump, gun and pressure roller imme-
diately after each use to prevent paint from dry-
ing in the pressure roller and damaging it. See
Shutdown and Cleaning, beginning on page 20.
ti9170a
ti9339a
ti9650a
• Trigger gun briefly only when you need
more paint.
• For best operating pressure set AllControl
to the lowest ROLLER setting which
provides an even paint supply to the roller.
ti8922a

Rolling
312079A 19

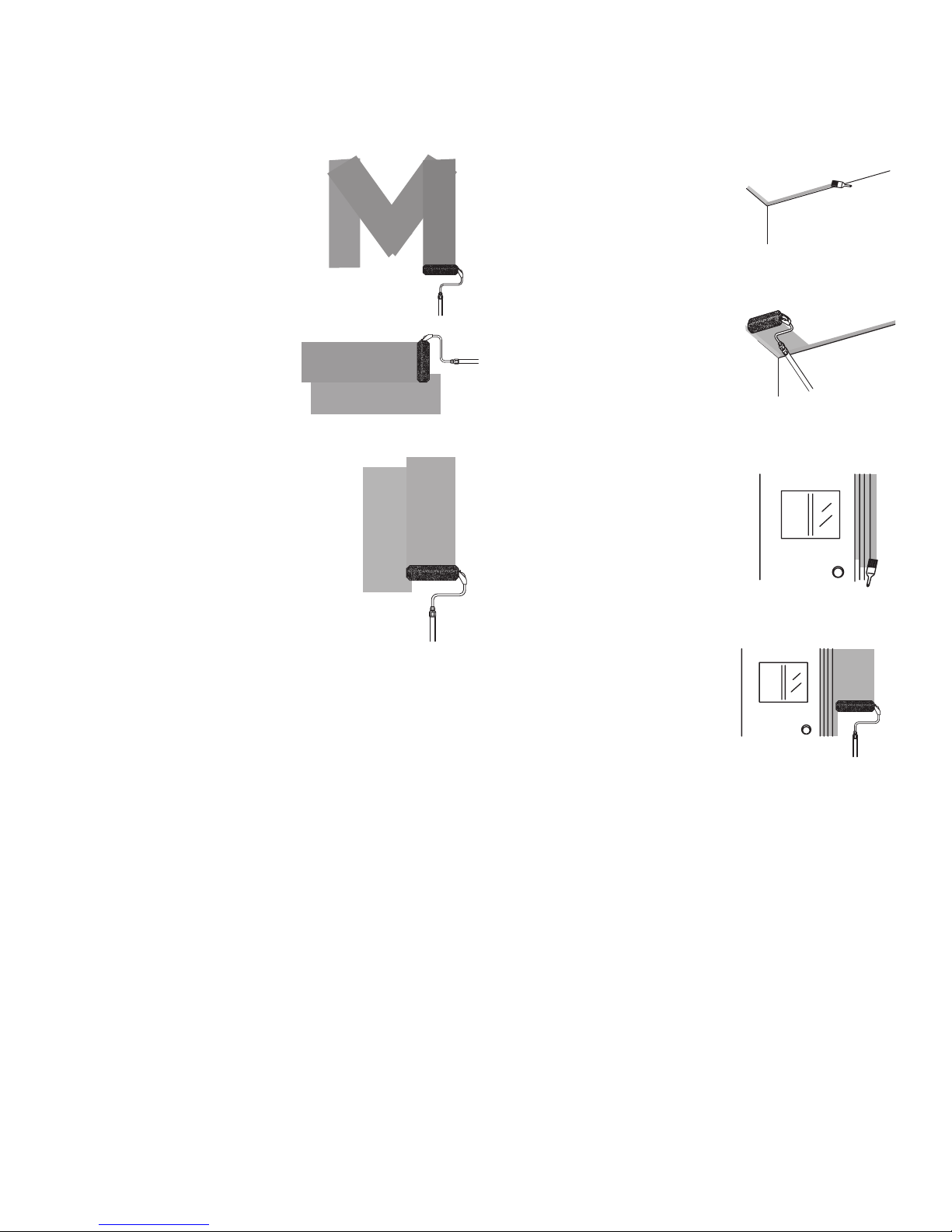

Rolling Techniques
1. Rolling vertically, roll
out the letter “M”.
2. Cross roll,
horizontally, to
spread paint.
3. Finish with light, vertical
strokes until the entire area
has been covered evenly.
Ceilings, Walls and Woodwork
1. Ceilings: Using a paint
brush, apply a starting row
of paint approximately the
width of your paint brush
where the walls and
ceiling meet.
2. With the roller apply paint
to the ceiling, working the
short way of the room and
applying as wide a strip as
possible.
1. Walls and Woodwork:
Using a brush, paint
woodwork first. Apply a
starting row of paint
approximately the width of
the paint brush around the
woodwork and where the
walls meet the ceiling.
2. With the roller, apply
paint to the walls,
following the Rolling
Techniques on page 19.
tiFig2
tiFig3
tiFig4
tiFig5
tiFig6
tiFig7
tiFig8

Shutdown & Cleaning - After Hopper Method Applications
20 312079A
Shutdown & Cleaning - After Hopper Method
Applications
• For short term shutdown periods (overnight to
one week) refer to Short Term Storage, page
29.
• For flushing after spraying oil-based coatings,
use compatible oil-based flushing fluid or min-
eral spirits.
• For flushing after spraying water-based coat-
ings, use water.
• If you are using water-based materials, you
have the option of following the cleanup proce-
dure described below, or for faster cleanup,
Power Flush, starting on page 22.
1. Relieve pressure, page 7.
2. If you used a spray gun, remove tip and guard
assembly from gun and place in flushing fluid.
If you used a roller, leave roller assembly
attached to gun.
3. Pour unused paint out of
hopper and back into original
container.
4. Place drain tube in waste
pail.
5. Use inlet screen handle
to remove inlet screen
from hopper. Place it in a
bucket of clean water or
cleaning solvent.
6. Turn AllControl to
PRIME/CLEAN PUMP to
remove excess paint in
hopper.
7. If you used a liner, carefully remove liner from
hopper and dispose of it in a proper trash
container.
8. Fill a bucket with water or
cleaning solvent and pour it
into hopper.
9. Plug sprayer in grounded outlet.
10. Set AllControl to
PRIME/CLEAN PUMP.
Circulate fluid for at least a
minute.
11. Turn AllControl to OFF.
12.
a. If you used a spray gun
only, continue with Step
11.
b. If you used a roller follow Cleaning Roller
instructions beginning on page 28.
ti9292a
ti9376a
ti9378a
Step 13 is for returning paint in hose back to
paint pail. One 25-ft (7.5 m) hose holds
approximately 1-pint (1.5-liter) of paint.
ti9168a
ti9377a
ti9169a
ti9168a
