Graco 120581 User manual

311881F
EN
Installation

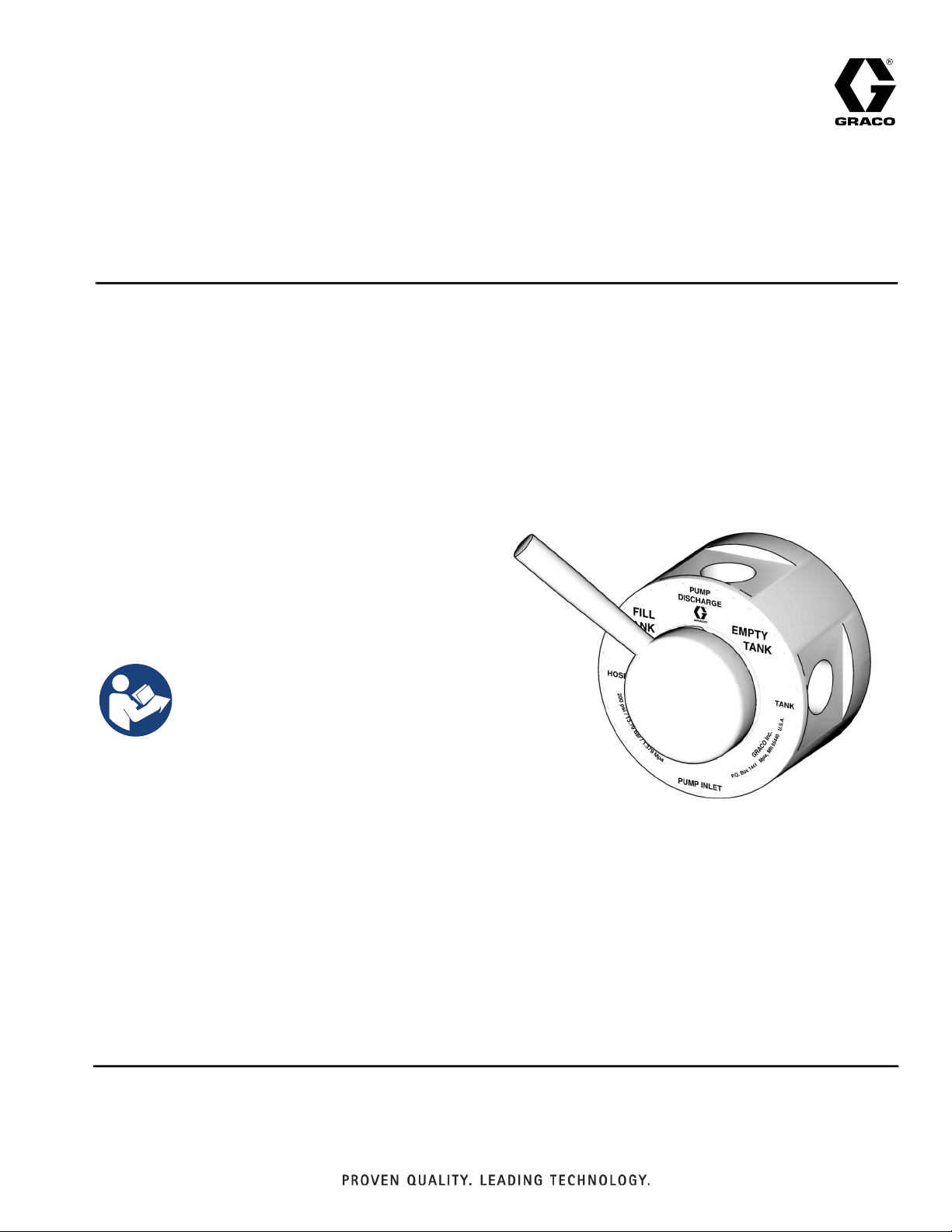

Four-Way
Evacuation Valve
For use with petroleum and synthetic-based oils, fuels, antifreeze, and windshield wash
fluid. For professional use only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Model 120581
1 npt 4-Way Evacuation Valve
200 psi (1.38 MPa, 13.8 bar) Maximum Working
Pressure
Model 120601
1-1/2 npt 4-Way Evacuation Valve
200 psi (1.38 MPa, 13.8 bar) Maximum Working
Pressure.
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment.
Save these instructions.

2 311881F
WARNING
FIRE AND EXPLOSION HAZARD
When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be
aware that flammable fumes can ignite or explode. To help prevent fire and explosion:
• Use equipment only in well-ventilated area.
• Eliminate all ignition sources, such as cigarettes and portable electric lamps.
• Ground all equipment in the work area.
• Keep work area free of debris, including rags and spilled or open containers of solvent and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
• Use only grounded hoses.
•Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin and cause
serious injury.
• Relieve the pressure when you stop spraying/dispensing and before cleaning, checking, or servicing
equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious
chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious
injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents.
• Do not use chlorine bleach.
• Many other fluids may contain chemicals that can react with aluminum. Contact your material
supplier for compatibility.

Typical Installation Configuration
311881F 3

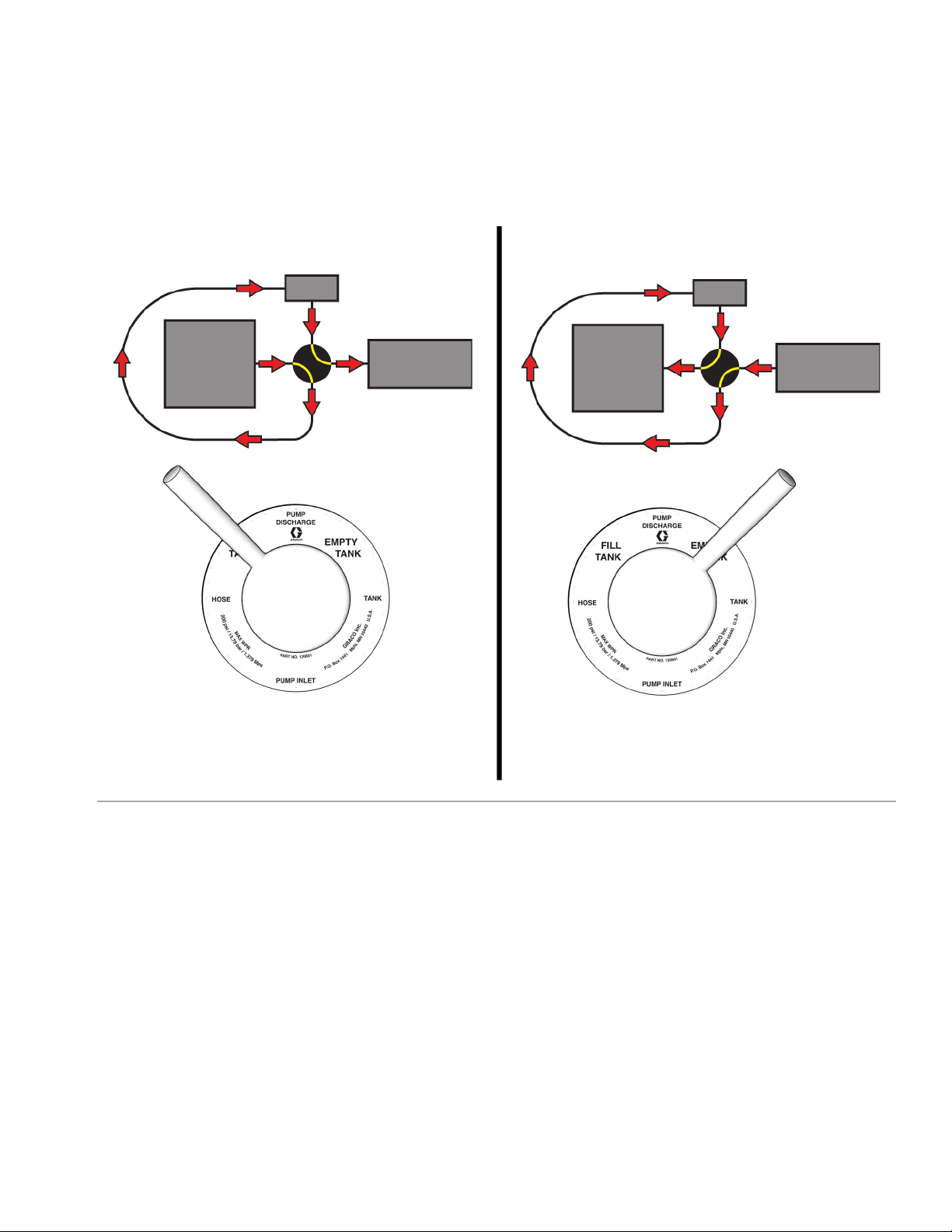

Typical Installation Configuration
Application - Lube Trucks
FIG. 1
PUMP
TRUCK
TANK
HOLDING
TANK
Fill Tank Mode
Filling Truck Tank Emptying Truck Tank
PUMP
BULK
WASTE
TRUCK
OIL TANK
Empty Tank Mode

Maintenance
4 311881F
Maintenance
1. Use a spanner wrench with pin diameter of 1/4 in.
(.635 cm) to take apart the valve (FIG. 2).
2. Replace the existing o-rings (PN 114054) (FIG. 3).
3. Reassemble the valve using thread adhesive.
Recycling
End of Product Life
At the end of the product’s useful life, dismantle and
recycle it in a responsible manner.
1. Drain and dispose of fluids according to applicable
regulations. Refer to the material manufacturer’s
Safety Data Sheet.
2. Deliver remaining product to a recycling facility.

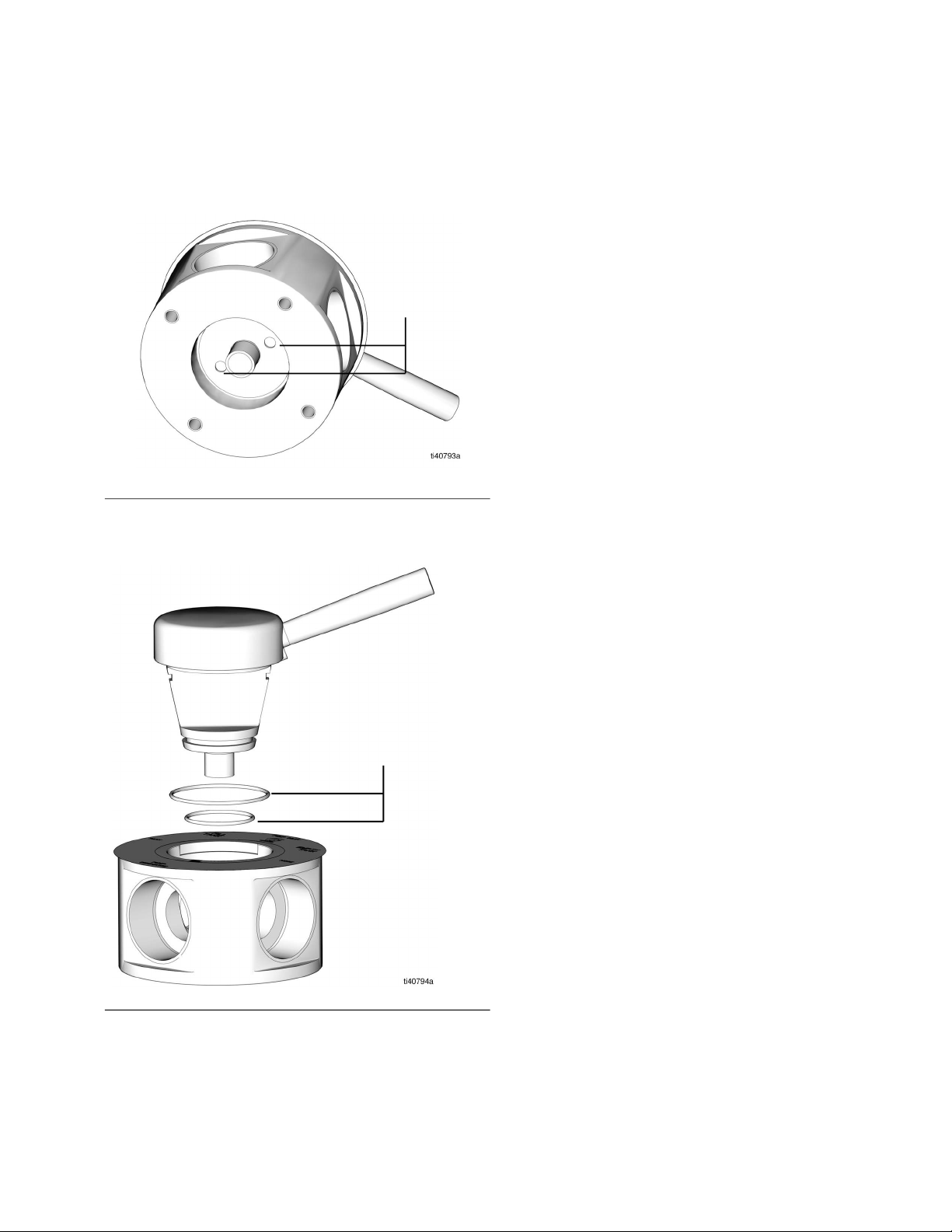

FIG. 2
FIG. 3
Insert Wrench
O-rings

Models and Replacement Parts
311881F 5
Models and Replacement
Parts
Note: Replacing the o-ring requires an adjustable pin
spanner wrench with a pin diameter of 1/4 in. (.635 cm).
Part
No. Description
120581 1 npt. 4-Way Evacuation Valve
120601 1 1/2 npt. 4-Way Evacuation Valve
114054 O-Ring, fluorocarbon
188555 O-Ring, fluorocarbon

Dimensions
6 311881F
Dimensions
Mounting Holes
2.165 in.
(5.5 cm)
2.5 in.
(6.35 cm)
2.5 in.
(6.35 cm)
(4X .312-18 UNC-28 R. 0.75)
(Ø 4.33)
0.25 in.
( 0.635 cm)
1.25 in.
(3.18 cm)

Technical Specifications
311881F 7
Technical Specifications
California Proposition 65
Four-Way Evacuation Valve
U.S. Metric
Maximum fluid working pressure 200 psi 1.38 MPa, 13.8 bar
Dimensions 4.33 in. (w) x 4.95 in. (h) 11 cm (w) x 12.57 cm (h)
Weight 3.5 lbs 1.58 kg
Threads 1 and 1.5 npt(f)
Fluid outlet size 5/16 unc(f)
Fill/Empty Handle Rotation 90°
Wetted Parts
Spool. Housing Aluminum
O-ring Fluorocarbon
CALIFORNIA RESIDENTS
WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov.

All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 311881
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2007, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision F, July 2022
