GF8900-1-INS-LAB-RevB09 1
GF8900-1: ECONOMY OVERBED TABLE, NON-TILT
ASSEMBLY & OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
Note: The most current version of these instructions can be found online at www.grahamfield.com
Tools needed: Phillips screwdriver, 9/16 hex wrench
WARNING: Important! Read and understand these instructions before assembling or using
the GF8900-1 Overbed Table. If you do not understand any part of these instructions, contact
a healthcare professional for direction in the use of this product. If the GF8900-1 Overbed
Table is not properly assembled and adjusted, personal injury and/or damage to the Overbed
Table could result.
WARNING: If components are damaged or missing, contact your dealer immediately. DO NOT
use substitute parts. Use only Lumex replacement parts. Non-Lumex replacement parts
could cause personal injury and/or damage to overbed table.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury
caused by improper assembly or use of this product.
UNPACKING
1. Check for obvious damage to the carton or its contents. If damage is evident, notify the carrier and
your Graham-Field®authorized distributor.
2. Remove all loose packing from the box. Carefully remove all the components from the carton. Com-
ponents: Table top, mast, 6 sheet metal screws, base, 4 casters, 2 hex head bolts, 2 at washers,
and 2 metal spacers.

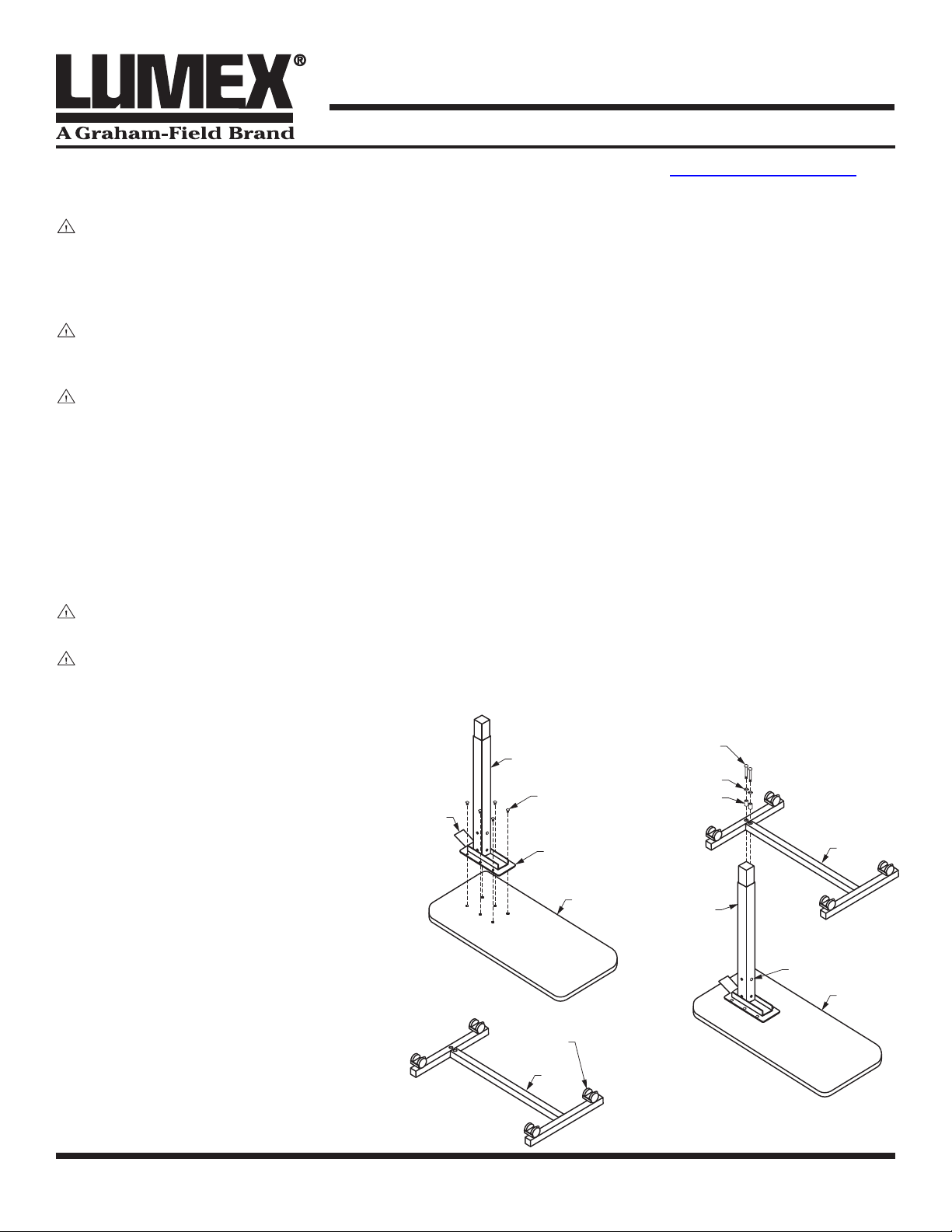

ASSEMBLY (SEE PICTURES AT RIGHT)
WARNING: Do not remove the transit lock screw from the mast before the table is completely
assembled; the table top could rise suddenly and cause serious personal injury.
WARNING: Do not disassemble the mast; this could cause serious personal injury.
1. Place the table top upside down on work surface.
2. Position the mast above the table
top, oriented as shown at near right.
Place mast mounting plate on table
top, matching mounting plate holes
with table top predrilled pilot holes.
3. Mount mast to table top: Install sheet
metal screws through mounting plate
holes into table top holes. Tighten.
4. Place the base upside down on work
surface. Press casters into sockets
in bottom of base as shown at lower
right.
5. Place the table top upside down on
work surface. Place the base upside
down above the mast, oriented as
shown at far right.
6. Install the two hex head bolts
through the washers, spacers, and
base, and into the end of the mast
column as shown. Tighten the bolts.
install mast
release
paddle
sheet metal screw
(6 each)
mounting plate
table top
mast
caster
(4 each)
base
install casters
hexheadbolt
(2each)
spacer(2each)
mastcolumn
washer(2each)
base
table
install base
transitlockscrew

www.grahamfield.com
© November 2009 GF Health Products, Inc. • 2935 Northeast Parkway • Atlanta, GA 30360 • tel [phone] • fax [phone]
GF8900-1-INS-LAB-RevB09 2
7. Turn the table upright and place it on the oor, as
shown at right. While holding table top down with one
hand, carefully — table could rise suddenly — remove
the transit lock screw with the other hand. Discard tran-
sit lock screw.
WARNING: Ensure that the table is assembled as
described, and that all components are securely at-
tached, before use.
OPERATION INSTRUCTIONS
WARNING: Do not lean on the suspended end of the
table top; this may cause the table to tip.
WARNING: The table supports up to 30 lb of dis-
persed weight. Do not exceed this limit.
To raise the table top
To raise the table top, apply light pressure upward on the bottom of the table top and stop when the
table top has reached the desired position.
To lower the table top
To lower the table top, squeeze the release paddle upward while pushing the table top down; release
the paddle when the table top has reached the desired position.
WARNING: Ensure the table top is locked in place before use.
MAINTENANCE
Check the t and tightness frequently of all nuts and bolts to ensure that the table is securely assem-
bled.
Cleaning
1. To clean: Gently wipe the table with a soft, clean, damp cloth.
Caution: Do not use cleansers that may damage the table's nish.
2. To wash more thoroughly: Clean with mild soap and water.
3. Dry table with a clean, soft cloth.
WARRANTY
GF Health Products, Inc. offers a limited one-year warranty against manufacturer's defects on the
Lumex®GF8900-1 Economy Overbed Table. If a product is deemed to be under warranty, GF Health
Products, Inc. shall provide, at its option, (1) replacement of any defective part or product or (2) a
credit of the original selling price made to GF Health Products, Inc.'s initial customer. The warranty
does not include any labor charges incurred in replacement part(s) installation or any associated
freight or shipping charges to GF Health Products, Inc.
transitlockscrew release
paddle
remove transit
lock screw
