Graham Field Lumex FR601 Series User manual

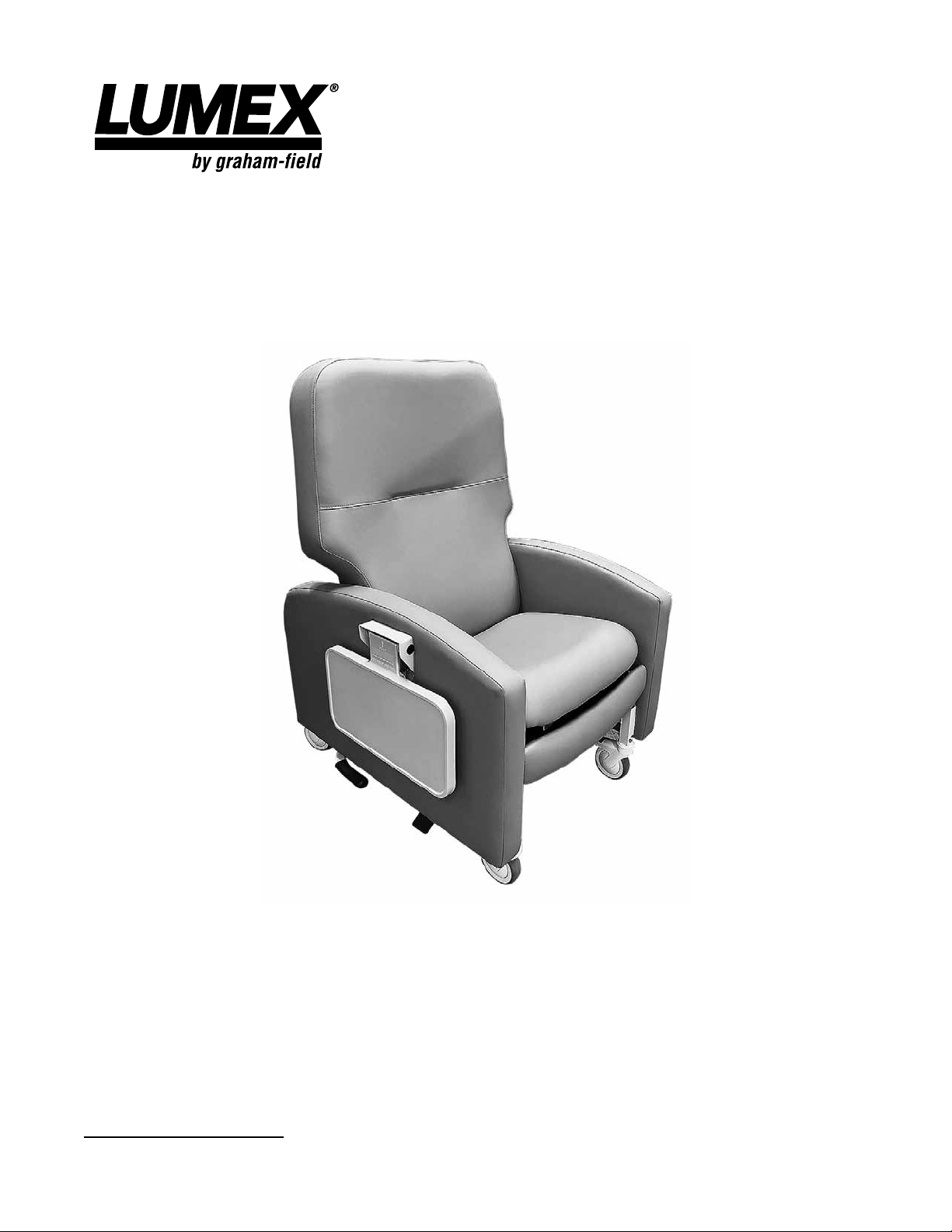

FR601 Series Clinical Care Recliner with Pivot-Arm
FR601H Series Clinical Care Recliner with Pivot-Arm and
Heat and Massage Function
Assembly and Operating Instructions
IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX FR601 / FR601H
SERIES CLINICAL CARE RECLINER WITH PIVOT-ARM.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT
www.grahameld.com.
FR601-INS-LAB-RevC20

FR601-INS-LAB-RevC20 2
CONTENTS
INTRODUCTION.......................................................................................................................................................3
INTENDED USE .................................................................................................................................................3
IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE .......................................................3
WARNINGS..................................................................................................................................................3
ASSEMBLY...............................................................................................................................................................5
UNPACKING.......................................................................................................................................................5
PRODUCT DESCRIPTION.................................................................................................................................5
UPHOLSTERED BACK ASSEMBLY, ALL MODELS .......................................................................................6
OPERATION .............................................................................................................................................................7
TENTE®CASTERS.............................................................................................................................................7
LOCKING CASTERS...................................................................................................................................7
DIRECTIONAL (SWIVEL) CASTER ............................................................................................................7
SIDE TABLE OPERATION.................................................................................................................................8
RAISE SIDE TABLE ....................................................................................................................................8
LOWER SIDE TABLE ..................................................................................................................................8
RECLINER OPERATION....................................................................................................................................9
FIRST POSITION (UPRIGHT POSITION) ...................................................................................................9
SECOND POSITION (FIRST RECLINE POSITION) ................................................................................... 9
THIRD POSITION (SECOND RECLINE POSITION)...................................................................................9
TRENDELENBURG POSITION (ALSO KNOWN AS SHOCK POSITION) ..............................................10
PIVOT-ARM OPERATION................................................................................................................................ 11
OPEN THE PIVOT-ARM ............................................................................................................................ 11
CLOSE THE PIVOT-ARM:......................................................................................................................... 11
FOOTPLATE OPERATION ..............................................................................................................................12
HEAT AND MASSAGE UNIT SETUP INSTRUCTIONS (GEN 3 PENDANT-OPERATED) ...................................13
INSTALLATION AND OPERATING GUIDE FOR CLINICAL CARE RECLINERS WITH
HEAT AND MASSAGE FEATURE (FR601H SERIES)....................................................................................13
DESCRIPTION ...........................................................................................................................................13
CONNECTION ...........................................................................................................................................13
MAIN COMPONENTS................................................................................................................................14
HEAT AND MASSAGE INSTALLATION INSTRUCTIONS .......................................................................15
HEAT AND MASSAGE UNIT OPERATION INSTRUCTIONS...................................................................16
HEAT AND MASSAGE UNIT TROUBLESHOOTING GUIDE...................................................................18
CARE AND MAINTENANCE ..................................................................................................................................19
EVERY THREE MONTHS ................................................................................................................................19
UPHOLSTERY MAINTENANCE AND STAIN REMOVAL ...............................................................................19
PERMABLOK3®CARE AND CLEANING GUIDE — ADVANCED VINYL PROTECTION.......................19
CDC RECOMMENDATIONS ............................................................................................................................20
CE CERTIFICATION (SERIES FR601 ONLY) ........................................................................................................22
TECHNICAL SPECIFICATIONS.............................................................................................................................22
LIMITED WARRANTY ............................................................................................................................................23

FR601-INS-LAB-RevC20 3
INTRODUCTION
This manual contains assembly, operation, and maintenance instructions for the Lumex
Clinical Care Recliners Series FR601 and FR601H. Read the entire manual carefully before
using your recliner, and refer to it during use if you have questions. If you have further
questions, call Graham-Field / Lumex Technical Support at 1.770.368.4700.
INTENDED USE
Lumex Clinical Care Recliners are intended to make the care, treatment and recovery of
patients easier and more comfortable. Lumex Clinical Care Recliners are used in a wide
range of healthcare applications including Dialysis, Oncology, Drug Delivery, Same Day
Surgery and Post-Operative Recovery. Lumex Clinical Care Recliners are ideal for use in
hospitals, clinics and rehabilitation centers.
Lumex Series FR601 and FR601H support patient weights up to 400 lb (184 kg) when evenly
distributed.
IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE
The safety statements presented in this chapter refer to the basic safety information that
the FR601 / FR601H user must pay attention to and abide by. There are additional safety
statements in other chapters or sections, which may be the same as or similar to the
following, or specic to the operations. Please note the following special statements, used
throughout this manual, and their signicance:
WARNING: Indicates a potential hazard situation or unsafe practice that, if not
avoided, could result in death or serious personal injury.
CAUTION: Indicates a potential hazard or unsafe practice that, if not avoided, could
result in minor or moderate personal injury.
sNOTICE: Indicates a potential hazard or unsafe practice that, if not avoided, could
result in product or property damage.
Info: Provides application recommendations or other useful information to
ensure that you get the most from your product.
WARNINGS
WARNING: Read this entire manual before assembly or operation.
WARNING: Periodically inspect all parts and replace as needed.
 WARNING:Donotusenearanopename,asthechaircouldbeacombustion
source,resultinginre,propertydamage,andseverephysicalinjury.
WARNING: The pivot-arm MUST NOT be used as a patient or caregiver support while
open. The recliner may tip and become unstable if weight is placed on the pivot-arm
when in the open position.
WARNING: Service and repair of the Lumex FR601 / FR601H Pivot-Arm Clinical
Care Recliner must be performed by a Graham-Field authorized distributor. GF
Health Products, Inc. is not responsible for any consequence resulting from any
unauthorized service or repair.

FR601-INS-LAB-RevC20 4
WARNING: This product has a maximum weight capacity of 400 lb (184 kg), EVENLY
DISTRIBUTED.
WARNING: Casters must be locked at all times, except during transport.
 WARNING:Unauthorizedmodicationofyourreclinerortheuseofnon-Lumex
replacement parts may change the structure of the recliner and could create a
hazardous condition, which may result in serious injury and will void the warranty.
WARNING: This product can expose you to chemicals including
Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For more information go to
www.p65warnings.ca.gov/furniture.
 WARNING:GFHealthProducts,Inc.specicallydisclaimsresponsibilityforany
bodily injury or property damage which may occur during any use which does not
comply with federal, state or local laws or ordinances.

FR601-INS-LAB-RevC20 5
ASSEMBLY
UNPACKING
1. Check for obvious damage to the carton or its contents. If damage is evident, notify the
carrier and your Graham-Field authorized distributor.
2. Remove all packaging materials from recliner base.
PRODUCT DESCRIPTION
upholstered back
pivot-arms
upholstered seat
upholstered
legrest / skirt
upholstered
footrest
self-storing side table
frame
frame
Trendelenburg activation pedal
pivot arm release
push handle
total locking caster
(total of 3 on recliner; black locking tab)
rear directional (swivel) locking caster
(right rear leg only; not shown)
green locking tab
Series FR601 / FR601H Clinical Care Recliner with Pivot-Arm
Shown in First Recline Position

FR601-INS-LAB-RevC20 6
UPHOLSTERED BACK ASSEMBLY, ALL MODELS
upholstered back
upholstered skirt
threaded knobs
upholstered back’s knockdown brackets
steel tube
mechanism’s bayonet links
bracket and link to be even
threaded knob through
large bayonet hole in link
knockdown bracket
bayonet link
1. Lift the skirt on the rear of the upholstered back. To make assembly easier, hold skirt up
with a small piece of tape to fully expose the knockdown brackets that are to be mated
to the two bayonet lugs on the recliner mechanism.
2. Remove two pre-installed threaded knobs from back (one on each side).
3. Carefully guide the upholstered back onto the mechanism, inserting both bayonet links
at the same time through the two cutouts located in the bottom of the back.
4. Push down rmly on the back until the recliner mechanism bayonet links are fully
engaged in the upholstered back knockdown brackets. The top of bayonet link should be
even with top of knockdown bracket, as shown above.
5. Once the back is properly seated on mechanism, insert the threaded knob through
bayonet link, knockdown bracket and steel tube (one on each side). Secure hand tight.
6. Remove tape and lower upholstery skirt. Secure back skirt with the skirt hook and loop
strips.

FR601-INS-LAB-RevC20 7
OPERATION
TENTE®CASTERS
WARNING: Casters must be locked at all times EXCEPT during transport.
green actuator tabblack actuator tab
directional (swivel)
locking caster
(right rear caster)
total
locking caster
All Lumex Clinical Care Recliners now feature the latest design, all-plastic casters from
TENTE, shown above. Specically designed for use in healthcare environments, the new
casters are easier to clean, easier to move, and tolerate a wide array of cleaners and
chemicals. Each caster is made from high-grade synthetic materials and features a double-
ball bearing swivel head. The wheel center is made of polypropylene and the tire tread
of TENTEprene (thermoplastic rubber). The gray non-marking tires feature precision ball
bearings.
Locking casters
Each Lumex Clinical Care Recliner features three total locking casters, identied by black
actuator tabs, that lock both the wheel and the swivel. To activate the total lock, simply
press down on the BLACK actuator tab until it locks. To release the total lock, press on the
raised portion of the actuator tab until the lever is back in the normal operating position.
Directional (swivel) caster
The fourth caster, located on the right rear position of the recliner, is a directional (swivel)
locking caster only. Identied by a green actuator tab, the directional lock caster will lock
in one of two 180-degree positions relative to the frame (forward and backward) and allows
the recliner to track straight when pushed. To activate the directional lock, simply press
down on the GREEN actuator tab until it locks — you may need to move the recliner slightly
until the caster locks in a straight line with the recliner frame. To release the directional
lock, press on the raised portion of the actuator tab until the lever is back in the normal
operating position.

FR601-INS-LAB-RevC20 8
SIDE TABLE OPERATION
side table
(stored position)
side table
(engaged position)
tabs engage into
slots on side table
mount bracket
side table
mount bracket
3/8" clevis pin
attachment
armrest
side table
(disengaged position)
Side Table
See illustration above for side table operation.
Raise Side Table
Raise the side table all the way up and slide in toward the armrest until tabs engage slots in
mount bracket. Press down lightly on table to ensure locking tabs are engaged.
Lower Side Table
Lift the side table up slightly until tabs disengage slots and pull table away from armrest.
Lower side table to self-storing position.

FR601-INS-LAB-RevC20 9
RECLINER OPERATION
The Lumex Series FR601 and FR601H Recliners feature three positions for patient comfort.
The fourth position is a Trendelenburg (or Shock Position) that must be activated by a
caregiver. The Trendelenburg Position CANNOT be activated by a patient while in the
recliner.
First Position (Upright Position)
The rst position is the Upright Position. This position is
ideal for patient transport and can be used to initiate patient
treatment / therapy.
Second Position (First Recline Position)
The second position is the First Recline Position and is also
known as the “TV” position. This position is ideal for patient
treatment, rest and reading.
To Achieve Second Position / First Recline Position:
• Reclining by patient: Place hands on armrests and push
body against recliner back to recline yourself to desired
position. To bring yourself up, place hands on armrests
and pull yourself up while leaning your body forward,
away from the recliner back, while at the same time
pushing down evenly on the footrest with your legs.
• Reclining by caregiver: Standing on either side of the
recliner, grasp the armrest with one hand and the push
handle with the other hand. Push back on push handle to
recline. To return, grasp push handle and pull forward to
raise the recliner’s back.
sNOTICE: DO NOT use the footrest by itself to
return the recliner to an upright position from any
recline position. Doing so may damage the recliner
mechanism. Follow the instructions above to operate
the recliner.
Third Position (Second Recline Position)
The third position is the Second Recline Position and is also known as the “Full Recline”
position. This position is ideal for patient treatment, rest and reading.
To Achieve Third Position / Second Recline Position:
• Reclining by patient: From the First Recline Position, continue to push against the
back by placing your hands on armrests and continue to recline yourself to the Second
Recline Position. To bring yourself up, place hands on armrest and pull yourself up while
leaning your body forward away from the recliner back while at the same time pushing
down evenly on the footrest with your legs.
• Reclining by caregiver: Standing on either side of the recliner, grasp the armrest with
one hand and push handle with the other hand. Push back on push handle to recline. To
return, grasp push handle and pull forward to raise the recliner back.
Upright Position
First Recline Position
(TV Position)
Second Recline Position
(Full Recline Position)
Trendelenburg Position
(Shock Position)
Trendelenburg
activation pedal

FR601-INS-LAB-RevC20 10
Trendelenburg Position (Also Known as Shock Position)
Info: This position can only be achieved by a caregiver.
See picture at right. Standing on either side
of the recliner, grasp the armrest with one
hand while holding the recliner back with
the other. With your foot, push down on the
Trendelenburg activation pedal (either side
of the recliner) while gently pushing down with
your hand on the recliner back until it comes to
a stop.
To bring recliner out of the Trendelenburg
Position, with assistance, lift the Back of the
recliner up out of the Trendelenburg Position
into the desired position.
Upright Position
First Recline Position
(TV Position)
Second Recline Position
(Full Recline Position)
Trendelenburg Position
(Shock Position)
Trendelenburg
activation pedal

FR601-INS-LAB-RevC20 11
PIVOT-ARM OPERATION
See pictures at right. The FR601 Clinical Care Recliner features
two pivot-arms. The pivot-arms make cleaning the recliner
much easier and more efcient. The pivot-arms are hinged at
the back of the recliner.
WARNING: The pivot-arm Feature is a CAREGIVER
OPERATED FEATURE. A patient MUST NOT attempt
operation of the pivot-arms while seated in the recliner.
Open the Pivot-Arm
WARNING: The caregiver must be positioned on either
the left or right side of the recliner, directly in front of the
pivot-arm to be operated; do not operate the pivot-arm
from front or rear of recliner.
1. Step down on the YELLOW RELEASE LEVER, located
toward the front of the recliner as shown at upper right, to
unlock the pivot-arm on that side.
2. Gently open up the pivot-arm, as shown at lower right, to
the desired degree.
3. Once maintenance or cleaning is complete, return the arm
to the locked position.
Close the Pivot-Arm:
WARNING: The caregiver must be positioned on either
the left or right side of the recliner, directly in front of the
pivot-arm to be operated; do not operate the pivot-arm
from front or rear of recliner.
1. Pivot the Arm back toward the front of the recliner until
the pivot-arm stops. Step down on the YELLOW RELEASE
LEVER, located toward the front of the recliner. Continue
to push the pivot-arm over the locking pin and then step
off of the YELLOW RELEASE LEVER, thereby engaging the
locking pin in the arm latch.
2. Pull outward on the arm to ensure the arm is properly locked before use of the recliner.
WARNING: Recliners have moving parts that create potential pinch points. When the
pivot-arms are open, those points are exposed. DO NOT leave patients in the recliner
unattended with the pivot-arms in the open position. DO NOT leave the recliner
unattended or reclined with the pivot-arms in the unlocked, open position. DO NOT
transport a patient in the recliner with the pivot-arms in the unlocked, open position.
WARNING: The pivot-arm MUST NOT be used as a patient or caregiver support while
open. The recliner may tip and become unstable if weight is placed on the pivot-arm
when in the open position.
sCAUTION: When opening the pivot-arms, ensure there is nothing in the way of the
pivoting arm. Damage to the vinyl upholstery may result if the pivot-arm impacts any
object. The pivot-arms are best operated when the recliner is in the upright position.
Pivot-Arm Operation
left pivot-arm
release lever
Right Pivot-Arm Shown Open
Latch Pivot-Arm

FR601-INS-LAB-RevC20 12
FOOTPLATE OPERATION
Footplate Shown in Extended Position
The FR601 Pivot-Arm Recliner features a self-storing footplate, shown above, for patient
comfort and convenience during patient transport. The footplate is easily extended when
needed and can be stored safely out of the way when not in use. To operate the footplate,
pull it out from underneath the recliner until fully extended — the patient can now rest their
feet on the footplate while being transported. To return the footplate to the stored position,
push the footplate back underneath the recliner until it stops and is safely stored under the
recliner.
WARNING: Before using the Footplate, ensure the casters are in the locked position
and the Footplate is in the fully-extended position.
WARNING: Caregivers: Exercise caution when moving around the front of the
recliner when the Footplate is in the extended position.
WARNING: Caregivers: Always advise patients that the Footplate has been extended.
DO NOT allow a patient to stand on the Footplate unattended.

FR601-INS-LAB-RevC20 13
HEAT AND MASSAGE UNIT SETUP INSTRUCTIONS
(GEN 3 PENDANT-OPERATED)
INSTALLATION AND OPERATING GUIDE FOR CLINICAL CARE RECLINERS WITH
HEAT AND MASSAGE FEATURE (FR601H SERIES)
WARNING: Important! Read and understand these instructions before assembling
or using the Lumex Specialty Healthcare Seating Heat and Massage Unit. If you
do not understand any part of these warnings, cautions or instructions, contact
a healthcare professional for direction in the use of this product. If the Heat and
Massage Unit is not properly assembled, personal injury and damage to the Heat and
Massage Unit could result.
WARNING: The control module and other electronic components contain no
serviceable components. If service is required, the unit must be returned to the
factory for repair. DO NOT attempt to open the electronics or obtain local service;
this will void the warranty and may result in damage to the unit. Consult your
Graham-Field authorized distributor for further information.
WARNING: The recliner seat and back heating elements are wired to operate in
series only. Do not change the system wiring in any way.
WARNING: If components are damaged or missing, contact your Graham-Field
authorized distributor immediately. DO NOT use substitute parts. Use only Lumex
replacement parts. The use of non-Lumex replacement parts could cause personal
injury, property damage, and void the warranty.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or
injury caused by improper assembly or use of this product.
Description
The Lumex Healthcare Seating Heat and Massage Unit is a low-voltage (12V) Heat and
Massage Unit, controllable by the user and / or caregiver via a handheld pendant. It is
designed to enhance the comfort of the patient / resident during the use of Lumex Clinical
Care Recliners. The Heat and Massage Unit offers three levels of seat and back heat, as well
as a gentle or rm massage function for just the lower back or both lower and upper back.
Connection
The Heat and Massage Unit comes pre-installed in Lumex Clinical Care Recliners with the
Heat and Massage Option (Series FR601H). During recliner shipment, the handheld pendant
and power cord are shipped within the back compartment. The seat cable, disconnected
for shipping, is the only connector that needs to be connected once the back is properly
installed onto the recliner base.

FR601-INS-LAB-RevC20 14
Main Components
Handheld Heat and Massage Pendant
Shown in Storage Bracket on Back of Recliner
1. The handheld pendant comes pre-installed and is shipped within the back compartment.
To store the pendant when not in use or for caregiver use, place the pendant in the
pendant storage bracket mounted on the back of the recliner as shown above. All Heat
and Massage functions are controlled by the handheld pendant.
Control Module and Transformer Unit
2. The Control Module and Transformer, shown above, are contained in a single unit
mounted in the back compartment. The 8-foot power cord plugs into the wall AC outlet.
Handheld
Pendant
Power Cord

FR601-INS-LAB-RevC20 15
Heat and Massage Installation Instructions
1. Place the back cushion over the vertical bayonet lugs of the recliner mechanism. Secure
the back on each side with the threaded screw knobs per the previous Upholstered
Back Assembly instructions.
Raise Back to Access
Back Compartment
Heat and Massage Unit
601H Back
Shown Properly
Installed
Handheld Pendant
Storage Bracket
2. Raise the back skirt on the lower rear of the back cushion, as shown above, and use
masking or packaging tape to temporarily secure it up and out of the way. This will
permit uninterrupted access to the back compartment while making the nal cable
connection.
3. Remove the handheld pendant and power cord from the back compartment. Place the
handheld pendant in the storage bracket shown above.
Control Module and Transformer Unit
4. There is only one connection to make — push the seat connector rmly into the control
module until its locking tabs snap into place as shown above.
5. Remove the tape holding the back ap. Lower the ap and seal the compartment by
pressing rmly around the edges of the back ap.
6. The Heat and Massage Unit is now ready for operation. Instructions for use follow.
sNOTICE: Before rolling the recliner, ensure the power cord is unplugged from the AC
outlet.
Insert
Seat
Connector
Here

FR601-INS-LAB-RevC20 16
Heat and Massage Unit Operation Instructions
1. Plug the power cord into any grounded outlet.
Heat and Massage Handheld Pendant
2. The Heat and Massage Unit is operated using the handheld pendant, shown above.
Faceplate Selector Switch,
Heat and Massage Handheld Pendant
3. The Pendant has two membrane switches. The left switch controls the Massage Function
and the right switch controls the Heat Function, as shown above on the Handheld
Pendant Selector Switch Faceplate. You can use either the Heat or Massage or both
functions at the same time.

FR601-INS-LAB-RevC20 17
4. Press the left switch to start the Massage function. The Massage Function Settings are as
follows:
a) Press selector switch for Setting 1: Gentle Lower Back Massage.
b) Press selector switch AGAIN for Setting 2: Firm Lower Back Massage.
c) Press selector switch AGAIN for Setting 3: Gentle Upper and Lower Back Massage.
d) Press selector switch AGAIN for Setting 4: Firm Upper and Lower Back Massage.
e) Press selector switch AGAIN: Massage function Shuts Off.
5. Press the right switch to start the Heat function. The Heat Function Settings are as
follows:
a) Press selector switch for Setting 1: High Heat, 104°F (40°C), brightest LED.
b) Press selector switch AGAIN for Setting 2: Medium Heat, 101°F (38.6°C), bright LED.
c) Press selector switch AGAIN for Setting 3: Low Heat, 100°F (37.8°C), dim LED.
d) Press selector switch AGAIN: Heat function shuts off.
e) There is a small red indicator light, which illuminates only during the Heat function,
in the selector switch. The light’s brightness is determined by the Heat level being
used:
Brightest = High Heat; Dimmest = Low Heat.
6. The Heat and Massage Unit automatically shuts off at the following times:
a) HEAT FUNCTION: After one hour of continuous use at the same level.
b) MASSAGE FUNCTION: After fteen minutes of continuous use at the same level.
c) To restart the Heat and Massage Unit, follow previous steps 4 and 5.

FR601-INS-LAB-RevC20 18
Heat and Massage Unit Troubleshooting Guide
The cables and connections need to be validated. This will require the services of a
maintenance person and a clear working area.
1. INSPECTION: Perform the following checks. If a working recliner of the same model is
available, use it for comparison.
a) Is the AC cord properly connected to the power supply? Is the cable from the power
supply to the control module junction box in place?
b) With the power supply AC cord plugged into a live AC outlet, does the small light to
the left of the white seat symbol (located on the switch) light up when the switch is
pressed repeatedly or is there any indication of massage operation?
WARNING: Disconnect the power cord from the AC outlet before performing the
following steps!
c) Is there any sign of external damage to the handheld pendant or wire?
d) Is there any sign of external damage to the recliner?
e) Do any of the cables show any sign of damage or pinch points?
f) Are all cable connections to the control module in place? Are the connectors fully
engaged?
g) Are any of the connectors damaged?
h) Are the wires within the connectors attached to the pins? Each wire may have to be
tugged lightly to check if the wire is still crimped to the pin.
4. POST-INSPECTION:
a) If improper or loose connections are found, reconnect them rmly (unless a loose
wire has been found). Plug the power supply AC cord into a live wall socket and
operate the unit through all functions.
b) If the handheld pendant or wire is damaged, notify Graham-Field so that a handheld
pendant can be sent for replacement.
c) If damage to any other electrical cable or component, or disconnected wires are
found, please notify Graham-Field.
5. ACTIONS:
a) If full operation is restored, please advise Graham-Field of your successful outcome.
b) If the fault cannot be corrected by simple re-connection, please inform Graham-Field
of the results of your inspection in detail so that we may determine the appropriate
action to be taken.
If you have any questions about the setup and / or operation of the Heat and Massage Unit,
call the Graham-Field Technical Support Group at 1.770.368.4700.

FR601-INS-LAB-RevC20 19
CARE AND MAINTENANCE
WARNING: Inspect all components periodically and replace as needed.
EVERY THREE MONTHS
• Check and clean casters.
• Tighten bolts in each leg that secure caster into frame.
• Check brakes on casters.
• Check and clean lock recline mechanism.
• Check recliner mechanism for operation in all positions, including Trendelenburg
Position, with assistant seated in recliner.
UPHOLSTERY MAINTENANCE AND STAIN REMOVAL
• Ordinary dirt: wash with warm water and a mild soap or detergent.
• Stubborn dirt: using a soft bristle brush, wash with warm water and a mild soap or
detergent.
• Ground-in dirt: scrub with powdered cleanser or similar detergent.
• Chewing gum: scrape carefully; remove with kerosene or naphtha.
• Nail polish and remover: Blot immediately to prevent damage.
• Ball point pen: blot immediately with a white cloth dampened in water or mineral oil.
• Paint, shoe polish, heel marks: remove immediately! Use a white cloth dampened in
kerosene, naphtha or turpentine. Do not use paint remover or liquid brush cleaners.
• Tars, asphalt, creosote: remove to prevent staining. Clean area with kerosene or
naphtha.
WARNING: When using kerosene or naphtha, do so in a well ventilated area and keep
itawayfromre,ame,andreclineroccupant.
• Waxing and renishing: improves wearability. Use any quality paste wax.
• A diluted solution of 10% (or less) of bleach or Clorox may be used when cleaning this
recliner.
PERMABLOK3®Care and Cleaning Guide — Advanced Vinyl Protection
• Step 1 (eye shadow, mascara, grease, black felt tip pen, crayon, chocolate, suntan lotion,
hair and body oils): remove excess spill with a damp cloth. Clean with a 1:1 mix of Ivory®
liquid soap and water. Next, rinse with clean water and dry.
• Step 2 (red lipstick): use a straight application of concentrated cleaners such as Formula
409®or Fantastik®spray cleaner. Wipe with a clean cloth, rinse with water, and dry.
• Step 3 (blood, urine, feces, oil base paint, tar, and asphalt): use a 1:1 mix of ammonia and
water, or a 1:4 mix of bleach and water. Rinse with clean water and dry.
• Step 4 (all other tough stains): use a straight application of naphtha (lighter uid). Rinse
thoroughly with clean water and pat surface dry. If the stain persists, go to step 5.
• Step 5: use a 1:1 mix of isopropyl alcohol and water. If the stain persists, use straight
alcohol. Rinse thoroughly with clean water and pat dry.

FR601-INS-LAB-RevC20 20
Info: For cleaning that requires step 4 or 5, use a soft cotton cloth saturated with
the cleaning material and rub the stain in circles 10 times. Pat dry with another
soft cotton cloth and check the results.
The information published in this care guide refers to the performance of PERMABLOK3
products in specic tests conducted under laboratory conditions. Results may vary under
actual conditions.
This information is not a guarantee and does not relieve the user from the responsibility of
the proper and safe use of the product and all cleaning agents. The use of certain agents can
be harmful to the surface appearance and lifespan of vinyl. Spradling, its agents, and assigns
assume no responsibility resulting from the use of such cleaning agents to the vinyl.
Please check compatibility when using this product in combination with painted or
varnished surfaces.
PERMABLOK3 is a registered trademark of Spradling Holdings, Inc.
Ivory is a registered trademark of Procter and Gamble.
Formula 409 is a registered trademark of The Clorox Company.
Fantastik is a registered trademark of S.C. Johnson & Son, Inc.
Spradling International is not sponsored by, afliated with, or endorsed by such trademark
owners.
CDC RECOMMENDATIONS
CLEANING AND DISINFECTING STRATEGIES FOR ENVIRONMENTAL SURFACES IN
PATIENT-CARE AREAS FOR VINYL UPHOLSTERY, WALL COVERINGS AND FLOORING
• Select EPA-registered disinfectants, if available, and use them in accordance with the
manufacturer’s instructions.
• Do not use high-level disinfectants / liquid chemical sterilants for disinfection of either
noncritical instruments and devices or any environmental surfaces; such use is counter
to label instructions for these toxic chemicals.
• Follow manufacturers’ instructions for cleaning and maintaining noncritical medical
equipment.
• In the absence of a manufacturer’s cleaning instructions, follow certain procedures:
• Clean noncritical medical equipment surfaces with a detergent / disinfectant.
• Do not use alcohol to disinfect large environmental surfaces.
• Use barrier protective coverings as appropriate for noncritical surfaces that are:
• Touched frequently with gloved hands during the delivery of patient care.
• Likely to become contaminated with blood or body substances.
• Difcult to clean (e.g., computer keyboards).
• Keep housekeeping surfaces (e.g., oors, walls, tabletops) visibly clean on a regular
basis and clean up spills promptly.
