EN
User guide
Before inserting the plug into the socket make
sure that the voltage and the frequency shown
in the rating plate inside the appliance
corresponds to your electricity supply.
We recommend that this appliance is
connected to the mains supply via a suitably
switched and fused socket in a readily
accessible position.
Warning! This appliance must be earthed.
Repairs to the electrical equipment may only
be made by authorised technicians. If the
power cable is damaged, the manufacturer or
GRAM service must replace it in order to
avoid danger.
ATTENTION!
This appliance operates with R600a which is
an environmental friendly but flammable gas.
During the transportation and fixing of the
product, care must be taken not to damage
the cooling system. If the cooling system is
damaged and there is a gas leakage from the
system, keep the product away from open
flame sources and ventilate the room for a
while.
WARNING - Do not use electrical devices or
other means to accelerate the defrosting
process, others than those recommended by
the manufacturer.
WARNING - Do not damage the refrigerant
circuit.
Transportation instructions
1. The appliance should only be transported in
an upright position. Packaging must be intact
during transportation.
2. If the appliance has been positioned
horizontally during transportation, it must not
be operated for at least 4 hours to allow the
system to settle.
3. Failure to comply with the above
instructions could result in damage to the
appliance for which the manufacturer will not
be held liable.
4. The appliance must be protected against rain,
moisture and other atmospheric influences.
•
Avoid touching the bottom of the condenser
metal wires at the back of the appliance while
cleaning or carrying the appliance as you may
receive injuries to your fingers and hands.
• Do not attempt to sit or stand on top of your
appliance as it is not designed for such use.
You could be injured or damage the appliance.
• Make sure that the mains cable is not caught
under the appliance during and after moving it,
as this could damage the cable.
• Do not allow children to play with the appliance
or tamper with the controls.
Installation instructions
1. Do not keep your appliance in a room where
the temperature is likely to fall below
+10ºC
(50ºF).
2. Do not place the appliance near cookers or
radiators or in direct sunlight, as this will cause
extra strain on the appliance's functions. If
installed next to a a heat source, maintain the
following minimum side clearances:
30 mm from cookers
300 mm from radiators
3. Make sure that sufficient room is provided
around the appliance to ensure free air

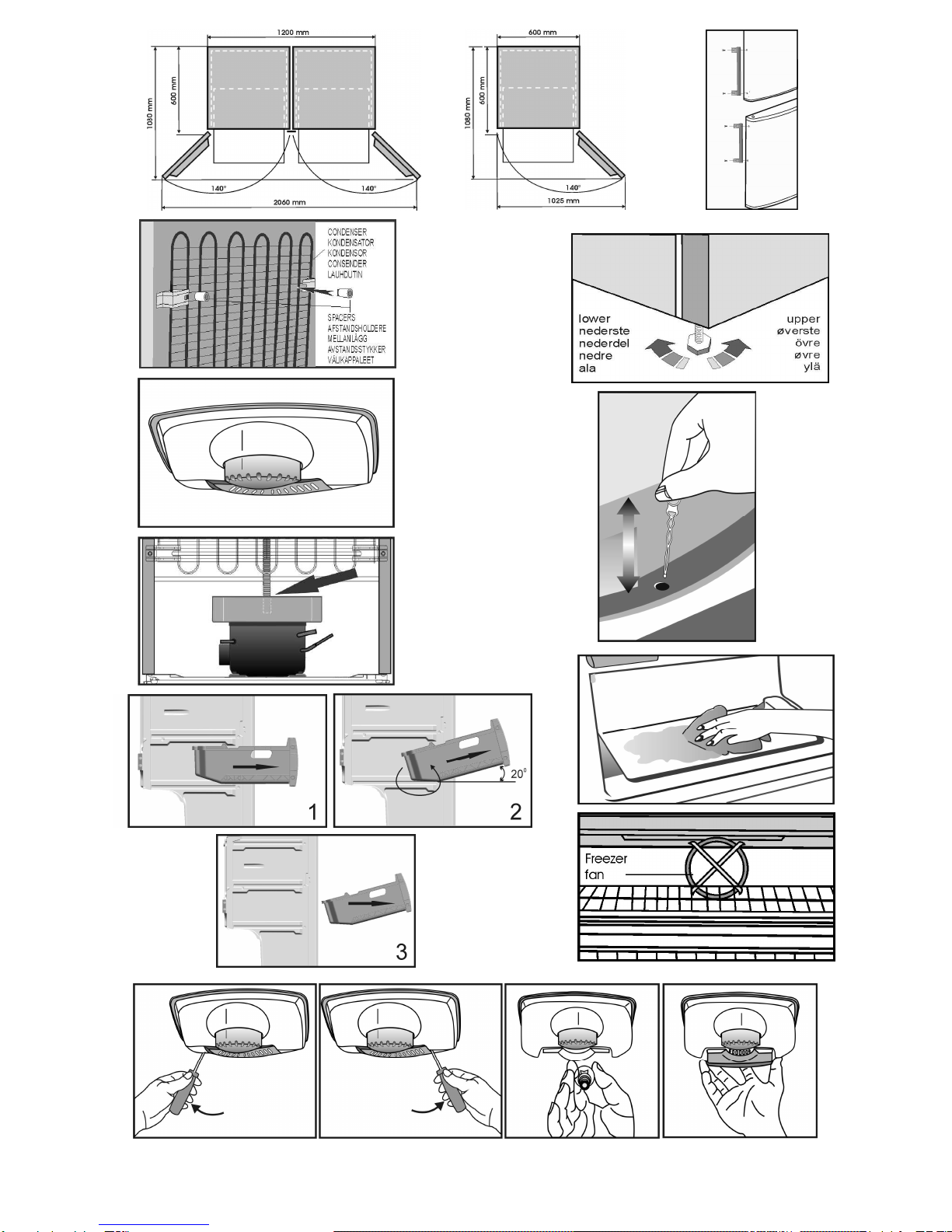

circulation (Fig. 2).
• Place the spacer on to the back of your
fridge/freezer to set the distance between the
fridge/freezer and the wall (Fig. 3).
4. The appliance should be positioned on a level
surface. The two front legs can be adjusted as
required.To ensure that your appliance is
standing upright adjust the two front legs by
turning them either clockwise or anti-clockwise,
until firm contact is secured with the floor.
Correct adjustment of the legs prevents
excessive vibration and noise (Fig. 4).
5. Refer to the "Cleaning and Care" section to
prepare your appliance for use.
6. If you want to place two products side by
side, e.g. a refrigerator and a freezer, as a side
by side solution you have to use a decoration kit
which contains a small mat and a decoration
part. The mat is mounted on the side of one of
the products to create a space between the
products. The decoration part is placed between
the products to hide the gap between the
products (Fig. 2)
. The decoration kit is not a part
of the product but can be delivered as an
accessory.
