GRASS VALLEY K2 DYNO - User manual

K2 Dyno
Replay System
Quick Start Guide
Software Version 2.0
071-8681-03
May 2011
USO RESTRITO

Affiliate with the N.V. KEMA in The Netherlands
CERTIFICATE
Certificate Number: 510040.001
The Quality System of:
Thomson Inc, and its worLdwide Grass Valley division affiliates DBA
GRASS VALLEY
Headquarters
400 Providence Mine Rd
Nevada City, CA 95959
United States
15655 SW Greystone Ct.
Beaverton, OR 97006
United States
10 Presidential Way
Suite 300
Woburn, MA 01801
United States
Kapittelweg 10
4827 HG Breda
The Nederlands
7140 Baymeadows Way
Ste 101
Jacksonville, FL 32256
United States
2300 So. Decker Lake Blvd.
Salt Lake City, UT 84119
United States
Rue du Clos Courtel
CS 31719
35517 Cesson-Sevigné Cedex
France
1 rue de l’Hautil
Z.I. des Boutries BP 150
78702 Conflans-Sainte
Honorine Cedex
France
Technopole Brest-Iroise
Site de la Pointe du Diable
CS 73808
29238 Brest Cedex 3
France
40 Rue de Bray
2 Rue des Landelles
35510 Cesson Sevigné
France
Spinnereistrasse 5
CH-5300 Turgi
Switzerland
Brunnenweg 9
D-64331 Weiterstadt
Germany
Carl-Benz-Strasse 6-8
67105 Schifferstadt
Germany
Including its implementation, meets the requirements of the standard:
ISO 9001:2008
Scope:
The design, manufacture and support of video and audio hardware and software products and
related systems.
This Certificate is valid until: June 14, 2012
This Certificate is valid as of: June 14, 2009
Certified for the first time: June 14, 2000
H. Pierre Sallé
President
KEMA-Registered Quality
The method of operation for quality certification is defined in the KEMA General Terms
And Conditions For Quality And Environmental Management Systems Certifications.
Integral publication of this certificate is allowed.
KEMA-Registered Quality, Inc.
4377 County Line Road
Chalfont, PA 18914
Ph: [phone]
Fax: [phone]
CRT 001 073004
Accredited By:
ANAB
USO RESTRITO

K2 Dyno
Replay System
Quick Start Guide
Software Version 2.0
071-8681-03
May 2011
USO RESTRITO

4K2 Dyno Replay System Quick Start Guide 16 May 2011
Copyright Copyright © Grass Valley USA, LLC. All rights reserved. Printed in the United States of
America. Portions of software © 2000 – 2010, Microsoft Corporation. All rights reserved. This
document may notbe copied in whole or in part, or otherwise reproduced except as specifically
permitted under U.S. copyright law, without the prior written consent of Grass Valley USA,
LLC., P.O. Box 59900, Nevada City, California 95959-7900. This product may be covered by
one or more U.S. and foreign patents.
Disclaimer Product options and specifications subject to change without notice. The information in this
manual is furnished for informational use only, is subject to change without notice, and should
not be construed as a commitment by Grass Valley USA, LLC. Grass Valley USA, LLC.
assumes no responsibility or liability for any errors or inaccuracies that may appear in this
publication.
U.S. Government
Restricted Rights
Legend
Use, duplication, or disclosure by the United States Government is subject to restrictions as set
forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at DFARS 252.277-7013 or in subparagraph c(1) and (2) of the Commercial Computer
Software Restricted Rights clause at FAR 52.227-19, as applicable. Manufacturer is Grass
Valley USA, LLC., P.O. Box 59900, Nevada City, California 95959-7900 U.S.A.
Trademarks and
Logos Grass Valley, STRATUS, K2, Aurora, Summit, ChannelFlex, Dyno, Solo, ClipStore, Infinity,
Turbo, Profile, Profile XP, NetCentral, NewsBrowse, NewsEdit, NewsQ, NewsShare, NewsQ
Pro, and Media Manager are either registered trademarks or trademarks of Grass Valley USA,
LLC. in the United States and/or other countries. Grass Valley USA, LLC. products are covered
by U.S. and foreign patents, issued and pending. Additional information regarding Grass Valley
USA, LLC. trademarks and other proprietary rights may be found at www.grassvalley.com.
Other trademarks and logos used in this document are either registered trademarks or
trademarks of the manufacturers or vendors of the associated products, such as Microsoft®
Windows® operating system, Windows Media® player, Internet Explorer® internet browser,
and SQL Server™. QuickTime and the QuickTime logo are trademarks or registered
trademarks of Apple Computer, Inc., used under license therefrom.
Revision Status
Rev Date Description
June 17, 2009 Initial release of the K2 Dyno Replay System Quick Start Guide –
071-8681-00
January 28, 2010 Updates for version 1.5 – 071-8681-01
April 13, 2010 Updates for version 1.6 – 071-8681-02
May 16, 2011 Updates for version 2.0 – 071-8681-03
USO RESTRITO

16 May 2011 K2 Dyno Replay System Quick Start Guide 5
Chapter 1
Installation
This section documents the installation of the bundled K2™ Summit™ Production
Client and K2 Dyno™ Replay Controller that you buy as a Dyno-Pack. If you are
connecting a K2 Solo™ Media Server or a K2 Summit Production Client that is not
part ofa Dyno-Pack and has not been previously controlled by aK2 Dyno Controller,
refer to the K2 Dyno Controller Installation Manual.
Unpack and check contents
Find the following items in the packaging for the K2 Summit Production Client.
Find the following items in the packaging for the K2 Dyno Controller.1
1. Optional accessory: AES breakout cables (K2-AES-Breakout)
K2 Summit Production Client
Power cords
LTC cables
Release Notes
Licenses and
Warranties
Rack slides
usss
usss
usss
usss
usss
usss
rass all roup
rass all roup
rass all roup
rass all roup
usss
usss
usss
usss
usss
usss
rass all roup
rass all roup
rass all roup
rass all roup
NOTE: Do not lose the Recovery Flash
Drive that is stored inside the bezel.
It contains the image for this specific
K2 Summit Production Client.
K2 Dyno Replay Controller
Power cord
Keyboard
Mouse
Release Notes
Recovery Flash Drive
Licenses and
Warranties
usss
usss
usss
usss
usss
usss
rass all roup
rass all roup
rass all roup
rass all roup
usss
usss
usss
usss
usss
usss
rass all roup
rass all roup
rass all roup
rass all roup
NOTE: Do not lose the Recovery Flash
Drive. It contains the image for this
specific K2 Dyno Replay Controller.
USO RESTRITO

6K2 Dyno Replay System Quick Start Guide 16 May 2011
Chapter 1 Installation
Gather additional items
To complete a typical K2 Dyno Replay System, as referenced in this Quick Start
Guide, you must provide the following items:
System overview
The procedures and explanations in this Quick Start Guideassume a typical K2 Dyno
Replay System, such as that illustrated in the following diagram. If your installation
requires a different system configuration, apply the information in this Quick Start
Guide accordingly.
Also refer to “Channel operation overview” on page 26 and “K2 AppCenter Elite
ChannelFlex configurations” on page 28.
• Two VGA monitors (1280 x
1024 x 32 or greater) and cables • Ethernetcable,eithercrossoveror straight-through
• Video monitors and cables • Audio monitoring system
• USB keyboard • USB mouse
K2 Summit Client
K2 Dyno Controller
Ethernet
connection
Video/audio monitoring
K2 SUMMIT PRODUCTION
CLIENT
SDI in (A)
C1
SDI out (C)
SDI out (D)
C3
PGM
P1
Record Play
PVW
P2
C4
SDI in (B)
C2
AppCenter Pro
on K2 Summit
Production Client
K2 Dyno Replay
application VGA
output
USO RESTRITO

16 May 2011 K2 Dyno Replay System Quick Start Guide 7
Cable K2 Summit Client
Cable K2 Summit Client
If desired, mount the K2 Summit Client in an equipment rack. Refer to the K2 System
Guide for rack mount procedures.
Make K2 Summit Client cable connections as illustrated.
Each channel can be both an input (record channel) and an output (play channel). For
the K2 Dyno Replay System documented in this Quick Start Guide, C1 and C2 are
record channels and C3 and C4 are play channels.
For complete cabling instructions, refer to the K2 System Guide. If using ChannelFlex
Suite™ features, refer to the K2 Dyno Controller Installation Manual and the K2
AppCenter User Manual.
Cable K2 Dyno Controller
Make K2 Dyno Controller cable connections as illustrated.
The Ethernet connection between the K2 Summit Client and the K2 Dyno Controller
can be via direct connect cable or via an Ethernet switch.
Power
cord Power
cord
AE
S
aud
io
Keyboard
and mouse VGA
monitor
Channels (C1, C2, C3, C ) are bi-directional
Ethernet
(Control port)
Use C1 as record
channel. Connect Use C2 as record channel. Connect Use C3 as play channel. Use C as play channel.
100-240 V~
4A 50-60Hz
RS-232
Power
cord
Keyboard
and mouse
VGA
monitor Ethernet (Control port)
GB1
USO RESTRITO

8K2 Dyno Replay System Quick Start Guide 16 May 2011
Chapter 1 Installation
Start up K2 Dyno Controller
There is no logon for the K2 Dyno Controller. After you have started the Dyno,
proceed to “Start up K2 Summit Client” and the topics dealing with configuring the
K2 Summit before proceeding to “Start using the K2 Dyno Controller” on page 13.
Start up K2 Summit Client
Log on to the K2 Summit Client with the default Windows administrator account:
• Username: Administrator
• Password: adminK2
(The password is case sensitive)
At first startup, End User License Agreements appear on the K2 Summit Client
screen. Accept the agreements to continue.
The Power LED goes on and stays on. The Service LED stays off. Startup processes
complete in approximately two minutes and the K2 Summit Production Client is
ready for connection and operation.
100-240 V~
4A 50-60Hz
RS-232
Open
power
switch
door
Press
power
switch
K2 SUMMIT PRODUCTION
CLIENT
Press
standby
switch
USO RESTRITO

16 May 2011 K2 Dyno Replay System Quick Start Guide 9
Configure network
Configure network
If the network has not previously been configured, configure it now. A K2 Dyno
Controller package configured at the factory will have these settings already
configured.
On both theK2 Summit Client and on the K2 Dyno Controller, use standard Windows
operating system procedures to configure a static IP address. IP addresses must be on
the same subnet. You can also configure a host name if desired.
USO RESTRITO

10 K2 Dyno Replay System Quick Start Guide 16 May 2011
Chapter 1 Installation
Configure K2 Summit Client channels
Configure channels according to your required formats and resolutions.
For the default K2 administrator account, use the following to logon:
• Username: K2Admin
• Password: K2admin
(The password is case sensitive)
In Configuration Manager, click Channel and then select a channel tab to make
settings for 2 record 2 play mode as follows:
• Configure channels C1 and C2 as record channels. Make video and audio settings
as appropriate for your input.
• Configure channels C3and C4 as play channels. Make video and audio settings as
appropriate for your output.
If using ChannelFlex™ features, refer to the K2 AppCenter User Manual.
AppCenter
A
ppCenter
er
Open AppCenter and logon with the K2 administrator account. If a licensing message
appears, refer to K2 Release Notes.
Click System | Configuration.
Click tabs, buttons,
and scroll bar to
locate settings.
Select from drop-down
lists to make settings.
Click OK and Yes
to save settings.
1
2
3
4
5
USO RESTRITO

16 May 2011 K2 Dyno Replay System Quick Start Guide 11
Monitor K2 Summit Client channels
Monitor K2 Summit Client channels
On the VGA monitor connected to the K2 Summit Client, you can monitor the four
channels. This requires an AppCenter Pro license.
TIP: You can also double-click on a monitor area in multi-view or
control screen to switch between views.
K2 SUMMIT PRODUCTION
CLIENT
In AppCenter, click View |Video Monitor
Toolbar
Full Screen
Video Monitor
USO RESTRITO

12 K2 Dyno Replay System Quick Start Guide 16 May 2011
Chapter 1 Installation
USO RESTRITO

16 May 2011 K2 Dyno Replay System Quick Start Guide 13
Chapter 2
Operation
Start using the K2 Dyno Controller
After Start is pressed, the Home tab displays on the controller’s touch screen and on
its VGA output screen.
K2 Replay
Client
ay
K2 Replay
Client
When you start the K2 Dyno Replay Controller , the Server List displays .
1
2
Select Connect
or Reconnect.
3
Select New
session .
4
Set C1 and C2 to Recorder, C3
and C4 to Player. Touch On
and then touch Start.
5
Select the
K2 Summit Client , or
touch Add Server and
enter the server name.
USO RESTRITO

14 K2 Dyno Replay System Quick Start Guide 16 May 2011
Chapter 2 Operation

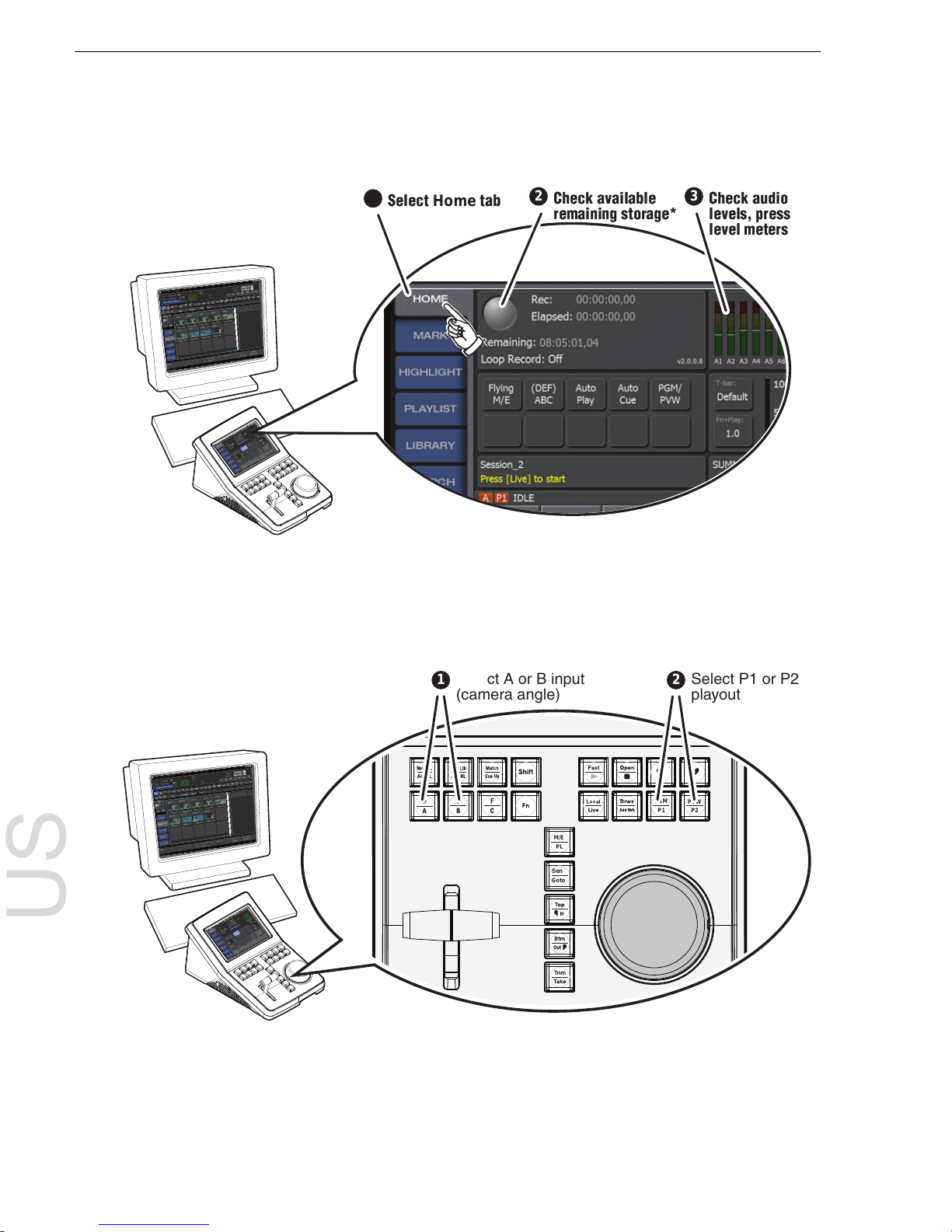

View home page status
*The remaining storage time is available in terms of an Event Day. Dyno takes into
account the available time for all Record channels.
Select input and playout channels
To gang channels, press both P1 and P2 at the same time.
For more information about channel operation modes, refer to “Channel operation
overview” on page 26.
1
Select Home tab
2
Check available
remaining storage*
3
Check audio
levels, press
level meters
1
Select A or B input
(camera angle)
M/E
PGM
Send
Goto
P1 P2
PVW
2
Select P1 or P2
playout
USO RESTRITO

16 May 2011 K2 Dyno Replay System Quick Start Guide 15
Chapter 2 Operation
Replay
To switch angles during playout, press A, B or C. The Shift button also affects controls displayed on the
touch screen. For more information on button functions, refer to “Controller buttons: Reference” on the
inside back cover.
Live/Local button
Red = Live: You are watching the live video of the
selected channel being recorded. Yellow = Replay: You are controlling your replay in still, slow motion or normal playout mode.
The recording of the live video continues
while you are in this mode.
Clear = Off: A highlight clip or playlist has been
loaded into a player channel.
Shift button
Clear = Bottom function: For each button, the
function shown on the bottom of the button
label is currently active.
Yellow = Top function: For each button, the function
shown on the top of the button label is
currently active.
1
Start Live mode
(button lights red
)
Player channel program
is controlled.
M/E
PGM
Send
Goto
P1 P2
PVW
2
Local
Live
Play
Slo Mo
playback
or
Fast
3
Local
Live
Local
Live
Loc
al
Liv
e
Shift
Tr i m
Ta k e
Shift
Tr i m
Ta k e
USO RESTRITO

16 K2 Dyno Replay System Quick Start Guide 16 May 2011
Chapter 2 Operation
Capture highlight clip
M/E
PGM
Send
Goto
P1 P2
PVW
2
4
Top
In
1 3
Btm
Out
Add highlight to
HL bin
Add Lib
Add HL
5
View
highlights on
Highlight tab
6
Turn knob to
desired In
Point
Turn knob to
desired Out
Point
Change
highlight
views*
*Views
Highlight clip plus metadata keywords
Highlight clip plus thumbnail
Highlight clip with text only
7
Press In
button
Press Out
button
USO RESTRITO

16 May 2011 K2 Dyno Replay System Quick Start Guide 17
Chapter 2 Operation
Add metadata
You can pre-make metadata keywords with the Dyno Keyword Editor application,
which you install on a separate PC. You then import K2 Dyno Editor files (XML) into
the Dyno Controller by opening them on the Library tab. See Import page.
2
Open the
metadata
screen
1
Select highlight
3
Assign stars
(rating)*
5
Highlight
name*
*Keyboard shortcuts:
Name: Enter + name + Enter
Rating (stars): F1
Key ords - Quick Key number
recalls that key ord
4
Select preset
key ord names*
6
7
Return to
highlight screen
Auto: go to next
category after input.
SET FKEYS: Set F2 -F9
for frequent key ords
USO RESTRITO

18 K2 Dyno Replay System Quick Start Guide 16 May 2011
Chapter 2 Operation
Play highlight clip
You can customize play operations as follows:
• On the Home tab or VGA monitor, click Auto Cue. In this mode, when you
select a highlight, it is automatically cued up.
• On the Home tab or VGA monitor click Auto Play. In this mode, when you
select a highlight, it automatically plays.
1
Select Highlight tab
4
Play highlight.
2
Select a highlight
3
Cue highlight
M/E
PGM
Send
Goto
P1 P2
PVW
Fast
Match
Cue Up
Auto
Cue
Auto
Play
USO RESTRITO

16 May 2011 K2 Dyno Replay System Quick Start Guide 19
Chapter 2 Operation
Create a playlist: Controller interface
On the controller touch screen, select the Playlist tab to see the highlight clip added to
the playlist.
Create a playlist: VGA interface
You can also move highlight clips within the playlist using the mouse or with the cut/
move or copy/paste soft keys.
1
Select Highlight tab
2
3
Select a highlight
Add highlight
to playlist
New PL
Add PL
Click and drag
highlights into
playlist
USO RESTRITO

20 K2 Dyno Replay System Quick Start Guide 16 May 2011
Chapter 2 Operation
Play a playlist with mix effects
To select mix effects, such as transition types, touch the button next to the event and
toggle through the options. You can put playlists into a loop by pressing the Loop
button.
The Playlist button performs different tasks based on how many times you press it:
• Press the Playlist button once — the Playlist tab displays
• Press the Playlist button twice — the last clip inserted is cued up
• Press the Playlist button three times— the first event in the playlist is cued up
2
4
Play the playlist with
mix effects
Move to next highlight
with flying mix effects
1
Cue playlist (press 3 times)
M/E
PL
M/E
PL
M/E
PL
++
ast
Trim
Take
3
Select global video mix effects
or toggle the button next to the
video track to apply an effect
for the individual track.
4
USO RESTRITO
