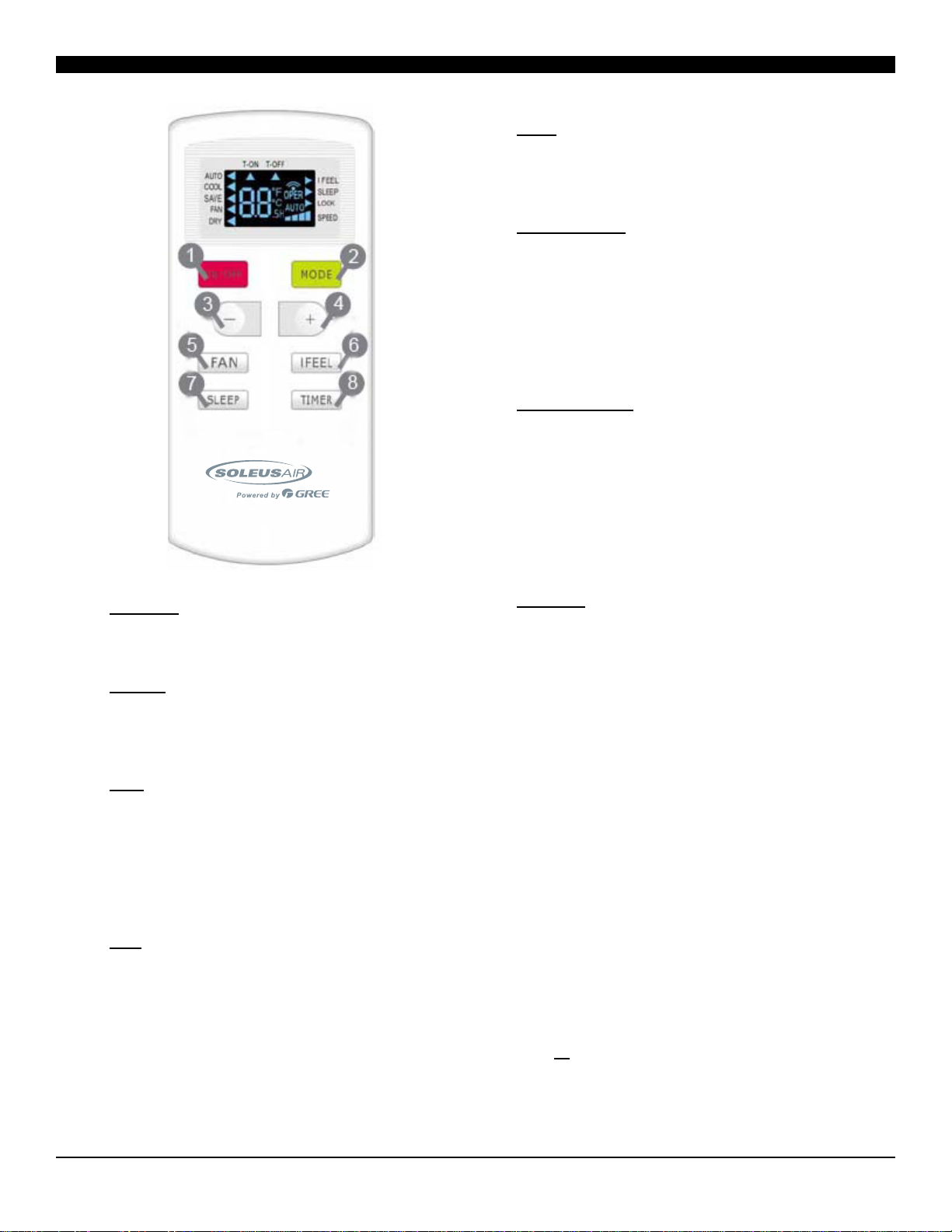

Gree Thermocore GM-WAC-25ESE-C User manual

Models
GM-WAC-25ESE-C
Electronic Window Air Conditioner
Operating Instructions

Thank you for choosing a Thermocore systems powered by Gree Air Conditioner. This owner’s
manual will provide you with valuable information necessary for the proper care and maintenance of
your new product. Please take a few moments to thoroughly read the instructions and familiarize
yourself with all the operational aspects of your new air conditioner.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the store
name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT SAFETY INSTRUCTIONS
Before installing and using your air conditioner, please read this owner’s manual carefully. Store this
manual in a safe place for future reference. Your safety and the safety of others is very important to
us. Please pay attention to all safety messages outlined in this owner’s manual.
WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow
the following basic precautions:
2
This is a safety alert symbol.
This symbol alerts you to potential hazards that can harm you or others or even cause
death.
All safety messages will directly follow the safety alert symbol and/or the words
“DANGER” or “WARNING”.
Failure to immediately follow these
instructions may cause serious injury
or even death.
All Safety messages alert you of potential hazards, how to reduce the chance of injury,
and what can happen if instructions are not followed correctly.
• Plug into a grounded 3 prong outlet.
• Do not remove the ground prong.
• Do not use a plug adapter.
• Do not use an extension cord.
• Unplug the air conditioner before servicing
• Use two or more people to move and install the air
conditioner

ELECTRICAL REQUIREMENTS
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong.
Do not use an adapter
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock
The electrical ratings for your air conditioner are listed on the model and serial
number label located on the front left side of the unit (when facing the front).
Specific electrical requirements are listed in the chart below. Follow the
requirements below for the type of plug on the power supply cord.
Power Supply Cord
Recommended Ground Method
For your personal safety, this air conditioner must be grounded. This air conditioner is equipped with a 3 prong power
supply cord with a grounded plug. To minimize the possibility of electrical shock, the cord must be plugged into a 3 prong
outlet and grounded in accordance with all local codes and ordinances. If a 3 prong outlet is not available, it is the cus-
tomer’s responsibility to have a properly grounded 3 prong outlet installed by a qualified electrician.
It is the customer’s responsibility:
Copies of the standards listed may be obtained from:
• To contact a qualified electrician
National Fire Protection Association
• To assure that the electrical installation is adequate
One Batterymarch Park
and in conformance with the National Electrical Code,
Quincy, Massachusetts 02269
ANSI/NFPA 70 - latest edition, and all local codes and
ordinances.
LCDI Power Cord and Plug
This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord that is required
by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is damaged
and leakage occurs, power will be disconnected from the unit.
The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly. To test the plug:
1. Plug power cord into a grounded 3 prong outlet
2. Press RESET (on some units a green light will turn on).
3. Press the TEST Button, the circuit should trip and cut all power to the air conditioner (on some units a green light
may turn off.
4. Press the RESET button for use. You will hear a click and the A/C is not ready for use.
NOTES:
• The RESET button must be engaged for proper use.
• The power supply cord must be replaced if it fails to trip when the TEST button is pressed and the unit fails to reset. •
Do not use the power supply cord as an ON/OFF switch. The
power supply cord is designed as a protection device.
• A damaged power supply cord must be replaced with a new
power supply cord from Thermocore Powered by Gree.
• The power supply cord contains new user serviceable parts.
Opening the tamper-resistant case voids all warranty and per-
formance claims.
NOTE: Your units power cord and plug may differ from the one
shown.
3
NEMA 6-20P

PARTS LIST
TOOLS NEEDED
Large Flathead Screwdriver
Tape Measurer
Adjustable Wrench or Pliers
Pencil
Level
Socket Wrenches
Phillips Head Screwdriver
QTY
Non-Hardware Packing List
• Window Air Conditioner
• AAA Batteries (2)
• Top Mounting Rail
• Foam Top Mounting Rail Seal Strip
• Accordion Panels (2)
• Side Retainer (2)
• Window Sash Seal
• Foam Seal for Bottom Rail
• Owner’s Manual
4
5
SEAL-BOTTOM RAIL TO UNIT
SIDE RETAINER
FRAME
ASSEMBLY
(LEFT)
FOAM GASKET
TOP ANGLE
FRAME
ASSEMBLY
(RIGHT)
SAFETY LOCK AND
3/4" ROUND-HEAD
SCREW
1/2" LONG
SCREWS AND
LOCKNUTS
LOCKNUT
3/4" LONG
FLAT HEAD
BOLT
WINDOW SUPPORT
BRACKET
WINDOW SASH SEAL
SILLANGLE
BRACKET

SPECIFICATIONS
• Noise level is measured at a distance of 3.28 ft away from the front of the unit in cooling mode.
• Power consumption is measured when the fan runs at the highest speed setting.
• These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE
PRESENTATION OF THE MANUFACTURER. THERMOCORP INC HAS NOT CONDUCTED INDEPENDENT TEST
TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITHIN.
5
Model GM-WAC-25ESE-C
Power Supply (Ph/V/Hz) 1/230~208/60Hz
Rated Cooling Capacity (BTU/h) 25,000/24,700
Cooling Power Input (Watts) 2,660/2,630
Rated Current Cooling (Amperage) 12/13
EER/C.O.P 9.4/9.4
Noise Level db (A) H/M/L 60/58/56
CFM H/M/L 510/470/420
Dehumidifying Capacity 189 Pints per day
Product Dimensions (W” x H” x D”) 26.5 x 18.625 x 26.25
Package Dimensions (W” x H” x D”) 29.25 x 20.25 x 32
Net/Gross Weight (Lbs) 135/152
Refrigerant Type R-410A
Plug Type NEMA 6-20P

INSTALLATION & ASSEMBLY INSTRUCTIONS
Window Preparation
Please read all instructions prior to installing your air conditioner. Two people are recommended to install this product. If
a new electrical outlet is required, have the outlet installed by a qualified electrician before installing the unit.
Before installing the unit, check the dimensions of your window to make sure the air conditioner will fit. This unit is made
to fit inside a standard double-hung window. Make sure the window is in good shape and able to firmly hold the needed
screws. If not, make repairs prior to installing the unit.
Storm Window Requirements
A storm window frame will not allow the air conditioner to tilt properly which in turn will keep it from draining properly. To
adjust for this, attach a board or piece of wood to the sill. The board or wood piece should have a depth of at least 1 1/2”.
Make sure the board or piece of wood is approximately 1/2” higher than the storm window frame. This will allow the air
conditioner to tilt enough for proper drainage. (See FIG. 2).
Prior to Installing the Air Conditioner
1. Check for anything that could block airflow. Check the area outside of the window for things such as shrubs, trees, or
awnings. Check the inside area to make sure curtains, drapes, or blinds will not prevent proper airflow.
2. Check the available electrical outlet. The power supply must be the same as shown on the unit serial nameplate
(located on the left side of the unit, near the front faceplate). Be sure the outlet is close enough for the power cord to
reach.
3. Carefully unpack the air conditioner. Remove all packing material and make sure the floor is protected when remov-
ing. Due to the large size of this air conditioner, two people should move the unit together.
6
Model GM-WAC-25ESE-C
Unit Height 18 5/8”
Unit Width 26 1/2”
Min. Window Opening (See
FIG 1)
19 1/2”
Min. Window Width 30”
Max Window Width 41”
FIG. 1
When handling the unit, be careful to avoid cuts from
the sharp metal edges and aluminum fins on the front
and rear coils.
FIG. 2
Board or wood piece must
be approximately 1/2” higher
than the storm window frame
for proper drainage
Storm window frame
or obstruction
SASH
Storm window frame or
obstruction
SASH

INSTALLATION & ASSEMBLY INSTRUCTIONS - WINDOW MOUNTING
REMOVE CHASSIS
1. Pull down the front panel and remove the filter (FIG. 1 below)
2. Lift the front panel upwards to remove and place to the side.
3. Locate the four faceplate screws and remove. These screws will need to be re-installed prior to mounting the air con-
ditioner (FIG. 2 above)
4. After removing the screws, gently pull away the faceplate from the air conditioner cabinet (FIG. 3 & 4).
5. Remove the two control panel screws from the front panel (FIG 5).
7
FIG. 2
FIG. 1
FIG. 3 FIG. 4
FIG. 5

INSTALLATION & ASSEMBLY INSTRUCTIONS - WINDOW MOUNTING
REMOVE CHASSIS
6. Remove the shipping screws from the top of the unit and both sides of the cabinet if installed (FIG 6 & 7).
7. Hold the cabinet while pulling on the base handle to carefully remove the unit. Do not pull or lift near the top of the
unit (FIG 8).
8. Remove the internal packing material prior to installation (FIG. 9)
8
FIG. 9
FIG. 6 FIG. 7
FIG. 8

ASSEMBLY & INSTALLATION (CONT.)
9
Placing the Cabinet Inside the Window
1. Open the window and place the cabinet in the middle
of the window sill.
2. Make sure the bottom rail is seated over the window
sill as shown below. Bring the window down temporar-
ily behind the top angle rail to hold the cabinet in place.
3. Fasten cabinet to window sill using two 3/4” HEX-Head
screws. Pre-drill holes if needed. Add the bottom rail
seal over the screws.
Top Angle Rail and Side Bracket Installation
1. Place the air conditioner on a hard flat surface.
2. Locate the foam gasket and top angle rail
3. Attach the foam gasket to the top angle rail
4. Install top angle side to cabinet as shown in FIG 7
5. Slide the “I” section of the window panel into the side
bracket of the cabinet (FIG. 8a ). Do this for both sides.
6. Insert top and bottom legs of window filler panel frame
into channel in the top angle and bottom rail. Do both
sides. Install side retainer to cabinet as shown. FIG 8B-
9.
FIG. 7
Foam Gasket and Top
Angle Rail
SILL
BOTTOM
RAIL
FIG. 8a
FIG. 8b
FIG.
TOP VIEW
