GreenMech EcoTMP User manual

EcoTMP Hydraulic drive
Chipper
for Avant Loader
Operator’s Manual

EcoTMP hyd. CONTENTS 1
©GreenMech Ltd - 1 - 07/11
SECTION:
1. Introduction and Purpose
2. Technical Specifications, Dimensions, Noise Level, and
Lifting points
3. Safety and Symbols
3.1 Ensure!
3.2 Never!
3.3 Always!
3.4 Safety controls and switches
3.5 Control cut-outs (not applicable)
3.6 'No Stress' system
3.7 Symbols
4. Machine Preparation
4.1 Fitting to tractor
4.2 Infeed chute
4.3 Discharge chute
5. Operation
5.1 Pre-work checks
5.2 Starting machine
5.3 Stopping machine
5.4 Adjustable Feed roller control
5.5 Operating Hints
5.6 Preparing for Transport on completion of work
6. Maintenance
6.1 Routine Maintenance schedule and lubrication points
6.2 Drive Belts
6.3 Drive Belt Tension
6.4 Hydraulic Connections
6.5 Steam Cleaning
6.6 Bearings and Pivots
6.7 Disc blades
6.8 (Not used)
6.9 Electrical Connections
6.10 Mountings
6.11 No Stress system
6.12 Fault finding chart
6.13 Blade sharpening

EcoTMP hyd. CONTENTS 2
©GreenMech Ltd - 2 - 07/11
7. Storage
7.1 Storage
7.2 Removal from storage
8. Disposal
9. Appendix
9.1 Hydraulic Circuit
9.2 Electrical Circuits
9.3 Certificate of Conformity
9.4 Risk Assessment
9.5 Noise Assessment
9.6 Parts List
9.7 Transcript of HSE leaflet 604

EcoTMP hyd. 1. INTRODUCTION AND PURPOSE 1-1
©GreenMech Ltd 1-1 07/11
INTRODUCTION
This manual explains the proper operation of your machine. Read these instructions
thoroughly before operating and maintaining the machine. Failure to do so could result in
personal injury or equipment damage. Consult your GreenMech supplier if you do not
understand the instructions in this manual.
CAUTION! This symbol indicates important safety messages in this manual.
When you see this symbol, be alert to the possibility of injury to yourself or
others, and carefully read the message that follows.
We recommend that you keep this manual with the machine in the box provided. Note
here the serial number and quote it in any communications. This is important when
ordering spares. Remember to include all numbers and letters.
VIN Number:…….…………………………
Serial Number:….…………………………
Write in the number!
This manual covers the following model.
EcoTMP with hydraulic drive for Avant loader with quick attach plate.
Note: Machine can be assembled to place infeed chute either to left hand side or right
hand side of tractor.
The information in this manual is correct at the time of publication. However, in the course
of development, changes to the machine specification are inevitable. Should you find any
information to vary from the machine in your possession please contact your GreenMech
dealer for up to date information.
The manual may contain standard and optional features and is not to be used as a
machine specification.
PURPOSE
CAUTION! This machine is designed solely to chip wood and must not be
used for any other purpose. The machine should only be used by trained
operators who are familiar with the content of this instruction manual. It is
potentially hazardous to fit or use any parts other than genuine GreenMech
parts. The company disclaims all liability for the consequences of such use,
which in addition voids the machine warranty.
S/N EcoTMP hydraulic driven
Serial Number plate

EcoTMP hyd. 2. SPECIFICATIONS 2-1
©GreenMech Ltd 2-1 07/11
TECHNICAL SPECIFICATION EcoTMP
Max Capacity 150mm (6-inches)
Chipping Disc 500mm x 25mm (19.86 x 1.01inch)
Speed 2600 rpm
Chipping Blades 2 Discs
Feed Rollers 2 x Hydraulic
Power Control No-Stress Electronic Feed Roller Controller
Power Unit Hydraulic motor for Avant front mount loader
hydraulic flow 55lt/min - 70lt/min at 230bar.
Length (Transport) 2320mm
Width 1060mm
Height 2130mm
Weight 487Kg

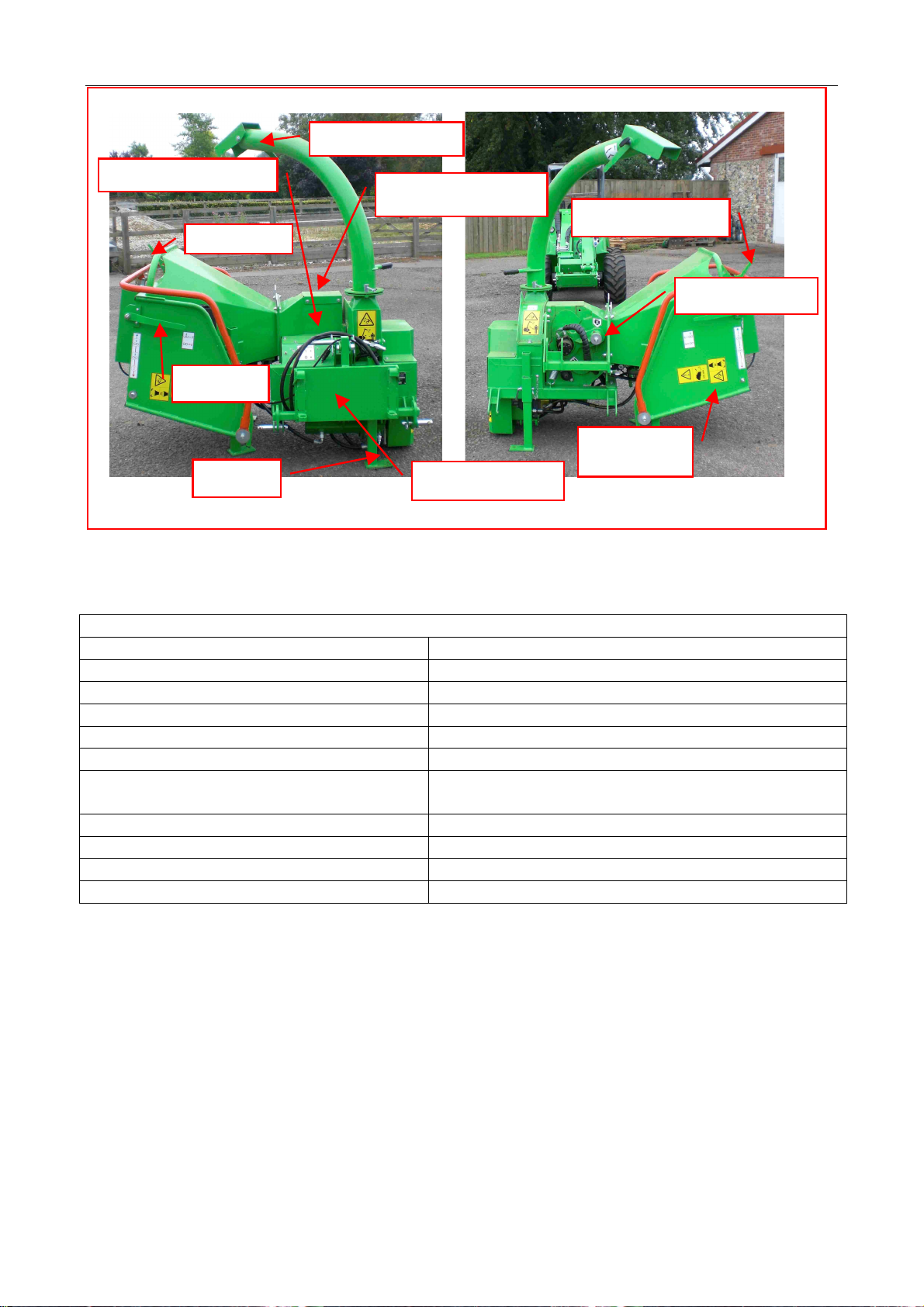

Fig 2.1 EcoTMP Main Features
Infeed Chute catch
Discharge chute
Chipper disc cover
Infeed chute
(folded)
Control bar
Feed roller pivot
Reset bar
Quick attach plate
Legs
Tractor hoses & cable

EcoTMP hyd. 2. SPECIFICATIONS 2-2
©GreenMech Ltd 2-2 07/11
Noise
Noise levels vary depending on type of material being processed. Also duration of
operation is variable. Noise emission tests have been carried out and the guaranteed
sound power level is displayed on the CE plate as follows: Lwa 120dba
Minimise noise by switching to idle or stopping the tractor engine whenever chipping is not
in progress.
CAUTION! Do not operate above recommended speed.
Full details are included in the Risk Assessment in the Appendix.
CAUTION! Operators must wear appropriate ear protection. Bystanders must be
kept away from proximity of machine.
Lifting Points
There are three lifting points by the chipper disc cover.
Tractor requirement
Avant 700 series front mount loader with quick attachment plate.
Hydraulic drive output min 55lt/min - 70lt/min at 230bar
Electric output 12 volt for No-Stress system.

EcoTMP hyd. 3. SAFETY 3-1
©GreenMech Ltd 3-1 07/11
3.1 ENSURE:
3.1.1 All Operators must be fully trained in
the use of their machine.
(Certificated Operator training courses are
available on request.)
3.1.2 The Operators Manual is read and
understood.
3.1.3 The enclosed HSE guidance notes
are read and understood.
3.1.4 The machine is positioned on level
ground and the machine must be level with
the infeed chute at no less than 600mm
(23.62 inches) above ground level (fig
3.4.3).
3.1.5 not applicable
3.1.6 All guards are fitted and in good
condition.
3.1.7 Blades are in good condition and
secure.
3.1.8 All blades are sharpened or replaced
in “Sets”.
3.1.9 All fasteners are checked regularly
for tightness.
3.1.10 Only “WOODEN” materials free of
nails etc., are fed into the machine.
3.1.11 Correct First Aid Kit including large
wound dressing is available on site.
3.1.12 Fire extinguisher is available on site.
3.2 NEVER:
3.2.1 Work on the machine until the
chipper disc is stationary and engine or
PTO has stopped.
3.2.2 Operate the machine without
protective clothing (Eye protection,
Earmuffs, and Gloves), or high visibility
clothing when working on roadside.
3.2.3 Operate with loose articles of
clothing, including loose cuffs on gloves.
3.2.4 Work under a raised component
without adequate safety support.
3.2.5 Operate the machine with untrained
personnel or with individuals present who
are not involved in the chipping operation.
3.2.6 Leave the machine unattended with
engine running at full operating speed.
(See section 4)
3.2.7 Put any part of your body into the
infeed chute while the machine is running.
3.2.8 Operate the machine whilst under the
influence of alcohol or drugs.
3.2.9 Operate inside a building or confined
space.
3.2.10 Climb on the infeed chute.
3.3 ALWAYS:
3.3.1 Check machine before starting (see
Section 4 Preparation and Section 5.1
Operation: Pre-work checks).
3.3.2 Be aware of potential hazards in the
work area, i.e. uneven ground, tree roots,
trip/slip hazards, obstructions and type of
materials being fed into the machine.
3.3.3 Feed from the side.
3.3.4 Have a second trained operator
within easy reach of the machine.
3.3.5 Maintain strict discipline at all times.
3.3.6 Service machine at specified periods.
(see Section 6: Routine Maintenance).
3.3.7 Note direction of discharge chute and
if necessary note the wind direction to
prevent debris from being blown into
highway or where it could affect members
of the public.
3.3.8 Remove key before doing any
maintenance.

EcoTMP hyd. 3. SAFETY 3-2
©GreenMech Ltd 3-2 07/11
3.4 Safety Controls and Switches
3.4.1 Emergency Stop/Control Bar (fig
3.4.1)
In the event of an emergency, push the
emergency stop bar to STOP the feed
rollers. This will lock in position.
3.4.1.1 Once the emergency has been
rectified the following sequence should be
carried out:
3.4.1.2 To restart rollers pull the reset
lever, the control bar can then be returned
to the Feed In position.
3.4.1.3 Should the stop bar be tripped
accidentally in normal working conditions
i.e. NOT an emergency, then the rollers can
be recovered by performing the above
sequence.
3.4.1.4 To reverse the rollers (feed out)
push the control bar into the middle detent.
To regain forward (feed in) pull the control
bar away from the chipper. It is not
necessary to use the reset bar.
3.4.2 PTO stop
3.4.2.1 To stop the PTO use the tractor
control or tractor engine stop.
CAUTION! Do not restart until hazard
has been removed.
3.5 Control cut-outs
Not applicable for tractor mounted model
3.6 No Stress system
3.6.1 Speed sensor disables feed roller
FEED IN or FEED OUT mode when engine
speed is below factory pre-set value.
Fig 3.4.1 Control Bar and Reset
Lever
Control Bar positions
(Nearside)
STOP FEED OUT FEED IN
FEED IN FEED OUT STOP
(Offside)
Reset bar
Control bar

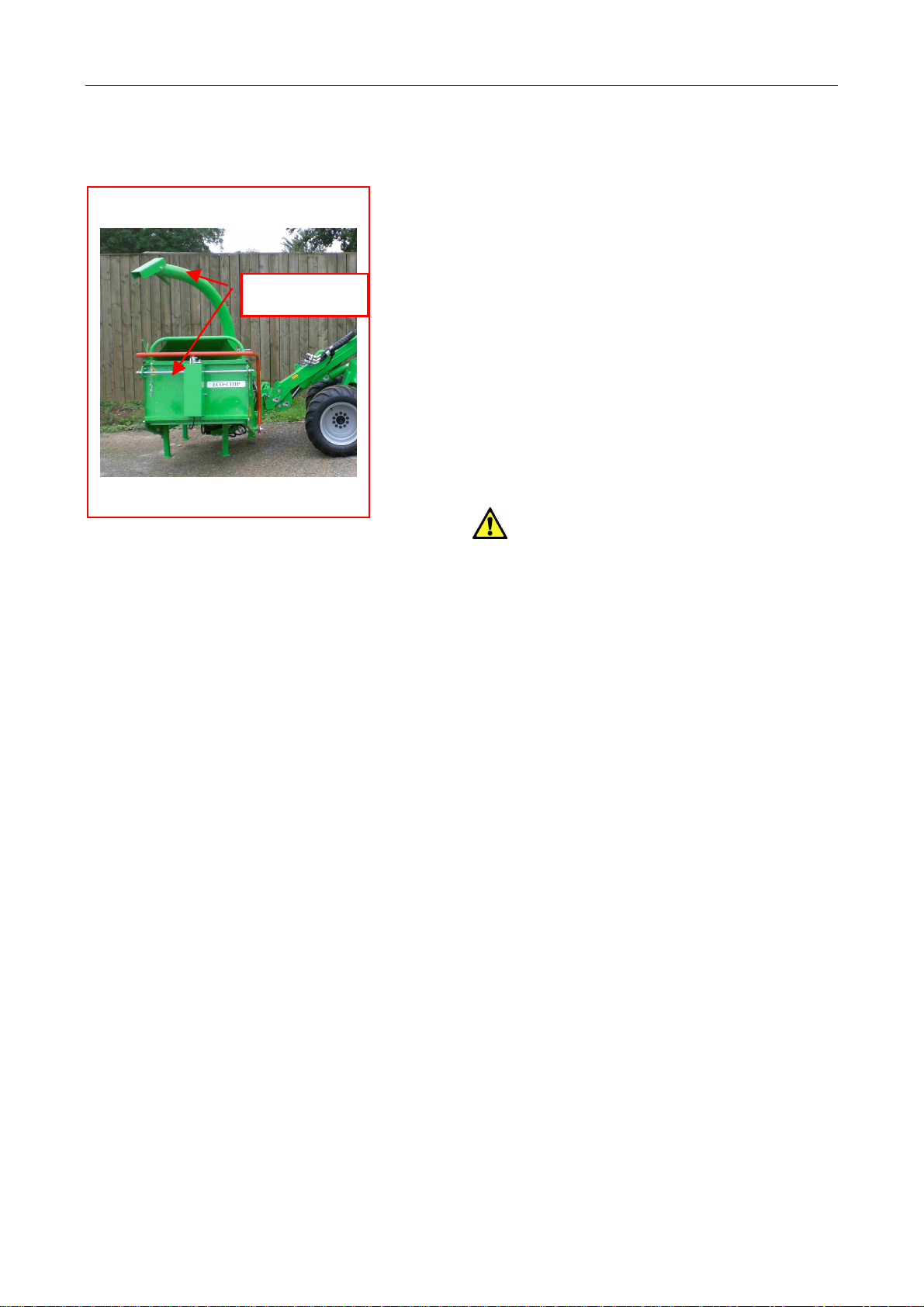

Fig 3.4.3 Infeed chute height
Infeed chute
height 600mm
min. (24")

EcoTMP hyd. 3. SAFETY 3-3
©GreenMech Ltd 3-3 07/11
3.7 SYMBOLS on the MACHINE
These relate to operator safety, correct use and maintenance of machine. Check that all
personnel understand and are familiar with meanings before using the machine.
Important Safety symbols
Take the correct action shown on the display below the stated hazard (see table)
Important Operating Checks Notice
Before use carry out daily the stated checks in the order shown (see table)
Caution! Remove key Do NOT
start engine
Caution! Beware
flying
object
hazard
Beware
noise
hazard
Beware
trapping
hazard
Brakes
off
-incorrect
Read
instruction
manual
Wear
helmet &
visor
Wear ear
protectors
Wear
proper
clothes
Brakes
on
-correct
Machine
not level
-incorrect
Beware
flying
object
hazard
Beware
flying
object
hazard
Beware
exposed
drives
hazard
Caution!
Machine
level
-correct
Keep
bystanders
away
Position
and lock
discharge
chute
Fit all
guards Keep nuts tight
Every 8 Hours –
Daily checks Remove key stop engine
1. Check
coolant level 2. Check engine oil level
3. Check
hydraulic oil
level
4. Check
machine is level 5. Check brakes are on
6. Check
chipper disc is
clear of debris
7. Check all
guards are in
place
8. Check infeed
chute is clear of
debris
9. Lock
discharge chute
10. Pull control
bar to work
position 11. Start engine 12. Increase
from Idle to Run
General Safety
Daily Checks

EcoTMP hyd. 3. SAFETY 3-4
©GreenMech Ltd 3-4 07/11
Important Safety Information
Sound level
Ear defenders must be
worn
Caution! Beware of thrown
object hazard
Action: Keepaway from fast
discharge chute
Caution! Beware of thrown
object hazard
Action: Stand to side of infeed
chute, NOT in centre.
Caution!
Do NOT operate with infeed
chute at less than 600mm from
ground (bottom bar machine).
Face shield must
be worn
Ear defenders must
be worn

EcoTMP hyd. 3. SAFETY 3-5
©GreenMech Ltd 3-5 07/11
Maintenance Information
Operating Information
Grease point
40 hours / weekly
Reset lever: Left hand shown
Push to stop : Pull to reset
Control Bar (bottom bar). Left hand shown
Push to stop: Centre-feed out: Pull–feed in
Discharge chute control
Green is UP: Blue is DOWN
Transport Lock
Lock this
component before
moving machine
Lift Point
High temperature
Grease 40 hours

EcoTMP hyd. 3. SAFETY 3-6
©GreenMech Ltd 3-6 07/11

EcoTMP hyd. 4. MACHINE PREPARATION 4-1
©GreenMech Ltd 4-1 07/11
4.1 Fitting to Avant loader
(Fig 4.1.1 & Fig 4.1.2)
CAUTION! Read Avant instructions
before fitting chipper for first time.
4.1.1 Check condition of chipper attachment
plate.
4.1.2 Step 1 Lift locking pins on loader
attachment plate and turn towards loader to
lock in upper position.
4.1.3 Move all hydraulic hoses clear of
mounting plates.
4.1 4 Step 2 With loader plate tilted forwards
drive loader gently towards chipper plate until
top hooks engage with machine.
4.1.5 Step 3 Raise loader boom carefully to
take some weight of chipper.
4.1.6 Tilt loader plate back to engage bottom of
chipper plate.
4.1.7 Step 4 Release locking pins manually to
secure chipper onto loader.
CAUTION! Do not rely on automatic
return of locking pins.
CAUTION! Ensure locking pins are in
lower position and engaged through fasteners.
Failure to do so may cause chipper to drop off
loader.
CAUTION! Always keep the chipper level.
Do NOT tilt.
4.1.8 Lower chipper to ground, stop loader
engine and move auxiliary hydraulic lever to
release any residual pressure.
4.1 9 Identify correct hose connections and fit
each hose by moving collar on female fitting.
4.1.10 Connect electric cable to console outlet.
CAUTION! Check that the discharge
chute does not hit the tractor cab when the
chipper is lifted up.
CAUTION! Do not operate the machine
when not fully attached to the tractor
4.1.13 Unfold infeed chute as 4.2 below.
4.1 11 Switch on electrics, start loader and
carefully check operation of all controls.
CAUTION! Incorrect fitting of hoses may
damage components.
4.1 12 To remove chipper from loader park on
level ground and reverse this procedure.
CAUTION! Always disconnect hoses
before disconnecting attachment plates.

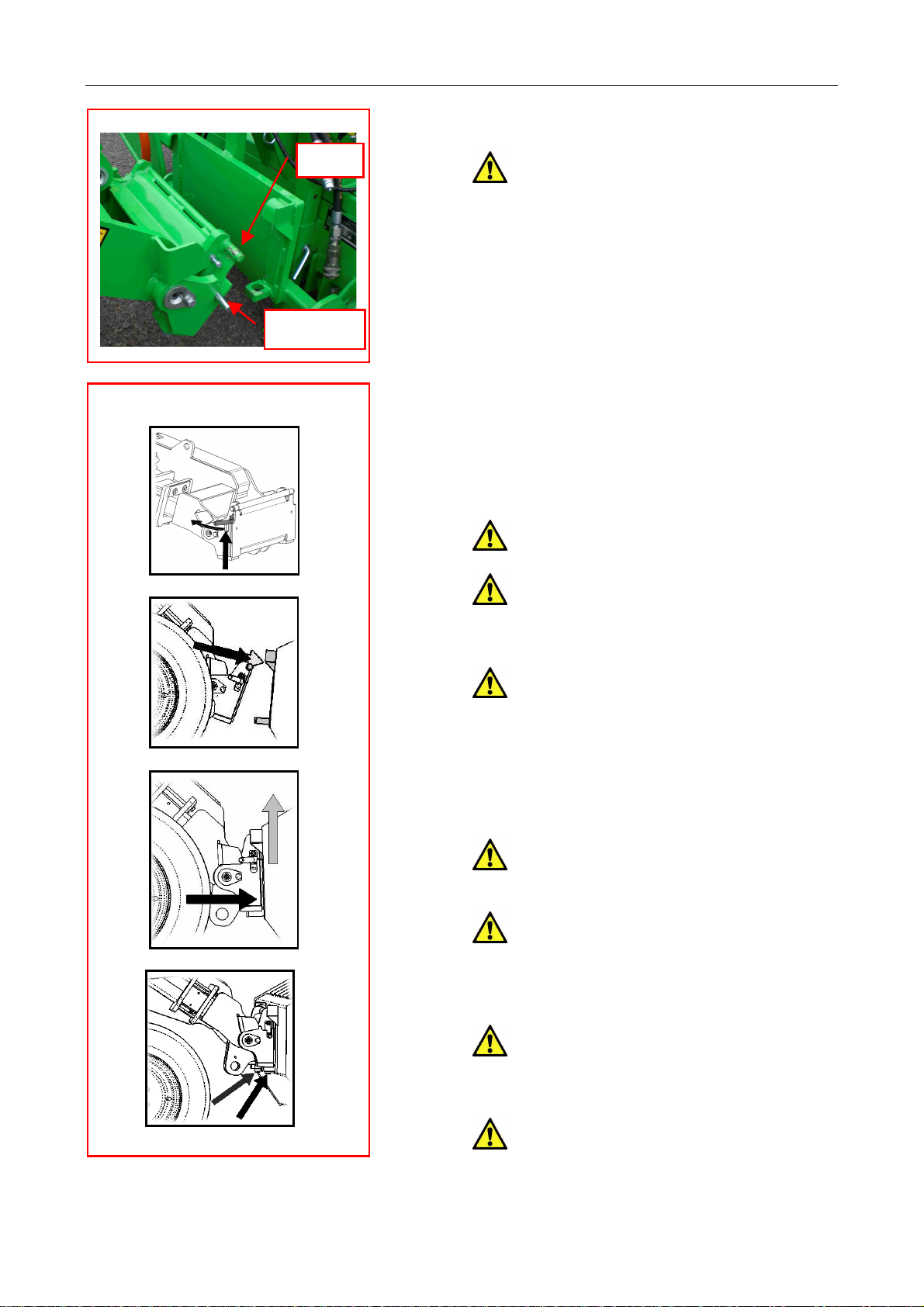

Fig 4.1 2 Attachment sequence
Step 1
Step 2
Step 3
Step 4
Illustrations by Avant Techno
Fig 4.1.1 Attachment Plate
Locking pin
Hook

EcoTMP hyd. 4. MACHINE PREPARATION 4-2
©GreenMech Ltd 4-2 07/11
4.2 Infeed Chute
4.2.1 Remove the transport pin for the
infeed chute catch, release the catch (fig
4.2)
4.2.2 Using the tubular edge as a handle,
lower the infeed chute to the work position
and reset the catch.
4.2.3 Measure the height of the infeed
chute and adjust stands as required.
4.2.4 Pull the reset lever to release the
control bar for use.
CAUTION! The infeed chute must not
be used at less than 600mm from the
ground. (fig 3.4.2).
CAUTION! Before travelling, always
fold up and secure the infeed chute.
4.3 Discharge Chute (Fig 4.4)
4.3.1 Release the swivel clamps, point the
chute in the desired direction and tighten
the clamps.
4.3.2 Set the flap at the desired height and
tighten the clamp.
CAUTION! Lock the discharge chute
in the rearward position when travelling.
Fig 4.2 Infeed chute catch
Catch (transport)
Catch
(work)
Fig 4.3 Discharge Chute
Swivel clamps
Flap lever

EcoTMP hyd. 5. OPERATION 5-1
©GreenMech Ltd 5-1 07/11
5.1 Pre-Work Checks:
5.1.1 Check tractor is stationary, engine
turned off and hand brake applied.
5.1.2 With machine held on tractor linkage,
set support legs approximately (fig 5.1.1).
5.1.3 Lower linkage, check that machine is
level and infeed chute is greater than
600mm from ground (fig 3.4.3).
5.1.4 Check fasteners for tightness and
hydraulic connections for leaks.
5.1.5 Check condition of disc blades.
5.1.5.1 Check nothing is rotating.
5.1.5.2 Remove the 1 bolt retaining chipper
disc cover (fig 5.1.2).
5.1.5.3 Using discharge chute handle as a
lever, swing back cover on to stop to
expose chipper disc and blades.
(fig 5.1.2)
5.1.5.4 Carefully rotate chipper disc to
check tightness of disc blade bolts and
condition of blades.
5.1.5.5 Remove any loose wood material.
5.1.5.6 If any bolts are loose, refer to
maintenance section for further action.
5.1.5.7 Replace chipper disc cover and
tighten bolts securely.
5.1.6 Check discharge chute is in desired
position and all clamps are tight. (see
Section 4.3)
5.1.7 Check infeed chute flap is lowered.
5.1.8 Check work area and erect signs
and cone off discharge area if necessary.
5.1.8 Check ALL safety procedures have
been followed.
CAUTION! Beware sharp edges of
discs and unexpected movement.
CAUTION! Do not release discharge
chute clamps when chipping is in progress.
Elevation of the discharge is altered by
means of the adjustable flap (fig. 4.4).
CAUTION! Keep working area around
the machine clear at all times and check
only authorised personnel are present.
Fig 5.1.2 Chipper Disc Cover
Disc Cover
locating bolt
Fig 5.1.1 Support Legs
Support Legs (4)

EcoTMP hyd. 5. OPERATION 5-2
©GreenMech Ltd 5-2 07/11
5.2 Starting Machine:
5.2.1 Check all other personnel are clear of
machine.
5.2.2 Check that feed roller control bar is
pushed to the FEED OUT or STOP
position, to make the machine safe.
5.2.3 Start the tractor engine.
5.2.4 Engage power to start the chipper.
Check electric supply is ON.
5.2.5 Increase the speed to operating
speed, marginally above when No Stress
light goes Green.
5.2.6 Pull the reset lever to release the
control bar for work.
5.3 Stopping Machine
5.3.1 Push the control bar to STOP
position.
5.3.2 Disengage power.
5.3.3 Stop tractor engine.
5.3.4 Wait for chipper disc to stop.
CAUTION! The chipper disc will take
several seconds to stop due to its inertia.
5.4 Adjustable Speed Feed Roller
Control
When chipping wood sizes larger than 120mm
diameter it may be necessary to reduce the
feed roller speed to suit the material being
chipped.
5.4.1 Turn the valve control knob (fig 5.4)
clockwise until valve is closed.
5.4.2 Turn the knob anticlockwise to the
recommended setting in the table.
5.5 Operating Hints
5.5.1 Check that chipper disc is at full speed
with NO Stress light Green.
NOTE: The “No Stress” system will only allow
FEED IN (Forwards) and FEED OUT operation
of the feed rollers when the machine is running
at FULL operating speed.
5.5.2 Reduce the chipper speed to IDLE whilst
further material is collected for chipping.
5.5.3 Take care when feeding wood into the
machine to allow for awkward shapes to “KICK”
when contacting the feed rollers.
5.5.4 Position the end of larger sections of
wood inside the infeed chute and then support
the other end whilst pushing the wood into the
feed rollers.
Fig 5.4 Adjustable feed roller control
Control knob settings
Material Setting
up to 120mm Fully open (3 turns)
120 - 150mm 1/2 to 3/4 turn
Control Knob

EcoTMP hyd. 5. OPERATION 5-3
©GreenMech Ltd 5-3 07/11
5.6 Preparing For Transport On
Completion Of Work (fig 5.6)
5.6.1 Check that engine has stopped and
chipper disc is stationary.
5.6.2 Remove surplus material from infeed
chute and machine surfaces.
5.6.3 Lift up infeed chute to transport
position, secure with lock and fit locking pin.
5.6.4 Set discharge flap into lowest
position and tighten clamp.
5.6.5 Release clamps, turn discharge
chute to rearward position away from cab,
tighten clamps.
5.6.6 Raise machine on tractor boom.
5.6.7 Raise support legs and secure if
transporting on rough terrain.
CAUTION! Remember to raise infeed
chute flap and the chipper on the tractor
linkage before driving off.
Fig 5.6 Chutes ready for transport
(except legs)
Chutes folded

EcoTMP hyd. 6. MAINTENANCE 6-1
©GreenMech Ltd 6-1 07/11
ROUTINE MAINTENANCE SCHEDULE
CAUTION! Always stop tractor, remove key and check for rotation before carrying out
any maintenance.
Action Section Page
DAILY
Check drive belt 6.2 6-3
Check condition of disc blades and retaining bolts 6.7 6-4
Check feed roller control bar function 3.4 3-2
First 50 hours
Check drive belt tension 6.3 6-3
Check hydraulic connections 6.4 6-3
Check all mountings 6.10 6-5
Check feed roller control bar function 3.4 3-2
Weekly in addition to Daily actions
Check drive belt tension 6.3 6-3
Steam clean machine 6.5 6-3
Check electrical connections 6.9 6-5
Check feed roller control bar function 3.4 3-2
Grease all bearings and pivots 6.6, 6.1 6-3
Check hydraulic connections 6.4 6-3
Check all mountings 6.10 6-5
250 hours in addition to Daily and Weekly actions
Check condition of bearings and pivots 6.6 6-3
1000 hours in addition to 250 hour actions
Recommended lubricants Specification
Grease Complex grease EP2 (high temperature)

EcoTMP hyd. 6. MAINTENANCE 6-2
©GreenMech Ltd 6-2 07/11
6.1 Lubrication Points (see 6.14)
Grease except where stated
6.1.1 PTO shaft 2 nipples
6.1.2 Top Feed roller pivot 1 nipple
6.1.3 Top Feed roller bearing 1 nipple
6.1.4 Chipper Disc front bearing 1 nipple
6.1.5 Chipper Disc rear bearing 1 nipple
6.1.6 Labyrinth seal 1 nipple
6.1.7 Not used
6.1.8 Infeed chute hinges Oil
6.1.9 Mechanical reset mechanism Clean and grease
6.1.10 Bottom Feed roller bearing 1 nipple
Note. Do not overgrease bearings as damage to seals may occur.
Note: Use high temperature grease on chipper disc bearings.
Fig 6.1.2 Grease nipples (Opposite side)
Nipple
6.1.5
Nipple
6.1.6
Fig 6.1 Lubrication points EcoTMP
6.1.1
6.1.5
6.1.4
6.1.3
6.1.9
6.1.2
6.1.8
6.1.10

EcoTMP hyd. 6. MAINTENANCE 6-3
©GreenMech Ltd 6-3 07/11
6.2 Drive Belts
6.2.1 Remove belt guard (fig 6.2) and
check belts daily, before work.
6.2.2 Replace Guard before use.
6.3 Drive Belt Tension
The belt is tensioned by a screw under the
machine to set the gearbox mounting (fig
6.3).
6.3.1 Loosen nut and adjust bolt to tension
belts.
6.3.2 Tighten nut.
6.4 Hydraulic connections
50 hours
6.4.1 With the aid of the circuit diagram to
follow the hose routings, check all hoses
and connections for leaks and damage.
6.4.2 Replace any worn or damaged
hoses with the correct type and length.
6.4.3 Before removal, check routing and
ensure replacement hose is fitted free of
strains, twists or kinks.
CAUTION! Ensure any residual
pressure is released before dismantling.
CAUTION! Ensure hoses are refitted
free of twists and kinks.
6.5 Steam Cleaning
weekly and every 250 hours
6.5.1 Check all covers are fitted and
closed
6.5.2 Steam clean machine surfaces.
6.5.3 Clean electrical components with a
damp rag, spray with WD40 and then wipe
with dry rag.
CAUTION! Do not steam clean
directly on to electrical components, e.g.
control boxes.
6.6 Bearings and Pivots
Weekly
See paragraph 6.1 for routine lubrication.
250 hours
6.6.1 Check rotating components for
excessive movement and noise in
operation.
6.6.2 Replace as required.

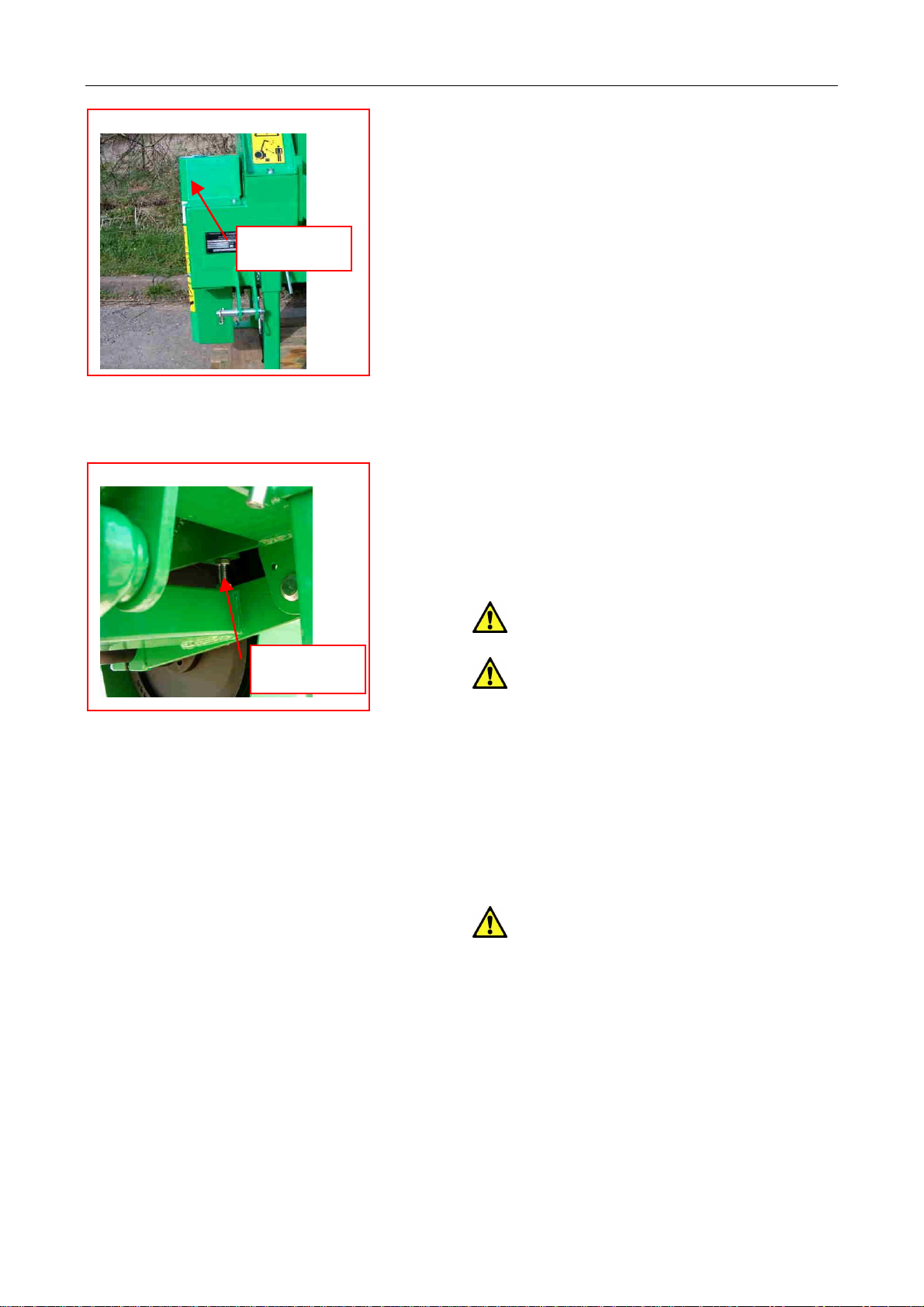

Fig. 6.2 Drive Belt Guard
Belt Guard
Fig. 6.3 Belt Tensioner
Belt
Tensioner
