Griesser FSR1 User manual

Assembly instructions
Sliding bi-fold shutters
Read these instructions, observe the contents and the warning notes prior to
assembly. The information is very important for installation and correct use
of the material.
The sliding bi-fold shutter is a product for which not only the dimensional and
geometric tolerances, but also the straightness and parallel alignment of the
running and guide elements, must be adhered to without fail at the time of
installation in order to guarantee the trouble-free operation and performance
of the product.
Only trained personnel may mount and put the systems into operation.

Contents
1 Notes regarding these instructions 3
1.1 Validity of this manual 3
1.2 CE marking 3
1.3 Used symbols 3
1.4 Abbreviations 3
2 Security 4
2.1 Safety and Warnings 4
2.2 Intended use 4
3 Product description 5
3.1 Exploded assembly drawing (external view) 5
3.2 Mounting accessories 5
3.3 Marking 6
4 Mounting 6
4.1 Preparation for mounting 6
4.2 Installation tolerances 6
4.3 Installation in an elevated area 6
4.4 Fasteners 7
4.5 Design variants 7
4.6 Installation runner and guide rail 8
4.7 Shutter packages 8
4.8 Installing the sashes 9
4.9 Pull latch installation 13
4.10 Mounting Overwinding protection 13
5 Troubleshooting table - Trouble-shooting 16
6Disposal 16
Version 01.18 2
Persiane scorrevoli pieghevoli

Version 01.18 3
1 Notes regarding these instructions
These instructions is meant for trained technicians with good skills in assembly technology. Only
qualified technical personnel with the respective assembly experience may install sliding bi-fold
shutters.
1.1 Validity of this manual
Sliding bi-fold shutters are designed in accordance with EU standards.
1.2 CE marking
Griesser AST GmbH hereby declares that the sliding bi-fold shutters are in compliance with the
basic requirements and other relevant provisions of EN standards.
This is documented by the CE marking.
1.3 Used symbols
L Side, direction, design left
R Side, direction, design right
Outside
Movement to be carried out
 Movement, direction
 Movement, direction
2x Repeat step various times
 Manual operation
 Electric operation, motor
 Visual inspection
 Information
F Note
1.4 Abbreviations
hl Opening height bl Opening width
hff Finished sash height bff Finished sash width
Sliding bi-fold shutters

!
!
!
Version 01.18 4
2 Security
The safety and warning notes make a distinction between personal injury and damage to property.
The signal word „Danger“ is used to indicate the risk of personal injury, while the signal word
„Caution“ is used to indicate the risk of damage to property.
2.1 Safety and Warnings
Immediate danger to life and limb!
Immediate risk of product and environment!
 Useful information and notes
• Observe the applicable accident prevention regulations.
• Make sure that any installed electrical connections are disconnected from the mains supply
during the assembly.
• Close off a sufficient space around the assembly area.
• Check any available scaffolds and installations in terms of their safety.
• Observe the regulations applicable to dowel and fastening material.
• Always work with undamaged and suitable tools.
• Keep plastic films, packaging material as well as small parts away from children – risk of
suffocation!
2.2 Intended use
Warranty claims are forfeited if damage is due to the non-compliance with the brochure or the
attached document. Griesser AST GmbH does not accept liability for consequential damage.
Griesser AST GmbH does not accept liability for damage caused by incorrect installation.
Except for the actions described in the operating manual and the assembly instructions, the product
may not be altered in any way, otherwise, all warranty claims will likewise become null and void
In winter, check products for formation of ice prior to
operation; do not operate if ice has formed.
Danger!
Attention
Sliding bi-fold shutters
Attenion

Version 01.18 5
3 Product description

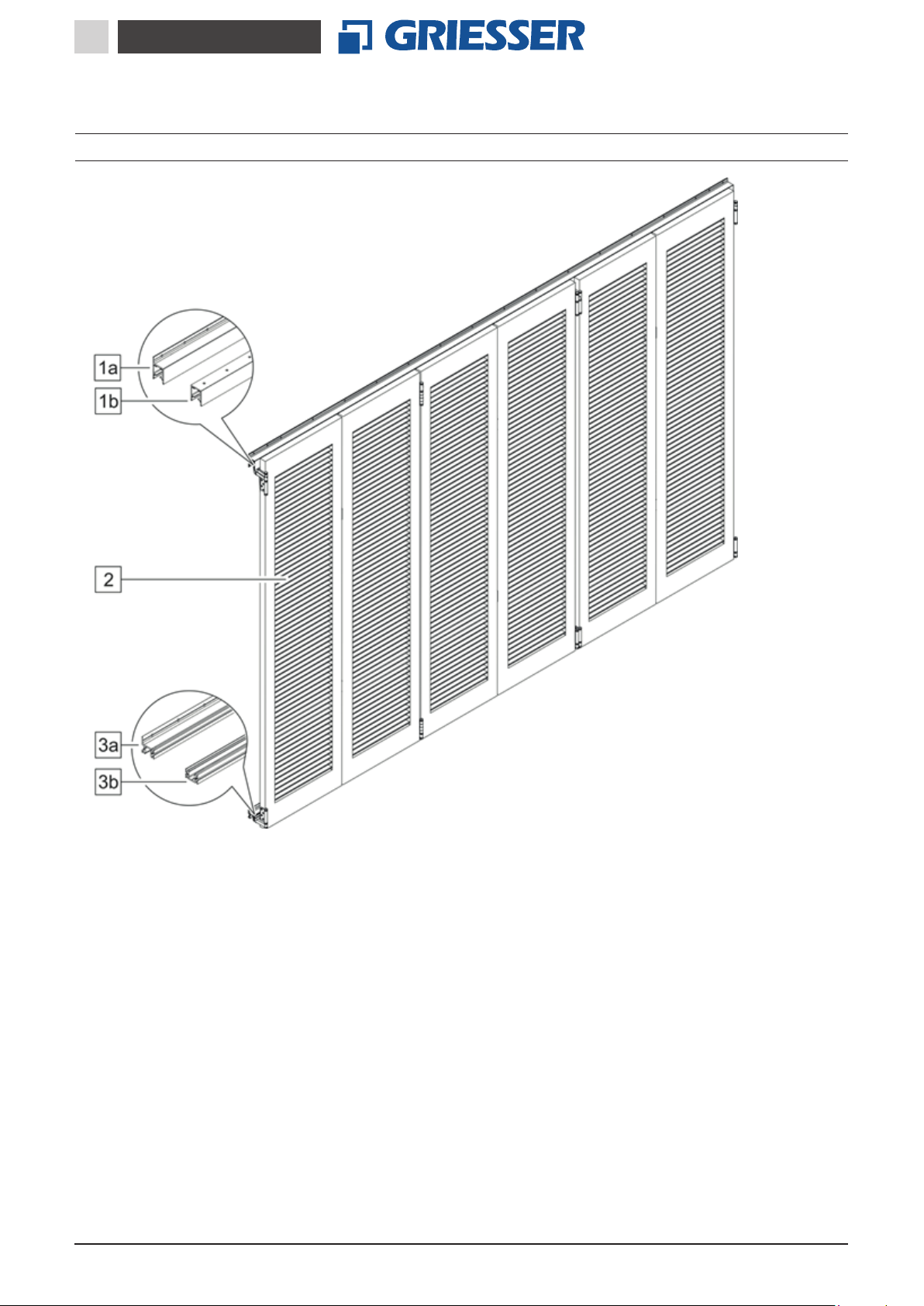

3.1 Exploded assembly drawing (external view)
3.2 Mounting accessories
Nr. Designation
1a Runner rail Typ FSR2
1b Runner rail Typ FSR1
2 Sash
3a Guide rails Typ FSR2
3b Guide rails Typ FSR1
Sliding bi-fold shutters

Version 01.18 6

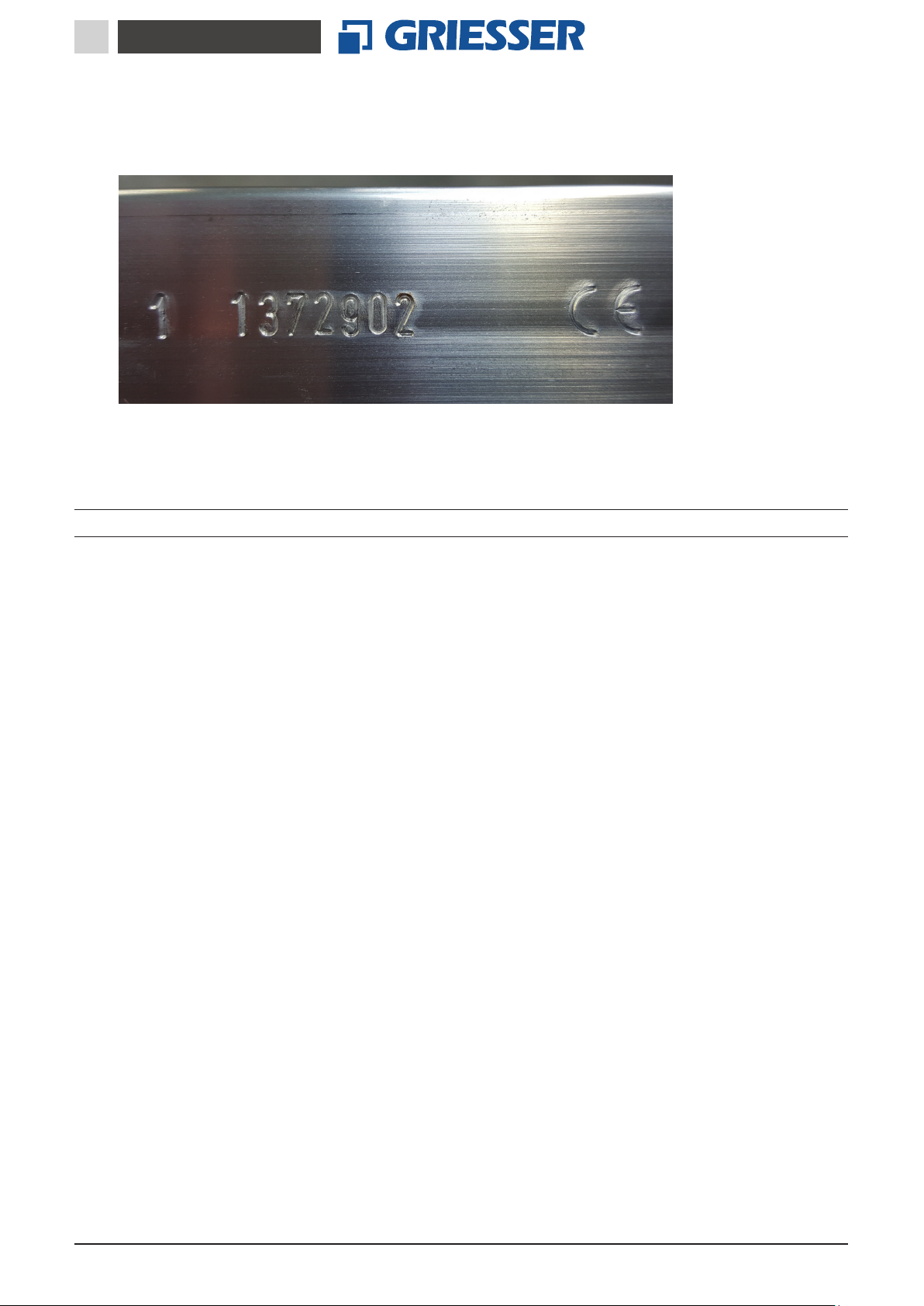

3.3 Marking
Depending on the quantity, the components for the same sliding bi-fold shutter can be packed in
several cartons.
4 Mounting
4.1 Preparation for mounting
• Checking the installation dimensions
The main dimensions must be checked according to the dimension sheet prior to installation.The
installation tolerances according to the Technical Datasheet must be adhered to.
• Orientation at the installation site
Aids (table, crane, ladder, etc.)
Check material
• Distribute material (how and where)
Dimension sheets, manufacturing notes, Assembly instructions
• Study documents
Installation dimension check (width x height)
Sketches, drawings
4.2 Installation tolerances
Parallelism of the guides in all directions +/- 1 mm
Deviations from the perpendicular +/- 1 mm/system
No horizontal deviations.
4.3 Installation in an elevated area
Fall protection
Workers run the risk of falling when working at elevated heights. Suitable anti-fall guards must be
used.
Sliding bi-fold shutters

Version 01.18 7
4.4 Fasteners
In the installed condition, the sliding bi-fold shutter only meets the requirements of the given
wind class when
•the Runner rails, guide rails installed taking the permitted anchor plug extraction force into
consideration
•the processing guidelines of the used dowel pins were observed during assembly.
4.5 Design variants
Sliding bi-fold shutters
FSR1
Ceiling installation FSR2 Wall installation FSH1 Ceiling installation FSH2 Ceiling installation

!!
Version 01.18 8
Construction tolerances may not be
compensated via the armatures!
Sliding bi-fold shutters
Attenzione
4.6 Installation runner and guide rail
Runner rail (top)
• Check the installation situation
• Fastening holes must be drilled
• Install the runner rail on the subsurface using suitable fastening material (no horizontal deviation!)
• Two additional screws are required for the parking position
Guide rail (bottom)
• With the fixed sash removed from the package, measure the distance to the guide rail (bottom).
• Drill fastening holes in line with the runner rail and fasten with fastening material
• Mount the window shutter and check that it runs freely
4.7 Shutter packages
• Verify which one is the fixed sash; it can be recognized by its armature
• Unhinge the pre-installed fixed sash from the shutter package by loosening the hinges
• Place the fixed sash in front of the window

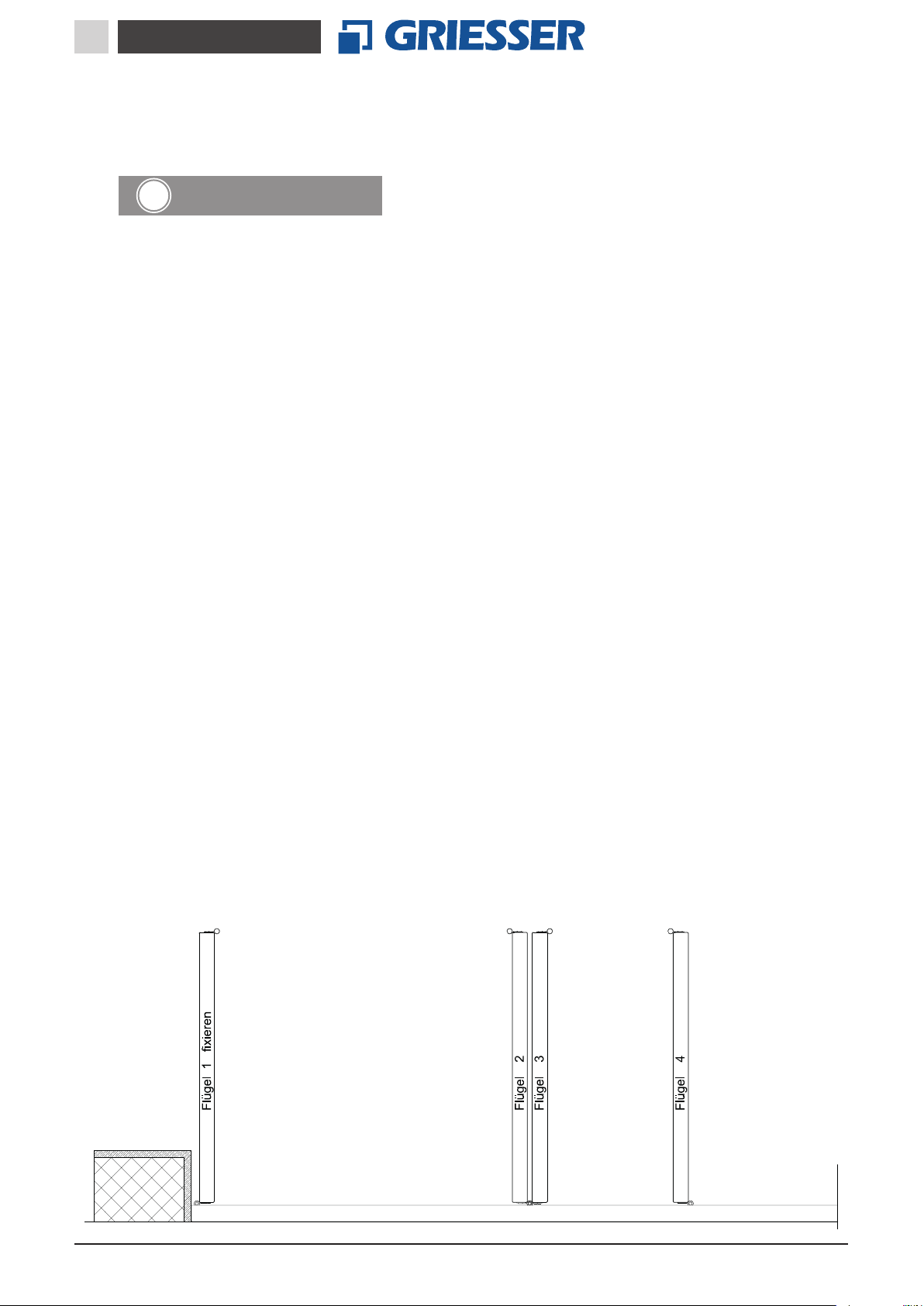

• Install the fixed sash in accordance with the instructions on the following pages, then install the
sashes in pairs. Sashes 2 and 3, 4 and 5, etc.

FSH 1 und FSH 2
oben
FSH 1 und FSH 2
oben
Version 01.18 9
3x
2x
2x
2x
2x
2x
Sliding bi-fold shutters
FSR 1 + 2 top FSH 1 + 2 top
FSR 1 bottom FSH 1 bottom
FSR 2 bottom FSH 2 bottom
4.8 Installing the sashes

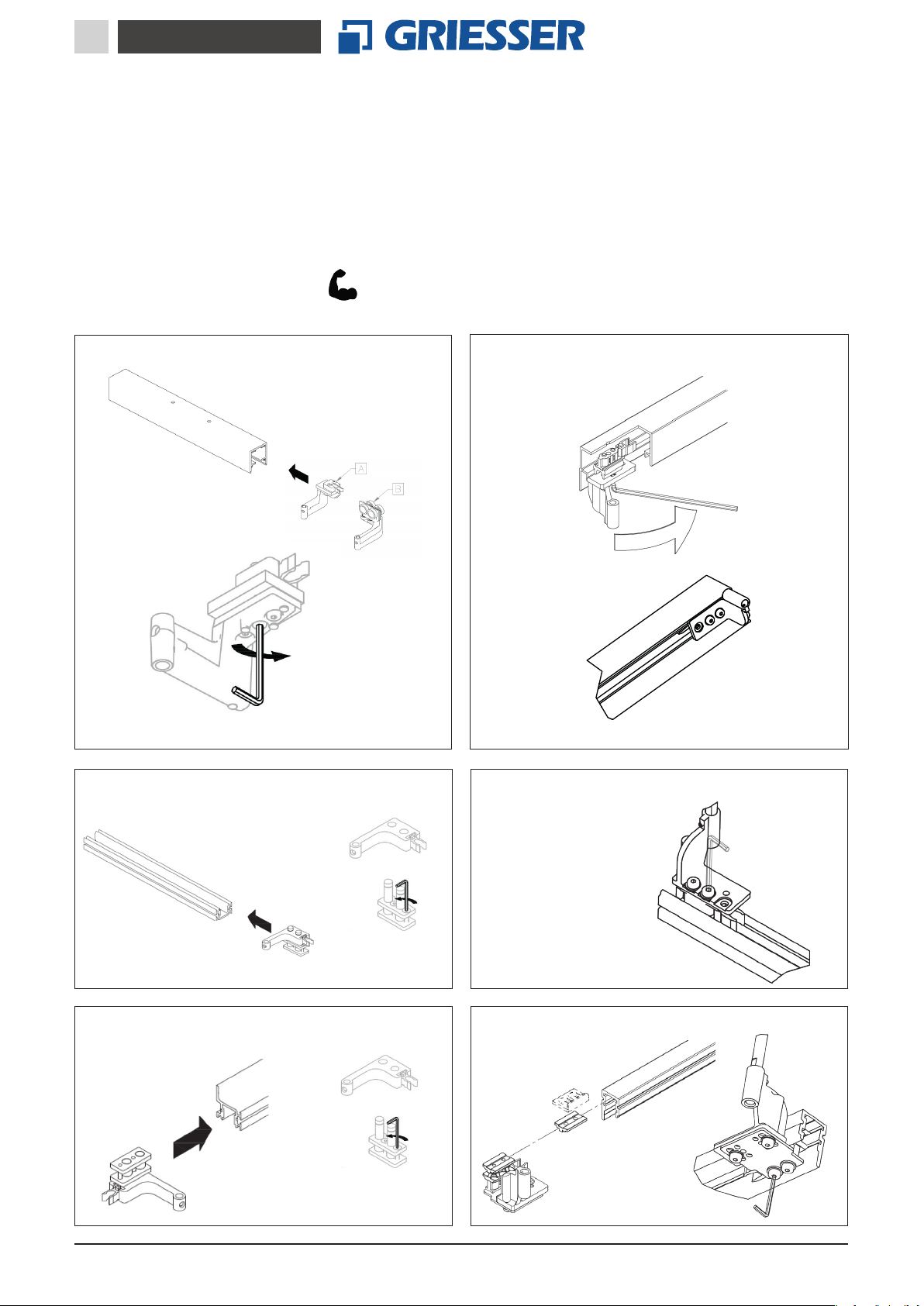

Align the fastening clamps at the top and bottom. Fasten the fastening clamps at the top and
bottom
Remove the connector between hinge and clamp while adjusting.
Fasten as much as possible ; depending on the diagram used, there may be deviations from
the images below

ROB Beschlag oben
1
ROB Beschlag unten
1
1
1
2
2
3
3
4
4
Version 01.18 10
Sliding bi-fold shutters
FSR - Details and safety features for top and bottom
top
bottom

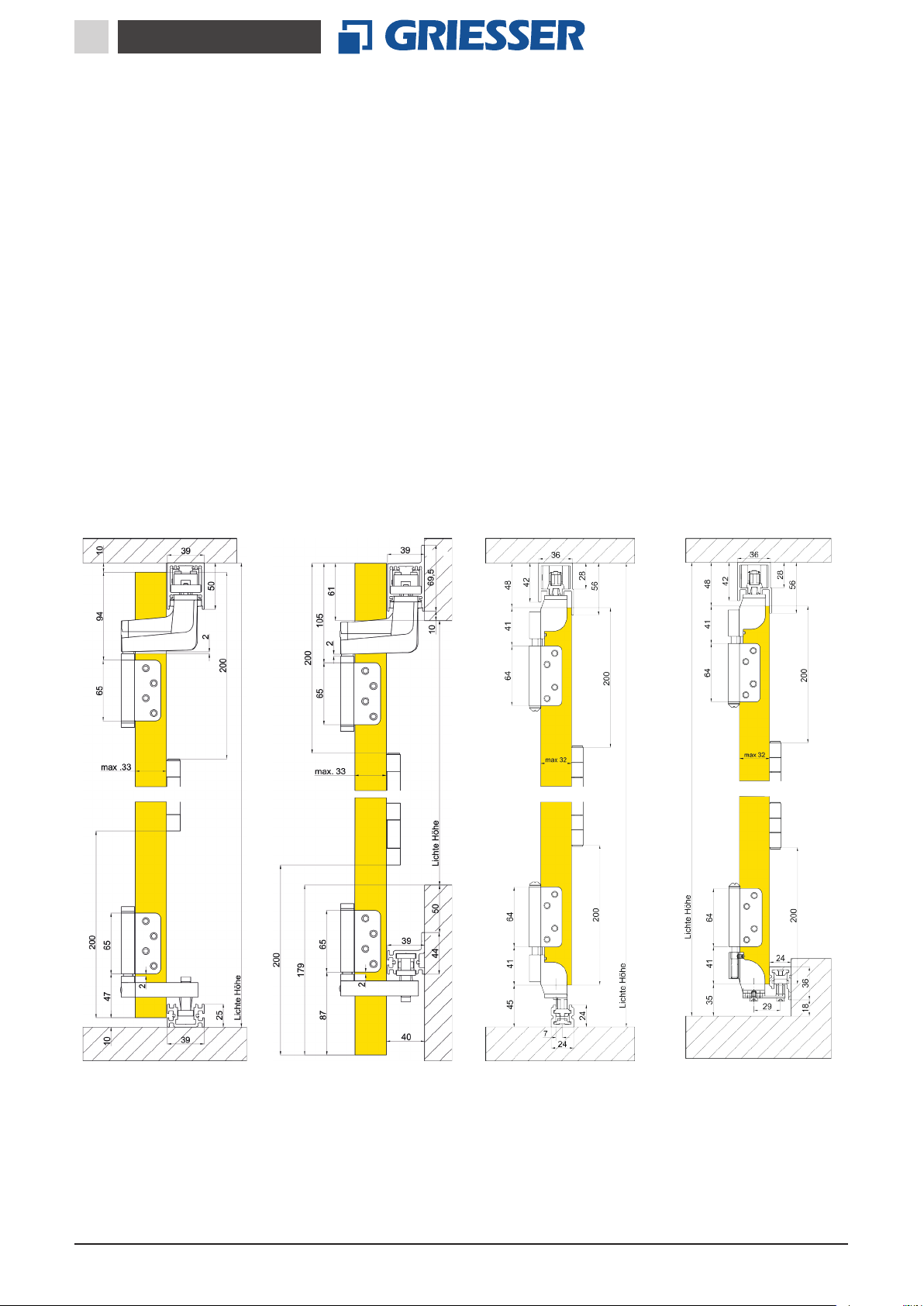

Nominal dimension 2 mm (min. 1 mm, max. 3 mm)
Nominal dimension 2 mm (min. 1 mm, max. 3 mm)

Version 01.18 11
Sliding bi-fold shutters
FSH - Details and safety features for top and bottom
Safety feature
The set screw must be secured on the even
surface.
Impacchettare, assicurare le viti
di sospensione.
even
surface

Version 01.18 12
Sliding bi-fold shutters

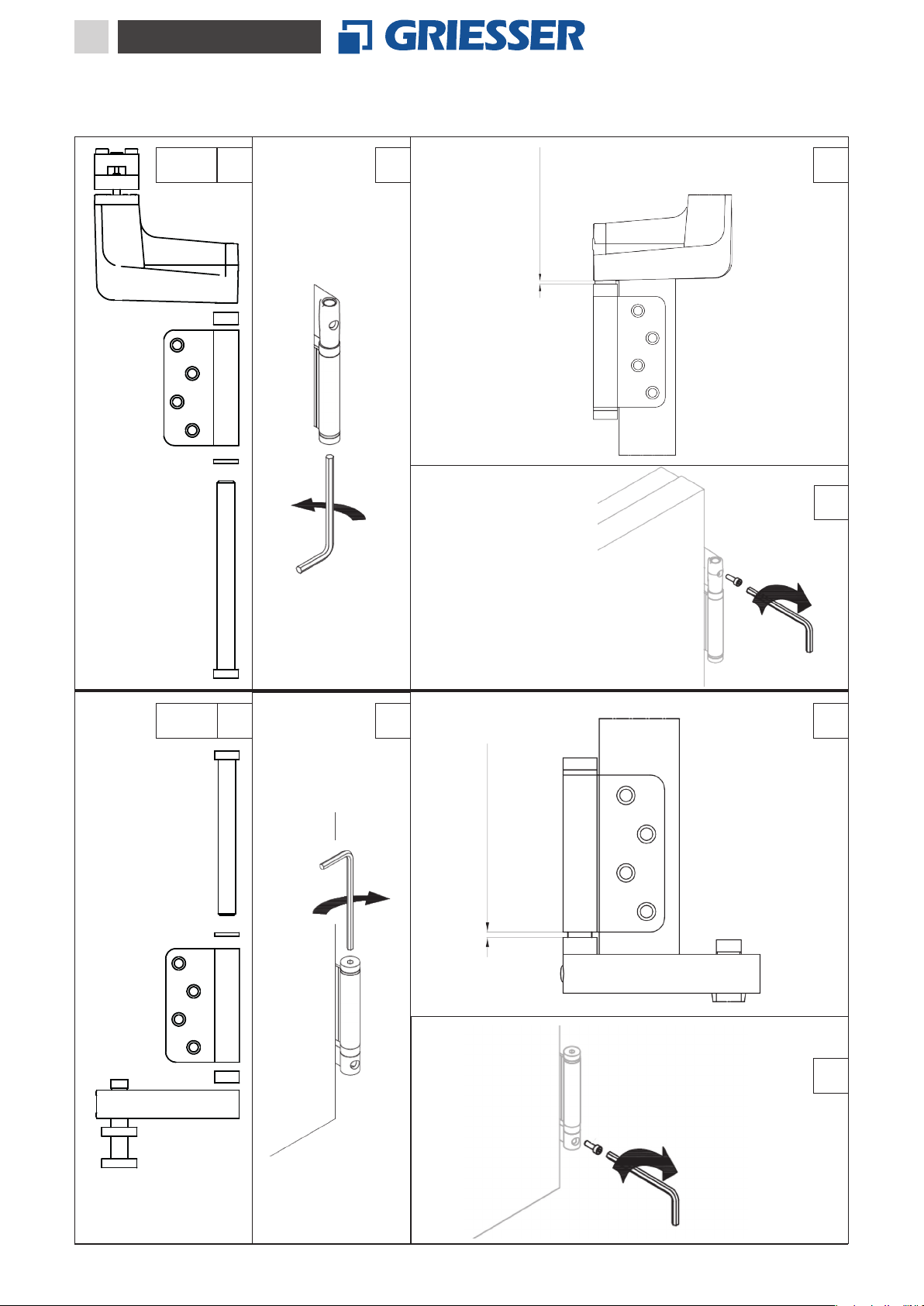

FSR - Hinge pin installation FSH - Hinge pin installation

76
V1.0.0 | 20180101
Faltschiebeladen
Kein Flügelüberstand | mit Anschlagpuffer
Flügelüberstand > 1/3 der Leibungstiefe | mit Winkel und Anschlagpuffer
Flügelüberstand ≤1/3 der Leibungstiefe | mit Anschlagpuffer
Ausführungsbeispiele
Anschlagpuffer
Anschlagpuffer
Winkel mit
Anschlagpuffer
76
V1.0.0 | 20180101
Faltschiebeladen
Kein Flügelüberstand | mit Anschlagpuffer
Flügelüberstand > 1/3 der Leibungstiefe | mit Winkel und Anschlagpuffer
Flügelüberstand ≤1/3 der Leibungstiefe | mit Anschlagpuffer
Ausführungsbeispiele
Anschlagpuffer
Anschlagpuffer
Winkel mit
Anschlagpuffer
Version 01.18 13
4.9 Pull latch installation
The pull latch is installed on the building after
the system has been properly aligned:
Things to bear in mind during installation:
• The position is determined using Screw 1
• Then fasten right at the top using Screw 2 to
secure the pull latch towards the bottom Pull latch overlap
ROB approx. 4 mm - HAWA approx. 6 mm
then Screw 2
Screw 1 first
Sliding bi-fold shutters
4.10 Mounting Overwinding protection

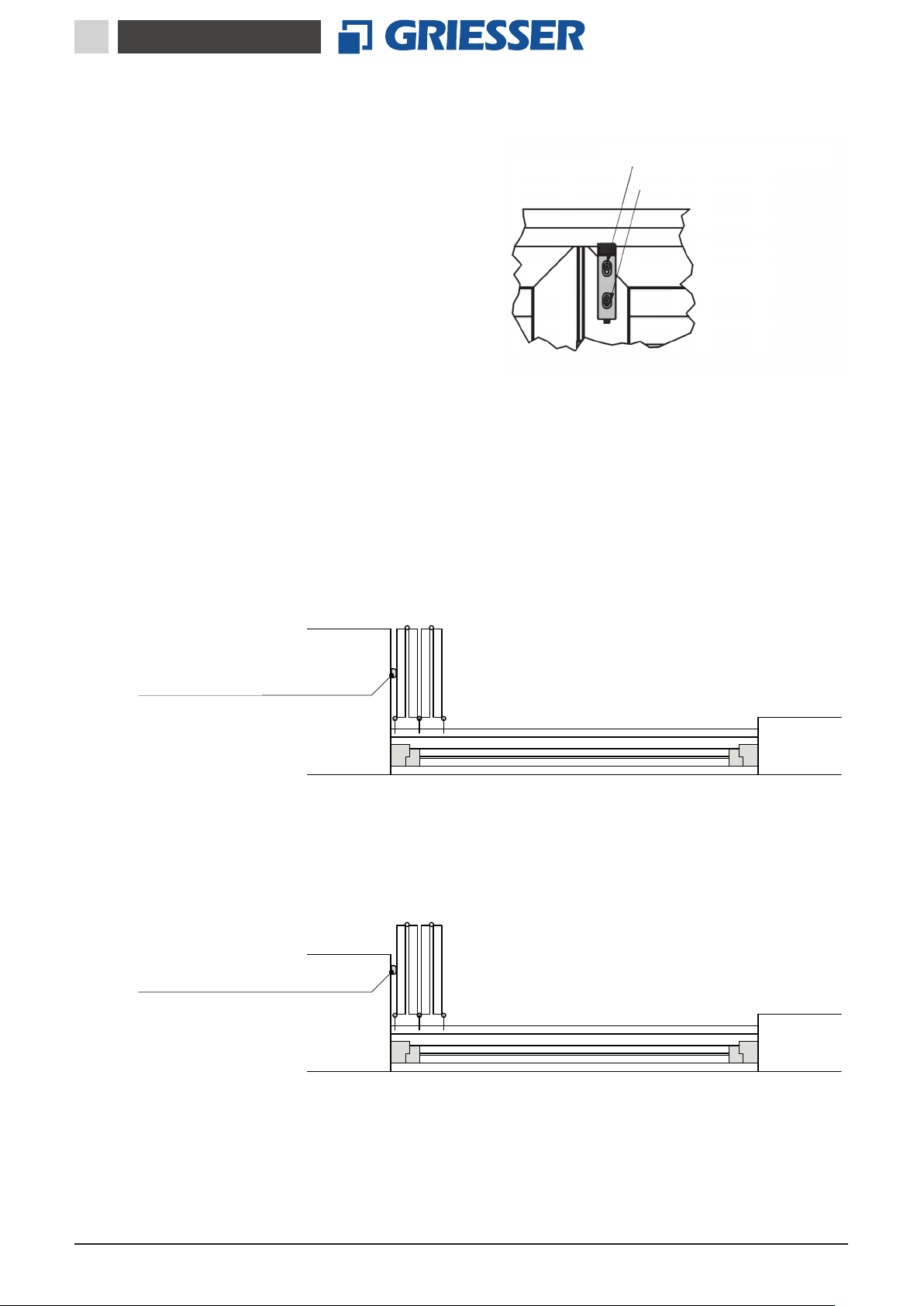

Installation on the reveal
• No sash projection | with stop buffer
• Sash projection ≤1/3 of the soffit depth | with stop buffer
Stop buffer
Stop buffer

76
V1.0.0 | 20180101
Faltschiebeladen
Kein Flügelüberstand | mit Anschlagpuffer
Flügelüberstand > 1/3 der Leibungstiefe | mit Winkel und Anschlagpuffer
Flügelüberstand ≤1/3 der Leibungstiefe | mit Anschlagpuffer
Ausführungsbeispiele
Anschlagpuffer
Anschlagpuffer
Winkel mit
Anschlagpuffer
2
1
Überdrehsicherung TYP 1
Version 01.18 14
Sliding bi-fold shutters
• Sash projection > 1/3 of the soffit depth | with angle and stop buffer
Select fastening material in accordance with the foundation. Mount the stop in such a way that the
sashes are at right angles to the wall when opened and are protected from overwinding by more
than 90° (to the rail).
For installation flush with the facade - Complete sash projection
• Type 1 with overwinding outside protection
Select fastening material in accordance with the foundation.
Install the overwinding protection in such a way that the guide carriage (1) is up against the rubber
buffer (2) in open position and the sash is at right angles to the wall.
Prima del montaggio della protezione anti-
rotazione eccessiva, verificare la corretta
funzionalità delle persiane scorrevoli pieghevoli.
Achtung
Angle and
stop buffer
!

Version 01.18 15
Sliding bi-fold shutters
• Type 2 with inside overwinding protection
Select fastening material in accordance with the foundation
Install the overwinding protection in such a way that the guide carriage (1) is up against the rubber
buffer (2) in open position and the sash is at right angles to the wall.
• Step 1: Align the sash and define
the position of the scissor holder
Art. 1430062
• Step 2: Fasten the scissor holder
Art. 1430062 using the two blind
rivets (4x13) Art. 10050003
• Step 3: Place the slide bearing Art.
1430072 on top of the scissors
• Step 4: Secure using the locking
washer d1=7 Art. 1430070 in the
second ring groove
Blind rivet 4x13
Polygrip Art. 10050003
Scissor holder
Art. 1430062
Slide bearing
with lap joint
Art. 1430072
Locking washer
d1 = 7 mm
Art. 1430070

www.griessergroup.com
V01.18 Änderungen vorbehalten
Version 01.18 16
Griesser Sonnenschutz - Qualität seit 1882.
Sliding bi-fold shutters
5 Troubleshooting table - Trouble-shooting
Fault Cause Correction
Sashes do not move freely.
Track or guide rail not mounted
in parallel. Correct track or guide rail
Blow out dust/dirt etc. and clean
Sashes are not mounted plumb-
vertical. Correct position of fix clamp (top or bottom) and align with
plumb-vertical.
Pull latch does not close. Installation position too low. Correct installation position.
6 Disposal
Sliding bi-fold shutters must be disposed of in an environmentally friendly manner at the end of the
product‘s service life!
