Grizzly G0656P User manual

The following changes were recently made to these machines since the owner's manual was
printed:
• Now CSA certified to meet CSA 22.2 #71.2-08 and UL 987-7th standards.
• Changed the motor nominal voltage from 220V to 240V.
• Added a power cord with an included plug.
This document provides relevant updates to portions of the owner's manual that no longer apply and addi-
tional information required by CSA—aside from this information, all other content in the owner's manual
applies and MUST be read and understood for your own safety. IMPORTANT: Keep this update with the
owner's manual for future reference. For questions or help, contact our Tech Support at [phone]
or [email protected].
Model G0656/P/PX/X
***IMPORTANT UPDATE***
For Machines Mfg. Since April, 2014
& Owner's Manual Printed September, 2009
READ THIS FIRST
COPYRIGHT © AUGUST, 2012 BY GRIZZLY INDUSTRIAL, INC., REVISED DECEMBER, 2016 (MN)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BLTS15233 PRINTED IN CHINA
Changed Specifications
Electrical
Power Requirement ......................................................................................240V, Single-Phase, 60 Hz
Minimum Circuit Size ........................................................................................................................20A
Power Cord Gauge ....................................................................................................................12 AWG
Included Plug Type .......................................................................................................................... 6-20
Motor
Voltage ............................................................................................................................................240V
Amps .................................................................................................................................................15A
Operation Info
Cutterhead Speed .................................................................................................................. 4800 RPM
92V2
310V2
226-2
226-1
226-5
226-4 226-7
226-6
226-10
226-11
226-9
226
226-3
226-8

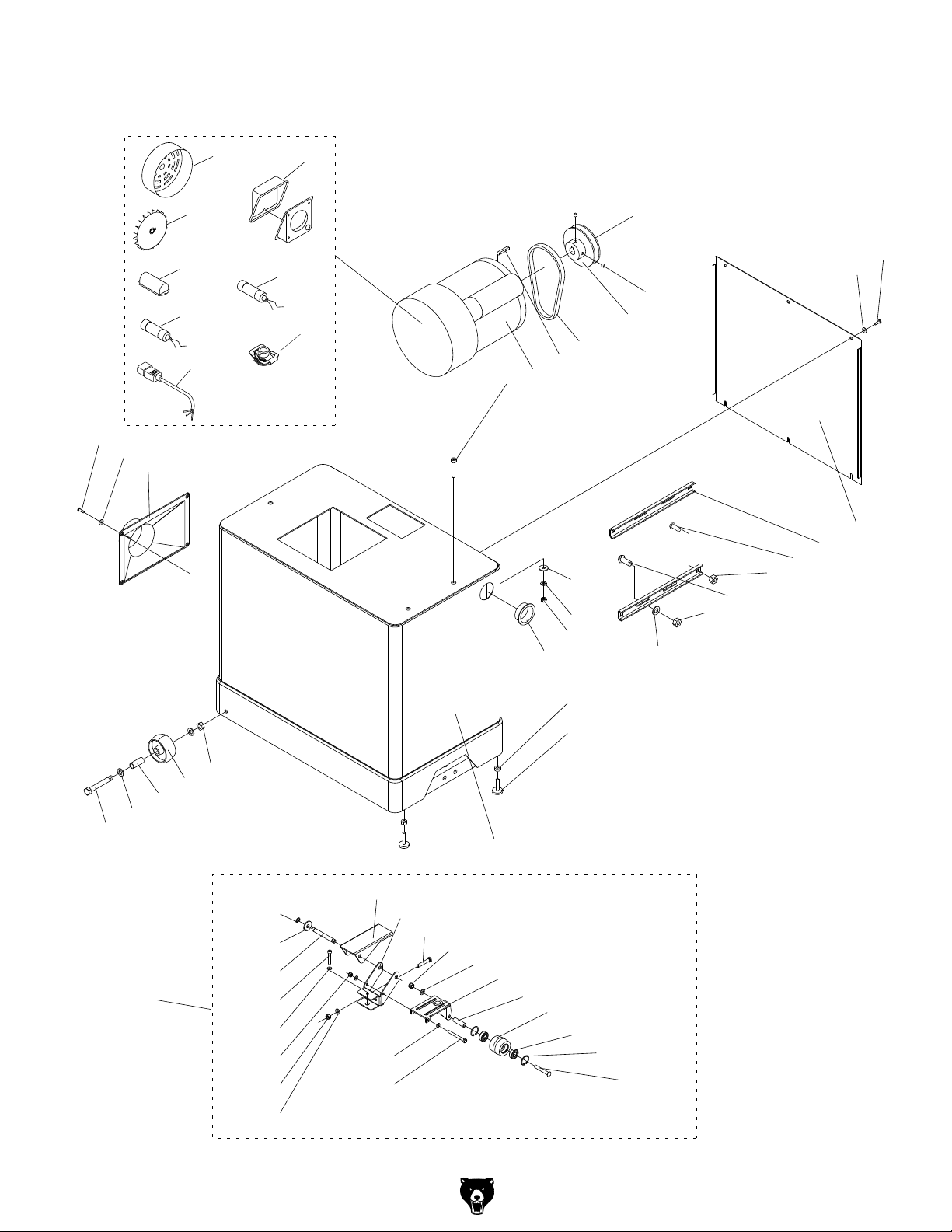

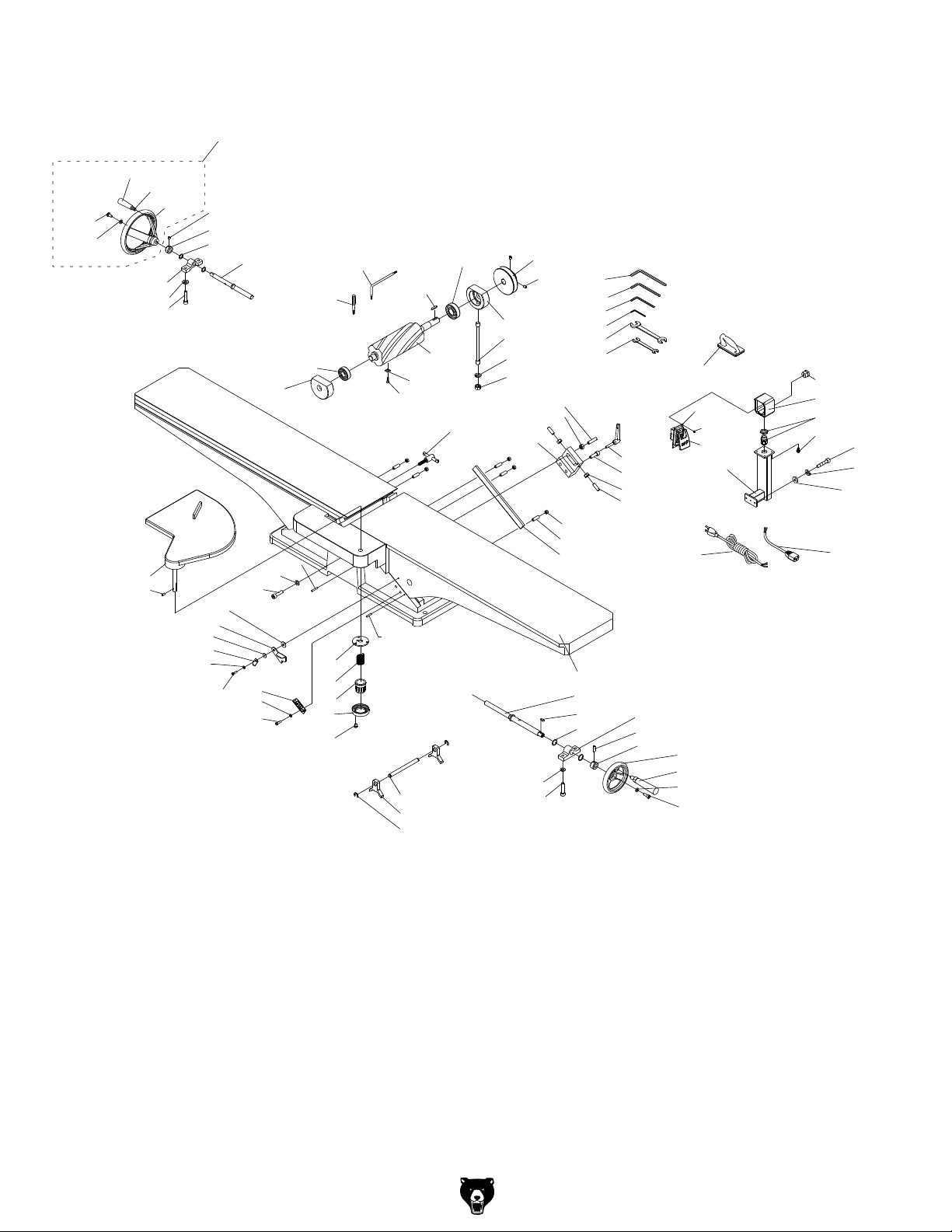

New/Revised G0656/P/PX/X Parts
REF PART # DESCRIPTION
92V2 P0656092V2 PWR CORD 12G 3W 72" 6-20P V2.04.14
226 P0656226 MOTOR 3PH 240V 1-PH
226-1 P0656226-1 MOTOR FAN COVER
226-2 P0656226-2 MOTOR FAN
226-3 P0656226-3 CAPACITOR COVER
226-4 P0656226-4 R CAPACITOR 30M 450V 1-1/2 x 2-3/4
226-5 P0656226-5 MOTOR JUNCTION BOX
226-6 P0656226-6 S CAPACITOR 200M 250V 1-1/2 X 3-1/2
226-7 P0656226-7 CENTRIFUGAL SWITCH 16MM 3450
226-8 P0656226-8 MOTOR CORD 14AWG X 3C
226-9 P0656226-9 CONTACT PLATE 16MM
226-10 P6204ZZ BALL BEARING 6204ZZ
226-11 P6203ZZ BALL BEARING 6203ZZ
310V2 P0656310V2 ID LABEL CSA V2.08.12 (G0656)
310V2 P0656P310V2 ID LABEL CSA V2.08.12 (G0656P)
310V2 P0656PX310V2 ID LABEL CSA V2.08.12 (G0656PX)
310V2 P0656X310V2 ID LABEL CSA V2.08.12 (G0656X)
* Not Shown on Diagram
*
*
*

-2- G0656/P/PX/X Update (Mfg. Since 8/12)
ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
Always discon-
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained oper-
ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis-
connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin-
ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor-
tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
This symbol is used to alert the user to useful information about
proper operation of the machine.
NOTICE
Safety Instructions for Machinery
SECTION 1: SAFETY

G0656/P/PX/X (Mfg. Since 8/12) -3-
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate-
rial. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hear-
ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica-
tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement dur-
ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec-
ommended accessories. Using improper acces-
sories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnect-
ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend-
ed operation, stop using the machine! Contact our
Technical Support at [phone].

-4- G0656/P/PX/X Update (Mfg. Since 8/12)
Additional Safety for Jointers
KICKBACK. Occurs when workpiece is ejected
from machine at a high rate of speed. To reduce
the risk of kickback-related injuries, use quality
workpieces, safe feeding techniques, and proper
machine setup or maintenance.
GUARD REMOVAL. Operating jointer without
guard exposes operator to knives/inserts. Except
when rabbeting, never remove guards for regular
operations or while connected to power. Turn joint-
er OFF and disconnect power before clearing any
shavings or sawdust from around cutterhead. After
rabbeting or maintenance is complete, immediate-
ly replace all guards and ensure they are properly
adjusted before resuming regular operations.
DULL/DAMAGED KNIVES/INSERTS. Dull
knives/inserts can increase risk of kickback and
cause poor workpiece finish. Only use sharp,
undamaged knives/inserts.
OUTFEED TABLE ALIGNMENT. Setting outfeed
table too high can cause workpiece to hit table
and get stuck, increasing risk of kickback. Setting
outfeed table too low may cause workpiece to
become tapered from front to back. Always keep
outfeed table even with knives/inserts at top dead
center (highest point during rotation).
INSPECTING STOCK. Impact injuries or fire may
result from using poor workpieces. Thoroughly
inspect and prepare workpiece before cutting.
Verify workpiece is free of nails, staples, loose
knots or other foreign material. Workpieces with
minor warping should be surface planed first with
cupped side facing infeed table.
GRAIN DIRECTION. Jointing against the grain or
end grain can increase the risk of kickback. It also
requires more cutting force, which produces chat-
ter or excessive chip out. Always joint or surface
plane WITH the grain.
MAXIMUM CUTTING DEPTH. To reduce risk of
kickback, never cut deeper than 1⁄8" per pass.
CUTTING LIMITATIONS. Cutting a workpiece that
does not meet the minimum dimension require-
ments can result in breakup, kickback, or acciden-
tal contact with cutterhead during operation. Never
perform jointing, planing, or rabbeting cuts on
pieces smaller than 8" long, 3⁄4" wide, or 1⁄4" thick.
PUSH BLOCKS. Not using push blocks when sur-
face planing may result in accidental cutterhead
contact. Always use push blocks when planing
materials less than 3" high or wide. Never pass
your hands directly over cutterhead without a push
block.
WORKPIECE SUPPORT.
Loss of workpiece con-
trol while feeding can increase risk of kickback or
accidental contact with cutterhead. Support work-
piece continuously during operation. Position and
guide workpiece with fence. Support long or wide
stock with auxiliary stands.
FEED WORKPIECE PROPERLY. Kickback or
accidental cutterhead contact may result if work-
piece is fed into cutterhead the wrong way. Allow
cutterhead to reach full speed before feeding.
Never start jointer with workpiece touching cutter-
head. Always feed workpiece from infeed side to
outfeed side without stopping until cut is complete.
Never back work toward infeed table.
SECURE KNIVES/INSERTS. Loose knives or
improperly set inserts can become dangerous pro-
jectiles or cause machine damage. Always verify
knives/inserts are secure and properly adjusted
before operation. Straight knives should never
project more than 1⁄8" (0.125") from cutterhead
body.
Serious cuts, amputation, entanglement, or death can occur from contact with rotating cutterhead
or other moving components! Flying chips can cause blindness or eye injuries. Workpieces or
inserts/knives thrown by cutterhead can strike nearby operator or bystanders with deadly force.
To reduce the risk of these hazards, operator and bystanders MUST completely heed the hazards
and warnings below.

G0656/P/PX/X (Mfg. Since 8/12) -5-
SECTION 2: POWER SUPPLY
Availability
Before installing the machine, consider the avail-
ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.
Electrocution, fire, shock,
or equipment damage
may occur if machine is
not properly grounded
and connected to power
supply.
Full-Load Current Rating
The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.
Full-Load Current Rating at 240V ..... 15 Amps
The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.
If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over-
loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.
Circuit Requirements for 240V
This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:
Nominal Voltage ........................................240V
Cycle ..........................................................60 Hz
Phase .................................................... 1-Phase
Circuit Rating...................................... 20 Amps
Plug/Receptacle ............................. NEMA 6-20
For your own safety and protection of
property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.
Note: Circuit requirements in this manual apply to
a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con-
sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.
A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup-
ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

-6- G0656/P/PX/X Update (Mfg. Since 8/12)
Extension Cords
We do not recommend using an extension cord
with this machine.
If you must use an extension
cord, only use it if absolutely necessary and only
on a temporary basis.
Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).
Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:
Minimum Gauge Size ...........................12 AWG
Maximum Length (Shorter is Better).......50 ft.
Grounding Instructions
This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec-
essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.
Check with a qualified electrician or service per-
sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon-
nect it from power, and immediately replace it with
a new one.
Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.
No adapter should be used with plug. If
plug does not fit available receptacle, or if
machine must be reconnected for use on a
different type of circuit, reconnection must
be performed by an electrician or qualified
service personnel, and it must comply with
all local codes and ordinances.
Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.
Figure 1. Typical 6-20 plug and receptacle.
Grounding Prong
Current Carrying Prongs
6-20 PLUG
GROUNDED
6-20 RECEPTACLE
This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

G0656/P/PX/X (Mfg. Since 8/12) -7-

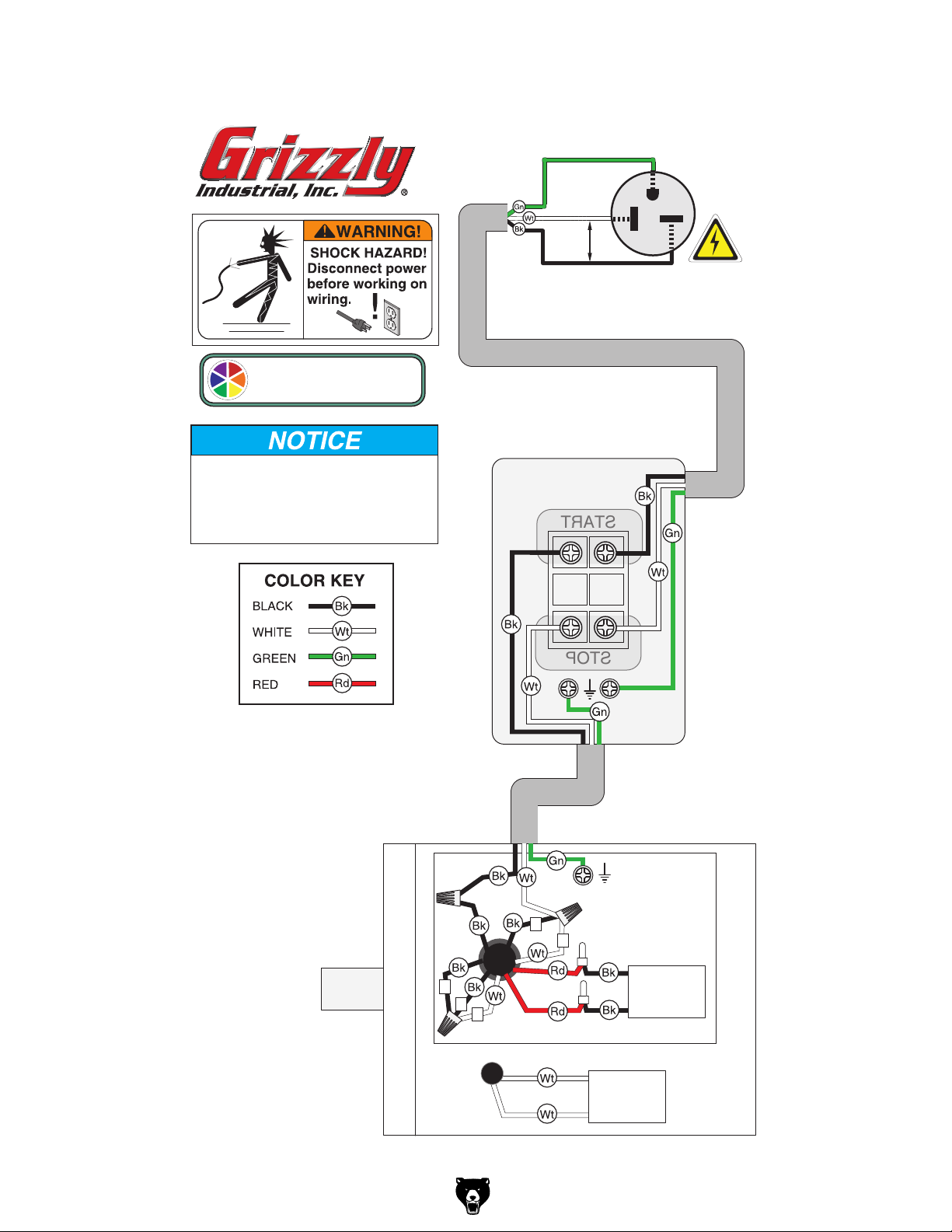

G0656/P/PX/X Wiring Diagram
MOTOR
Ground
5
3
2
PUSH BUTTON SWITCH
(viewed from behind)
START
STOP
240 VAC
View this page in color at
www.grizzly.com.
8
4
Start
Capacitor
200MFD
250VAC
Run
Capacitor
30MFD
450VAC
The motor wiring shown here is
current at the time of printing, but it
may not match your machine.
Always use the wiring diagram
inside the motor junction box.
Ground
Hot
Hot
Ground
6-20 Plug
(As Recommended)
220
VAC
G

-8- G0656/P/PX/X Update (Mfg. Since 8/12)

COPYRIGHT © SEPTEMBER, 2015 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#MN17654 PRINTED IN CHINA
6
10
11
12V2
13
14V2
15
16
Revised Parts
The following changes were recently made to this machine since the manual insert was printed:
• Changed spiral cutterhead and indexable inserts.
Aside from this information, all other content in the owner's manual applies and MUST be read and under-
stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.
For questions or help, contact our Tech Support at [phone] or [email protected].
READ THIS FIRST
For questions or help with this product contact Tech Support at [phone] or [e-mail]
Model G0656X/PX
***IMPORTANT UPDATE***
For Machines Mfd. Since 04/15
and Manual Insert Printed 04/10
REF PART # DESCRIPTION
12V2 P0656X012V2 INDEXABLE INSERT 14 X 14 X 2 V2.04.15
14V2 P0656X014V2 SPIRAL CUTTERHEAD 8" V2.04.15


WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.


   


If you have any further questions about this manual insert or the differences between the Model G0656X
and the Model G0656, contact our Technical Support at [phone] or email techsupport@grizzly.
com.
MODEL G0656X
8" JOINTER
w/SPIRAL CUTTERHEAD
MANUAL INSERT
Machine Inventory
       
Page 11


Wood Crate: Qty
A.  
B.  
C.  
D.  
E.  
F.  
G. 
 
 
 
 
H. 



      
Page 11


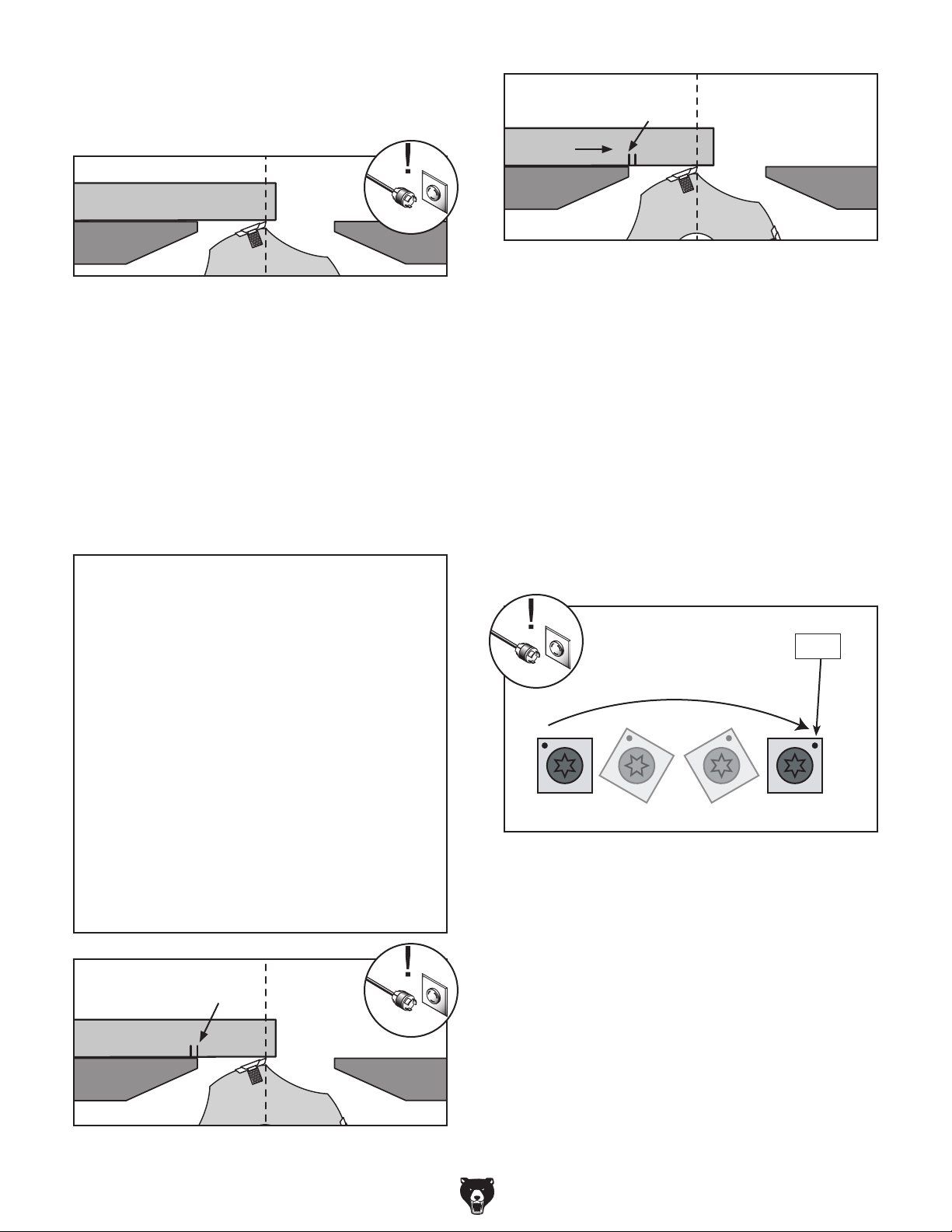

Setting Outfeed Table Height







To set the outfeed table height:
1. 
2. 

Figure 1.
Ide9ZVY
8ZciZg
7diidb9ZVY
8ZciZg
3.       
   


Figure 1

 
4. 
       
Figure 2.
Figure 2.

Figure 3.

HigV^\]iZY\Z
Dji[ZZY >c[ZZY
HigV^\]iZY\Z
Dji[ZZY >c[ZZY
       

       


     


Tip:
       

 Steps 1-4    

       

Figure 3
       
       

       
       
       Figure 4
      


5. 

Replacing Carbide Inserts
Tools Needed: Qty
 



      
Figure
5
Figure 5. 


Dji[ZZY >c[ZZY
Figure 4.






        

       

  






 
To rotate or change a carbide insert:
1. 
2. 

3.        

4. 
5.          
      
       
      


Note:Proper cleaning is critical to achieving
a smooth finish. Dirt or dust trapped between
the insert and cutterhead will slightly raise the
insert, and make noticeable marks on your
workpieces the next time you cut.
6.       
        
   

Note:Excess oil may squeeze between the
insert and cutterhead or at the bottom of
the screw hole, causing hydrostatic lock and
preventing the screw from fully tightening,
thereby lifting the insert or screw slightly and
affecting workpiece finishes. Make sure to
carefully clean off any excess oil to prevent
this from happening.

 
MODEL G0656X
8" JOINTER w/SPIRAL CUTTERHEAD & MOBILE BASE
8jhidbZgHZgk^XZ/*,%*)+".++(IdDgYZg8Vaa/-%%*'("),,,;Vm/-%%)(-"*.%&
MACHINE DATA
SHEET
Product Dimensions:
LZ^\]i########################################################################################################################################################################### )+*aWh#
AZc\i]$L^Yi]$=Z^\]i#################################################################################################################################### ,'&¿'m'+m),&¿)
;ddiEg^ciAZc\i]$L^Yi]####################################################################################################################################### '+(¿)m&+&¿'
Shipping Dimensions:
Box #1
IneZ############################################################################################################################################################### LddY8gViZ
8dciZci################################################################################################################################################################ BVX]^cZ
LZ^\]i################################################################################################################################################################## )(*aWh#
AZc\i]$L^Yi]$=Z^\]i################################################################################################################################## '*m-&m&*
Box #2
IneZ##################################################################################################################################################################8VgYWdVgY
8dciZci#################################################################################################################################################################### HiVcY
LZ^\]i################################################################################################################################################################## &+,aWh#
AZc\i]$L^Yi]$=Z^\]i################################################################################################################################## &.m(%m',
Electrical:
Hl^iX]#################################################################################################################DC$D;;Ejh]7jiidcl^i]AVg\ZD;;EVYYaZ
Hl^iX]KdaiV\Z################################################################################################################################################################### ''%K
8dgYAZc\i]##########################################################################################################################################################################+[i#
8dgY<Vj\Z#################################################################################################################################################################&)\Vj\Z
B^c^bjb8^gXj^iH^oZ########################################################################################################################################################### '%6
>cXajYZYEaj\######################################################################################################################################################################### Cd
GZXdbbZcYZYEaj\IneZ###################################################################################################################################################+"'%
Motors:
Main
IneZ################################################################################################################################ I:;88VeVX^idgHiVgi>cYjXi^dc
=dghZedlZg###############################################################################################################################################################(=E
KdaiV\Z##################################################################################################################################################################### ''%K
E]VhZ######################################################################################################################################################################H^c\aZ
6beh########################################################################################################################################################################## &*6
HeZZY###############################################################################################################################################################()*%GEB
8nXaZ######################################################################################################################################################################## +%=o
CjbWZgD[HeZZYh##########################################################################################################################################################&
EdlZgIgVch[Zg############################################################################################################################################## K"7Zai9g^kZ
7ZVg^c\h#####################################################################################################################################H]^ZaYZYVcYAjWg^XViZY
Main Specifications:
Operation Information
;ZcXZAZc\i]############################################################################################################################################################(),¿-
;ZcXZL^Yi]################################################################################################################################################################&&¿)
;ZcXZ=Z^\]i################################################################################################################################################################# *
;ZcXZHideh#################################################################################################################################### )*!.%!VcY&(*YZ\#
Model G0656X Page 1 of 2

 
Cutting Capacities
7ZkZa?d^ci^c\####################################################################################################################################AZ[iG^\]i)*YZ\#
BVm^bjbL^Yi]d[8ji################################################################################################################################################## -
BVm^bjb9Zei]d[8ji#################################################################################################################################################&¿-
BVm^bjbGVWWZi^c\9Zei]###########################################################################################################################################&¿'
CjbWZgd[8jihEZgB^cjiZ####################################################################################################################################'&!)%%
Cutterhead Information
8jiiZg]ZVYIneZ#######################################################################################################################################################He^gVa
8jiiZg]ZVY9^VbZiZg##################################################################################################################################################### (
CjbWZgd[8jiiZgHe^gVah#################################################################################################################################################)
CjbWZgd[>cYZmVWaZ8jiiZgh########################################################################################################################################)%
8jiiZg>chZgiIneZ################################################################################################################################ >cYZmVWaZ8VgW^YZ
8jiiZg>chZgiAZc\i]#################################################################################################################################################&)bb
8jiiZg>chZgiL^Yi]##################################################################################################################################################&)bb
8jiiZg>chZgiI]^X`cZhh#############################################################################################################################################'bb
8jiiZg]ZVYHeZZY############################################################################################################################################*(*%GEB
Table Information
IVWaZAZc\i]#############################################################################################################################################################,'&¿'
IVWaZL^Yi]################################################################################################################################################################### .
;addgidIVWaZ=Z^\]i#################################################################################################################################################((&¿'
IVWaZ6Y_jhibZciIneZ#################################################################################################################################=VcYl]ZZah
Construction
7dYn6hhZbWan8dchigjXi^dc############################################################################################################################# 8Vhi>gdc
HiVcY8dchigjXi^dc#################################################################################################################### DcZ"E^ZXZHiZZa8VW^cZi
;ZcXZ6hhZbWan8dchigjXi^dc############################################################################################################################ 8Vhi>gdc
<jVgY8dchigjXi^dc###################################################################################################################################9^Z8VhiBZiVa
9dkZiV^aZYLVnhdc7ZY################################################################################################################################## 6Y_jhiVWaZ
EVgVaaZad\gVb############################################################################################################################################################### Cd
Other Infomation
CjbWZgd[9jhiEdgih#####################################################################################################################################################&
9jhiEdgiH^oZ############################################################################################################################################################### )
BdW^aZ7VhZ############################################################################################################################################################7j^ai">c
Other Specifications:
8djcignD[Dg^\^c############################################################################################################################################################## 8]^cV
LVggVcin########################################################################################################################################################################### &NZVg
HZg^VaCjbWZgAdXVi^dc################################################################################################################### >9AVWZadc;gdcid[HiVcY
6hhZbWanI^bZ################################################################################################################################################################&=djg
Features:
7j^ai^c:Vhn"id"JhZBdW^aZ7VhZ
>cXajYZYEjh]7adX`h
IdeBdjciHl^iX]8dcigdah
HjeZgAdc\,'&¿'7ZY
=VcYl]ZZa8dcigdaaZY;ZcXZ6Y_jhibZci
GVWWZi^c\IVWaZ
Model G0656X Page 2 of 2

 
.(
-,
-+
--
&
'
)
*
+
,
-
.
&%
&&
&'
&(
&)
&*
&+
&.")
&."*
&."(
&.
'%
'&
''
'(
')
'*
'+
',
'-
(%
(&
((
('
()
(*
(+(, (-
(.
)%
)&
)'
)(
))
)+
)*
),
+*
++
+,
+-
+. ,&
,%
,'
,(
,)
,*
,+
,,
*.
+&
+%
+'
+(
+)
&."'
&."&
*%
).
)-
*&
*'
*(
*+
**
*)
*,
-'
-(
-)
-*
,.
-%
,-
.'
-&
-.
.&
.%
'*
'+
Table Parts Breakdown

 
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0452Z009 L-WRENCH TORX T20 47 PSB53M CAP SCREW M5-.8 X 18
2 P0452Z001 DRIVER BIT TORX T20 48 P0656048 SCREW SHAFT
4 PSS01M SET SCREW M6-1 X 10 49 PK69M KEY 4 X 4 X 12
5 P0656005 PULLEY 50 P0656050 SPACER
6 P0656006 RIGHT BEARING SUPPORT BLOCK 51 P0656051 BLOCK
7 P0656007 STUD 52 PRP49M ROLL PIN 5 X 25
8 PLW06M LOCK WASHER 10MM 53 P0656053 COLLAR
9 PN02M HEX NUT M10-1.5 54 P0656054 HANDWHEEL
10 P6204 BALL BEARING 6204ZZ 55 P0656055 HANDLE
11 PK74M KEY 6 X 6 X 35 56 P0656056 SPECIAL FLAT WASHER
12 P0452Z002 INDEXABLE INSERT 14 x 14 x 2 57 PSB26M CAP SCREW M6-1 X 12
13 PFH35M FLAT HD TORX SCR T20 M6-1 X 15 59 PAW06M HEX WRENCH 6MM
14 P0656X014 SPIRAL CUTTERHEAD 8" 60 PAW04M HEX WRENCH 4MM
15 P6203 BALL BEARING 6203ZZ 61 PAW03M HEX WRENCH 3MM
16 P0656016 LEFT BEARING SUPPORT BLOCK 62 PAW02.5M HEX WRENCH 2.5MM
19 P0656019 HANDWHEEL ASSY 63 PWR1214 WRENCH 12 X 14
19-1 P0656019-1 HANDLE 64 PWR810 WRENCH 8 X 10
19-2 P0656019-2 SHOULDER SCREW 65 P0656065 TABLE ASSY
19-3 P0656019-3 HANDWHEEL 66 P0656066 GIB
19-4 PSB26M CAP SCREW M6-1 X 12 67 PSS12M SET SCREW M6-1 X 25
19-5 PW03M FLAT WASHER 6MM 68 PN01M HEX NUT M6-1
20 PSS02M SET SCREW M6-1 X 6 69 P0656069 OUTFEED TABLE LOCK M6-1 X 25
21 P0656021 COLLAR 70 P0656070 SPECIAL SCREW
22 P0656022 SPECIAL FLAT WASHER 71 PN01M HEX NUT M6-1
23 P0656023 SCREW SHAFT 72 P0656072 STOP BLOCK
24 P0656024 BLOCK 73 PSS21M SET SCREW M8-1.25 X 25
25 PLW04M LOCK WASHER 8MM 74 PN03M HEX NUT M8-1.25
26 PSB40M CAP SCREW M8-1.25 X 35 75 PSB31M CAP SCREW M8-1.25 X 25
27 P0656027 CUTTERHEAD GUARD 76 P0656076 INFEED LOCK LEVER M6-1 X 30
28 PSS53M SET SCREW M5-.8 X 12 77 P0656077 JOINTER PUSH BLOCK
30 P0656030 SPACER 78 P0656078 SWITCH PEDESTAL
31 P0656031 STOP LEVER 79 P0656079 SWITCH PADDLE
32 PW05M FLAT WASHER 4MM 80 PSB18M CAP SCREW M4-.7 X 8
33 P0656033 POINTER 81 P0656081 SWITCH BRACKET
34 PW05M FLAT WASHER 4MM 82 P0656082 STRAIN RELIEF
35 PS21M PHLP HD SCR M4-.7 X 15 83 P0656083 SWITCH BOX
36 PSB40M CAP SCREW M8-1.25 X 35 84 P0656084 STRAIN RELIEF
37 PLW04M LOCK WASHER 8MM 85 PFB17M FLANGE BOLT M6-1 X 16
38 PRP56M ROLL PIN 4 X 25 86 PSB31M CAP SCREW M8-1.25 X 25
39 P0656039 ALIGNMENT PIN 4 X 20 87 PLW04M LOCK WASHER 8MM
40 P0656040 DEPTH SCALE 88 PW01M FLAT WASHER 8MM
41 PLW01M LOCK WASHER 5MM 89 PEC015M E-CLIP 8MM
42 PSB24M CAP SCREW M5-.8 X 16 90 P0656090 KNIFE GAUGE BLOCK
43 P0656043 PLATE 91 P0656091 KNIFE GAUGE ROD
44 P0656044 TORSION SPRING 92 P0656092 POWER CORD 14AWG X 3C
45 P0656045 CUP 93 P0656093 SWITCH CORD 14AWG X 3C
46 P0656046 RETAINER
Table Parts List

 
&'*
&'%
&'&
&'(
&''
&')
&'*
&'*
&'*
&'+
&',
&'-
&'- &'.
&(%
&('
&((
&((
&((
&(*
&()
&(+
&(-
&(,
&(.
&)%
&)&
&)'
&)(
&)(
&)'
&)) &))
&)*
&)+
&),
&)-
&).
&*%
&%&
&%'
&%(
&%)
&%)
&%*
&%+
&%,
&%-
&%-
&%.
&%.
&&%
&&%
&&%
&&%
&&%
&&%
&&% &&&
&&'
&&(
&&)
&&*
&&+
&&,
&&-
&&.
&&.
Fence Parts Breakdown

 
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PS14M PHLP HD SCR M6-1 X 12 126 PSS01M SET SCREW M6-1 X 10
102 PW03M FLAT WASHER 6MM 127 P0656127 ADJUST LEVER
103 P0656103 HANDWHEEL 128 P0656128 SMALL BRACKET BLOCK
104 P0656104 BUSHING 129 P0656129 BRACKET BLOCK
105 PSS85M SET SCREW M6-1 X 45 130 P0656130 RIVET 2 X 4
106 PN01M HEX NUT M6-1 132 P0656132 FENCE
107 PB20M HEX BOLT M8-1.25 X 35 133 PSB13M CAP SCREW M8-1.25 X 30
108 P0656108 KNOB M10-1.5 134 PFH07M FLAT HD SCR M5-.8 X 10
109 P0656109 STUD M10-1.5 135 PRP44M ROLL PIN 3 X 10
110 PN03M HEX NUT M8-1.25 136 P0656136 RACK
111 P0656111 CLAMP ARM 137 PSB20M CAP SCREW M5-.8 X 14
112 P0656112 LOCK NUT 138 P0656138 GIB
113 P0656113 ECCENTRIC LOCK LEVER 139 P0656139 FENCE SUPPORT
114 P0656114 SPECIAL SCREW M10-1.5 X 20 140 PW06M FLAT WASHER 12MM
115 P0656115 FENCE CARRIAGE 141 P0656141 SPECIAL HEX NUT M12-1.75
116 P0656116 GEAR 142 PW02M FLAT WASHER 5MM
117 P0656117 90 DEG STOP BLOCK 143 PLW01M LOCK WASHER 5MM
118 PW04M FLAT WASHER 10MM 144 PSB53M CAP SCREW M5-.8 X 18
119 POR0010 O-RING 10 X 2 145 P0656145 SPECIAL FLAT WASHER
120 P0656120 TILT LOCK SHAFT 146 P0656146 ECCENTRIC STUD
121 P0656121 TILT LOCK HANDLE 147 PSB40M CAP SCREW M8-1.25 X 35
122 P0656122 ALIGNMENT PIN 6 X 50 148 PLW04M LOCK WASHER 8MM
123 PB15M HEX BOLT M8-1.25 X 40 149 PW01M FLAT WASHER 8MM
124 P0656124 BRACKET 150 PRP49M ROLL PIN 5 X 25
125 PSS74M SET SCREW M8-1.25 X 35
Fence Parts List

 
'%&
'%'
'%)
'%*
'%(
'%+
'%.
'%-
'%,
'''
''(
'')
'&%
'&&
''&
''% '&.
'&' '&-
'&+
'&,
'(%
''.
''-
'',
''+
''*
'&(
'&)
'&*
''+"'
''+"&
''+"(
''+")
''+"*
''+"+
''+",
''+"-
'(&
'(&"&
'(&"'
'(&"(
'(&")
'(&"*
'(&"+
'(&",
'(&"-
'(&".
'(&"&%
'(&"&&
'(&"&'
'(&"&(
'(&"&)
'(&"&*
'(&"&+
'(&"&,
'(&"&-
'(&"&.
'(&"'%
'(&"'&
Stand Parts Breakdown

 
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P0656201 CABINET 226-5 P0656226-5 JUNCTION BOX
202 PLN04M LOCK NUT M8-1.25 226-6 P0656226-6 S CAPACITOR 200M 250V 3-1/2 X 1-1/2
203 PW01M FLAT WASHER 8MM 226-7 P0656226-7 CENTRIFUGAL SWITCH
204 P0656204 WHEEL 226-8 P0656226-8 MOTOR CORD 14AWG X 3C
205 P0656205 SLEEVE 227 PK12M KEY 5 X 5 X 30
206 PB86M HEX BOLT M8-1.25 X 65 228 PVA50 V-BELT A-50 4L500
207 P0656207 PLASTIC GROMMET 229 P0656229 MOTOR PULLEY
208 PN08 HEX NUT 3/8-16 230 PSS01M SET SCREW M6-1 X 10
209 P0656209 ADJUSTING FOOT 231 P0656231 PEDAL ASSEMBLY
210 PN02 HEX NUT 5/16-18 231-1 PR16M EXT RETAINING RING 9MM
211 PW07 FLAT WASHER 5/16 231-2 P0656231-2 SPECIAL FLAT WASHER 9MM
212 P0656212 MOTOR BRACKET 231-3 P0656231-3 SHAFT
213 P0656213 DUST PORT 231-4 PB22M HEX BOLT M8-1.25 X 50
214 PW02M FLAT WASHER 5MM 231-5 PW01M FLAT WASHER 8MM
215 PS40M PHLP HD SCR M5-.8 X 16 231-6 P0656231-6 SPECIAL HEX NUT M8-1.25
216 PS40M PHLP HD SCR M5-.8 X 16 231-7 PN02M HEX NUT M10-1.5
217 PW02M FLAT WASHER 5MM 231-8 PW04M FLAT WASHER 10MM
218 P0656218 CABINET REAR COVER 231-9 PB45M HEX BOLT M8-1.25 X 100
219 PCB05 CARRIAGE BOLT 5/16-18 X 3/4 231-10 PW01M FLAT WASHER 8MM
220 PN02 HEX NUT 5/16-18 231-11 P0656231-11 SPECIAL BOLT
221 PCB11 CARRIAGE BOLT 5/16-18 X 1 231-12 PR21M INT RETAINING RING 35MM
222 PN03M HEX NUT M8-1.25 231-13 P6202 BALL BEARING 6202ZZ
223 PLW04M LOCK WASHER 8MM 231-14 P0656231-14 TROLLEY WHEEL
224 PW01M FLAT WASHER 8MM 231-15 P0656231-15 SLEEVE
225 PSB05M CAP SCREW M8-1.25 X 50 231-16 P0656231-16 UNIVERSAL KIT TROLLEY
226 P0656226 MOTOR 3PH 220V 231-17 PW04M FLAT WASHER 10MM
226-1 P0656226-1 FAN COVER 231-18 P0656231-18 SPECIAL HEX NUT M10
226-2 P0656226-2 FAN 231-19 PB144M HEX BOLT M10-1.5 X 55
226-3 P0656226-3 R CAPACITOR COVER 231-20 P0656231-20 BRACKET
226-4 P0656226-4 R CAP 30M 450V 2-3/4 X 1-1/2 231-21 P0656231-21 PEDAL
Stand Parts List
