Grizzly G0516 User manual

G0516 Lathe/Mill -43-






























 










 












SECTION 10: PARTS

-44- G0516 Lathe/Mill

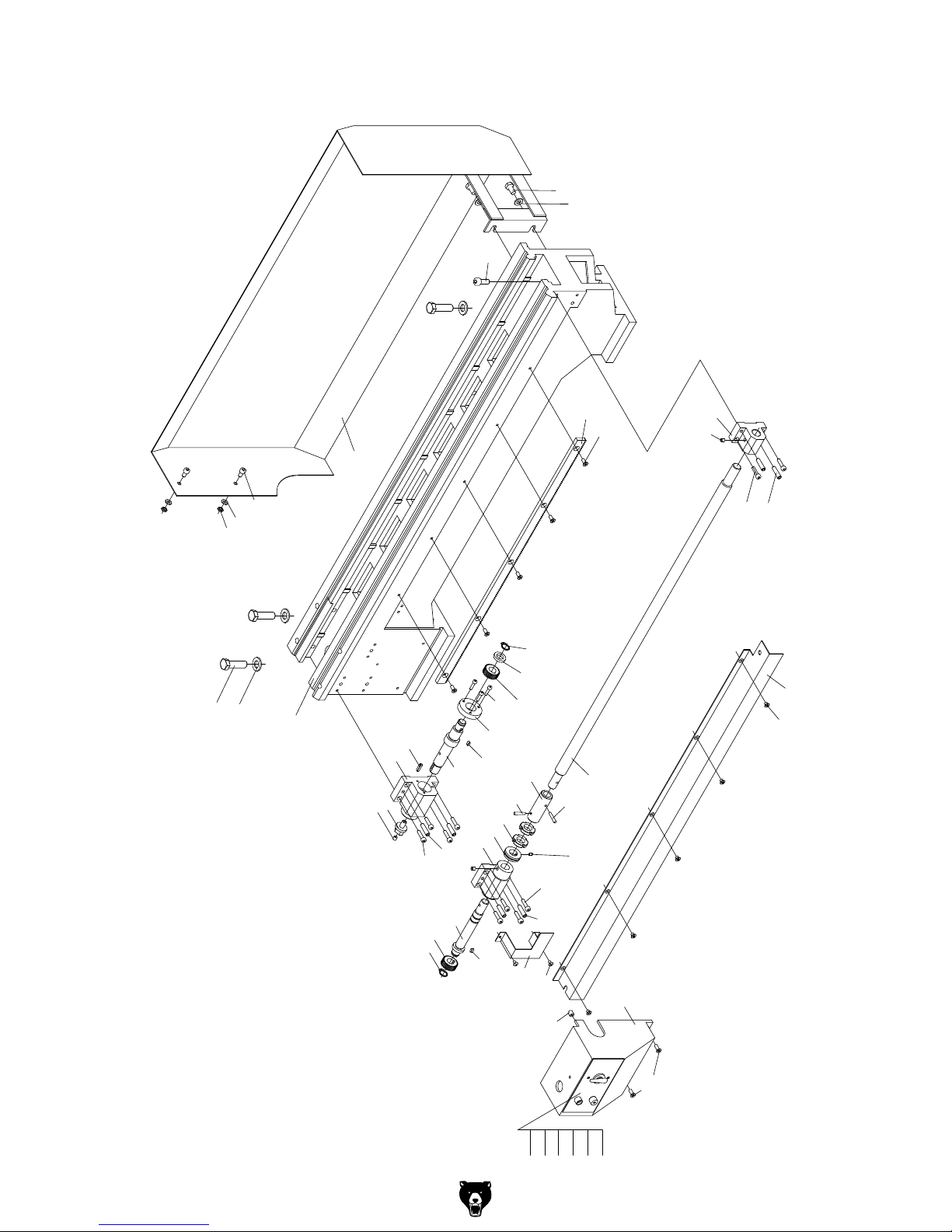

REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PS05M PHLP HD SCR M5-.8 X 8 125 PN01M HEX NUT M6-1
102 P0516102 LEADSCREW COVER 126 PW03M FLAT WASHER 6MM
103 PR02M EXT RETAINING RING 14MM 127 PB04M HEX BOLT M6-1 X 10
104 P0516104 CHANGE GEAR SPACER 128 P0516128 SPLASH GUARD
105 P0516105 SMALL GEAR 129 PS16M PHLP HD SCR M8-1.25 x 16
106 PK29M KEY 4 X 4 X 8 130 PW01M FLAT WASHER 8MM
107 P0516107 CHANGE GEAR SHAFT 131 PS04M PHLP HD SCR M8-1.25 X 20
108 PS56M PHLP HD SCR M4-.7 X 16 132 P0516132 RACK
109 P0516109 ADJUSTING DISC 133 PS08M PHLP HD SCR M5-.8 X 12
110 P0516110 SHAFT SUPPORT 134 P0516134 LEADSCREW SUPPORT (R )
111 P0516111 TAPER PIN 6 X 26 135 P0516135 LONG LEADSCREW 14 X 16 X 79.2
112 PS06M PHLP HD SCR M5-.8 X 20 136 PRP56M ROLL PIN 4 X 25
113 P0516113 SHOULDER BOLT 21 X 8 X 25 137 P0516137 SLEEVE JOINT
114 P0516114 OIL CUP 6MM 138 P0516138 JOINT SHAFT
115 P0516115 BLOCK FOR SWITCH 146 PB35M HEX BOLT M12-1.75 X 40
116 PS07M PHLP HD SCR M4-.7 X 8 147 PW06M FLAT WASHER 12MM
117 P0516117 LEADSCREW SUPPORT (L) 148 PK37M KEY 4 X 4 X 16
118 PS07M PHLP HD SCR M4-.7 X 8 154 PS56M PHLP HD SCR M4-.7 X 16
119 P0516119 ROUND NUT M16 X 1.5 155 P0516155 SMALL GEAR PROTECTOR
120 P0516120 STEEL WASHER 30 X 16 X 4 156 P0516156 GREEN LAMP
121 PS57M PHLP HD SCR M5-.8 X 14 157 P0516157 FUSE BOX
122 P0516122 SWITCH LABEL 158 P0516158 FUSE
123 P0516123 SHAFT COVER 159 P0516159 SELECTOR SWITCH
124 P0516124 BED

G0516 Lathe/Mill -45-















  





































 















-46- G0516 Lathe/Mill
REF PART # DESCRIPTION REF PART # DESCRIPTION

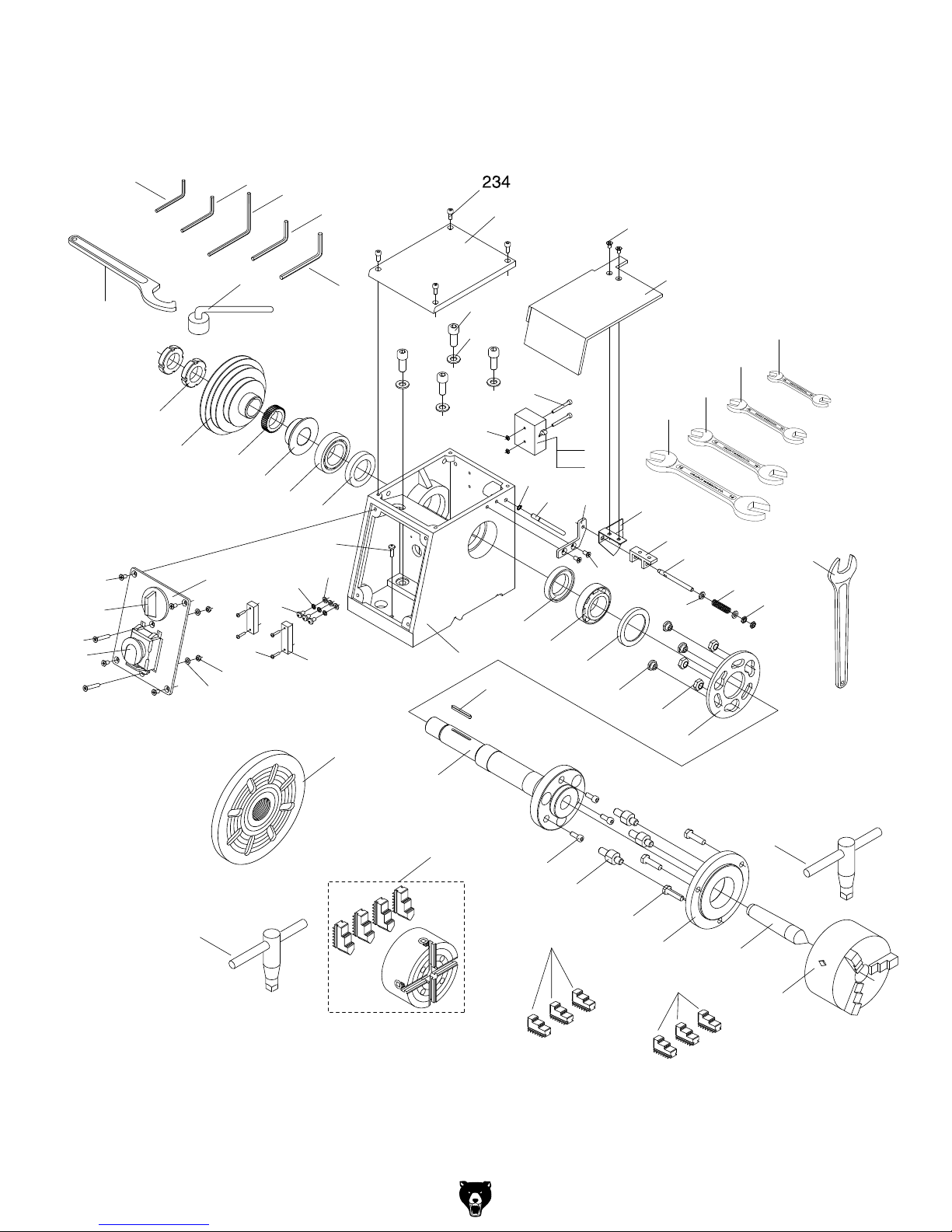

201 PS09M PHLP HD SCR M5-.8 X 10 232-4 P0516232-4 INSIDE JAWS FOR 3-JAW CHUCK
202 PS59M PHLP HD SCR M3-.5 X 14 233 PR04M EXT RETAINING RING 6MM
203 P0516203 POWER SWITCH W/STOP 234 PS08M PHLP HD SCR M5-.8 X 12
204 PS60M PHLP HD SCR M5-.8 X 30 235 PS41M PHLP HD SCR M10-1.5 X 25
205 P0516205 FWD/REV SWITCH 236 PS09M PHLP HD SCR M5-.8 X 10
206 PN06M HEX NUT M5-.8 237 P0516237 SUPPORT
207 PW02M FLAT WASHER 5MM 238 P0516238 LIMIT BLOCK
208 P0516208 CONNECTOR 239 P0516239 CHUCK GUARD
209 P0516209 ROUND NUT M27-1.5 240 P0516240 FIXING SUPPORT
210 P0516210 SPINDLE PULLEY 241 P0516241 SMALL SHAFT
211 P0516211 SPINDLE GEAR 242 P0516242 COMPRESS SPRING 8.2 X 1.4 X 33
212 P0516212 OIL RING 243 PW03M FLAT WASHER 6MM
213 PS05M PHLP HD SCR M5-.8 X 8 244 PN01M HEX NUT M6-1
214 P0516214 SPINDLE SPACER 245 P0516245 PLATE FOR SWITCHES
215 P32007 TAPERED BEARING 32007 246 PW04M FLAT WASHER 10MM
216 P0516216 SPINDLE BOX COVER 247 PS05M PHLP HD SCR M5-.8 X 8
217 PN04M HEX NUT M4-.7 248 P0516248 MICROSWITCH
218 PS25M PHLP HD SCR M4-.7 X 35 249 P0516249 3-JAW CHUCK FLANGE
219 P0516219 PIN SHAFT 250 PB26M HEX BOLT M8-1.25 X 30
220 P0516220 BOX FOR MICRO SWITCH 251 P0516251 PLUG BOLT 19.5 X 17 X 45
221 P0516221 HEAD STOCK BODY 252 PN02M HEX NUT M10-1.5
222 P0516222 FIXING NUT 16 X 11 X 8 254 P0516254 4-JAW CHUCK WITH JAWS
223 P0516223 ROTATABLE SPACER 254-1 P0516254-1 4-JAW CHUCK KEY
224 PK68M KEY 4 X 4 X 40 255 P0516255 SPANNER WRENCH 45-52
225 P0516225 SPINDLE 256 PAW03M HEX WRENCH 3MM
226 PS11M PHLP HD SCR M6-1 X 16 257 PAW04M HEX WRENCH 4MM
227 P0516227 FRONT BEARING COVER 258 PAW05M HEX WRENCH 5MM
228 PLW01M LOCK WASHER 5MM 259 PAW06M HEX WRENCH 6MM
229 PTLW02M EXT TOOTH WASHER 5MM 260 PAW08M HEX WRENCH 8MM
230 PS40M PHLP HD SCR M5-.8 X 16 261 PWR1719 WRENCH 17 X 19
231 P0516231 SPINDLE CENTER MT3 262 PWR1214 COMBO WRENCH 12/14MM
232 P0516232 3-JAW CHUCK D-125MM 263 PWR810 WRENCH 8 X 10
232-1 P0516232-1 FACEPLATE 8-1/2" 264 P0516264 WRENCH 5.5/7MM
232-2 P0516232-2 3-JAW CHUCK KEY 265 P0516265 WRENCH 36MM
232-3 P0516232-3 OUTSIDE JAWS FOR 3-JAW CHUCK 266 P0516266 TOOLPOST WRENCH

G0516 Lathe/Mill -47-



























 


REF PART # DESCRIPTION REF PART # DESCRIPTION

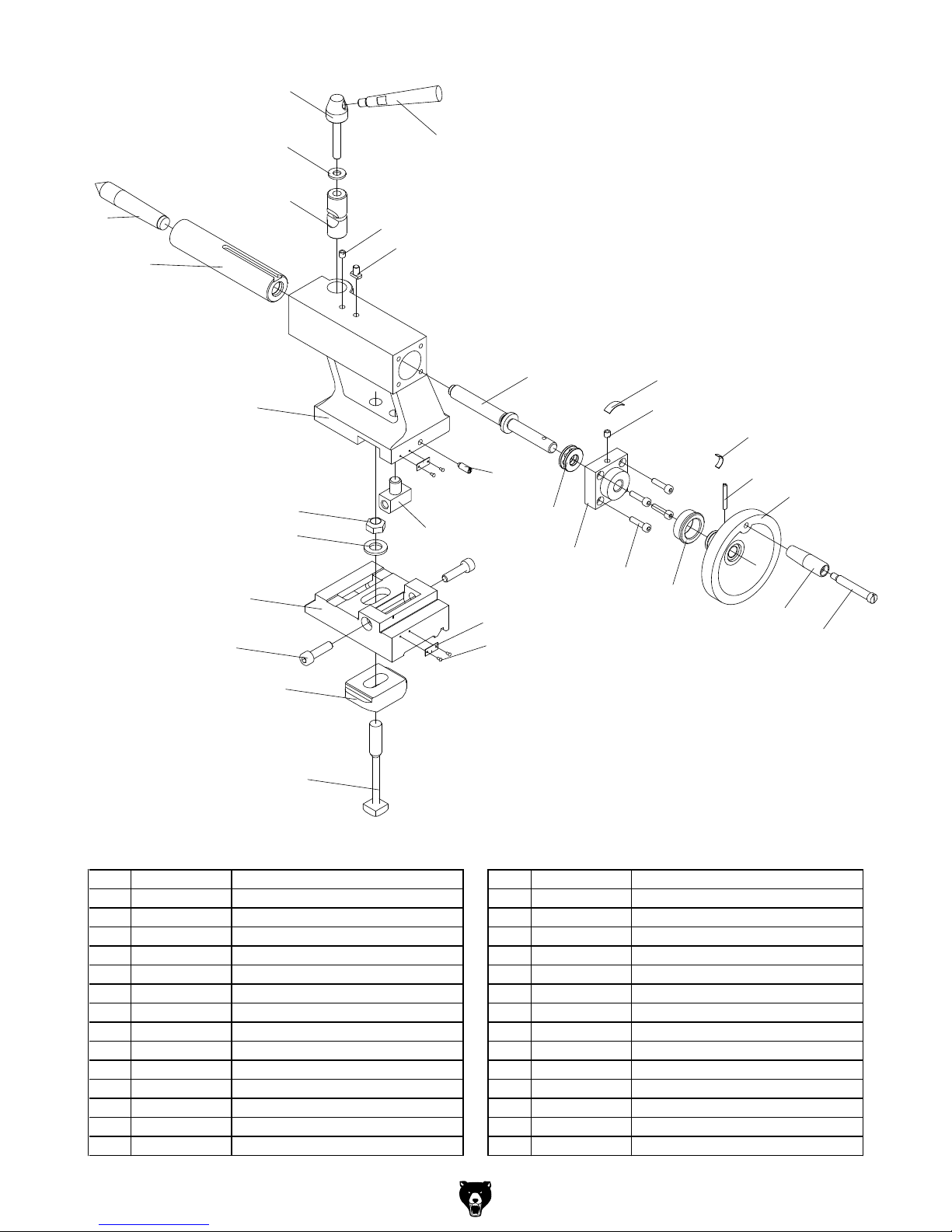

301 PS28M PHLP HD SCR M8-1.25 X 30 316 PS06M PHLP HD SCR M5-.8 X 20
302 P0516302 TAILSTOCK T-NUT 30 X 16 X 32 317 P0516317 TAILSTOCK END COVER
303 PW06M FLAT WASHER 12MM 318 P0516318 CYLINDER PIN 4 X 30
304 PN09M HEX NUT M12-1.75 319 P0516319 SPRING BOW
305 P0516305 TAILSTOCK BODY 320 P0516320 HAND WHEEL
306 P51101 THRUST BEARING 51101 321 P0516321 HANDLE BOLT 60.5 X 10 X 8
307 P0516307 TAILSTOCK LEADSCREW 322 P0516322 HANDLE SLEEVE
308 P0516308 TAILSTOCK SLEEVE 323 P0516323 INDEX RING
309 P0516309 TUBULAR CLAMP 324 P0516324 SQ HD BOLT M12-1.75 X 100
310 PW01M FLAT WASHER 8MM 325 P0516325 TAILSTOCK CLAMP PLATE
311 P0516311 CLAMP BOLT 22 X 13.3 X 74 326 P0516326 BASE
312 P0516312 HANDLE 327 P0516327 ZERO POSITION SCALE
313 P0516313 OIL CUP 328 P0516328 SCALE RIVET
314 P0516314 T-TAP FLAT KEY 12 X 12 X 7 329 P0516329 INDICATOR SCALE
315 PS11M PHLP HD SCR M6-1 X 16 330 P0516330 TAILSTOCK CENTER MT2

-48- G0516 Lathe/Mill


































 
REF PART # DESCRIPTION
401 P0516401 CUTTER REST BASE
402 P0516402 CLAMP DISC
403 PB09M HEX BOLT M8-1.25 X 20
404 P0516404 CUTTER REST DISC
405 P0516405 CUTTER REST BOLT 78 X 19 X 7
406 PN04M HEX NUT M4-.7
407 PS52M PHLP HD SCR M4-.7 X 20
408 PS02M PHLP HD SCR M4-.7 X 12
409 P0516409 OIL CUP 10MM
410 P0516410 FIXING PIN
411 P0516411 SQUARE CUTTER REST
411-1 P0516411-1 REMOVABLE TOOL HOLDER
411-2 P0516411-2 TOOL HOLDER
411-3 P0516411-3 QUICK CHANGE TOOL POST ASSY
412 PS28M PHLP HD SCR M8-1.25 X 30
413 P0516312 HANDLE
414 P0516414 HANDLE BASE
415 P0516415 HANDLE SPACER
416 P0516416 SPRING 0.5 X 3.5 X 17MM
417 P0516417 CUTTER REST CARRIAGE
418 P0516418 PAD IRON GIB
419 PRP44M ROLL PIN 3 X 10
420 P0516420 CARRIAGE LEAD SCREW 120 X 16 X 65
421 PK39M KEY 3 X 3 X 10
422 P0516114 OIL CUP 6MM
423 P0516423 LEADSCREW SUPPORT
424 PS40M PHLP HD SCR M5-.8 X 16
425 P0516425 SPRING PLATE
426 P0516426 HANDLE
427 PN03M HEX NUT M8-1.25
428 PW01M FLAT WASHER 8MM
429 P0516429 CARRIAGE HANDWHEEL
430 P0516430 INDEX RING
431 PS11M PHLP HD SCR M6-1 X 16
432 P0516432 CYLINDER PIN 4 X 16

G0516 Lathe/Mill -49-















 
















 












REF PART # DESCRIPTION REF PART # DESCRIPTION
501 P0516501 HAND WHEEL 523 PS40M PHLP HD SCR M5-.8 X 16
502 P0516114 OIL CUP 6MM 524 PN04M HEX NUT M4-.7
503 PK69M KEY 4 X 4 X 12 525 PS04M PHLP HD SCR M8-1.25 X 20
504 P0516504 ROUND NUT 26 X 12 X 8 526 PS06M PHLP HD SCR M5-.8 X 20
505 PS12M PHLP HD SCR M3-.5 X 6 527 P0516527 OIL-STOPPING FELT
506 P0516506 OIL-STOPPING FELT 528 P0516528 PROTECTING PANEL
507 PS31M PHLP HD SCR M6-1 X 35 529 P0516529 PROTECTING PANEL
508 P0516508 SADDLE LEADSCREW 530 P0516530 FRONT-CLAMP PLATE
509 P0516509 SADDLE 531 P0516531 BRAKING PLATE
510 PS02M PHLP HD SCR M4-.7 X 12 532 P0516532 LEADSCREW SUPPORT
511 P0516511 CLEARANCE NUT 23 X 31 X 14 533 PW03M FLAT WASHER 6MM
512 PS50M PHLP HD SCR M3-.5 X 12 534 P0516534 HANDLE BOLT 60.5 X 10 X 8
513 PN06M HEX NUT M5-.8 535 PB08M HEX BOLT M6-1 X 20
514 P0516514 DOG POINT SET SCREW M5 X 25 536 P0516536 HANDLE SLEEVE
515 P0516515 PAD IRON GIB 537 P8101 THRUST BEARING 8101
516 P0516516 CROSS SLIDE 538 P0516538 SPRING PLATE
517 PS09M PHLP HD SCR M5-.8 X 10 539 P0516539 INDEX RING
518 P0516518 CROSS SLIDE SPACER 540 P0516540 MILLING TABLE
519 PS39M PHLP HD SCR M8-1.25 X 10 541 PSB13M CAP SCREW M8-1.25 X 30
520 P0516520 GIB STRIP 542 PRP58M ROLL PIN 6 X 45
521 P0516521 REAR-CLAMP PLATE 543 P0516543 MILLING VISE
522 PS56M PHLP HD SCR M4-.7 X 16

-50- G0516 Lathe/Mill
















 

 
















REF PART # DESCRIPTION REF PART # DESCRIPTION

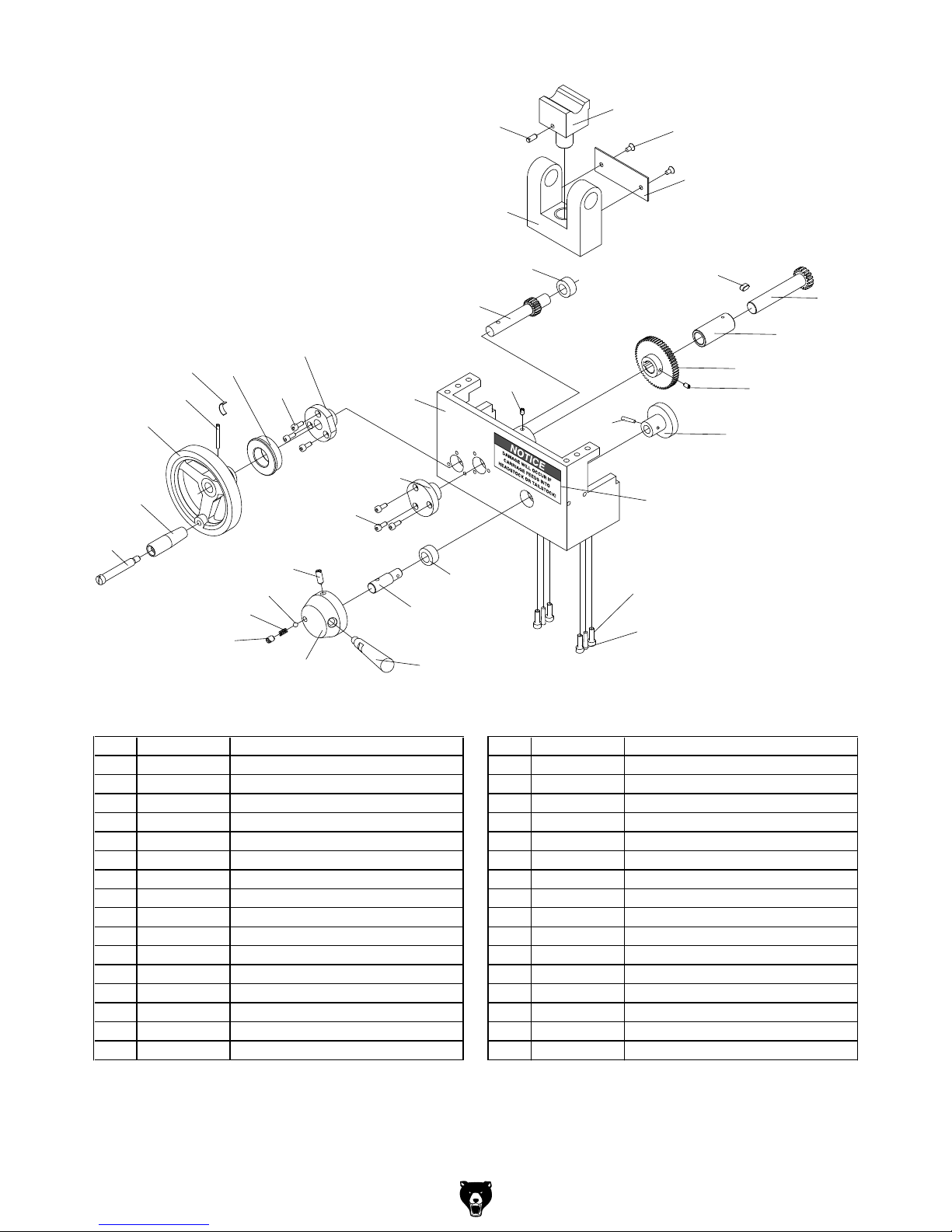

601 P0516601 HANDLE 618 P0516618 SHAFT SLEEVE
602 PS03M PHLP HD SCR M6-1 X 8 619 P0516619 GEAR
603 P0516603 COMPRESS SPRING 6.1 X 4 X 2.5 620 PS07M PHLP HD SCR M4-.7 X 8
604 P0516604 STEEL BALL 5MM 621 PK06M KEY 5 X 5 X 10
605 P0516605 HANDLE SEAT 622 P0516622 GEAR SHAFT
606 PS11M PHLP HD SCR M6-1 X 16 623 PS40M PHLP HD SCR M5-.8 X 16
607 PS38M PHLP HD SCR M4-.7 X 10 624 PRP20M ROLL PIN 4 X 22
608 P0516608 END COVER 625 P0516625 HALF NUT BASE 110 X 79.5
609 P0516609 APRON BODY 626 PRP59M ROLL PIN 5 X 12
610 P0516610 HANDLE BOLT 60.5 X 10 X 8 627 PRP42M ROLL PIN 3 X 20
611 P0516611 HANDLE SLEEVE 628 P0516628 HALF NUT 40 X 78 X 58.5
612 P0516612 HAND WHEEL 629 P0516629 SLOTTED DISC
613 P0516613 SPRING PLATE 630 P0516630 ROTATING SHAFT
614 P0516614 INDEX RING 631 P0516631 SHAFT SLEEVE
615 P0516615 SMALL SHAFT SLEEVE 632 P0516632 MOVING PLATE
616 PRP73M ROLL PIN 4 X 30 633 PS07M PHLP HD SCR M4-.7 X 8
617 P0516617 SMALL GEAR SHAFT 634 P0516634 CARRIAGE FEED NOTICE

G0516 Lathe/Mill -51-
































 









 



-52- G0516 Lathe/Mill

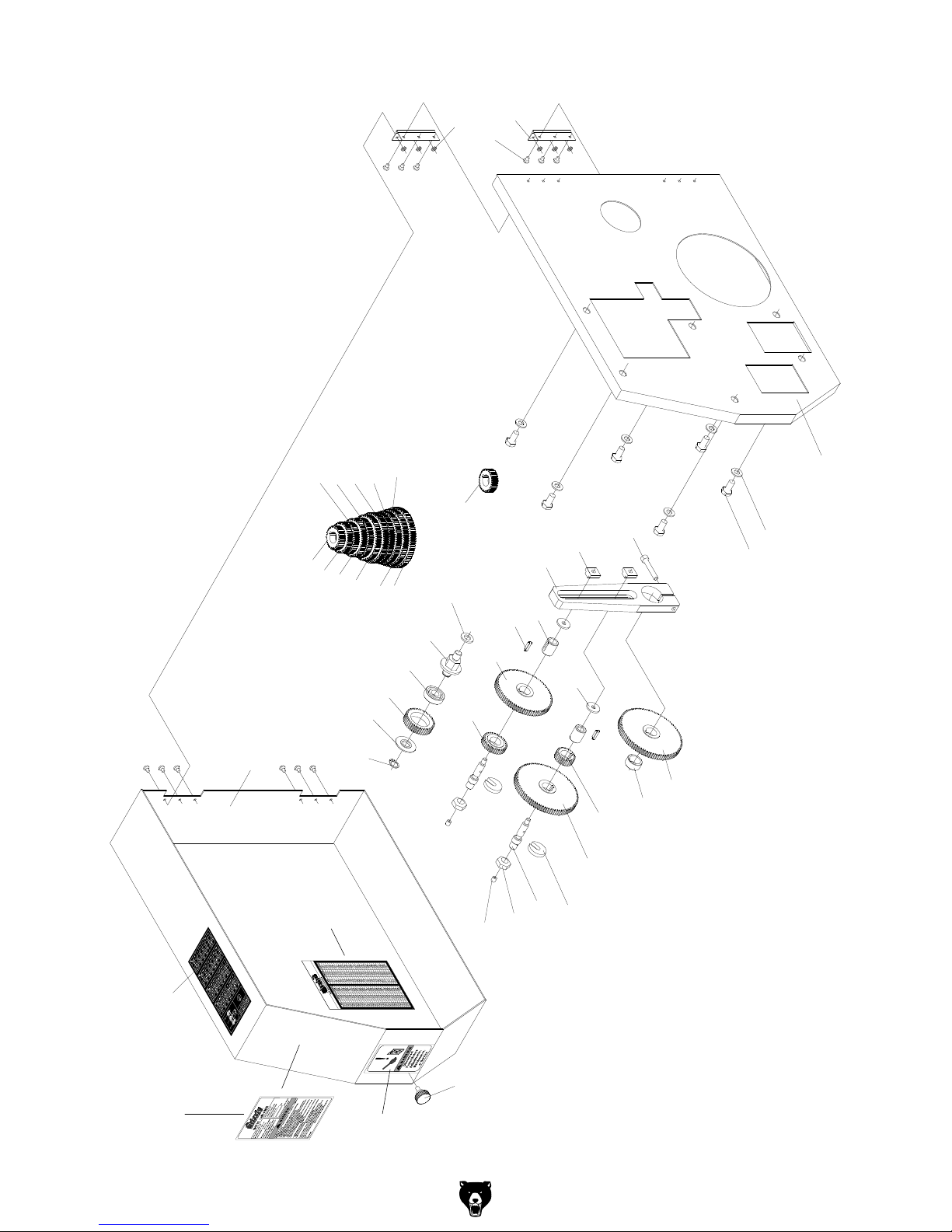

REF PART # DESCRIPTION REF PART # DESCRIPTION
801 P0516801 GEAR Z:72 825 P0516825 FIXED-SHAFT BOLT 30 X 10 X 41
802 P0516802 GEAR Z:70 826 P0516826 REAR SHAFT SPACER
803 P0516803 GEAR Z:68 827 P0516827 SUPPORT PLATE
804 P0516804 GEAR Z:66 828 P0516828 GEAR Z:40
805 P0516805 GEAR Z:60 829 PW01M FLAT WASHER 8MM
806 P0516806 GEAR Z:50 830 PB03M HEX BOLT M8-1.25 X 16
807 P0516807 GEAR Z:48 831 P0516831 SLIDING BEARING 16 X 9 X 20
808 P0516808 GEAR Z:45 832 P0516832 ADJ SHAFT SPACER
809 P0516809 GEAR Z:90 833 P0516833 GEAR REST
810 P0516810 PIVOT SHAFT SPACER 834 P0516834 ADJ SHAFT NUT 15 X 8 X 16
811 P0516811 KNURLING BOLT 20 X 5 X 23 835 PS31M PHLP HD SCR M6-1 X 35
812 P0516812 DRIVE/GEAR BOX COVER 836 PK37M KEY 4 X 4 X 16
813 P0516813 GEAR Z:30T 843 P0516843 MACHINE ID LABEL
815 P0516815 ADJUSTABLE SHAFT 844 P0516844 GEAR CHANGE LABEL V1.11.02
816 PN09M HEX NUT M12-1.75 844A P0516844A GEAR CHANGE LABEL V2.03.08
817 P0516114 OIL CUP 6MM 845 P0516845 GEAR Z:75
818 P0516818 GEAR Z:80 846 P0516846 GEAR Z:100
819 P0516819 GEAR Z:35 847 PLABEL-26 UNPLUG LABEL
820 P0516820 OPEN LOCK WASHER 25 X 7 X 5 848 PLABEL-27 MM CONVERSION CHART
821 P6001 BALL BEARING 6001ZZ 849 PN04M HEX NUT M4-.7
822 P0516822 GEAR Z:40 850 PS63M PHLP HD SCR M6-1 X 4
823 PR03M EXT RETAINING RING 12MM 851 P0516851 HINGE
824 P0516824 FRONT SHAFT SPACER 852 P0516852 GEAR Z:65

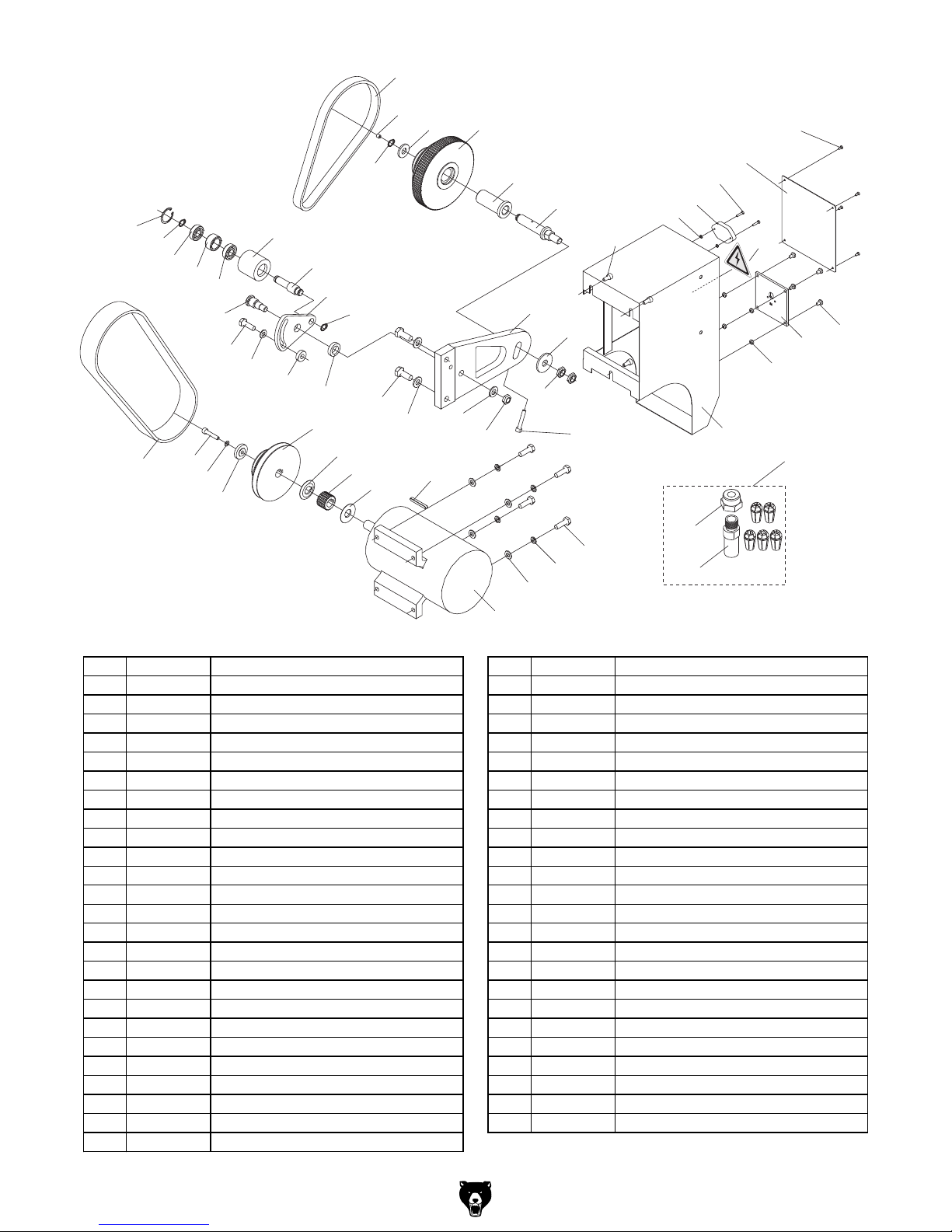

G0516 Lathe/Mill -53-





 


 

















 












 












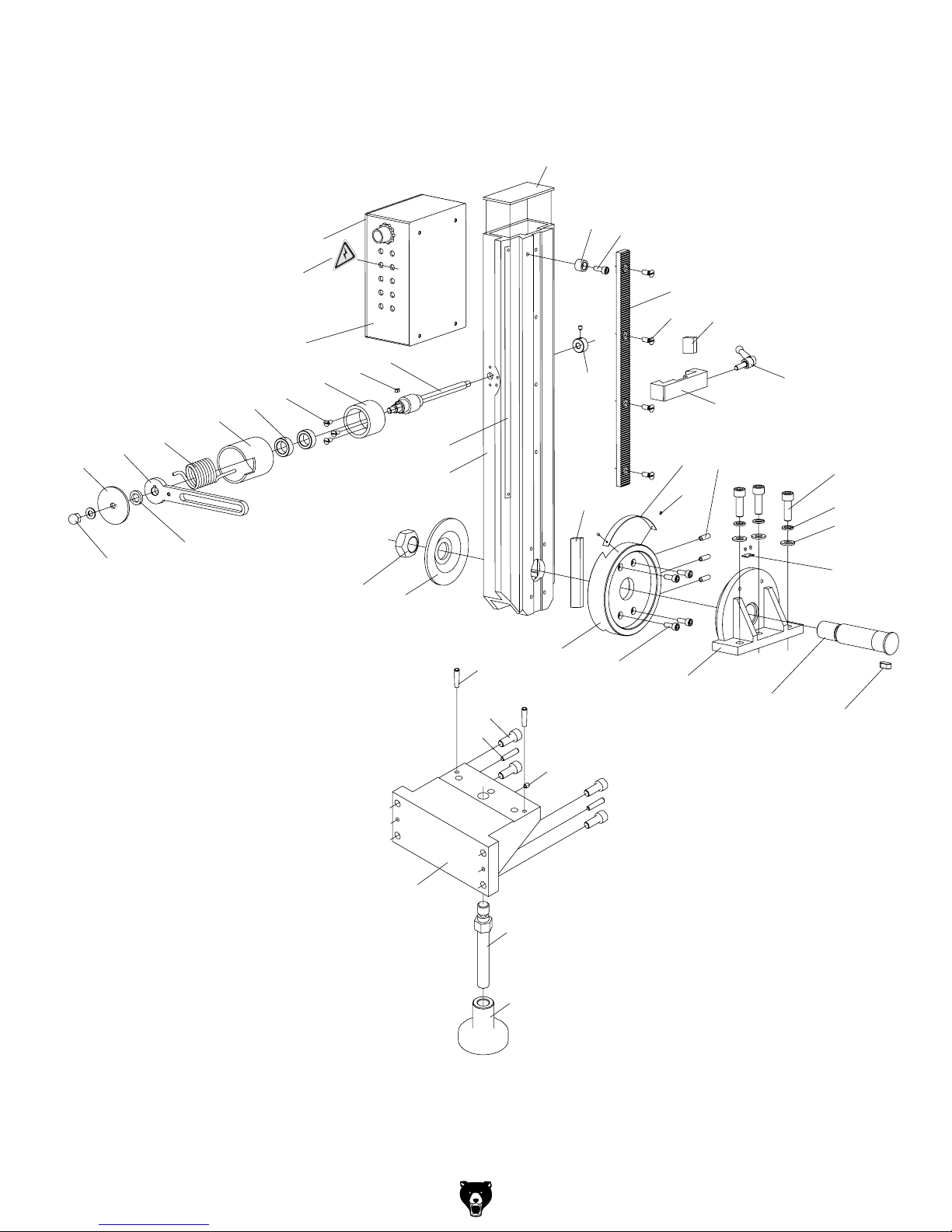

REF PART # DESCRIPTION REF PART # DESCRIPTION
901 PB26M HEX BOLT M8-1.25 X 30 927 PS59M PHLP HD SCR M3-.5 X 14
902 PW01M FLAT WASHER 8MM 928 PB07M HEX BOLT M8-1.25 X 25
903 P0516903 AC MOTOR 929 PS05M PHLP HD SCR M5-.8 X 8
904 PK02M KEY 5 X 5 X 40 930 P0516930 FAN-SUPPORT
905 P0516905 MOTOR SHAFT SPACER 931 P0516931 ADJ SLOT SPACER
906 P0516906 DRIVE PULLEY 932 PS31M PHLP HD SCR M6-1 X 35
907 P0516907 KEYWAY SHAFT SPACER 37 X 16 X 2.5 933 PB32M HEX BOLT M10-1.5 X 25
908 P0516908 MOTOR PULLEY 934 PN06M HEX NUT M5-.8
909 P0516909 CHECK RING 935 P0516935 PULLEY SUPPORT
910 PS62M PHLP HD SCR M6-1 X 30 936 P0516936 MOTOR COVER
911 P0516114 OIL CUP 6MM 937 PS14M PHLP HD SCR M6-1 X 12
912 P0516912 GREAT WASHER 26 X 12 X 3 938 P0516938 ARM SHAFT NUT M12
913 P0516913 COUNTER PULLEY 939 P0516939 SOCKET OUTLET
914 P0516914 SLIDE BEARING 30.1 X 16 X 62 940 P0516940 SUPPORT SPACER
915 P0516915 ARM SHAFT 941 PS12M PHLP HD SCR M3-.5 X 6
916 P0516916 BEARING ARBOR 942 P0516942 ELECTRIC TOP COVER
917 P0516917 TENSION PULLEY 943 PLW04M LOCK WASHER 8MM
918 P6001 BALL BEARING 6001ZZ 944 P0516944 TIMING BELT 1.5 X 124 X 15MM
919 P0516919 SPACER 945 PVM30 V-BELT M-30 3L300
920 PLW03M LOCK WASHER 6MM 946 PN06M HEX NUT M5-.8
921 PR03M EXT RETAINING RING 12MM 947 P0516947 MAIN POWER SOCKET
922 PR19M EXT RETAINING RING 28MM 948 PLABEL-14 ELECTRICITY LABEL
923 P0516923 PIVOT 949 P0516949 QUICK CHANGE COLLET SET
924 P0516924 PIVOT SPACER 949-1 P0516949-1 COLLET NUT
925 PW04M FLAT WASHER 10MM 949-2 P0516949-2 COLLET SHAFT
926 PN02M HEX NUT M10-1.5

-54- G0516 Lathe/Mill
1204
1206
1205
1202
1201
1200
1203
1069
1163
1157
1152
1155
1159
1162
1156
1154
1132
1161
1070
1153
1071
1067
1068
1072 1017
1151
1045
1150
1110
1102
1164
1103
1039
1039-1
1065
1044
1068
1043
1030
1039-2
1040-1
1041
1040
1042
1046
1047 1066

G0516 Lathe/Mill -55-



 













































































 


















-56- G0516 Lathe/Mill
REF PART # DESCRIPTION REF PART # DESCRIPTION
1017 PSB01M CAP SCREW M6-1 X 16 1065 P05161065 LIMIT BLOCK
1029 PN01M HEX NUT M6-1 1066 P05161066 WEDGE
1030 P05161030 HANDLE 1067 P05161067 RULER
1039 P05161039 FUSELAGE SEAT 1068 P05161068 RIVET
1039-1 P05161039-1 SHAFT 1069 P05161069 ELECTRIC BOX
1039-2 PK70M KEY 8 X 8 X 12 1070 PLN09M LOCK NUT M12-1.75
1040 PLW06M LOCK WASHER 10MM 1071 P05161071 BIG WASHER 95 X 25 X 12
1040-1 PW04M FLAT WASHER 10MM 1072 P05161072 CONNECTING STRUT
1041 PSB72M CAP SCREW M10-1.5 X 30 1075 PSB02M CAP SCREW M6-1 X 20
1042 P05161042 GUIDE FINGER 1078 PK02M KEY 5 X 5 X 40
1043 PSS46M SET SCREW M6-1 X 22 1079 P05161079 SPINDLE
1044 P05161044 RULER 1080 P8689080 TRANSMISSION GEAR (WIDE)
1045 P05161045 WEDGE 1081 P05161081 SUPPORT BLOCK
1046 P05161046 GEAR RACK 8 5/8" 1082 PS06M PHLP HD SCR M5-.8 X 20
1047 PSB26M CAP SCREW M6-1 X 12 1083 PRP60M ROLL PIN 4 X 15
1048 P05161048 HIGH/LOW NOTICE 1084 P05161084 WORM
1049 P05161049 SPINDLE BOX 1085 P05161085 SLEEVE
1050 P05161050 PINION 1086 PRP61M ROLL PIN 3 X 12
1051 PK30M KEY 4 X 4 X 25 1087 PRP61M ROLL PIN 3 X 12
1052 P05161052 BEVEL GEAR 1088 P05161088 ADJUSTABLE UNION
1053 PR03M EXT RETAINING RING 12MM 1089 P05161089 BRACKET
1054 P05161054 BALL 5MM 1090 PS22M PHLP HD SCR M5-.8 X 25
1055 P05161055 SPRING 0.8 X 0.8 X 10MM 1091 P05161091 DIAL
1056 PS03M PHLP HD SCR M6-1 X 8 1092 P05161092 SPRING STEEL 1MM
1057 P05161057 HANDLE STOCK 1093 P05161093 SMALL HAND WHEEL
1058 P05161058 OPERATING LEVER 1094 PS40M PHLP HD SCR M5-.8 X 16
1059 P05161059 LEVER CAP 1095 P05161095 SMALL SHAFT
1060 PSB31M CAP SCREW M8-1.25 X 25 1096 P05161096 COVER
1061 P05161061 GUIDE FINGER 1097 PS17M PHLP HD SCR M4-.7 X 6
1062 PSB06M CAP SCREW M6-1 X 25 1098 P8689098 DUST COVER SUPPORT
1063 P05161063 SPINDLE BOX SEAT 1099 PS40M PHLP HD SCR M5-.8 X 16
1064 P05161064 WEDGE

G0516 Lathe/Mill -57-
REF PART # DESCRIPTION REF PART # DESCRIPTION
1100 P8689100 CHIP GUARD 1138 P05161138 GEAR 30T
1101 P05161101 CLAMP BOLT M6-1.0 X 12 1139 P6001 BALL BEARING 6001
1102 P05161102 UPPER END WASHER 16 X 7 X 11 1140 P05161140 GEAR 12T/20T
1103 P05161103 END SCREW M6-1 X 16MM 1141 P05161141 BAR
1104 PSS02M SET SCREW M6-1 X 6 1142 P05161142 LINKING BOARD
1105 P05161105 SPRING .8 X 4.8 X 10MM 1143 PSS31M SET SCREW M5-.8 X 8
1106 P05161106 BALL 5MM 1144 P05161144 TAPPING SCREW 2.9 X 8MM
1107 P05161107 HANDLE SEAT 1145 P05161145 H/L LABEL
1108 P05161108 DOUBLE HD BOLT M8-1.25 X 70 1146 P05161146 MOTOR COVER
1109 P05161109 KNOB 1147 P05161147 MOTOR FLANGE
1110 PLABEL-14 ELECTRICITY LABEL 1148 PS68M PHLP HD SCR M6-1 X 10
1111 P8689111 CONTROLLER 1150 P05161150 PC BOARD
1112 P05161112 LABEL ON CONTROLLER 1151 P05161151 LOCK SLEEVE
1113 P05161113 SHAFT I 1152 P05161152 ROTOR SHAFT
1114 PK71M KEY 4 X 4 X 45 1153 PK72M KEY 4 X 4 X 6
1115 PR49M INT RETAINING RING 12MM 1154 P05161154 SPRING SUPPORT
1116 P05161116 SPACING RING 1155 P05161155 TORSION SPRING 100 X 13.7
1117 P05161117 SMALL SHAFT 1156 P05161156 COVER
1118 P05161118 SPACING RING 1157 PN03M HEX NUT M8-1.25
1119 P05161119 SPINDLE NUT 42 X 36 X 6 1158 P05161158 PROP
1120 PK12M KEY 5 X 5 X 30 1159 P05161159 SUPPORTING SHANK
1121 PSB03M CAP SCREW M5-.8 X 8 1160 P05161160 SHANK SCREW 20 X 10 X 30
1122 P05161122 BEARING COVER 1161 P05161161 ROTOR SHAFT SPACER
1123 P6206 BALL BEARING 6206 1162 P05161162 SHANK COVER SPACER
1124 PLABEL-11 SAFETY GLASSES LABEL 1163 P05161163 SHANK COVER
1125 P05161125 FINE FEEDING LABEL 1164 P05161164 TOP COVER
1126 P05161126 PROTECTING COVER 1165 PS12M PHLP HD SCR M3-.5 X 6
1127 P05161127 MOTOR 1166 PS03M PHLP HD SCR M6-1 X 8
1128 P05161128 MOTOR GEAR 1167 PW02M FLAT WASHER 5MM
1129 PR16M EXT RETAINING RING 9MM 1168 P05161168 DEPTH STOP NOTICE
1130 P05161130 MOTOR SEAT 1169 P05161169 ARBOR MT#3~B16
1131 PFH02M FLAT HD SCR M6-1 X 12 1170 P05161170 DRILL CHUCK B16 1-13MM
1132 PS05M PHLP HD SCR M5-.8 X 8 1200 PRP08M ROLL PIN 6 X 30
1133 P05161133 LAMP 1201 PS58M PHLP HD SCR M10-1.5 X 40
1134 P05161134 SPEED CONTROL KNOB 1202 PRP08M ROLL PIN 6 X 30
1135 P05161135 SWITCH 1203 PS03M PHLP HD SCR M6-1 X 8
1136 P05161136 LATHE FUSE F25A 250V 1204 P05161204 SUPPORT
1136A P05161136A MILL FUSE F5A L 250V 1205 P05161205 SUPPORT BOLT 25.4 X 16 X 140
1137 P05161137 STOP SWITCH 1206 P05161206 SUPPORT PLATE

-58- G0516 Lathe/Mill
REF PART # DESCRIPTION REF PART # DESCRIPTION
1301 P0516843 G0516 MACHINE ID LABEL 1310 P05161168 DEPTH STOP NOTICE
1302 P0516844A GEAR/SPEED CHANGE LABEL 1311 PLABEL-27 INCH/MM CONVERSION CHART
1303 P05161303 FEED SPEED LABEL 1312 P0516634 CARRIAGE FEED NOTICE
1304 P05161304 13TPI THREADING LABEL 1313 P05161048 HIGH/LOW NOTICE
1305 P05161305 FWD/REV LABEL 1314 PLABEL-26 DISCONNECT POWER LABEL
1306 PLABEL-12A READ MANUAL LABEL 1315 P05161315 LATHE/MILL LABEL
1307 P05161307 MILL CONTROLS LABEL 1316 PLABEL-14 ELECTRICITY LABEL
1308 PLABEL-11 SAFETY GLASSES LABEL 1317 P05161317 LATHE CONTROLS LABEL
1309 PLABEL-10 COLORED GRIZZLY LABEL


 


 















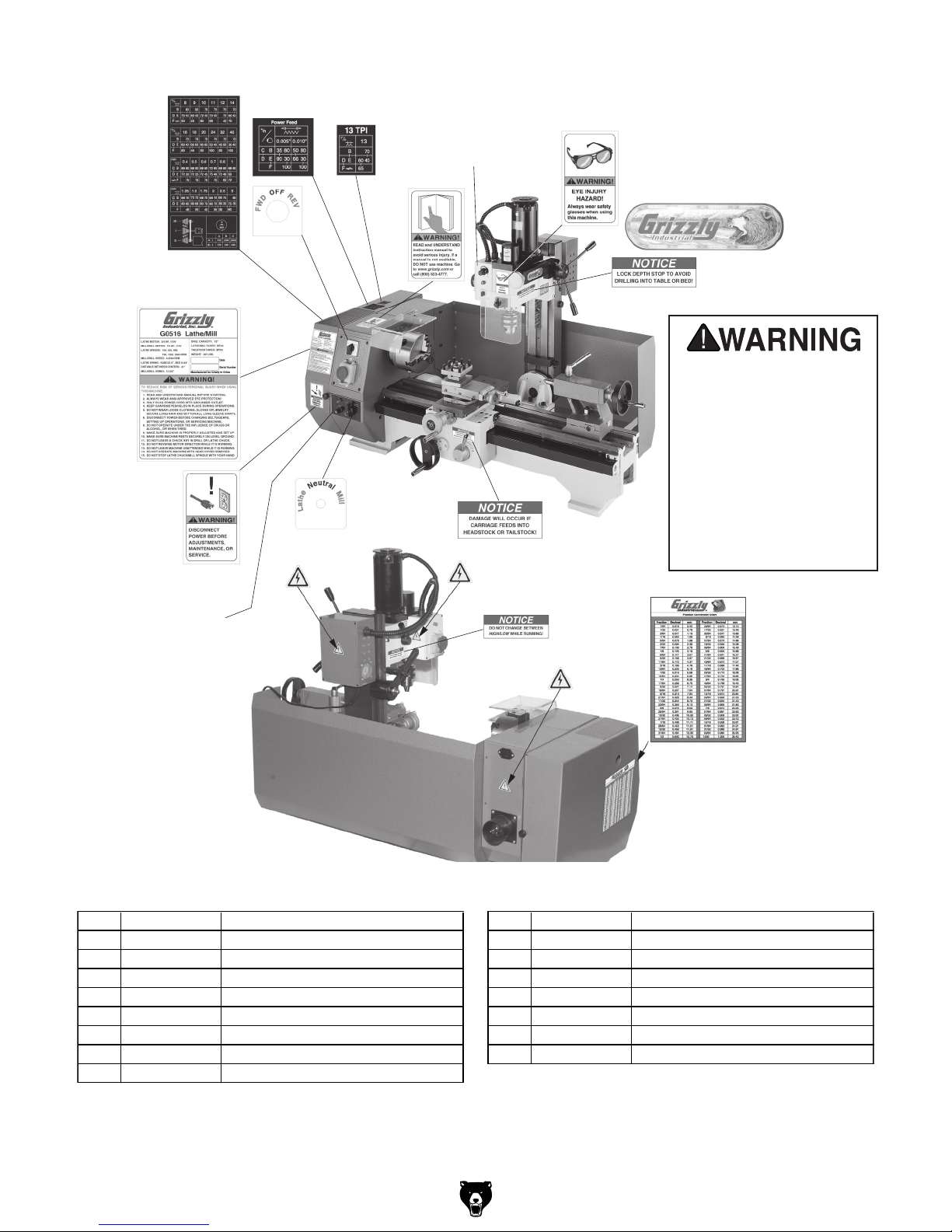

Safety labels warn
about machine
hazards and how to
prevent injury. If a
label is removed or
damaged, REPLACE
that label immediately.
Contact Grizzly at
[phone] for new
labels.
