GROM Audio NIS9VL1 User manual

GROM-VL1 SYSTEM
www.gromaudio.com
www.gromaudio.com/support.html
NIS9VL1

CONTENTS
Package contents......................................................................................................4
CHAPTER 1 —INSTALLATION. ................................................................................4
1.1 Before Installation 4
1.2 Tools 4
1.3 Vehicle Installation 4
1.4Safety Guidelines &Appropriate Use 5
Connect VLine Interface Cable to factory headunit . ............................................6
Connecting to VLine . . ..............................................................................................6
Connecting Steering Wheel Control Wire. .............................................................7
Routing the GPS Antenna. . . ....................................................................................8
Routing the Microphone. ........................................................................................9
Mounting the VLine Module. . ...............................................................................10
Understanding VLine Ports. ..................................................................................11
Chapter 2 —getting started. . ...............................................................................12
2.1 Initializing
2.2 Functions
Initial configuration. . . ...........................................................................................13
Setting up WIFI 13
Setting up Bluetooth...............................................................................................15
Chapter 3 —MEDIA PLUGINS. ..............................................................................17
A2DP Stream. . . ......................................................................................................18

Google music ..........................................................................................................19
Local Music .............................................................................................................20
Spotify. .....................................................................................................................21
Web Radio. ..............................................................................................................22
Chapter 4 — VLine OTA update....................................................................23
Chapter 5 — Advanced setup (Optional).....................................................25
5.1 Installing Google Apps
Adding Apps to Home Launcher...........................................................................28
Signing onto Google Account................................................................................29
Changing Text-to-Speech Output. ........................................................................32
SUPPORT. ........................................................................................................34
WARRANTY......................................................................................................34
EIGHTEEN MONTH (18) LIMITED WARRANTY
GRANT OF LICENSE.........................................................................................35
OPERATIONAL WARNING AND SAFETY INSTRUCTIONS.............................36

4
1.1 Before Installation
Before starting work with any wiring, please wait 90 seconds after turning the
Ignition to the OFF position and disconnecting the negative (-) terminal of the
battery. This is to ensure that no SRS airbags faults are triggered during the
installation when disassembling the vehicle’s panels and wiring connections
for the VLINE module installation.
Please review the entire manual to familiarize yourself of the VLINE module
and the installation requirements before installing the unit and using it.
1.2 Tools
Have Tools ready for disassembling the dashboard panels to remove the
stereo.
Some basic tools will be required for stereo removal and installation, Plastic
prying tools, Phillips head screwdriver,10mm socket and ratchet. Additional
tools may be required depending on vehicle and installation preference.
1.3 Vehicle Installation
Each model vehicle dissembles differently. The removal of the stereo and
CHAPTER 1 — INSTALLATION
PACKAGE CONTENTS
GROM-V1 SYSTEM
Microphone USB Extension cable
VLine module
GPS Antenna
MFCNIS9Interface Cable GVNMF WLNISUSB

5
wiring installation requires special technical skills and experience. If you do
not feel comfortable doing the installation please consult with your local
car audio shop or installation professional for instructions or assistance if
necessary.
Carefully remove the factory Stereo and Display out of the dash cavity with
proper tools.
It may be necessary to disconnect items surrounding the stereo and display
to remove them and gain access to the back of the stereo to make your
connections.
1.4 Safety Guidelines & Appropriate Use
By using VLine you agree:
• to operate VLine only when there are safe driving conditions;
• to follow any applicable state and traffic laws;
• to keep an eye on the road at all time while driving;
• do not attempt to play video (such as YouTube) on a display while the
vehicle is in motion;
• do not use VLine without running the engine for the extended period of
time as it can drain the battery.
Do not use Vline in a manner that would distract the driver or that may
otherwise cause injury or death to vehicle occupants or bystanders.
IT IS ILLEGAL IN MOST STATES OF THE UNITED STATES AND MAY BE ILLEGAL
IN OTHER JURISDICTIONS FOR ANY TELEVISION OR OTHER VIDEO DISPLAY,
STREAM, TRANSMISSION OR BROADCAST TO BE VISIBLE TO THE DRIVER
WHILE THE VEHICLE IS IN MOTION. YOU AGREE NOT TO USE ANY VISUAL
COMPONENT OF VLine WHILE IN CONTROL OF A MOVING VEHICLE WHERE
DOING SO WOULD BE ILLEGAL OR DANGEROUS TO VEHICLE OCCUPANTS OR
BYSTANDERS. DOING OTHERWISE CAN LEAD TO SERIOUS INJURY OR DEATH
TO YOU AND OTHERS. PLEASE FIND A SAFE PLACE TO PARK AND ENGAGE
THE PARKING BRAKE BEFORE VIEWING ANY VIDEO DISPLAYS, STREAMS,
TRANSMISSION, OR BROADCAST AVAILABLE THROUGH VLINE.

6

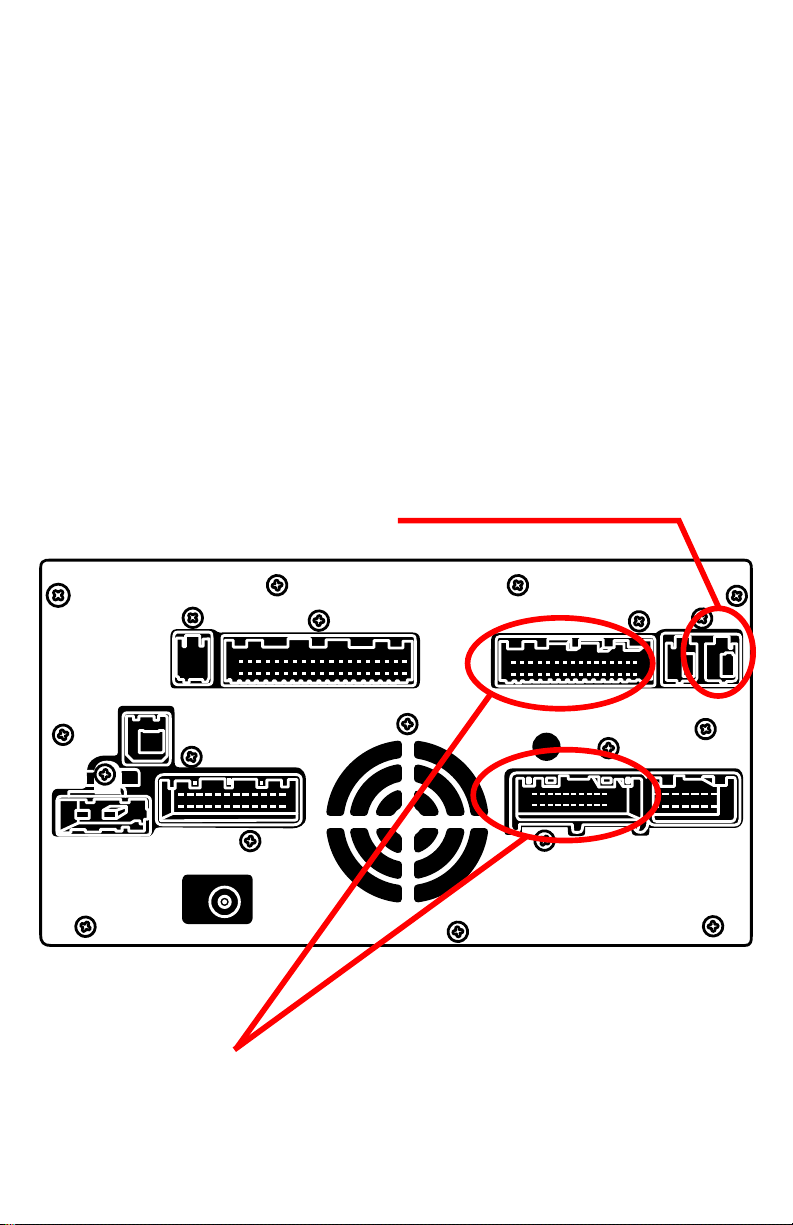

Connect VLine interface cable to factory unit
Stereo Connections
Locate the 20-pin and 32-pin connectors behind the stereo headunit and
unplug. Plug in the supplied interface cable (MFCNIS8). Reconnect back what
was disconnected from the rear of the stereo into the female plugs of the
supplied interface cable.
Locate The 4-pin connector behind the stereo headunit and unplug. Plug in
the supplied interface Cable (WLQNISUSB). Leave what was unplugged from
the rear of the stereo free and disconnected. It will not be used.
*Please note that the factory USB port will be disabled and no longer
function. The VLINE will take its place and emulate its functions)
Harness Connection
MFCNIS9
Harness Connection
WLNISUSB

7
Display connections
Locate 4-pin plug at the rear of the display and unplug. Plug in the supplied
interface cable (GVNMF). Reconnect back what was disconnected from the
rear of the display into the female plugs of the supplied interface cable.
Connecting to VLine
Route the other end of the MFCNIS9, GVNMF and WLNISUSB Cable to the
VLine module and connect them to the correctly labeled ports. Do the same
also for the WLNISUSB and GVNMF Cable as well.
GVNMF
WLNISUSB
MFCNIS9
Harness
Connection
GVNMF

8

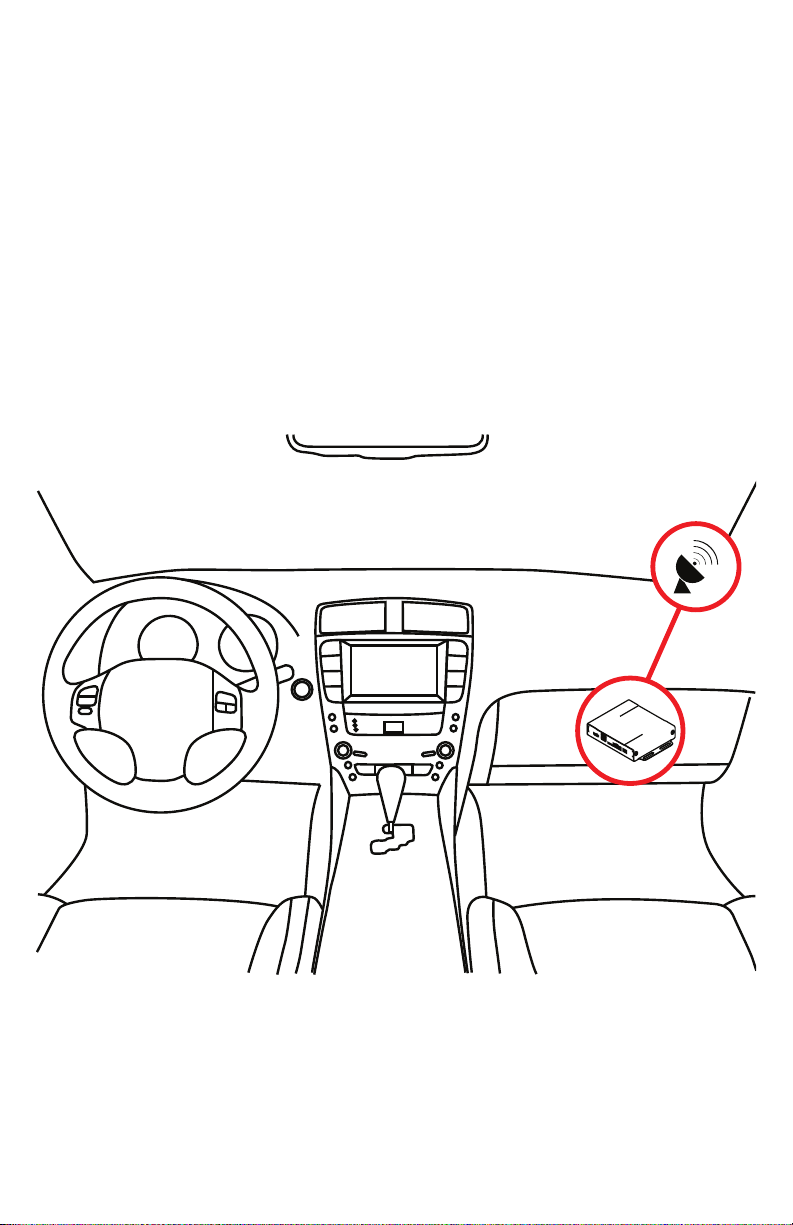

Routing the GPS Antenna
The GPS Antenna module is magnetic as well as supplied with double sided
tape.
It can be mounted to the top of dashboard or to outside of vehicle whichever
you prefer. Route to desired location. We recommend mounting on inside of
vehicle on passenger side of the Dashboard as shown below.
Plug the GPS antenna into the port labeled CAMERA AV1 on the VLine
Module

9
Routing the Microphone
Route microphone to a location where it will be able to pick up voice clearly.
We recommend to mount MIC nearby the rear view mirror but not directly
on windshield glass. Avoid sticking to the hard surface as it will pick up more
noise.
Plug the microphone into the MIC port of the VLine module

10

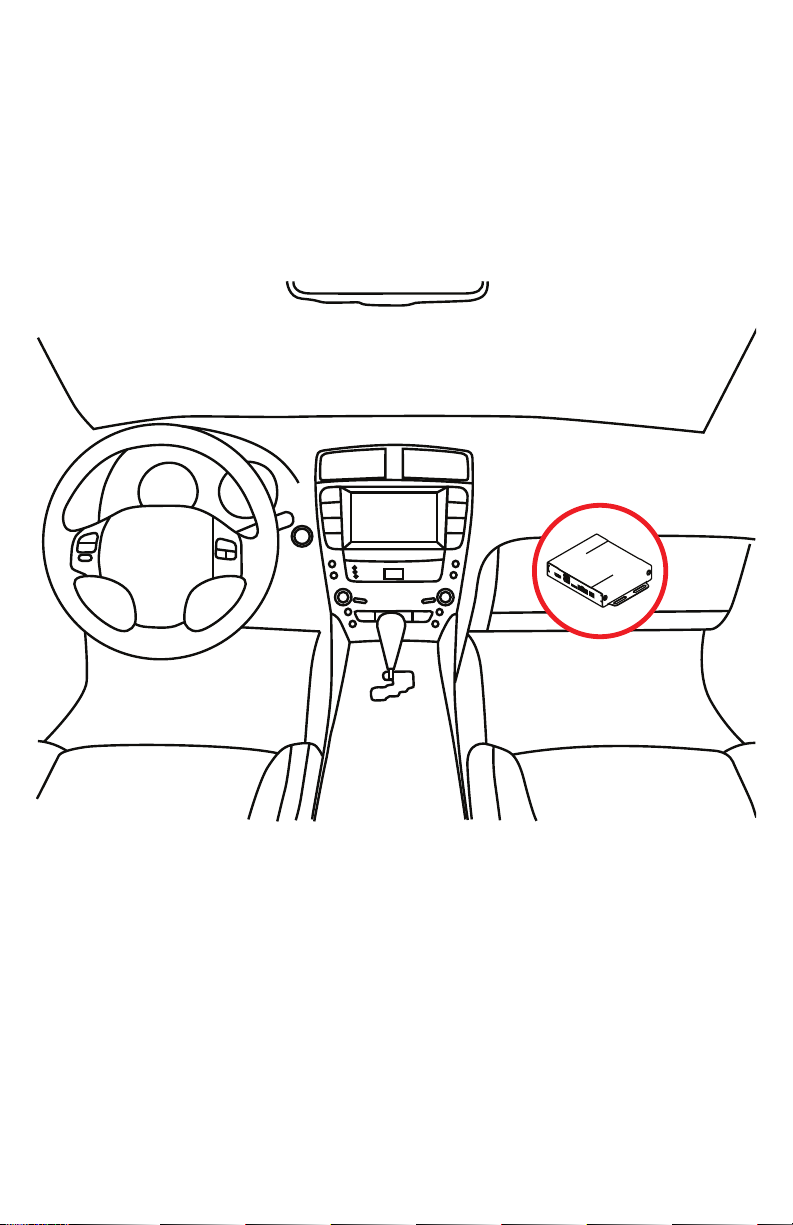

Mounting the VLine Module
Mount module in location free of any moving parts. We strongly recommend
mounting the module in an easily accessible location such as the glove
compartment for easy access to the USB ports and in case of needing to
upgrade firmware on the VLine module.
Securely mount and install the interface in a location free from heat,
humidity, moving parts, or direct sunlight. Beware of hot-air flow from your
vehicle’s climate control system. The interface should be secured in a suitable
location, free of sharp metal edges, using double-sided tape, Velcro, or wire
ties. The adapter’s operating temperature range is -30°C to +70°C (-24°F to
+158°F)

11
USB1
iPhone connection
Any other USB device (Keyboard / Mouse)
USB2
USB flash drive
Any USB device (Android, Keyboard / Mouse)
MicroSD
Insert microSD card (*pin side up) to increase storage space for
Vline (up to 128GB supported). The microSD should be formatted
FAT32. File system format exFAT and NTFS are not supported.
HDMI IN
HDMI input connection to connect external video sources.
(add plugin to Dashlinq Launcher to use feature)
HDMI OUT
N/A, not used
MIC
Microphone input, Connect 3.5mm Mono Microphone

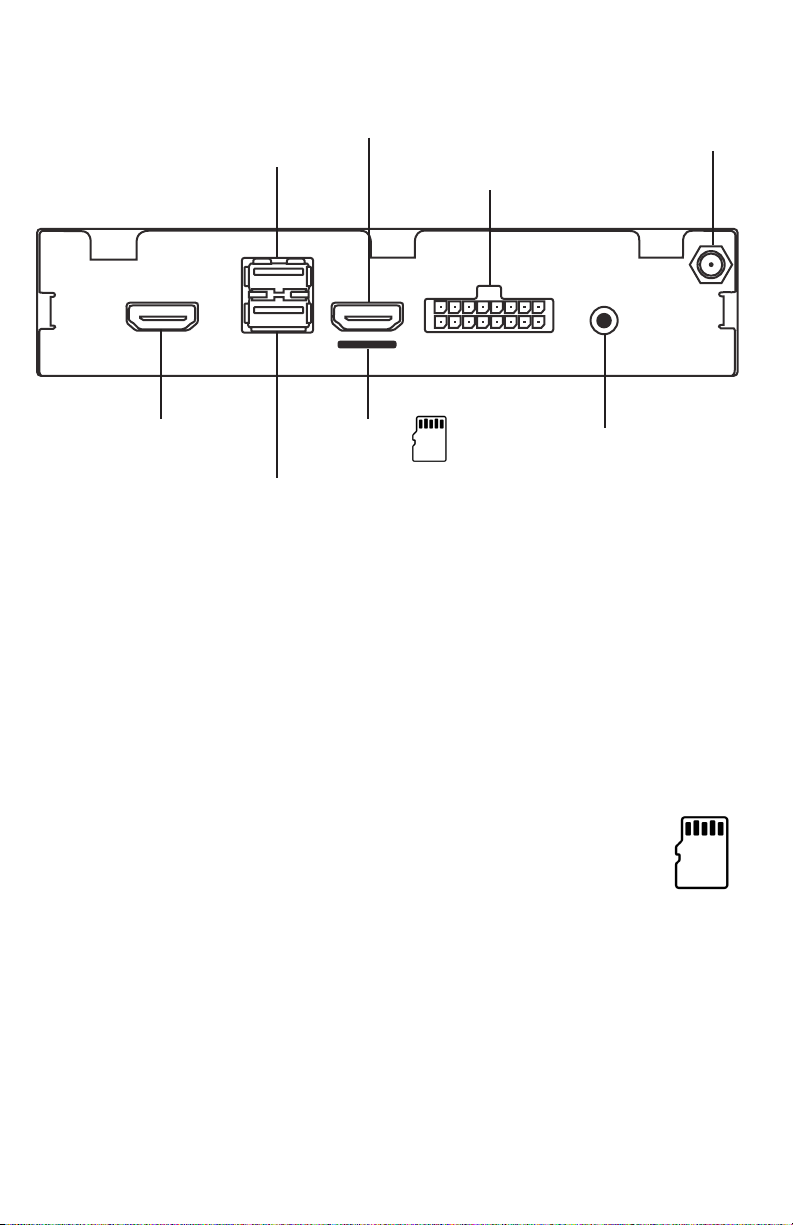

Understanding VLine Ports
HDMI IN
HDMI Input MicroSD Card
(Pin side up*)
Pin Side Up
N/A
Not Used
GPS / AV / Camera
Input
WiFi / Bluetooth
Antenna
Microphone
USB2
OTG/USB storage
MIC
CAMERA AV1
HDMI OUT
USB 2
USB 1
USB1
iPhone

12
2.1 Initializing
After connecting the VLine module to the stereo, an Ignition Cycle will have
to be performed for the stereo to discover Vline and allow Vline to self
configure.
To INITIALIZE:
1. Put Ignition Switch to “ACC” or “ON” position
2. Wait up to 5 Seconds
3. Put Ignition Switch to “OFF” position
4. Wait 1 minute
5. Turn Ignition Switch back to “ACC” or “ON” Position
6. Press the DISC/AUX button until you are able to select the VLINE inter-
face. (may take more than 2 presses of the DISC/AUX for accessing as
first press is for built-in CD/DVD changer in most cases)
CHAPTER 2 — GETTING STARTED
2.2 Functions
The GROM VLINE emulates the factory Auxiliary mode or USB mode of the
stereo depending on vehicle year and model that it is installed into.
No navigation functions of the stereo will be disabled. Factory Blue-
tooth, Navigation, Radio and CD player will remain functional.
Selecting the VLINE mode:
Press the DISC/AUX button to access the USB mode of the stereo to enter
into VLINE interface mode (may need to press DISC/AUX few times).
NOTE: Please note factory USB port is disabled when installing VLine.
Buttons Controls of the VLine Mode
Track selection can be done with the stereo’s Seek Track ^ and v buttons. if
steering wheel controls are available and enabled.
Press the SCAN button twice to activate Voice button.
You may use the Joystick/Knob buttons for some VLINE screen functions.

13
Settings
Initial configuration

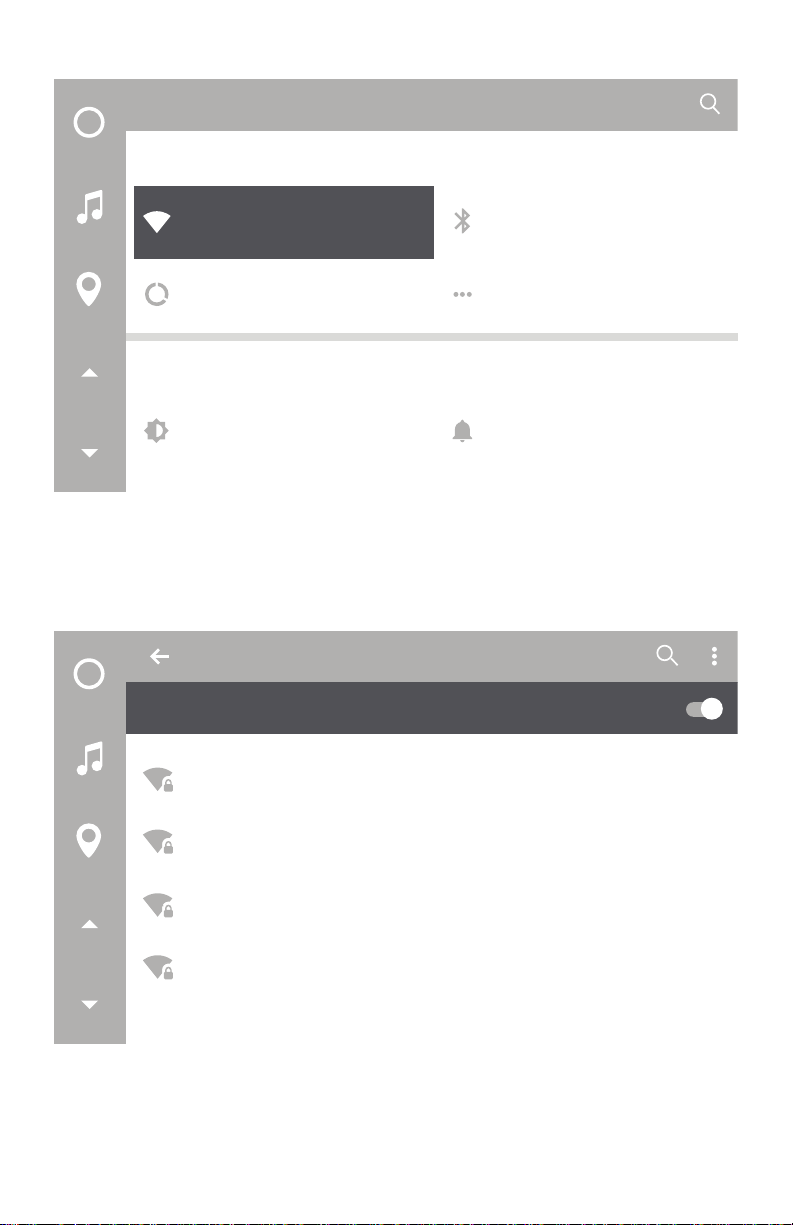

Setting up WIFI
The VLINE module will require a data connection while vehicle is in mobile on
road to take advantage of majority of its features.
. Press the BACK button to go back to a Previous screen.

14
Settings
Wireless & networks
Wi-Fi Bluetooth
Data usage More
Display Sound & notification
Device
Settings
On
Vline Setup
CBCI-1EA1-2.4
ATT896
CBCI-44AB-2.4
Go into WiFi Settings
Select WiFi channel to connect

15
Settings
On
Vline Setup
CBCI-1EA1-2.4
ATT896
CBCI-44AB-2.4
Password
Show password
Advanced options
CONNECTCANCEL
VLine Setup
Settings
Wireless & networks
Wi-Fi Bluetooth
Data usage More
Display Sound & notification
Device

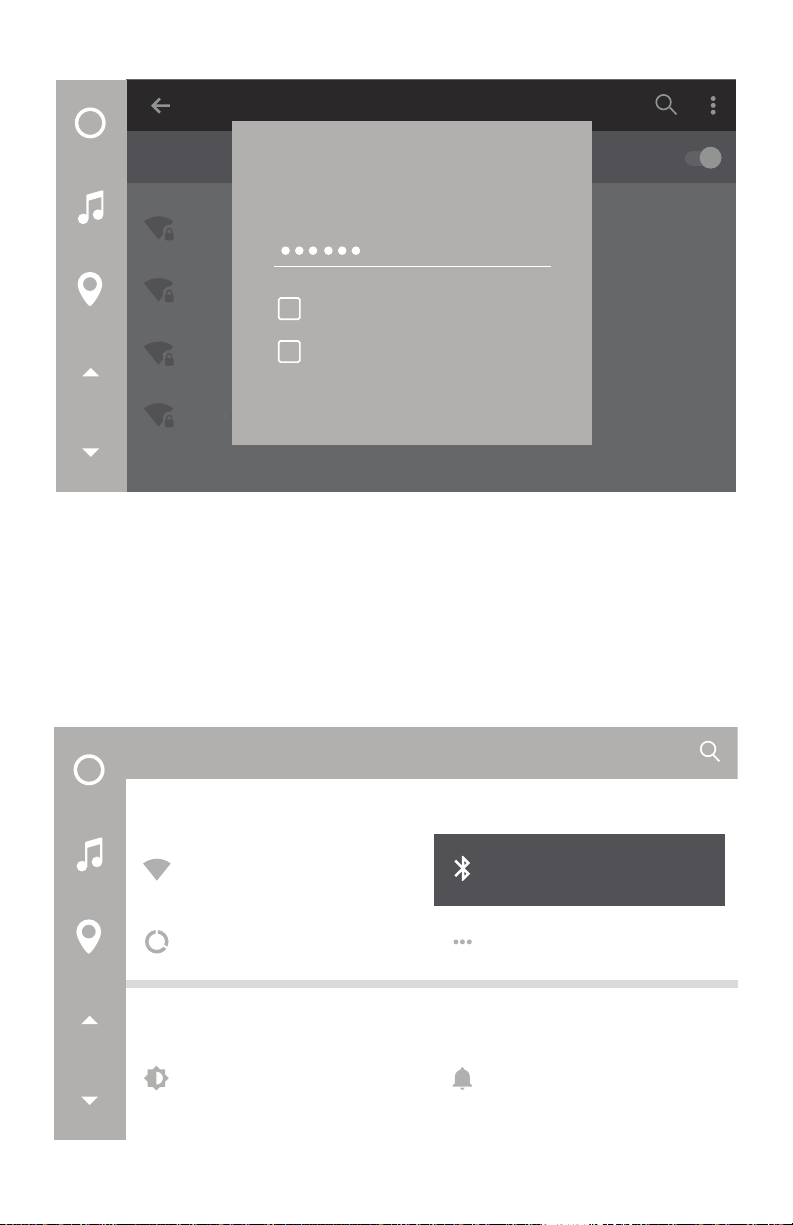

Enter In [Password] and select on CONNECT
Setting up Bluetooth
Select Settings->Bluetooth
NOTE: Please check with Mobile Carrier for Hotspot data usage limits.
Depending on mobile provider you might be a subject to mobile data and
tethering charges.

16
Avialable devices
Vline is visible to nearby devices while Bluetooth settings is open
Bluetooth
On
Android
Iphone
Avialable devices
Vline is visible to nearby devices while Bluetooth settings is open
Bluetooth
On
Device
Iphone
Pairing code
622398
Pairing grants access to your contacts and call
history when connected
PAIRCANCEL
Bluetooth pairing request
Use your phone to find VLine device
Confirm PIN code on VLine and Phone
NOTE: Bluetooth Connection will allow for A2DP music streaming only

17
Chose App
Local Music
APPS
SHORTCUTS
PLUGINS
Spotify
GMusic
WebRadio
CHAPTER 3 — MEDIA PLUGINS
VLINE provides media plugins with an optimized interface with bold graphics
and easy to press buttons for the vehicle environment. Most of these plugins
require a Data connection to work besides Local Music and A2DP Stream
To add plugin ono the Home screen, select EMPTY “+” where you would like
to place the icon.
Then scroll to Plugins and selected desired plugin to add

18
Settings
Play Store
A2DP Stream Track
A2DP Stream
• Bluetooth Music streaming from a Bluetooth enabled
device
• Grey icon means there is no Bluetooth connection
from Phone to VLine
• Blue icon means Bluetooth device is connected and
ready to stream audio. (Please refer to Bluetooth
setup portion of manual)
• Song/artist info will display on screen
• Album artwork will display if VLINE is connected to
WiFi data connection, (Please refer to WiFi setup
portion of manual)

19
03:30PM
Playlists Albums Artists Songs Search
Alt-J
Disslove Me
Beach House
Master of None
Four Rooms
OST
Google Music
• Allows access to your Google Play music Purchased/
uploaded*
• Will require Gapps to be installed on VLINE (Please
refer to Gapps Installation of manual)
• To use Gapps you must have a Google account and be
signed into the account
• *Only Purchased music library and Uploaded media
will work, unlimited subscription/radio music will not
work

20
12:31PM
Folders Playlists Albums Artists Songs
90 tracks
Select Storage
156 tracks
03:30PM
Folders Playlists Albums Artists Songs
Sea
Adele - 25
11 songs
Adventure Club
37 songs
BEYONCE - Beyonce [Itunes Edition] [POP] [2013]...
14 songs
Bruno Mars - Unorthodox Jukebox (iTunes Deluxe)...
Local Music
• Play music/audio stored on VLINE, USB drive or
microSD card
• Plugin will read the music on selected storage and
automatically organize music library by categories
(Folder,Playlist, Album, Artist and Songs)
• Create Playlists from within the Plugin.
