Growatt SPH3000TL BL-US User manual

Download
Manual
Installation
Operation Manual
&
GR-UM-200-A-00GR-UM-200-A-00
SPH3000TL BL-US
SPH3600TL BL-US
SPH4000TL BL-US
SPH4600TL BL-US
SPH5000TL BL-US
SPH6000TL BL-US

List
1 Brief Introduction
2 Safety
3.1 Growatt SPH series inverter
3.2 Label Explanation
3.3 Size and weight
3.4 The advantage of the unit of SPH
2.1
2.2
Safety Measure
Symbols introduction on the
SPH inverter
1.1 Preface
1.2 Target Group
1.3 Product Description
1.4 Safety Instructions
3 Product Description
4 Unpacking
5 Installation
5 1 Basic installation requirements
5.2
5.3
5.4
.
Installation requires tools and RJ
45 terminal sequence of the LAN line
Installation Instructions
SPH System electrical connection

6.1 Commissioning of SPH
6.2 Operation modes
6.3 Display and button
6.4 Communication
6 Commissioning
13 Certificate
7 Start-up and shut down
SPH system
11.1 Dismantling the energy storage
11.2 Packing the SPH inverter
11.3 Storing SPH inverter
11.4 Disposing of the SPH inverter
8 Attention of the installation
environment, maintenance
and cleaning
15 Contact
9 Fault removal
11 Decommissioning
10 Manufacturer Warranty
12 Product specification
7.1 Start-up the SPH system
7.2 Disconnect the SPH system
12.1 SPH series energy storage machine
product specification
12.2 Torque
12.3 Appendix
Annex: Technical Data

1.1 Preface
This manual will provide the users who use the SPHTL BL-US Series with the detailed
product information and the installation instructions. Please read this manual
carefully and put this manual on some place where is convenient to installation,
operation, obtain. If there are any modifications , we will not notify the user.
SPH TL BL-US inverter must be installed by professional electrical personnel who
have obtained the certification of the relevant departments. We have two kinds of
energy storage machine for different battery one is for lithium battery and the other is
for lead-acid battery, we suggest: customer should decide which kind of energy
storage machine you want, manufacturer can provide only lithium battery with energy
storage machine, customer can change to lead-acid mode while they can buy these
battery from market easily. Especially if customer choose energy storage system with
lithium battery (which must be provide by manufacturer or in the compatibility list
which provide by manufacturer) but used for lead-acid battery or used lead-acid
battery for lithium battery model, it will be dangerous. Installer can install energy
storage machine of SPHTL BL-US Series rapidly and troubleshooting, build
communication system through read this manual carefully.
1 Brief Introduction
1.2 Target Group
1.3 Product Description
SPHTL BL-US Series is used to store energy generated by the photovoltaic cell panels
or energy from grid if it is allowed in the battery, also energy can be sent to power grid
through SPH TL BL-US for self consumption or when Grid power is lost, SPH TL BL-US
can be used as backup power.
SPH series has six kinds of type
SPH3000TL BL-US
SPH3600TL BL-US
SPH4000TL BL-US
SPH4600TL BL-US
SPH5000TL BL-US
SPH6000TL BL-US
Note: We describe this series as “SPH” as below.
:






Overview:
Position
Description
A
LED of status display
B
LCD screen
C
Function button LCD screen
D
Antenna
E
USB interface
F
PV switch Dry contact
G
PV input port
H
PV RSD switch
I
Ground point
J
AC Grid (on grid connection) port
K
EPS output port
L
Communication interface port
M
RS232 port
N
Battery terminal port
ABC
D
E
FGHIJKLMN

4
3
1.4 Safety Instructions
1. Please be clear which kind of battery system you want, lithium battery system or
lead-acid battery system, if you choose the wrong system, SPH can’t work normally.
2. Please read this manual carefully before the installation, the company has the right
not to quality assurance, If not according to the instructions of this manual for
installation and cause equipment damage.
3. All the operation and connection please professional electrical or mechanical
engineer.
4. During installation, please don’t touch the other parts within the box.
5. All the electrical installation must comply with the local electrical safety standards.
6. If equipments needs to maintain, please contact with local specify system
installation and maintenance personnel.
7. Use the equipment to combined to grid needs to obtain the permission of local
power supply department.
8. When install PV modules in the daytime, please turn off the PV switch, Otherwise it
will be dangerous as high terminal voltage of modules in the sunshine.
2 Safety
2.1 Safety Measure
Risk of high voltage！
Relevant operation for professional personnel
Please notice children, disabled, laypeople do not close
Supervise and make sure children don't play near the installation position of energy
storage machine.
Risk of burns on the parts shell of SPH inverter！
During the work, Cover, shell around, radiator is likely to be hot.
SPH inverter exists radiation maybe affect health！
Don't stay a long time within 20cm range from SPH inverter.
DANGER
DANGER
CAUTION
SPH inverter ground connection!
Please ensure SPH inverter ground connection is reliable for make sure people's
safety.
2.2 Symbols introduction on the SPH inverter
Symbol
Description
Caution: Risk of electrical shock!
Caution : hot surface
Caution: risk of danger
Danger to life due to high voltage in SPH
There is residual voltage in SPH, SPH requires 5 minutes to
discharge.
Please wait 5 minutes before you open the upper lid or the DC
lid.
Protective conductor terminal
Direct Current (DC)
Alternating Current (AC)
Refer to the operating instructions

6
5
Marks of SPH:
Mark
Description
Explanation
Push-button
Operation of display screen and set system
Status symbol
of SPH
Green light on
SPH run normally
Red light on
Fault state
Green light blinking
Alarm state
Red light blinking
Software updating
3.2 Label Explanation
Product description 3
3.1 Growatt SPH series inverter
Label contains the following information: for example SPH6000TL BL-US shows as
below:
Model
A(mm/In)
B(mm/In)
C(mm/In)
weight(kg/lb)
Growatt SPH
565/22.24
669/26.34
179/7.05
32(73.85)
3.3 Size and weight
3.4 The advantage of the unit of SPH
Features below:
All in one design. Can improve self consumption, back up and also Pinch the
valley
 Smart management, work mode can be set
 Safe battery used
 Easy installation
 Two mpp tracker input
A
B
C
D
A=565 B=669 C=180 D=455

78
Unpacking 4
Please check whether external damage to the goods before unpacking.
After unpacking, please check whether the unit damage or missing parts, if it is
happen, please contact with supplier.
SPH series and accessories as follows:
Item
Description
Quantity
A
SPH inverter
1
B
User Manual
1
C
Paper board(installation guide)
1
D
Communication cable (10m)
1
E
Current sensor( or meter)
1
F
Lead-acid battery temperature sensor
1
G
RJ45 connector
1
H
M6 setscrew
4
I
Wire terminal
12
J
Hex screwdriver
1
K
Battery power terminal
2
E. Battery installation option is not far away from the position of SPH, the length
between SPH and battery should not be more than 1.5m.
F. The ambient temperature should be -25℃~60℃(-13°F~140°F).
G. SPH can be installed in vertical or lean back on plane, please refer to the below:
H. Installation position shall not prevent access to the disconnection means.
I. In order to ensure machine can run normally and easy to operate, please pay
attention to provide adequate space for SPH, pleases refer to below:
Installation 5
5.1 Basic installation requirements
A. The installation location must be suitable for SPH's weight for a long period time
B. The installation location must conforms with dimension of SPH
C. Do not install the unit on structures constructed of flammable or thermo labile
materials
D. The ingress Protection rate is IP65 (NEMA Type 4X), and SPH can't be enclosed.
Please refer to the below:
90°
15°

10
9
5.2 Installation requires tools and RJ 45 terminal sequence of
the LAN line
J. Do not install the machine near television antenna or any other antennas and
antenna cables.
K. Don't install the machine in the living area.
L. Be sure that the machine is out of the children's reach.
M. Taking the battery fixing space into account, about the dimensions please
reference user manual.
N. The inflammable and explosive dangerous goods must not be placed around
battery in case of cause serious danger.
When installing, we need to use tools as follow, prepare the follow tools before
installing:
No.
Description
No.
Description
1
Press the RJ45 terminal
2
Press battery terminal
connector
3
Ruler
4
Unscrew nut
5
Unscrew screw
6
Knock explosion bolt
7
Drill holes on the wall
≥300mm
≥300mm
≥300mm
≥300mm
≥500mm
LAN line 1-8 colors as below:
5.3 Installing the inverter
There're two types of sensors for use with Growatt SPH. One is wired current sensor,
one is meter sensor, if you choose wired sensor or meter. Before installing you should
know something that as below:
The cable of wired sensor and meter is suggested not longer than 15m. So you need to
consider the length between SPH with combiner box for the sensor should be installed
in the live line.
LAN line RJ45 sequence as follow:
PIN
1
2
3
4
5
6
7
8
Color
White
orange
Orange
White
green
Blue
White
blue
Green
White
brown
Brown
5.3.1 Attention Layout（length of sensors consider）
Attention:
Battery installation requirement
As the system refer to battery use, we must make sure ventilation of the service
environment and temperature control in order to prevent the danger of battery
explosion, battery recommended installation environment must be strictly in
accordance with the specification,If the chosen PV modules needs to positive or
negative ground connection, please contact with manufacturer for technical support
before installation.
PV modules Capacitive Discharge Currents
PV modules with large capacities relative to earth, such as thin-film PV modules with
cells on a metallic substrate, may only be used if their coupling capacity does not
exceed 470nF. During feed-in operation, a leakage current flows from the cells to
earth, the size of which depends on the manner in which the PV modules are installed
(e.g. foil on metal roof) and on the weather (rain, snow). This "normal" leakage current
may not exceed 50mA due to the fact that the inverter would otherwise automatically
disconnect from the electricity grid as a protective measure.

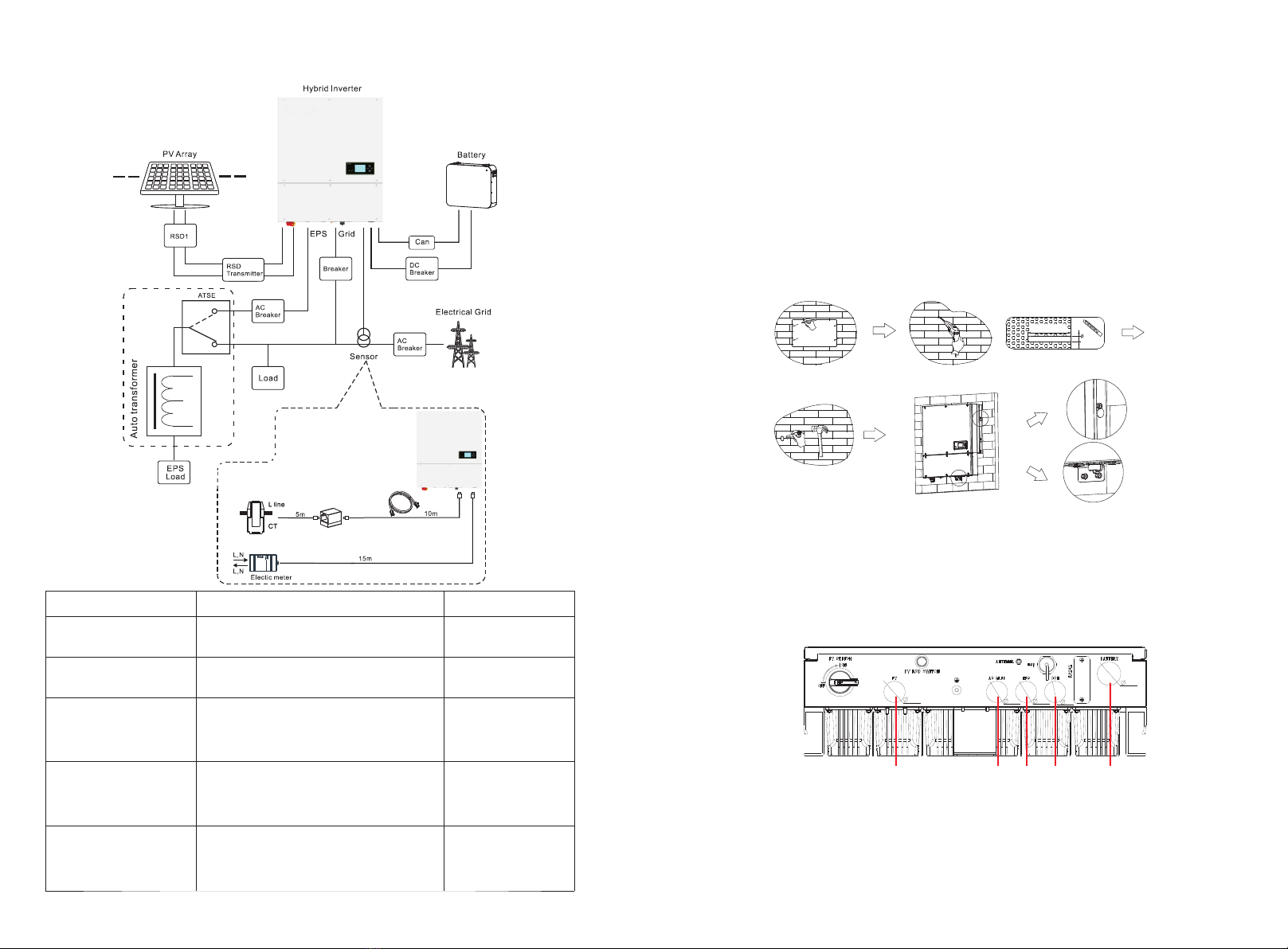

A complete grid-connected system of SPH consists of PV modules, SPH inverter,
battery, utility grid and other components as following:

12
11
1. Project the machine’s probably sizes on the wall, the thickness of wall for SPH must
be not less than 60mm.
2. Make sure the drill position, use paper board (installation guide), put the paper
board cling to the wall and make sure the top edge of paper board is level (As the chart
below).
3. Mark six points at the wall via the hole of the paper board, then remove the paper
board.
4. Drill six Ф8 holes at the mark point, the depth is not less than 55mm.
5. Knock six explosion bolt into Ф8 holes (As the chart below).
6. Hang the energy storage machine on the six setscrews.
7. Lock the nut of setscrew (As the chart below).
5.3.2 Installation of SPH
Component
Description
Source
Sensor
CT(Max:125A) or smart meter(Max:
200A)
Can be purchased
from Manufacturer
Auto-Transfer-Switch-
Transformer(ATS)
combined ATSE and auto transformer
Can be purchased
from Manufacturer
Grid switch
Recommended: a 2-pole AC circuit
breaker with a rated voltage greater
than or equal to 240 V AC and a rated
current of 40A
Purchased by the
customer
EPS switch
Recommended: a 2-pole AC circuit
breaker with a rated voltage greater
than or equal to 240 V AC and a rated
current of 25A
Purchased by the
customer
Battery switch
Recommended: a DC circuit breaker
with a rated voltage greater than or
equal to 60 V DC and a rated current of
120A
Purchased by the
customer
8mm
(0.24")
55mm(2.17")
The pipe specifications should comply with the waterproofing bolt specifications.
The following figure shows the diameters of the cable holes with waterproofing bolts
removed.
5.3.3 Installing the Pipe Fittings
1. PV cable hole 2. AC Grid cable hole (on grid power)
3. EPS load cable hole (off grid power)
4. COM cable hole (including meter com & battery com & CT cable & lead-acid
temperature sensor) 5. Battery cable hole
27.8 27.8
34.5
27.8 27.8
14 5 2 3

14
PV Array Grounding
Grounding conductor of PV panel brackets must be firmly connected to earth at PV
array side and inverter side and SP side. The sectional area of grounding conductor
should be equal to the sectional area of DC grounding conductor. The minimum wire is
AWG10.
DC Grounding
Select the DC Grounding mode according to the local standard and use the PV
grounding terminal box and DC Grounding wires of the same specification.
Grounding Device
If the positive pole or the negative pole of PV array needs to be grounded in the PV
system, the inverter output should be insulated by Isolation Transformer. Isolation
transformer must conform to UL standard.
Connection as below:
13
When connecting to electronic connection, please remove the cover of the wirebox
show as above and using pipe for routing cable. Pipe introduction as below.
When you connecting cable to terminal of inverter. A special terminal is suggested to
used, Bring the wire back through the crimp bead and flatten, then connect to inverter,
show as below:
SPH must be grounded by cable, the grounding point is showed as follow, and the
minimum grounding cable wire is AWG10.
(1) Nut
(2) Fitting
(3) Conduit
M6
5.4 Grounding connection
Cable
Type
Conductor
Cross-sectional
Area Range
Source
Energy
meter signal
cable
Battery
signal cable
Net cable,complies with UL2919,
CM/CMG (NEC type), or CMH
(CSA type)
NA
Can be purchased
from Manufacturer
Purchased by the
battery supplier or
customer
PV input
power cable
1.PV cable that meets the 600 V
standard.
2.Use cables that can withstand
90°C (194°F) or 105°C (221°F).
3.Single-core outdoor copper
cable.
10–8 AWG
Purchased by the
customer
(Optional)
Ground cable at
the PV
1.Use cables that can withstand 90°C
(194°F) or 105°C (221°F).
2.Single-core outdoor copper cable
6 AWG
Purchased by
the customer
Battery cable
1.Use cables that can withstand 90°C
(194°F) or 105°C (221°F).
2.Single-core outdoor copper cable
6-4 AWG
Purchased by
the battery
supplier or
AC output
power cable
1.Use cables that can withstand 90°C
(194°F) or 105°C (221°F).
2.Use four single-core outdoor copper
cables (L1, N, L2, PE).
L1,N,L2:
10–6 AWG
PE: 6 AWG
Purchased by
the
customer
EPS output
power cable
1.Use cables that can withstand 90°C
(194°F) or 105°C (221°F).
2.Two single-core outdoor copper
cables (L1 and L2)
12–6 AWG
Purchased by
the
customer
PV array Inverter
Transformer
Grid
L
N
PE

15 16
5.5 SPH System electrical connection Limit:
Max PV voltage: 550V (consider the lowest temperature)
Max PV input current: 13A
Remark:
1. Please do not connect to DC source!
2. For RSD function, the default brand of RSD supplier is Tigo, including AP system
and other brand RSD can be integrated. The more information please turns to
manufacturer.
Wire suggest length

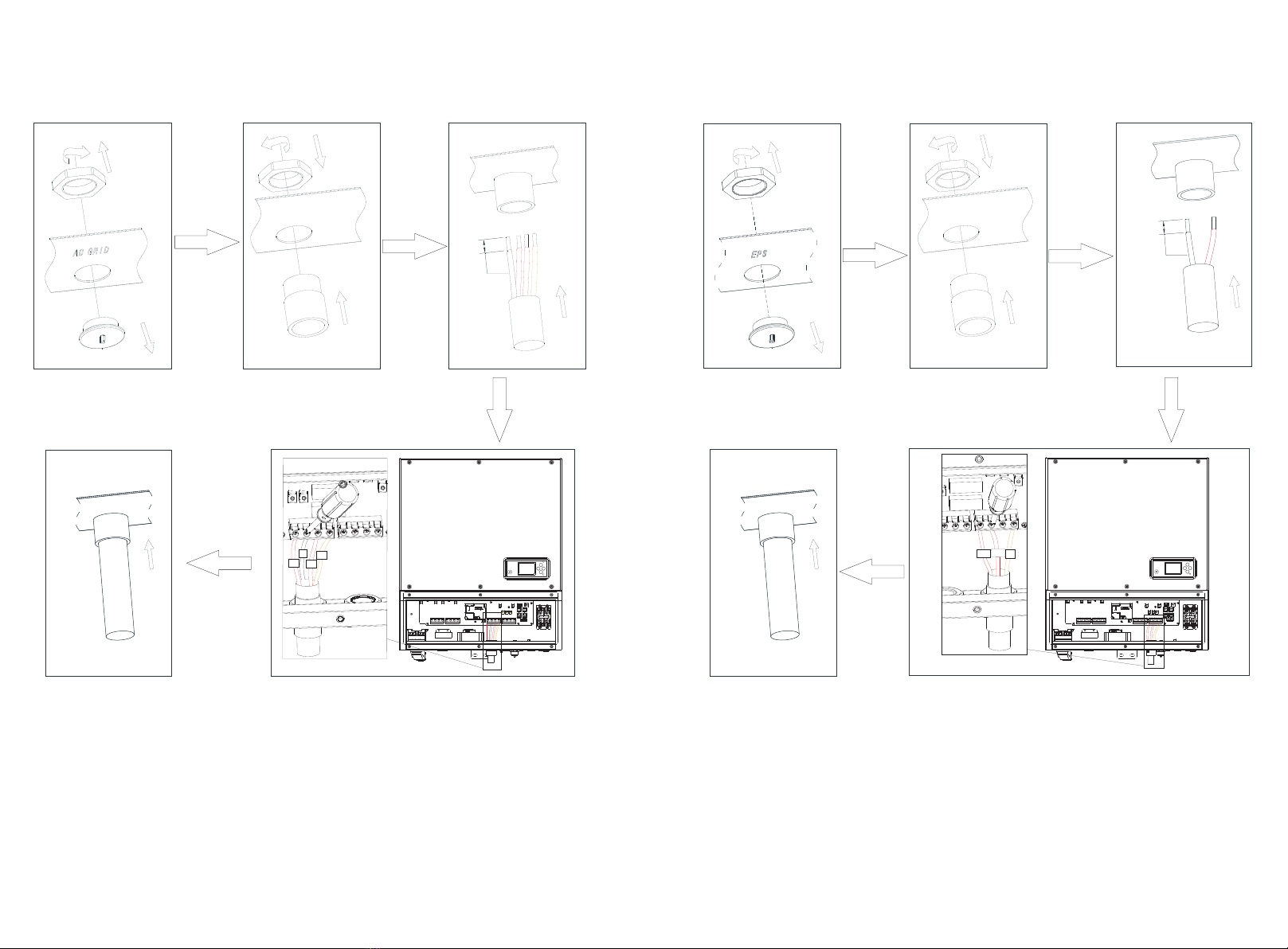

5.5.1 Connection of PV terminal
Step 1 Turn off the PV switch.
Step 2 Remove the locking nut and waterproofing bolt.
Step 3 Secure the pipe fitting to the enclosure using the nut provided with the pipe.
Step 4 Route the PV input power cable through the conduit and then fitting of the pipe.
Step 5 Connect the PV input power cable to the terminal block. connect positive
pole(+) of connection cable to positive pole(+) of PV input terminal block, connect
negative pole(-) of connection cable to negative pole(-)of PV input terminal block,
please pay attention to PV input voltage and current within permission.
Step 6 Secure the fitting to the conduit.
Step 7 Checks that the cables are connected correctly and securely. Then take
appropriate measures to ensure that the pipe conduit and fittings are secured reliably,
and seal the cable holes.
5.5.2 Connection of AC terminal and off grid terminal
SPH has a grid output terminal and off grid out terminal, look down on the SPH from
the front, the terminal on the right (on grid) is grid outlet for connecting grid, the
terminal on the left is an uninterrupted power outlet for connecting critical load.
Conduct
or cross
section
Max cable length
SPH3000
SPH3600
SPH4000
SPH4600
SPH5000
SPH6000
5.2mm2
10AWG
40m
33m
28m
26m
25m
23m
6.6mm2
9AWG
50m
42m
36m
33m
32m
29m
17mm
PV2 -
PE
PV2 +
PE
PV1 +PV1-
OFF Grid
ON Grid

17 18
Step 1: Remove the locking nut and waterproofing bolt.
Step 2: Route the AC output power cable through the conduit and then the fitting of the
pipe.
Step 3: Connect the AC output power cable to the terminal block.
Step 4: Secure the fitting to the conduit.
Step 5: Check that the cables are connected correctly and securely. Then take
appropriate measures to ensure that the pipe conduit and fittings are secured reliably,
and seal the cable holes.
EPS output terminal connection steps as follow:
Step 1: Remove the locking nut and waterproofing bolt.
Step 2: Route the EPS output power cable through the conduit and then the fitting of
the pipe.
Step 3: Connect the EPS output power cable to the terminal block.
Step 4: Secure the fitting to the conduit.
Step 5: Check that the cables are connected correctly and securely. Then take
appropriate measures to ensure that the pipe conduit and fittings are secured reliably,
and seal the cable holes.
AC output terminal connection steps as follow:
17 mm
L 1
L 2
PE
N
17 mm
E-L1 E-L 2 PE

19 20

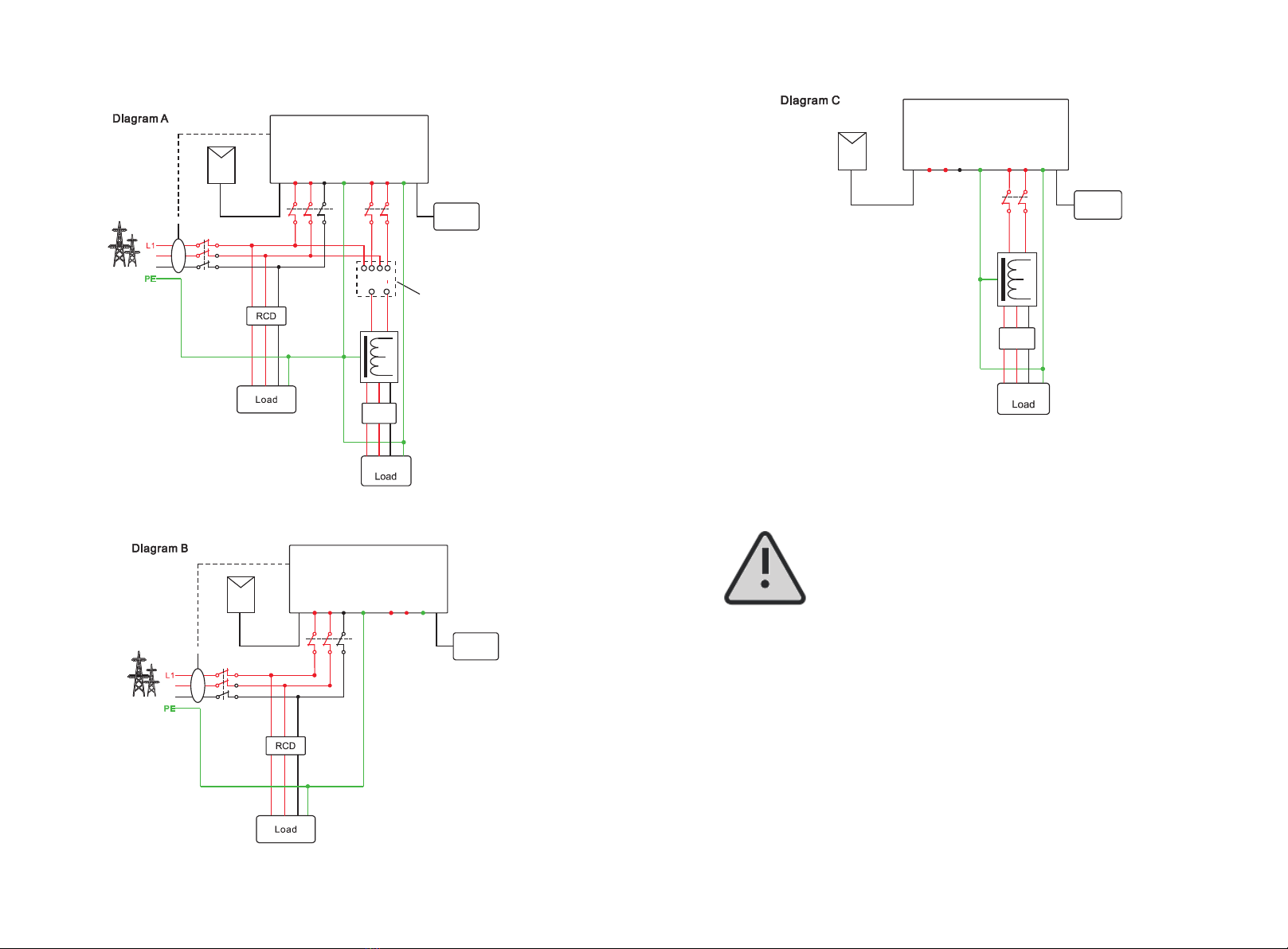

The recommended wiring diagram is as follows:
ACGRID
L1
SPHInverter
EPS OUTPUT
E E
Sensor
L1 NE
ATSE
Battery
L2
N
PV
N
L2
L2 L1 L2
UPS
L1 L2 EN
Note:
This diagram is an example for on gird system and off grid system.
ACGRID
L1
SPHInverter
EPS OUTPUT
E
Sensor
L1 NE
Battery
L2
N
PV
N
L2
L2
Note:
This diagram is an example for customer who only wants to use the on grid storage
system to max his self-consumption.
ACGRID
SPHInverter
EPS OUTPUT
E E
Battery
PV
L1 L2
UPS
L1 L2 EN
Note:
This diagram is an example for customer who only wants to use the off grid storage
system.
1. If you want to use on gird only, please refer to chart connect with AC grid and float
EPS OUTPUT.
2. If you have no battery now, you can also float BAT terminal, and this hybrid inverter
will only work like a PV inverter.
3. If you want to use both on gird power and uninterrupted power, please refer to chart
connect with AC grid and EPS OUTPUT like the chart show.
4. On grid terminal and off grid terminal can't directly connect together.
5. Off Grid terminal can't connect to grid.
6. If you want to use on gird and off grid, you can use ATS (transfer switch single
phase) like chart before or ask Growatt for help to connect them. ATS is using to switch
when SPH is not working or in fault mode. For example: if SPH is in fault mode but
there is Grid power. ATS will turn to Gird to keep Critical load having power.
7. Max EPS load should be less than 3600W.
8. The first start of system needs Grid power.
Notice:

21 22
5.5.3 Connection of battery terminal
There is a CT or meter communication in SPH inverter to monitor the power
consumption situation of residential users, so the CT terminal or meter connection
steps are as follows:
Step 1: Remove the locking nut and waterproofing bolt..
Step 2: Route the “CT” or meter cable through the conduit and then the fitting of the
pipe.
Step 3:Insert the RJ45 plug of the network cable into the “CT” pin connector or meter
communication cable into the “ Meter” pin connector on the inverter until it snaps into
place.
Step 4:If no other cables need to be installed, Secure the fitting to the conduit.
Installation steps as follow:
Step 1: Remove the locking nut and waterproofing bolt..
Step 2: Route the battery power cable through the conduit and then the fitting of the
pipe.
Step 3: Connect the battery power cable to the terminal block..
Step 4: Secure the fitting to the conduit.
Step 5: Check that the cables are connected correctly and securely. Then take
appropriate measures to ensure that the pipe conduit and fittings are secured reliably,
and seal the cable holes.
Note:
We suggest the distance between battery and SPH no longer than 1.5m, and the
power line area must be larger than 6 AWG.
5.5.4 Connection of CT terminal or meter
Install battery cable steps are as follows:
-+
C T

24
23
Note:
1. Meter and CT can’t be installed at same time, please set the sensor model when
selecting CT or electricity meter, please refer to section 6.3.3 for details.
2. CT max current is 125A, please do not exceed this range.
3. CT wire (5m in length) specification: RJ45, standard LAN line (one end with 8P
modular plug, the other connected with transformer). But if the length is not enough,
customer can add cable, so the length can be increased to 15m max, the operation is
as follow chart:
4. During the actual operation, please pay attention to the installation of current
transformer as the diagram shows below:
As illustrated above, open the current transformer and you can see an arrow labeled
on it indicating the direction of current. Put the live wire among the under-detection
wires onto the current transformer, in the USA , there are
two live wires need to add current sensor, do not add the current sensor in the same
live wire. After latching the current transformer, the installation has been finished.
Notice:
1. The direction (from K to L) of the arrow on the current transformer is corresponding
to the direction of the current in live wire from Grid to Load. Sensor needs to be placed
in the power distribution cabinet.
2. Meter must be provided by Growatt. If not, maybe meter can't communicate with
SPH inverter.
3. The more detail description of meter installation, please turn to meter user manual.
4. In USA or other split phase market. Two current sensors must add to the separated
two live wires.
or other split phase market

25 26
Note:
1. If you are using a lead-acid battery, you do not need to install this communication
cable.
2. If the cable such as “CAN” cable is not used, please do not remove the filler plug
from the cable support sleeve.
When using CAN communication with lithium batteries (for example HOMEe11),
connect lithium battery terminal (RJ45) steps as follows:
Step 1: Remove the locking nut and waterproofing bolt..
Step 2: Route the “CAN” cable through the conduit and then the fitting of the pipe.
Step 3: Insert the RJ45 plug of the network cable into the “CAN” pin connector on the
inverter until it snaps into place.
Step 4: If no other cables need to be installed, Secure the fitting to the conduit.
5.5.5 Connection of communication terminal for lithium battery (CAN)
Can
5.5.6 Connection of temperature probe for lead-acid battery
When customer using lead-acid battery, the temperature probe of the lead-acid
battery is used to detect the ambient temperature of the lead-acid battery, the battery
temperature cable of the SPH side connection steps are as follows:
Step 1: Remove the locking nut and waterproofing bolt..
Step 2: Route the “NTC” cable through the conduit and then the fitting of the pipe.
Step 3:Insert the RJ45 plug of the network cable into the “NTC” pin connector on the
inverter until it snaps into place.
Step 4:If no other cables need to be installed, secure the fitting to the conduit.
Note:
1. If you are using a lithium battery, you do not need to install this temperature probe,
the probe of the temperature cable should be attached to the surrounding environment
of the lead-acid battery, and the length of this cable is 1.5m, so pay attention to the
distance of battery and SPH.
2. If the cable such as “NTC” (lead-acid battery temperature sensor) cable is not used,
please do not remove the filler plug from the cable support sleeve.
NTC

28
27
5.5.7 Connection of Dry contact
The dry contact is used to communicate with external devices (such as remote start
hot water heater). The wiring steps are as follows:
Step 1: Remove the locking nut and waterproofing bolt..
Step 2: Route the “DRY” cable through the conduit and then the fitting of the pipe.
Step 3:Insert the RJ45 plug of the network cable into the “DRY” pin connector on the
inverter until it snaps into place.
Step 4:If no other cables need to be installed, secure the fitting to the conduit.
Note:
1. If the cable such as “Dry contact” cable is not used, please do not remove the
filler plug from the cable support sleeve.
2. Dry contact can give a 12V and less than 200mA source output to driver relay
and so on. Please be careful of the capacity of this power.
5mm
Commissioning 6
6.1 Commissioning of SPH
Electrify SPH after all installation of Part5 be finished, here are the steps:
1. Turn on PV first
2. Then turn on Grid
3. Last turn on battery
If PV Grid and battery are available, system would work on the “normal” mode. When
the SPH on the normal mode, the screen showing “Normal”, LED is green. If SPH not
enter normal mode successful, especially the LED is red, you need to check below:
1. Make sure all the connection is correct.
2. All the external switches are on.
3. Inverter built -in switch is on.
4. Make sure the lithium battery is on.
5. Refer to Part 9.1 for correction.
You can refer to Part 6.3.4 for work mode setting, then configure monitor, finish
commissioning lastly.
6.2 Operation modes
6.2.1 Normal mode
Normal mode is working state which including online mode and backup mode.
Online mode
User can set an appropriate priority mode according to request when SPH working on
the online mode. If customer uses the LCD and key settings, you can only set one
period, but if you use website settings, you can set up to three periods of the priority
mode.
(refer to 6.3.4)
1. Load first: Load first is the default mode, when it's working in this mode, PV energy
would offer to load and battery prior; when PV is Insufficient, battery would discharge;
when PV is sufficient for load, the excess energy would feed to battery. If there is no
battery or battery is full, the excess energy would feed to Grid (except anti-reflux).
2. Battery first: When SPH working in this mode, battery would be charged first, it's
suitable working on the period when the electric charge is low. user need to set the
mode ON and OFF time, and the end time of battery SOC. Users can set power rate
which less than the battery maximum output power. If the customer doesn't enable the
AC CHG (AC grid charging functions). Inverter will charge battery by PV power as
large as it can do. If the customer enables the AC CHG (AC grid charging functions).
Inverter will charge battery by PV power and AC power from grid as large as it can do.
3. Grid first: When SPH working in Grid-first mode, the PV energy would feed to Grid
first. User can choose the period when electric charge is high. User need to set the
mode ON and OFF time, and the end time of battery SOC. User can set power rate
which less than the battery maximum output power.
offgrid mode
If Grid lost, system would turn to offgrid mode (user can disable it, refer to 6.3.4) and
EPS OUTPUT will keep powering the load, all the energy from PV and battery, if the
PV also lost, then only battery discharge. Mind you, SPH maximum output power is
3680W in this mode, the load which connect with EPS LOAD should less than 3680W.
Notice:
1. Users only can set one period for battery first and Grid first on the LCD, if users
need set more pleases login shineserver or shinephone (the biggest period is three).
2. If users need Grid charge battery, users need input password on the SC surface and
set the AC CHG to enable.

29 30
Back up mode
Back up mode is used for bad weather, if back up mode is enable, battery will be
charged first. Customer can set up charging power ratio and stop SOC. If back up
mode continued more than 3 days. LED will flashing red to warning stop back up
mode. If back up mode continued more than one week. SPH will stop back up mode
and charge to online mode or offline mode automatically.
6.2.2 Fault mode
The SPH's intelligent control system could monitor and adjustment system's status
continuously, when SPH inverter monitoring anything unexpected happen, such as
system fault or machine fault ,the LCD will display the fault information, in fault mode,
the LED light will be lighten.
Notice:
1. The detail's fault information please refer to 9.1
2. Some fault information is in order to remind users that might have some faults
occurred in inverter side.
6.2.3 Programming mode
Programming mode indicates the SPH is updating, don't cut out power when it's
updating until the processing is finish, SPH inverter would log out automatically when
the updating finish and turn to other mode.
6.2.4 Checking mode
Before SPH work in normal mode, it will go to self-check mode. If all are ok, system will
go to normal mode, otherwise, it will go to fault mode.
6.2.5 Standby mode
If the system hasn't faults while the condition is not qualified, SPH would stay at
standby mode.
6.2.6 Shutdown mode
If customer need SPH inverter stop working, customer must disconnect all the energy
source, then SPH inverter will turn into shutdown mode automatically.
The following is the shutdown procedure:
1. Shutdown the PV side
2. Turn off battery switch.
3. Shut down AC power of SPH. Then you can see the both LED and LCD of SPH are
off.
Notice:
After all the actions are done, you still have to wait for more than 5 minutes.
6.3 Display and button

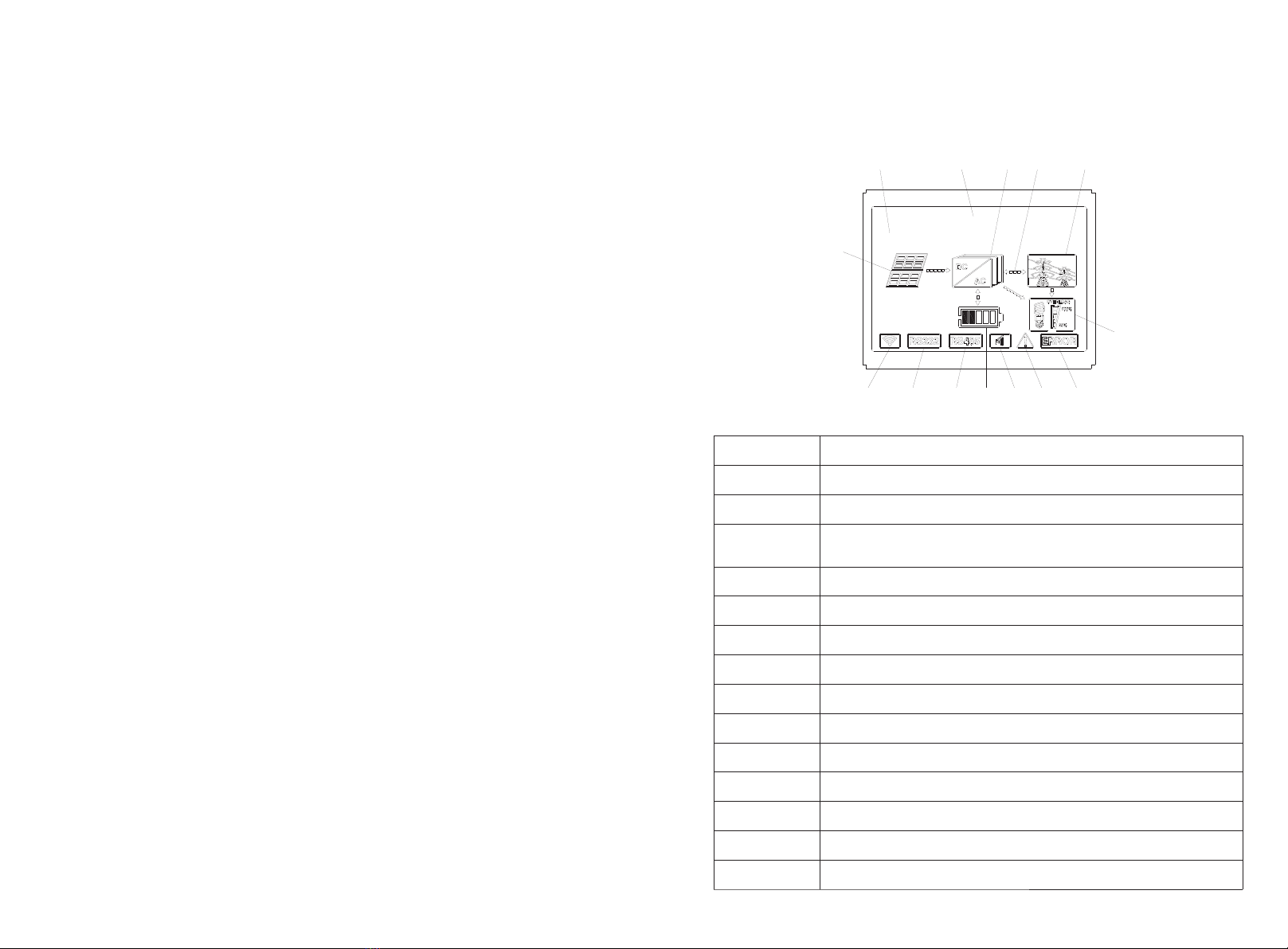

6.3.1 LCD display area
Location
Description
A
Status
B
Information
C
PV input (If you connect two tracks, it will show two. Otherwise
show one)
D
SPH inverter
E
Power flow line
F
Grid
G
Battery (Show the SOC in five grid, Every grid represents 20%)
H
Local load
I
Wireless communication
J
RS232
K
RS485
L
Buzzer(Reserved)
M
Warning
N
Fault
Vb/Cb:50V/40%
Normal
B A
C
D F
NML
G
KJI
H
E

31 32

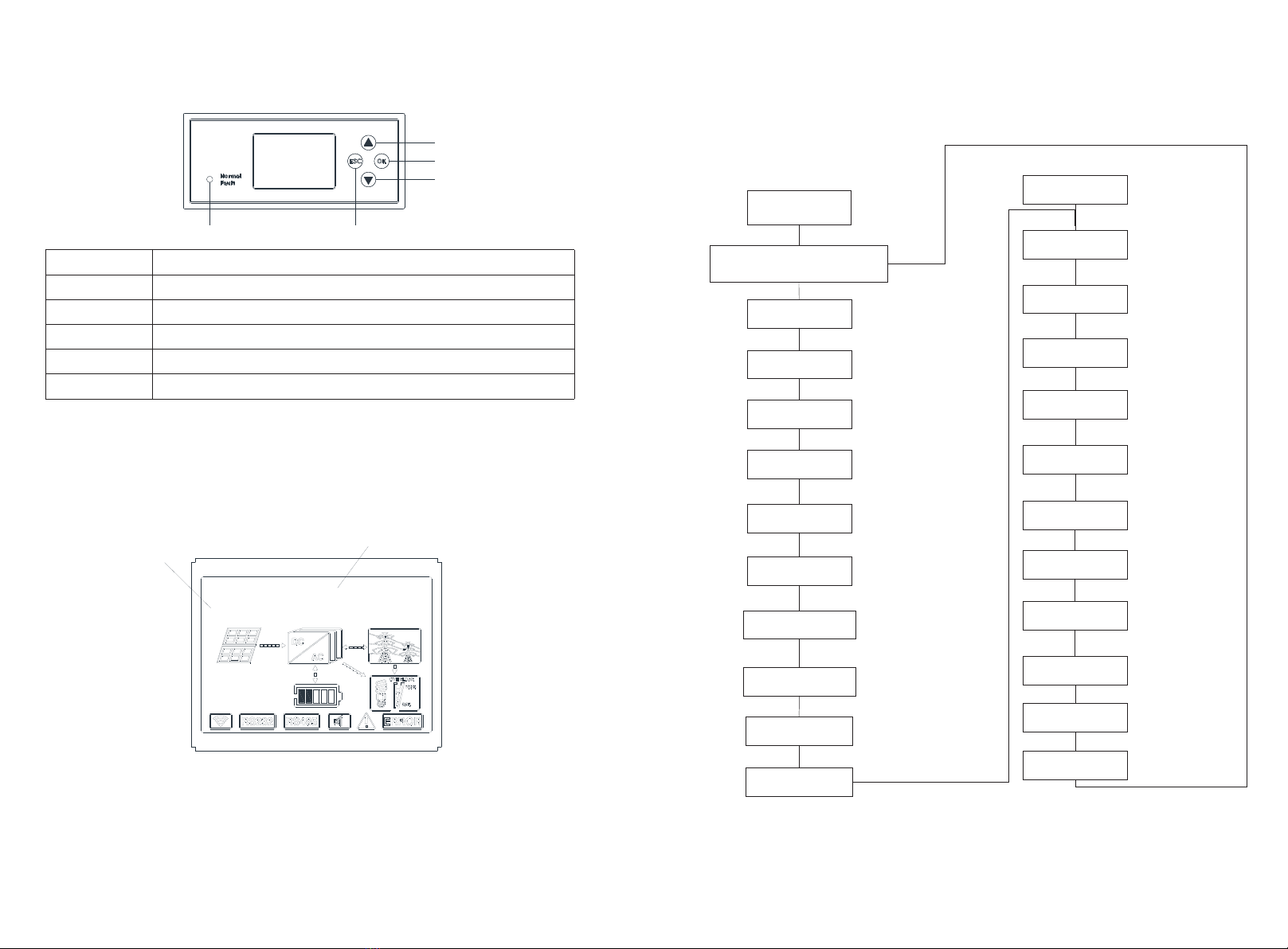

6.3.2 LED and button instruction
A B
C
D
E
Location
Description
A
LED
B
ESC- button(cancel control)
C
Down-button
D
Enter-button
E
UP-button
Notice:
LED showing status of SPH, it has two colors, one is green and another is red. Please
turn to 3.1 and read the detail of LED.
6.3.3 LCD display column
LCD display column is used to show the current state, basic information and fault
information. Also include language setting, program charging/discharging priority and
system time. On default condition will take turns to display the information.
Vb/Cb:50V/40%
Normal
BA
The A line's concluding information as follow:
1. Standby state: SPH is in standby state. No error in this state, but for other reasons,
make it in a wait state.
2. Normal state: SPH is normal working state.
3. Checking state: SPH is in self-check state, if there is no error or warning, SPH will go
to normal state or standby state. Otherwise it will go to fault state.
4. Programming state: SPH is in updating firmware state.
5. Fault state: SPH has fault information, it will be in stopped operational protection
state.
The B line's information as follow:
In normal, it will turn on page automatically, when pushing the button “UP”, the order
of the paging information as follow:
WorkMode
Input&Output Para
WorkMode
(Lead acid)Vb:xx.xV
(Lithium)Vb/Cb:xx.xV/xxx%
WorkMode
Vpv:xxxV/xxxV
WorkMode
Ppv:xxxxW/xxxxW
PV1/PV2 voltage
Battery
information
WorkMode
Grid:xxxV/xxHz
WorkMode
EPS:xxxV/xxHz
WorkMode
Po:xxxxW/xxxxVA
Grid information
Output AC
Power
EPS output voltage
WorkMode
EPS:xxxxW/xxxxVA
WorkMode
Pbat: (+/-)XXXX W Battery power
EPS output power
WorkMode
Epv_d:xxxx.x KWh
WorkMode
Epv_a:xxxx.x KWh
WorkMode
Ec_d:xxxx.x KWh
WorkMode
Ec_a:xxxx.x KWh
WorkMode
Ed_d:xxxx.x KWh
WorkMode
Ed_a:xxxx.x KWh
WorkMode
SerNo:xxxxxxxxxx
PV1/PV2 today energy
PV1/PV2 total energy
PV1/PV2 input power
Battery Charge_today
energy
WorkMode
Pm: (+/-)XXXXW
Power to grid or to user
Battery Charge_total
energy
Battery Discharge_today
energy
Battery Discharge_total
energy
WorkMode
20XX/XX/XX/ XX:XX System Time
WorkMode
Model:xxxxxxxxxx
WorkMode
FW Version:xxxx
Serial number
Machine model
Firmware version
To grid is -
To user is +
WorkMode
Eac_d:xxxx.x KWh
WorkMode
Eac_a:xxxx.x KWh
AC output_Etoday
AC output_Etotal
WorkMode
Per_Load: % EPS load Ratio
WorkMode
Eam_a: (+/-)XXXXKWh AC output_EtoTal @RGM meter
statistics

33 34
Note:
1. “Down” control command (if pushing “up” button, command will go back).
2. Workmode depend on the situation. If SPH is normal state, it will show “normal”. If
SPH is standby state, it will show as “standby” etc.
3. Some special definitions are explained, for example: Vb means the voltage of
battery. Cb means the capacity of lithium battery (only lithium battery shows this
data). Pm means the monitor power of user.
6.3.4 Work mode set up
Keep pressing “enter ”for 3S, you can enter set up surface, in the set up surface you
need hold button Enter or ESC 1S for selection, you can see the surface as showing
below.
Basic Parameter
WorkMode
WorkMode
Configuration
WorkMode
MODE Change
WorkMode
Priority
WorkMode
Offgrid
Press “enter” key more than
3 seconds into setup mode
Press “down” key
to the next item
Press “enter” key more
than 1 seconds to make sure
Default Set
WorkMode
Backup
WorkMode
ExportLimit
WorkMode
1. Under the Basic Para, you can see the setup options below after pressing Enter for
In the basic Parameter, you can set language (English default), system time, Rated
voltage (default is 240V), lead-acid cell charging voltage (default is 58V), discharge
low voltage (default is 48V) and lead-acid constant current (default is 75A).
2. Under the Off gird mode, you can see the setup options below after pressing Enter
for 1S:
In the Off grid you can set EPS, including enable or disable (default is enable), AC
voltage(default is 240V) and frequency (default site 60HZ).
WorkMode
Off grid
WorkMode
WorkMode
WorkMode
Off grid: Enable
Disable
ACVolt: 240 V
208
230
WorkMode
AC Freq: 60 Hz
50
Press “enter” key more
than 1 seconds to make sure
Press “down” key
to the next item
Press “enter” key more
than 1 seconds to make sure
EPS setup
WorkMode WorkMode
Language
WorkMode
English
WorkMode
System time
WorkMode
xxD/xxM/xxxxY
WorkMode
Lead-acid CV
WorkMode
58.0 V
WorkMode
Lead-acid CC
WorkMode
75 A
Press “enter” key more
than 1 seconds to make sure
Press “down” key
to the next item
Press “enter” key more
than 1 seconds to make sure
Range from 55 to 60V,
and the accuracy is 0.1V
Range from 0 to 75A, and
the accuracy is 0.1A
WorkMode
Lead-acid LV
WorkMode
48V
Range from 42 to 50V,
and the accuracy is 0.1V
Basic Parameter
Only display when
battery type is lead-acid
Only display when
battery type is lead-acid
Only display when
battery type is lead-acid
WorkMode
Rated voltage
WorkMode
240V
208V
